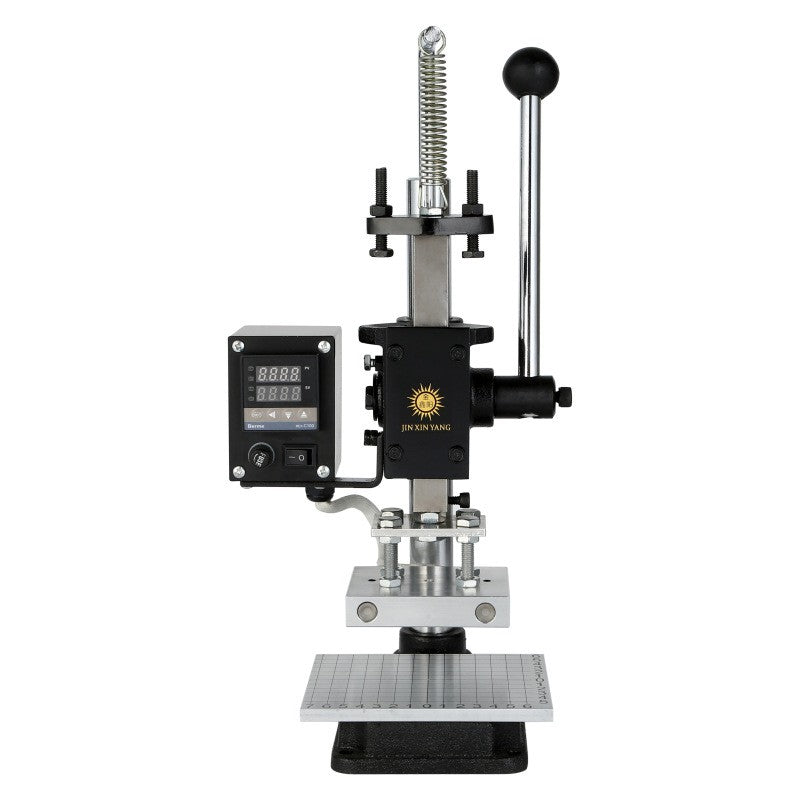

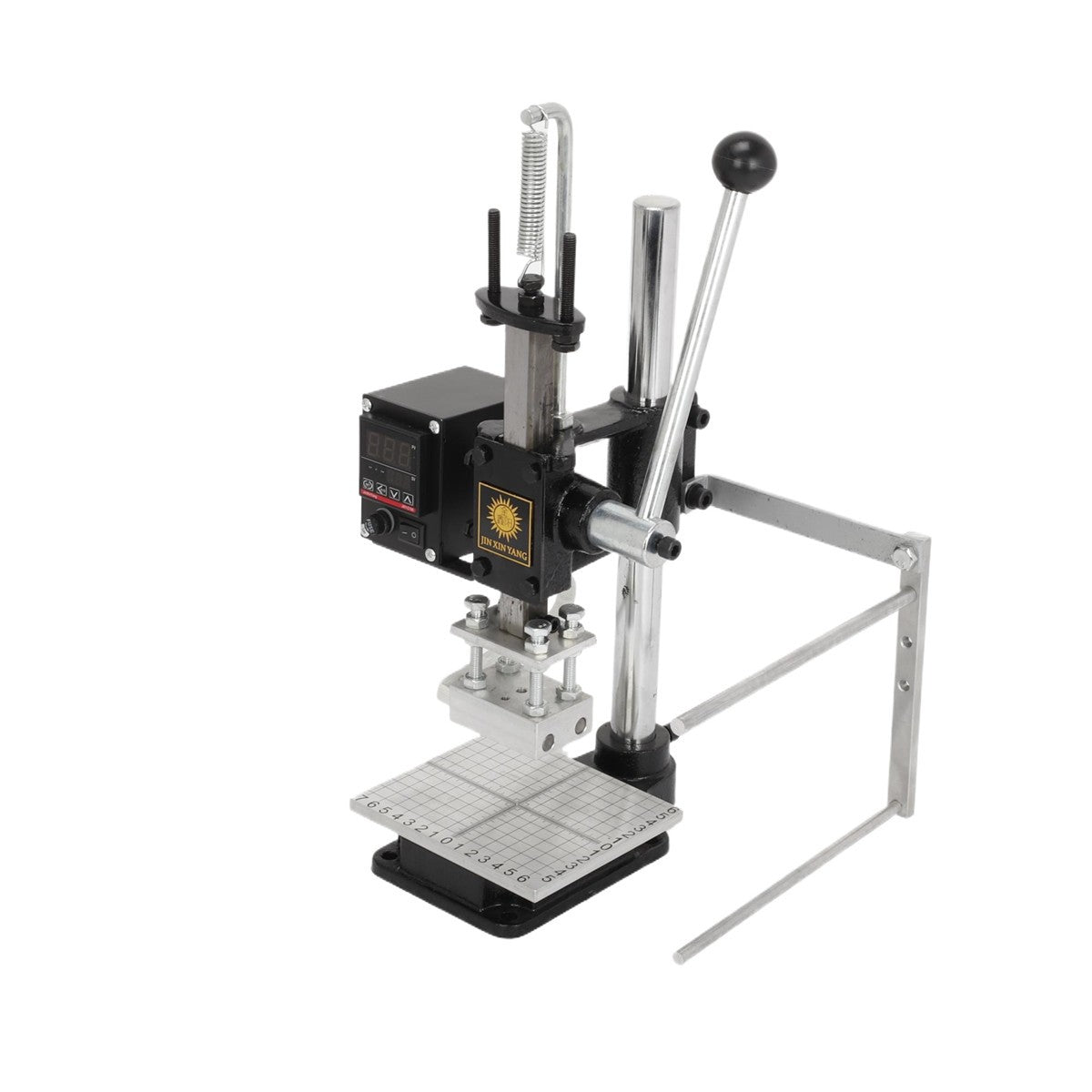

Upgraded Hot Foil Stamping Machine 5x7cm Leather Bronzing Pressure Mark Machine
Expected Delivery on - .
Upgraded Hot Foil Stamping Machine 5x7cm Leather Bronzing Pressure Mark Machine
PRODUCT DETAILS

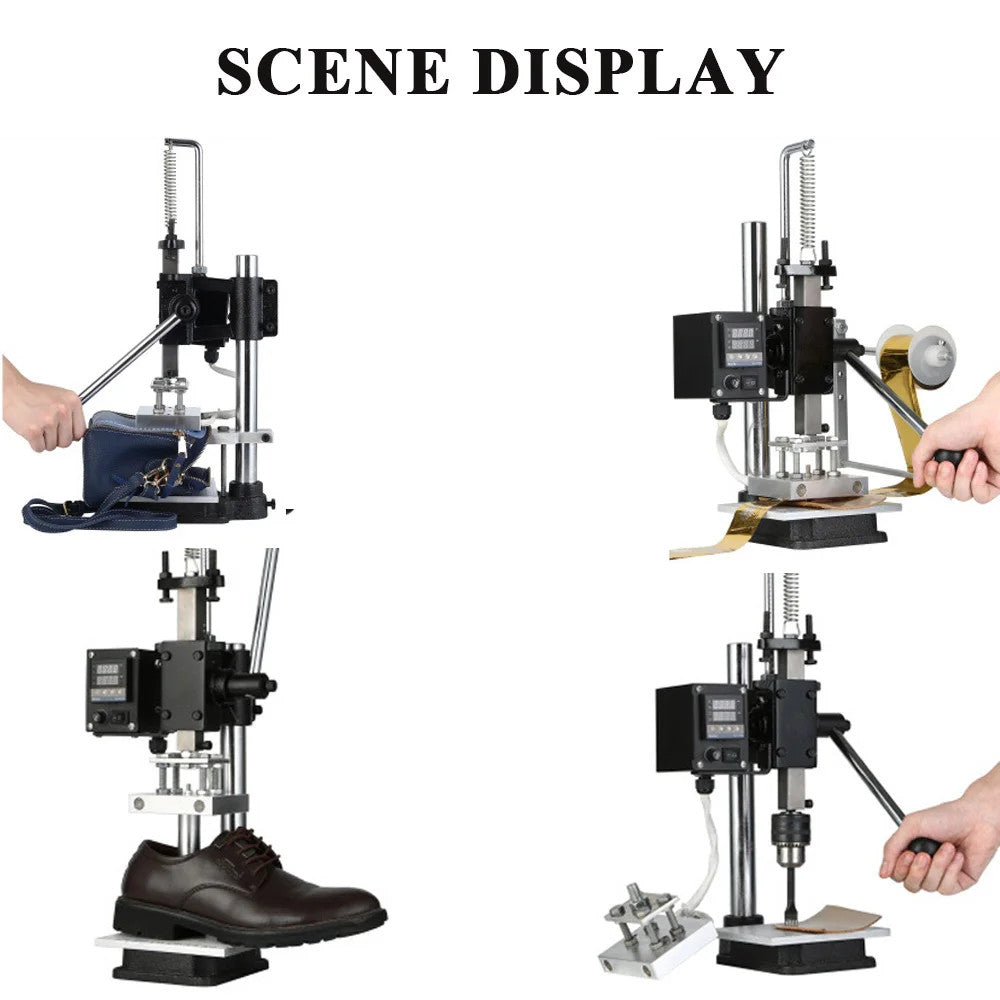

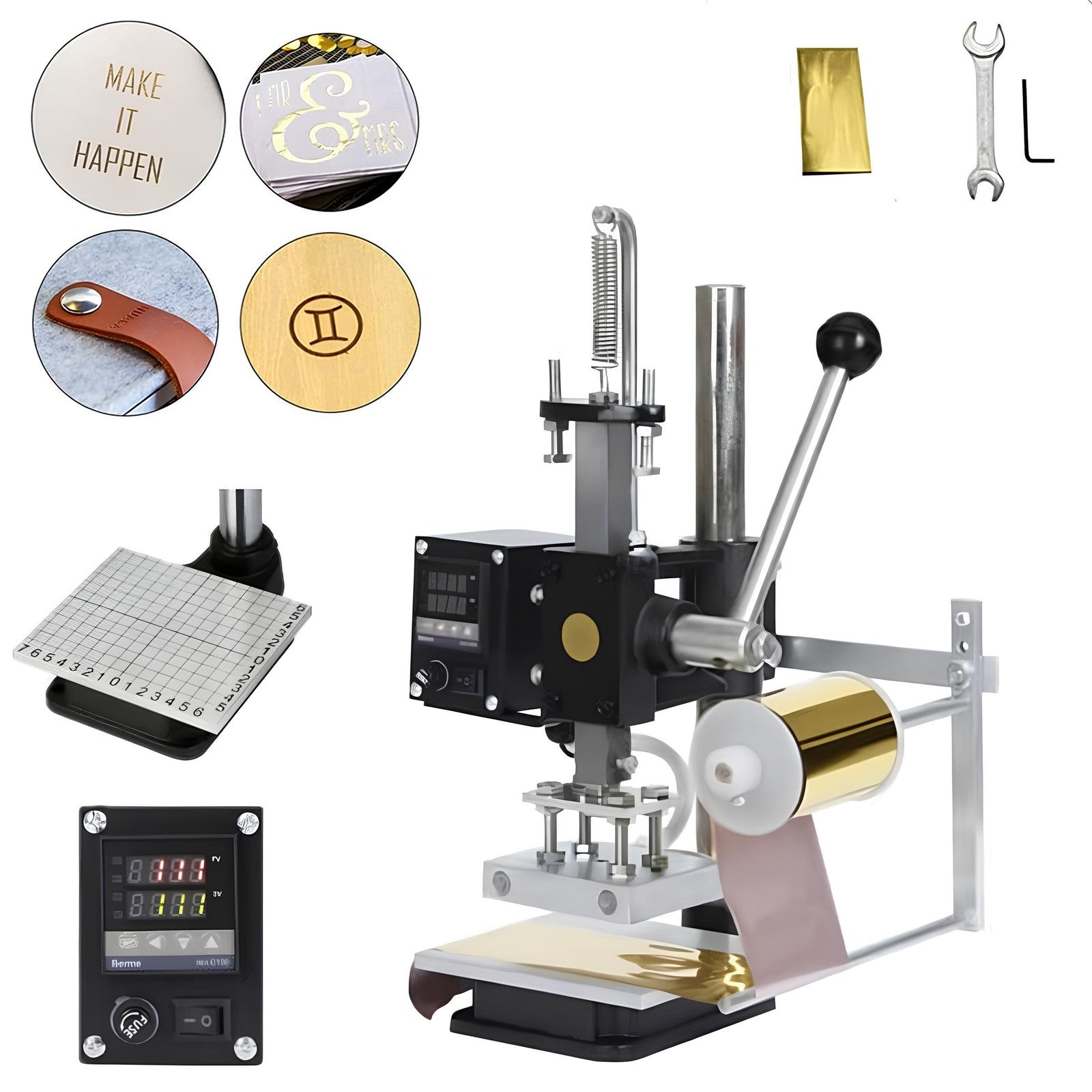

Press logo on leather, PVC, PU, business card, paper, plastic and other materials (gold stamping or hot stamping); wood, leaves, bread, etc. (hot stamping).

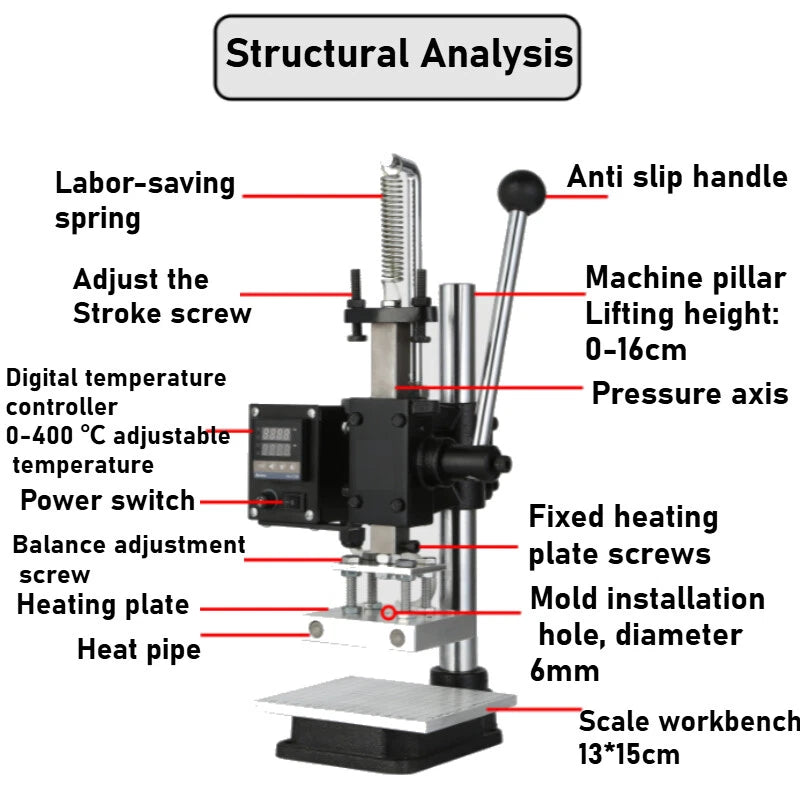

Feature:

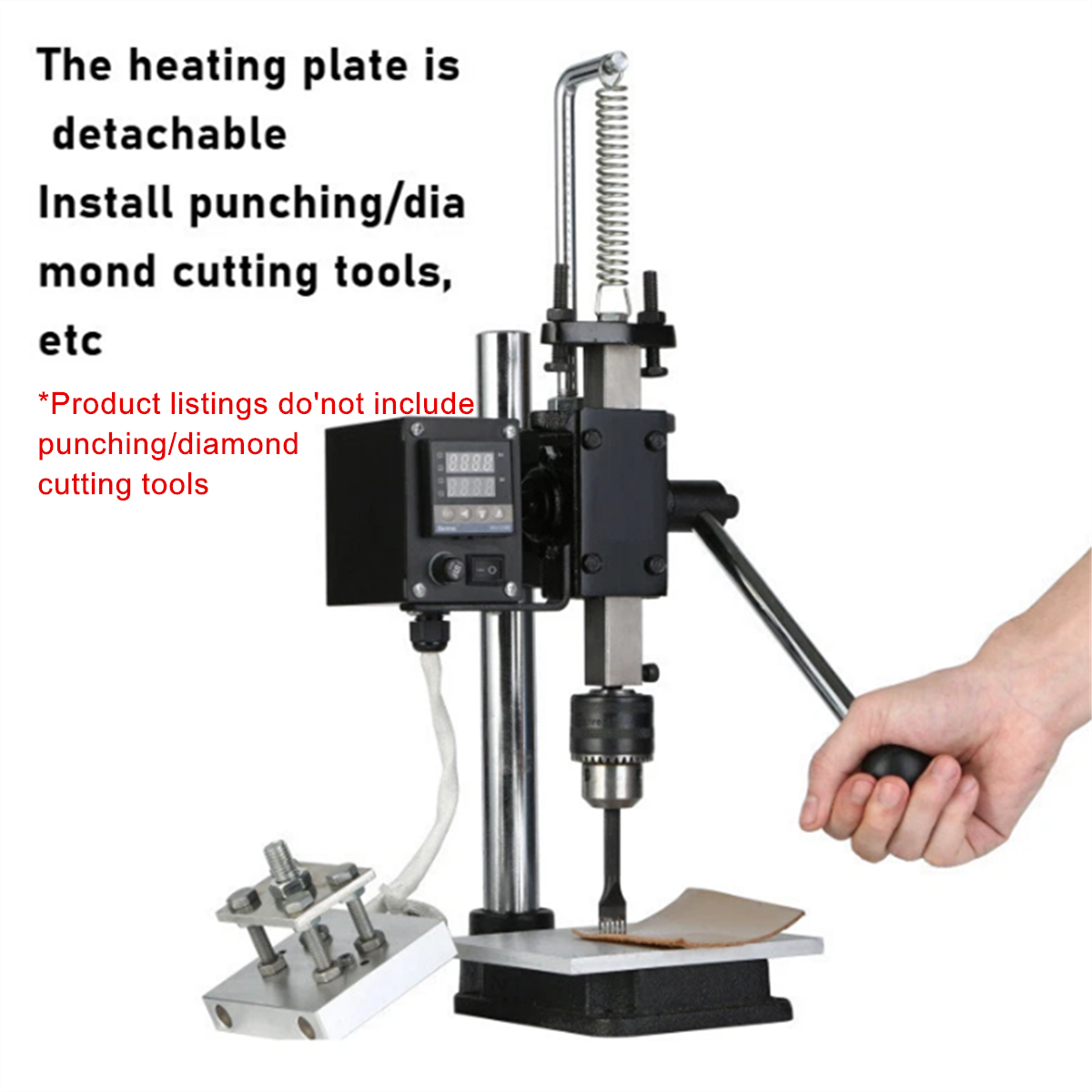

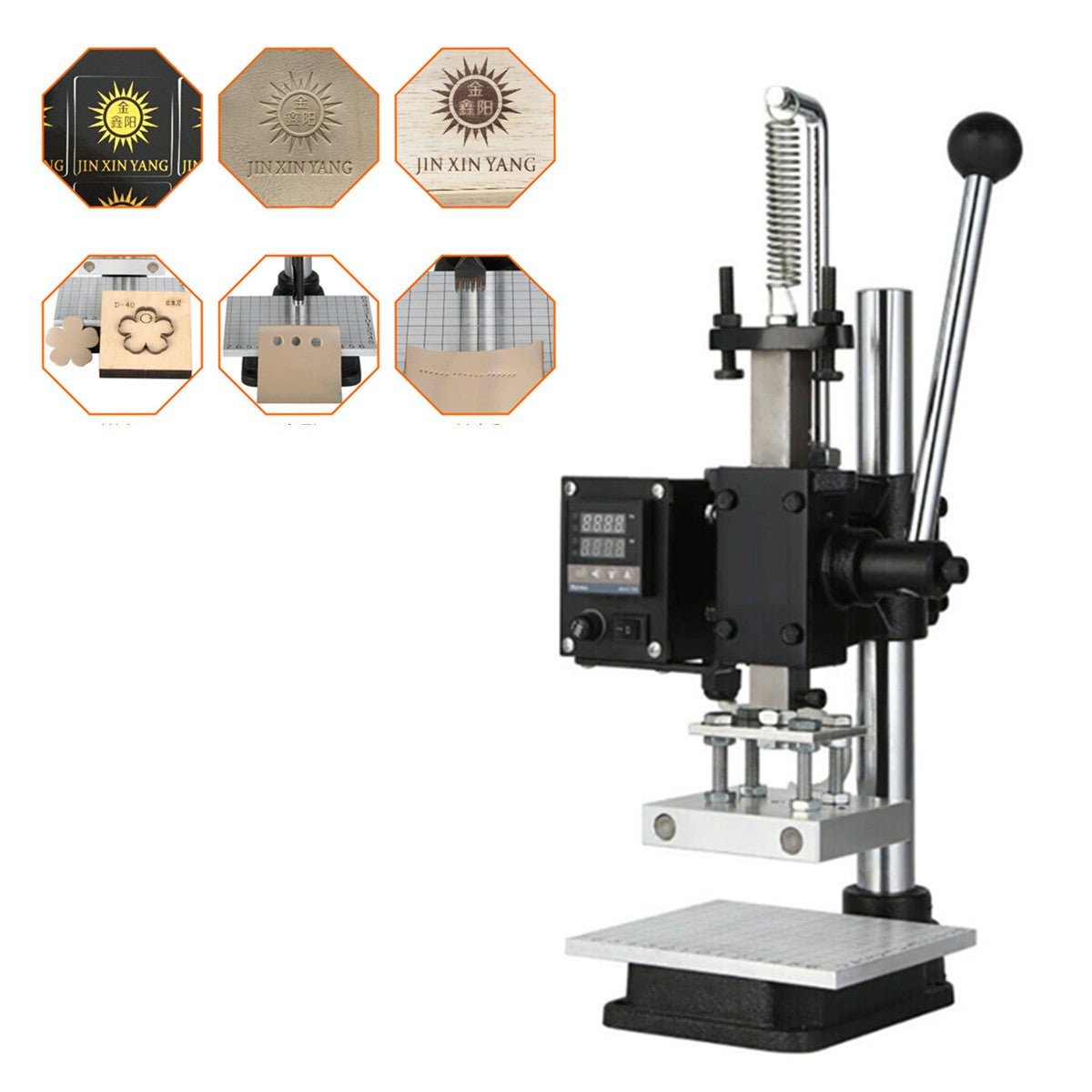

Multi-functional use, can be used for stamping, punching, hot stamping, cutting die and so on
With laborsaving spring, and big pressure (160kg)

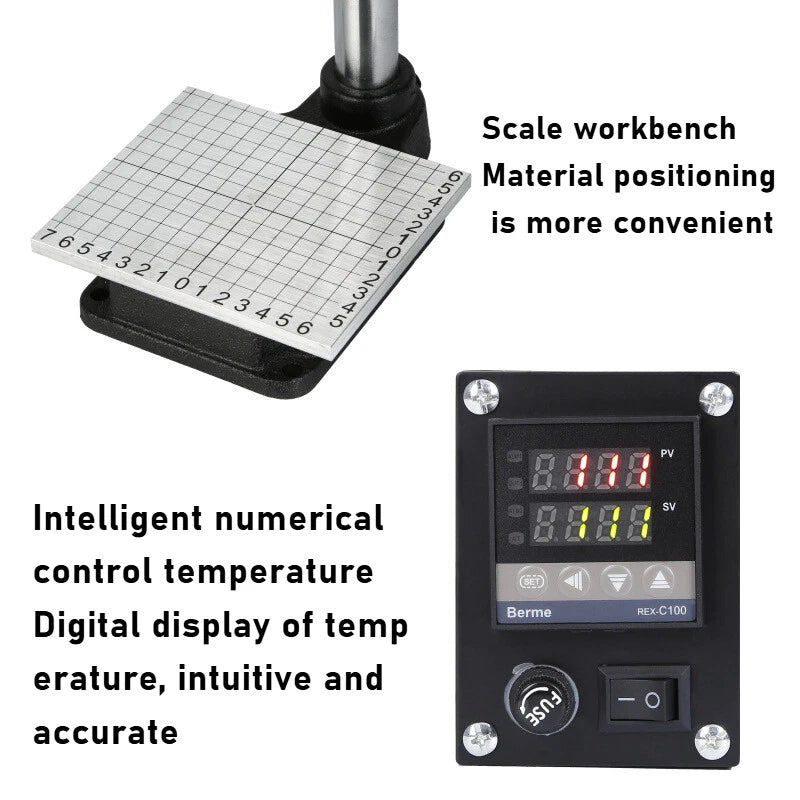

Double temperature display, precise control
Height adjusted range: 0-16cm
Switch and fuse on the front panel, easy to operate

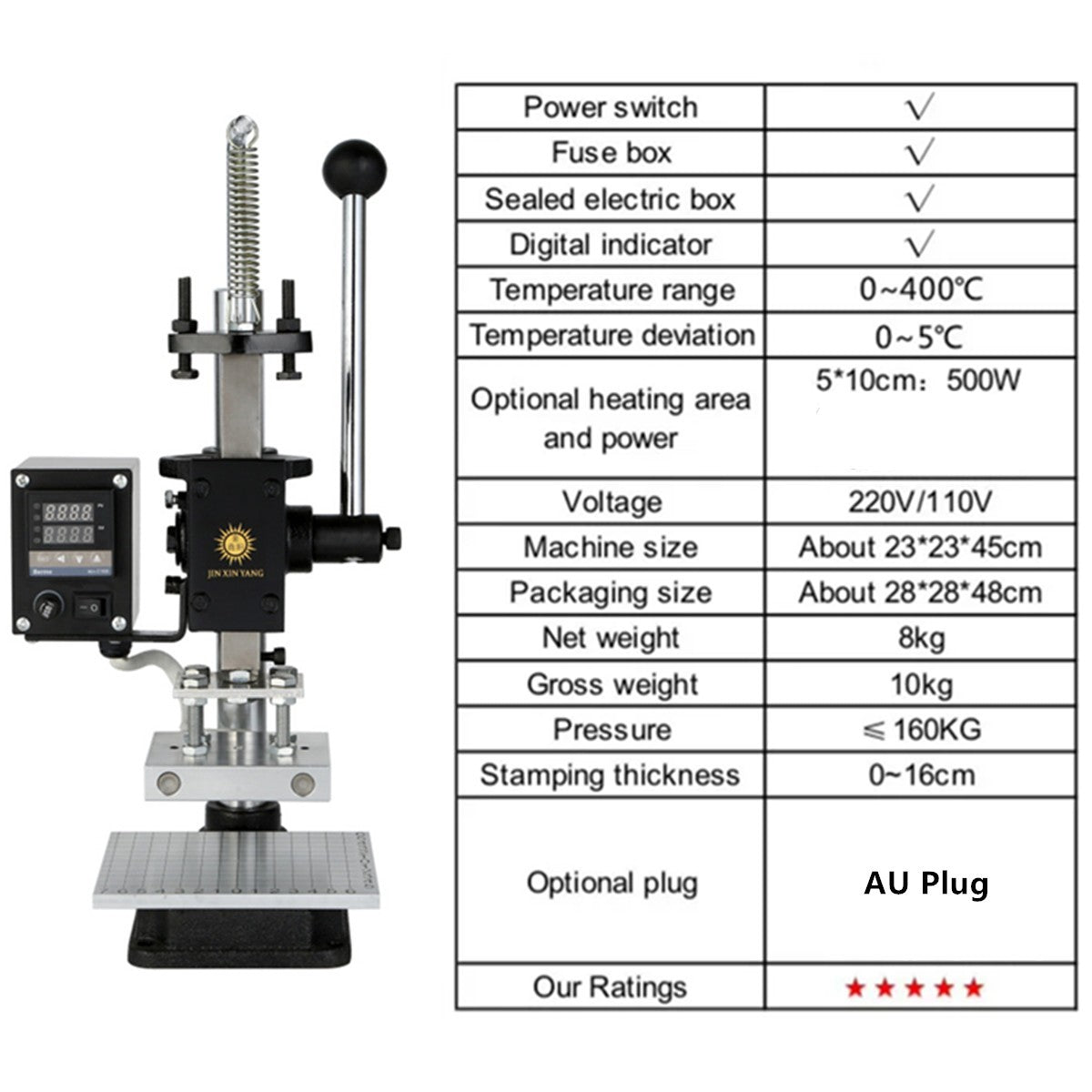

Specification:
Name: Manual Hot Press Machine
Model: XY2-HSP-0507
Voltage: AC 220V/50Hz
Power: 300W
Heating area: 5x7CM

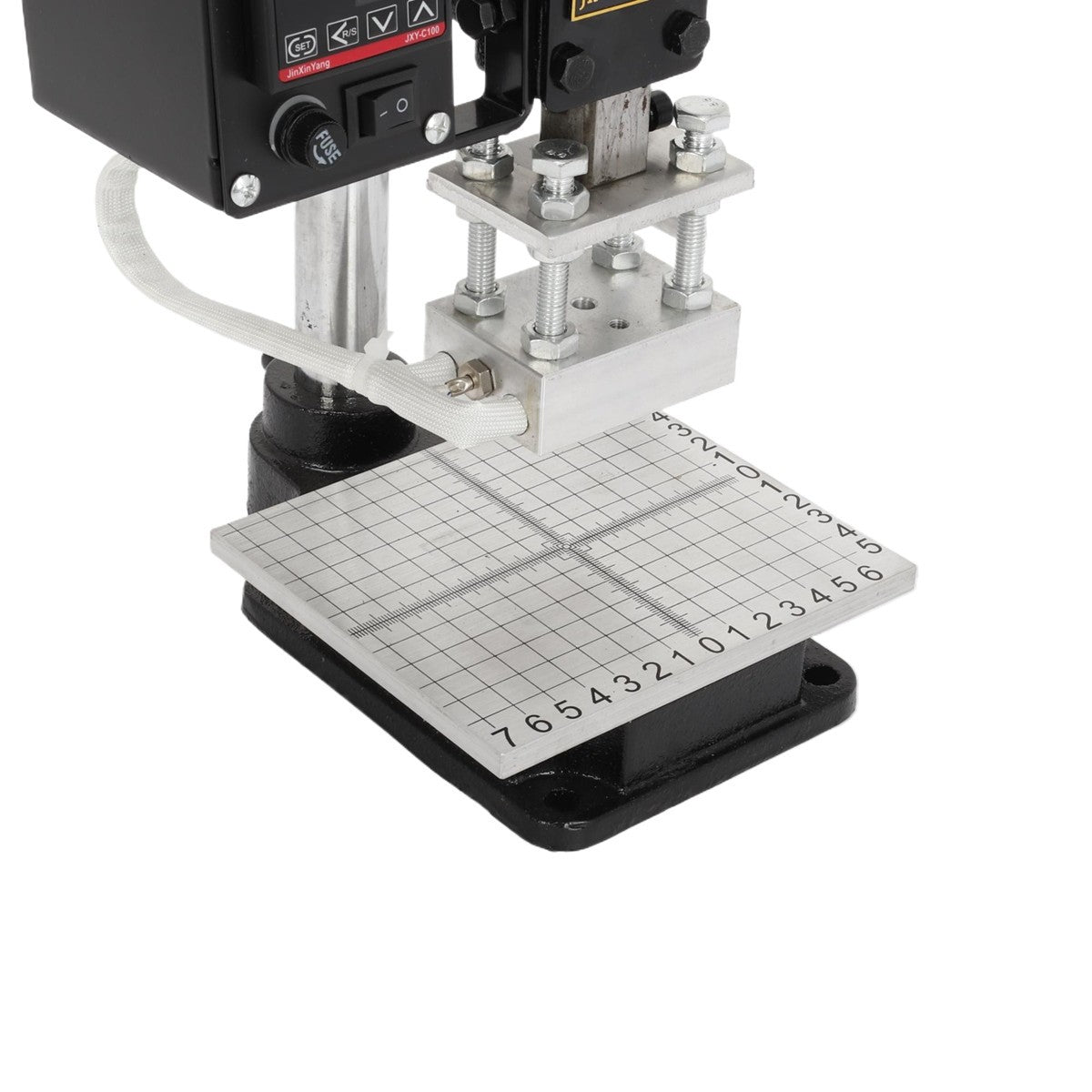

Worktable area:13*15cm
Lifting height: 0-16CM (adjustable)Temperature range: 0-400℃
Machine pressure: ≤160KG
Product size: 23x23x46CM
Packing size: 29x29x49.5CM
Net Weight: 8KG
Gross weight: 10KG
Hot stamping temperature for reference:
Papers: 100-130℃
Soft plastic: 80-100℃
Hard plastic: 120-130℃
Soft PVC: 100-120℃
Leather: 130℃
PVC: 120℃
Cattlehide: 180℃
Synthetic leather: 160-180℃
Foil stamping temperature for reference:
Leather: 120-130℃
Hard plastic: 120-130℃
Soft PVC: 100-120℃
Note:
Material requirements
The material for hot stamping must meet the requirements of being flat and smooth
The material for hot pressing/imprinting must meet the requirements of being flat and malleable
The materials for die-cutting/punching/diamond cutting must meet the following requirements: flat and with a thickness of less than 5 millimeters
Material size
The material thickness is less than 16cm. If it is greater than 16cm, customized pillars are required for use!
Length * width ≤ 18 * 18cm can be printed in the center of the material; Length * width>18 * 18cm cannot be printed in the center of the material,only the upper or lower part can be printed

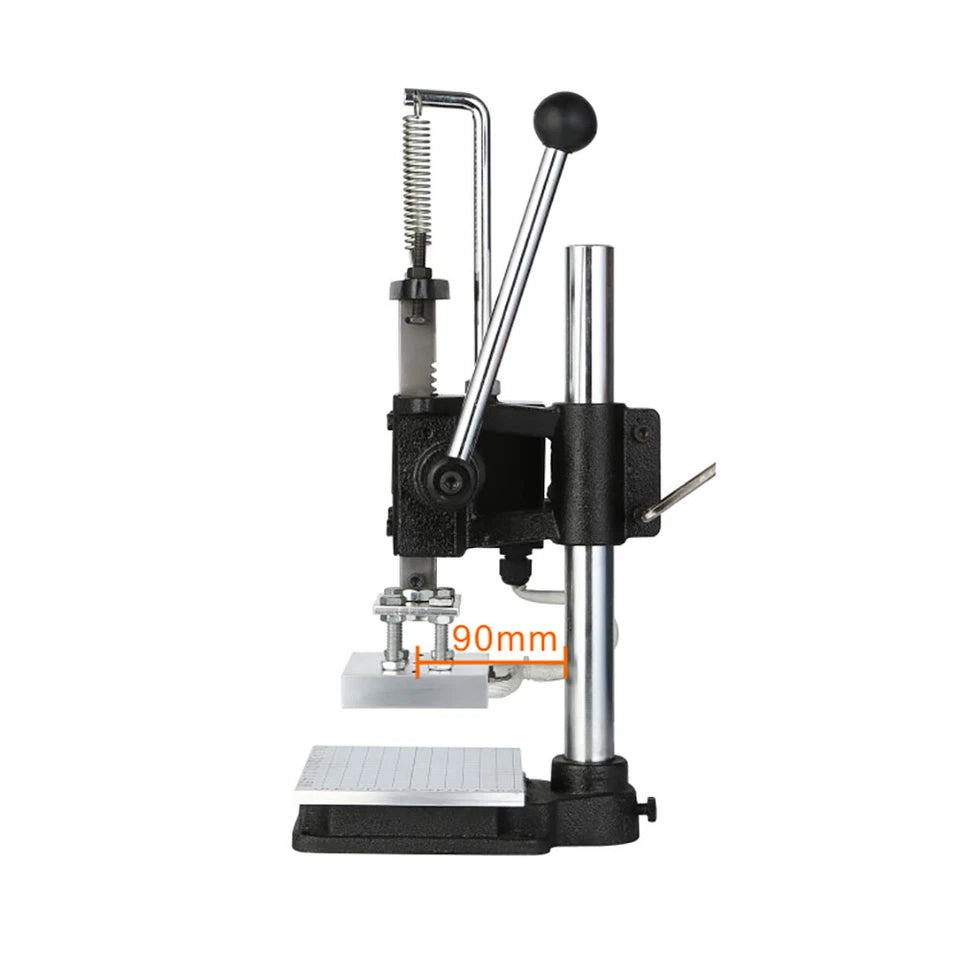

Because the pillars of the machine will block the material, the position of the mold holes can be adjusted to adjust the distance appropriately!
