Specification:

Model: 6 pumps

Power: 30W

Temperature: 2000°C

Voltage: 220V

Flame: 70mm

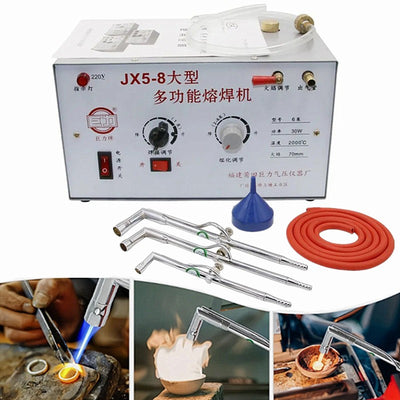

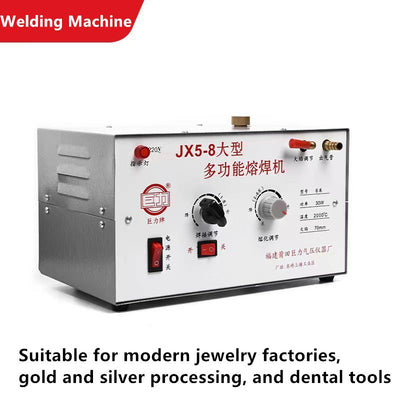

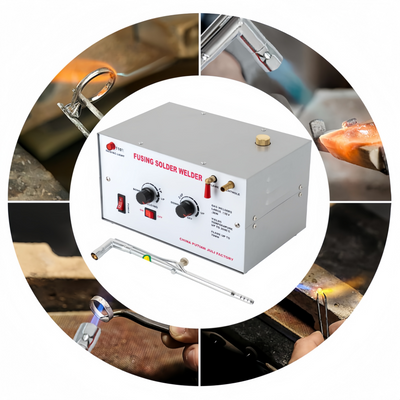

Application scope: Suitable for modern jewelry factories, gold and silver processing, and dental tools

Working principle:

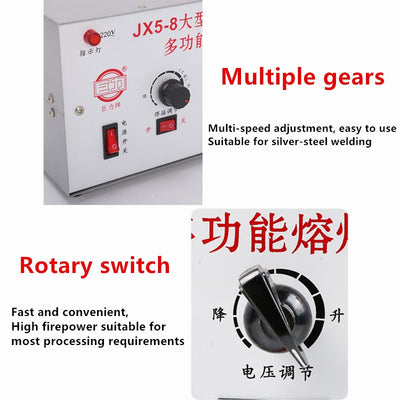

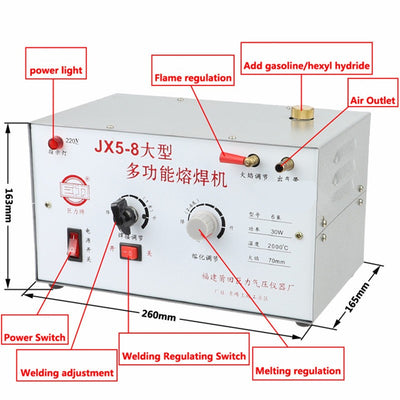

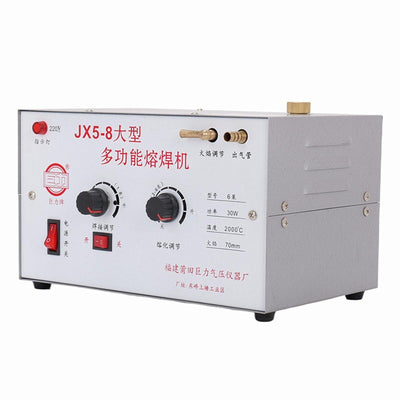

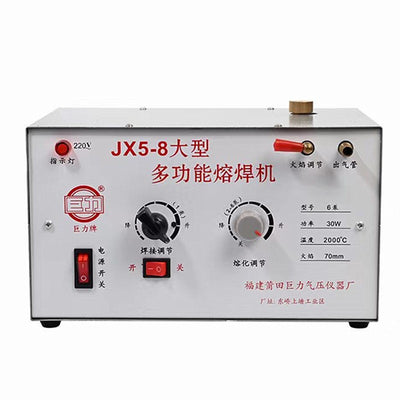

This machine uses gasoline as fuel and is composed of a low-pressure air supply pump and a vaporization tank. Add an appropriate amount of gasoline in advance, connect the welding torch through the "exhaust pipe", and then plug it into a 220-volt power supply. When the indicator light is on, it indicates that the power is on. Press the corresponding switch and adjustment key according to the required working air volume to ignite the welding torch head. Adjust the "Flame adjustment" to produce a blue flame, and then the operation begins.

Precautions:

1. It is strictly prohibited to add oxygen, hydrogen, acetylene, coal gas or biogas to the gasification drum.

2. According to work requirements, the amount of single-use gasoline shall not exceed 0.4 liters. The maximum amount of third-tier refueling is 0.4 liters. The maximum refueling capacity for the fourth gear is 0.5 liters, and for the sixth gear, it is 0.5 liters. However, add an adequate amount of gasoline and do not leave it for a long time, such as without moving it all day or overnight.

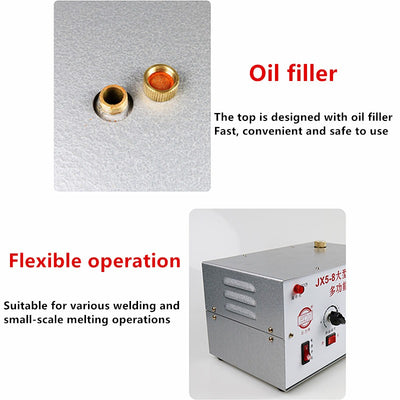

3. When adding gasoline, be careful to pour it into the fuel filler hole. Waste fuel should be poured out through the fuel filler hole and must not seep into the engine body to avoid damaging the components.

4. When no flame is produced after repeatedly adjusting the "flame control" and the control key, an appropriate amount of gasoline should be added.

5. This machine should not operate for more than 6 hours. If it needs to work for a long time, the two machines should be used alternately to avoid overloading and damage to the components.

6. When the newly added flame is not concentrated and turns red, you can appropriately adjust the "Flame Regulation" to generate the flame that satisfies you.

7. When you gradually add the specified amount of oil for each model, refer to (Point 2) to pour out the waste oil. The sixth gear is equipped with one automatic oil drawing pipe. When drawing waste oil, screw the oil pipe nut onto the oil filling hole, then turn on all the switches. The waste oil will automatically spray out into other bottles. For the third and fourth gears, the oil should be poured out from the oil filling hole with the panel facing down. There is no need to pour it out from the exhaust pipe, otherwise the waste oil will flow into the air pump and damage the machine parts.

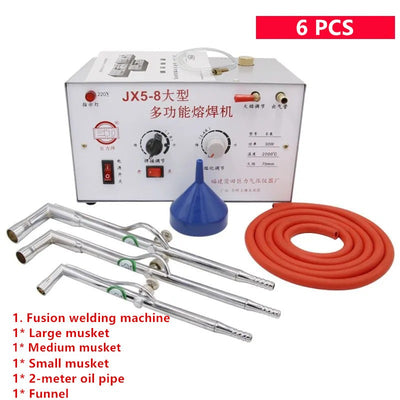

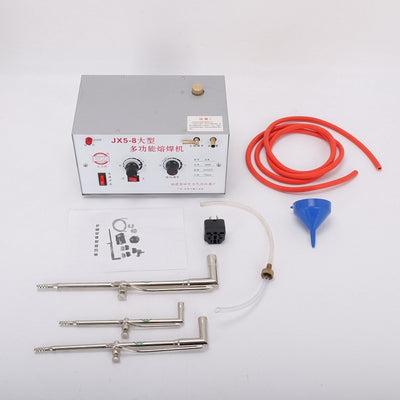

Package includes:

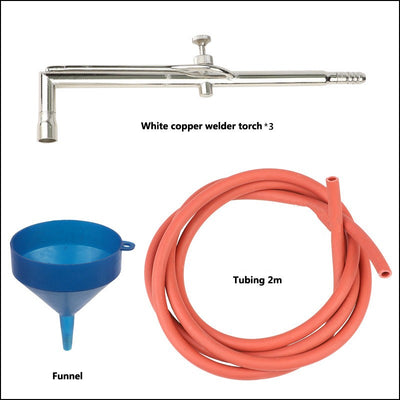

1* Fusion welding machine

1* Large musket

1* Medium musket

1* Small musket

1* 2-meter oil pipe

1* Funnel

1* Conversion plug

1* Instruction Manual

Soldering Melting Machine Welding Torch Jewelry Repairing Processing Melting Kit
