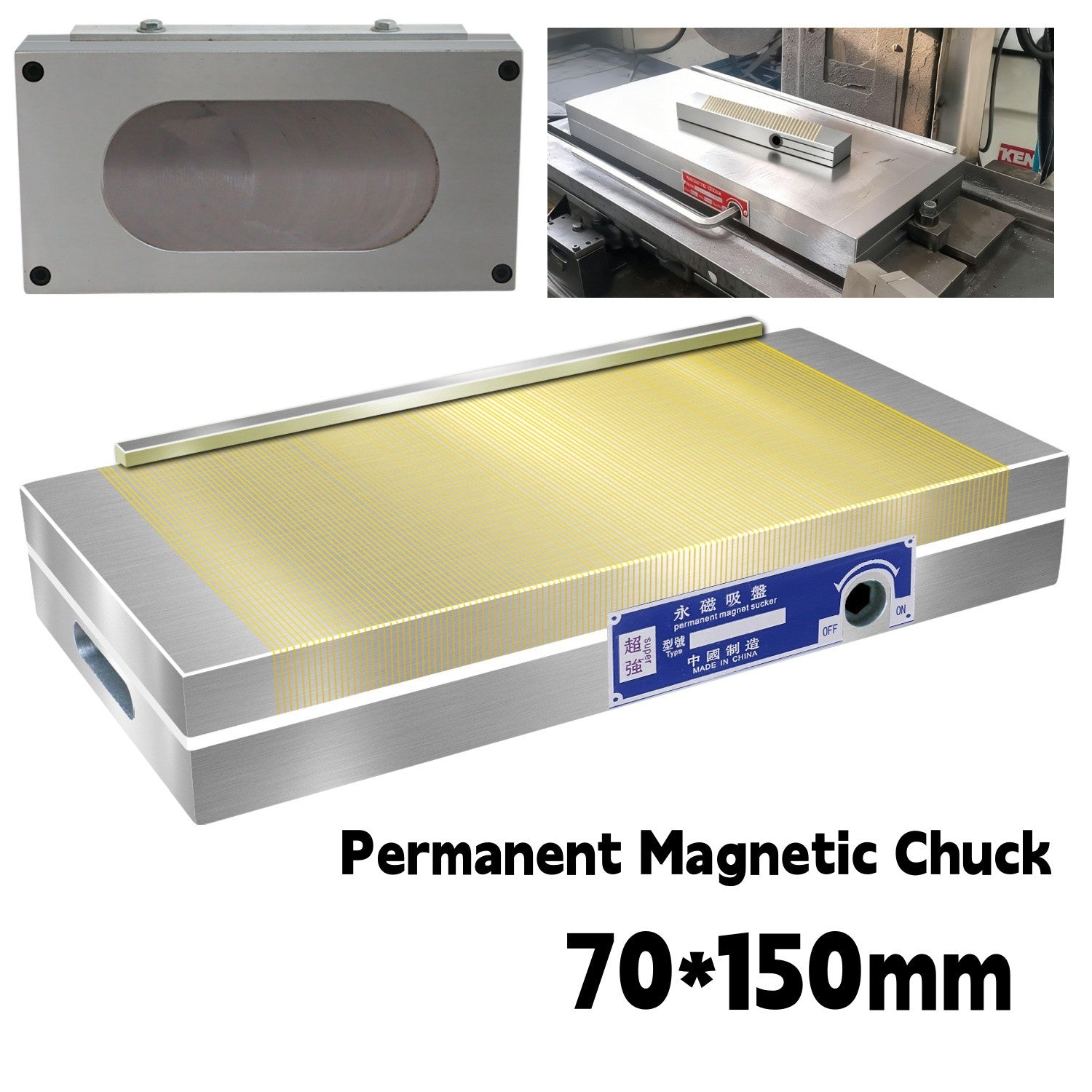

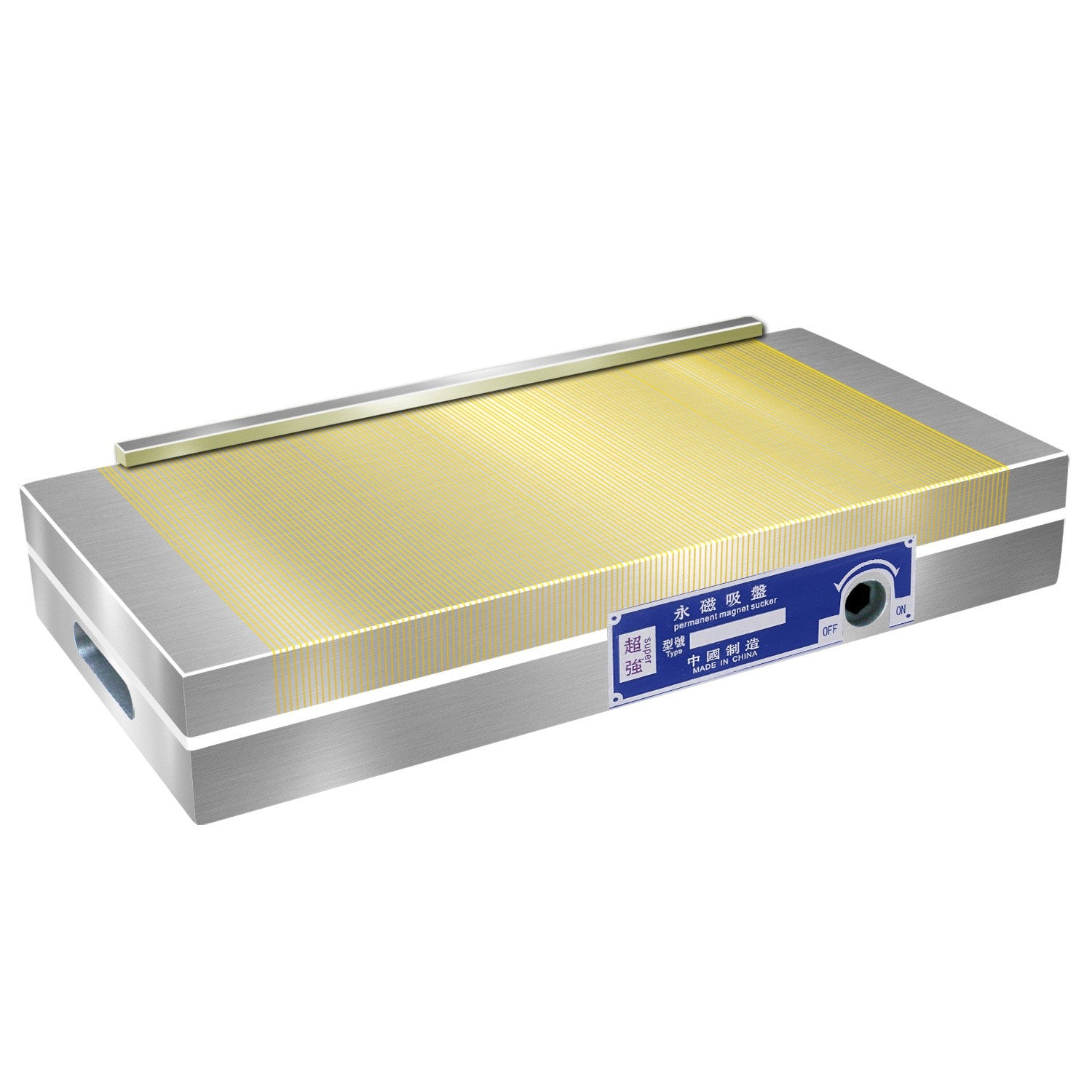

Permanent Magnetic Chuck Magnet Table Precision Tool For Grinder Milling Machine

Description

• Magnetic Holding Power: Features high-performance magnetic steel delivering consistent ≥ 100 N/cm² holding force with minimal remanence for secure workpiece retention during grinding and milling.
• Precision Ground Surfaces: Undergoes six-surface fine grinding to ensure flatness and stability, enabling reliable vertical or horizontal use on surface grinders and milling machines.
• Fine Pole Design: Equipped with a dense, narrow magnetic pole gap in this Rectangular Fine Pole Magnetic Chuck for even magnetic distribution, ideal for thin or small workpieces.

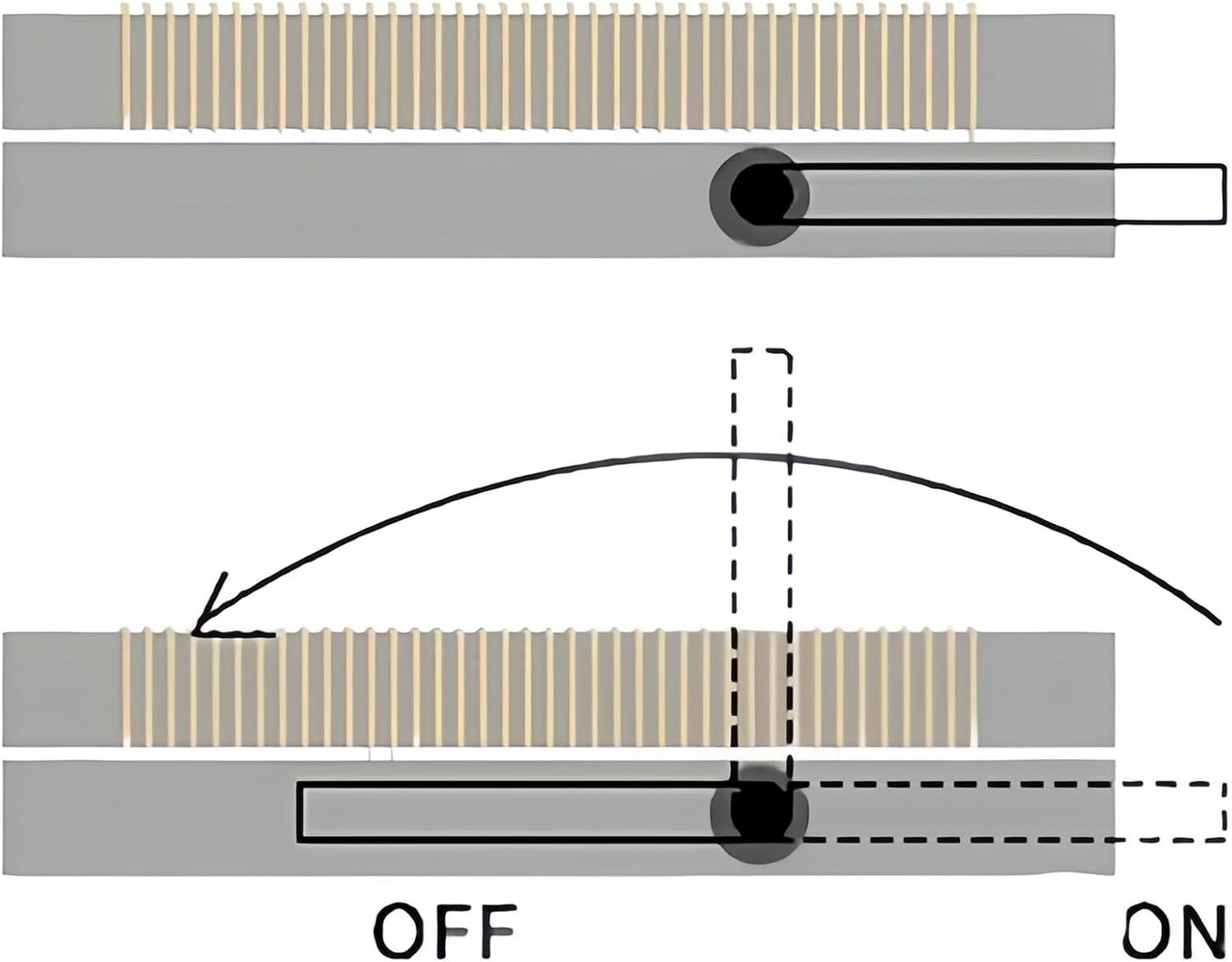

• Manual On/Off Control: Includes a locking handle that manually switches between magnetic and non-magnetic states without electricity, simplifying setup and enhancing safety.

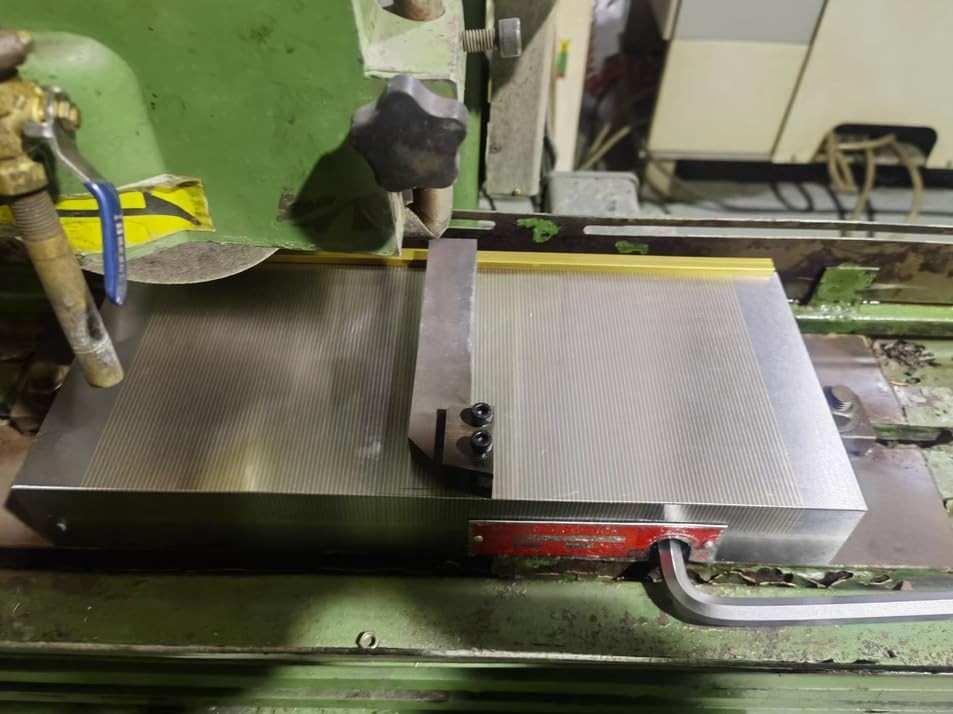

• Versatile Workholding Solution: Designed for use with surface grinders, tool grinders, lathes, and milling equipment as a Permanent Magnetic Chuck for accurate, non-marring workpiece positioning.

Specification

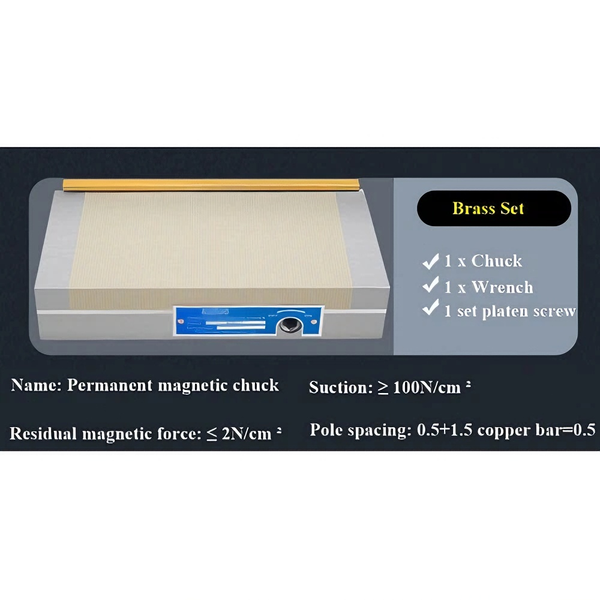

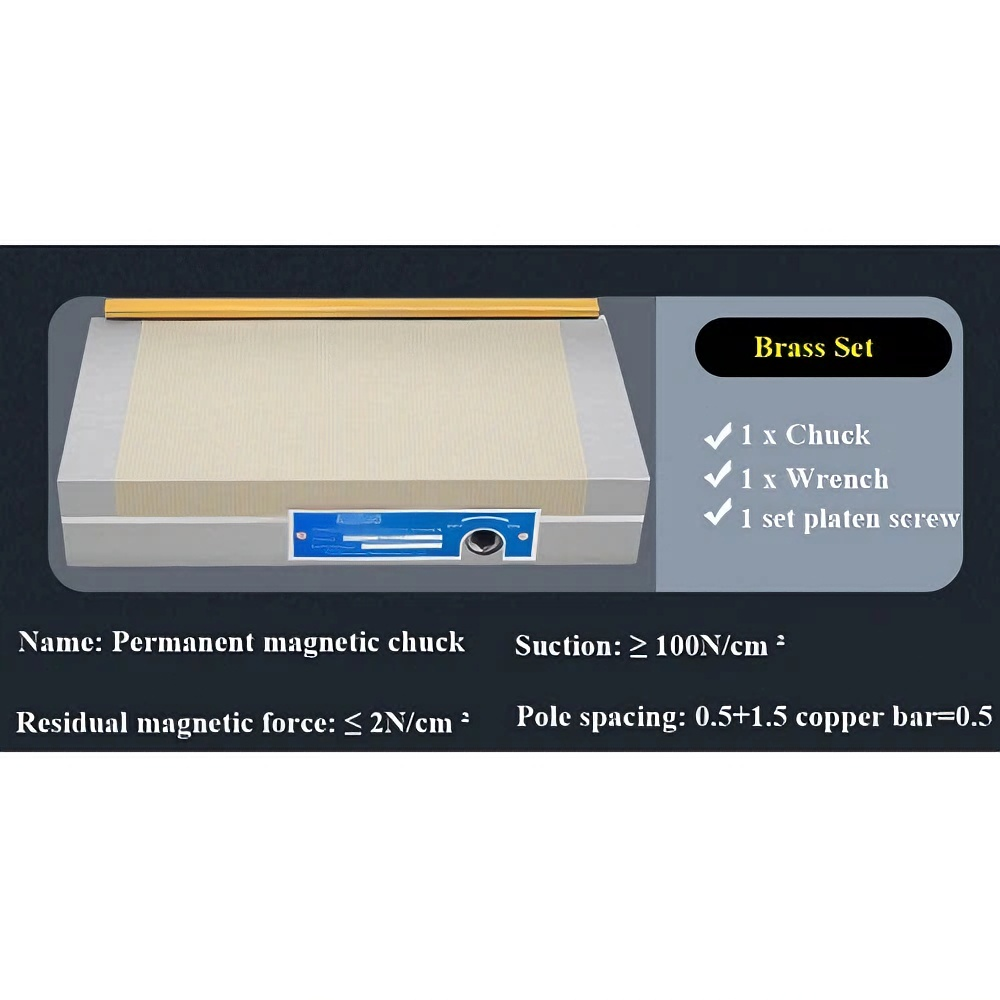

Name: Permanent magnetic chuck
Suction: ≥ 100N/cm ²
Residual magnetic force: ≤ 2N/cm ²

Pole spacing: 0.5+1.5 copper bar=0.5

Copper bar height: 20

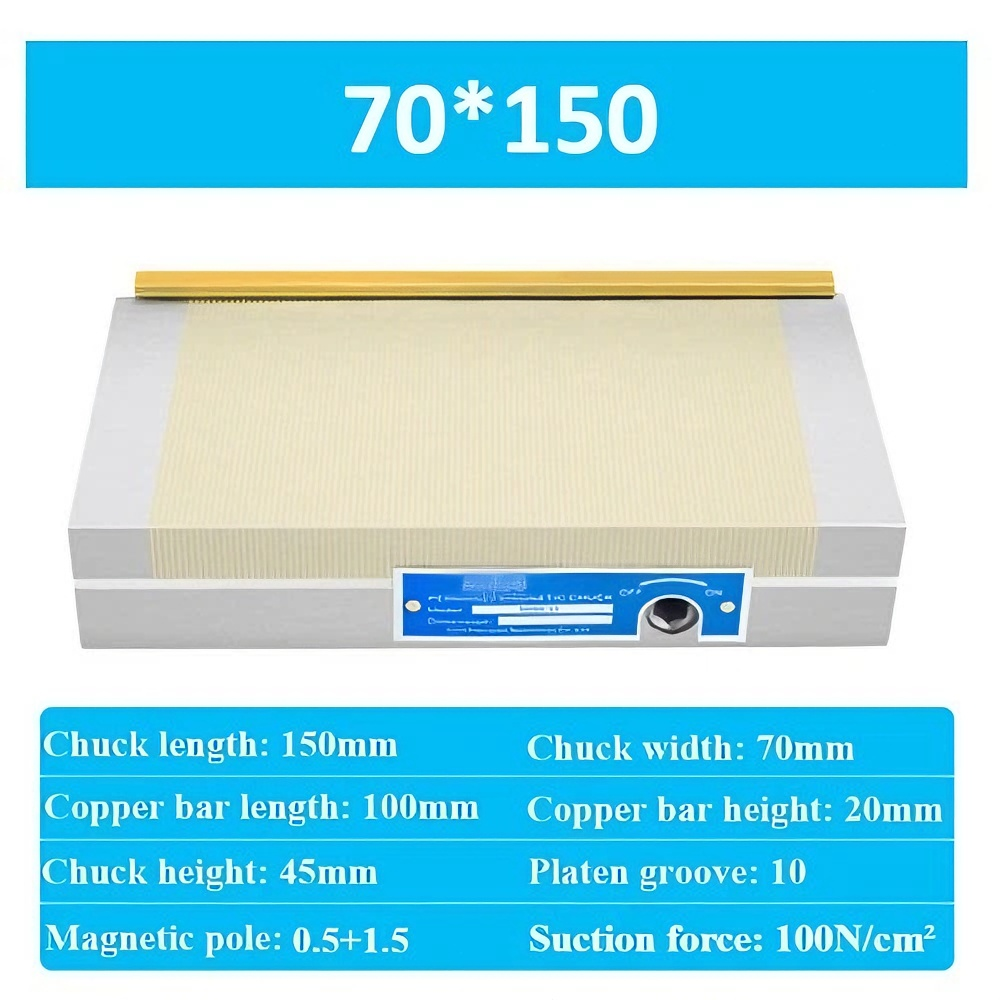

Chuck length: 150mm

Chuck height: 45mm

Chuck width: 70mm
