Mortise Mortice Lock Jig Door Lock Hole Opener Kit w/Tungsten Cutter 18/22/25mm
PRODUCT DETAILS
Description

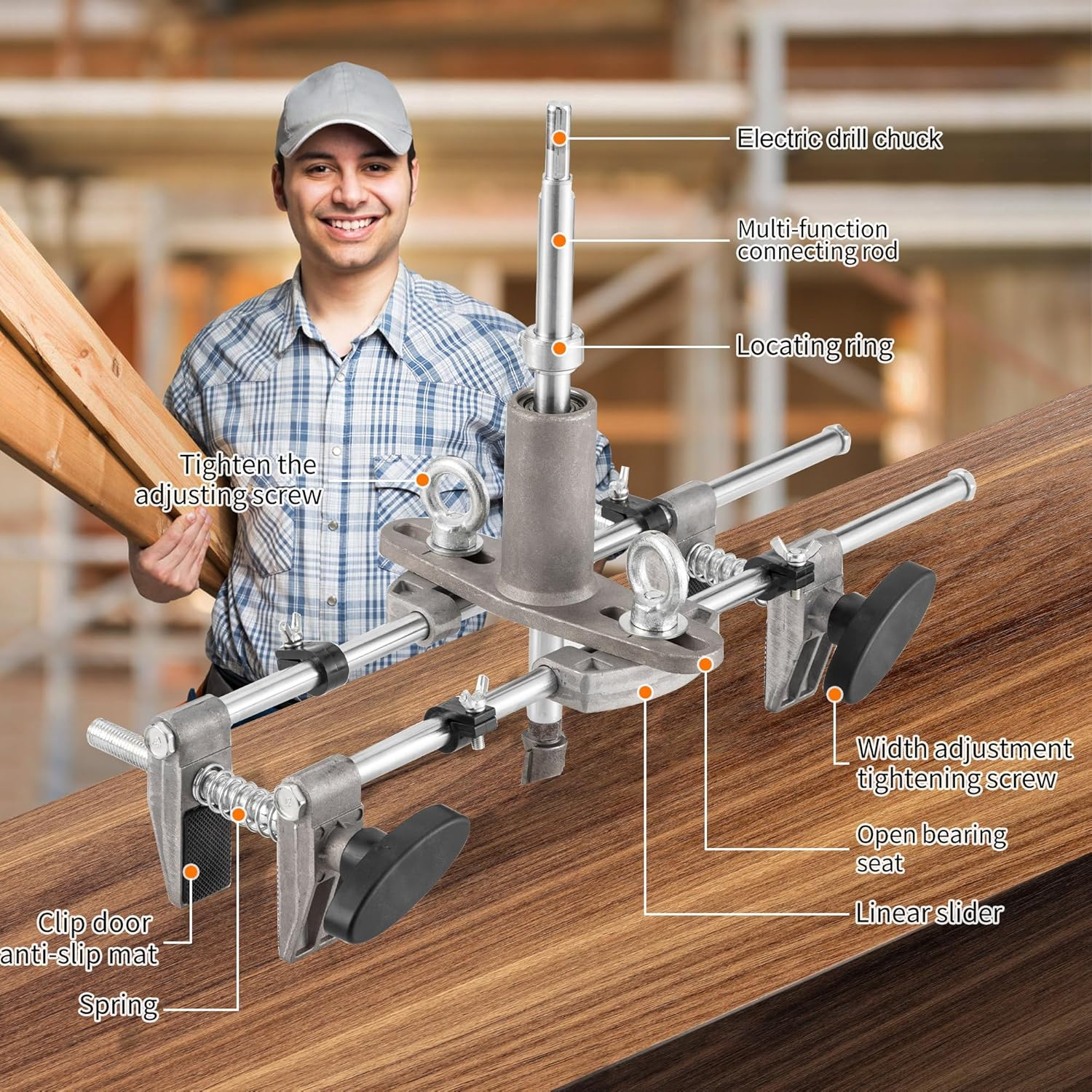

【Efficient & Precise】The door lock hole opener kit features a split design for easy assembly and disassembly, along with industrial-grade linear bearings and precise scales—enhancing cutting precision, speed and work efficiency. For first use the mortise lock jig, it’s recommended to practice cutting on other discarded boards of the same thickness to avoid damaging your new wooden door.
【Easy Operation】The mortising jig apply vertical guides with height and depth stops, overrun cutting area will be avoided by using this tool set.
【Applicable Sizes】The door mortise jig maximum drilling depth is 5.11”(13cm). Maximum sliding length is 10.24”(26cm). Door thickness is 0.98”-3.94”(2.5-10cm). The maximum distance for the door edge to the center of the lock is 2.76”(7cm). This professional door lock hole mortising jig for solid wood doors fit for most of door lock installation process.
【Application】The door mortise kit are for opening, slotting or retrofitting home, hotel and security doors. Suitable for mortise, electronic, combination and fingerprint locks. Mortising jig kit can be used to open a new keyhole, open an eccentric keyhole, change a combination lock, and change a fingerprint lock. Features safe operation, fast grooving, complete specs and simple use.

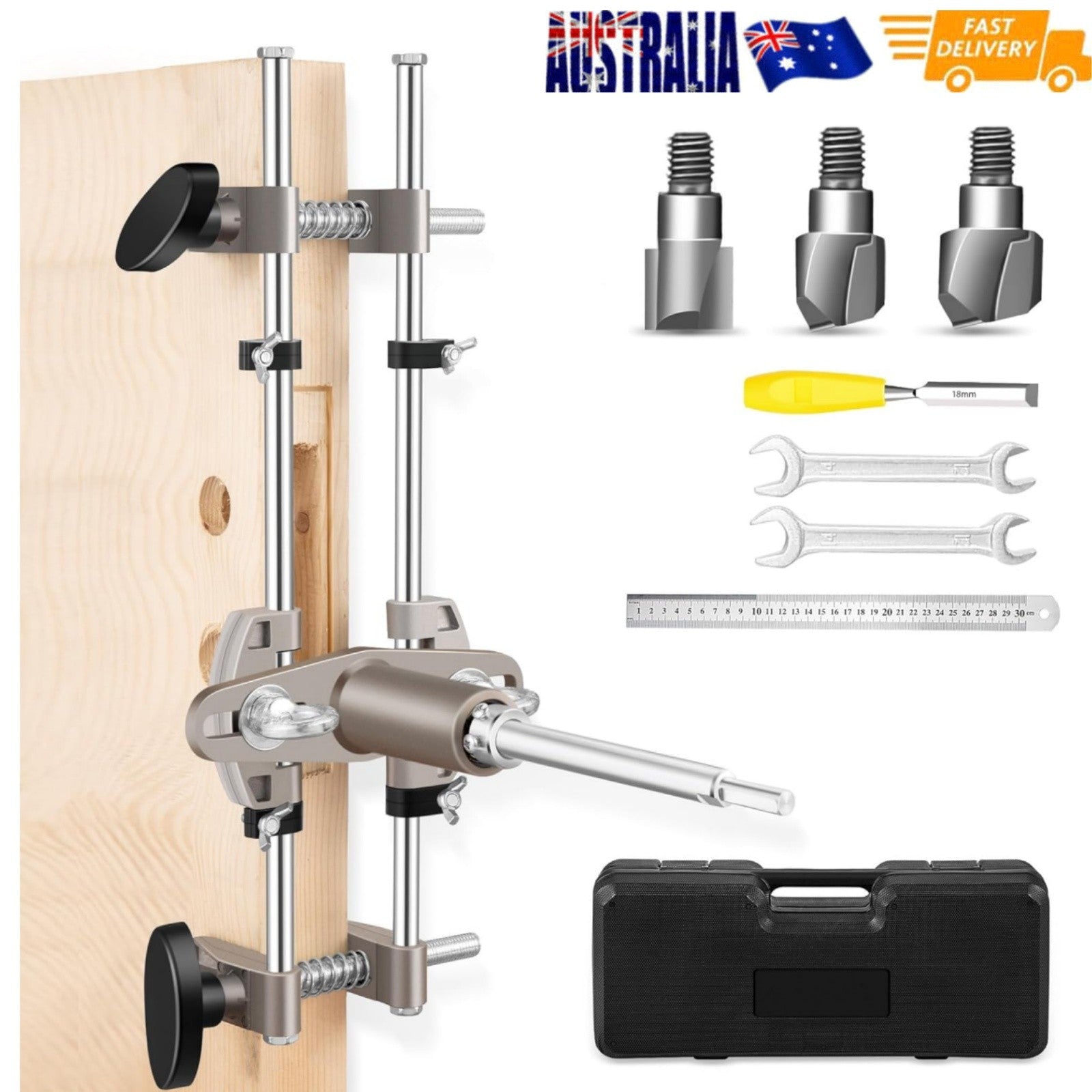

【Package Content】Door lock installation kit includes plastic box, woodworking groove, tapper, positioning block, open-endwrench, steel ruler, set screw, tungsten steel cutters(18mm 22mm 25mm). 3 cutters made of tungsten steel, higher quality over high-speed steel. Complete tools for easy storage. If you have any questions about door latch mortise kit, please feel free to contact us.
Specifications

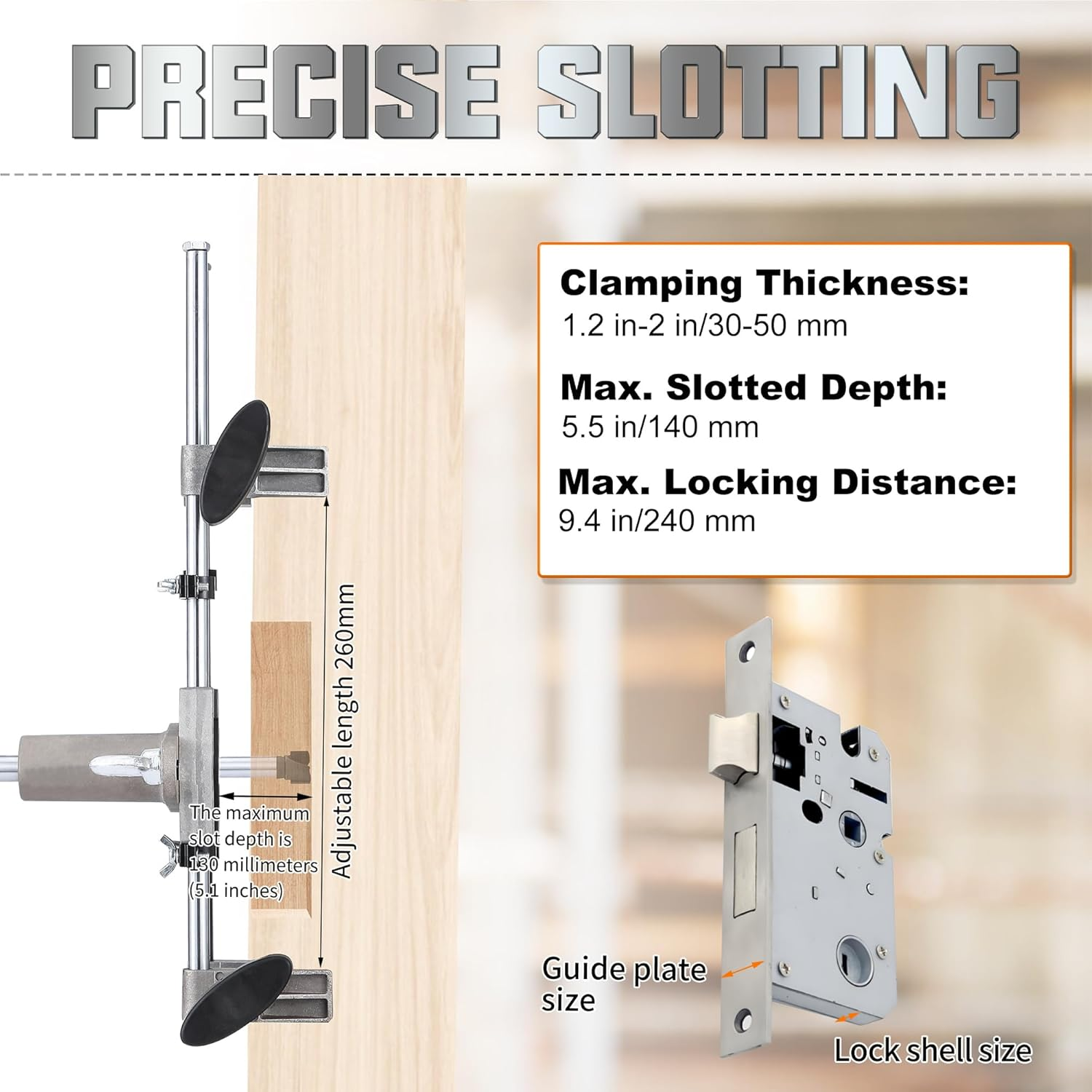

Maximum lock body distance: 9.4''/240 mm
Maximum clamping thickness: 3.5''/90 mm
Maximum slotting depth: 5.5''/140 mm
Drill blade size: 18mm、22mm、25mm
Edge diameter: 0.87''/22 mm
Handle diameter: 1''/25 mm
Drill Type: Split Pose
Material: Tungsten, Aluminum Alloy, Plastic
Gross weight: 4.2kg
Packaging dimensions:18.5'' x 8.7'' x 3.9''/47mm x22mm x 10mm

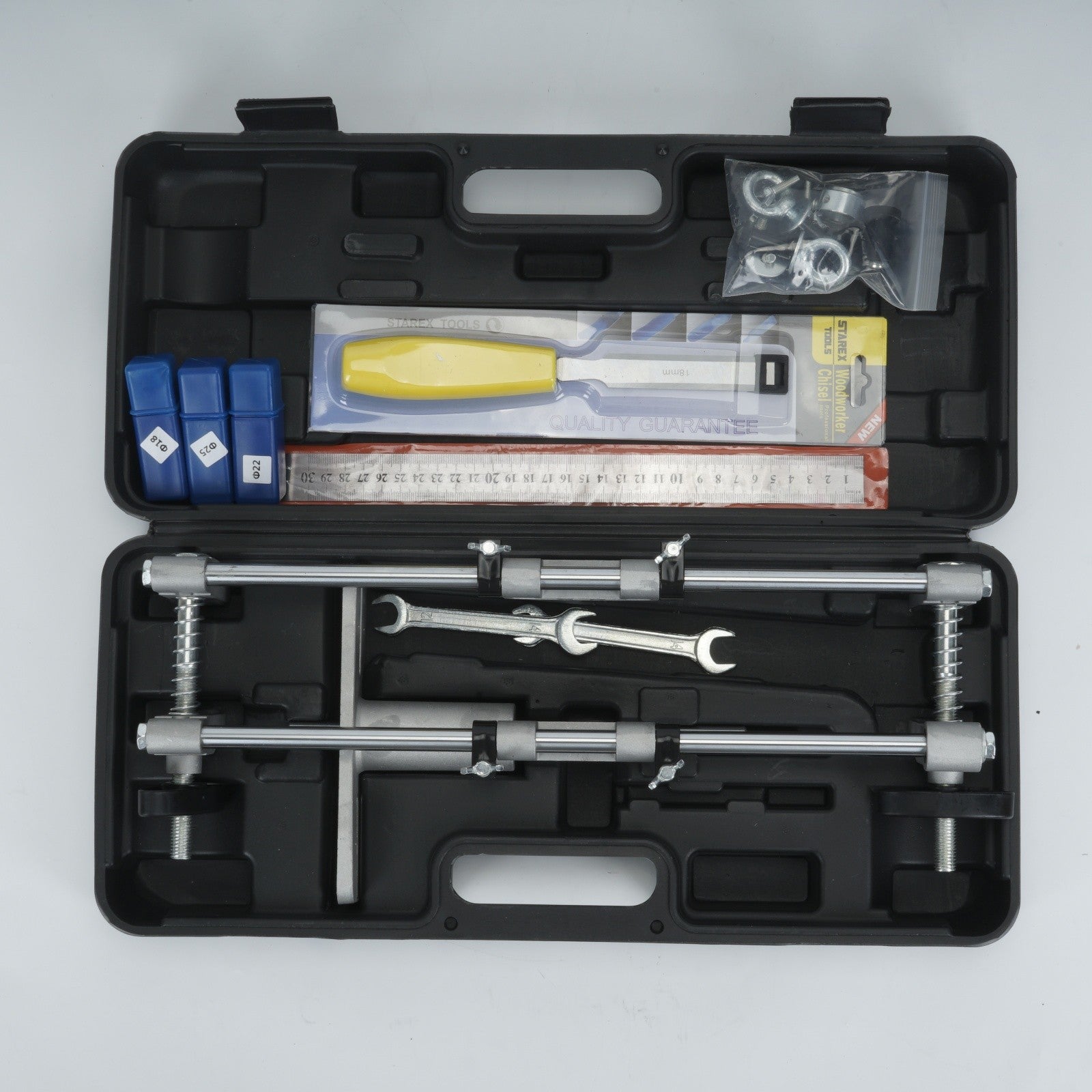

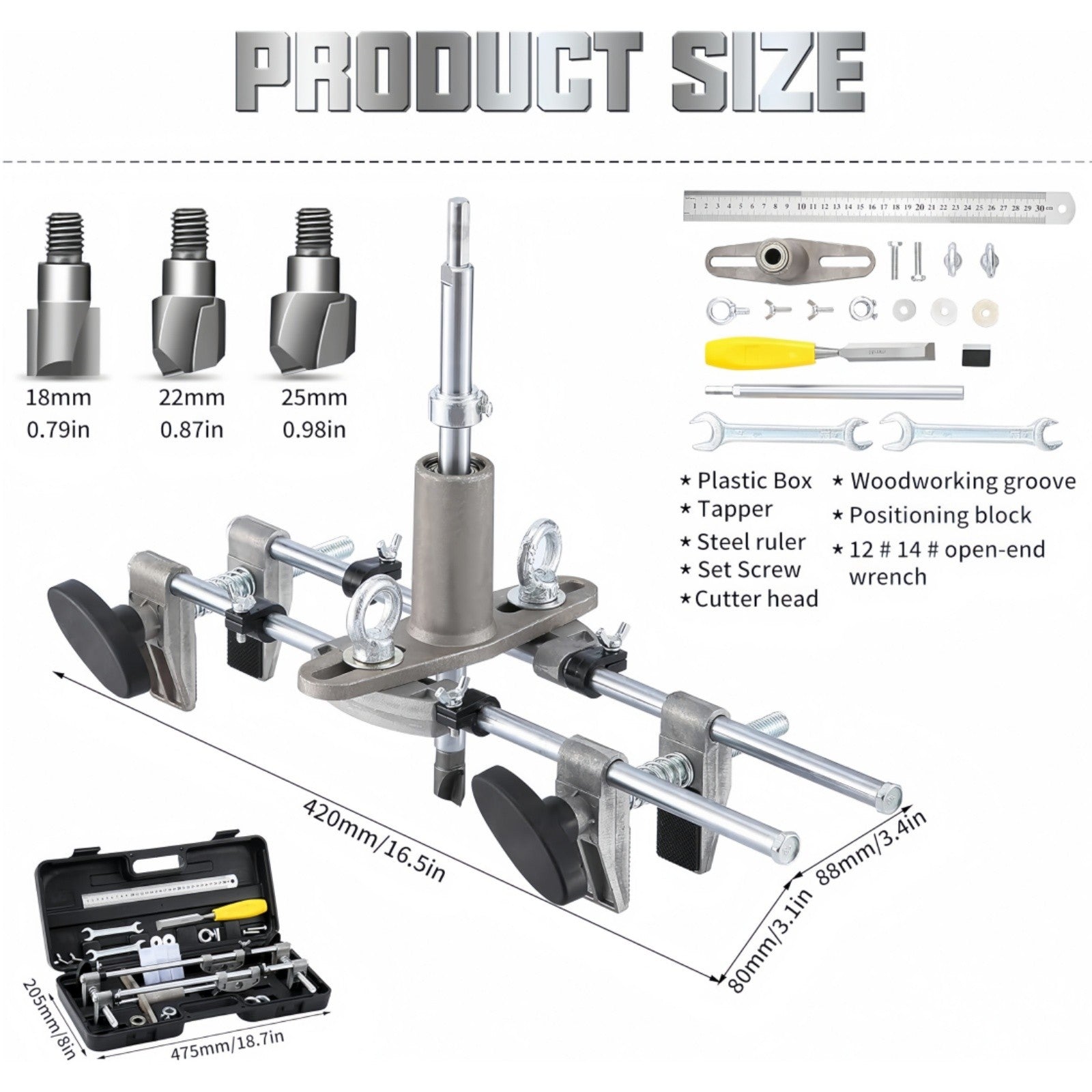

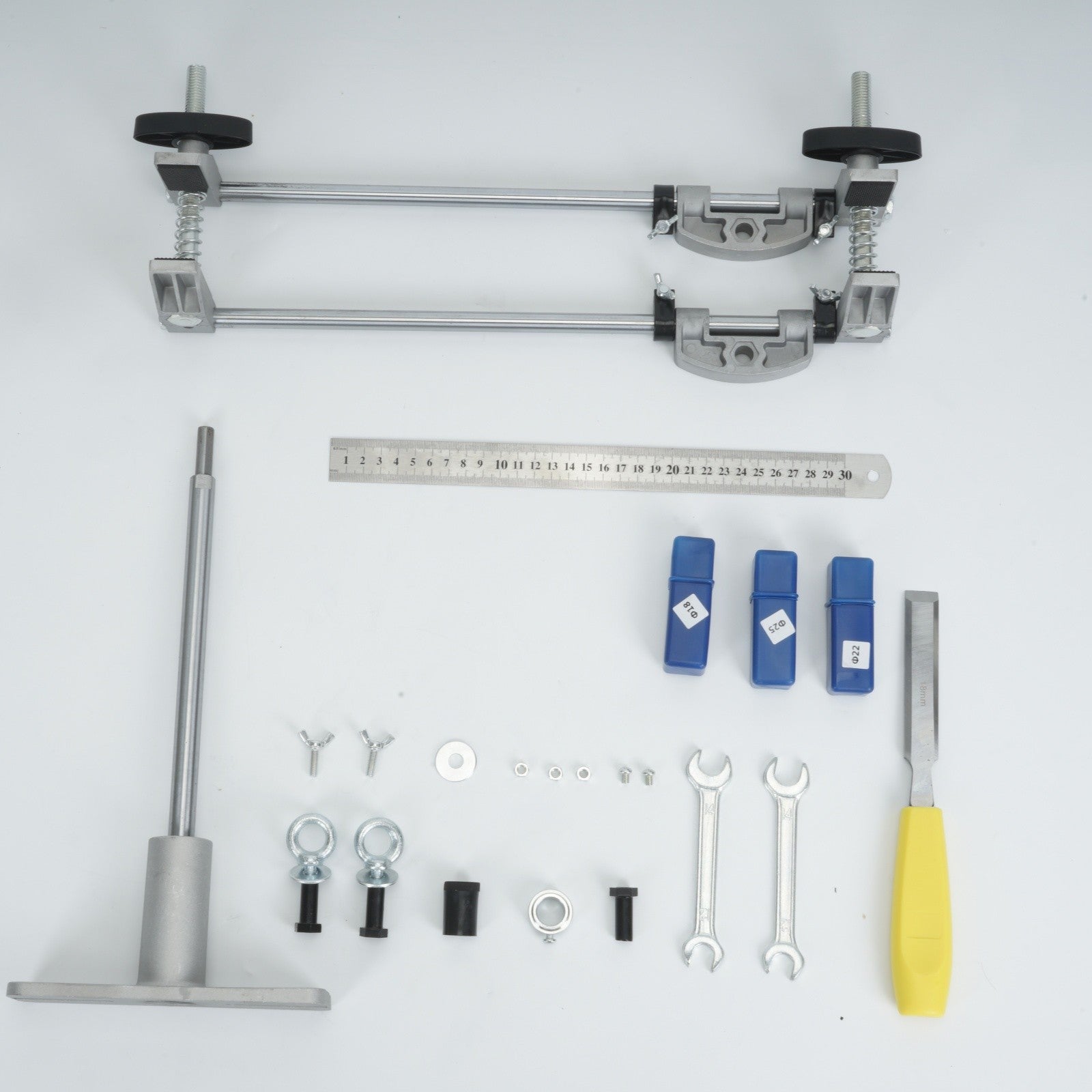

Packae includes:

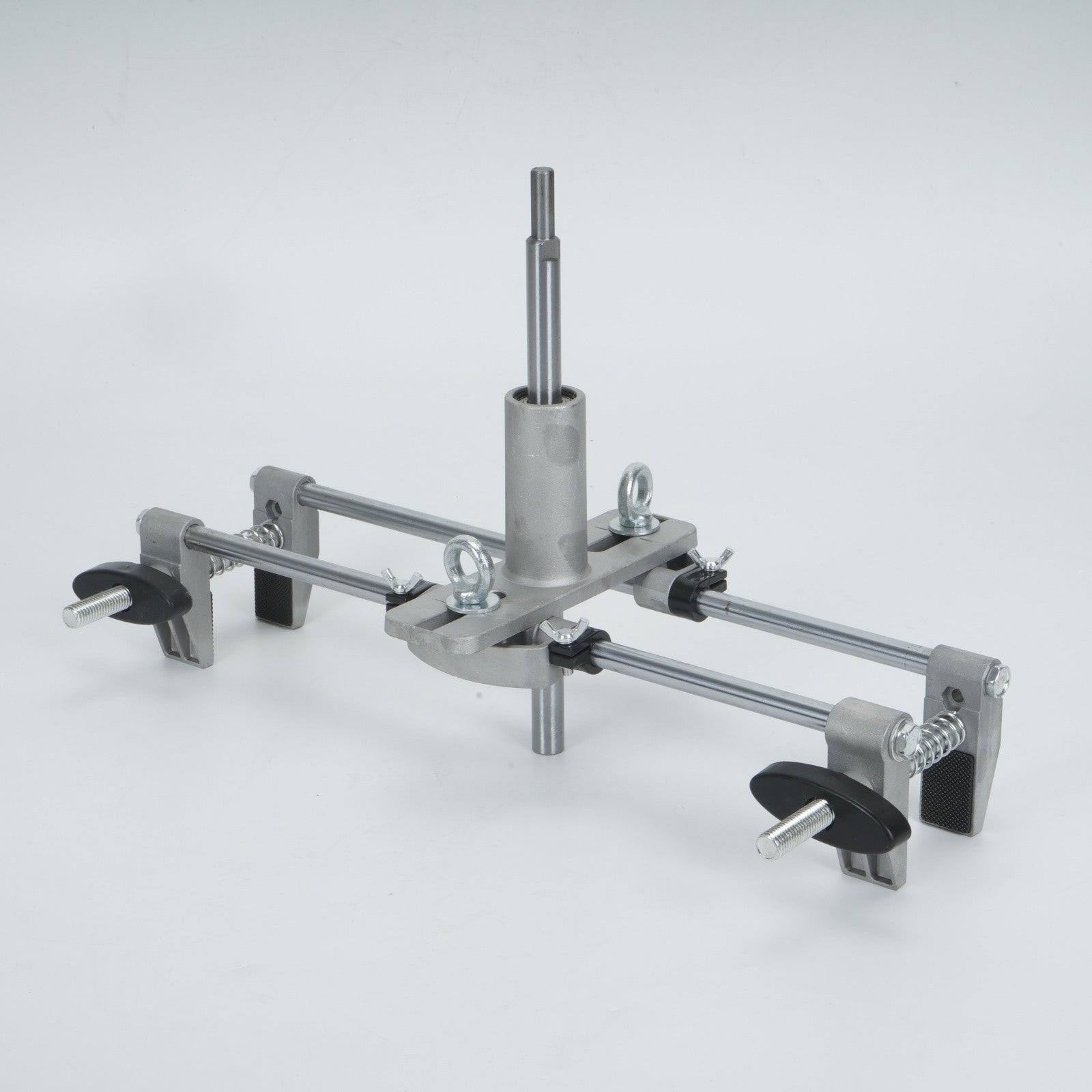

1 x Jig Kit Door Lock Mortiser and Accessories

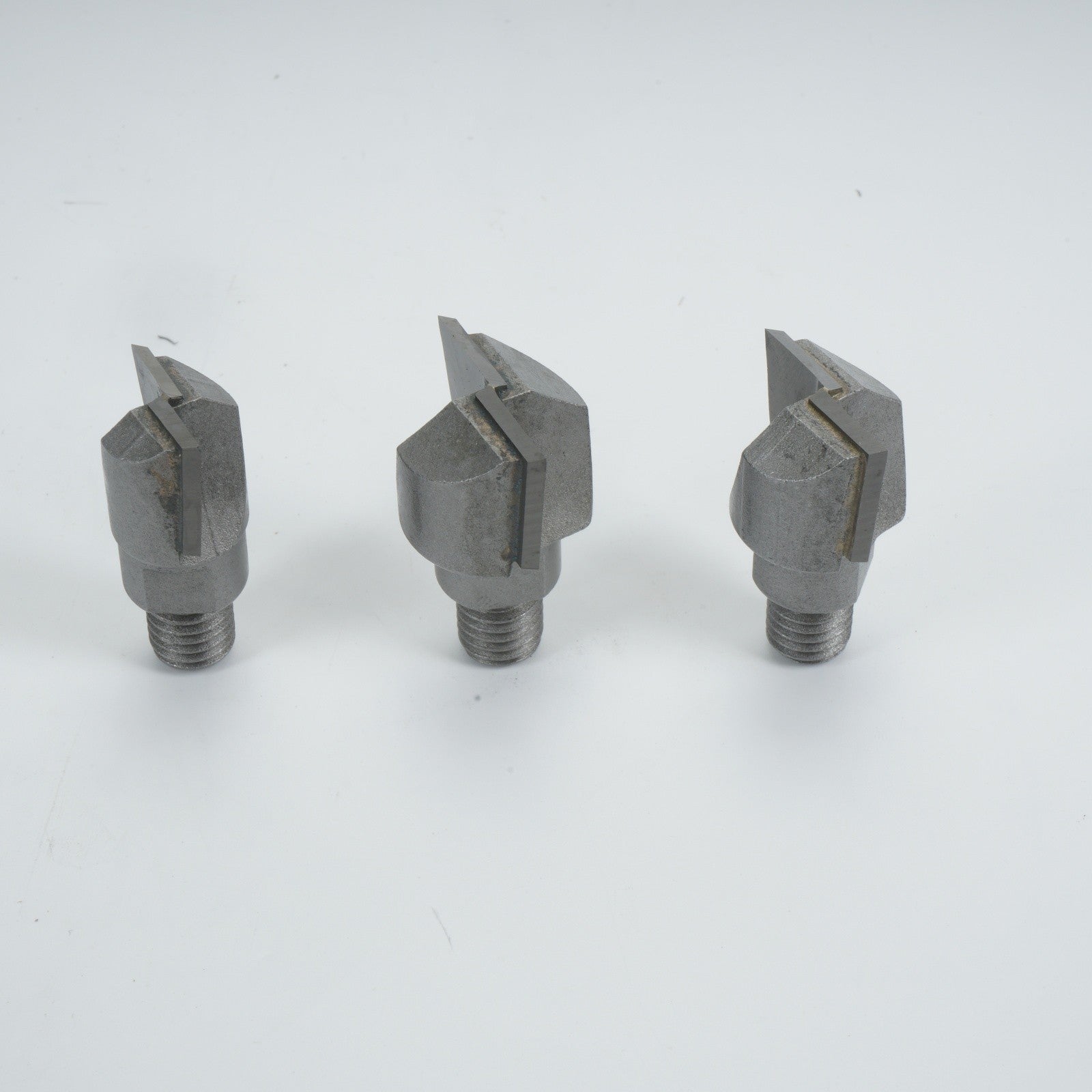

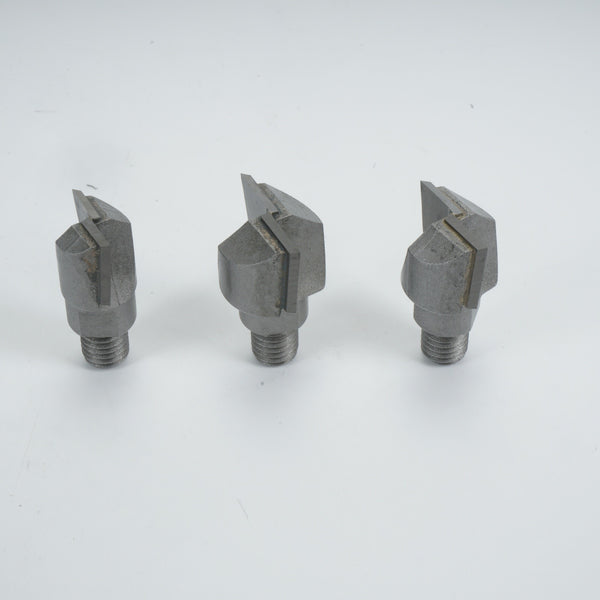

3 x M10 Cutters (18 mm, 22 mm, 25 mm)
2 x Spanners(12 #14 #open-end wrench)
1 x Plastic Suitcase
1 x Woodworking groove
1 x Steel ruler
