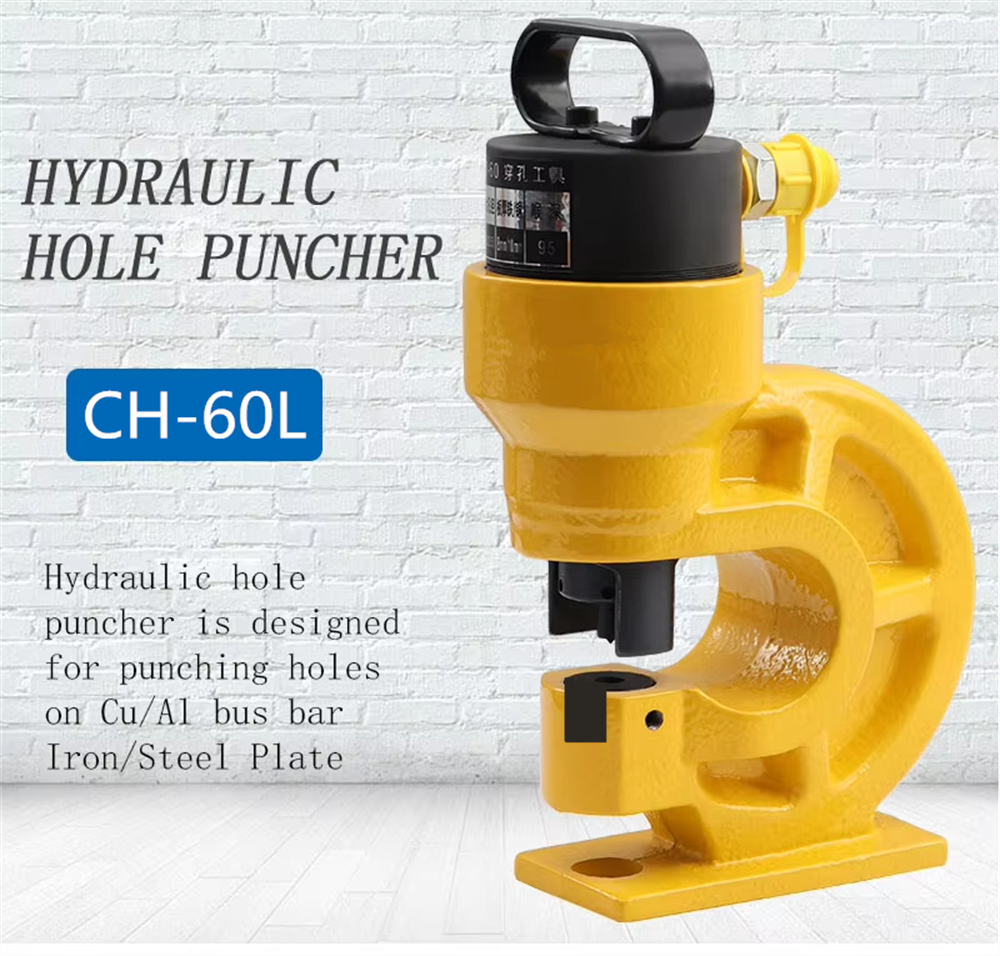

Hydraulic Hole Puncher w/ 4 Dies for Iron Plate Copper Aluminum Stainless Steel
PRODUCT DETAILS
★APPLICATIONS---This product is suitable for angle steel, channel steel, copper row, aluminum row, iron plate. Please note that this product needs to be used with a manual pump.
★EQUIPPED WITH DIES--- Single-hole oil return, the die is made of high carbon steel, which is not easy to damage.

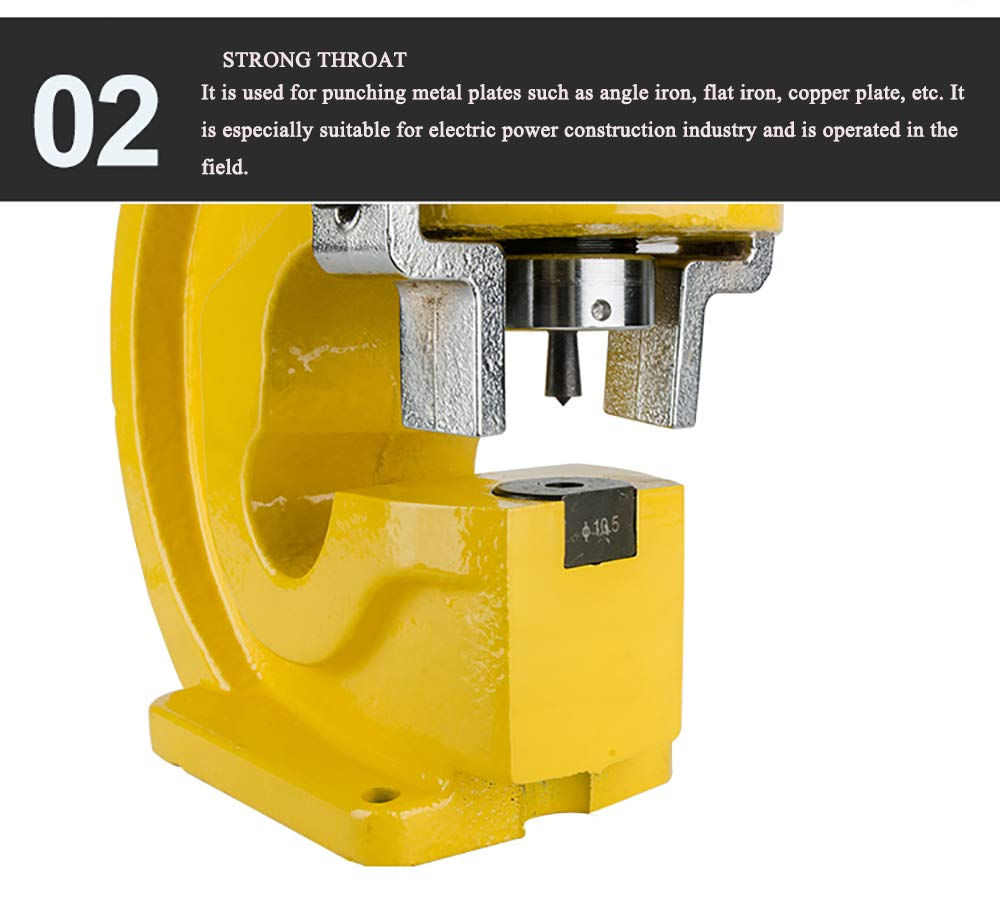

★Strong throat---- It is used for punching metal plates such as angle iron, flat iron, copper plate, etc. It is especially suitable for electric power construction industry and is operated in the field.

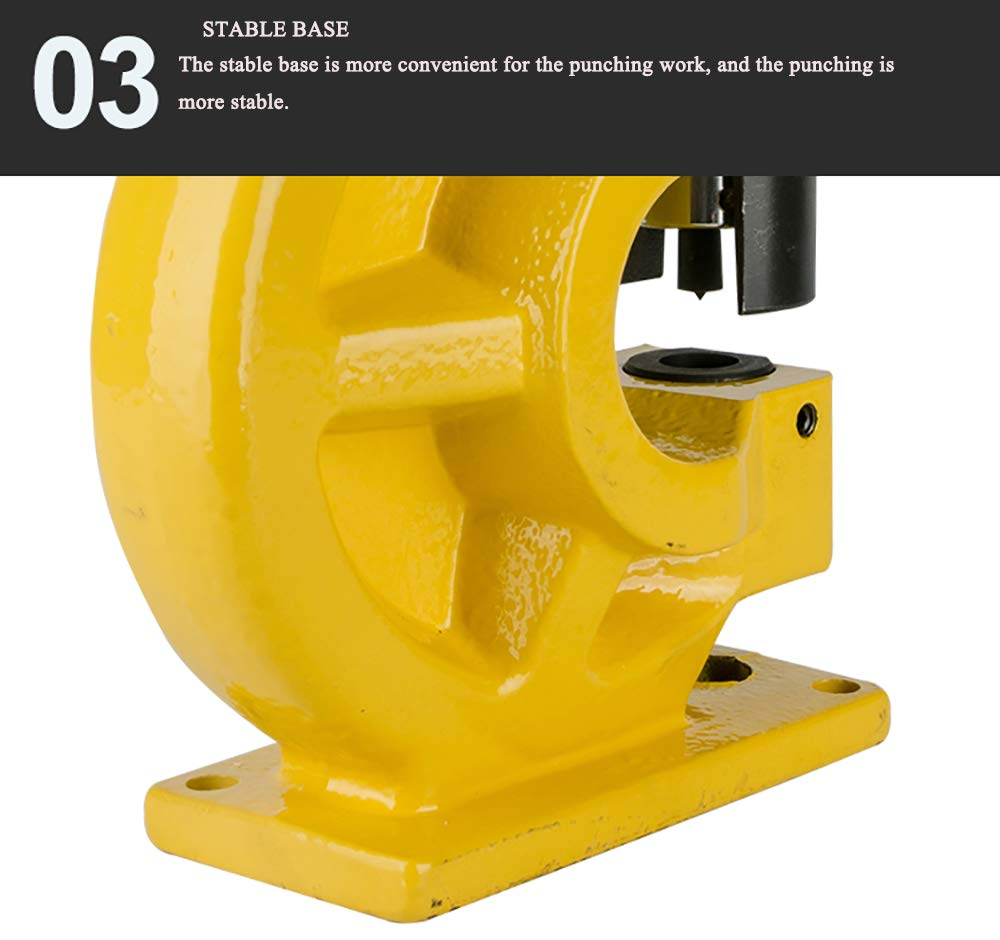

★STABLE BASE--- The stable base is more convenient for the punching work, and the punching is more stable

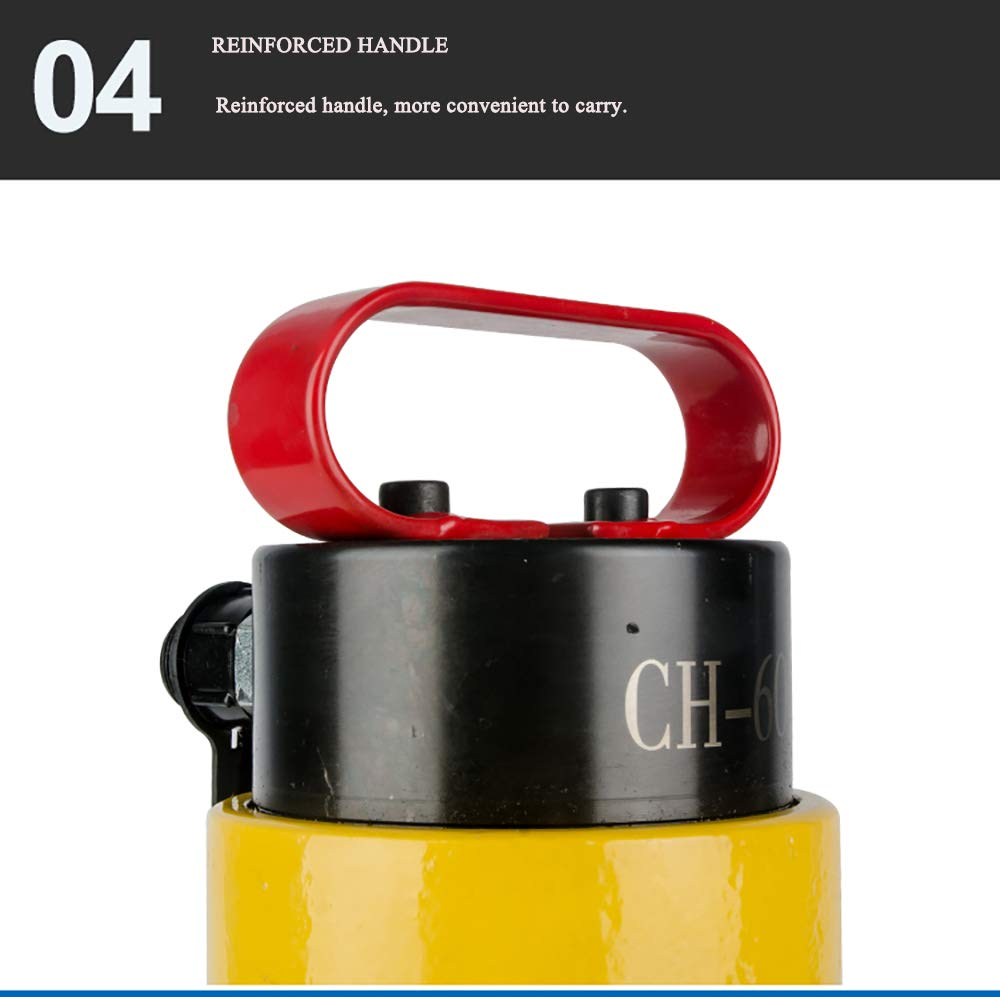

★REINFORCED HANDLE--- Reinforced handle, more convenient to carry.

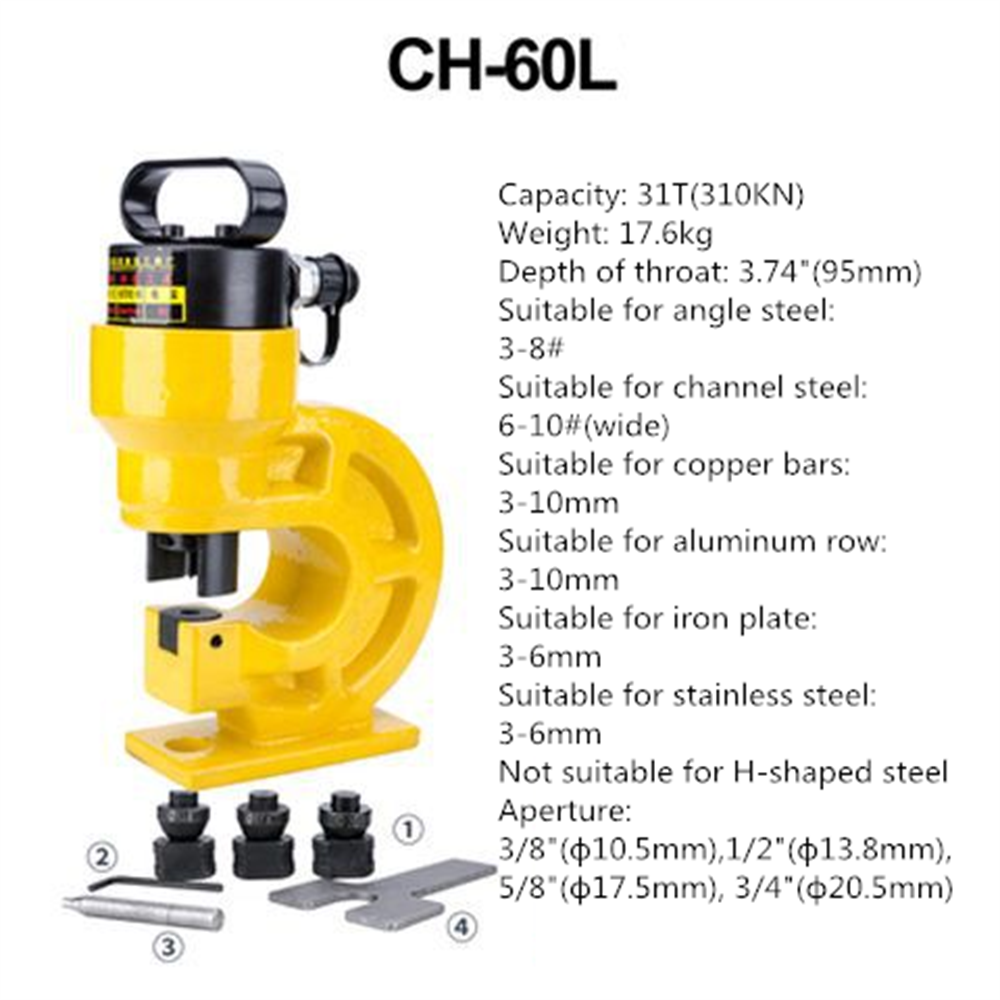

Specifications:
Capacity: 31T(310KN)
Weight: 17.6kg
Depth of throat: 3.74"(95mm)
Aperture: 3/8"(ф10.5mm),1/2"(ф13.8mm),5/8"(ф17.5mm), 3/4"(ф20.5mm)
Suitable for angle steel: 3-8#
Suitable for channel steel: 6-10#(wide)
Suitable for copper bars: 3-10mm
Suitable for aluminum row: 3-10mm
Suitable for iron plate: 3-6mm
Suitable for stainless steel: 3-6mm
Not suitable for H-shaped steel

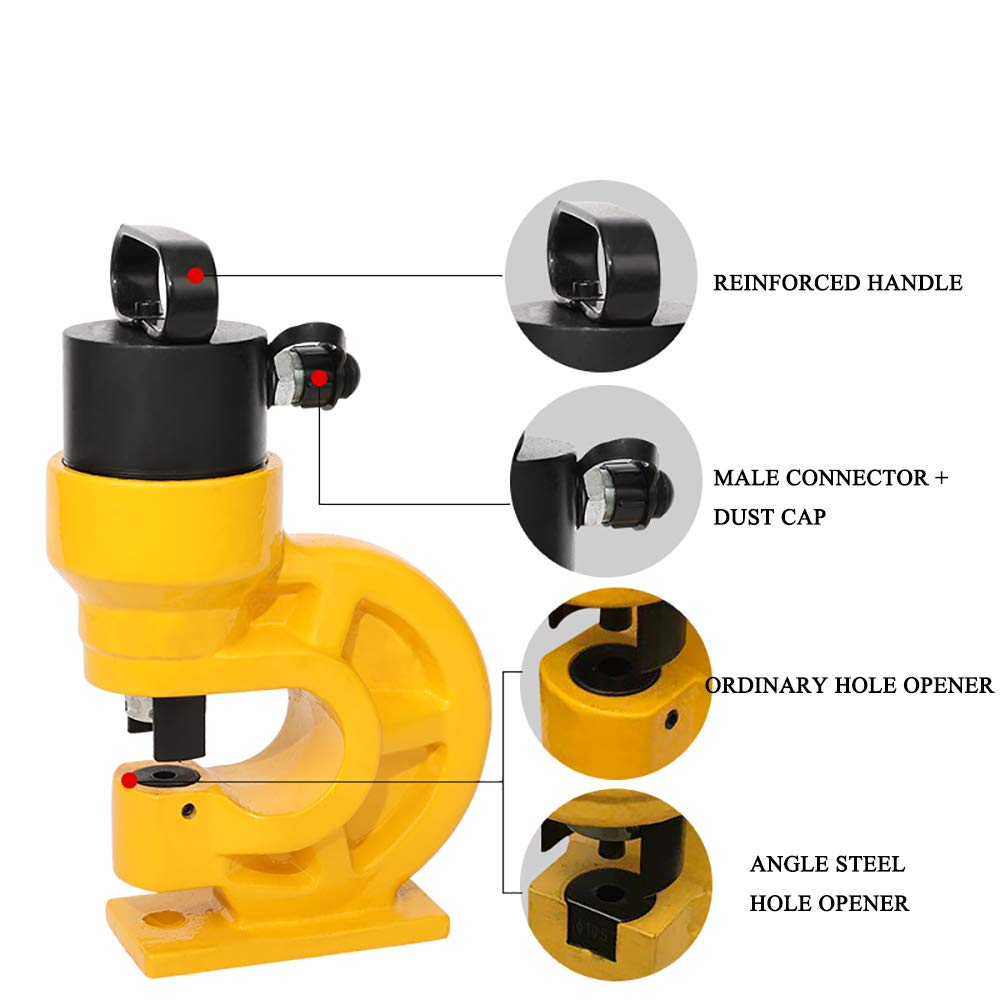

Feature:
1. End is designed with flat seat,smooth and not fall>
2. Single oil return, punch dies made of high carbon tungsten steel and not easy to wear off.>

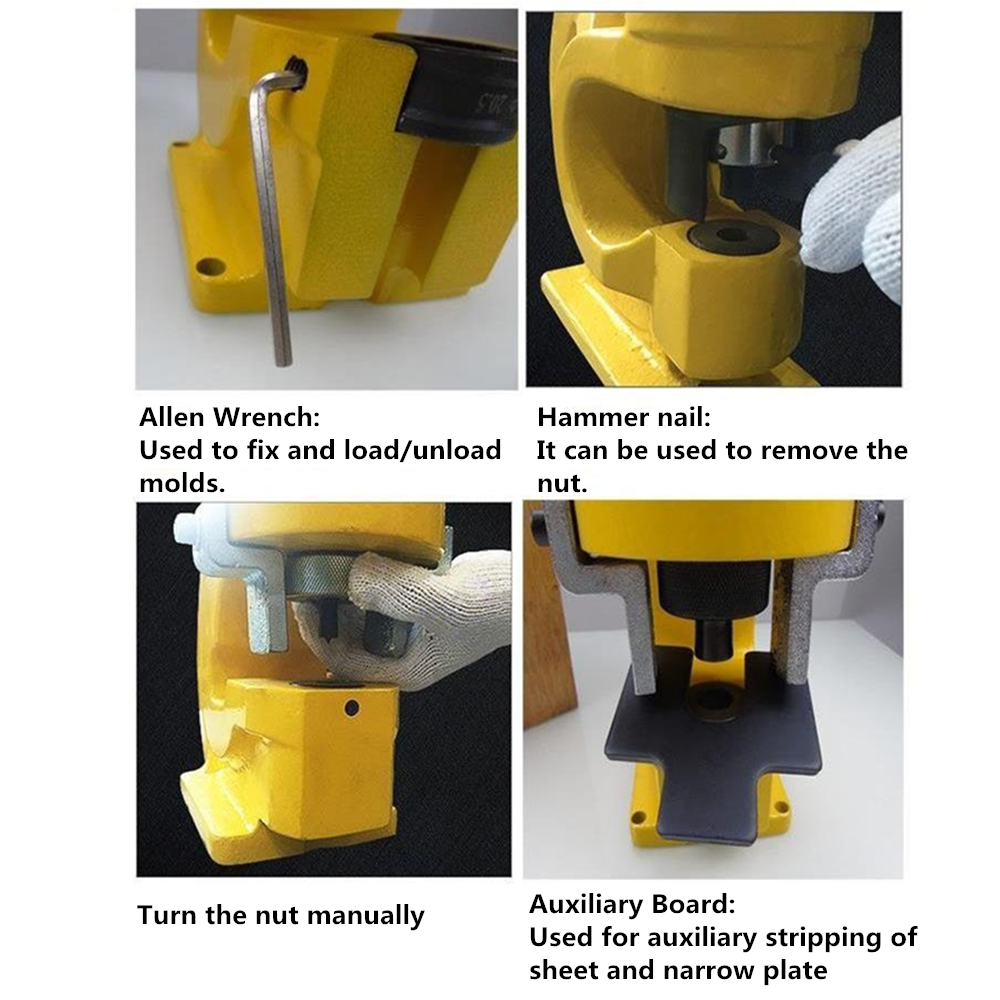

Packing item
1*Hydraulic Hole Punching Tool
1*concave pressing plate

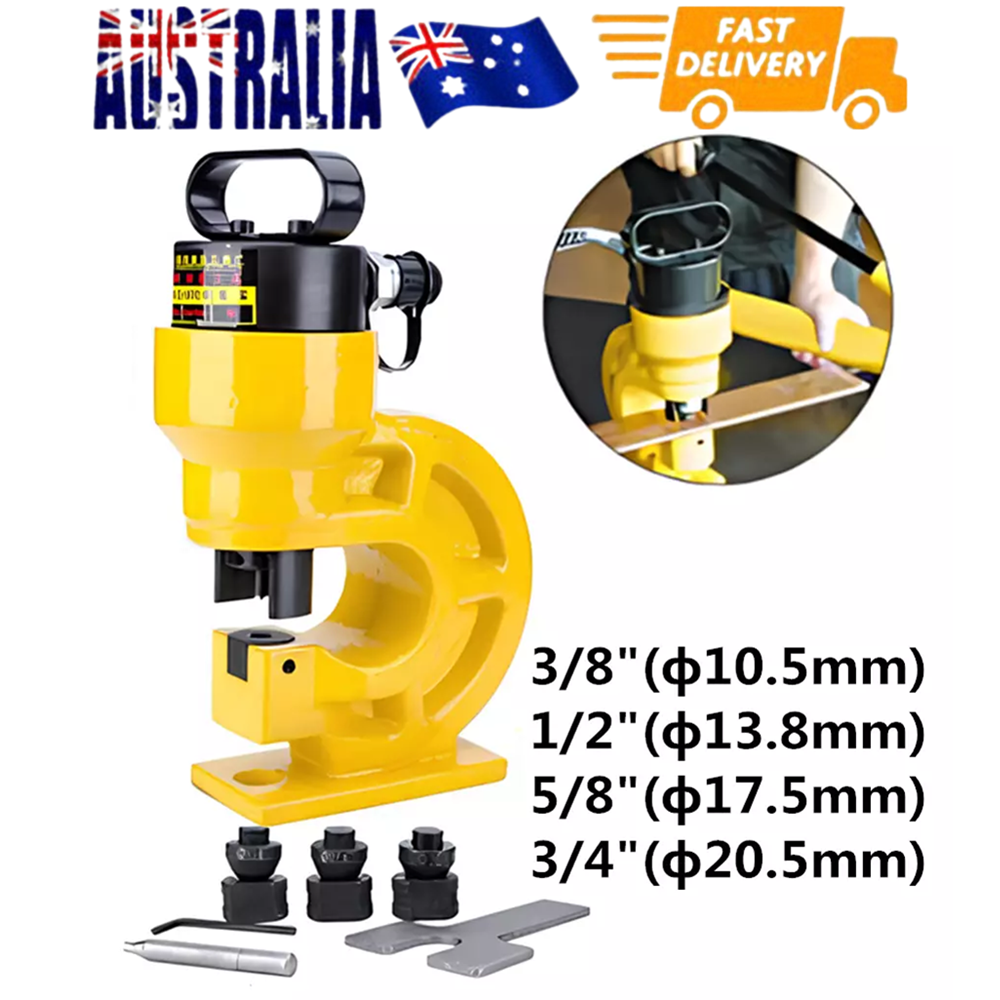

4*dies 3/8"(ф10.5mm),1/2"(ф13.8mm),5/8"(ф17.5mm), 3/4"(ф20.5mm)(one of the four is in the puncher)
