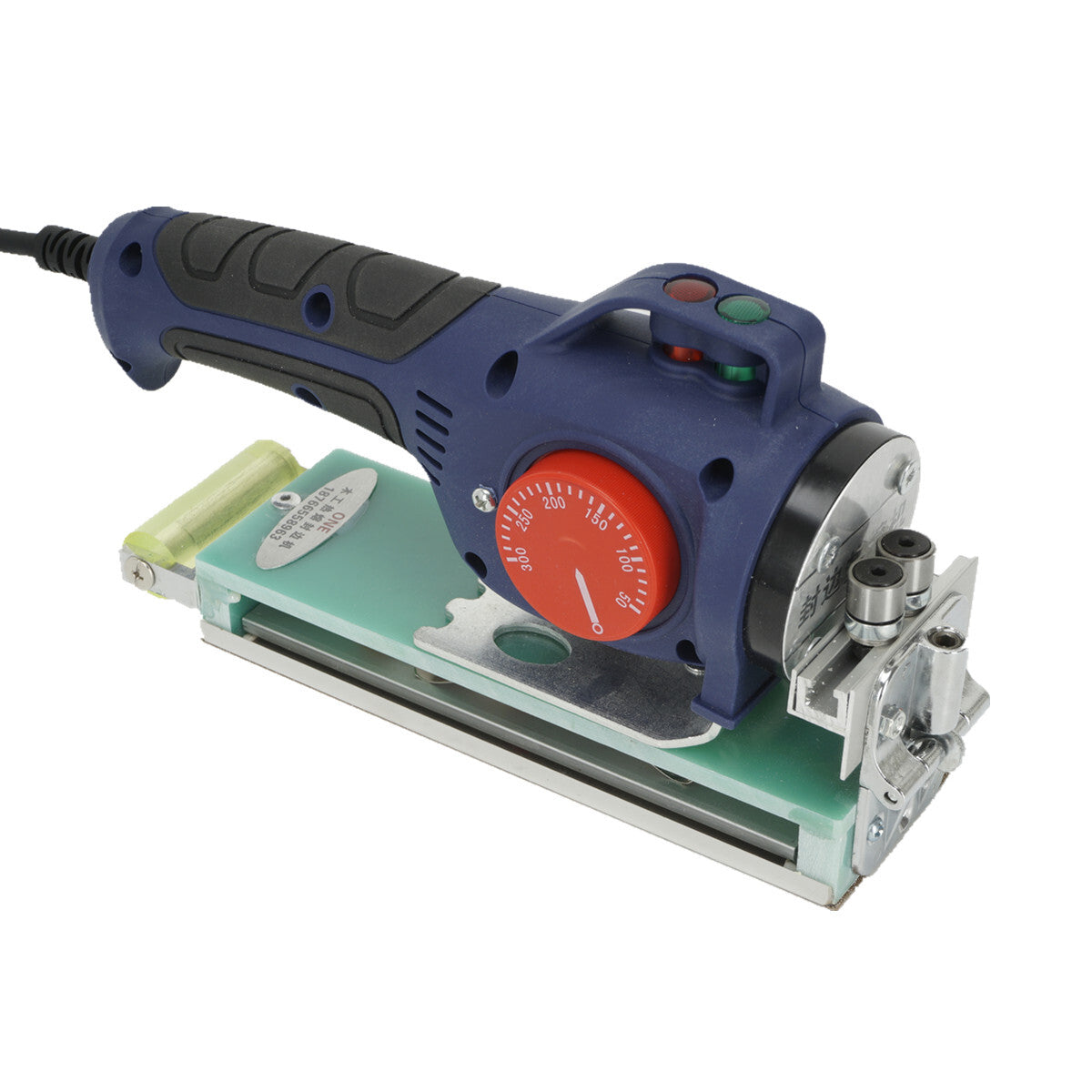

Hot Melt Edge Bander Manual Woodworking Bander 50-300℃ Temperature Adjustment

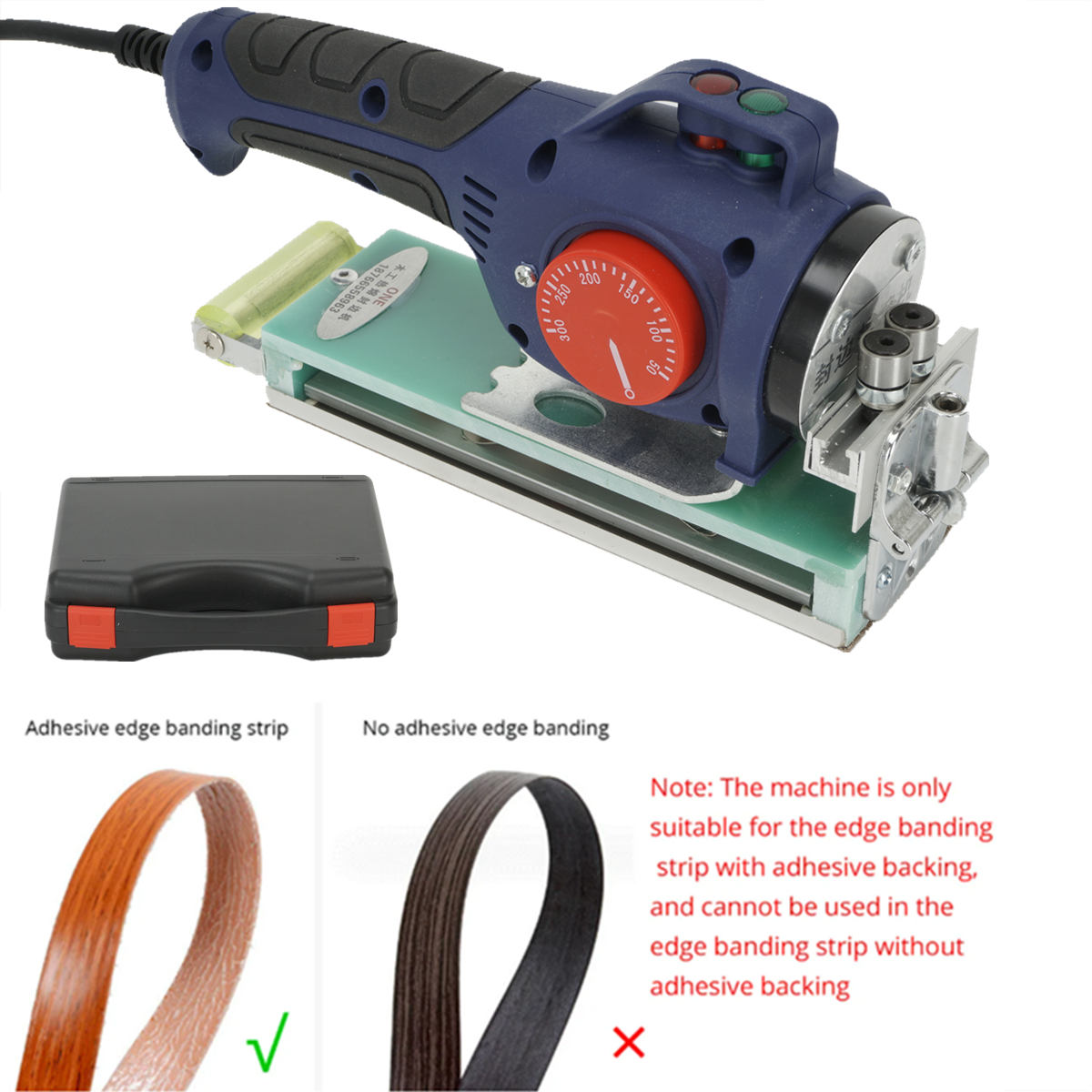

Note: The machine is only suitable for the edge banding strip with adhesive backing, and cannot be used in the edge banding strip without adhesive backing

About this item

• Product parameters: The temperature is adjustable from 50 to 300℃. The edge banding width is adjustable from 0 to 60mm, and the edge banding type is with hot melt adhesive edge banding
• Super high efficiency: The handheld design is convenient and flexible, and can easily handle both straight and curved edges. No complicated installation is required, and edge banding work can be started anytime and anywhere, greatly improving work efficiency

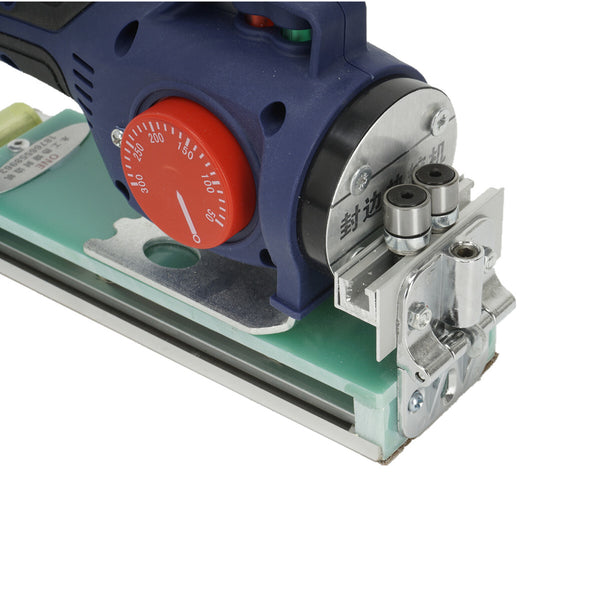

• Edge banding effect: Equipped with a foldable caliper device to guide the edge banding to fit the edge of the board smoothly and tightly. After edge banding, the edge of the board is smooth and flat, without obvious glue marks, showing professional-grade edge banding quality

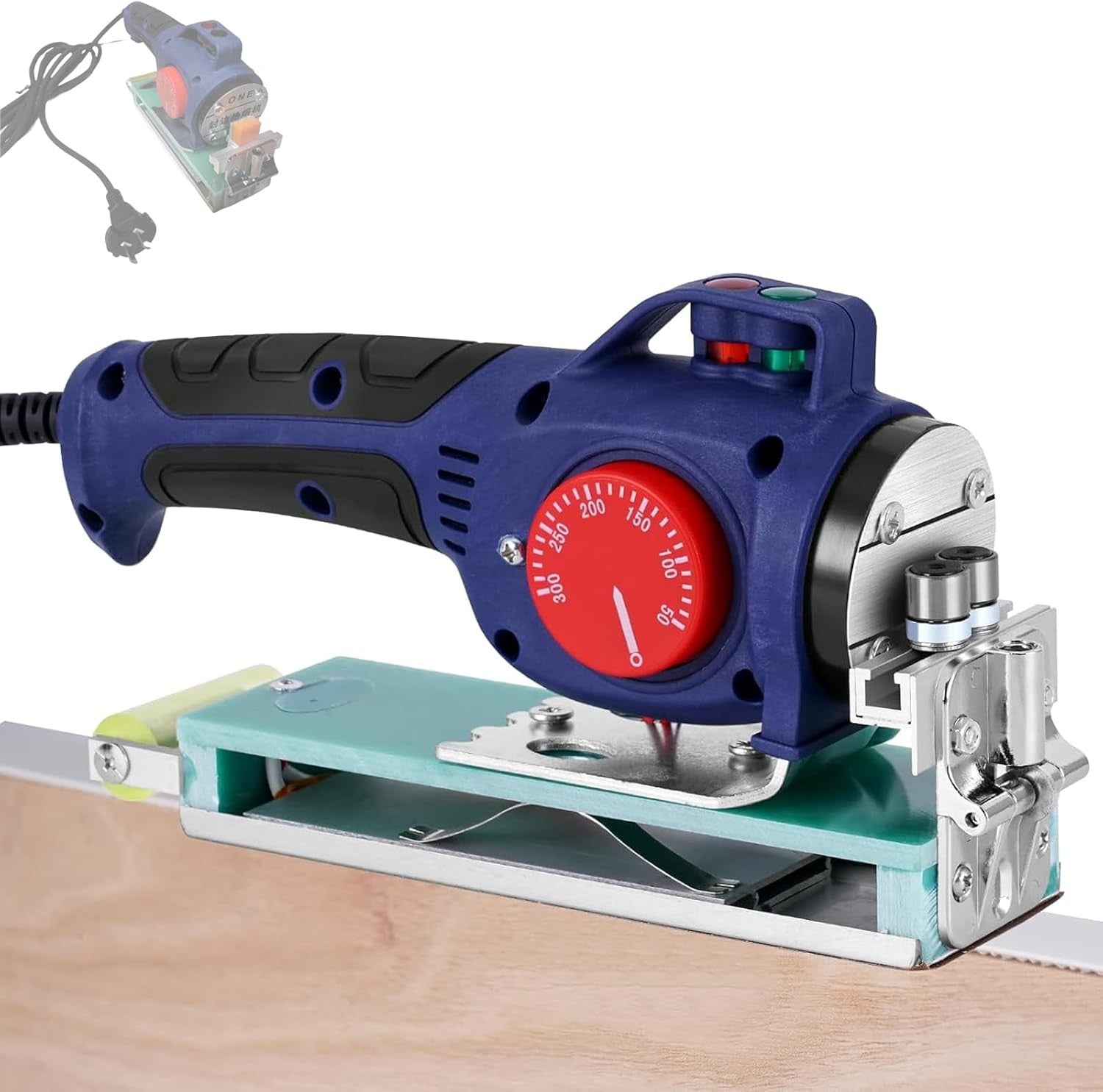

• Wide application: Suitable for edge banding of various shapes of straight edges and arc edges, widely used in panel furniture, cabinet production, decoration and other industries
• SERVICE： If you encounter any problems when using this product, please contact us in time. We will reply you within 24 hours, please rest assured to buy.

How to use the machine:

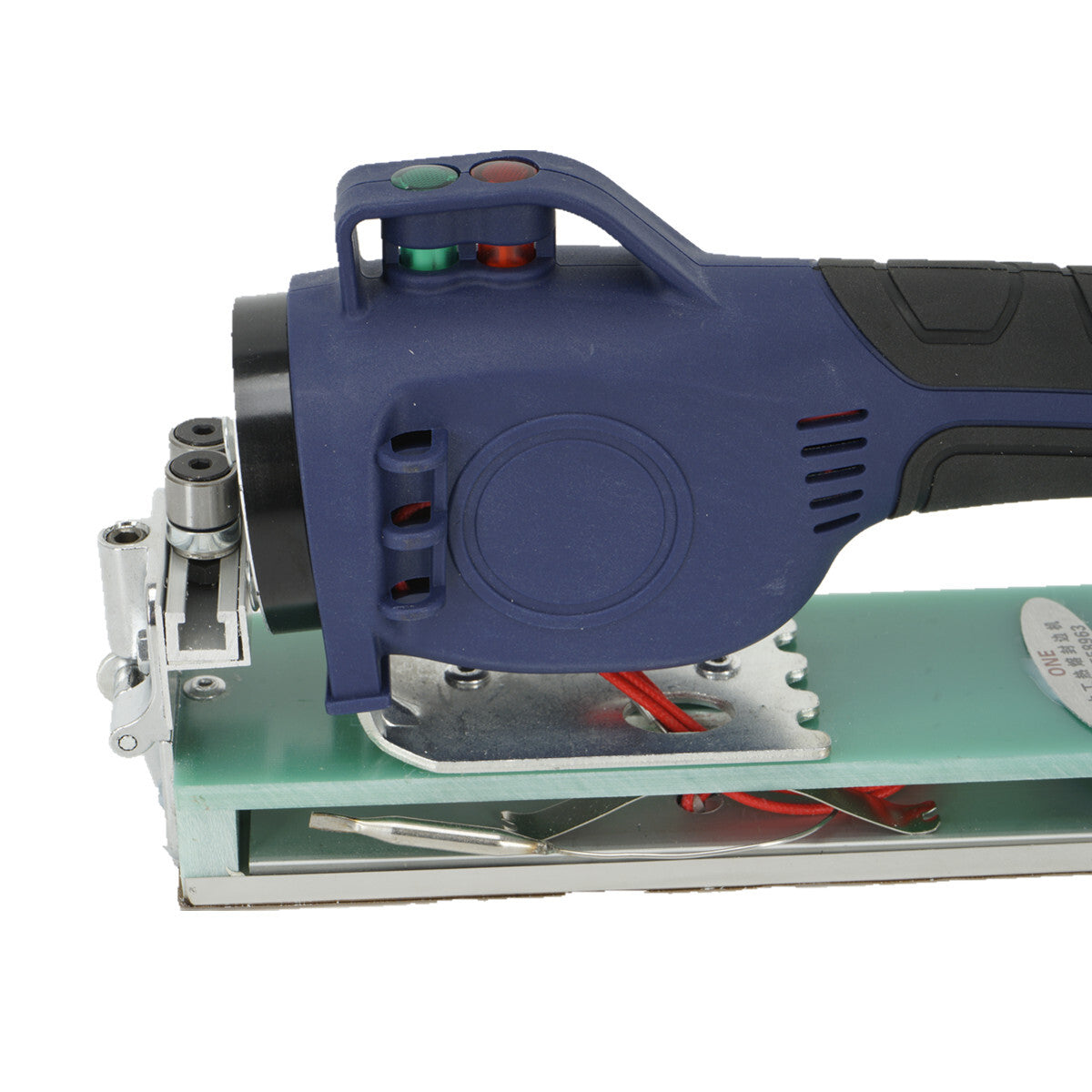

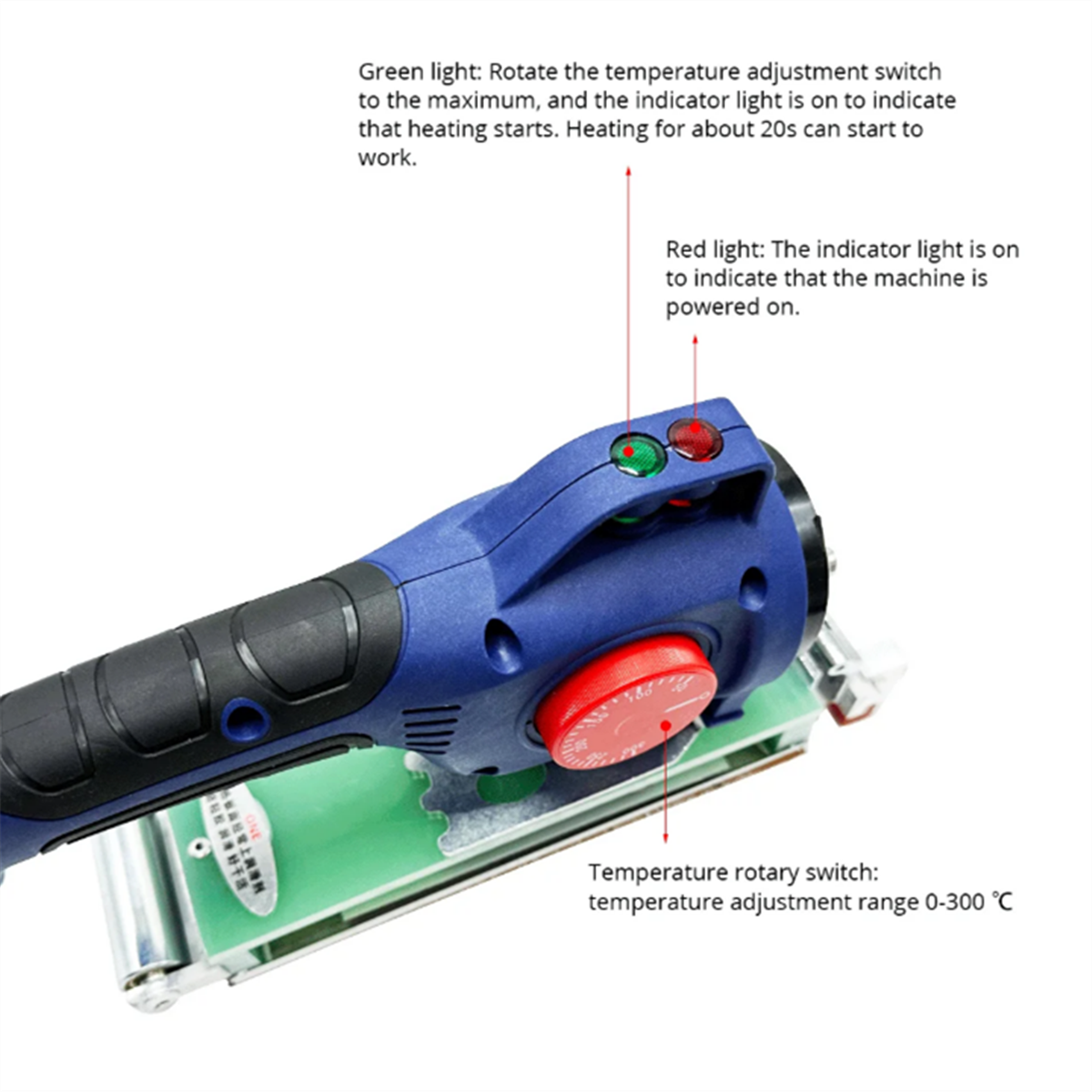

1. Power on, the red indicator light is on

2. Rotate the temperature adjustment switch to the maximum, the green indicator light is on, and the heating for 10s-20s can start to work.

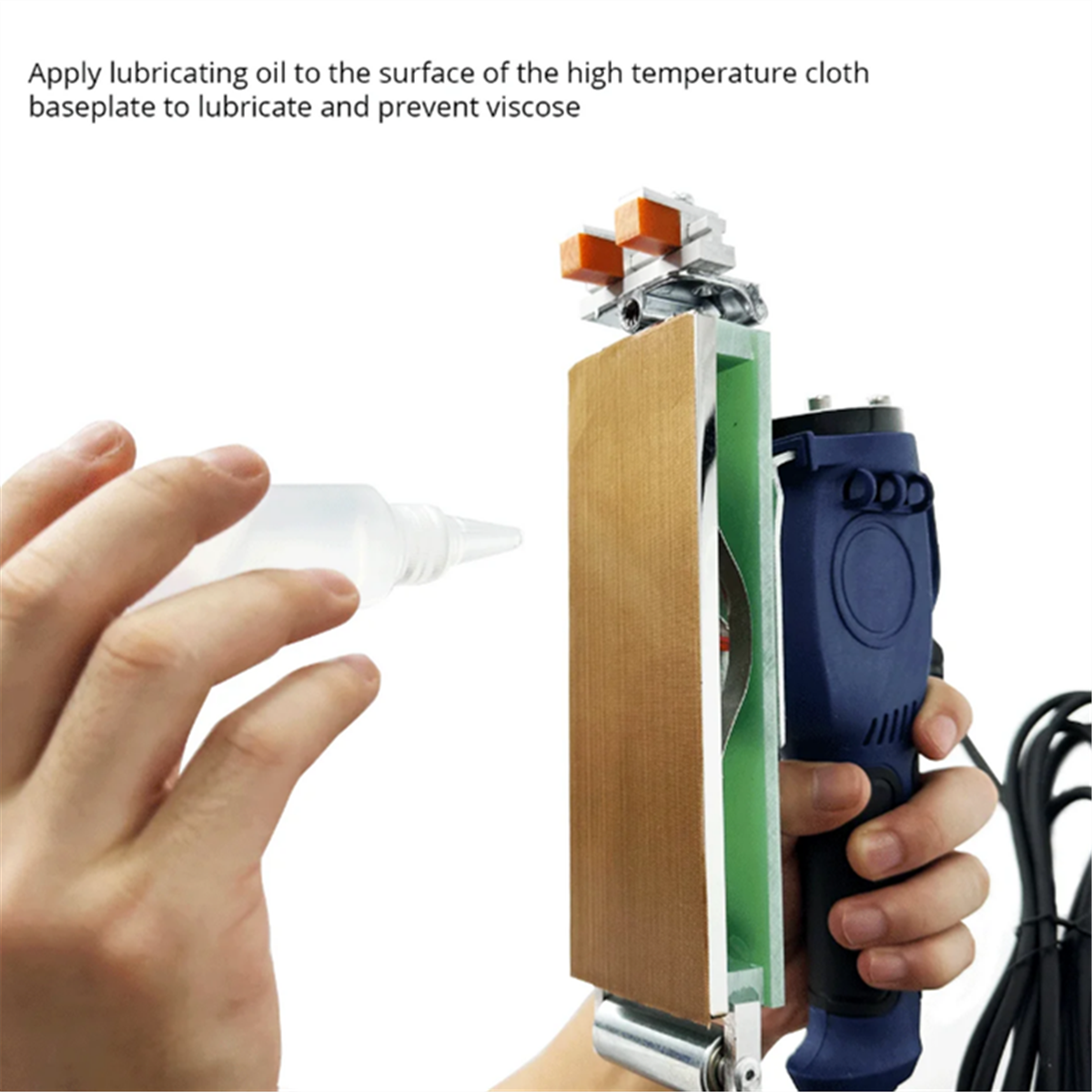

3. If the novice or the strength is not well controlled, it is recommended to add a few drops of high-temperature lubricating oil, without adding too much. The function can lubricate and prevent viscose, and pay attention to preventing burns (we do not match this lubricating oil, because it cannot be transported, customers need to buy it themselves)

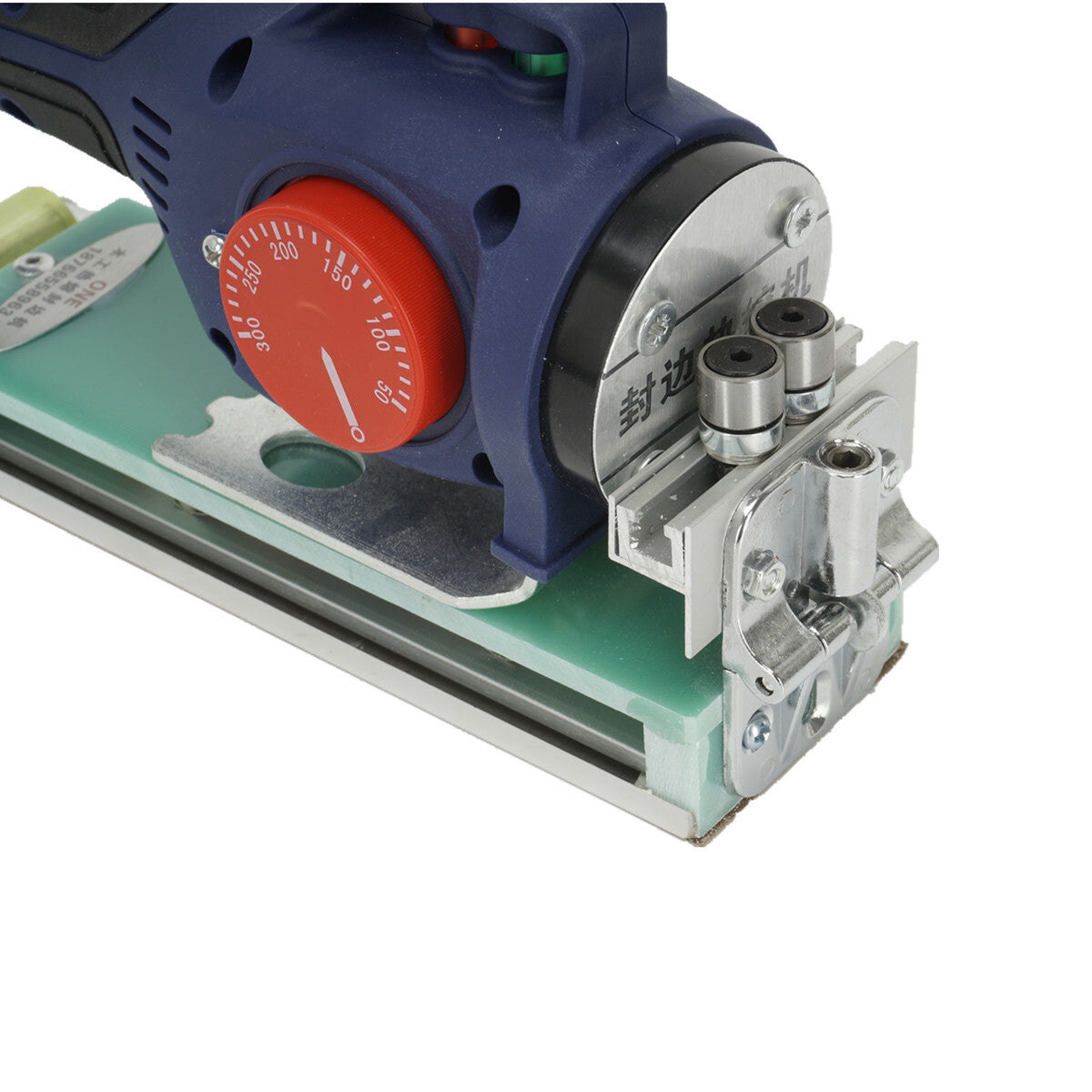

4. Put the caliper down, adjust the width well, not too tight

5. First heat and position one end of the edge banding strip, then jam the edge banding strip and heat it again. Slow down and position the strip.

6. Put away the caliper and gently heat it back and forth several times, depending on the specific situation

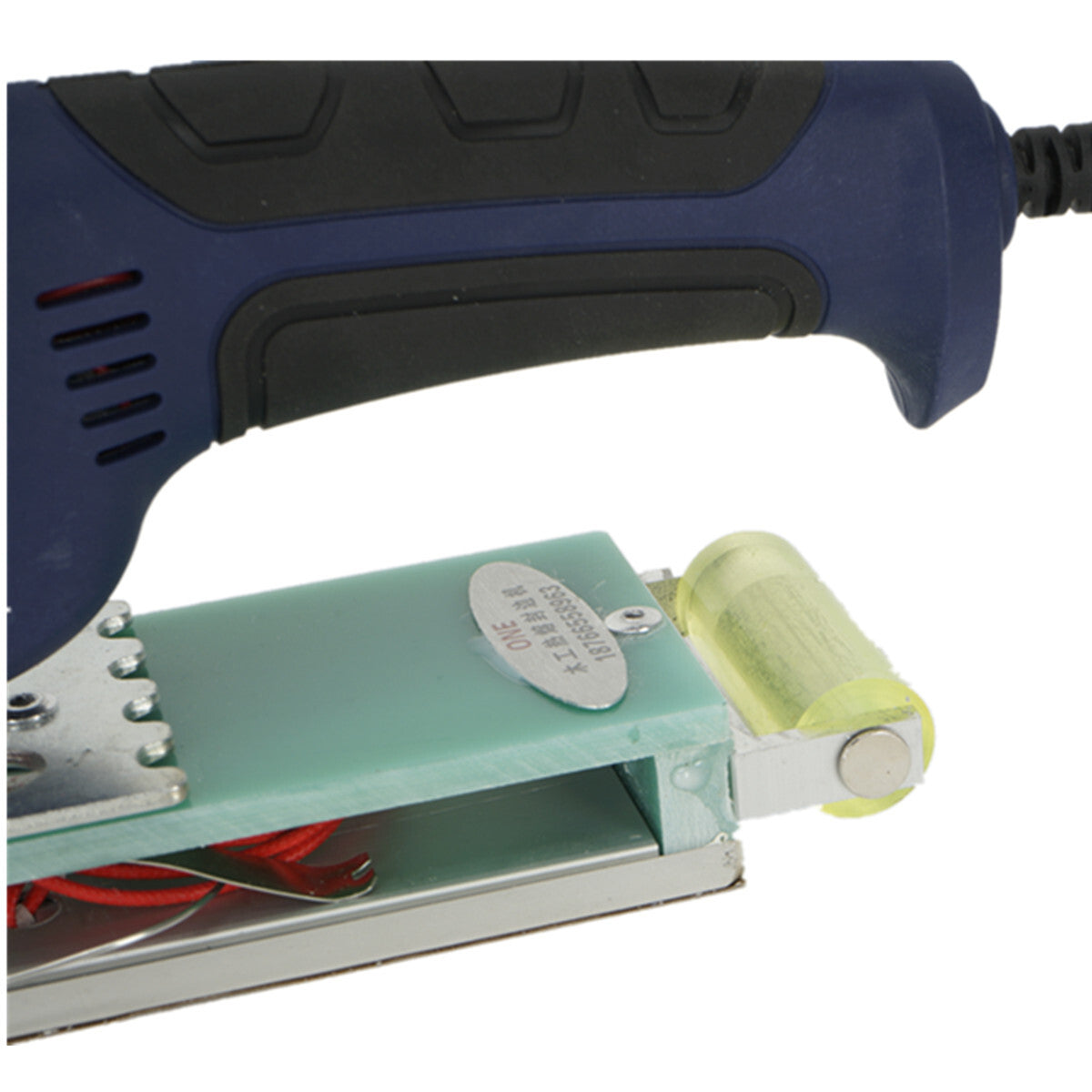

7. Squeeze back and forth with the pressure wheel at the back of the machine to help fix it.

Specification:

Voltage: 220V
Power: 600w
Working temperature: 280 degrees
Size: 24*13*6cm
Weight: 1.25kg

Warm Tips:
1. Applicable edge banding: Only applicable to edge banding with hot melt adhesive on the back.
2. There may be a slight odor when the machine is heated for the first time, which is normal. It is recommended to use it in a well-ventilated environment. After a short period of use, this phenomenon will disappear on its own.
3. The temperature of the heating plate is high during operation, please do not touch it to avoid burns.
4. Select matching edge banding according to the material and thickness of the edge banding to reduce the workload of trimming and ensure the edge banding effect.
5. Adjust the temperature according to the material and thickness of the edge banding. It is recommended to control it at around 200-250℃.

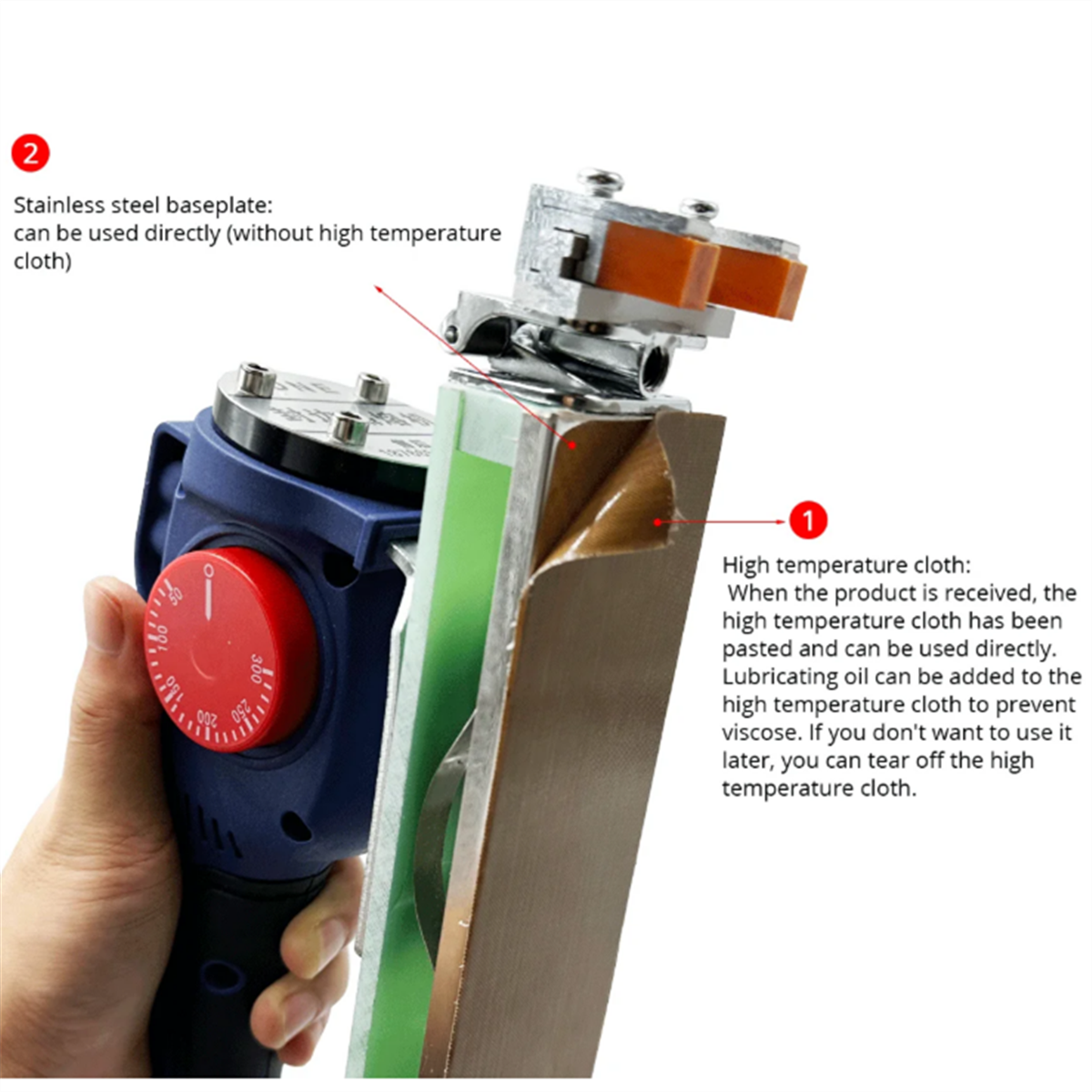

6. If you don't understand the operation for the first time, you can apply lubricant on the heating plate to prevent sticking and lubrication. (Since logistics prohibits the transportation of liquids, we do not provide lubricants.)

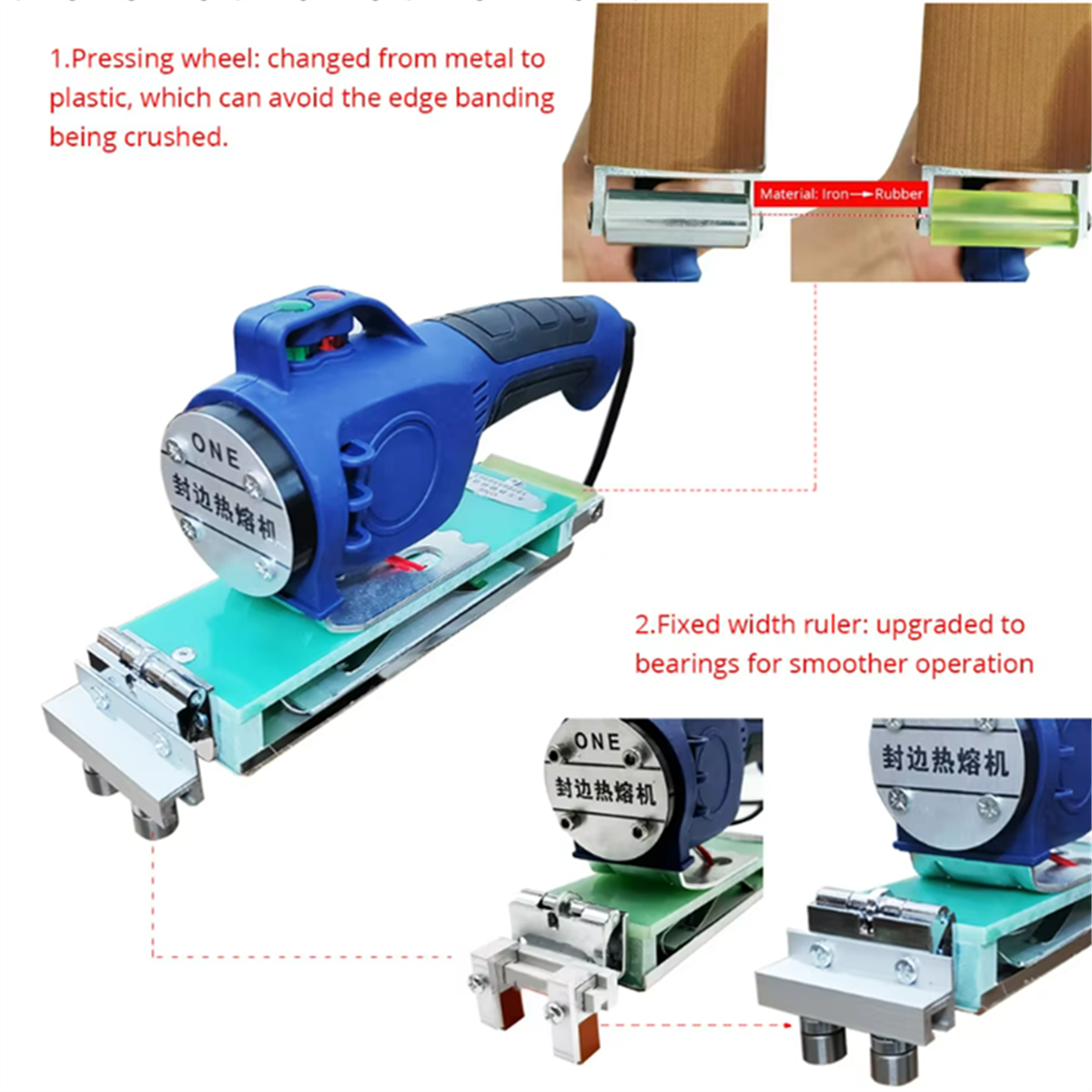

Description: Since some customers cannot control the force of
pressing the edge banding strip, the edge banding strip is damaged. We changed the pressure wheel from iron to rubber material.
