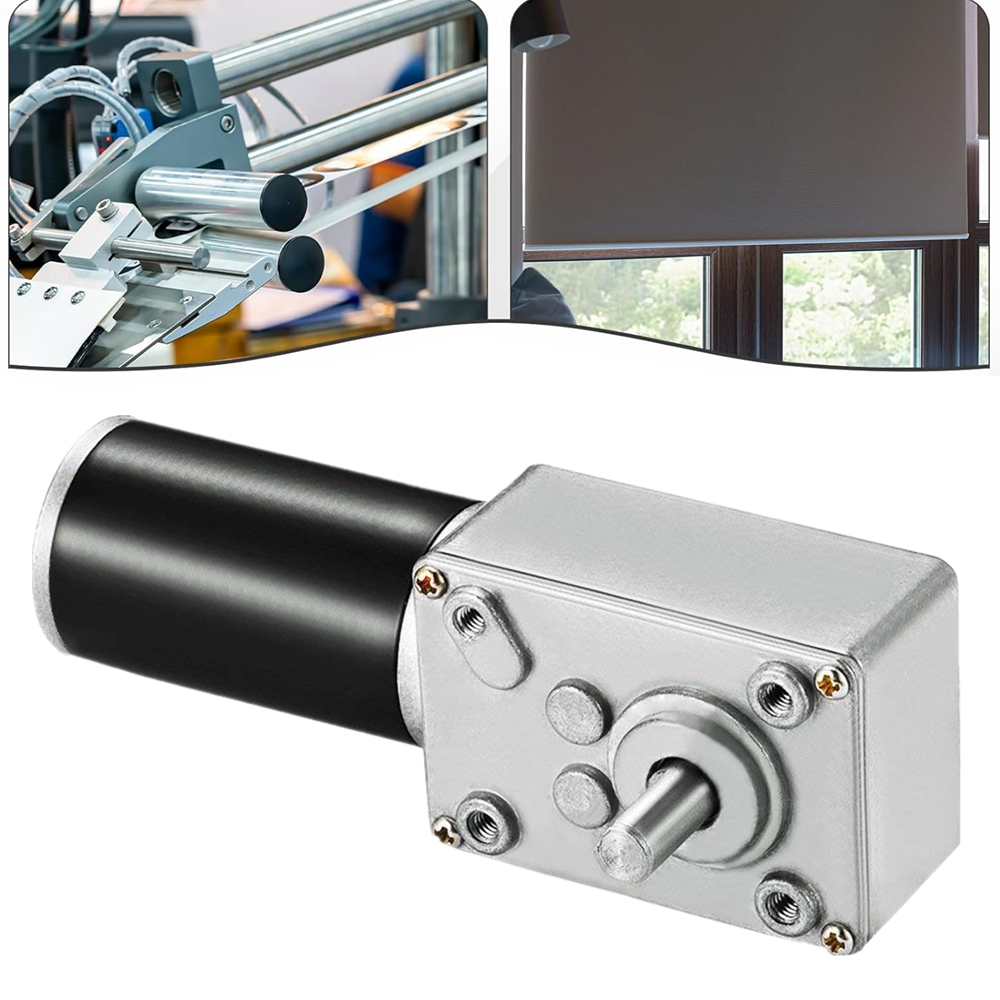

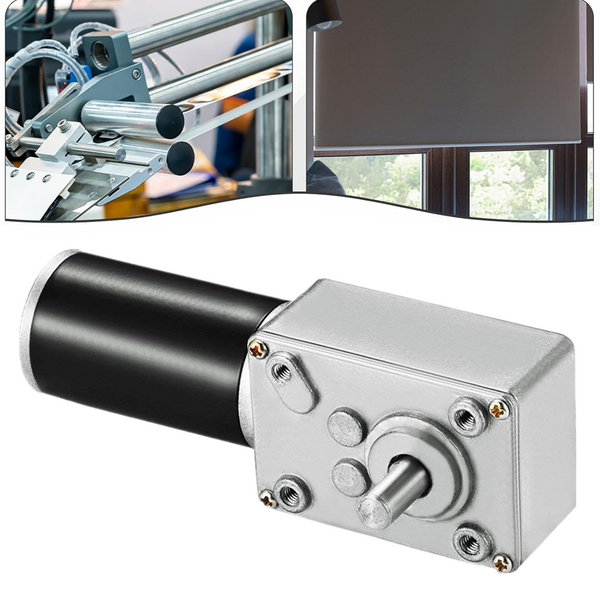

Gear Box Motor DC 12V/24V High Torque Electric Power Speed Reduce Turbine Worm
In Stock
Regular price
$28.91
Tax included.
Shipping calculated at checkout.
Hurry, Only 3 left!
You have got FREE SHIPPING
Expected Delivery on - .
GUARANTEED SAFE CHECKOUT
3
DC24V 160RPM - $28.91
- DC24V 160RPM - $28.91
Gear Box Motor DC 12V/24V High Torque Electric Power Speed Reduce Turbine Worm
PRODUCT DETAILS
HIGH TORQUE PERFORMANCE: Delivers impressive 100KG.CM torque output, making it ideal for heavy-duty applications and demanding mechanical systems
SELF-LOCKING MECHANISM: Features built-in self-locking capability that maintains position when power is off, ensuring stable and secure operation
REVERSIBLE OPERATION: Offers both forward and backward rotation capabilities, providing versatile control for various automation needs

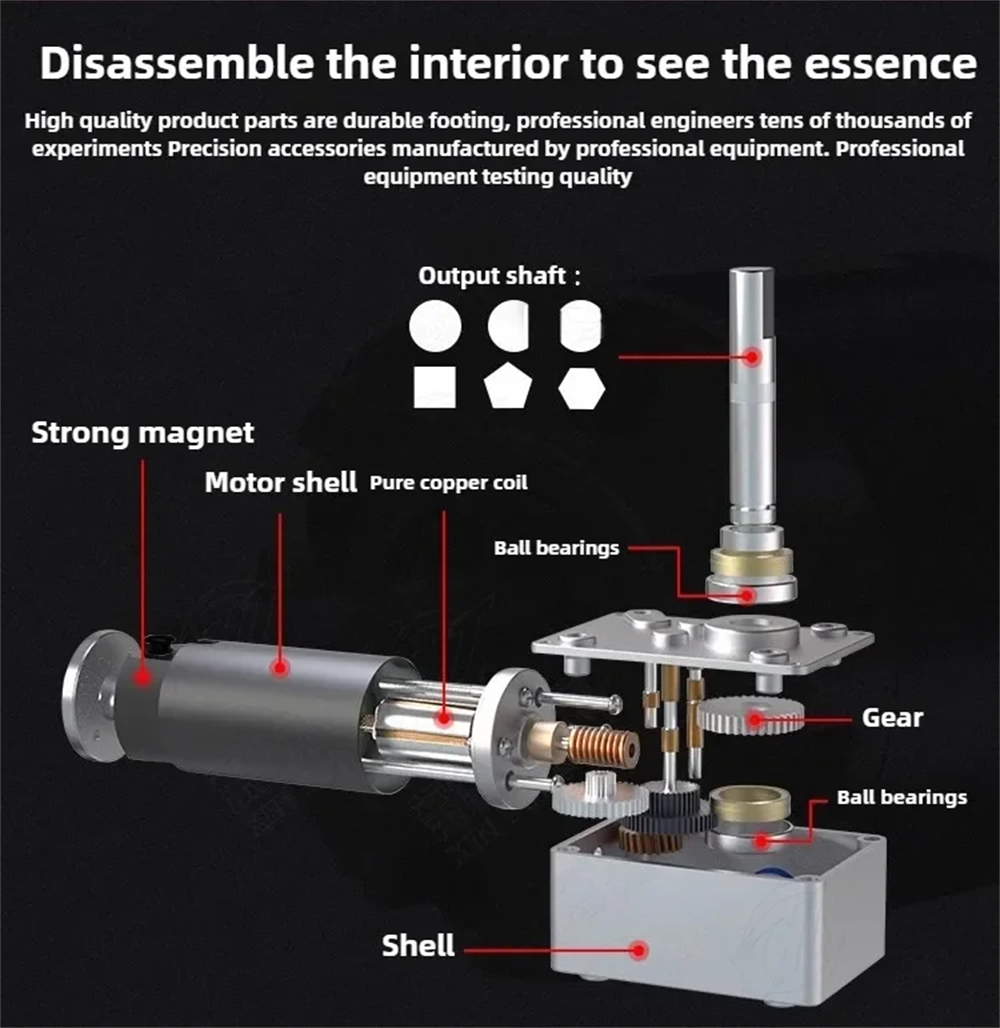

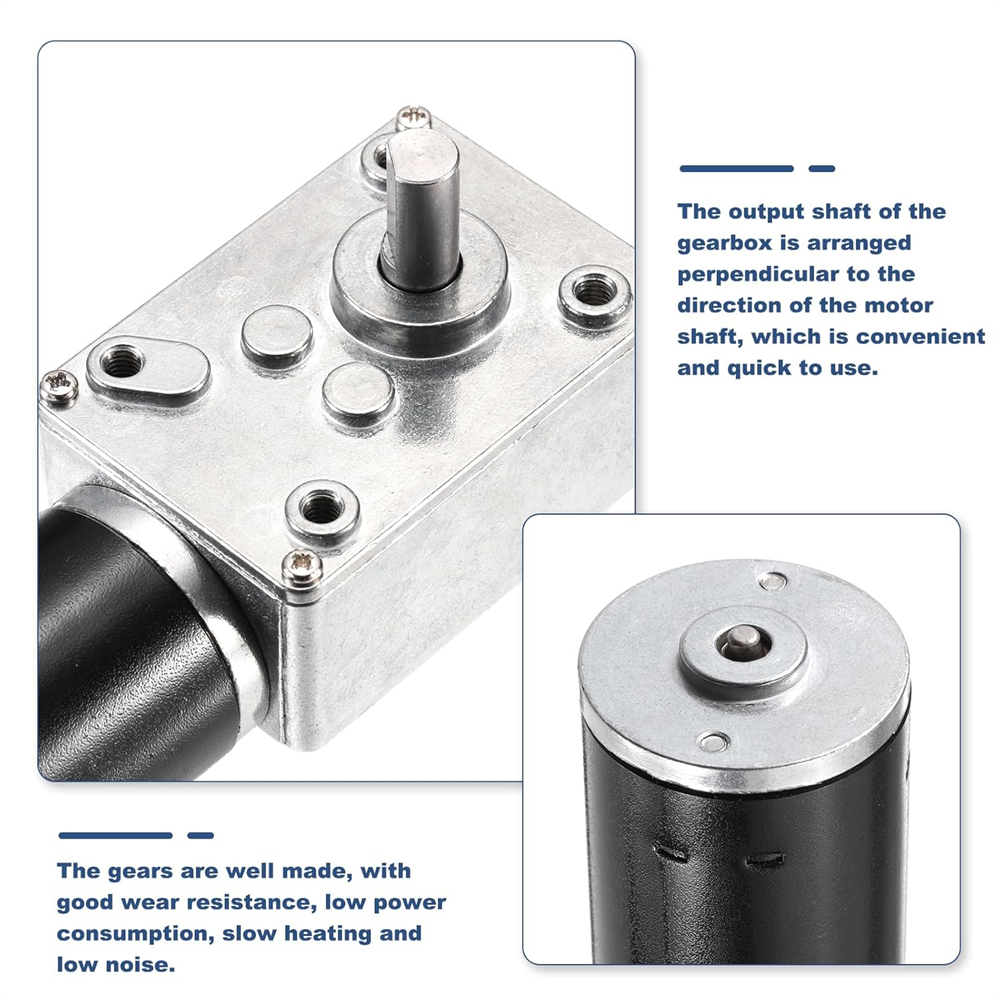

WORM GEAR SYSTEM: Utilizes efficient worm gear design that ensures smooth power transmission while minimizing operational noise
DURABLE CONSTRUCTION: Robust metal housing with high-quality gear assembly, complemented by reliable wiring with red and black leads for proper polarity

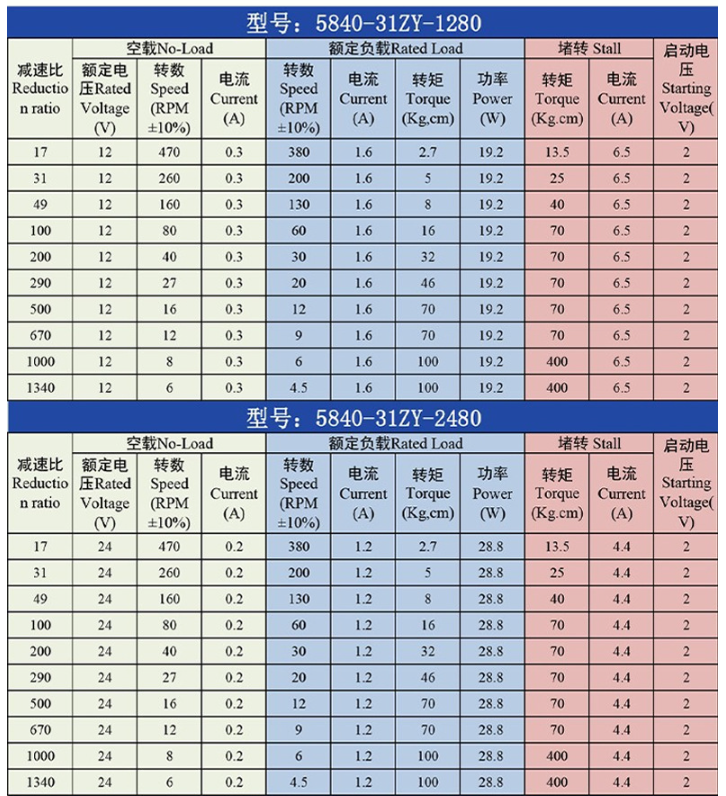

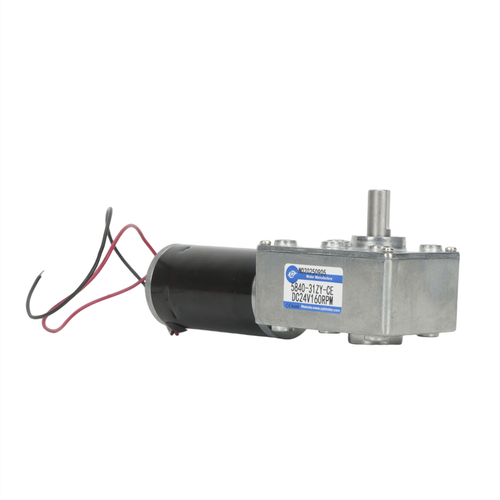

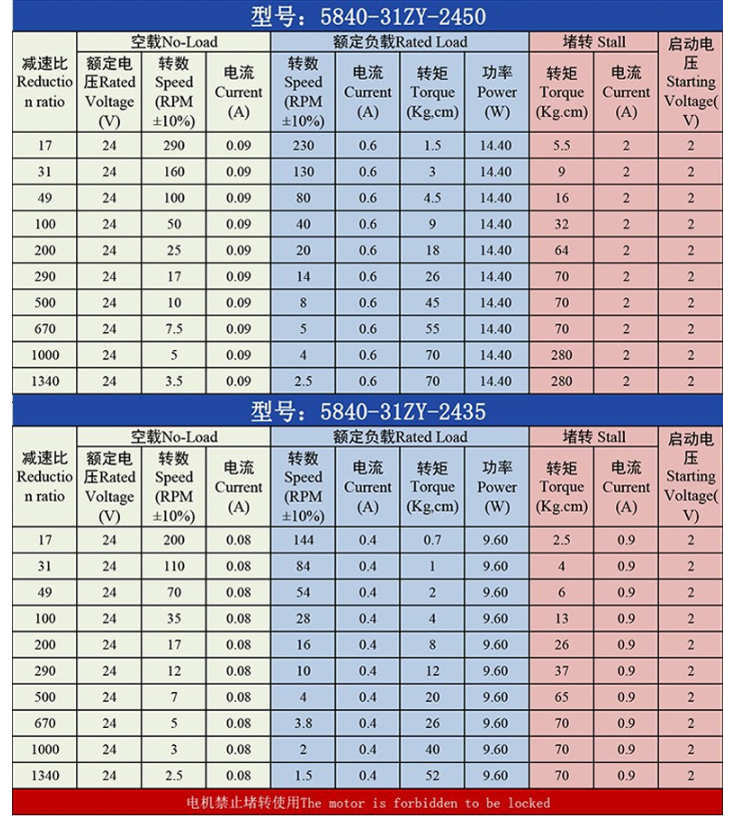

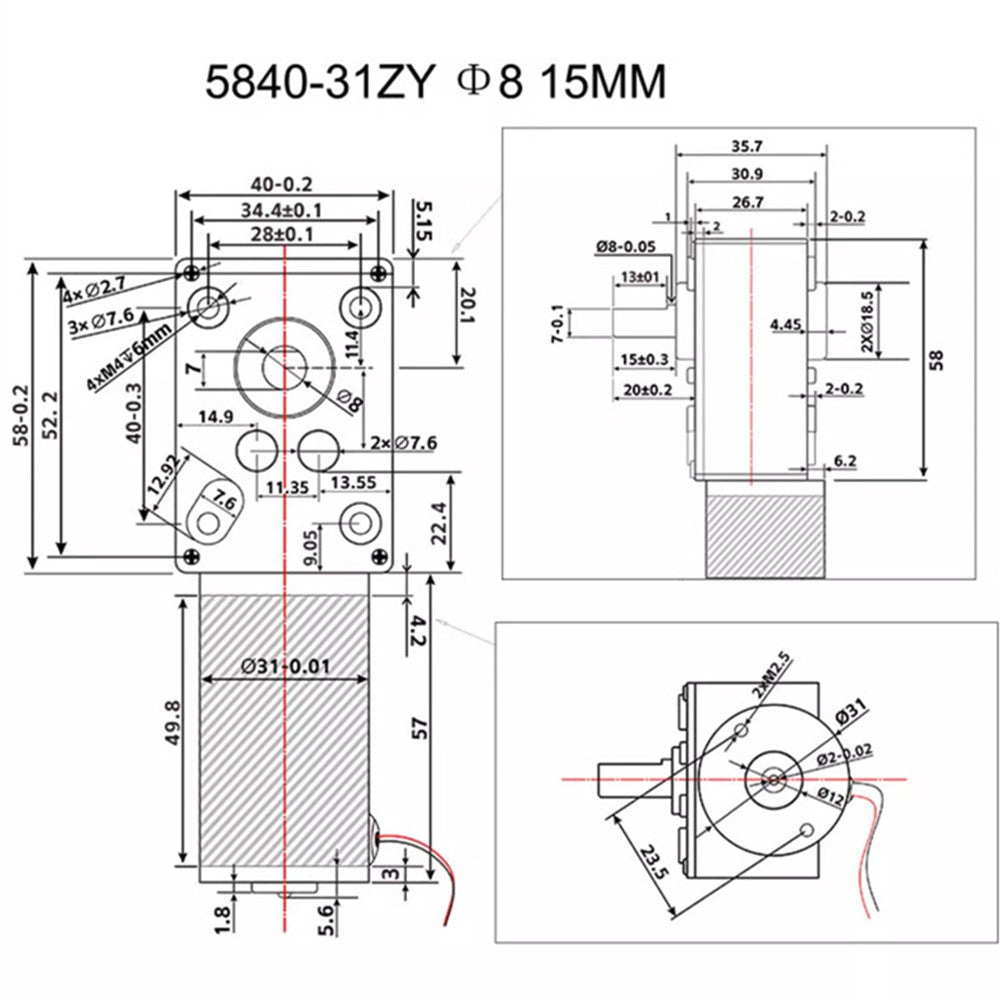

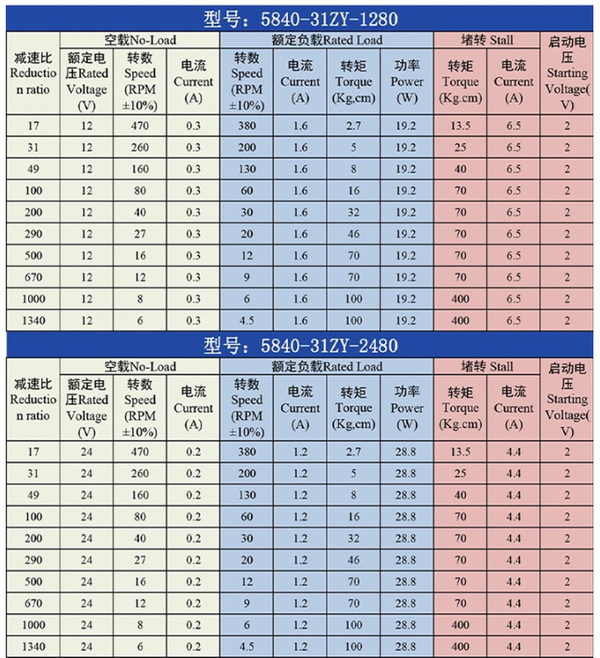

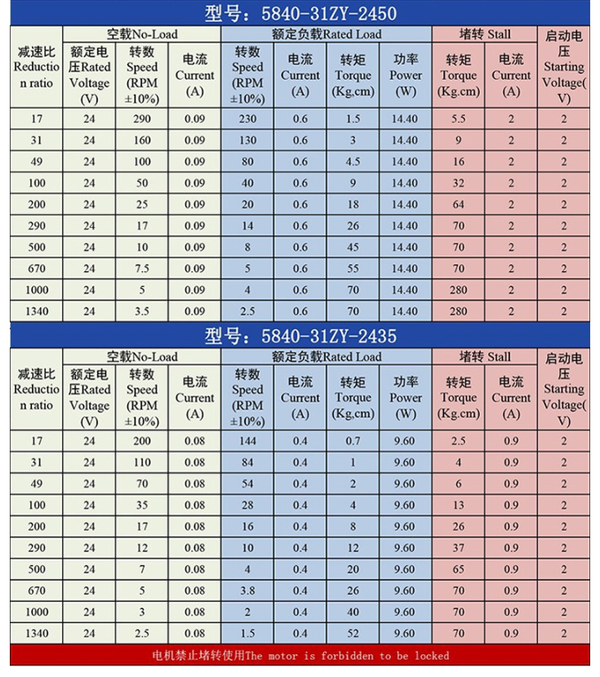

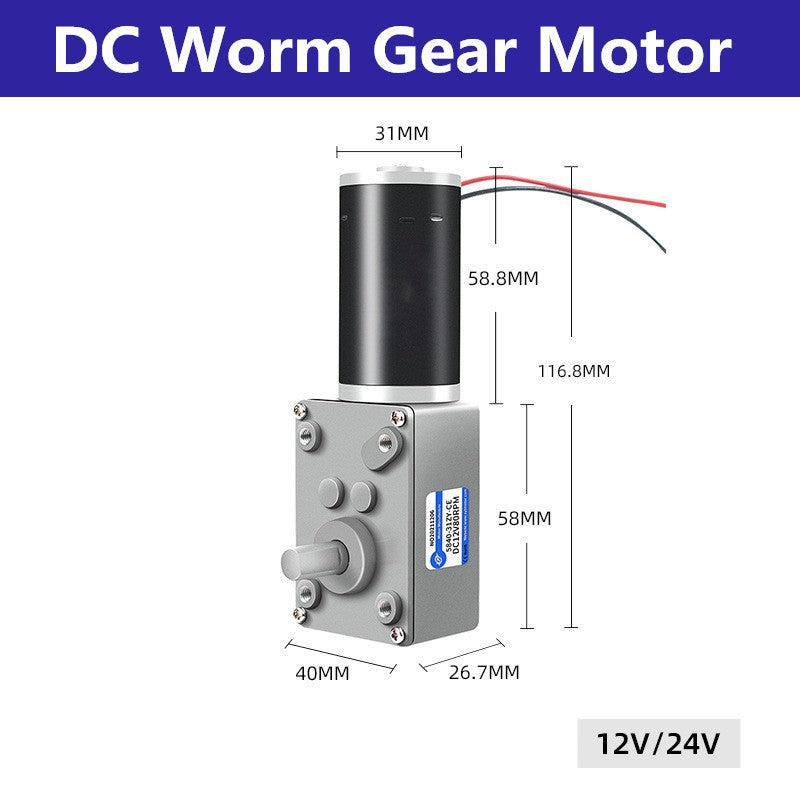

Model: 5840-31ZYS Turbo Worm Geared Motor
Voltage: 12/24V

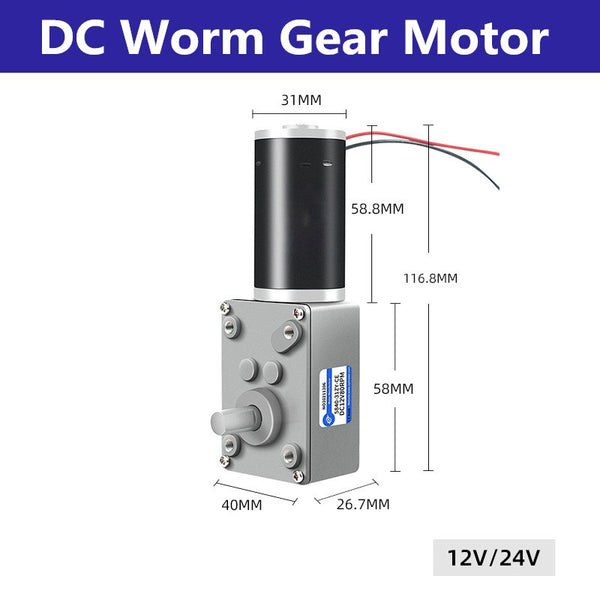

Shaft diameter: 8mm diameter shaft
Weight: about 355g, different reduction ratios, different parameters, different weights
Package Includes:
1 x Gear Motor
What does motor torque mean?
The standard torque of the motor is 10kg.cm. If the belt wheel is used for transmission, the belt wheel has a radius of 1cm, and the output tension of the belt is 10kg.
If the belt radius is 2cm, the output tension of the belt is 5kg, and so on.

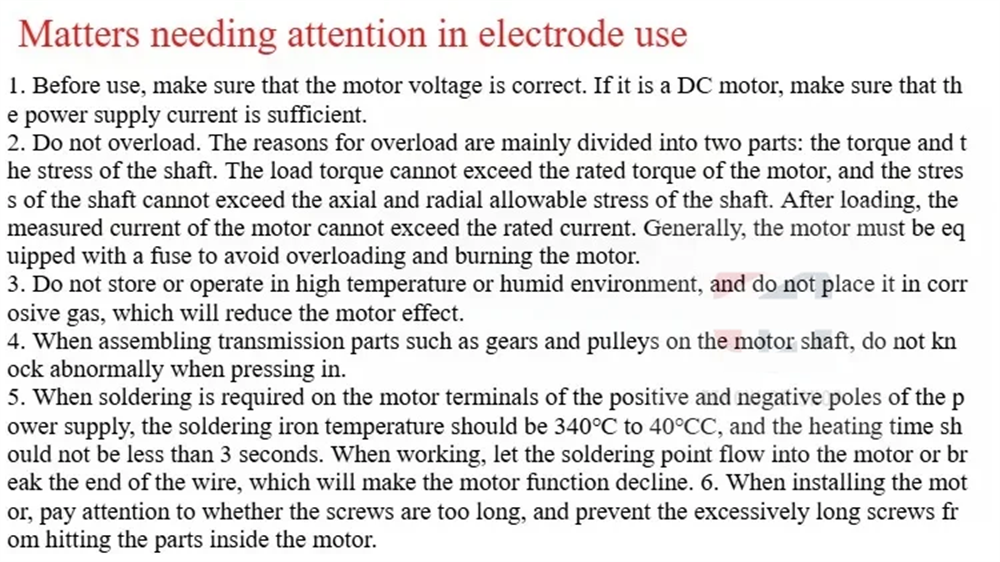

PLEASE NOTE:
1.Use tolerance: Pay attention to the use of voltage and current range, otherwise the motor performance and motor life will decline.
2.Handling motors: Gently, as far as possible the use of motor shell part.
3.Motor wiring: Red lead to the positive electrode, black lead to the negative pole, if reversed, the motor rotation in the opposite direction.
4.Overload: As far as possible within the specified load range, prohibit motor blocking or close to the stall state for too long time to runs. Otherwise, the motor will burn out.
5.Motor storage:
-- Storage temperature: 0℃ - 40℃;
-- Storage humidity: 15% -90% RH;
-- Avoid placing in high temperature, high humidity and corrosive gases.
6.Motor use temperature: 0℃ - 70℃
Note:
Can reverse the motor's rotation by swapping its positive and negative terminals.

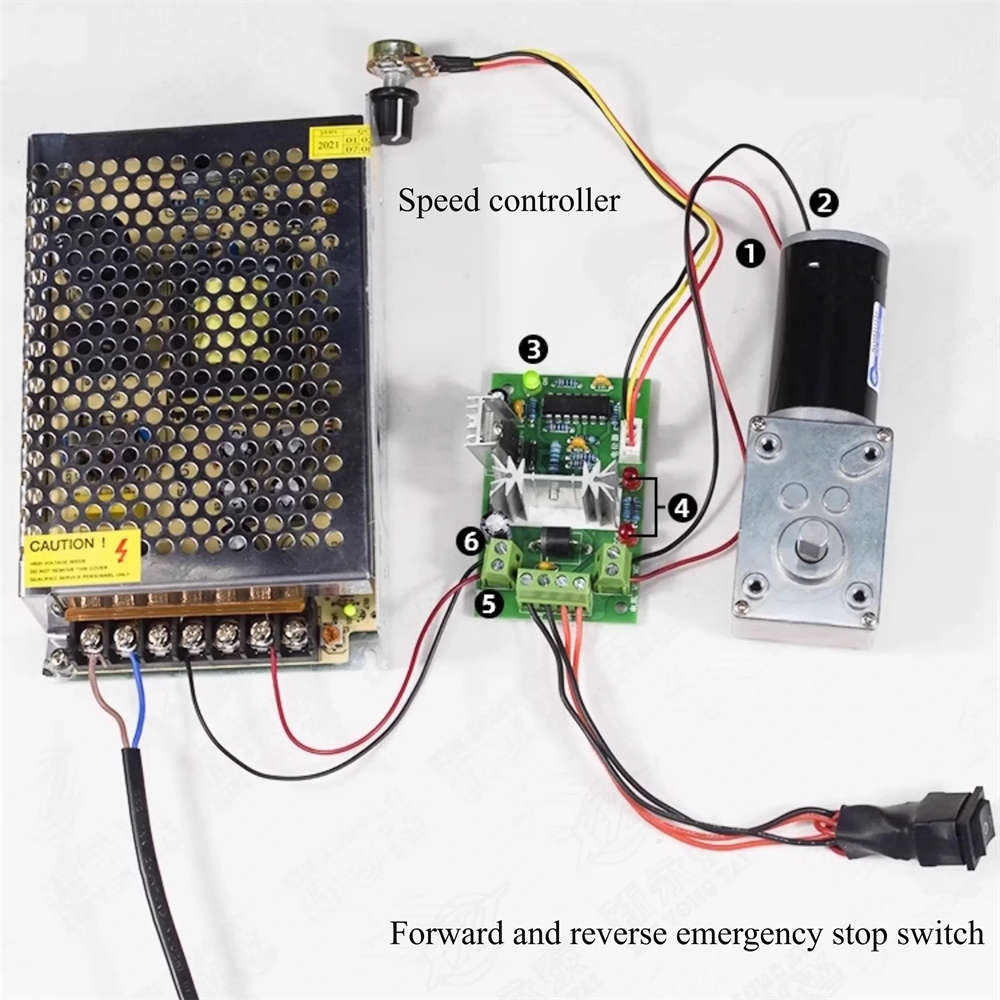

If wiring is convenient, no additional controller is required; however, using a CW/CCW controller provides a more convenient way to achieve forward and reverse rotation.
Vibrating motors are consumables. Its lifespan is about 200 hours.
