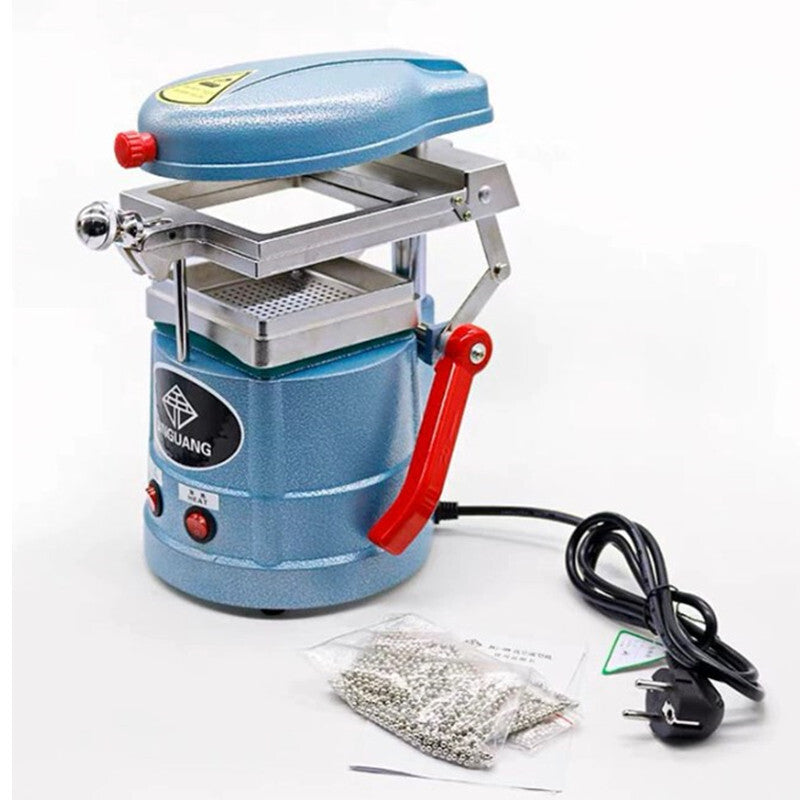

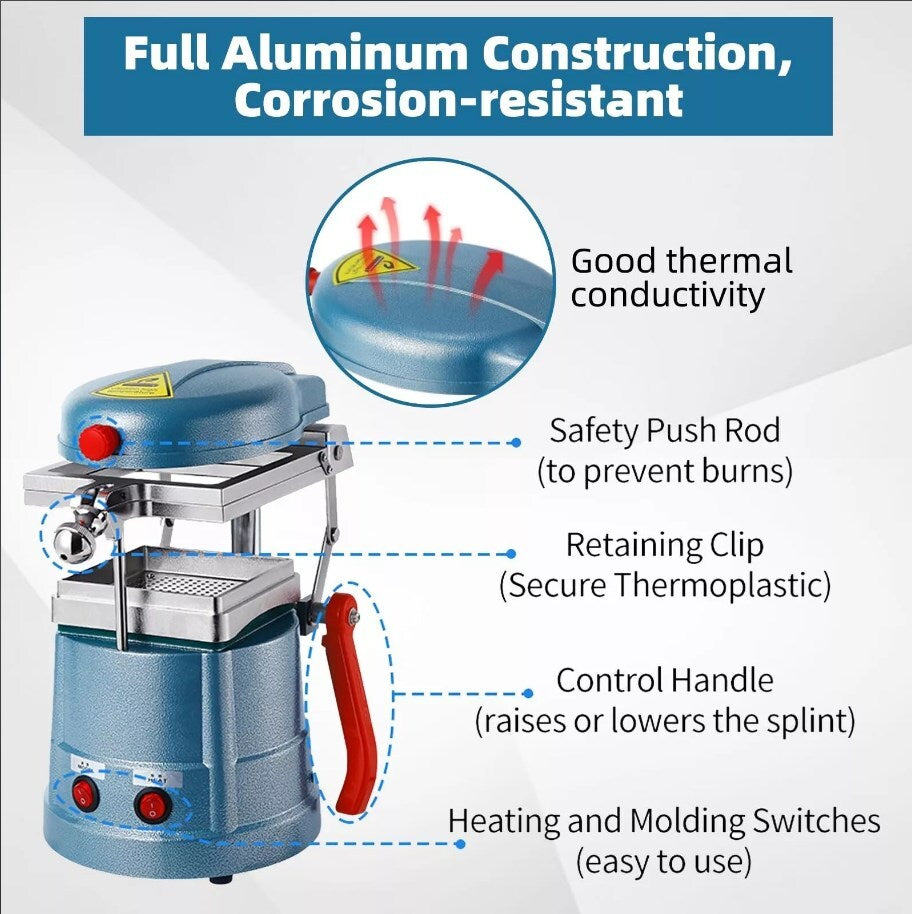

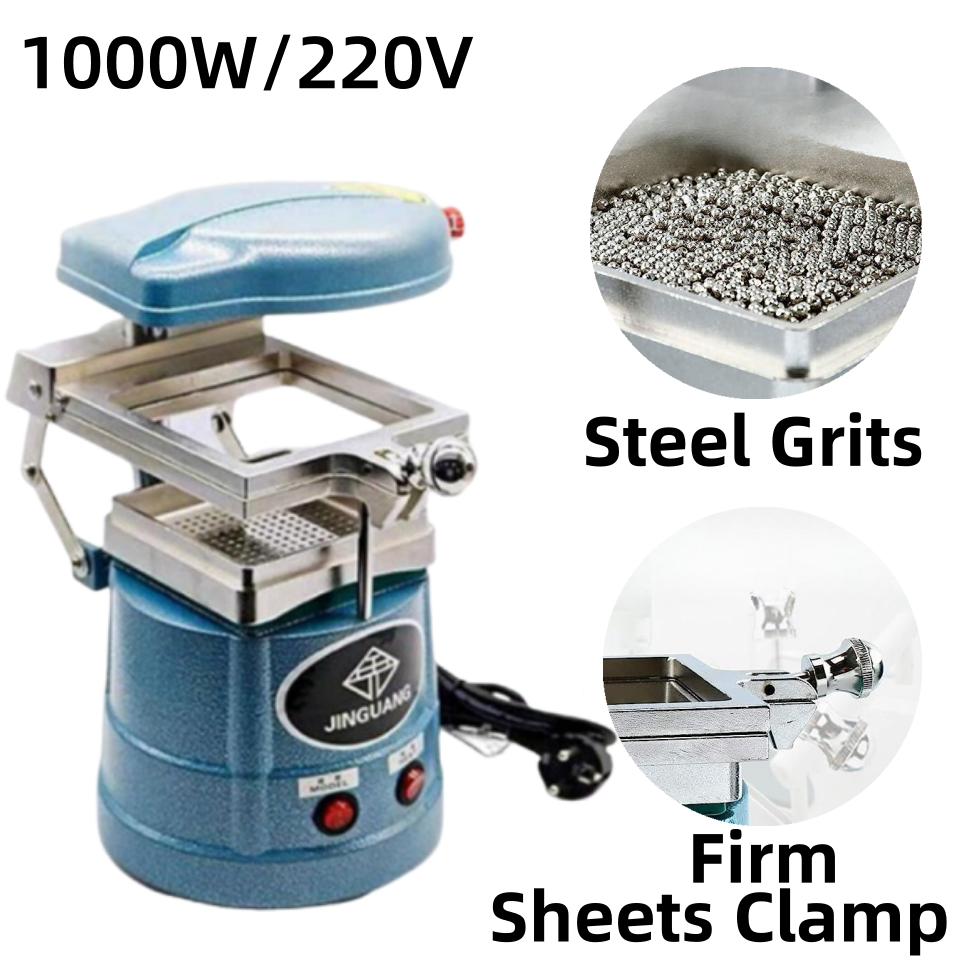

Dental Vacuum Forming Machine Thermoforming Former Lab Equipment JG-18

1. Heavy-duty vacuum motor provides precise downward suction

2. Features a symmetrical heating system, ensuring uniform heat distribution

3. Adjustable, rust-resistant body accommodates various materials

4. Suitable for a wide range of clinical applications

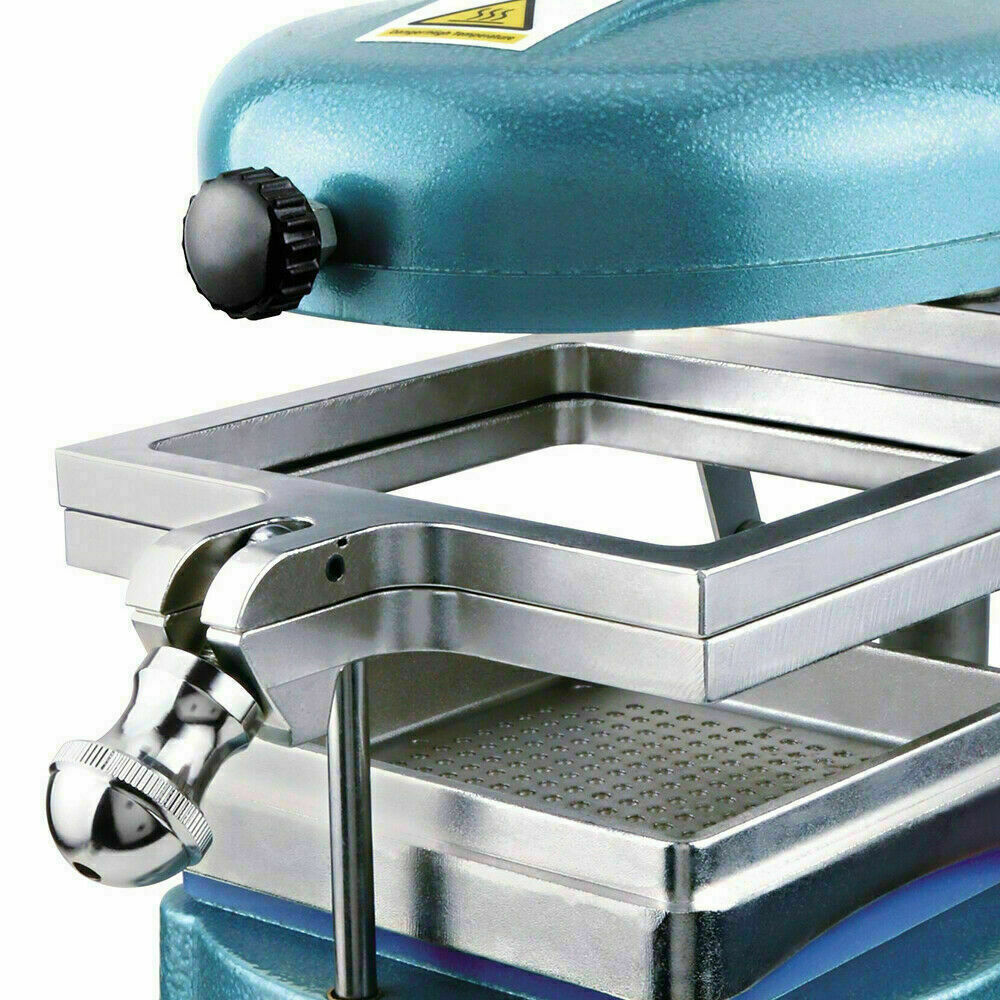

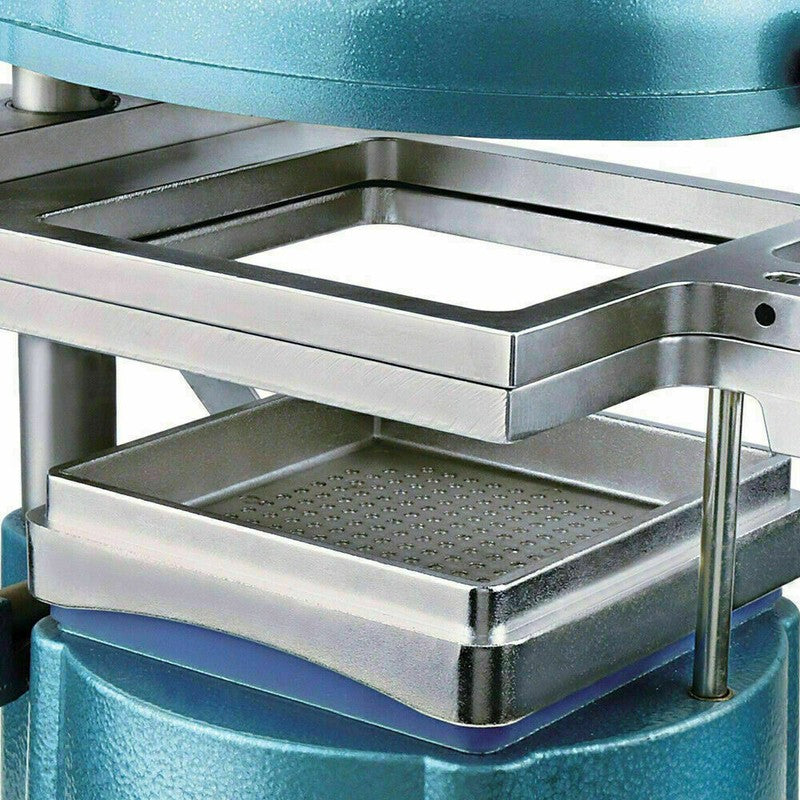

5. Non-rotating sliding frame makes operation easy and stress-free

6. Compatible with all dental thermoplastics

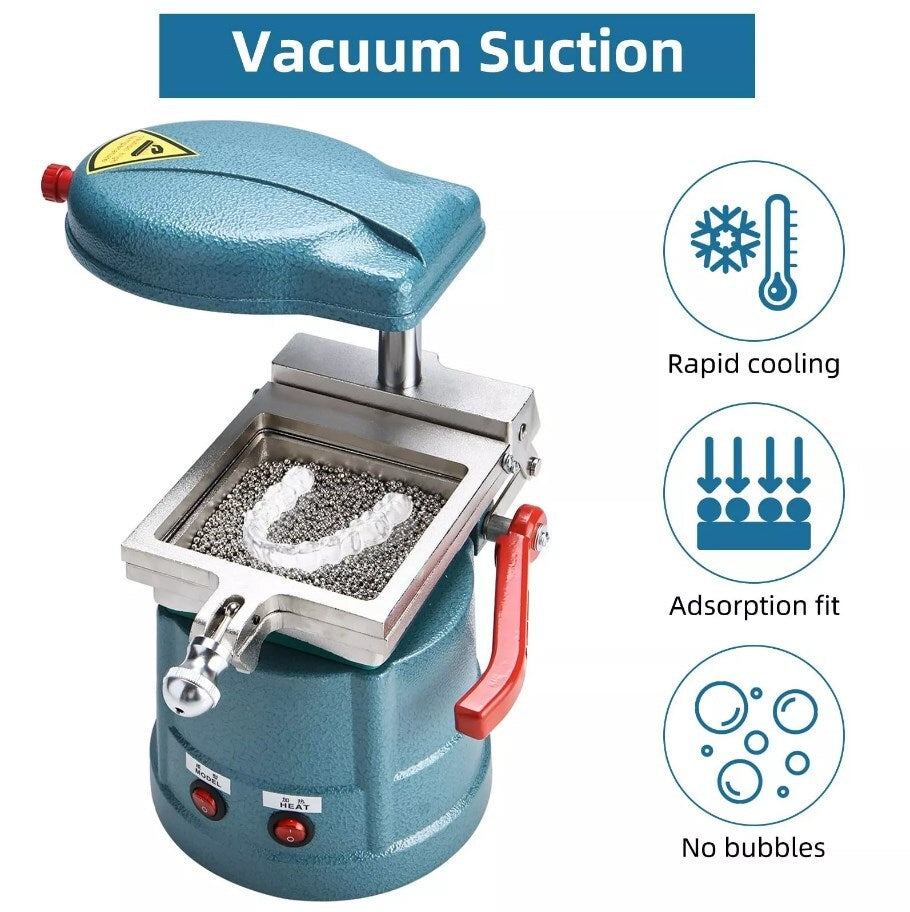

7. The motor of vacuum former is strategically placed below its perforated stage, which creates a direct downward suction, ensuring the utmost precision.

8. Durable and user-friendly, the machine will withstand years of rigorous use and prove to be an indispensable tool for any dental office.

Instrustions:

1, first pull rod , and then plaster model trimmed in a vacuum online.

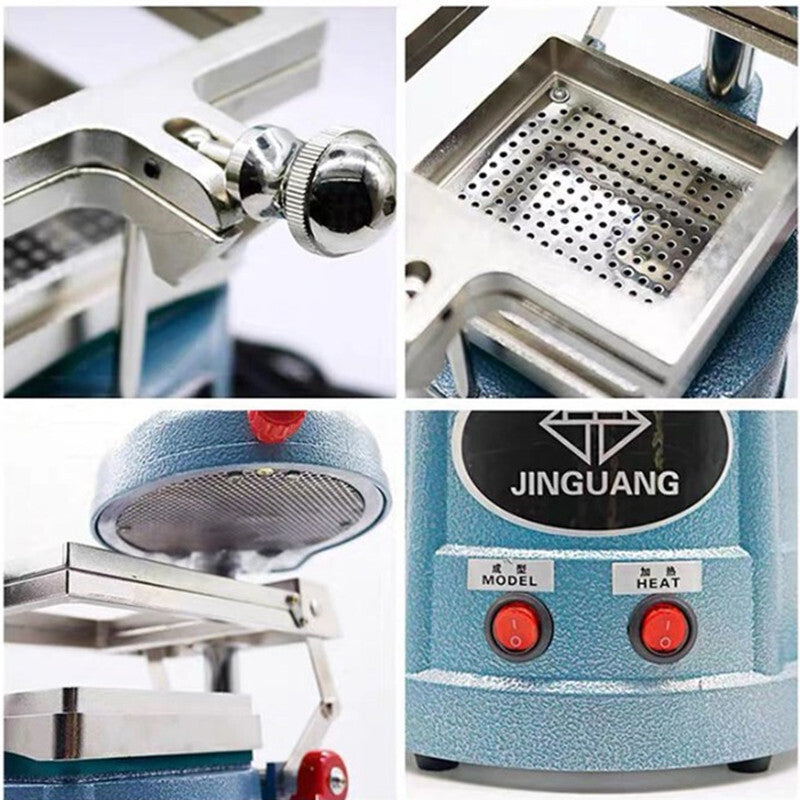

2, the film on the mezzanine , tighten the screw button.

3, open the heating switch observed softness film until the film is heated evenly.

4 , the lever depressed after heating the soft film covering the plaster model

5, turn off the heating switch , turn on the vacuum switch ,vacuum for 10-15 seconds , braces can be formed.

6 , the first film outside the pen to draw marked by gingival margin .

7 After cooling the film with scissors or grinding to remove excess film by Mark completed braces;

Details:

Remain transparent orthodontic appliances or without clasp , beautiful, wear comfortable, remain stable, and simple production by the majority of dentists welcome,

Different from the first use of the tool : plastic sheet vacuum forming machines and special . Hard plastic sheet used in orthodontics , the choice of 0.8mm ~ 1.5mm.

1,get an press mould

2, filling gypsum, plaster casts upon dry dressing models ,remove the bottom part of the palate and tongue should be the best it into a "U".

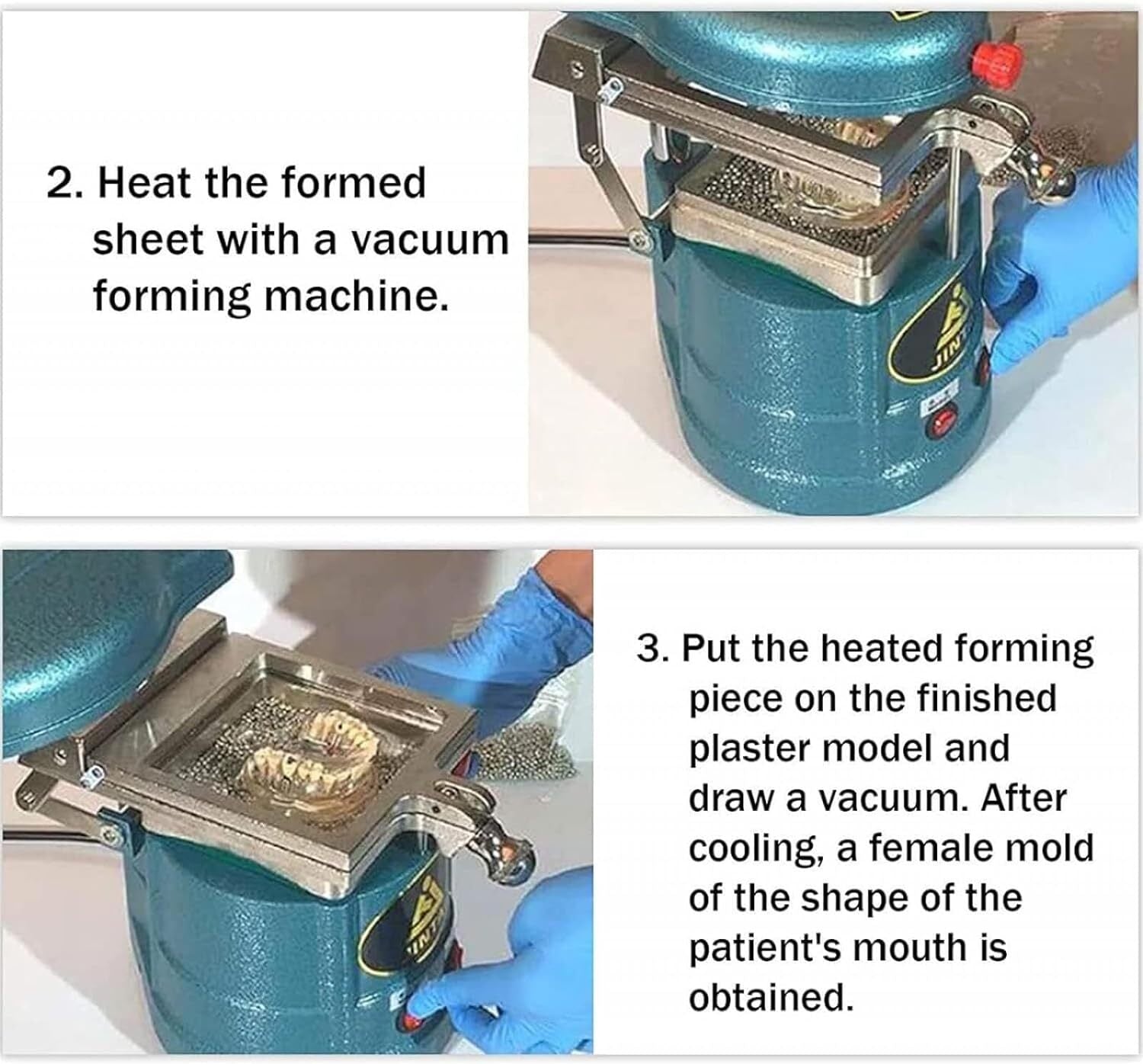

3, Place the slices on a molding machine , clamping , jumping heated place.Then take the model into the vacuum forming machine vacuum suction machine .

4, slices of hard vacuum machine heater heating , let depression about 2 cm . The deeper the recess , the holder will be thinner .Put it down on the model until it is fully in place.

5, vacuum suction machine for 15-20 seconds to ensure molding.Remove the heater , which will be cool to remove it die.

6, Use scissors to trim off the excess , or burs directly along the gingival margin under 2 ~ 3mm under its grinding, trimming the edges, reserves the gingival margin 0.5 mm

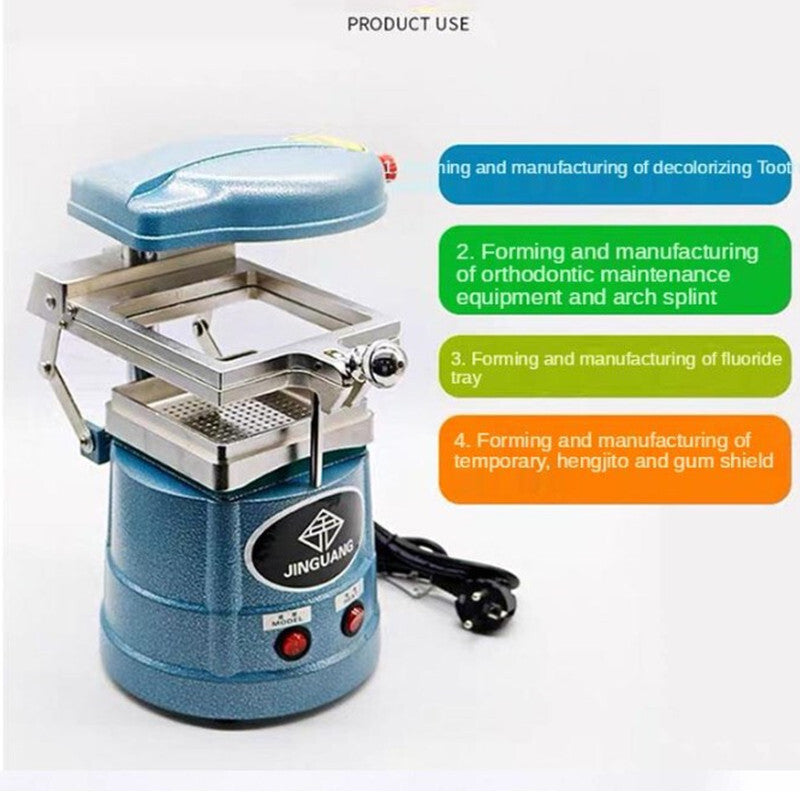

7, braces after pruning is completed, the braces placed on the model again to check fit . Such an orthodontic retainer will be made , and if that edge is not close together,you can use alcohol lamp bake it, inward until close together.The same way, the choice of different thickness and hardness of the plastic sheet can be made whitening dentures , bruxism pad.

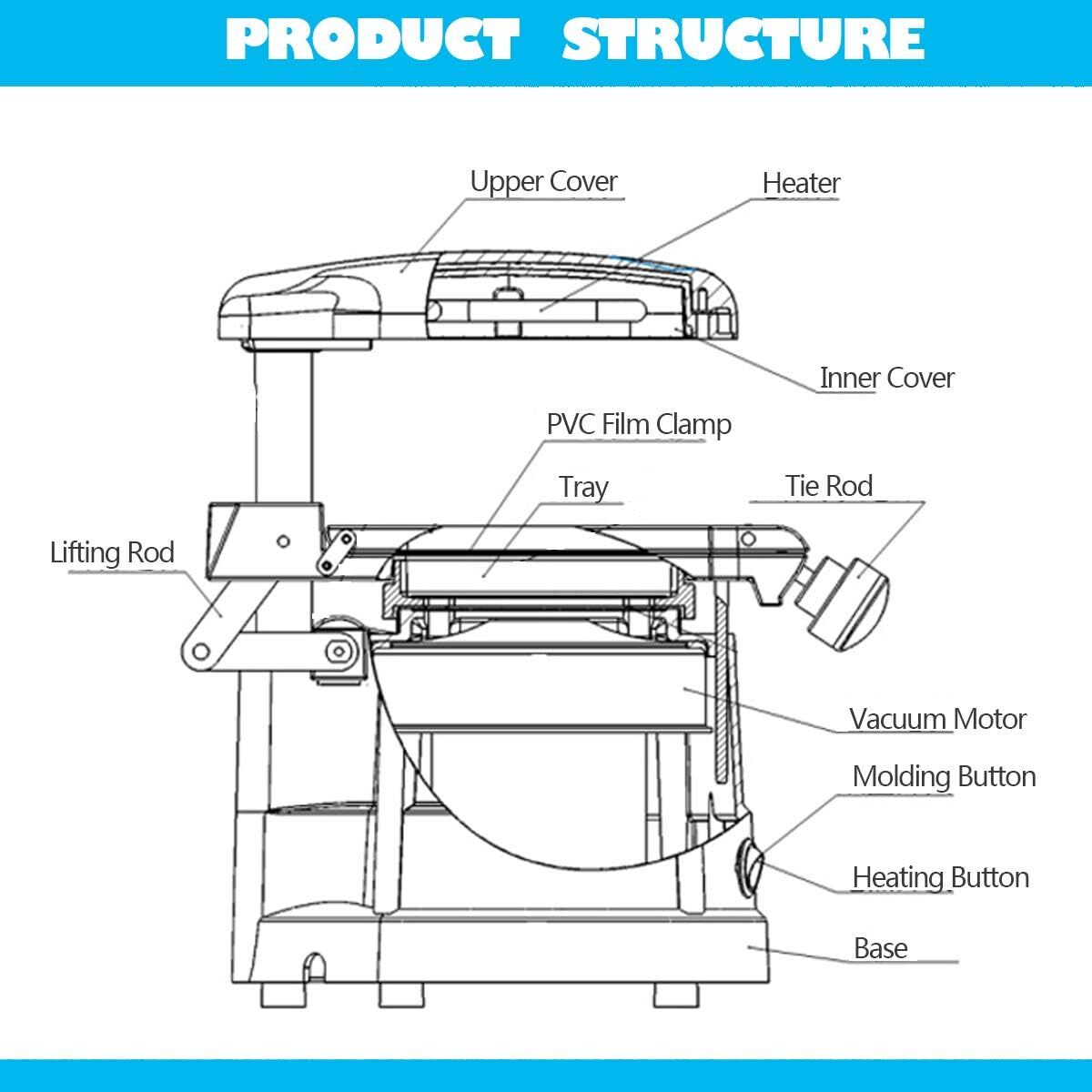

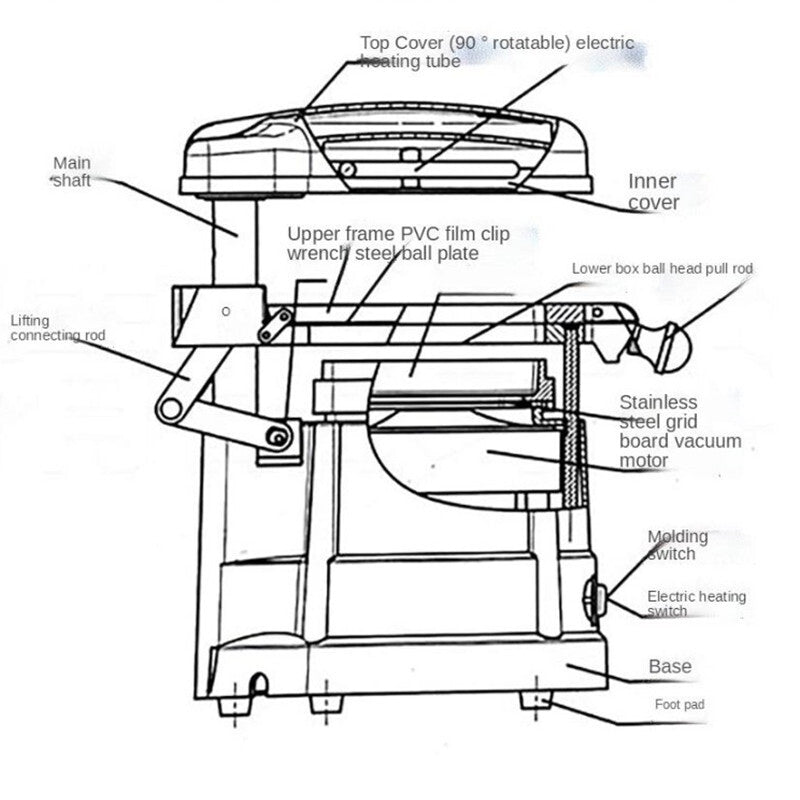

HOW TO USE Dental Vacuum Forming Machine

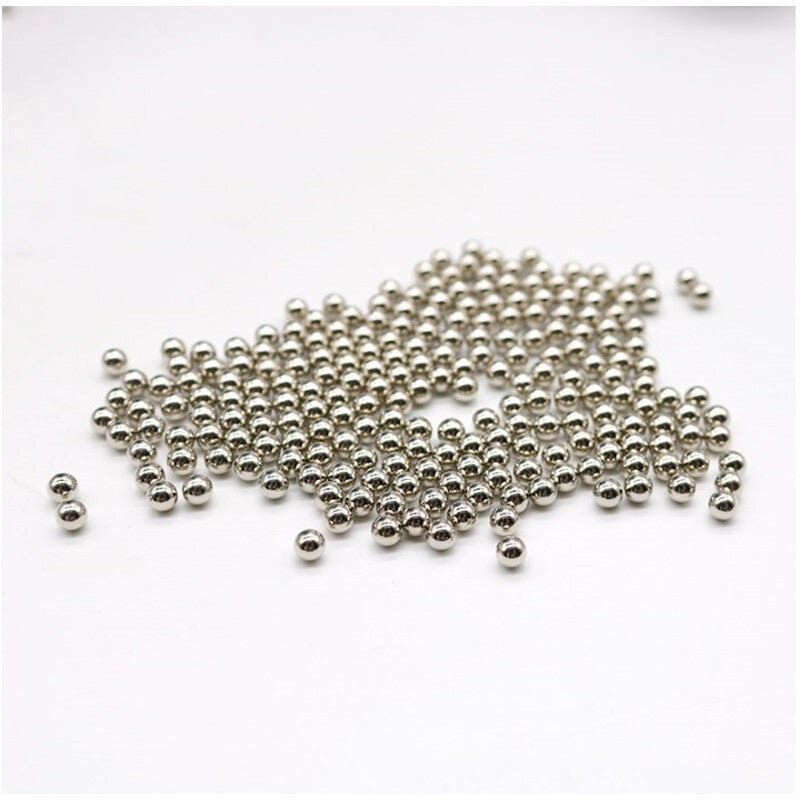

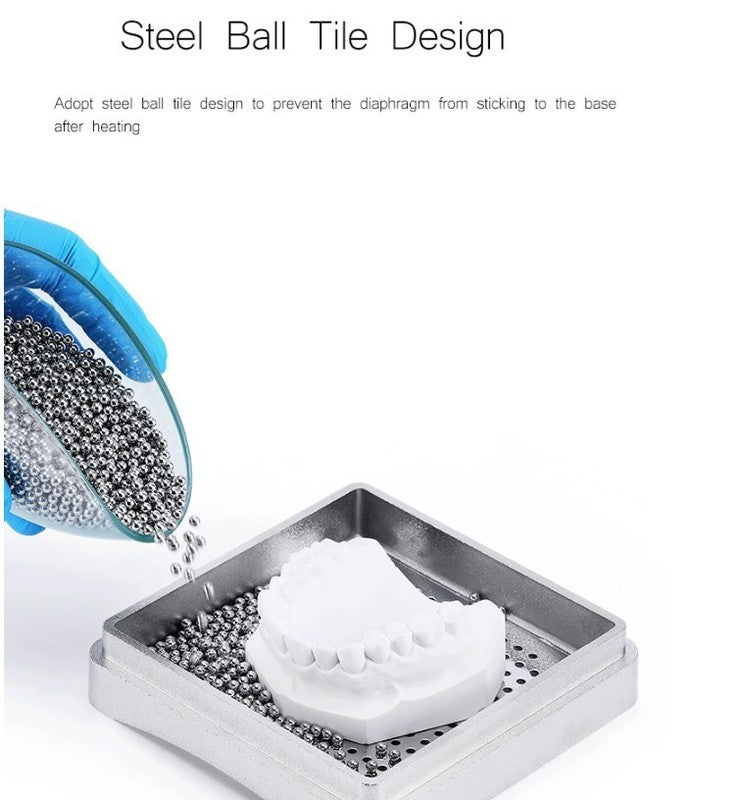

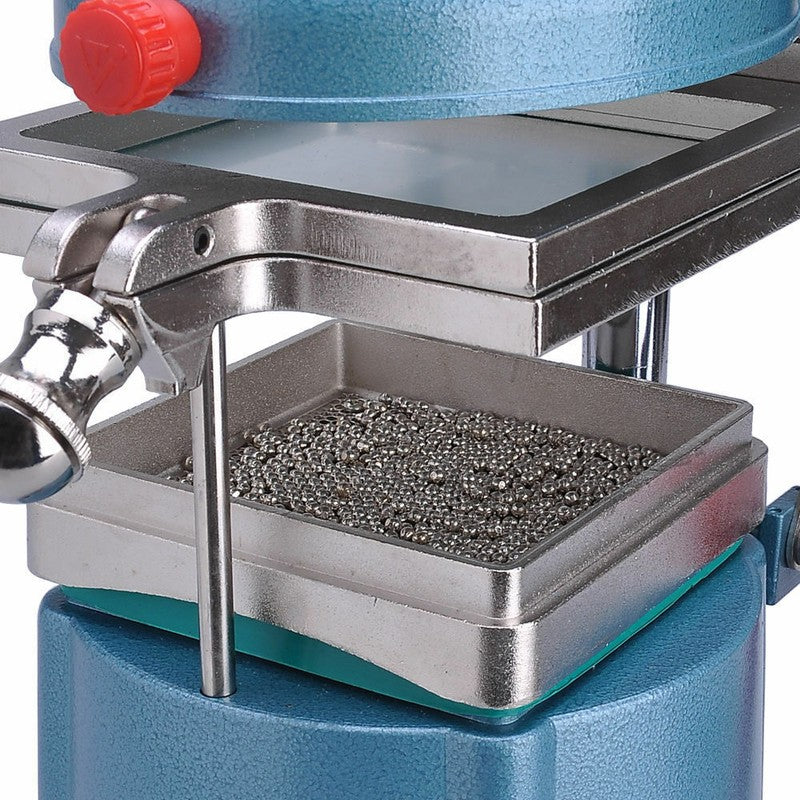

Put the plaster model on the tray.Use steel balls to bury the part that do not need to be formed.

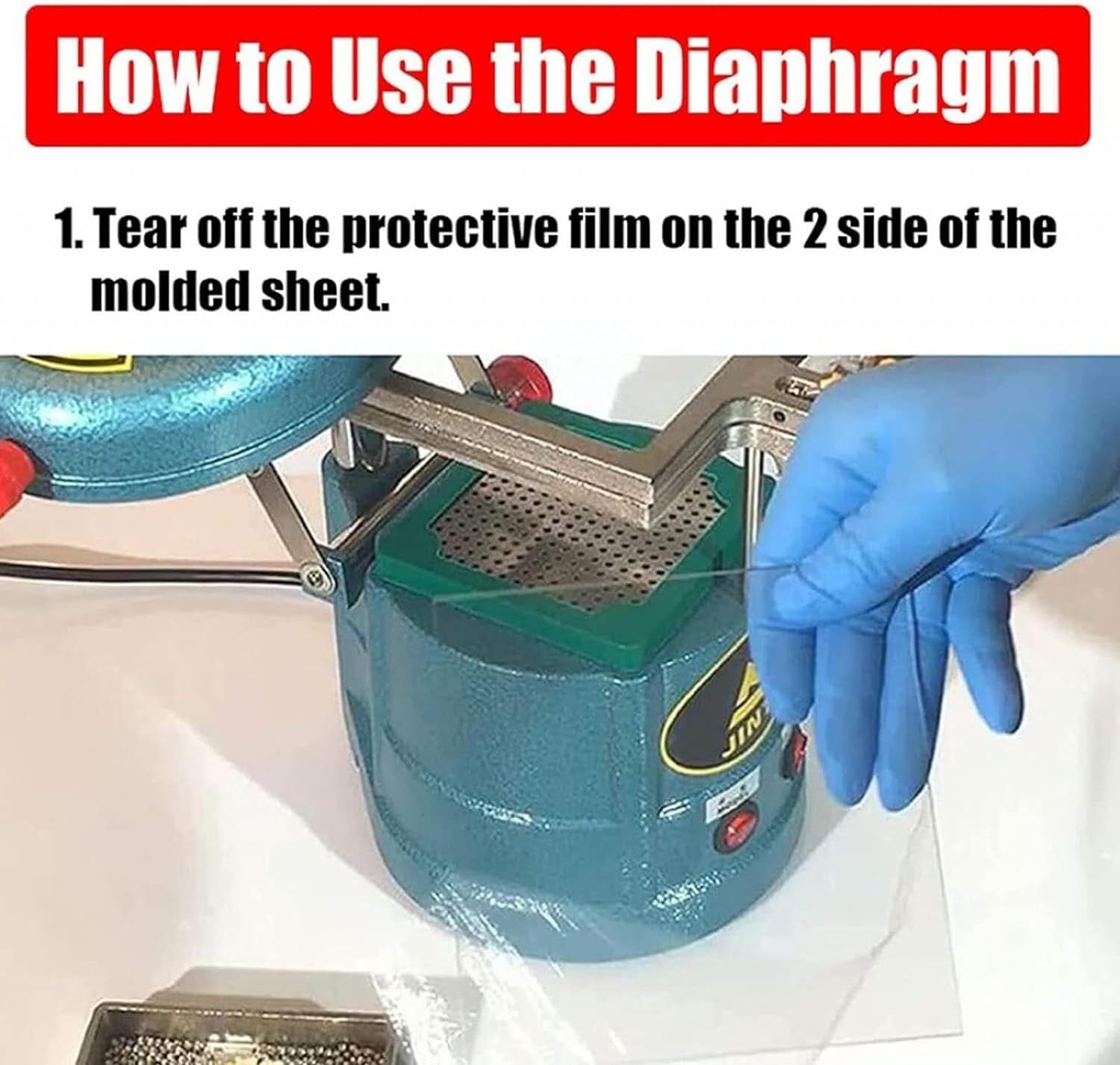

Set up the PVC film.Raise the PVC film clamp to working height.Turn on the heater by using heating button.

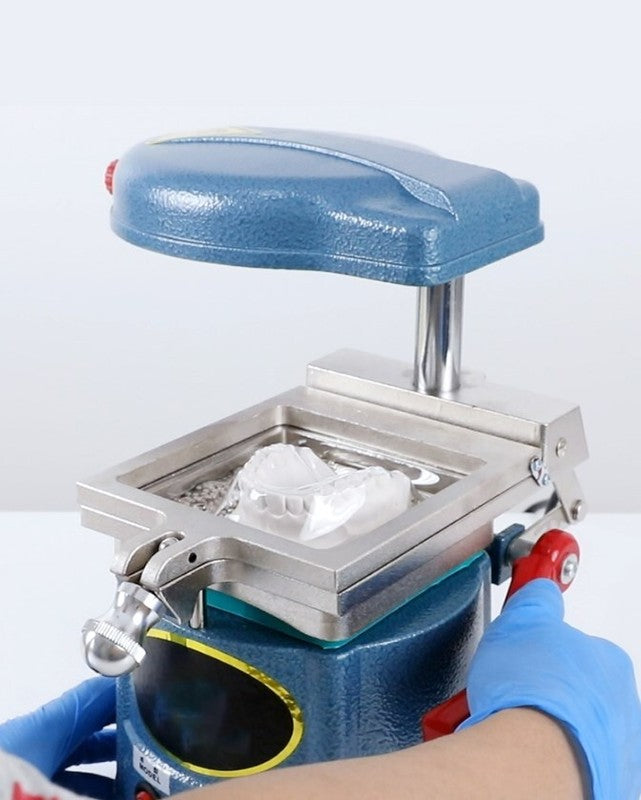

When the PVC film becomes soft enough (usually it will sag 1 to 2cm),press down the lifting rod to cover the heated PVC film over the plaster model.

Turn off the heater.Press down the molding button and wait for 10 to 15 seconds.Molding finish.

After the PVC film cooling down,use a scissor to remove the excess part.

Specifications:

Product Name: Vacuum Forming Machine
