Automatic Liquid Filling Machine Digital Control Bottle Filler 20g-8kg AU Stock
Expected Delivery on - .
Automatic Liquid Filling Machine Digital Control Bottle Filler 20g-8kg AU Stock
PRODUCT DETAILS

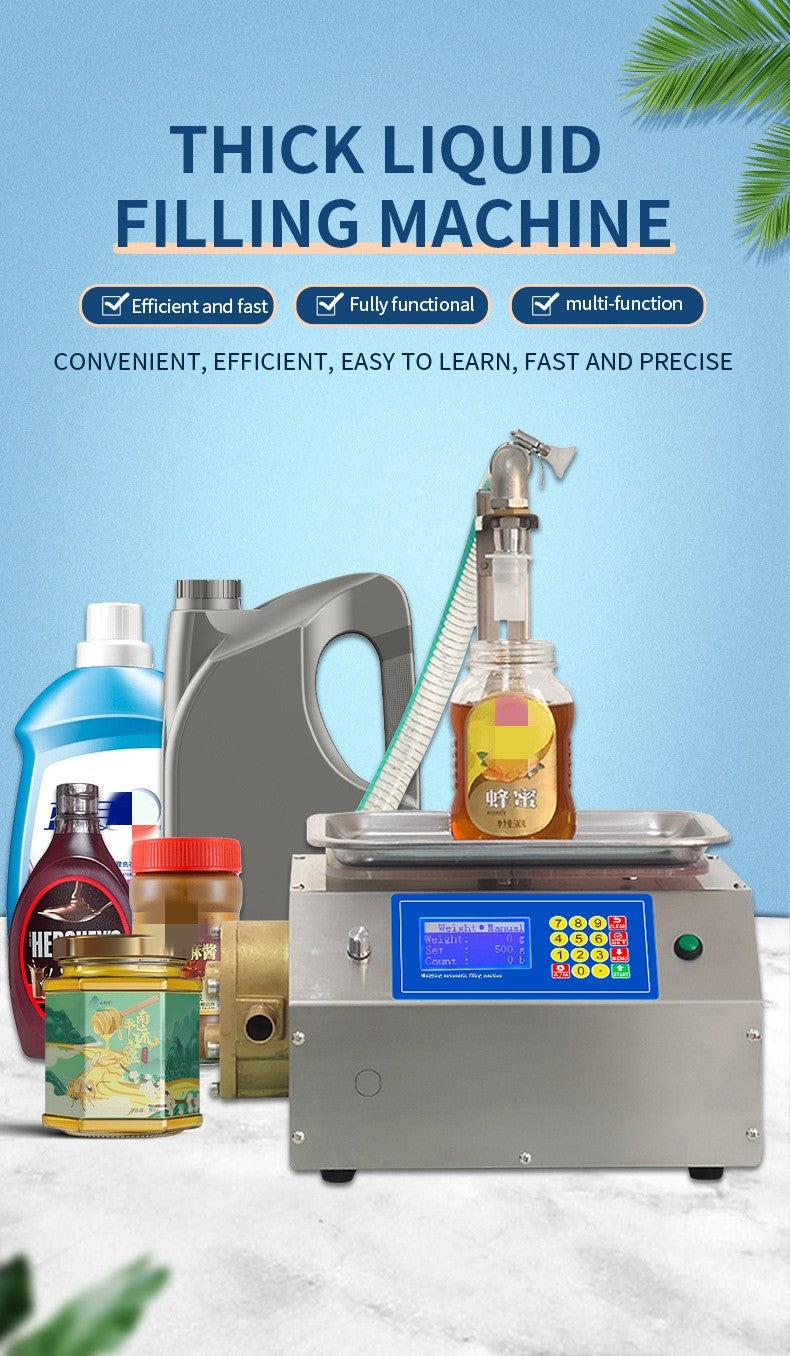

The commercial upgraded viscous honey sauce filling machine has a wider range of uses. It can be used to fill honey, sesame paste, autumn pear paste, laundry detergent, dishwashing liquid, shampoo, conditioner, cooking oil, syrup, chocolate sauce, motor oil, lubricating oil, silicone oil, glycerin, silicone, and any liquid with a little viscosity; (Warm reminder: water and liquids with particles cannot be filled)

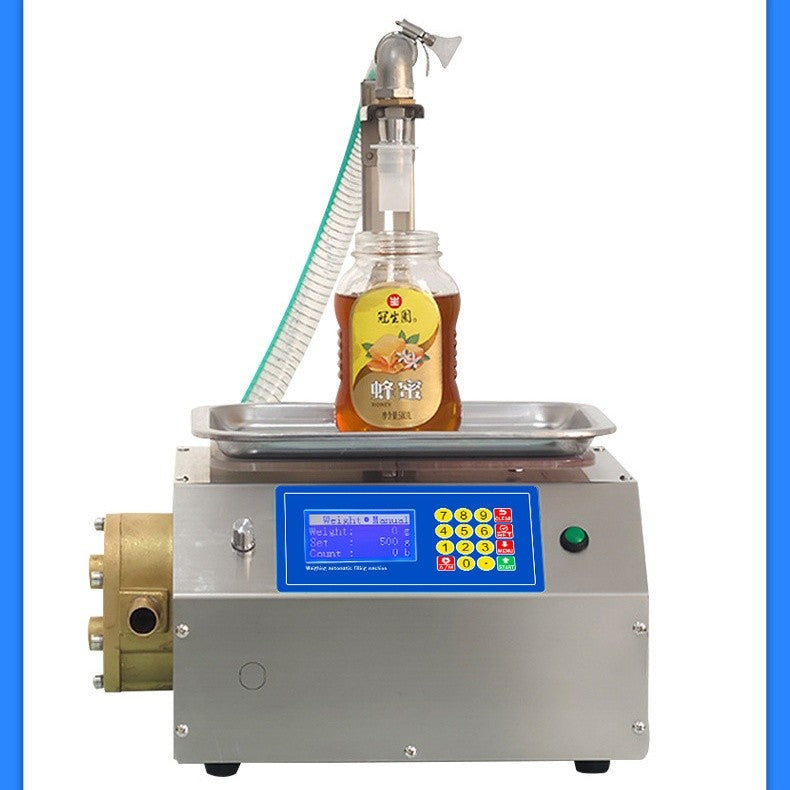

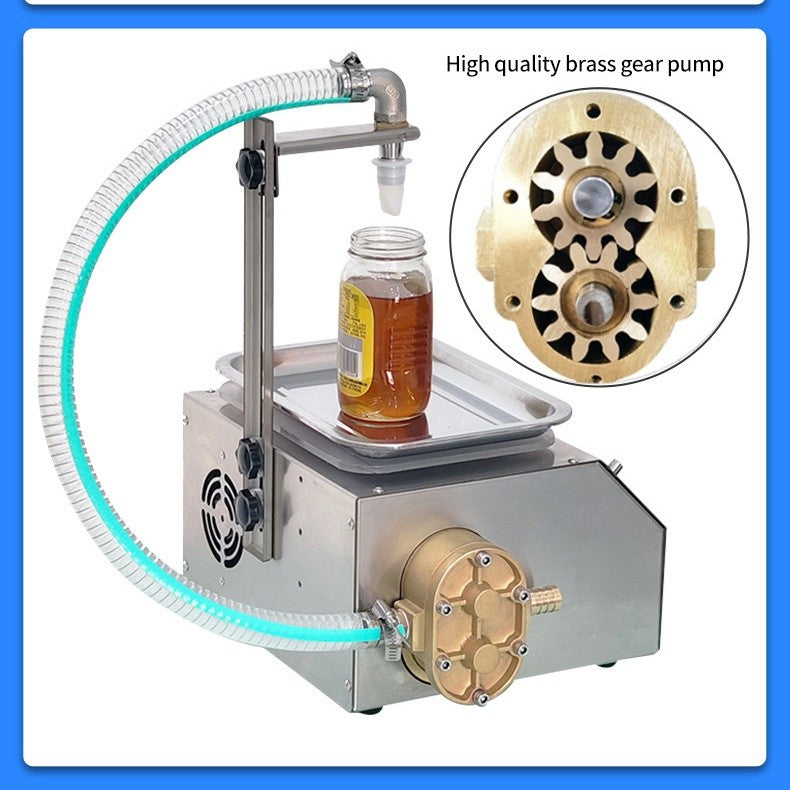

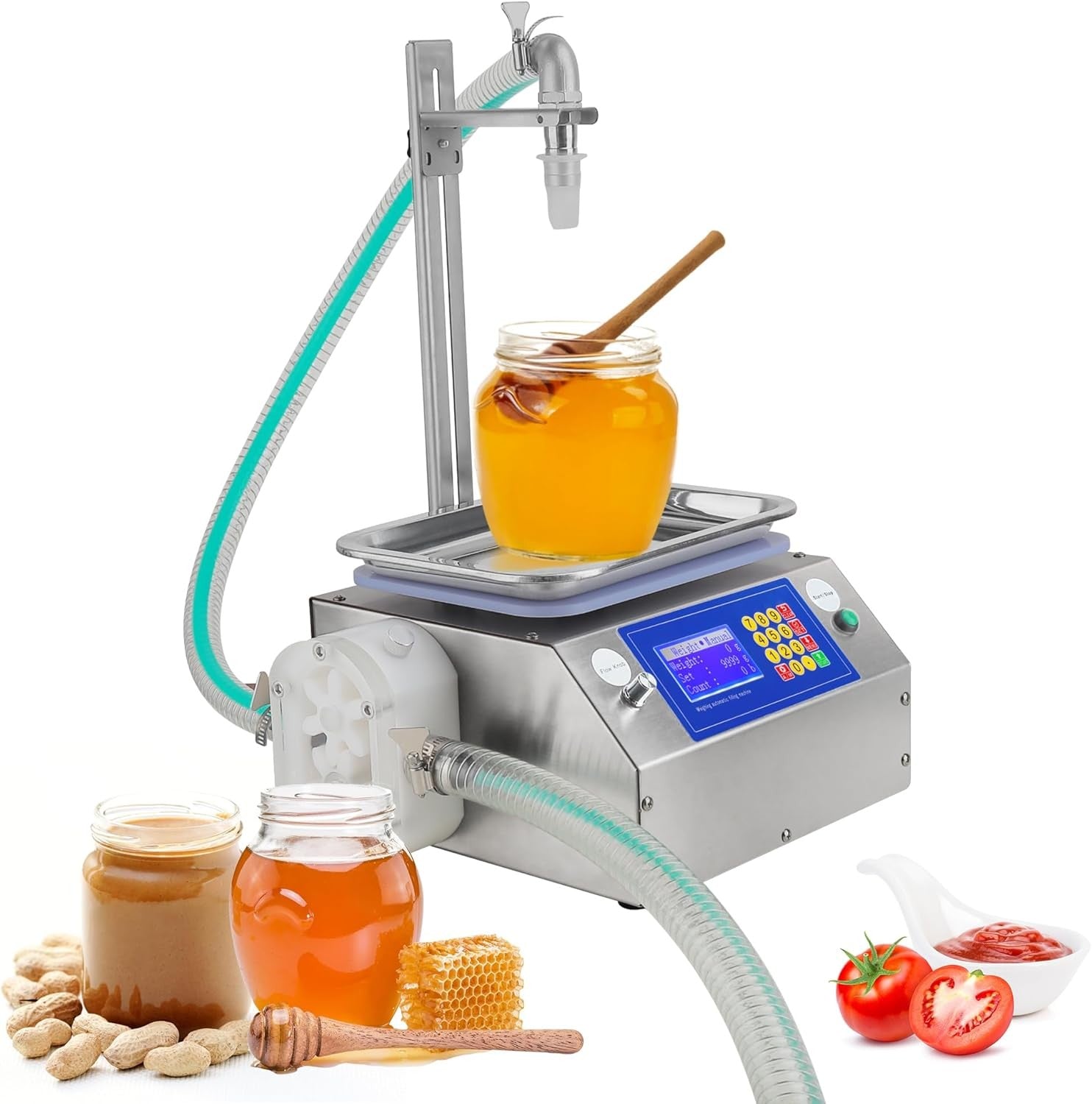

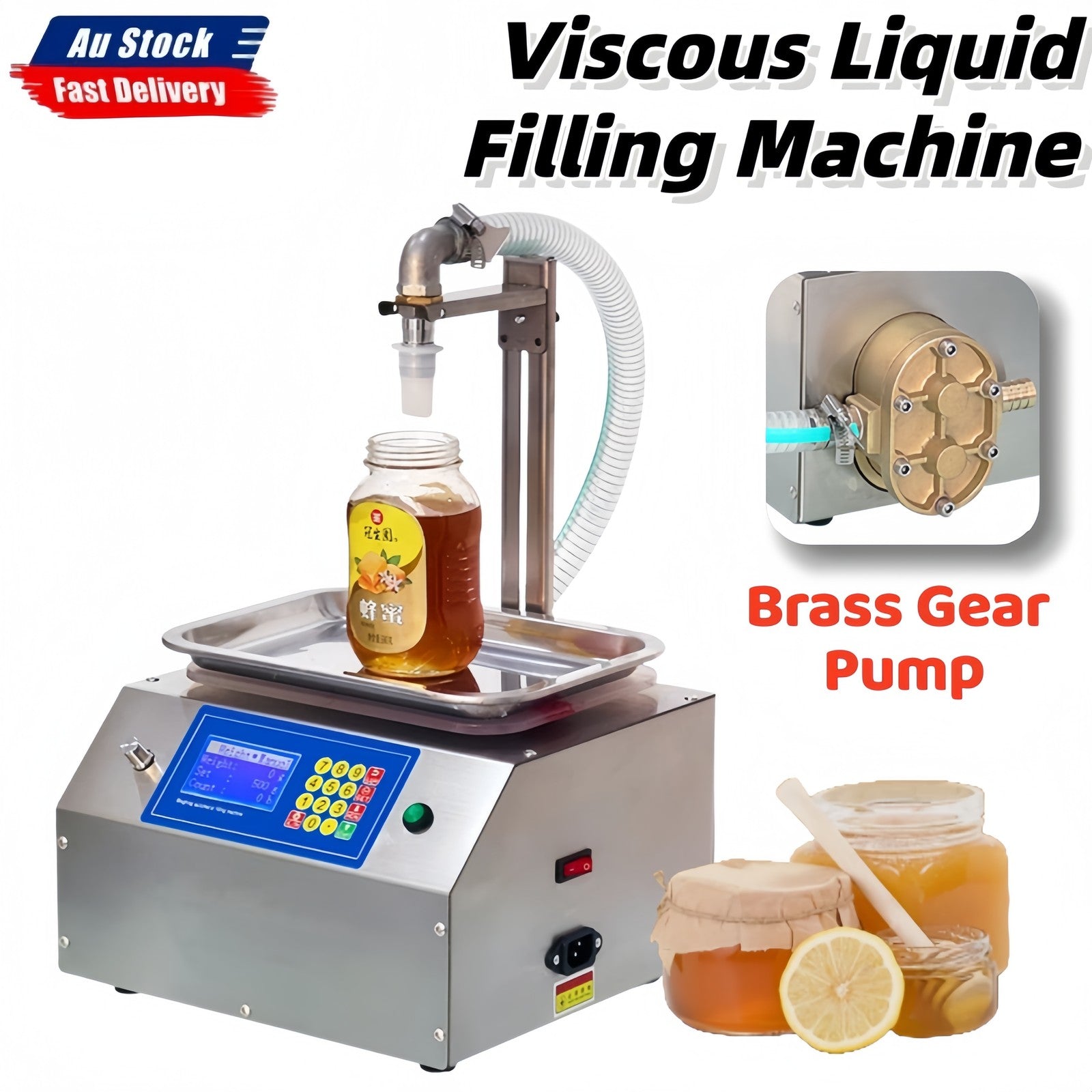

☪【Filling machine】: The upgraded liquid filling machine uses a high-precision transparent gear pump, uses the filling weight to control the filling, automatically slows down when it is near the end, and automatically stops when the amount is reached. If you press and hold the flow rate knob, the machine will start the reverse function, and stop when you release it. This method can be used to reverse the liquid remaining in the tube.
☪【Widely used】: The viscous liquid filling machine is very suitable for filling various fluid viscous liquids, such as honey, various oils, glue, jam, sesame paste and other viscous liquids and some fluid liquids. The viscous liquid filling machine relies on its sophisticated distribution system to ensure consistent and accurate filling every time.

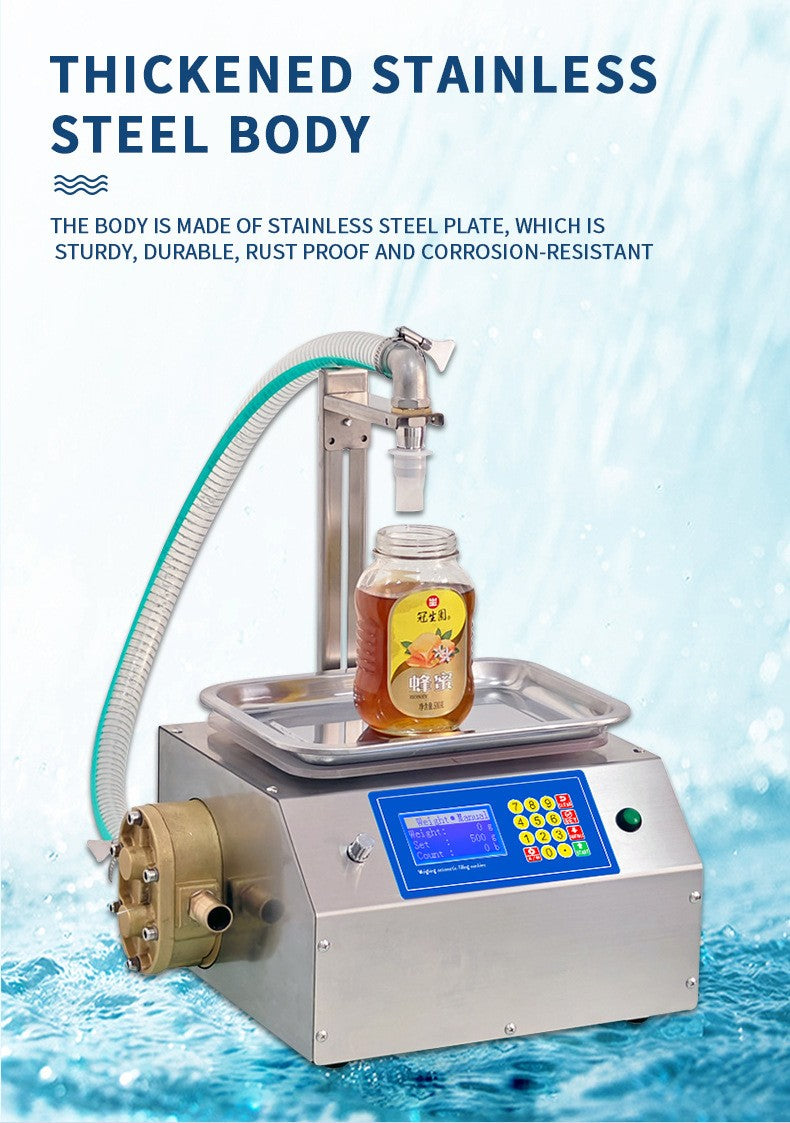

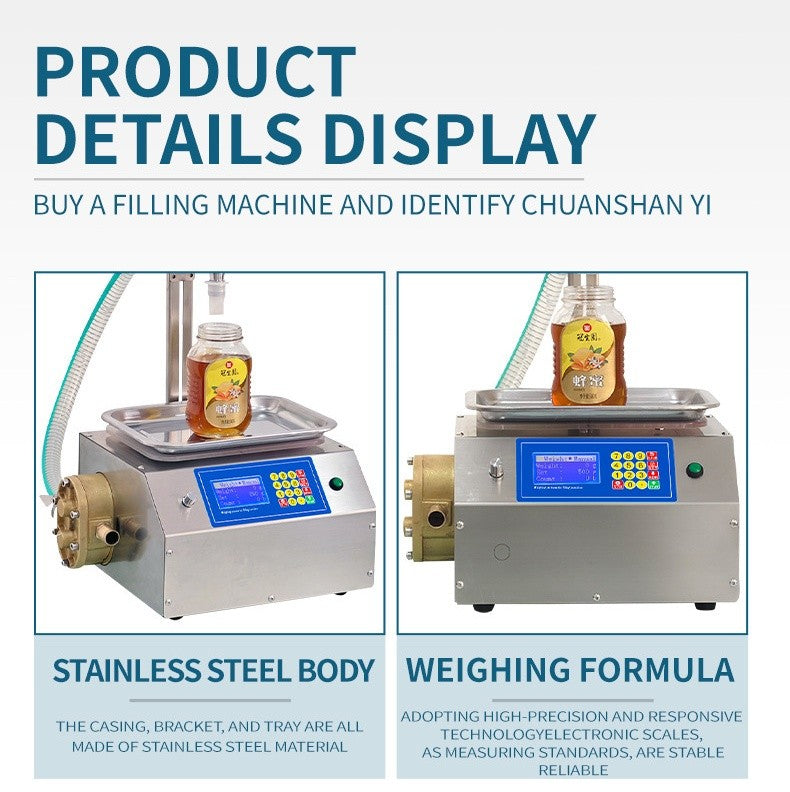

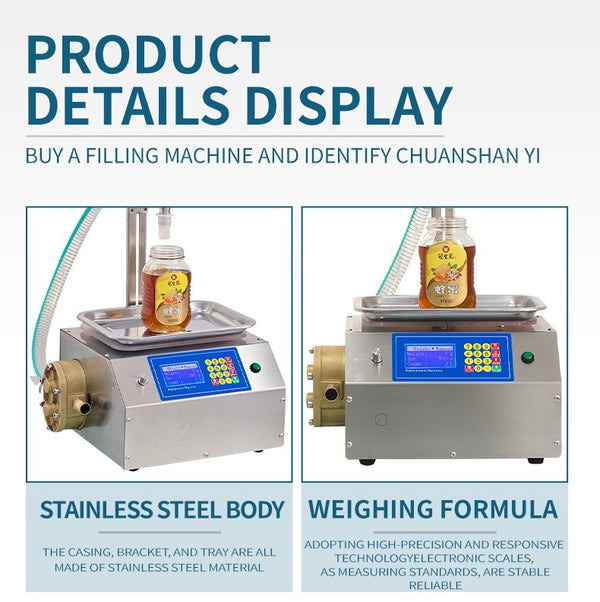

☪【High quality】:The viscous liquid filling machine adopts stainless steel + food-grade steel wire hose, which is corrosion-resistant, long-life and easy to clean. Stainless steel support rod + sliding parts, the filling height can be adjusted from 0 to 40 cm.
☪【Features】:Honey liquid filling machine is suitable for 20g-8kg (20ml-20000ml) common liquid filling, maximum flow: 7L/min, water inlet pipe length: 1.5m, water outlet pipe length: 0.8m, applicable bottle height: 0-40cm, applicable bottle diameter: 0-20cm. Suitable for 20g-8KG common liquid canning, all kinds of bottles, kegs, and jars can be filled.

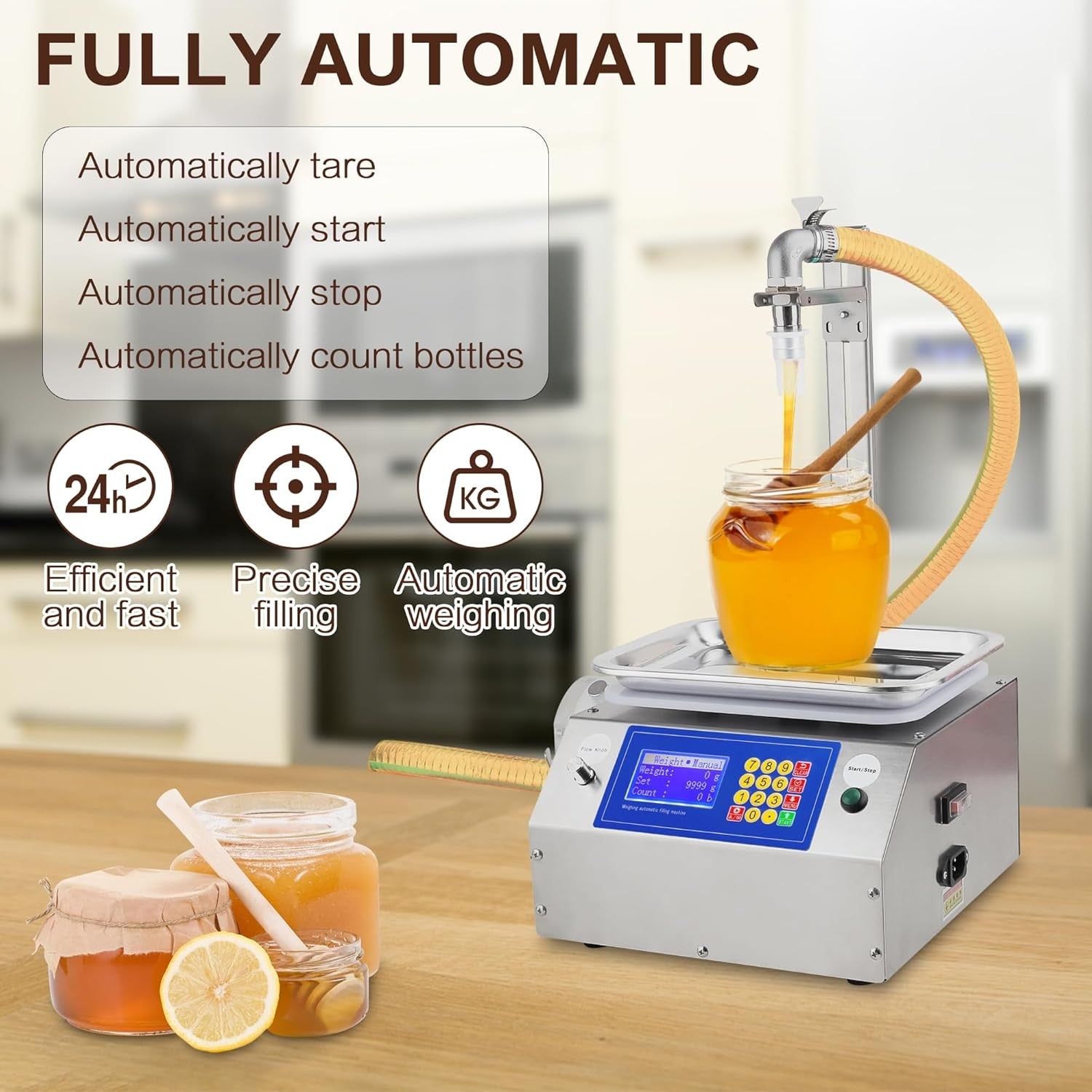

☪【Quantitative filling】:This viscous liquid filling machine has digital control function. No more complicated menus or settings! Just enter the quantity you want and it will take care of the rest. Tips: Cannot fill water, particulate liquids, and other liquids without viscosity. If you have any questions, please feel free to contact us.
Specification：
PRODUCT MODEL: CSY-L15
VOLTAGE/POWER: 220V/200W
FILLING RANGE: 20g~8kg
WEIGHING RANGE: 10kg
WEIGHING DIVISION VALUE: 2g
TYPES OF WATER PUMPS: Gear pump
PUMP FLOW RATE: 7L/minute
COMPREHENSIVE ERROR: ≤ 2g
FILLING HEAD SPECIFICATIONS: 20mm duckbill valve filling head

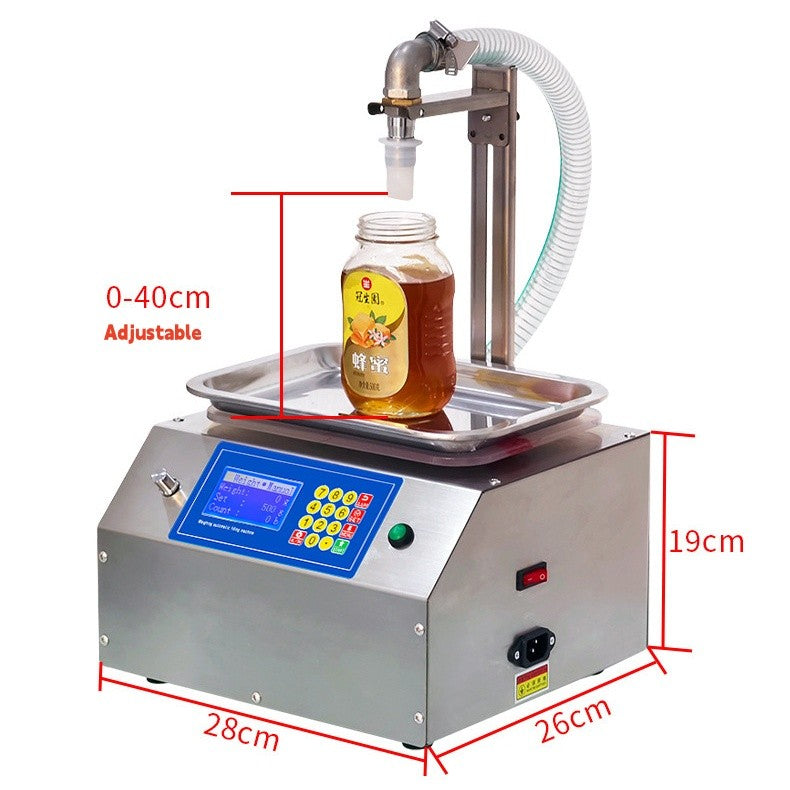

FILLING HEIGHT: Adjustable from 0 to 40cm
WATER PIPE MATERIAL: PVC steel wire hose
WATER PIPE SPECIFICATIONS: Inner diameter 20 * Outer diameter 25mm
INLET PIPE LENGTH: 1.5 meters
OUTLET PIPE LENGTH: 0.8 meters
HOST SIZE: 28*26*19cm
Recautions and Reminders:
1. Before starting, the equipment must be activated. Please use a syringe to pre-fill the raw materials into the pump. This is to activate the equipment. Restarting can achieve strong suction ---wake up and increase the filling suction, professional viscous filling equipment (cannot inject water, only viscous honey or other viscous raw materials with fluidity).
3. OCP appears on the LCD: it is a stall protection function and a condition to protect the equipment.
a: The appearance of this sign means that the liquid you are filling is too viscous (non-flowing liquids cannot be filled, such as toothpaste), and the pump head is blocked, so filling cannot be done. ---Take measures-heat the liquid to increase fluidity and it will return to normal.
b: OCP may also occur when there are particles in the filling material. In this case, you can activate the reversal function and pour the particles back to solve the problem. -How to start reverse filling: Open or remove the duckbil

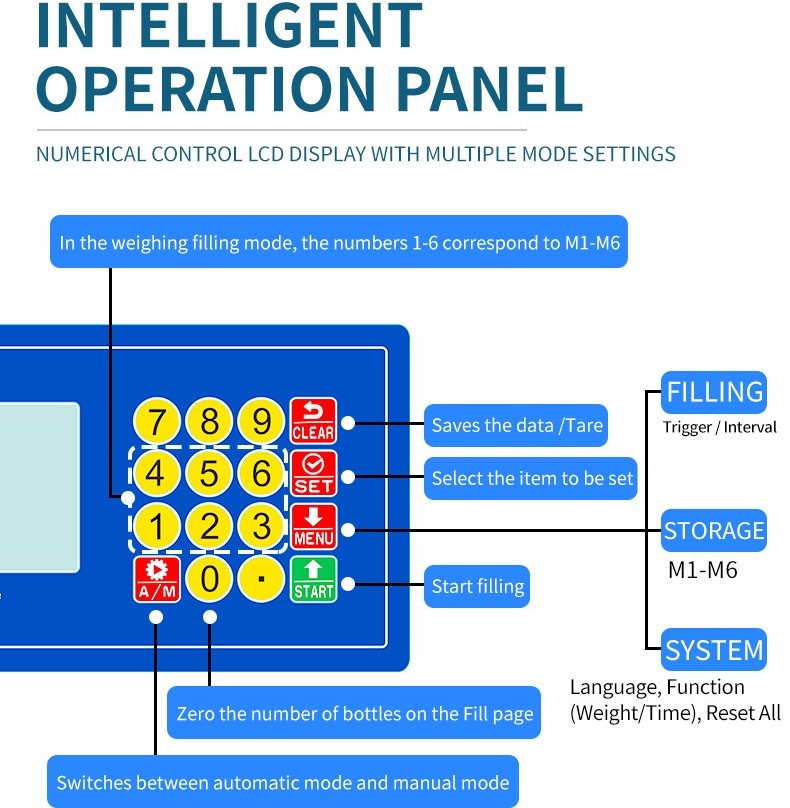

How to calibrate the scale:
1. Restart the machine
2. Press the Reset key
4. Place an object of known weight on the scale
6.Finally, press and hold the '. ' key for three seconds until you hear a beep and then release it. The calibration is complete
Package Included:
1 Set of Viscous Liquid Filling Machine
Note:
1. Due to the light and other reasons,there may be differencr in color.
2. Products are manual measurement,there is slightly measuring error.
3. If you have any questions after receiving the product, you can contact us, we will provide you with perfect after-sales service.
