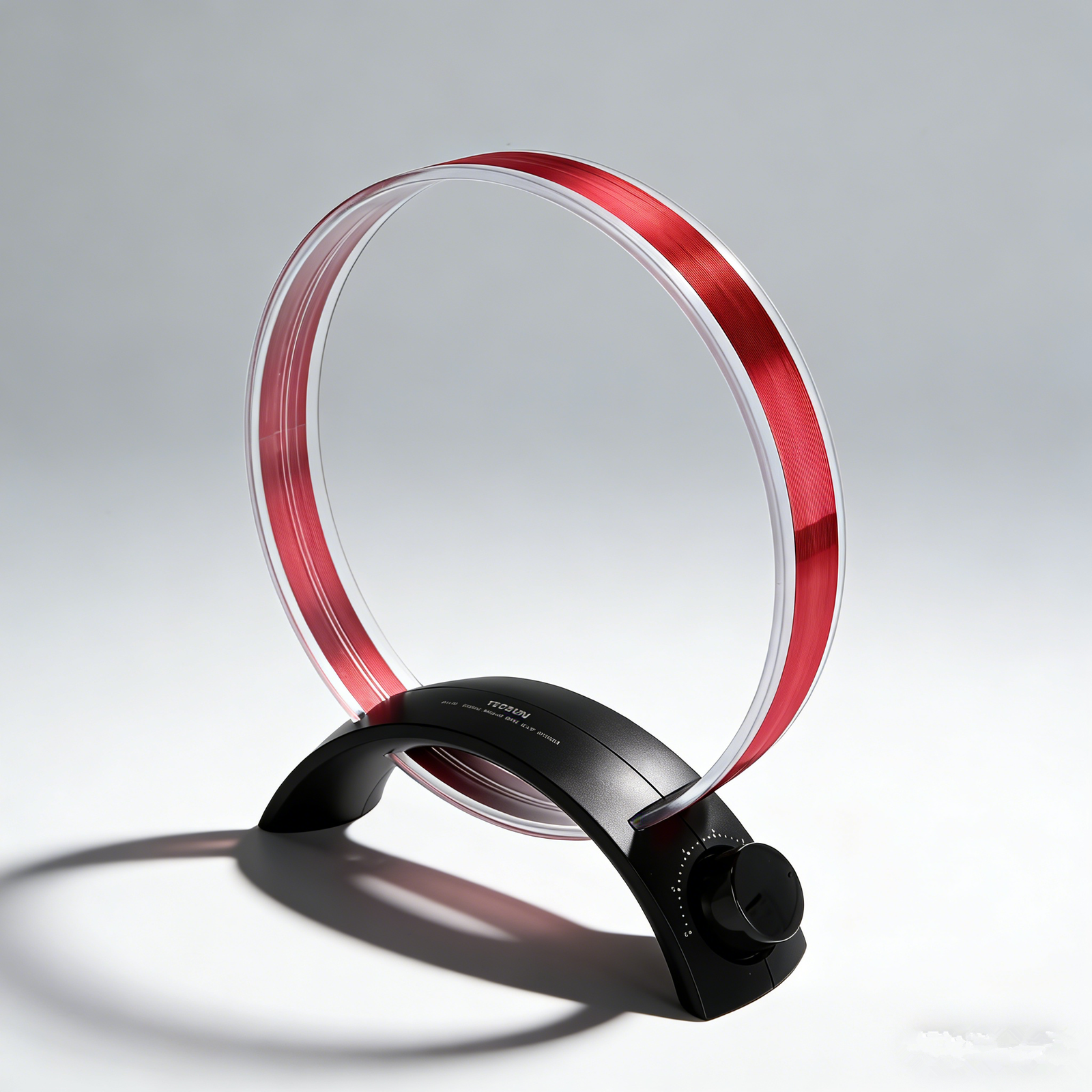

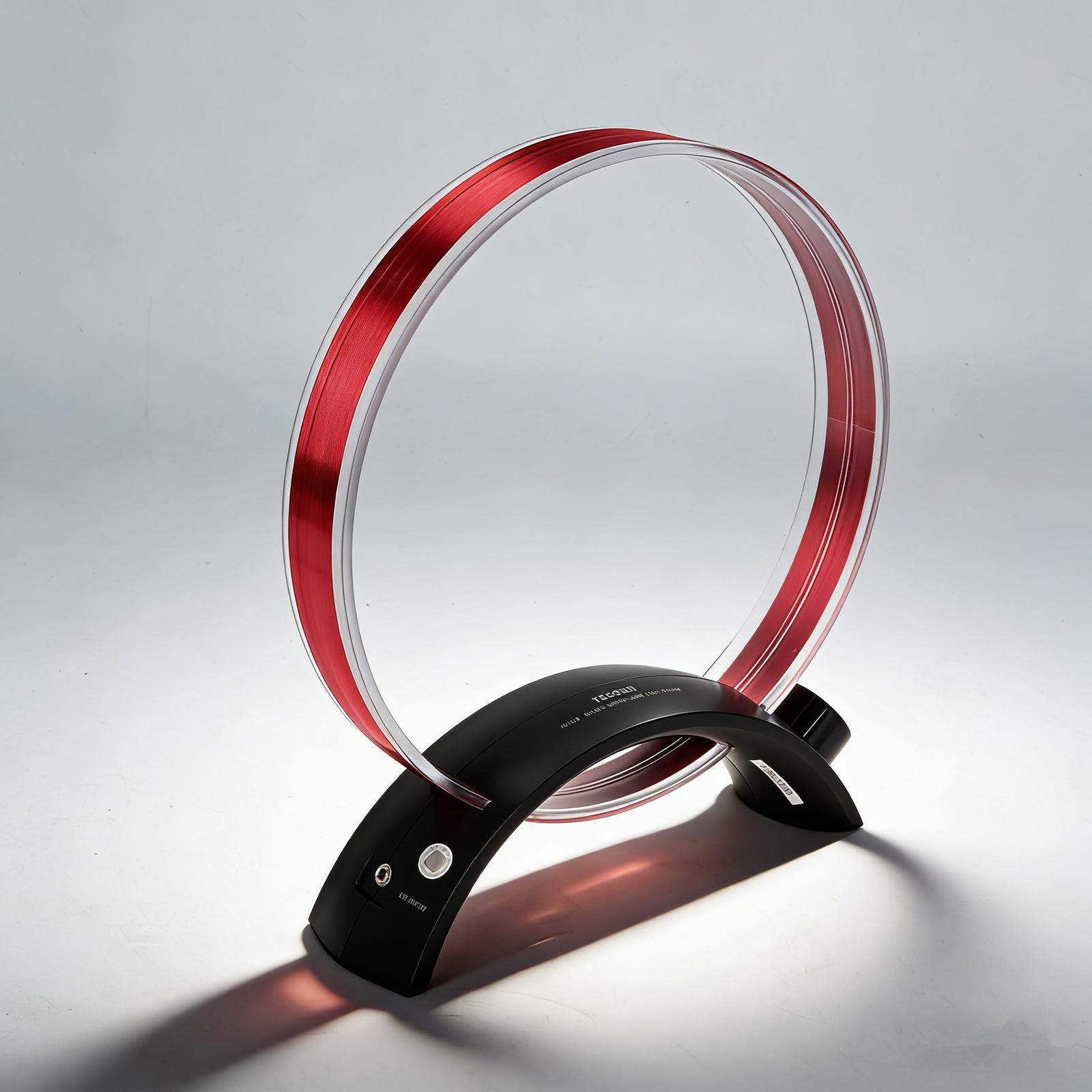

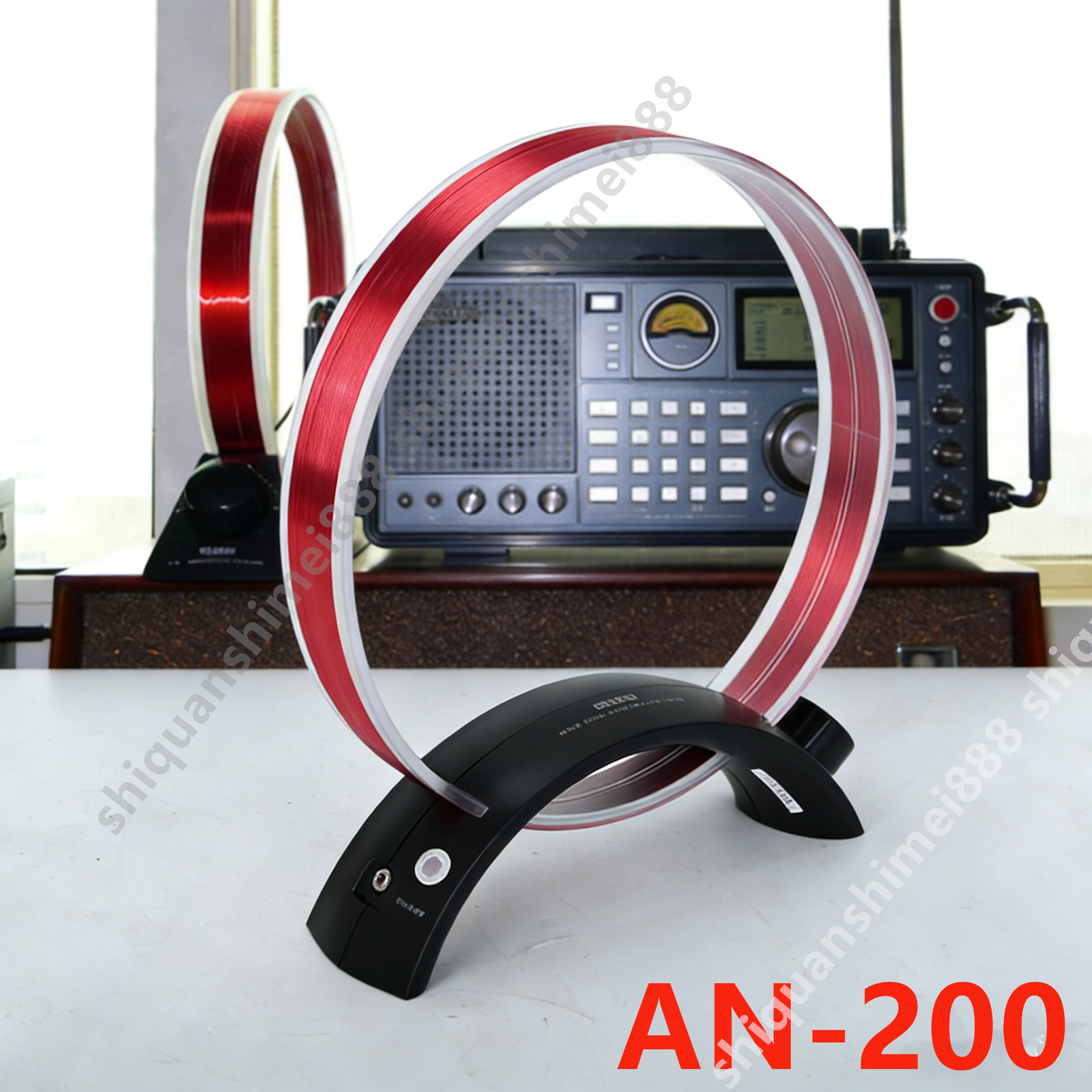

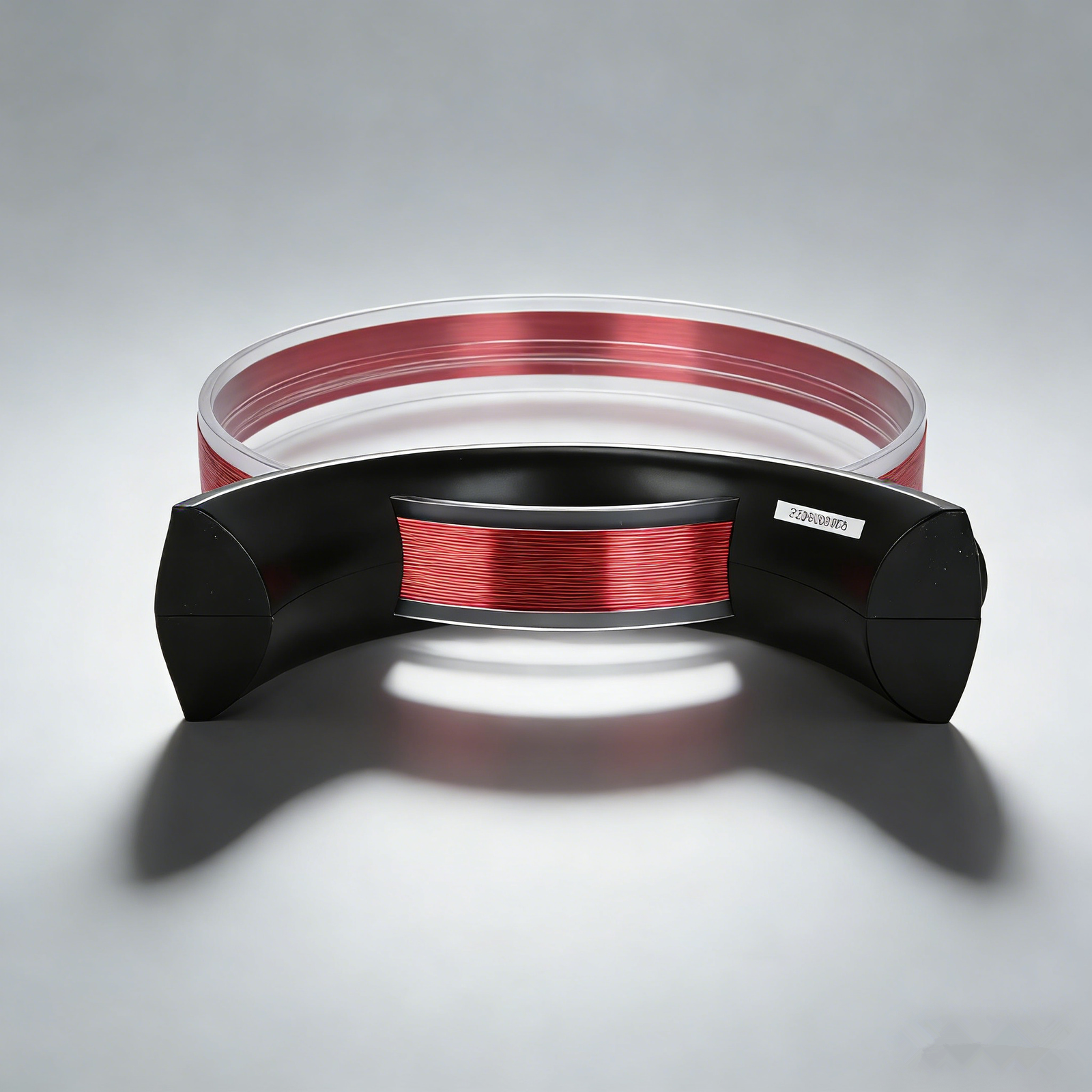

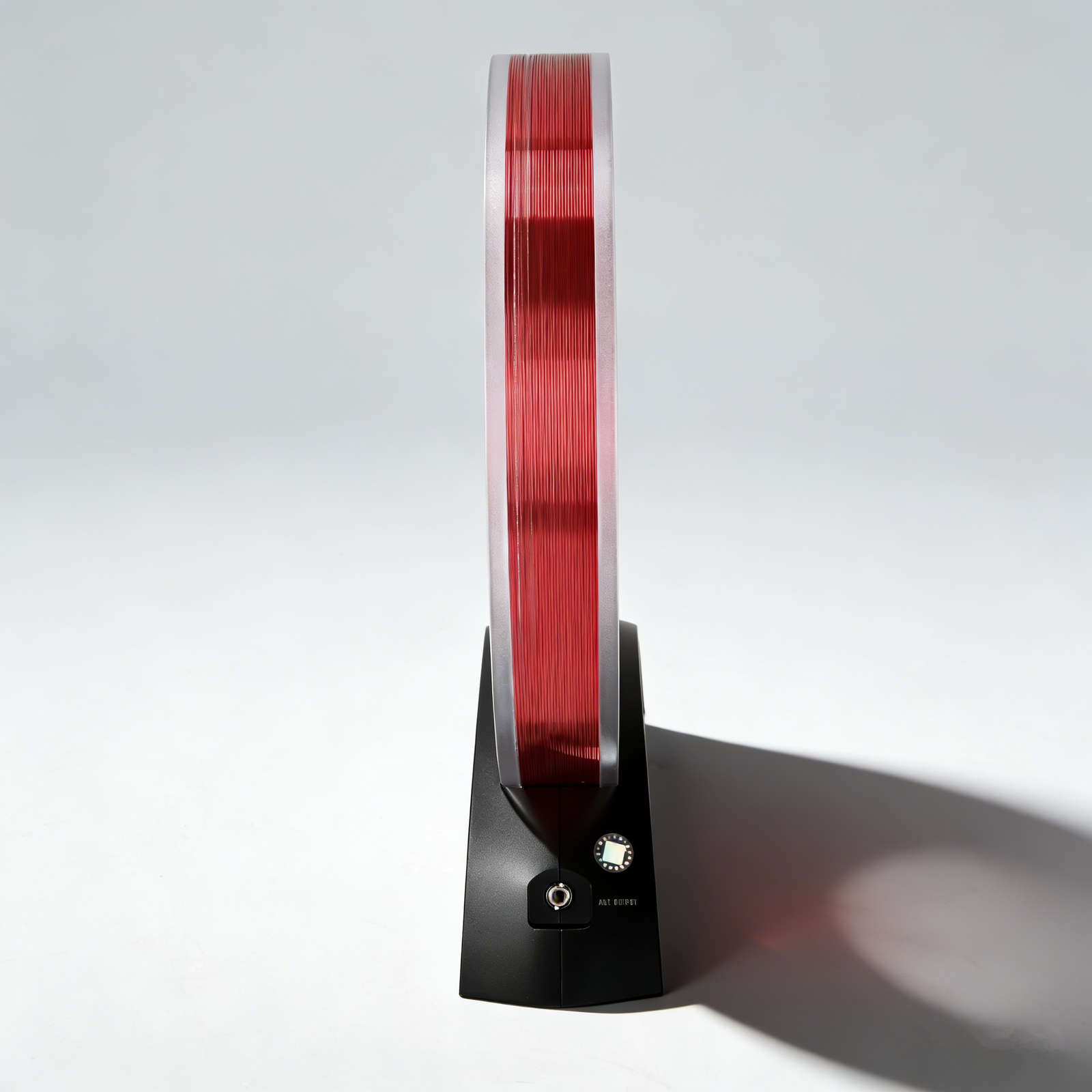

AN200 Car Tunable Mediumwave MW Loop Antenna Portable Desktop w/ 3.5mm Cable

Operation Instructions

1. Connection Options

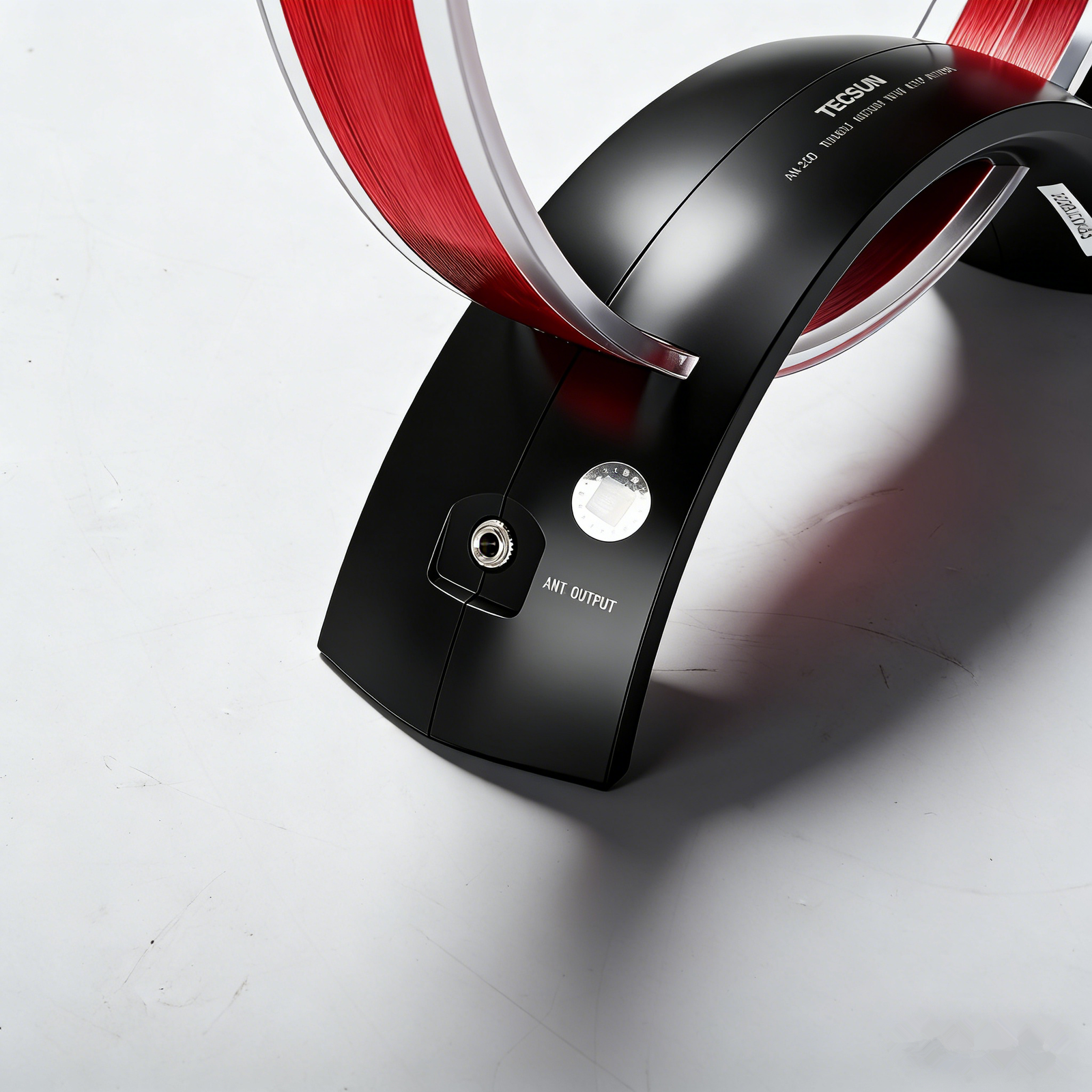

   Connect the AN-200 to the MW antenna jack of your radio, audio modulator, or car radio. If your device lacks an MW antenna jack, simply place the AN-200 near the radio’s built-in ferrite antenna (no wiring required).
2. Tuning & Optimization

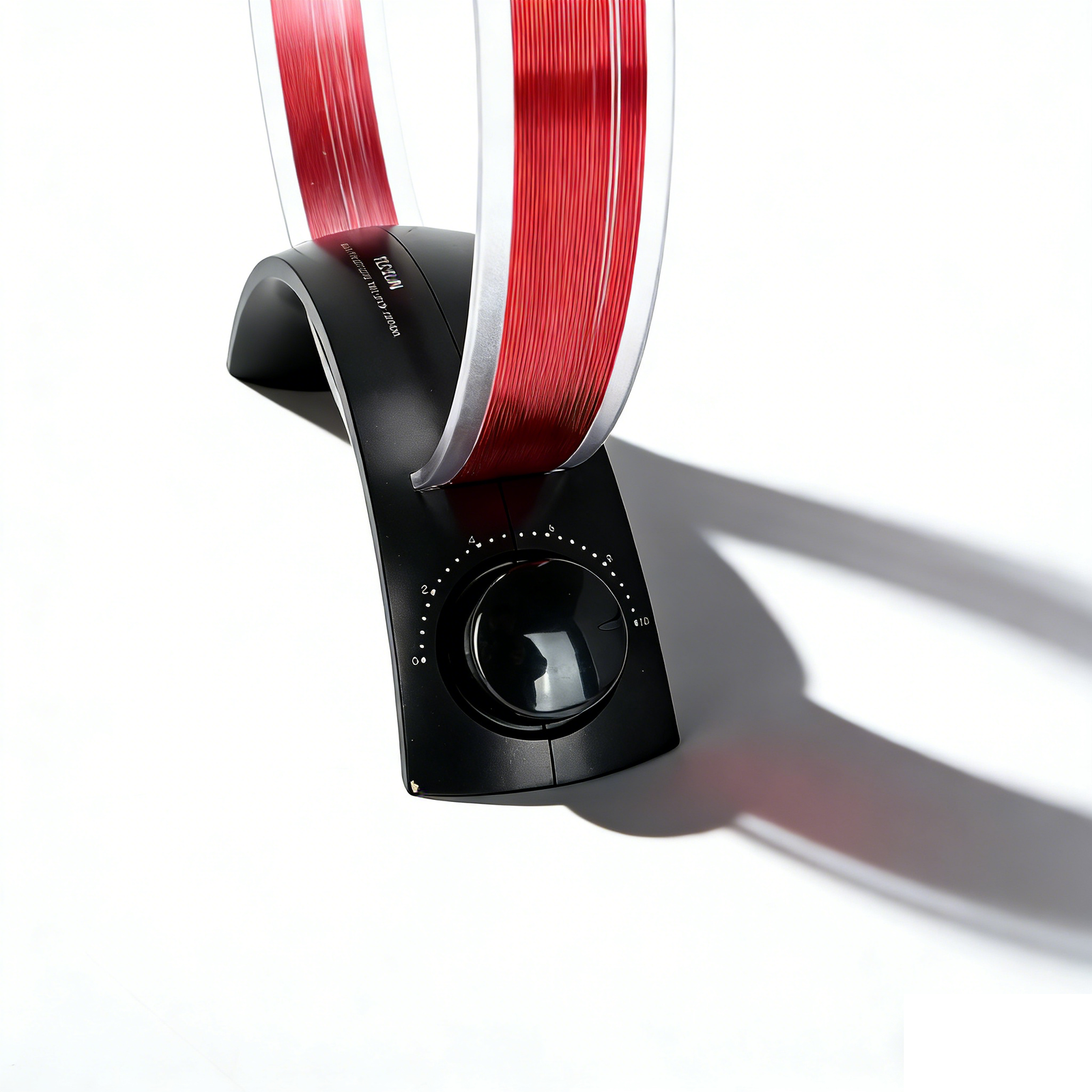

   Set your radio to the MW band, then rotate the antenna’s tuning knob to refine the signal until the broadcast channel is clear and stable.
3. Directional Adjustment

   For optimal performance, adjust the antenna’s orientation by rotating it along its axis, and fine-tune its distance from the radio—this helps lock in the strongest, clearest signal.
4. Passive & Convenient

   No battery or external power supply is needed; the AN-200 works passively for instant, hassle-free use.

Specifications

• Loop Diameter (Approx.): 230 mm (9 inches)
• Compatible Devices: Most AM (MW) portable and desktop radios

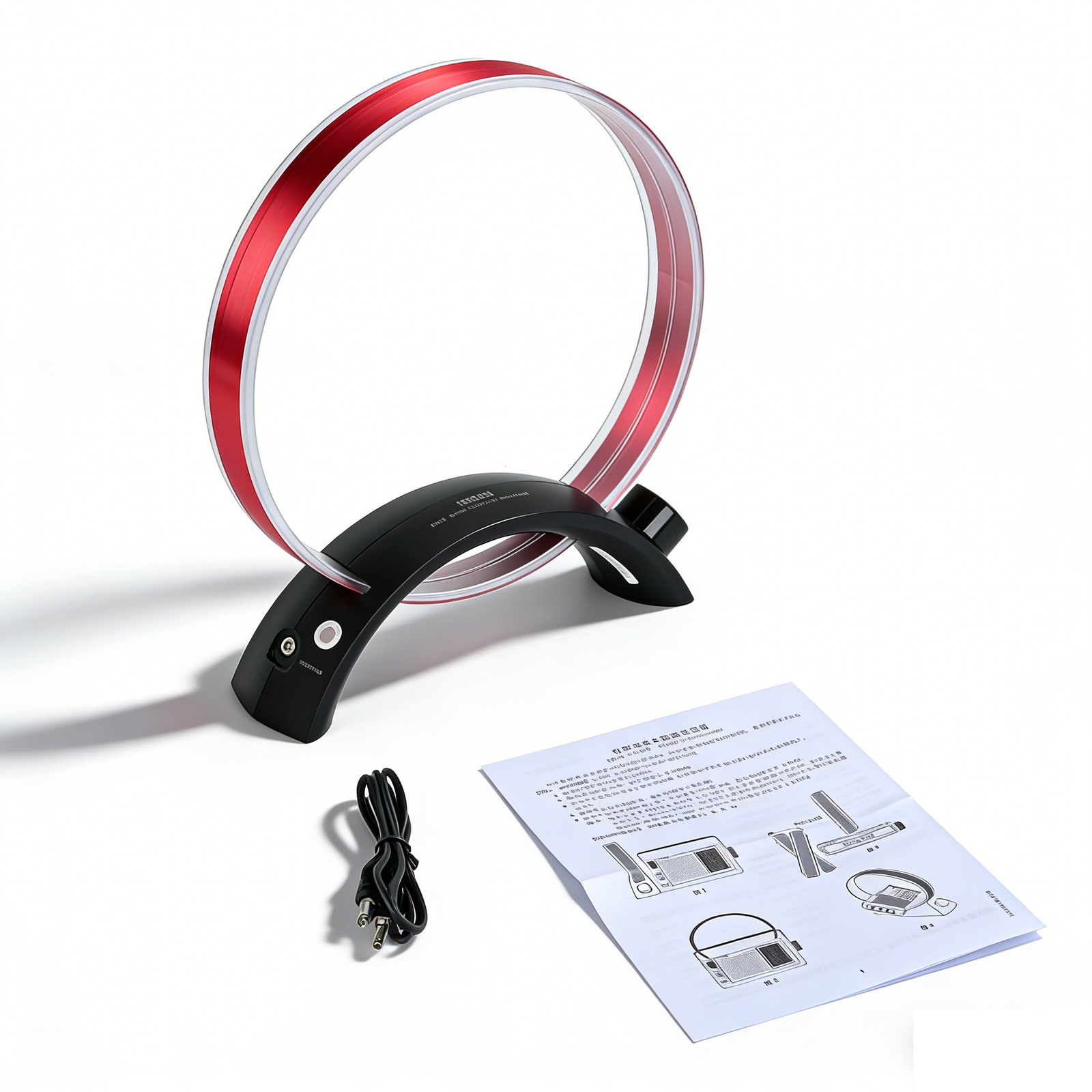

Package Contents

• 1 × Tecsun AN-200 Tunable Loop Antenna

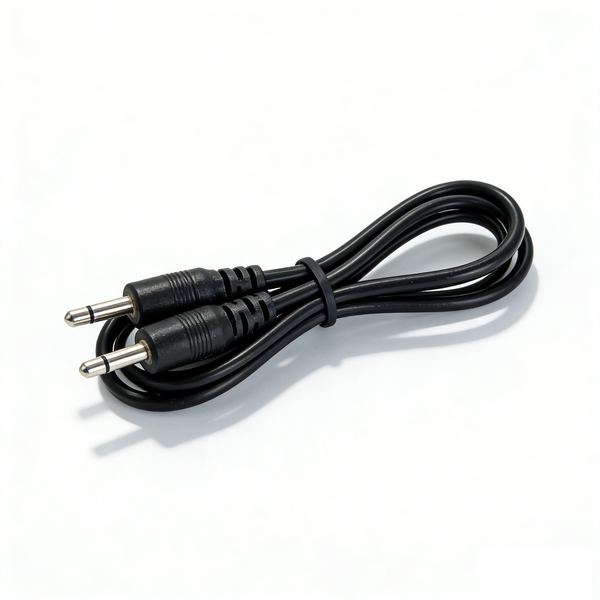

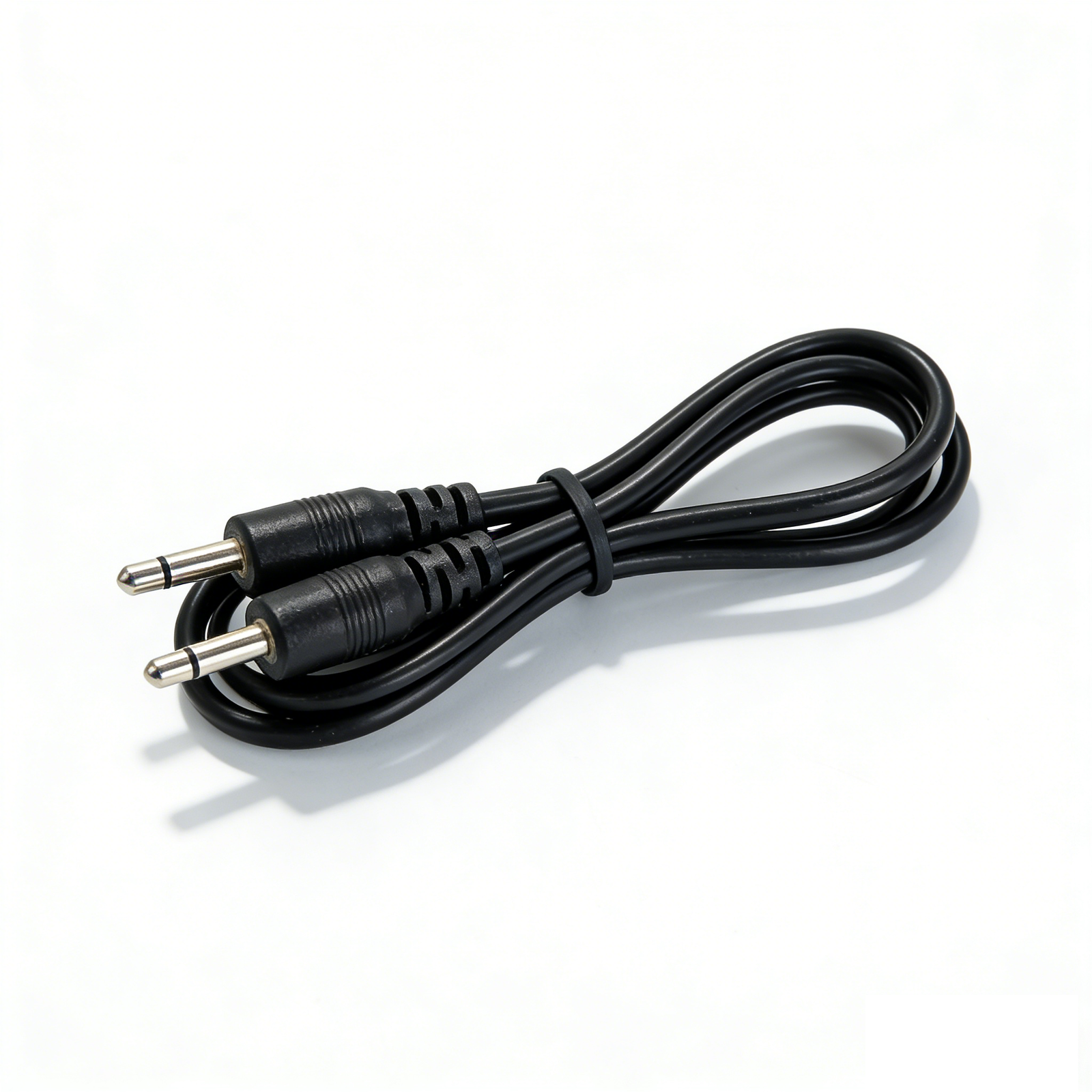

• 1 × 3.5mm Cable (for connection to MW antenna jack)
