9L/H Electronic Dosing Pump Chemical Metering Pump Acid Chlorine Digital Display
PRODUCT DETAILS
Description:
This is a manually adjustable metering pump. The working frequency of the metering pump can be adjusted manually. It has power failure reset or power failure hold function.
Features:

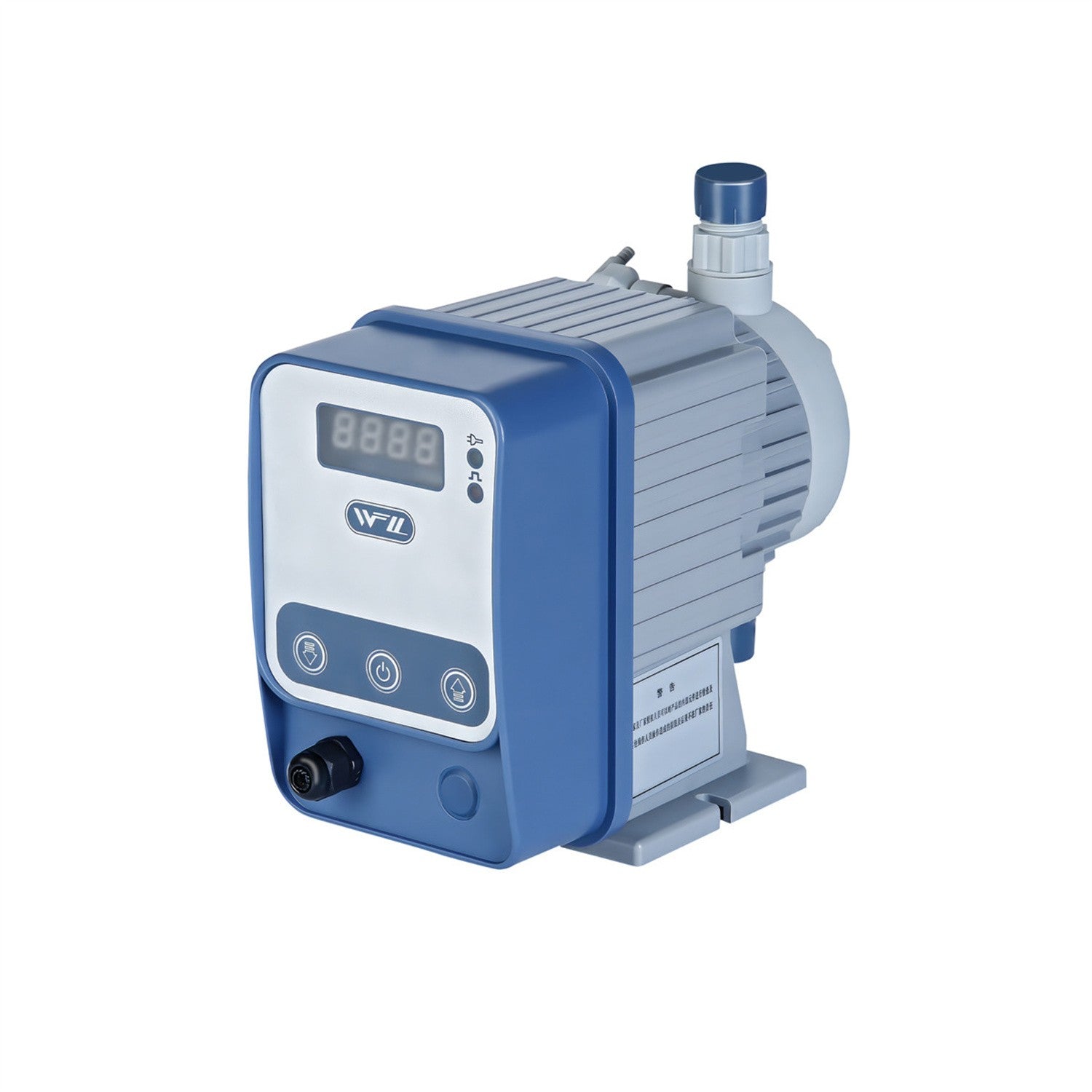

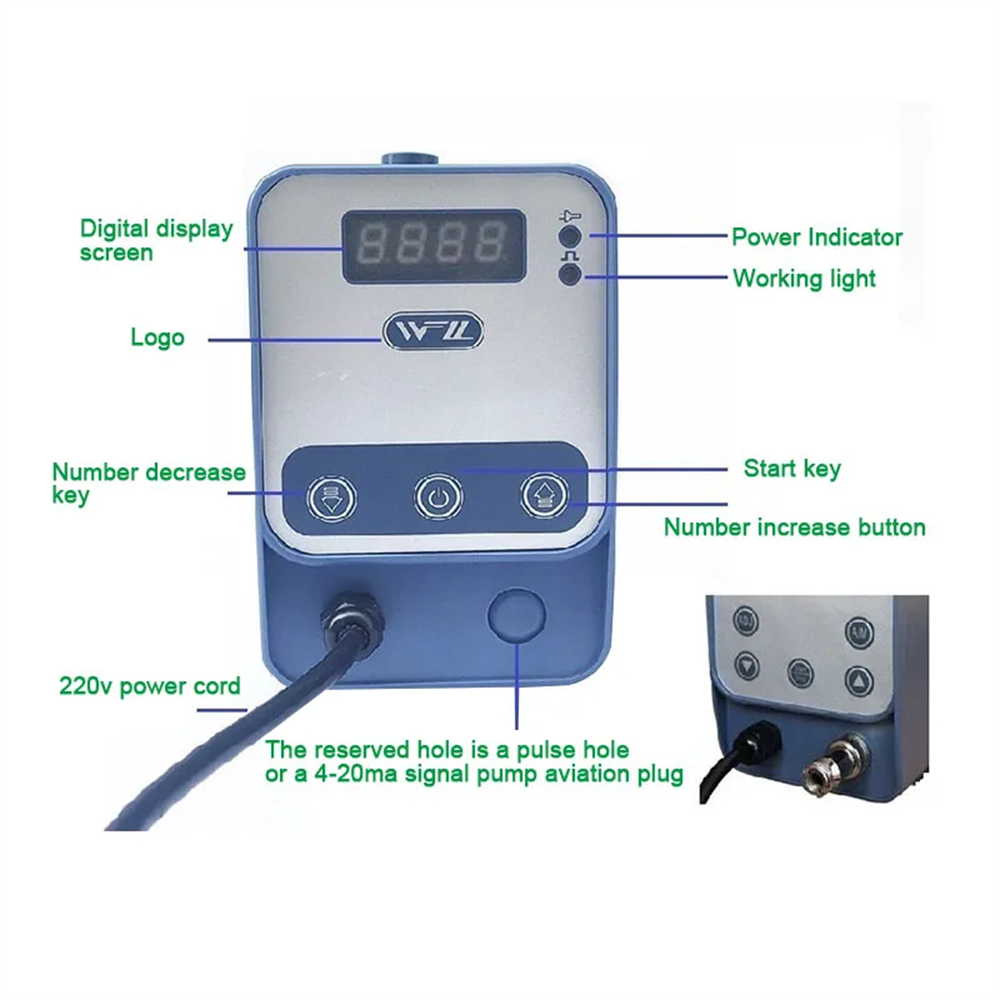

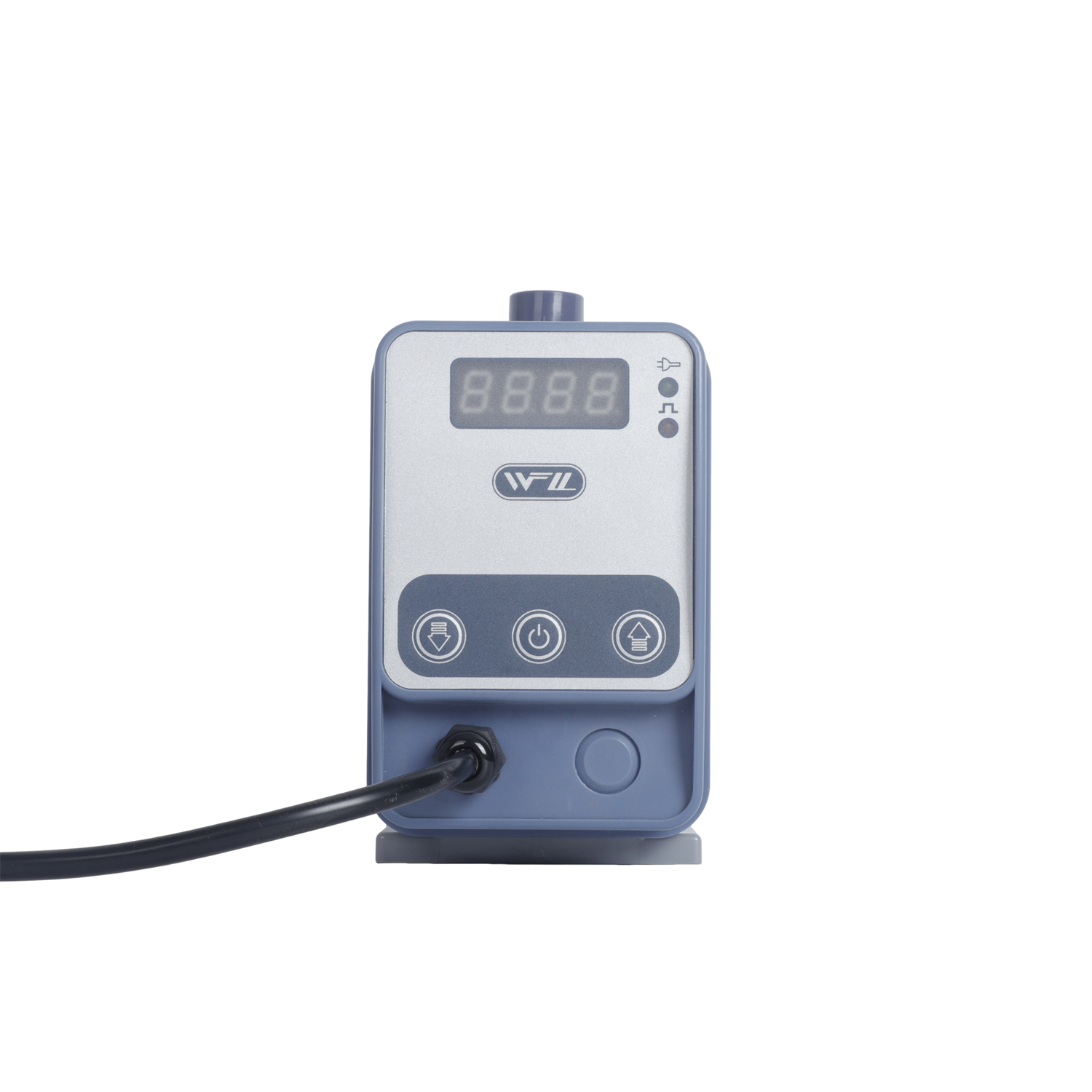

*Digital display of operating frequency, panel numbers are the number of pump operations per minute.
*Diaphragm made of pure solid PTFE material, compatible with most chemicals, eliminating the need for regular diaphragm replacement and providing a long service life.

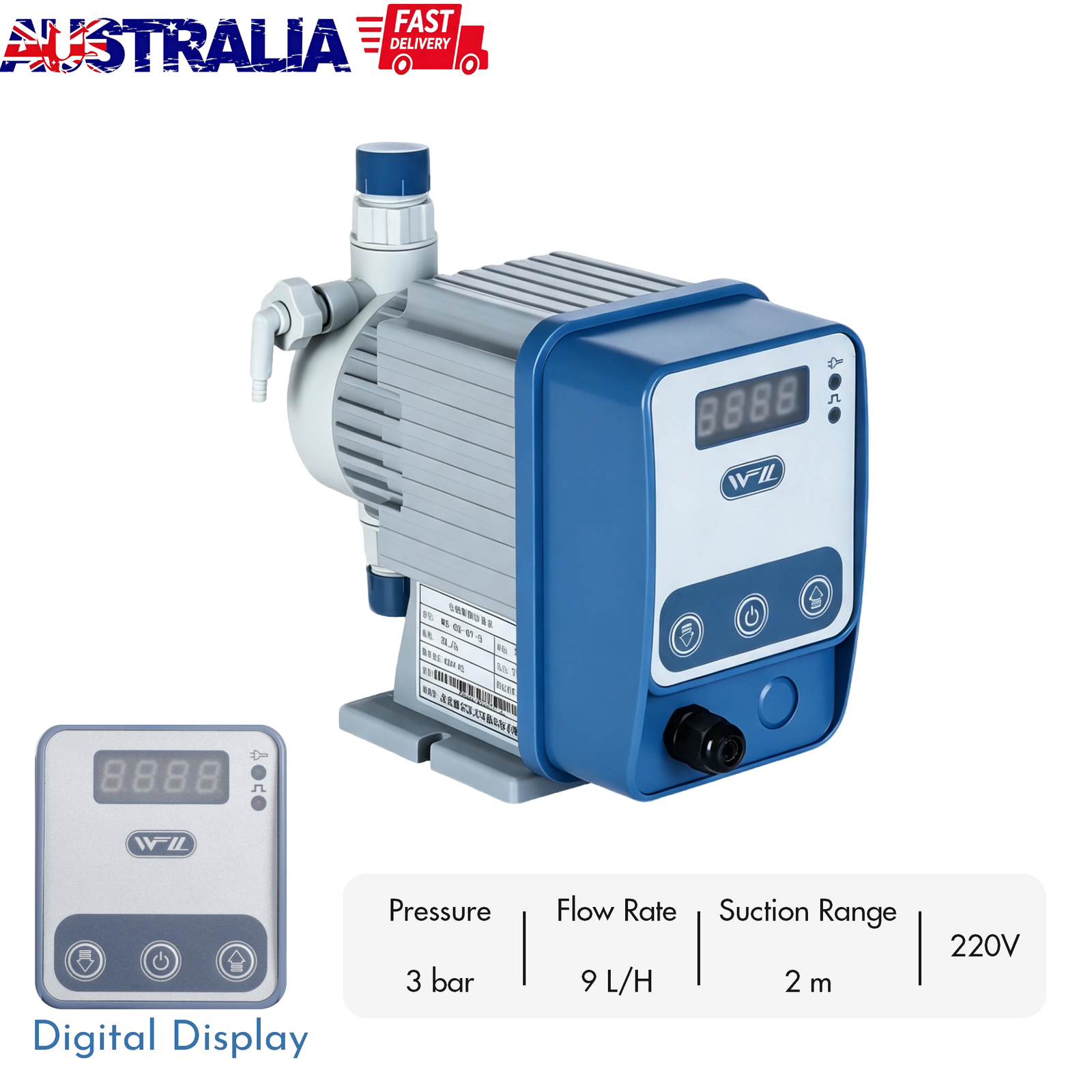

Parameters:

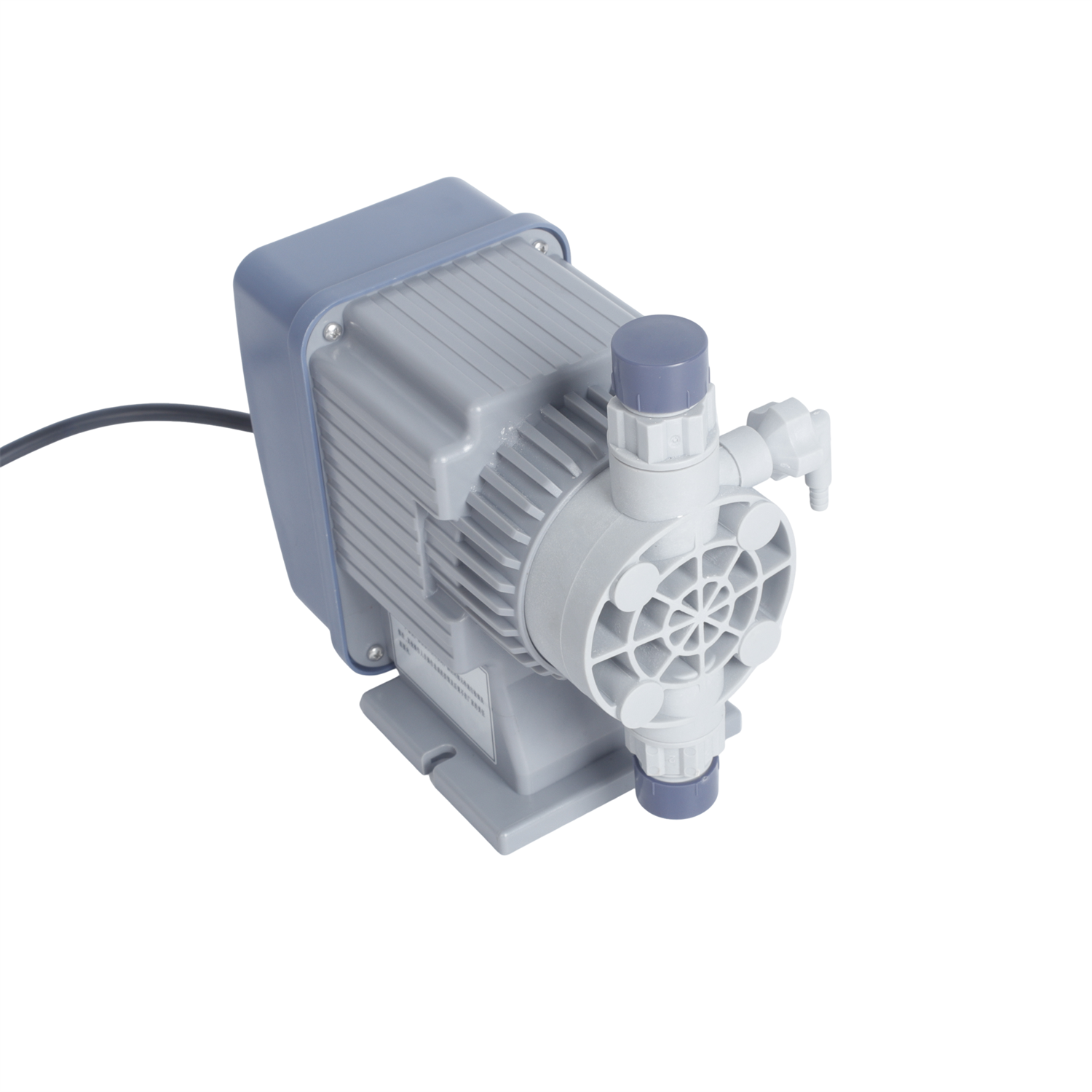

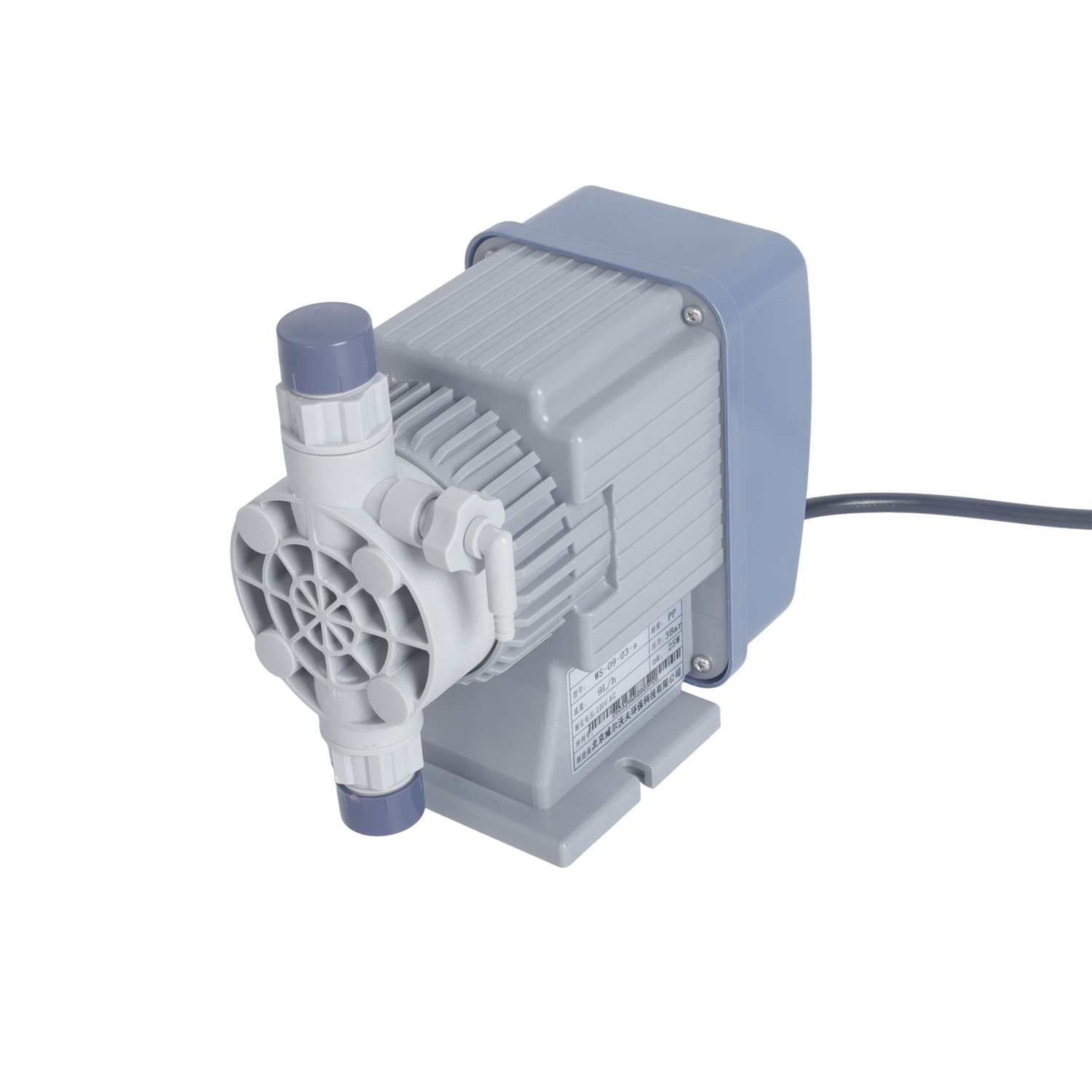

Name: Electromagnetic diaphragm metering pump
Control mode: manual control
Flow rate: 9L/H
Pressure: 3bar
Suction range: 2m
Power supply: 220V 50HZ
Pump head material: PP

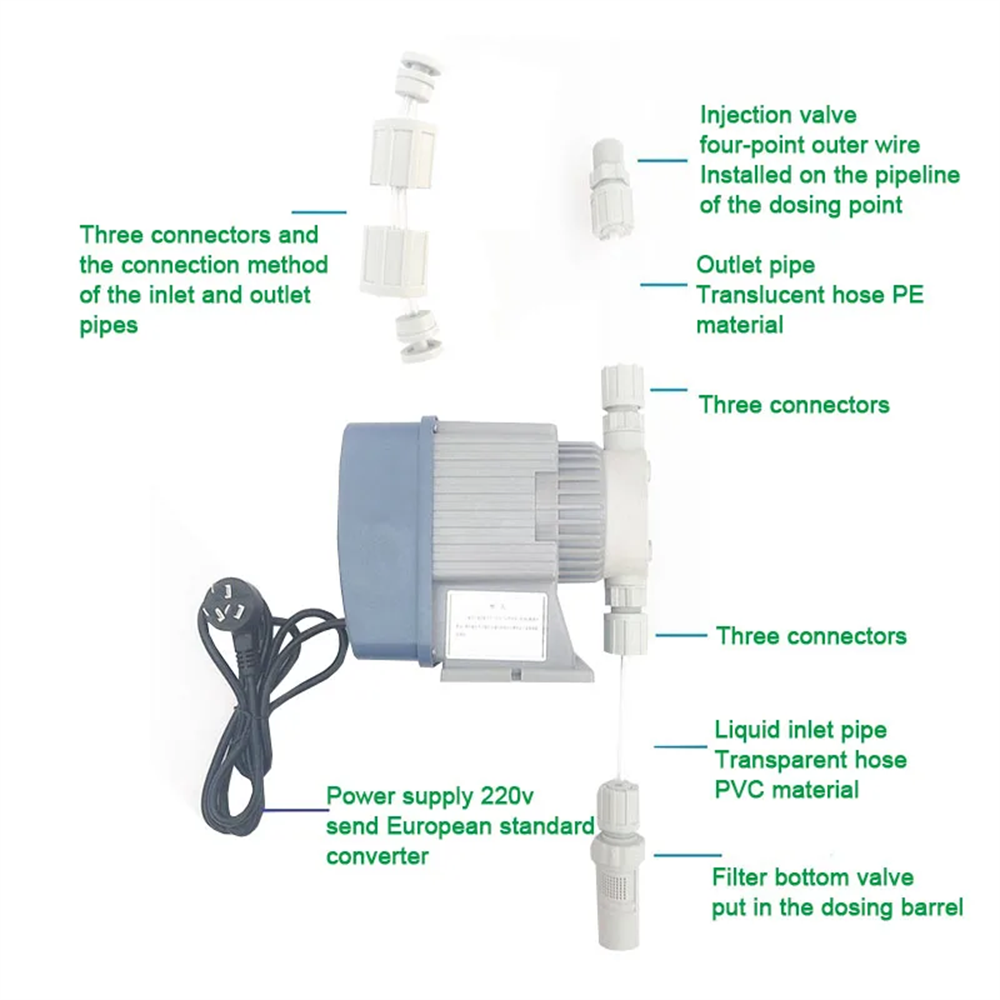

How to use:
This is a basic hand dosing pump.
1.It is necessary to adjust the proportion of chemical substances in the dosing barrel, and then connect the metering pump (note that the connection distance should be controlled within 2 meters).
2.The metering pump is connected with 220V voltage. After the power is turned on, the required flow rate can be adjusted on the metering pump panel.
3.After adjustment, the metering pump will work according to the value and time you adjusted.
4.The metering pump extracts the substance from the dosing barrel and outputs it to the injection point. (After plugging in the power supply has been working, if no longer needed, power off reset can be.)
Note:
Please note that water must be kept in the dosing barrel during operation, otherwise it may cause the dosing pump circuit board to burn out.
