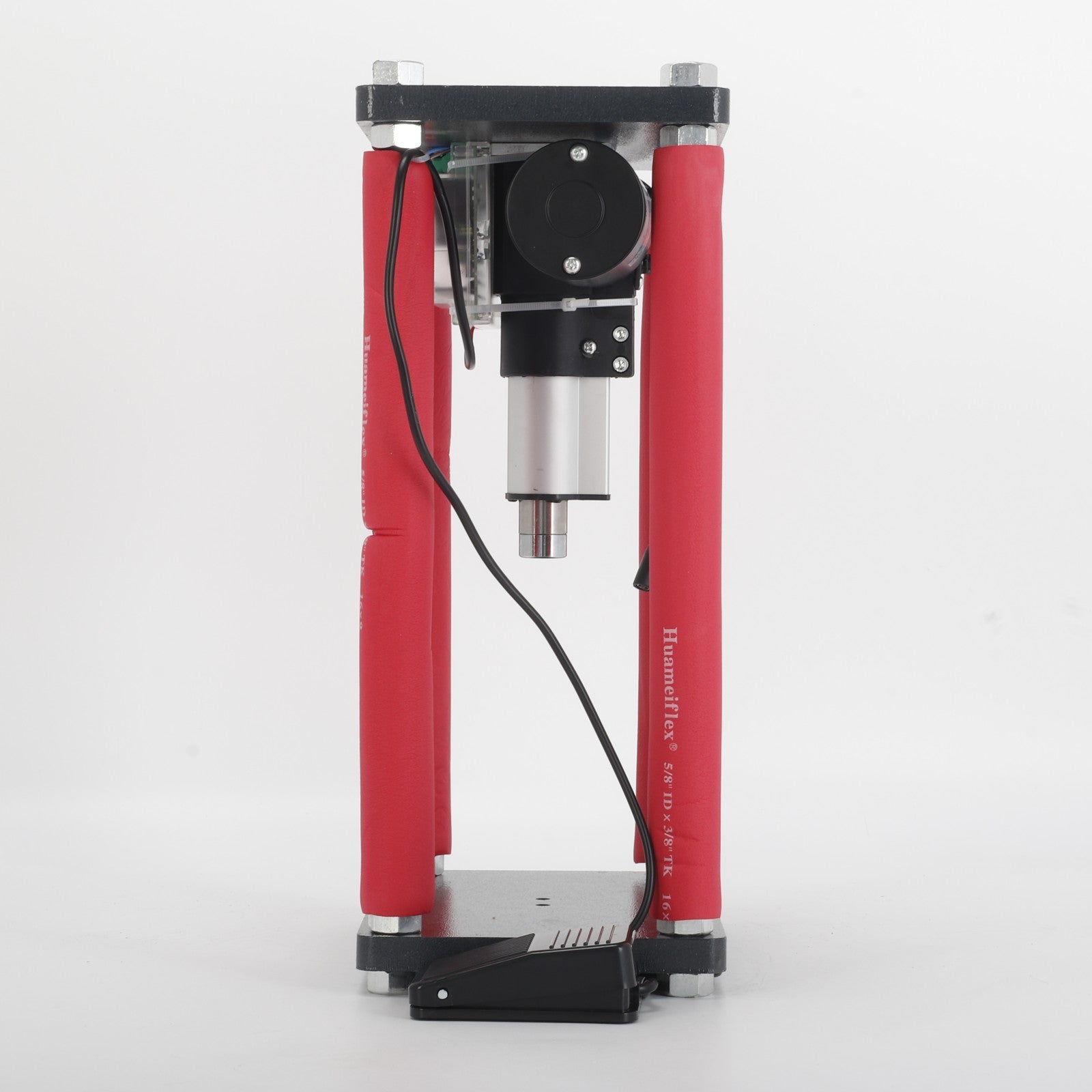

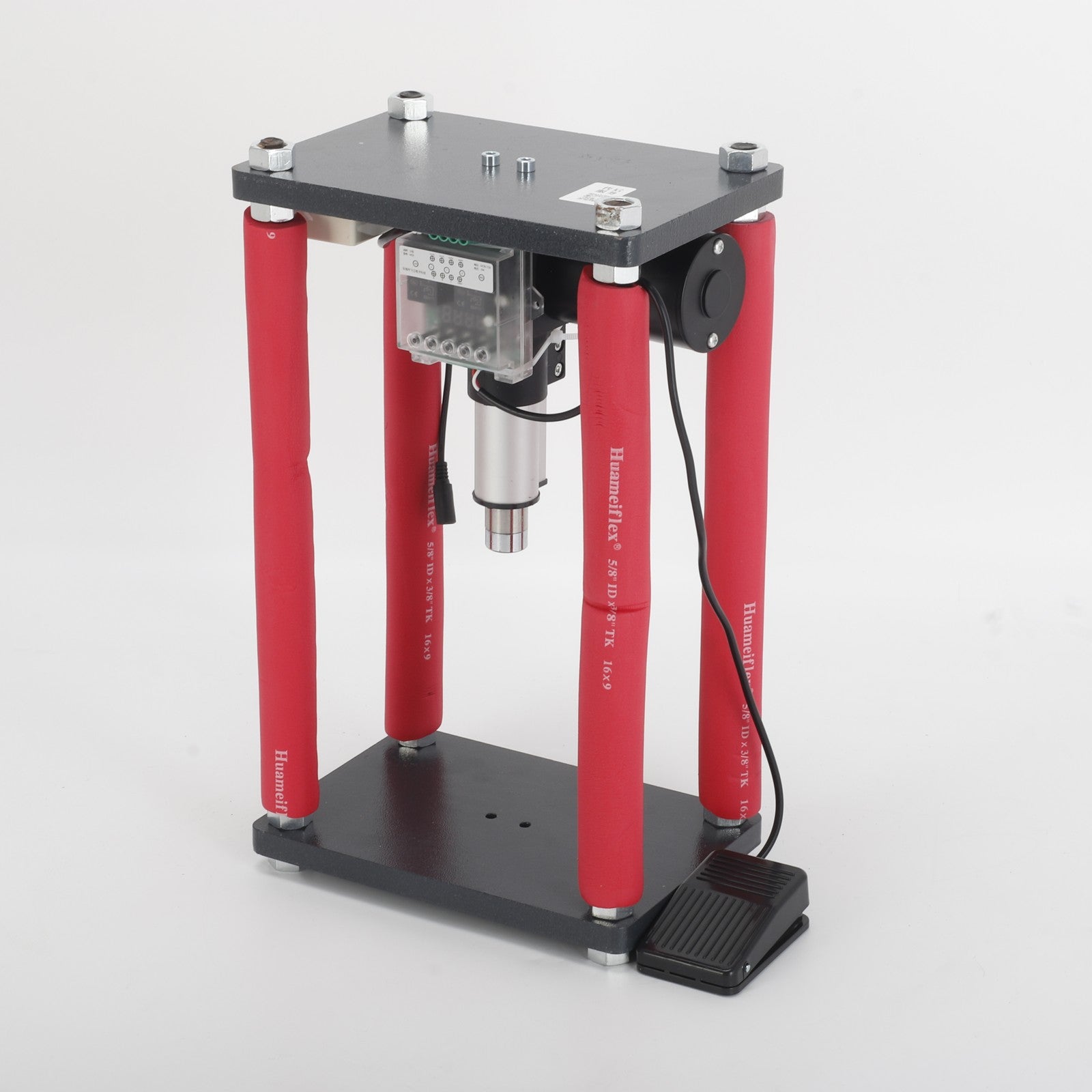

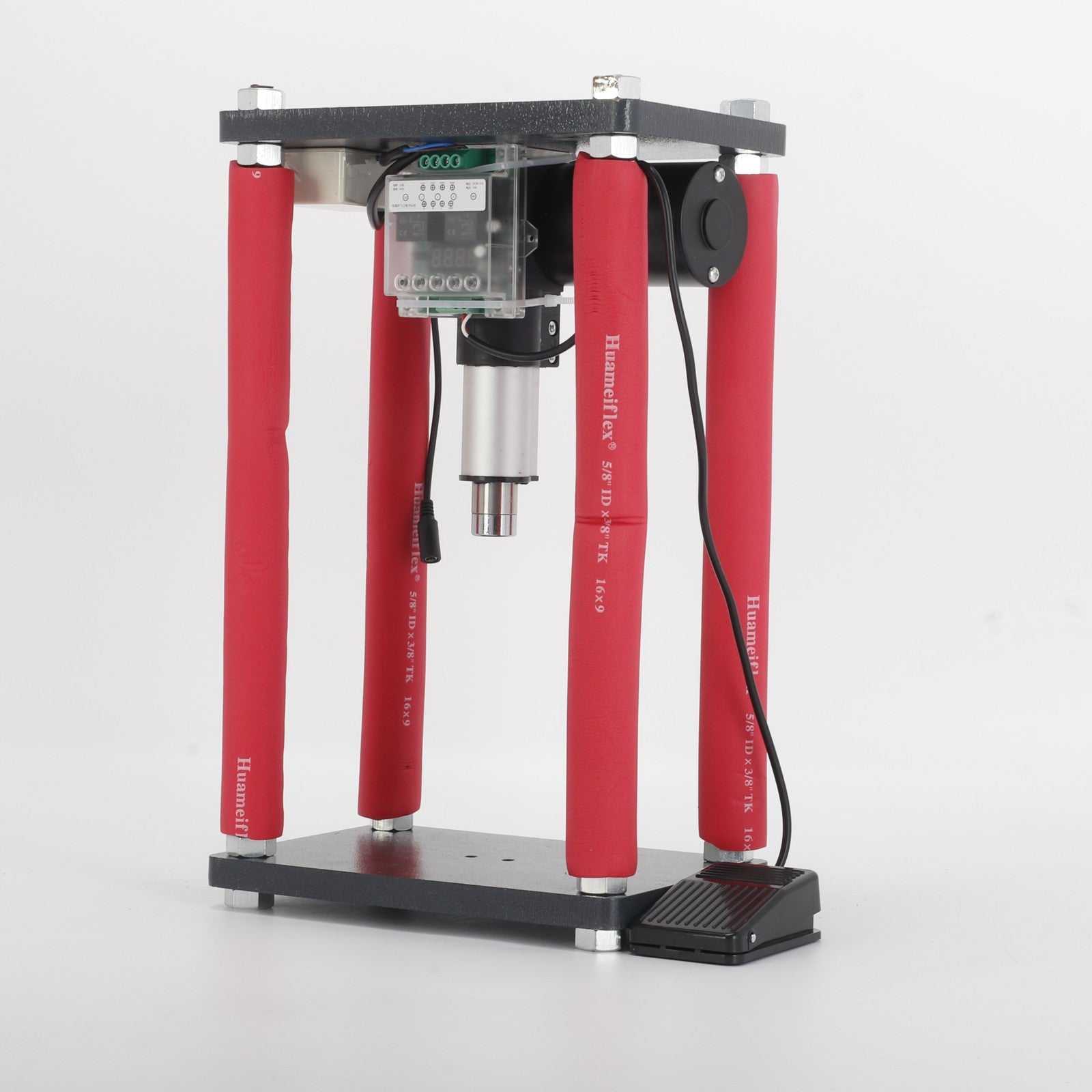

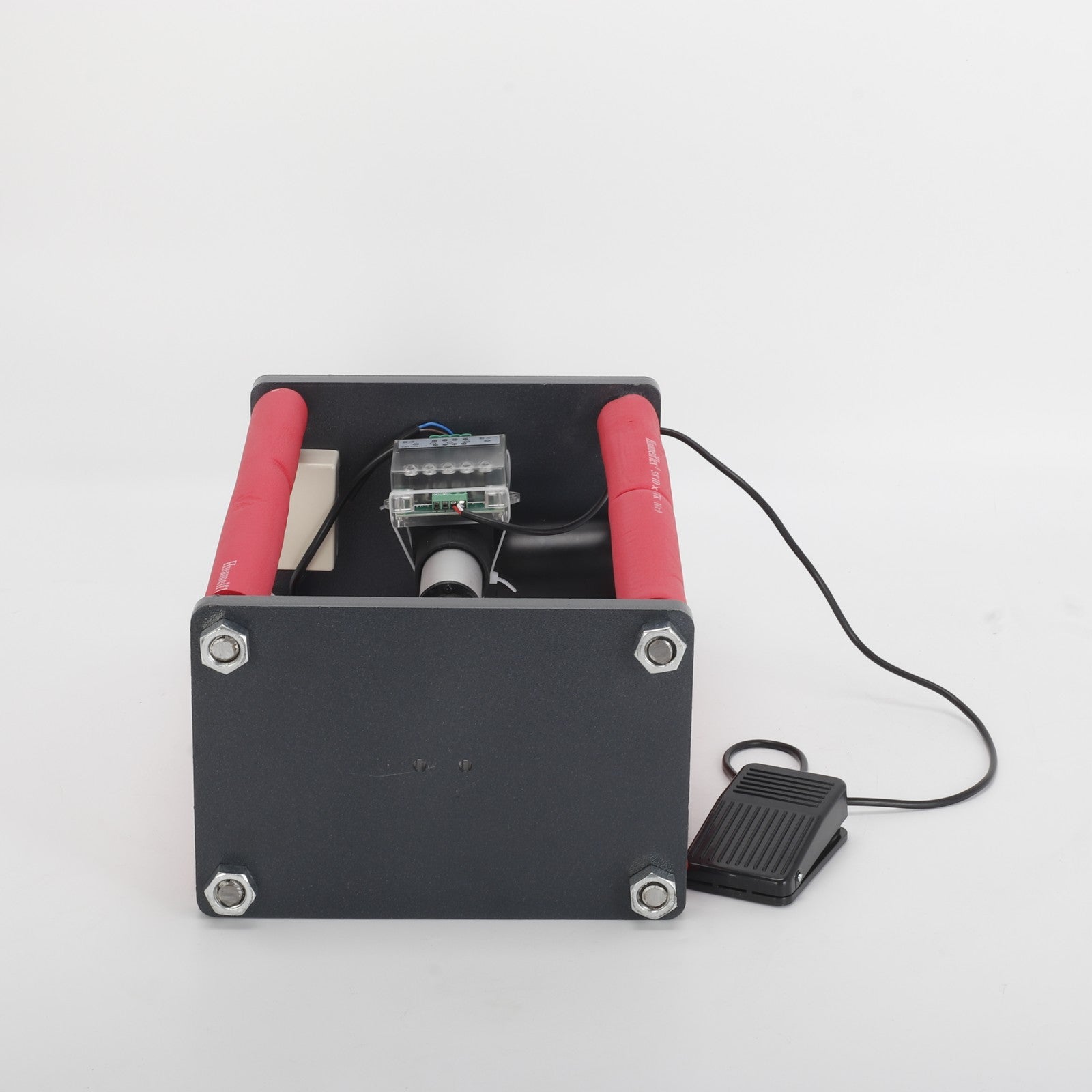

6000N Desktop Electric Press Silent Hydraulic Press Machine For DIY w/Foot Pedal

Features
This electric press machine excels in high-precision operations for small components. Key aspects include:

• High-Precision Applications: Designed for pressing, assembling, stamping, or forming tasks, ideal for electronics, jewelry, and model-making industries where accuracy is critical.

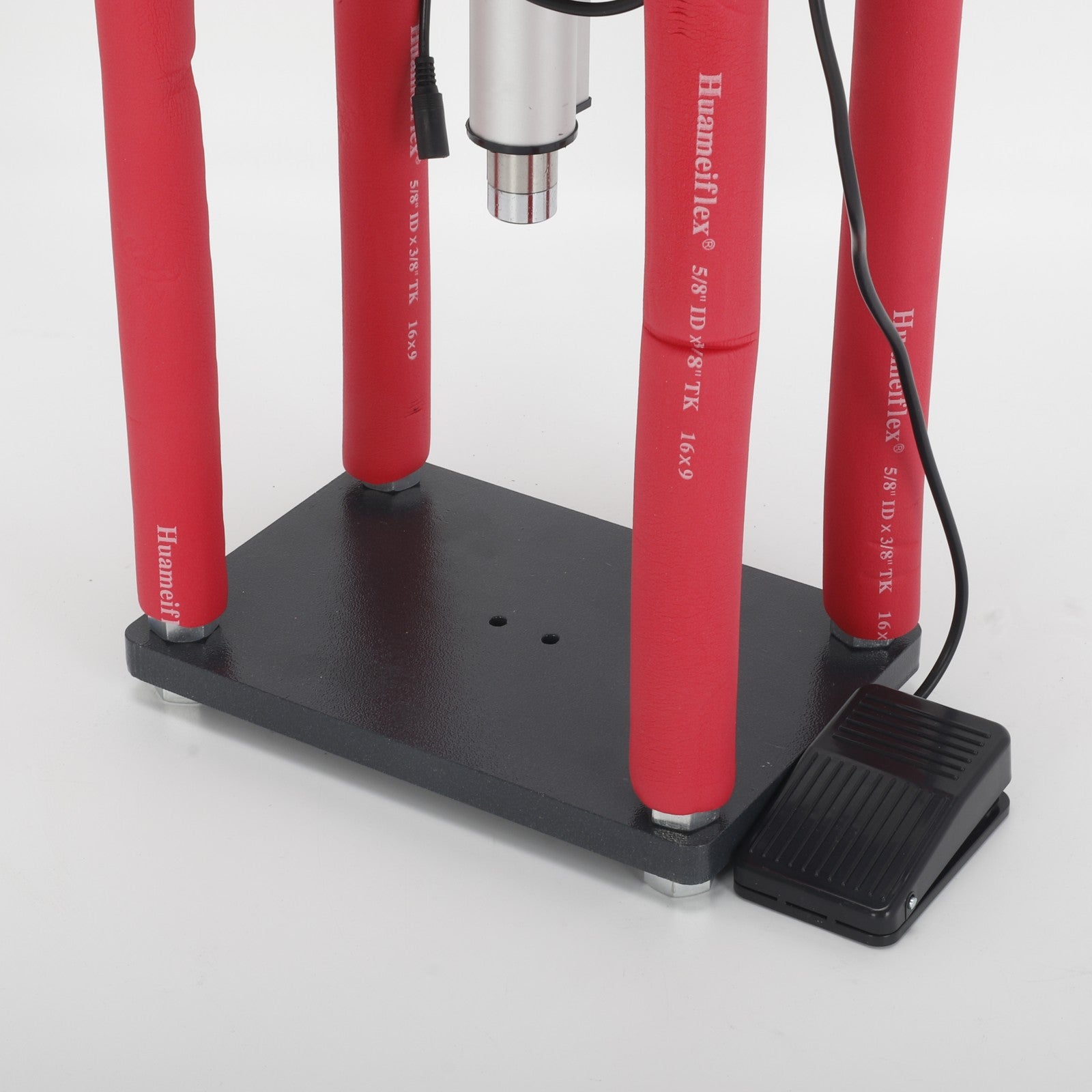

• Hands-Free Operation: Foot-pedal control enables users to focus on component handling without manual intervention.

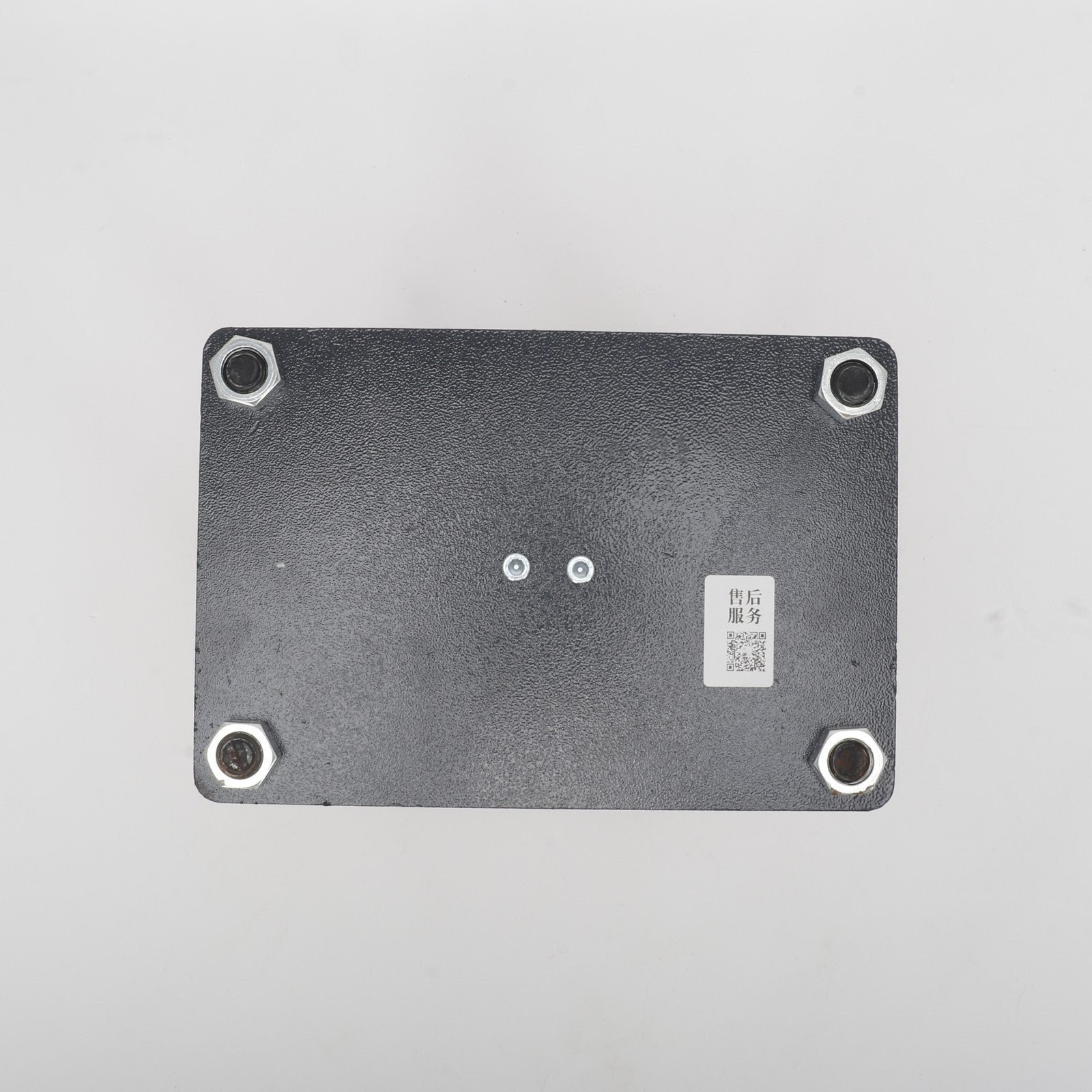

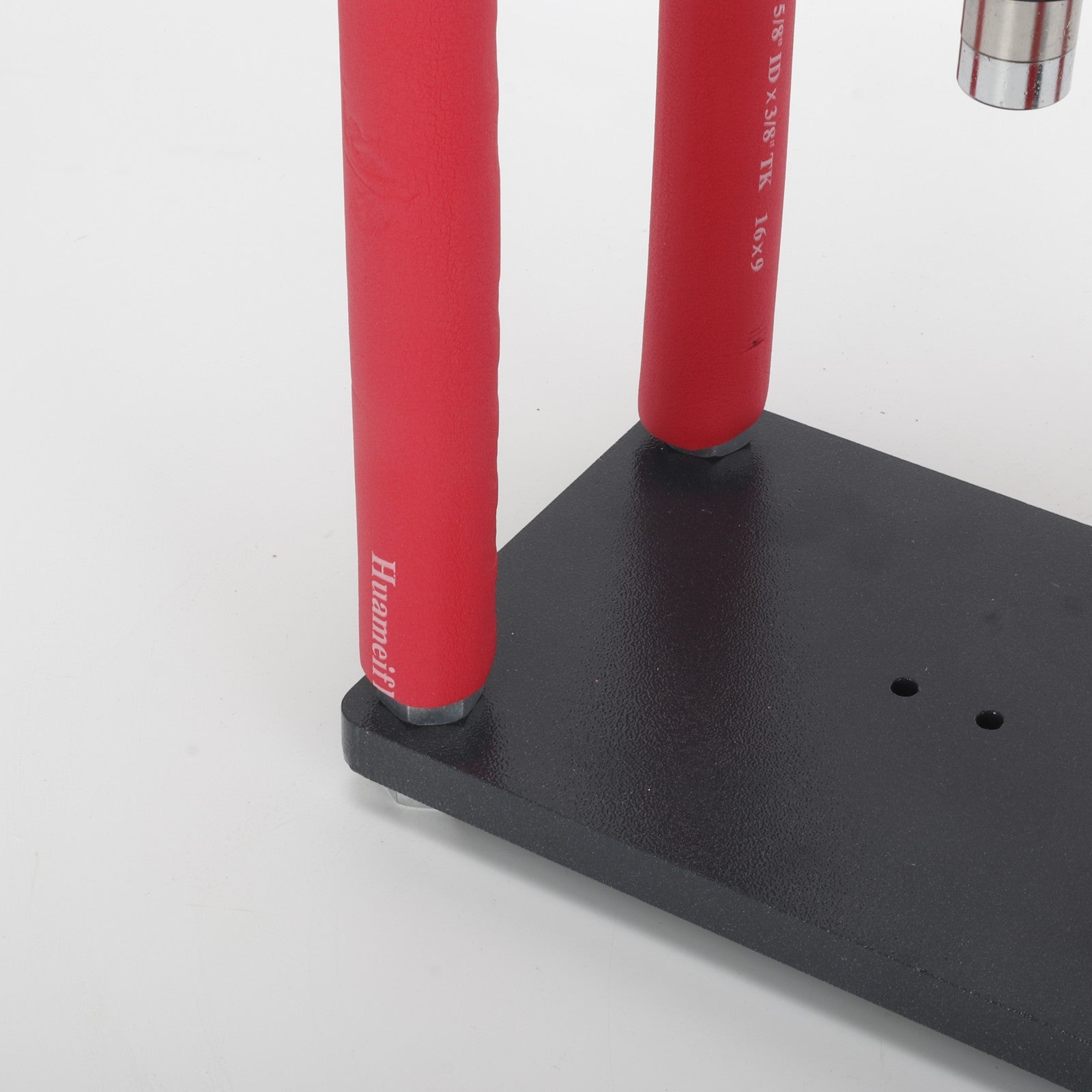

• Robust Build: Upper and lower plates constructed from 16mm-thick steel plates, ensuring pressure resistance and no deformation during use.

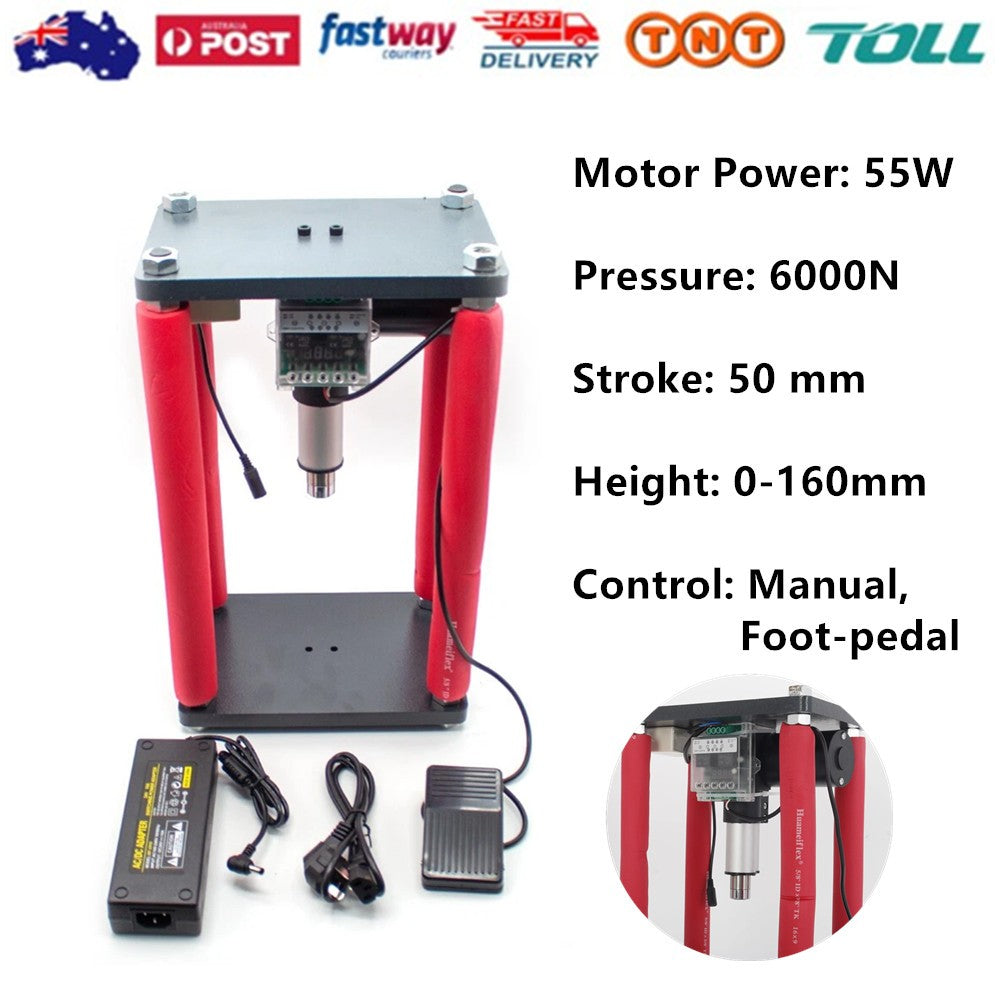

Specifications

• Motor Power: 55W
• Voltage: 220V
• Top/Bottom Plate Thickness: 16 millimeters
• Maximum Pressure: 6000N
• Push Rod Material: Stainless steel
• Height Adjustment Range: 0-160 millimeters
• Stroke: 50 millimeters
• Downward Speed: 5mm/s (fixed, not adjustable)
• Control Mode: Manual/foot-pedal switch
• Product Dimensions: 250×170×420 millimeters
• Weight: 15 kilograms

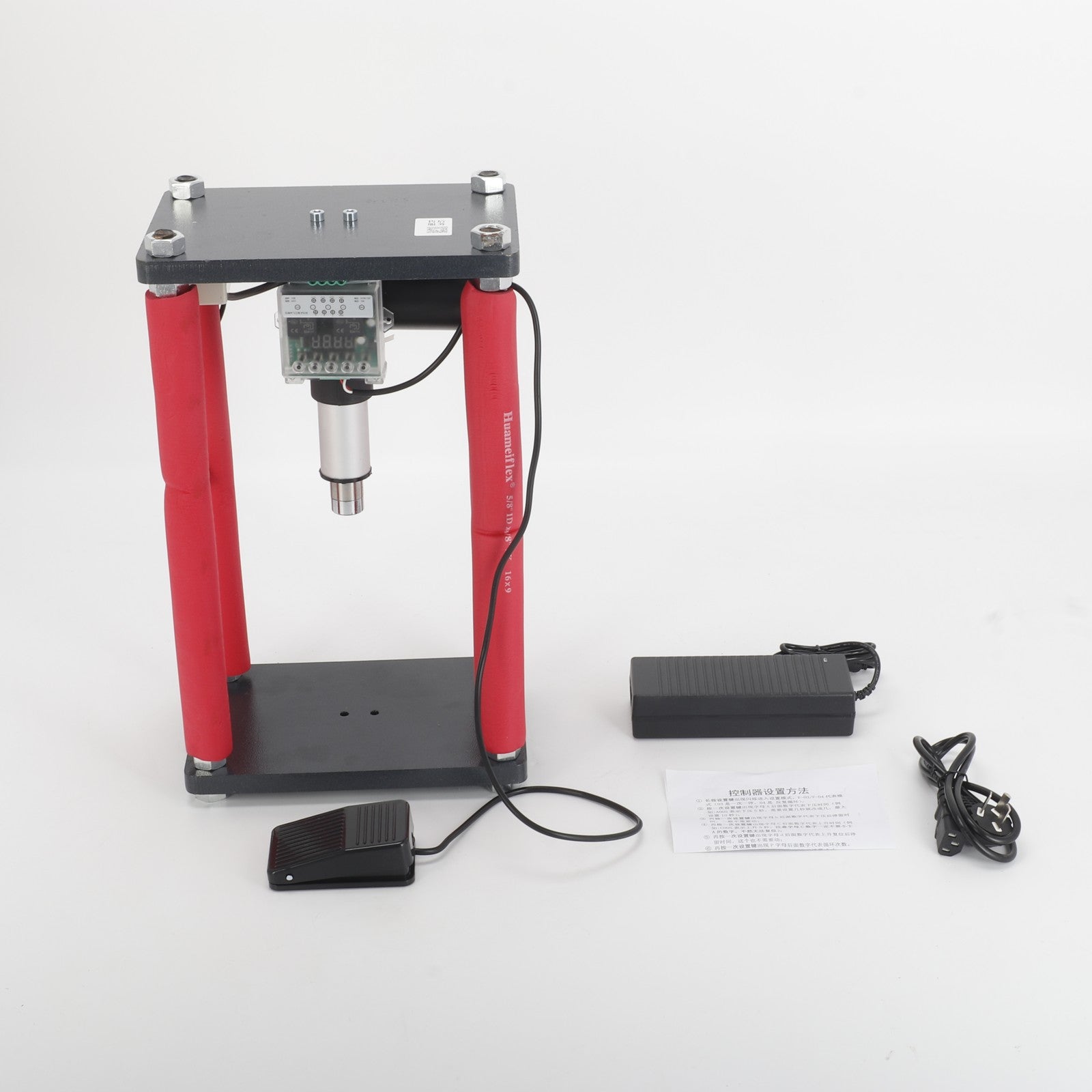

Package Includes

• 1× Mini Electric Silent Press Machine Controller

Note

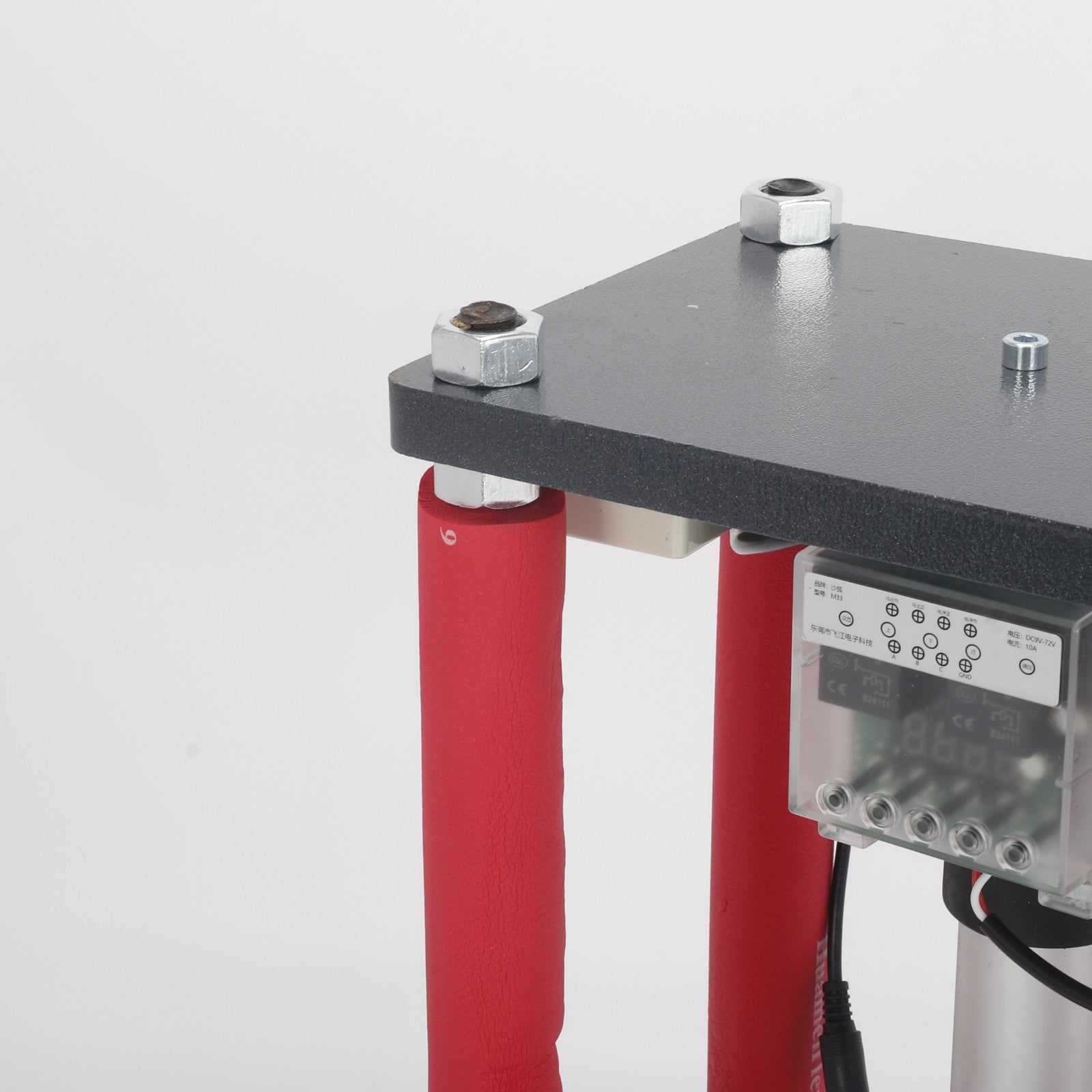

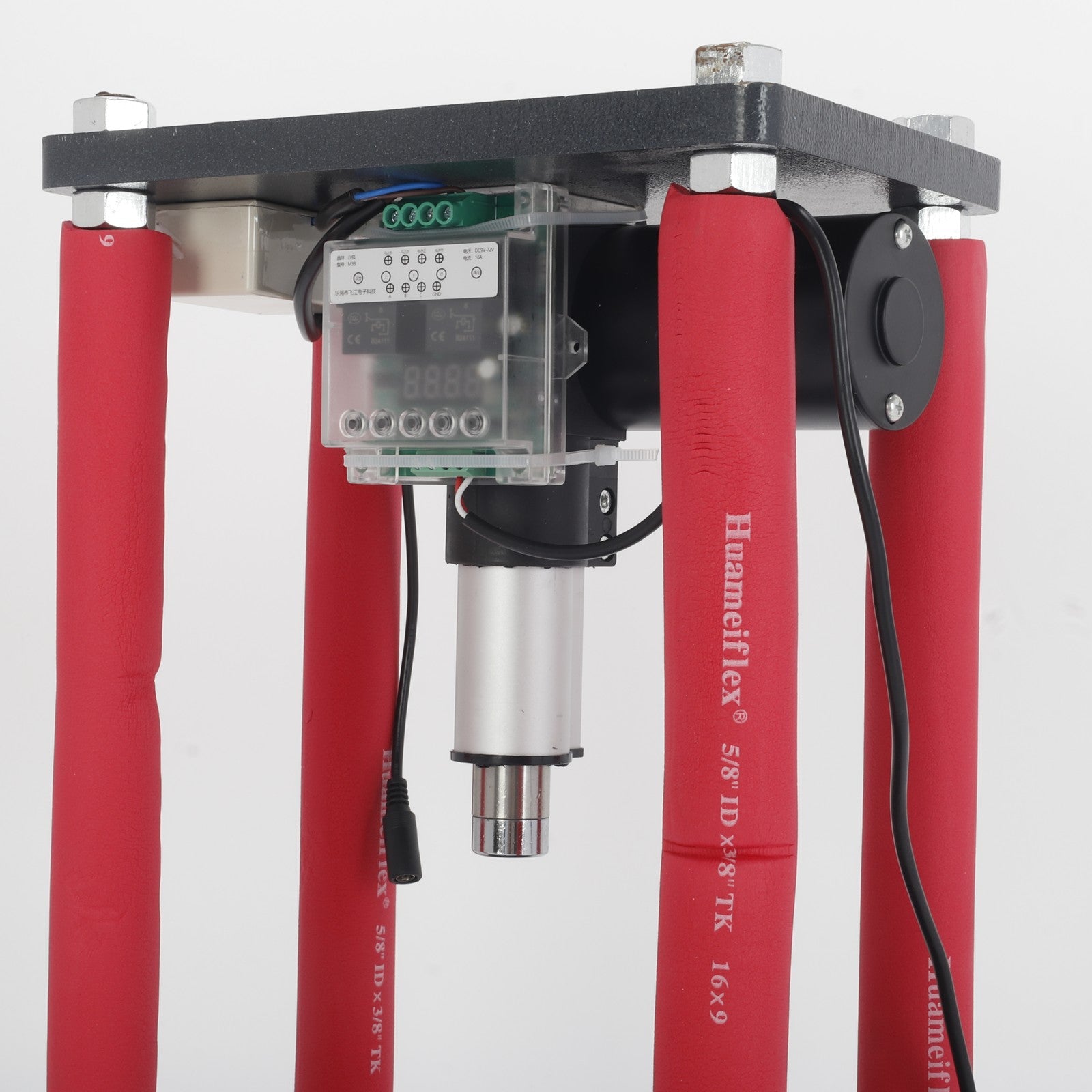

• Setup Method:
  • Enter Setup Mode: Long press the "Set" button until it flashes. F-03/F-04 indicates the current mode.
  • Set Downward Pressing Time (A): Press the "Set" button once to display A and adjust the value (e.g., A005 = 5 seconds; maximum: 10 seconds).
  • Set Holding Time After Pressing (b): Press the "Set" button again to display b; default setting usually suffices.
  • Set Rising Time (C): Press the "Set" button again to display C; ensure C ≥ A to prevent push rod reset failure.
  • Set Holding Time After Rising (d): Press the "Set" button again to display d; default setting is typically adopted.
  • Set Cycle Count (P): Press the "Set" button again to display P and set the cycle count.
  • Save Settings: Long press the "Confirm" button until it flashes to save.
• Usage Warnings:
  • Avoid Overloading: Exceeding the push rod's pressure capacity can damage the motor.
  • Prevent Motor Stalling: Blocking push rod movement (e.g., jamming) may cause motor burnout.
  • Limit Continuous Usage Time: Prolonged operation reduces efficiency and risks overheating or failure.
  • Adjust Stroke Correctly: Utilize built-in limit switches; if the target is too short, adjust bracket screws or add padding to match the stroke distance.
  • Important Reminder: Never set a stroke distance exceeding available space, as it can cause stalling, gear slippage, or motor burnout.

Additional Note: Due to manual measurement, dimensional tolerances of 1-3 cm may occur. Color variations can result from lighting conditions.
