6 Pcs 250-222 BXA Wedge Type Quick Change Tool Post Set For 10" -15" Lathe Steel
PRODUCT DETAILS
Features
Precision engineered wedge type tool posts ensure repetitive accuracy.
Maximum rigidity for chatter-free cutting.
No time wasted with shims during setup.
All working parts are hardened and precision ground for enhanced durability and hardness.
Supports multiple cutters, forming an artificial cutter library for repeated replacement.
Suitable for various cutters and tools; tools can be changed easily.
Capable of handling all kinds of workpieces at any angle.
Tool height is easily adjustable via the adjustment screw nut.
Specifications
Material: High-quality steel.
Compatible with lathes having a swing diameter of 10" to 15" (defined as the maximum diameter that can be turned over the bed).
Suitable for lathes with a center line height of approximately 1.8" (measured from the top cross slide tool post mounting surface to the lathe center line).
Compatible lathe models include: South Bend 13", 14" & 1307; Delta 14"; Logan 14"; Emco Elnomat13S; Harrison 11, 12 & 13"; Sheldon 11 & 13"; Clausing 1300 series; Monarch 13; Nardini MS1400 & MS1600; Acer 1340; and many other similar-sized import lathes.
Components:

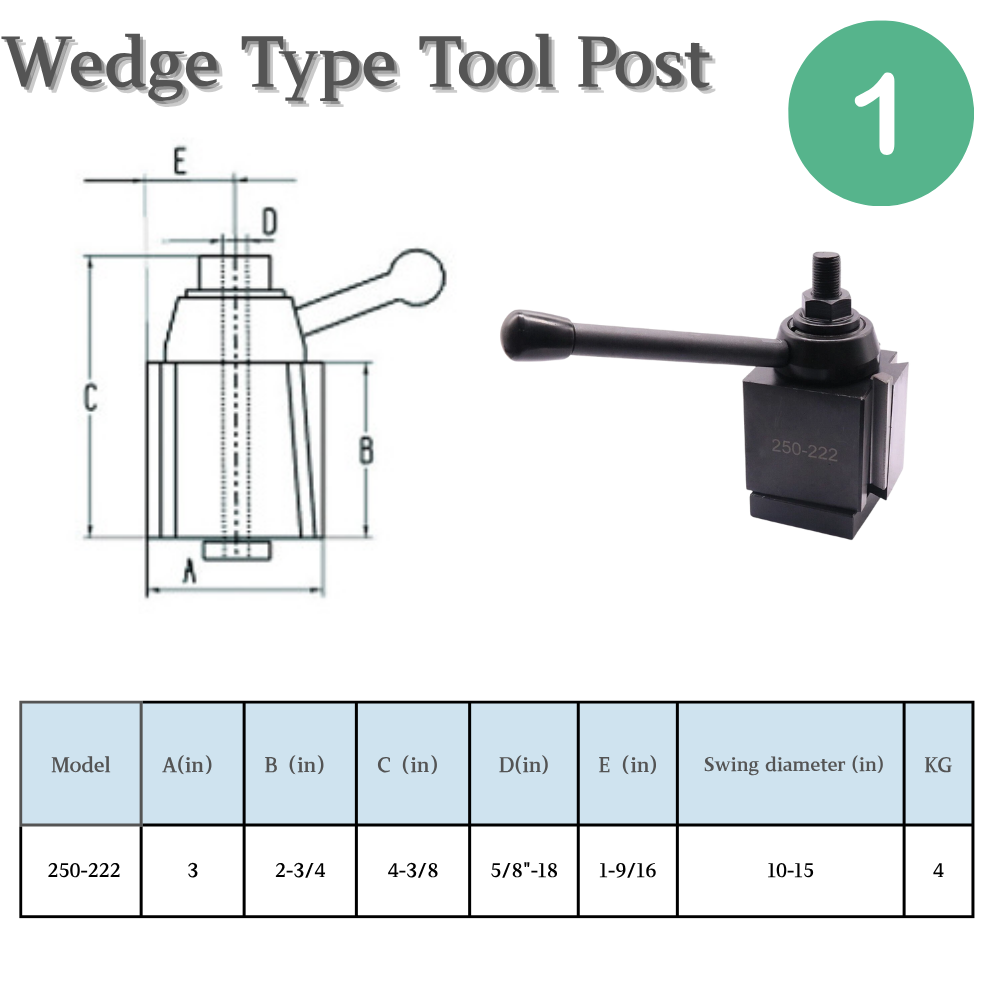

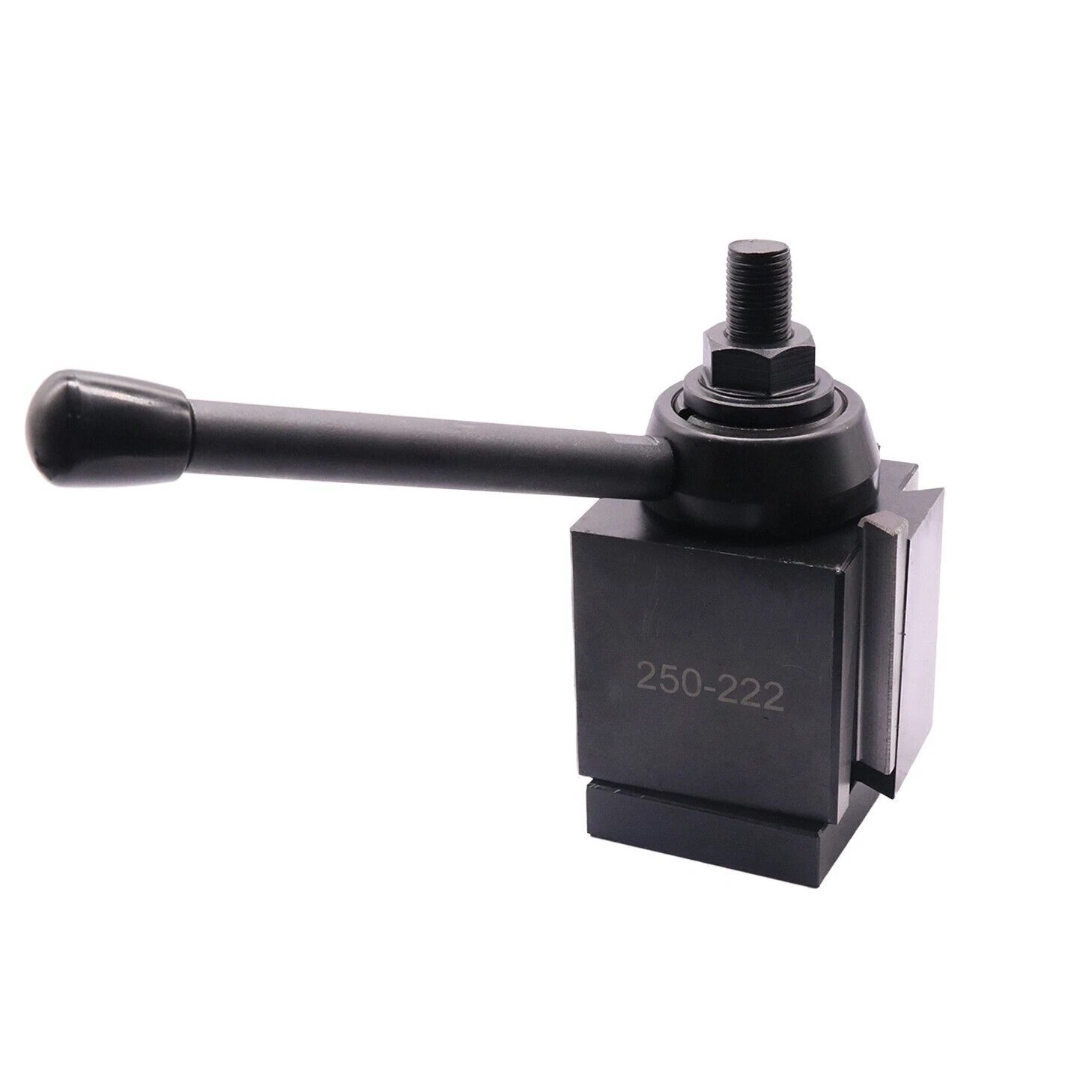

251-222 Wedge Type Tool Post.

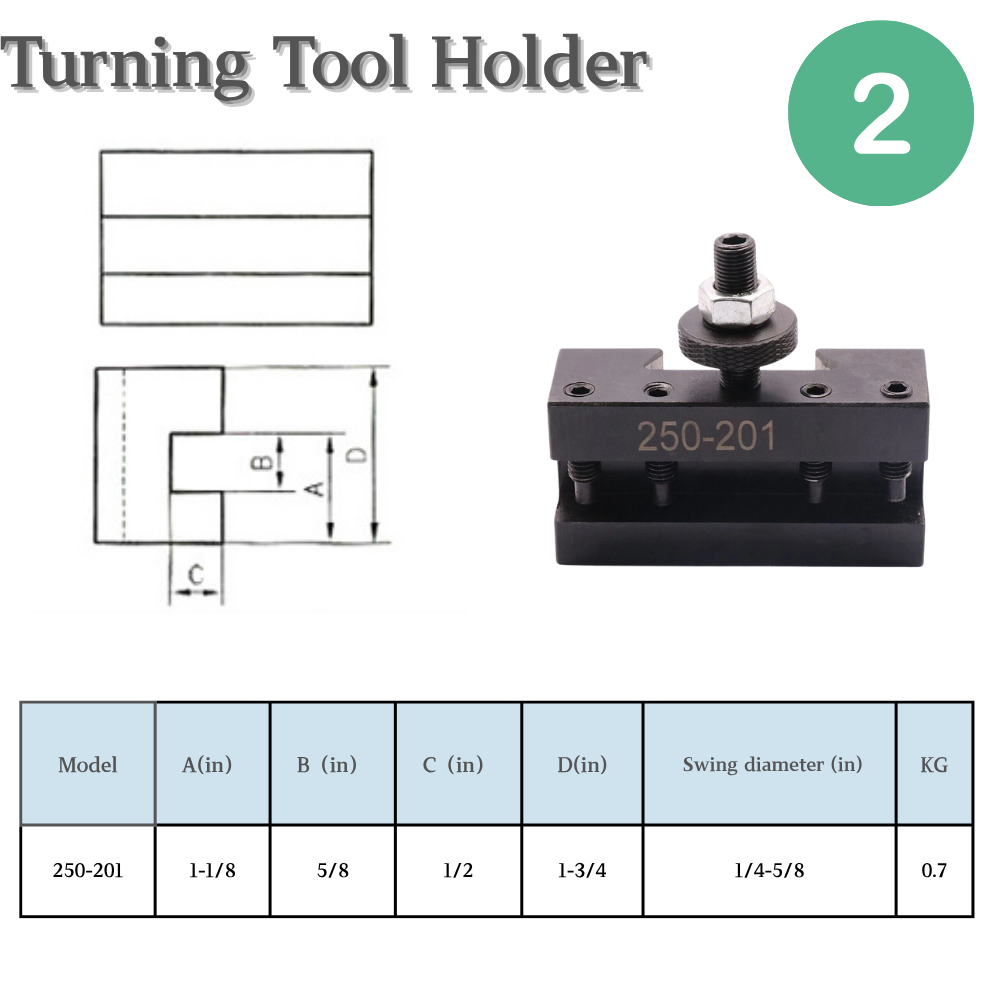

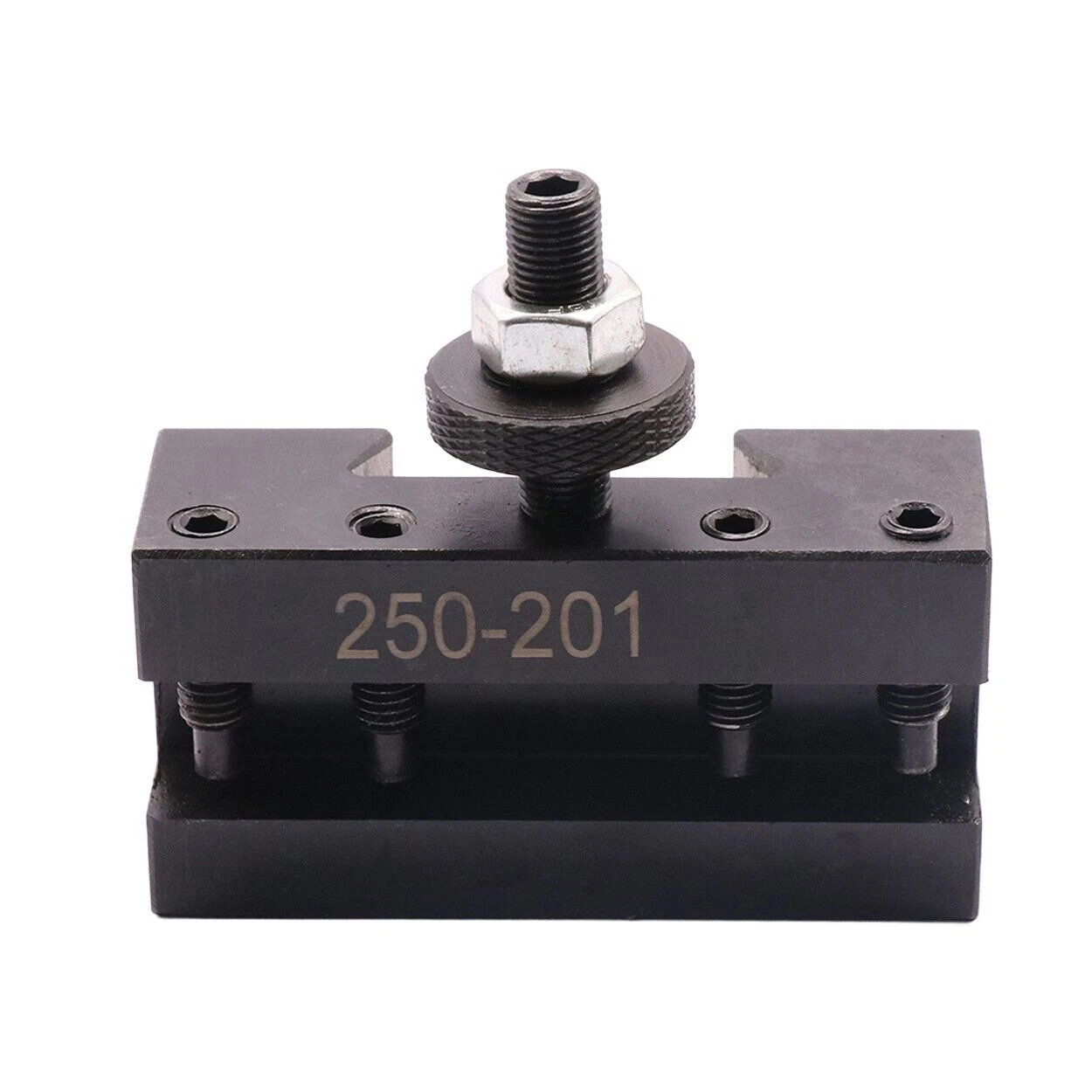

250-201 Turning Tool Holder: Accepts tool bits up to 5/8".

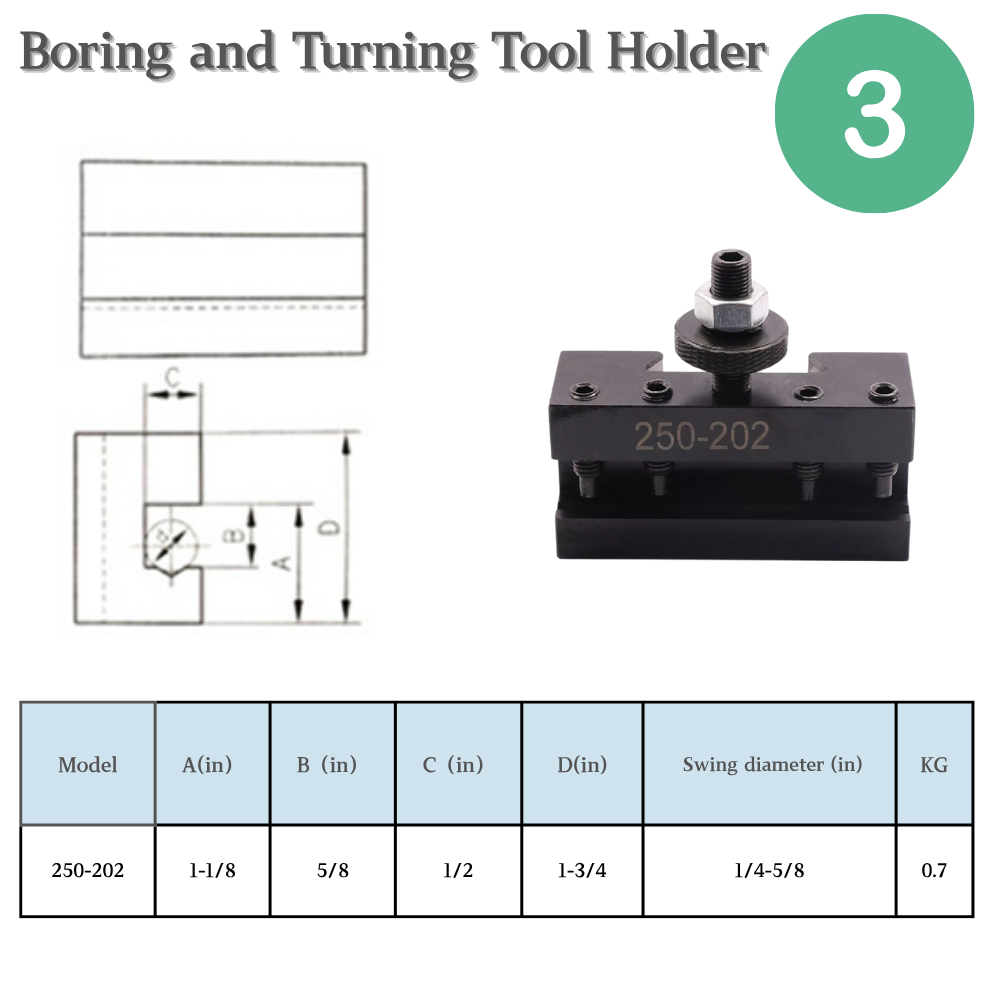

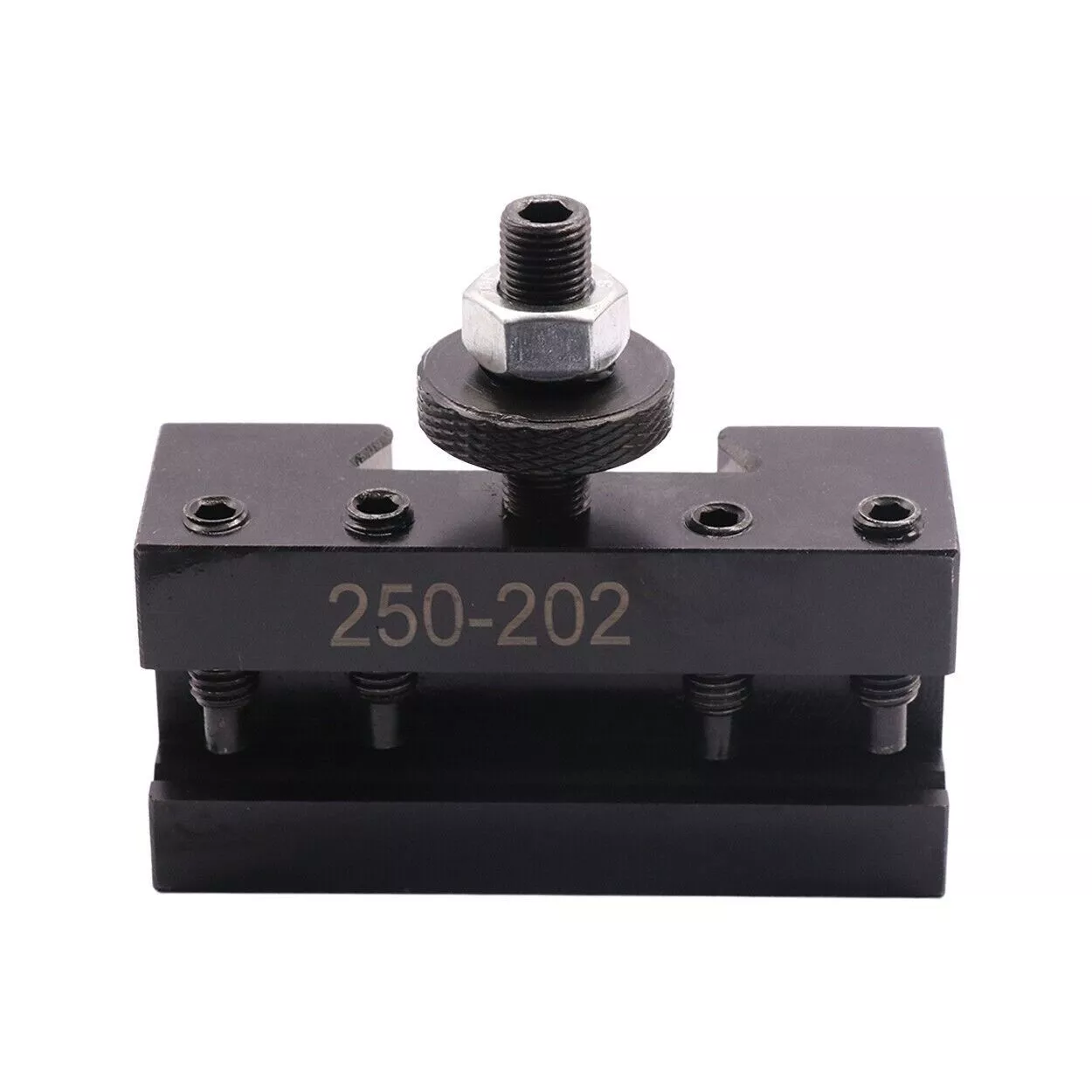

250-202 Boring and Turning Tool Holder: Accepts tool bits up to 5/8" and round shank tool bits up to 1/2".

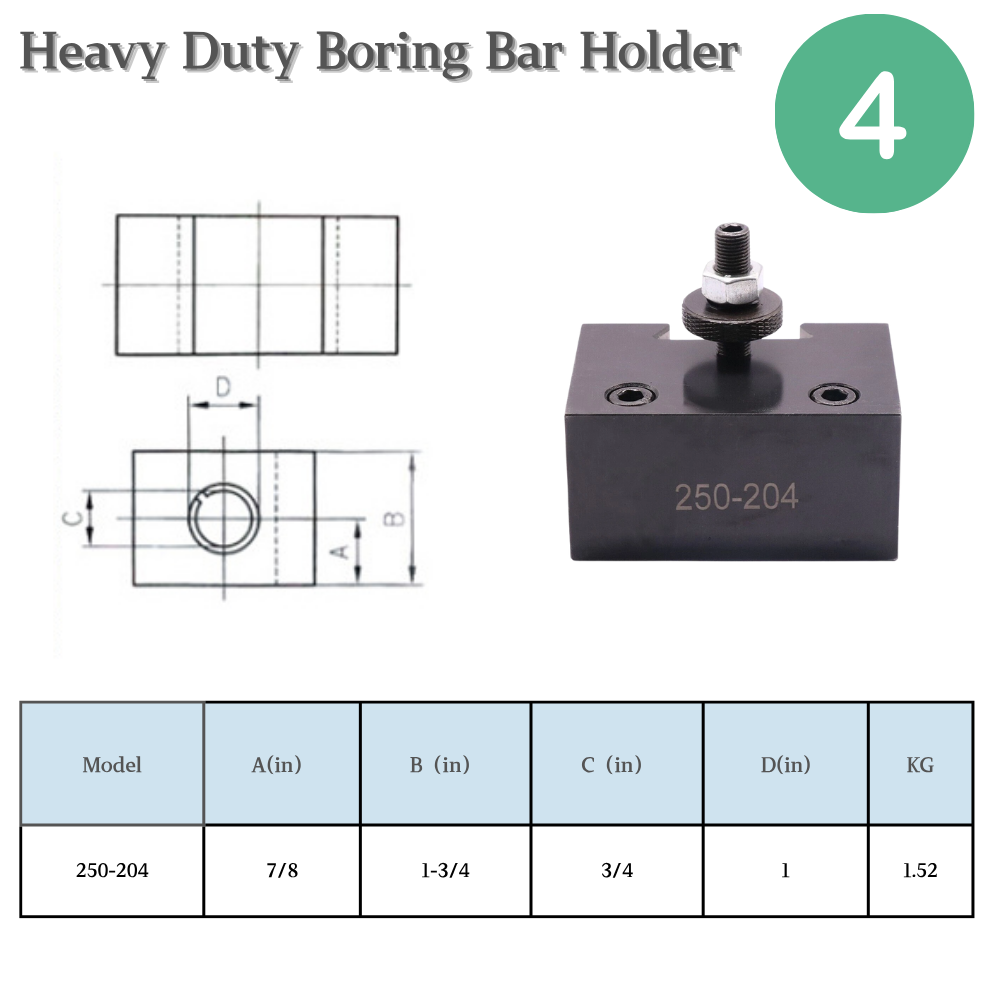

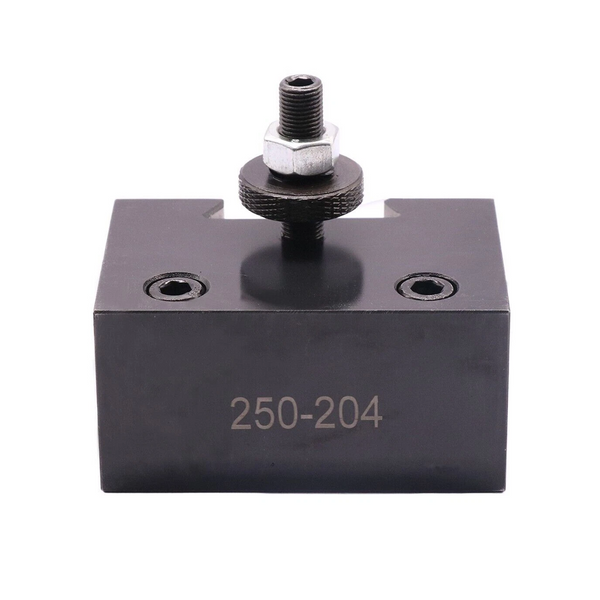

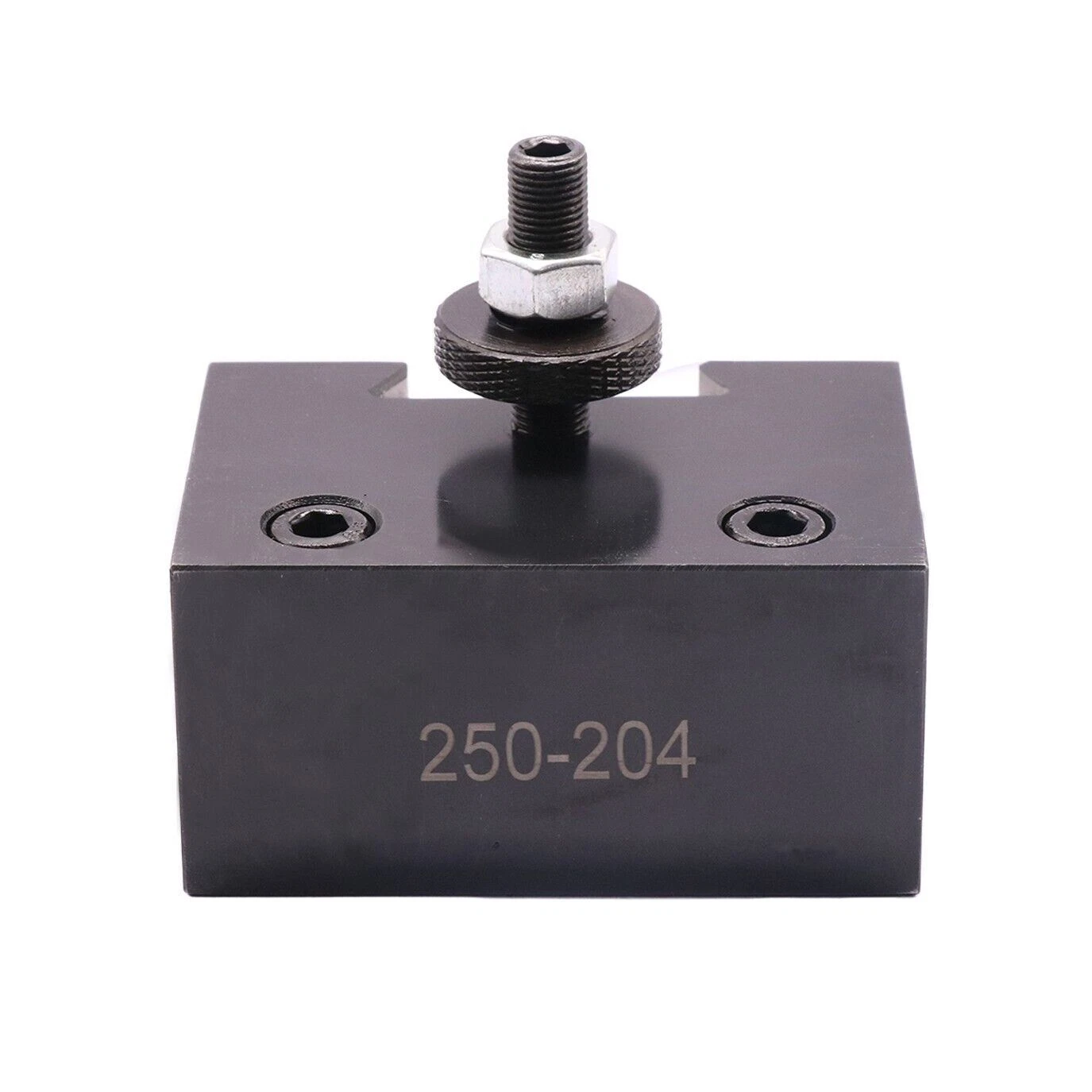

250-204 Heavy Duty Boring Bar Holder: Compatible with both 3/4" and 1" shank boring bars.

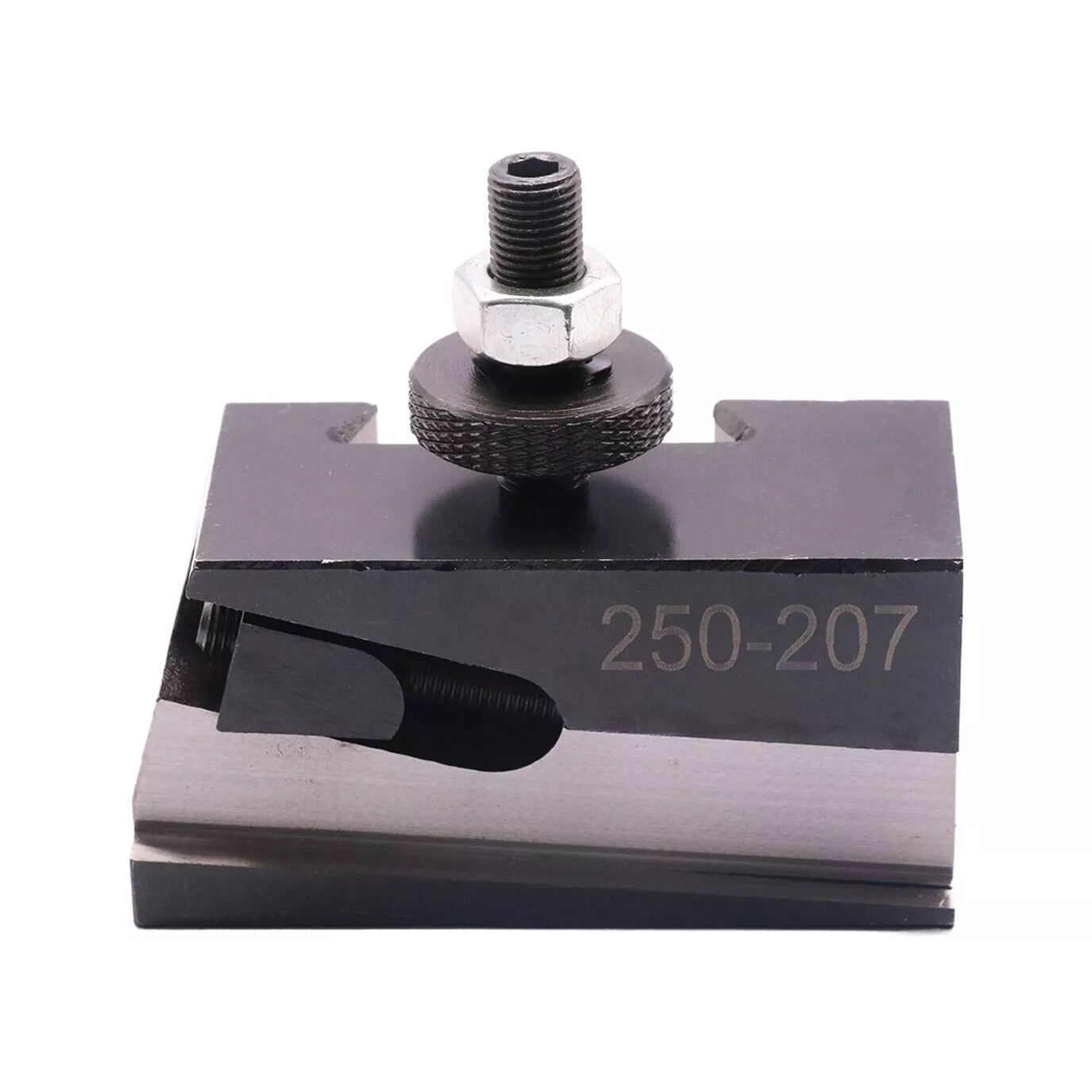

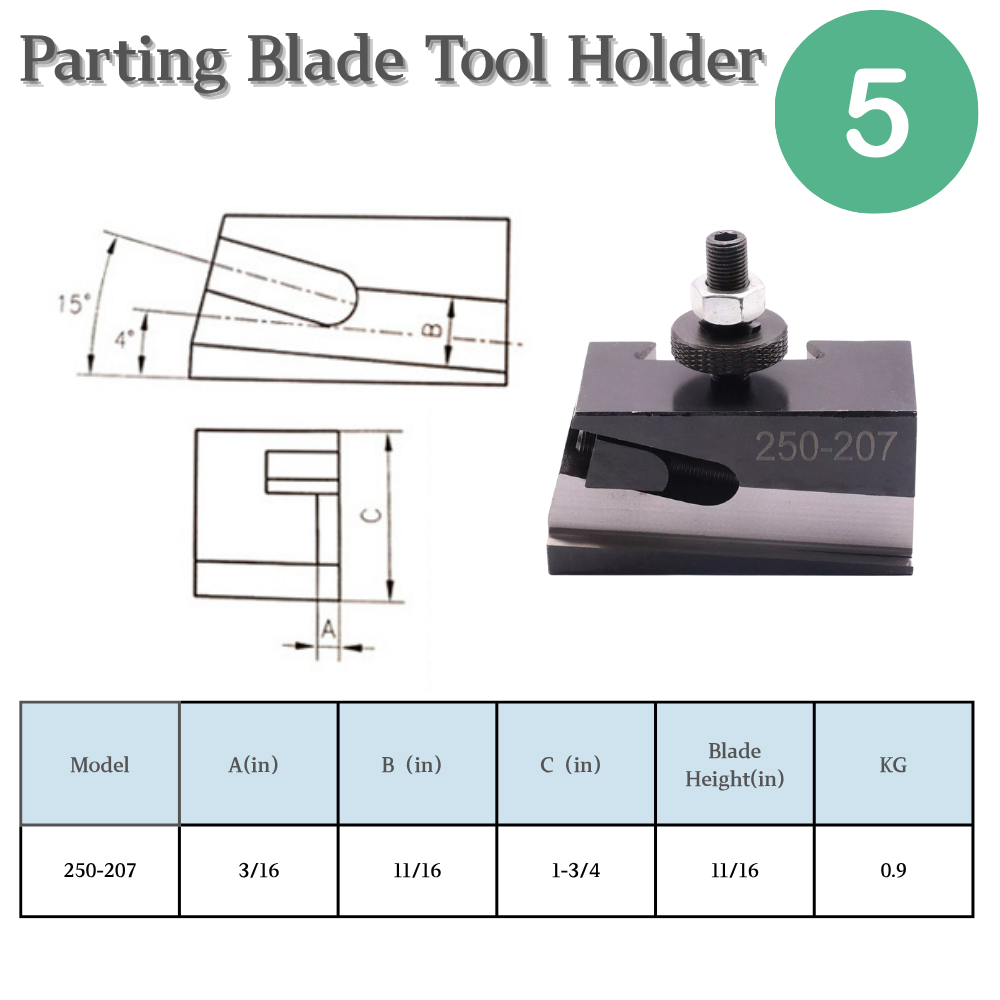

250-207 Parting Blade Tool Holder: Designed for 5/8" high parting blades.

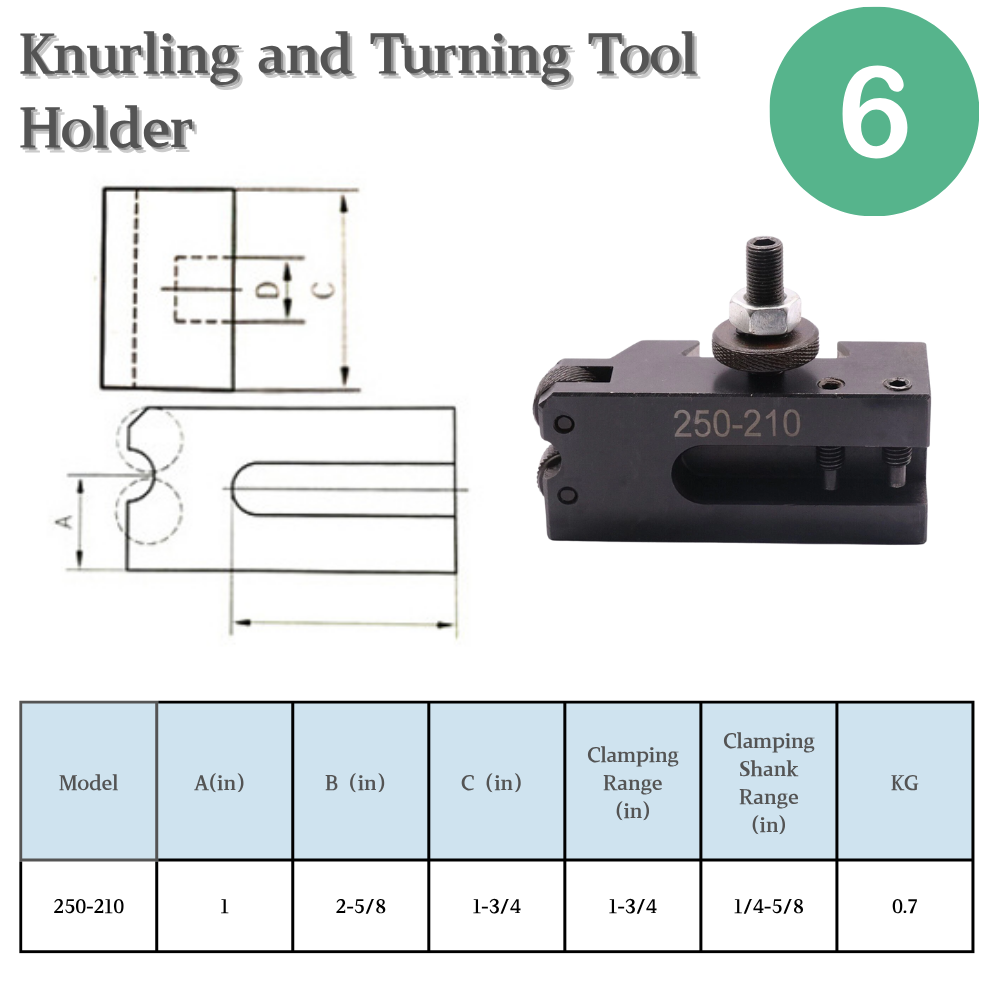

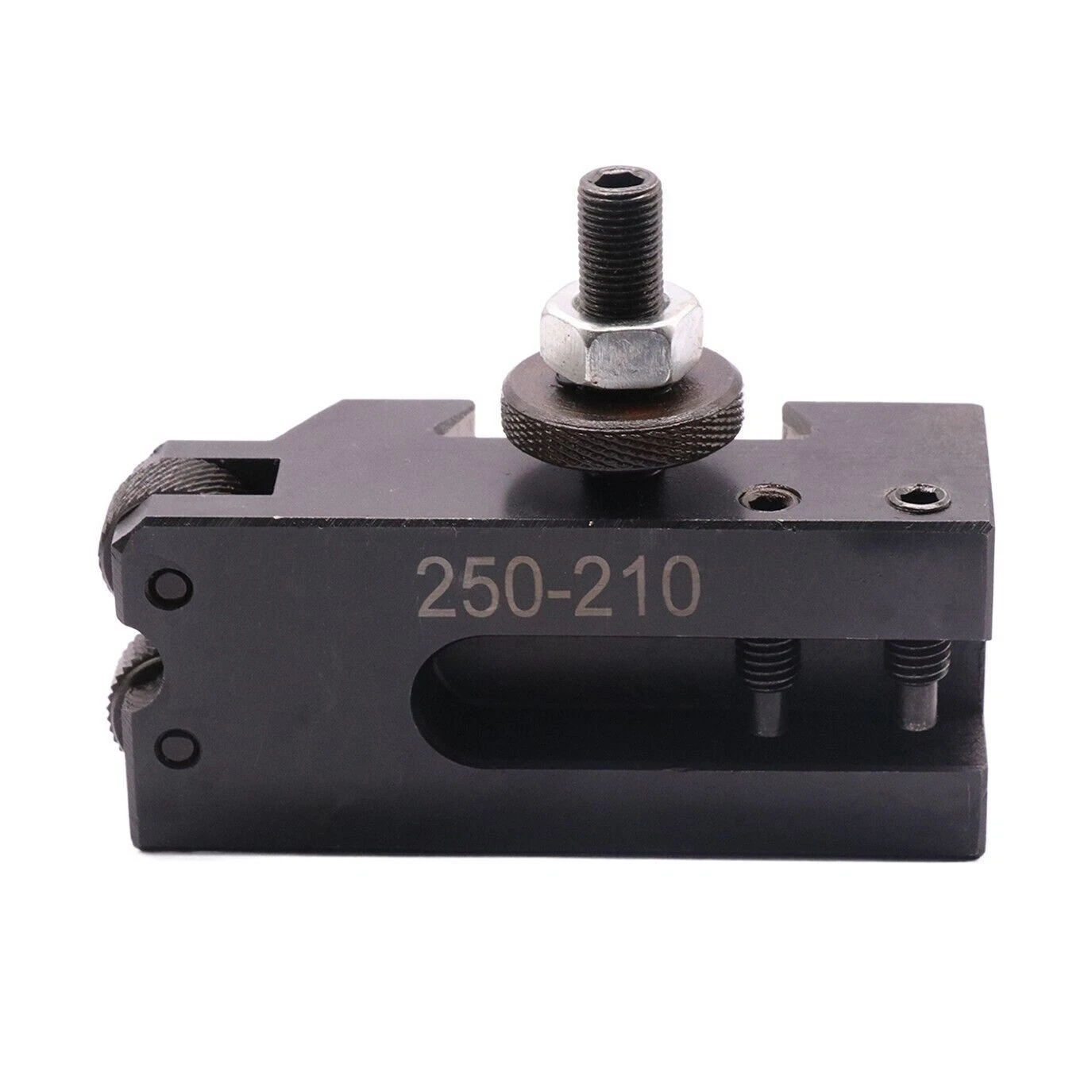

250-210 Knurling and Turning Tool Holder.

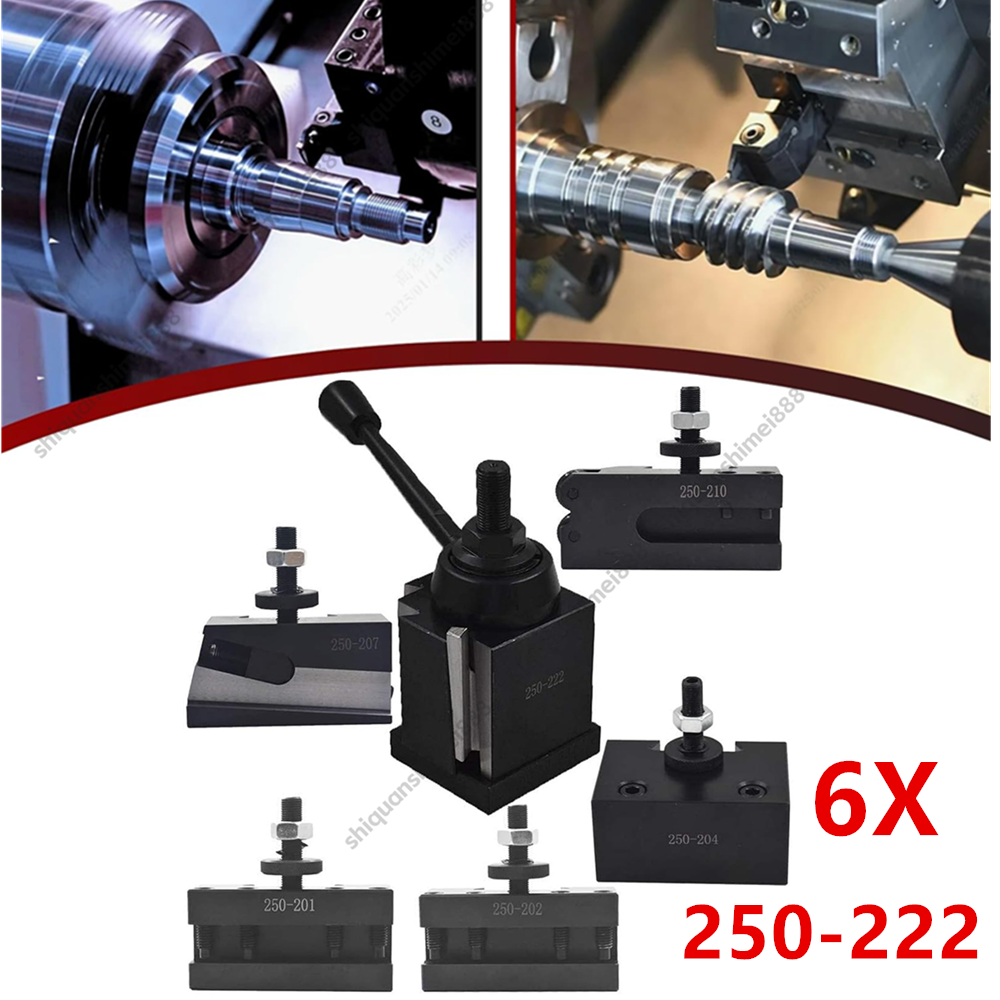

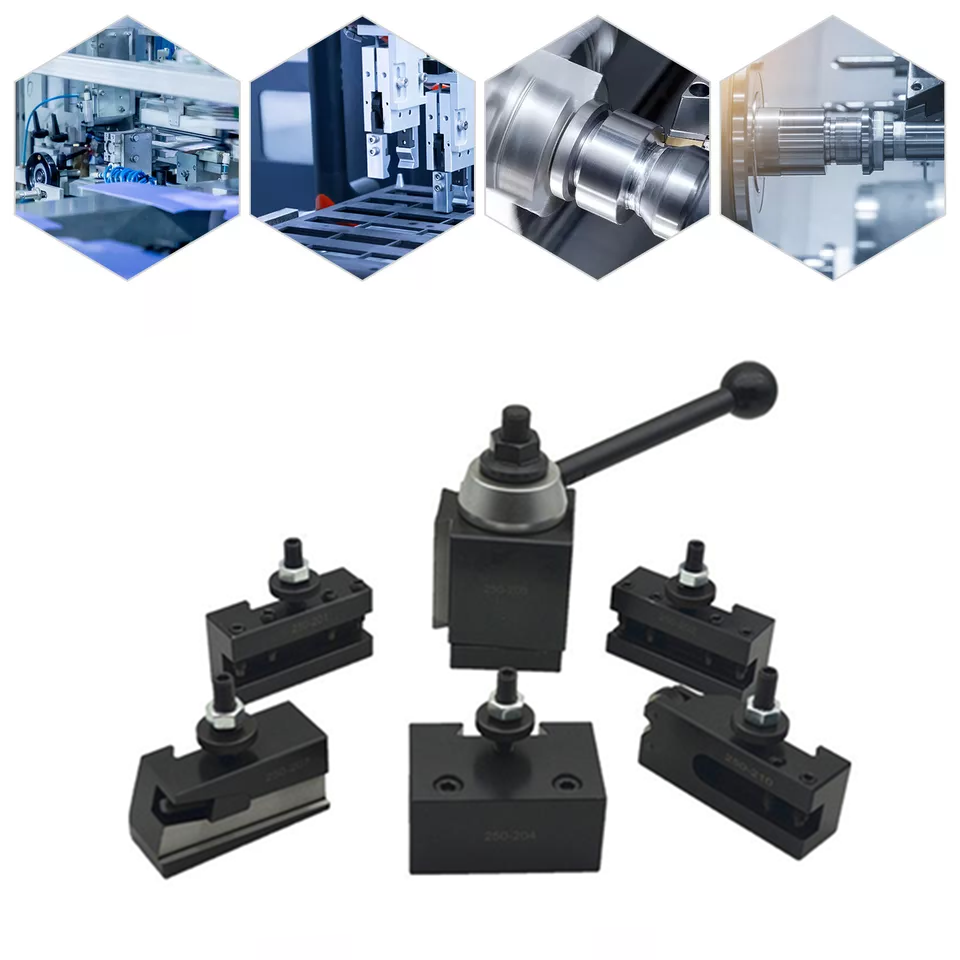

Package Includes
1 x 251-222 Wedge Type Tool Post.
1 x 250-201 Turning Tool Holder.
1 x 250-202 Boring and Turning Tool Holder.
1 x 250-204 Heavy Duty Boring Bar Holder.
1 x 250-207 Parting Blade Tool Holder.
1 x 250-210 Knurling and Turning Tool Holder.
Note
Please note: Due to manual measurement, there may be a tolerance of 1-3 cm. Color differences may occur due to lighting conditions.
