5T Livestock Weighing Scale Kit with Indicator & Stainless Steel Junction Box AU
PRODUCT DETAILS

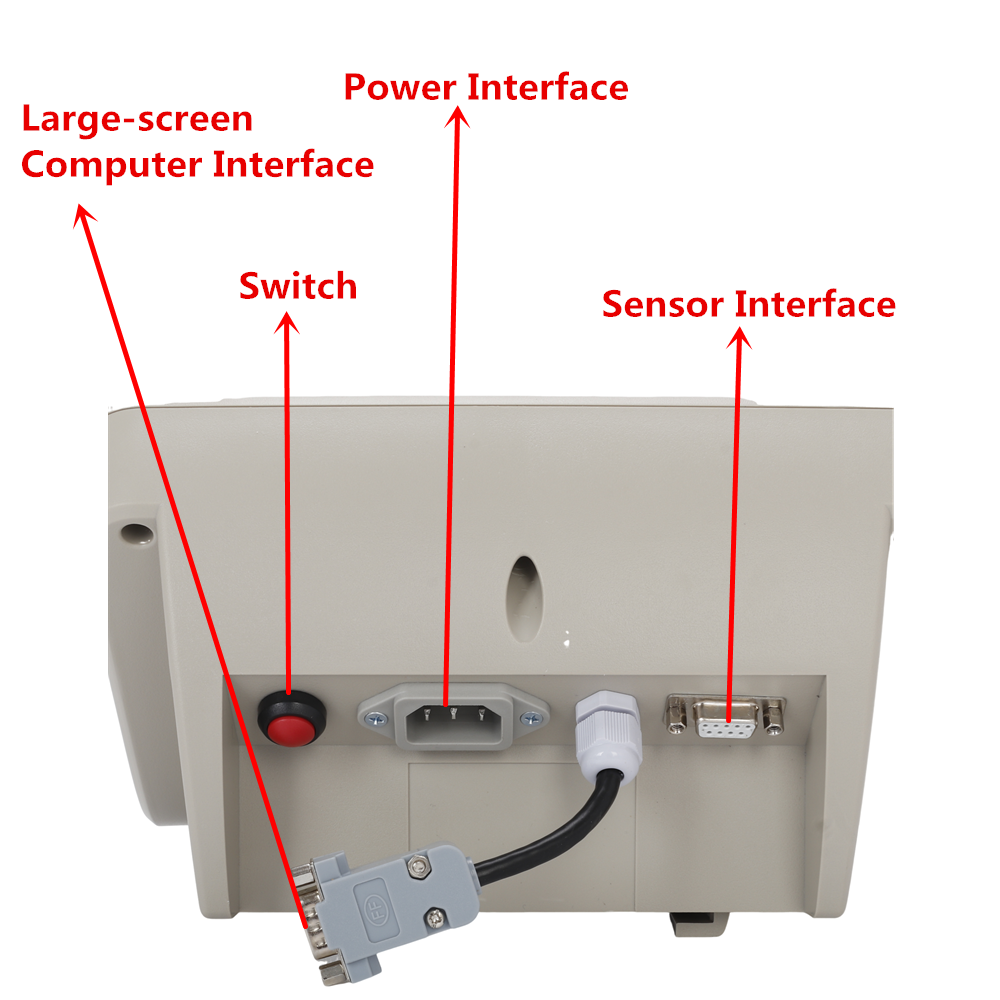

#1: Can not connect to the computer, Manual weight locking
#2: Can connect to the computer, Automatic weight locking

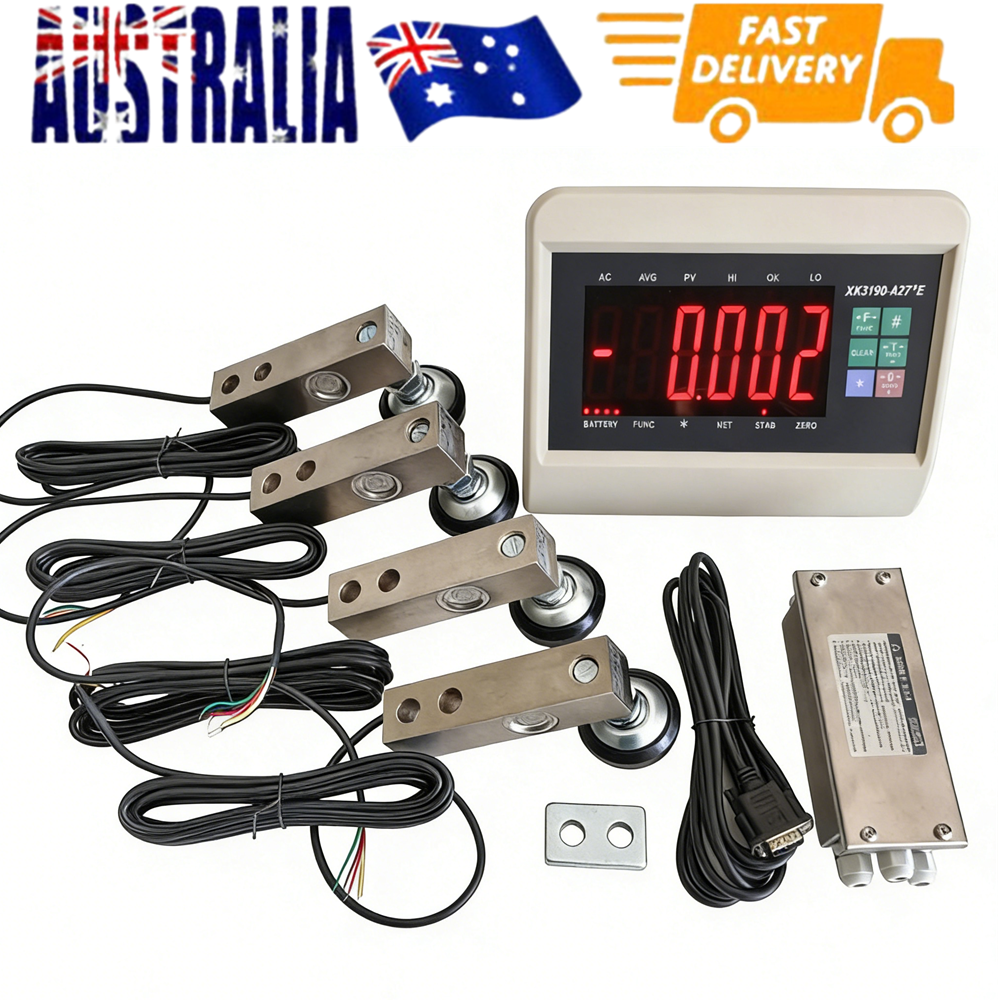

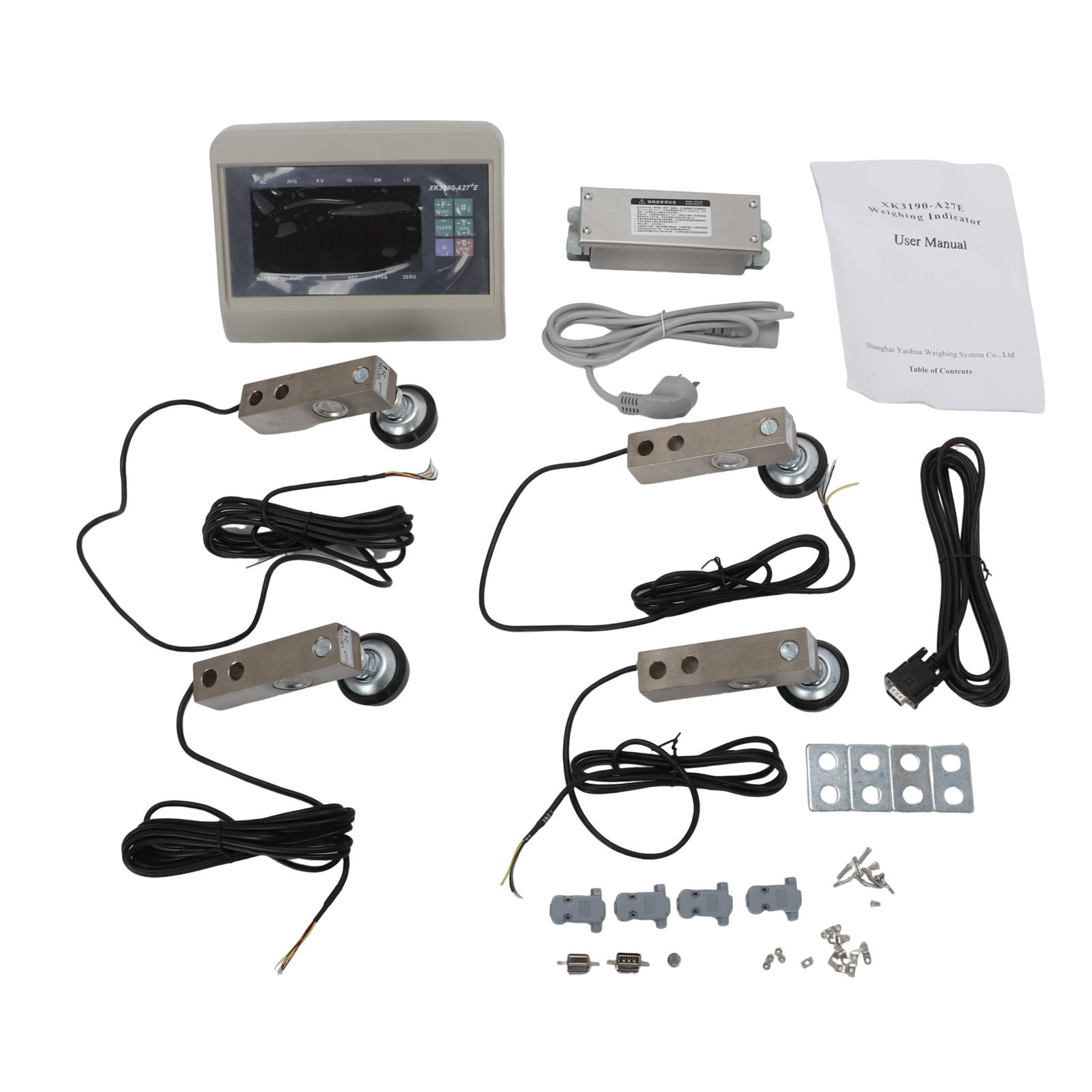

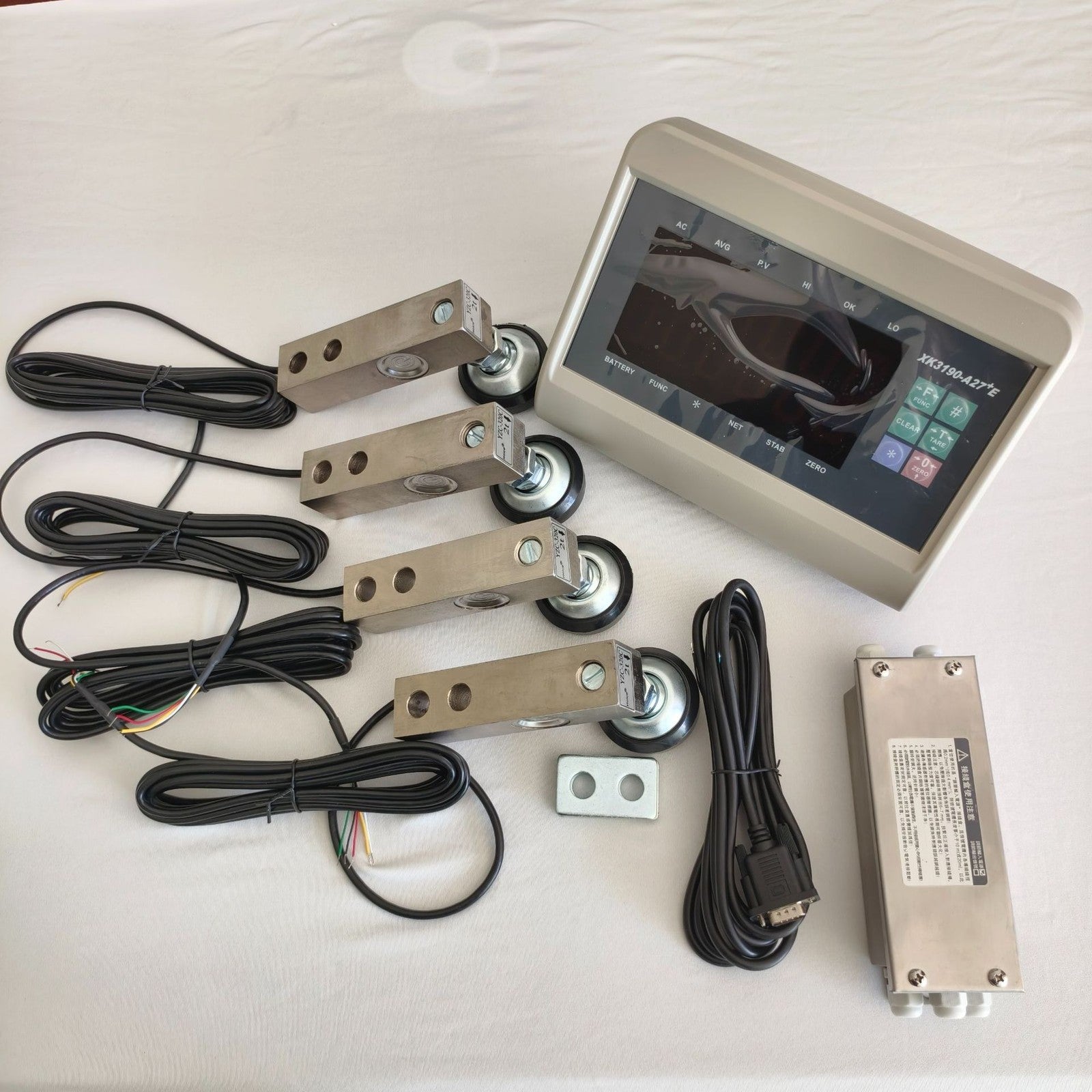

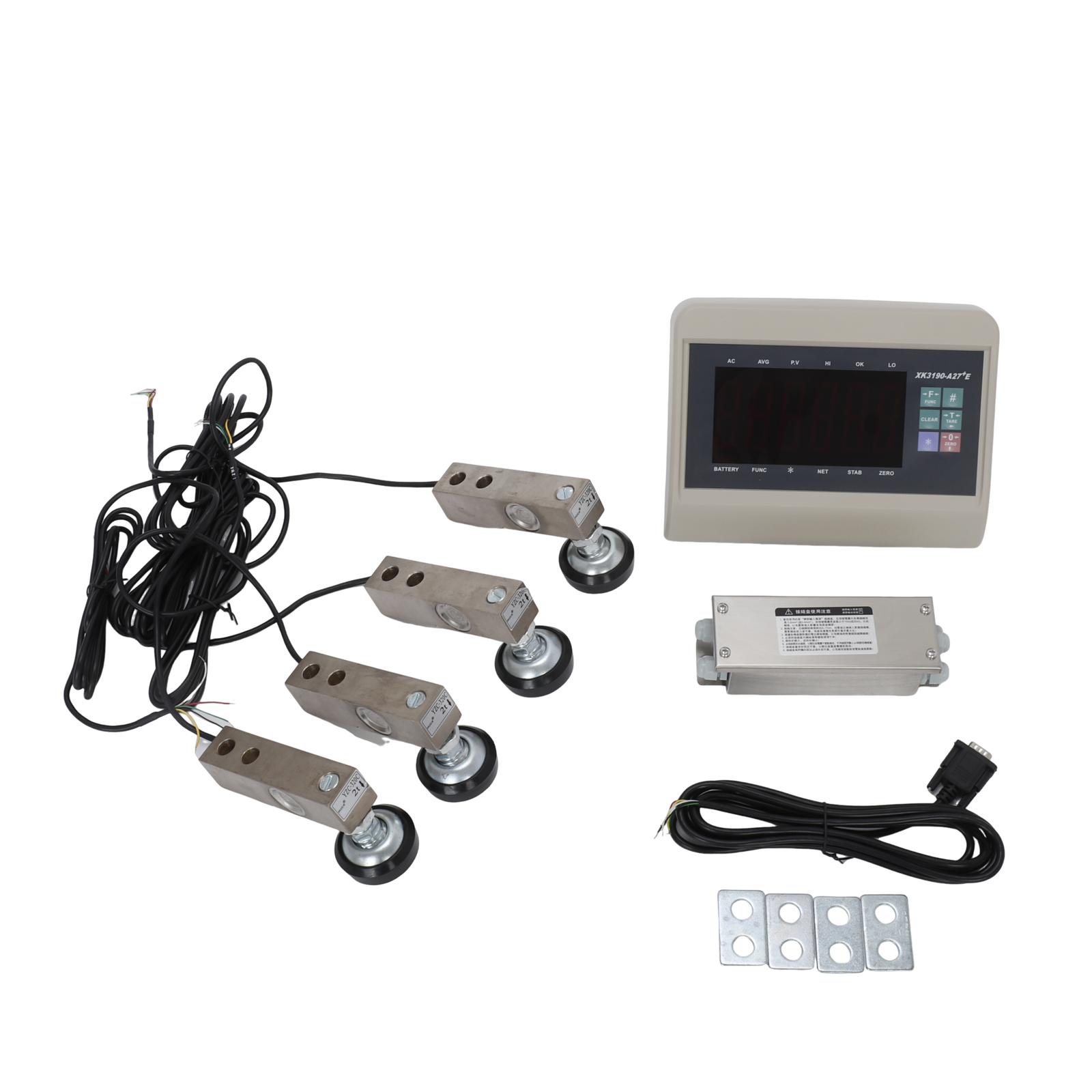

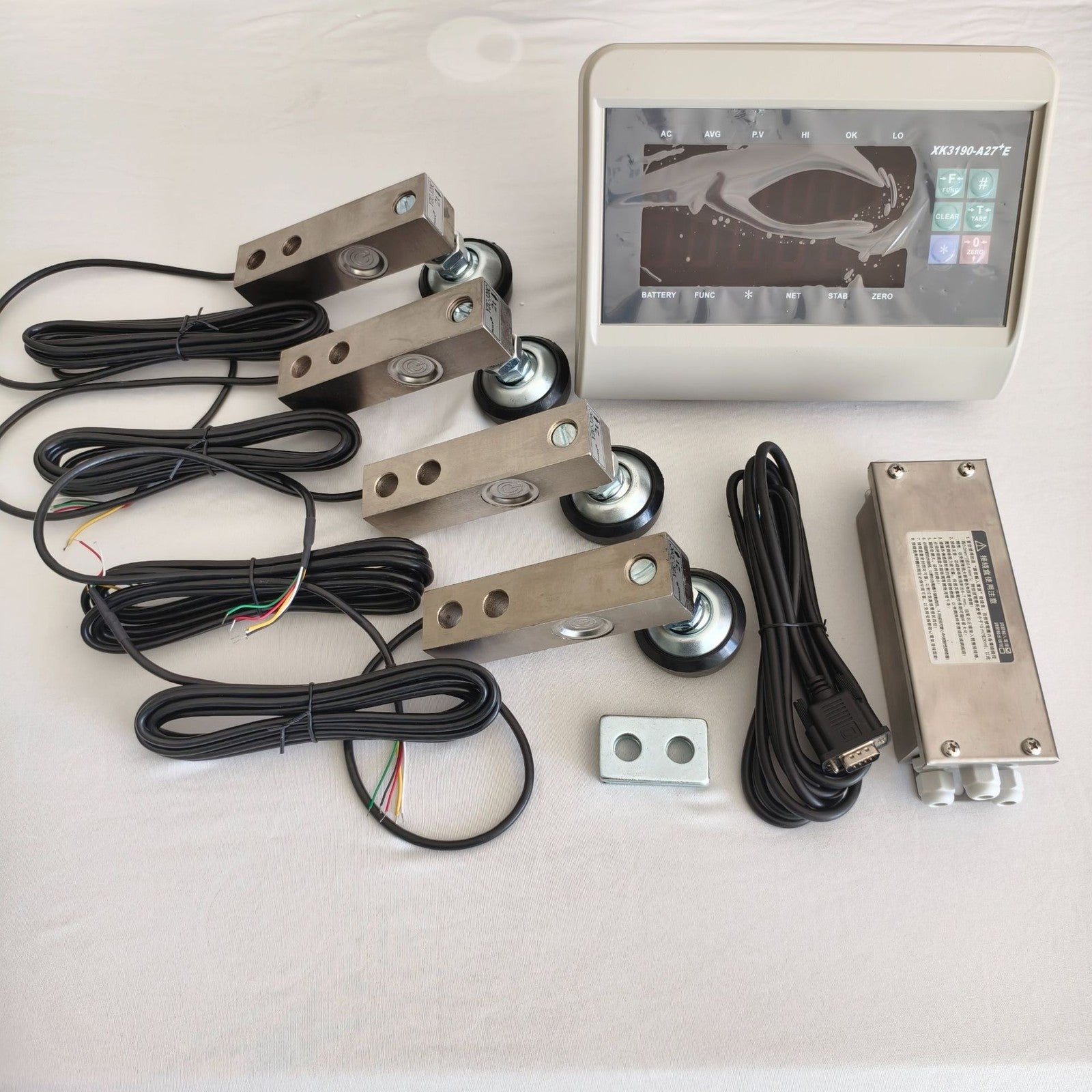

Packing List :
1 pcs indicator

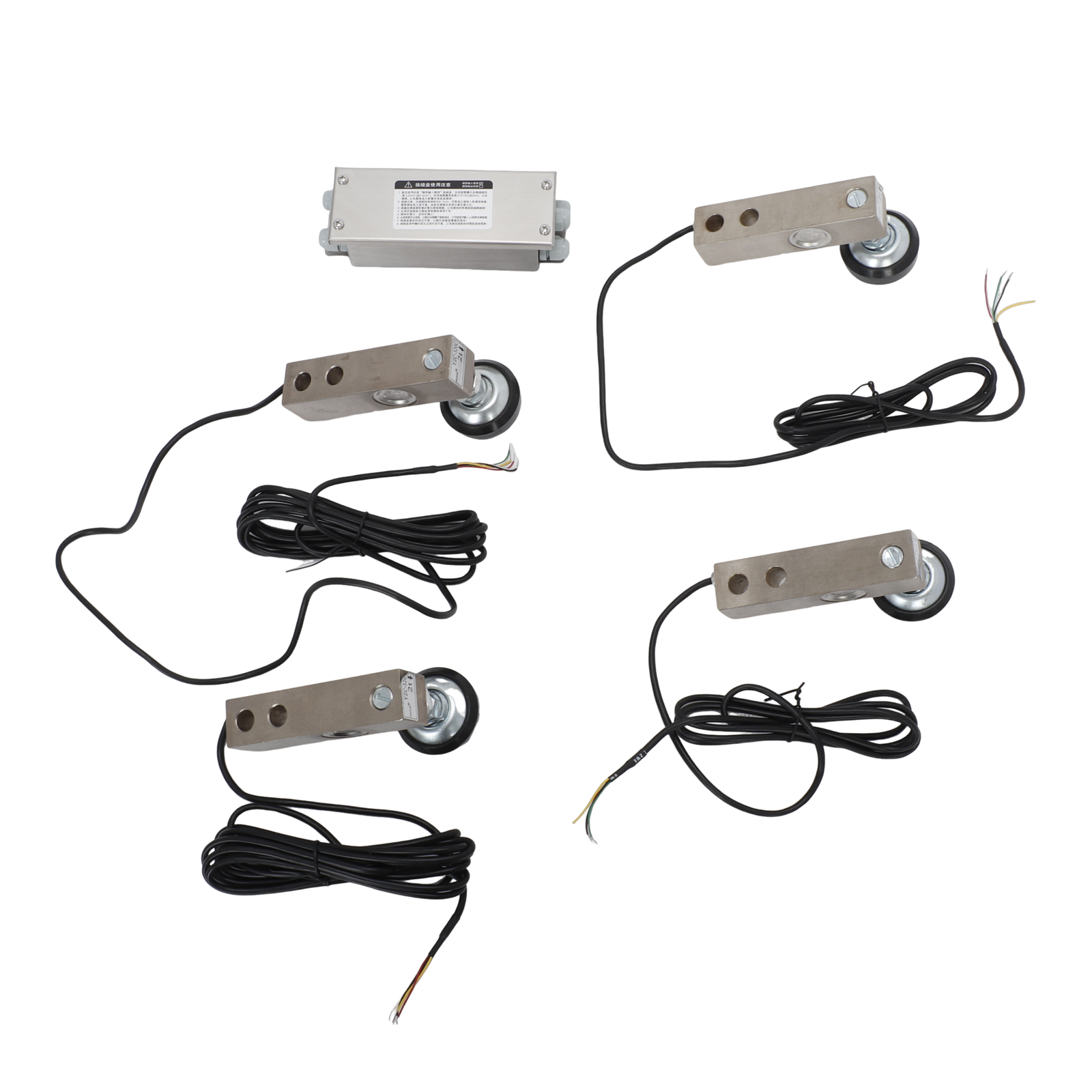

4pcs sensors (with foot and pad )
1pcs junction box
1pcs cable
After receiving the goods, you can manually assemble a small, accurate and durable weighing scale for yourself by using these five accessories and your own weighing table.

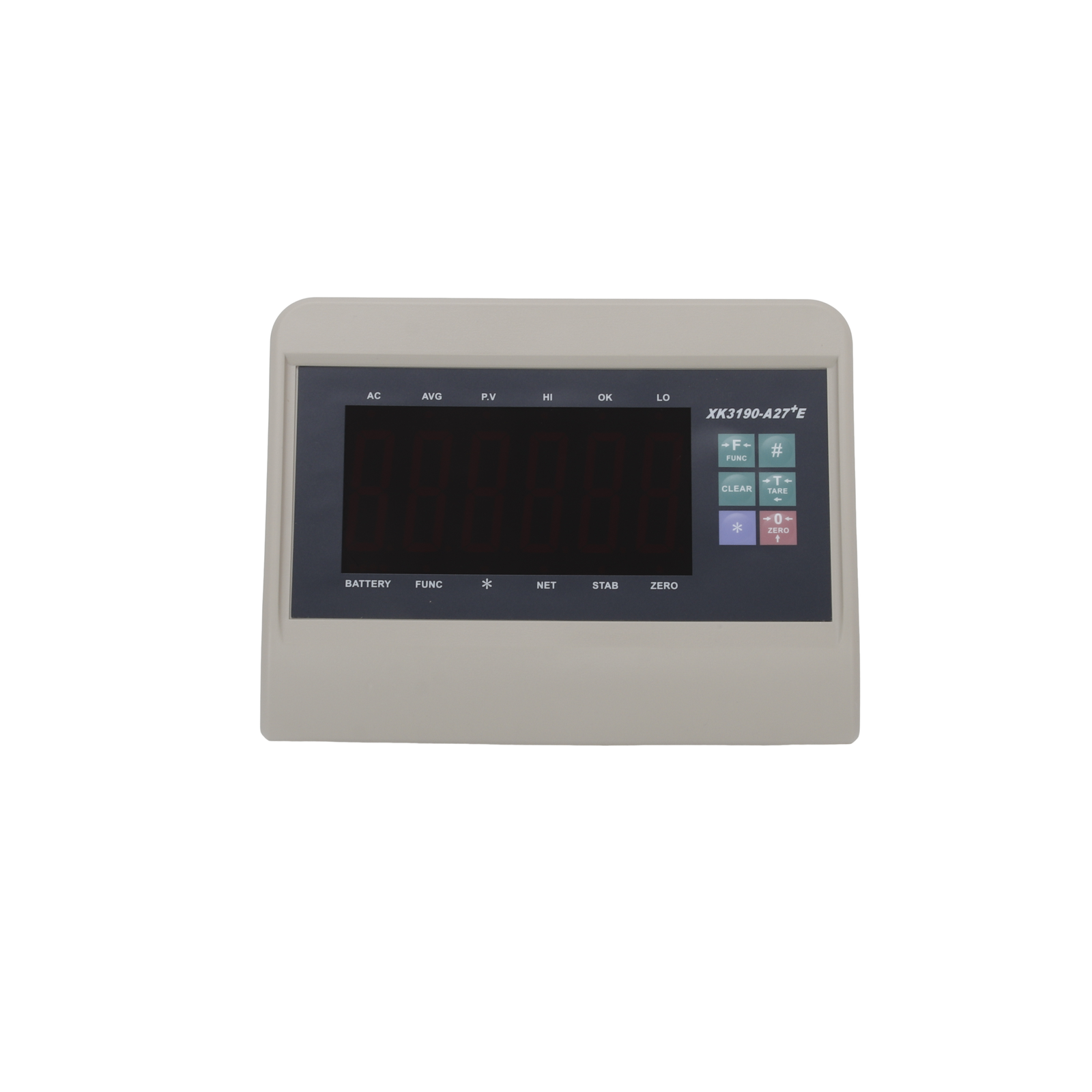

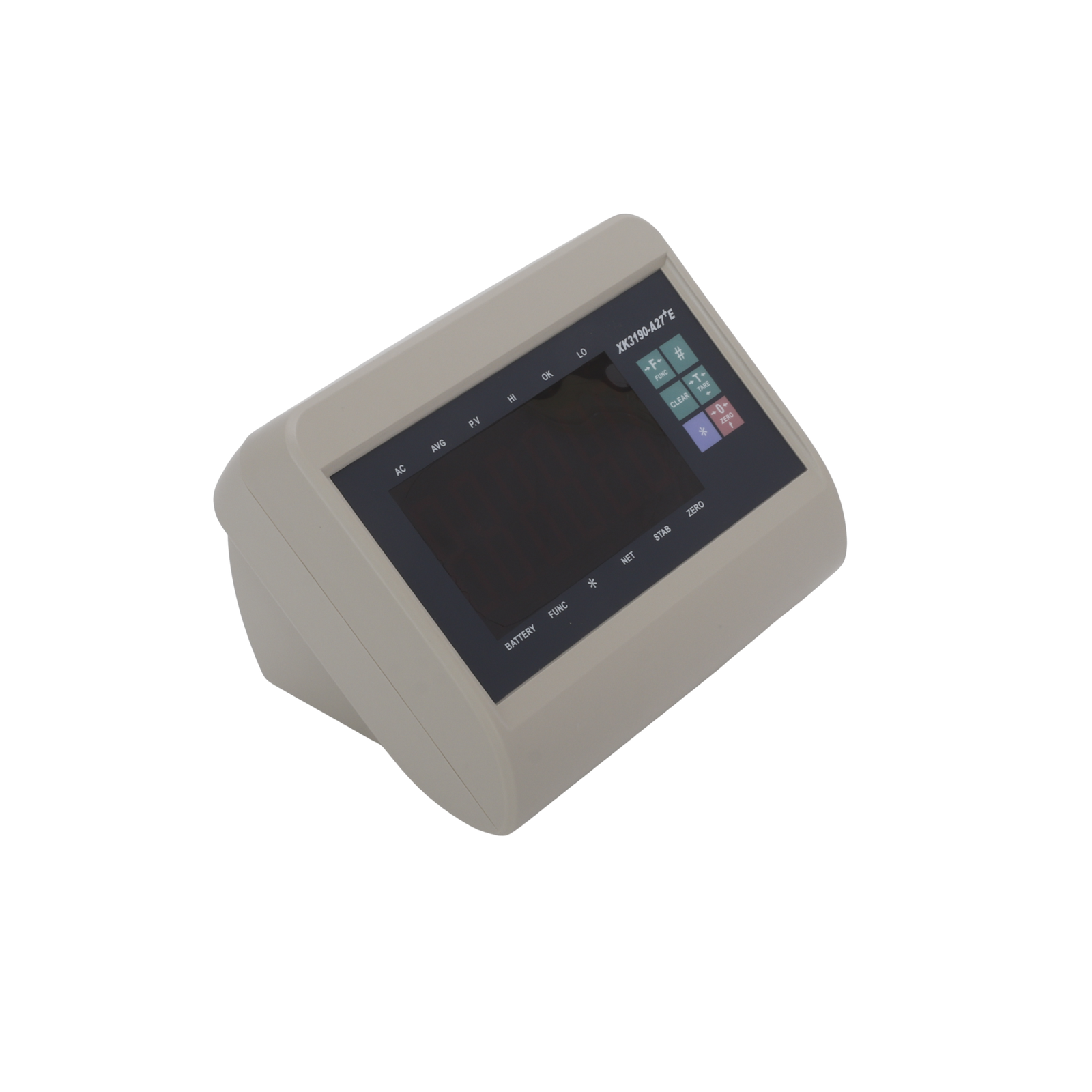

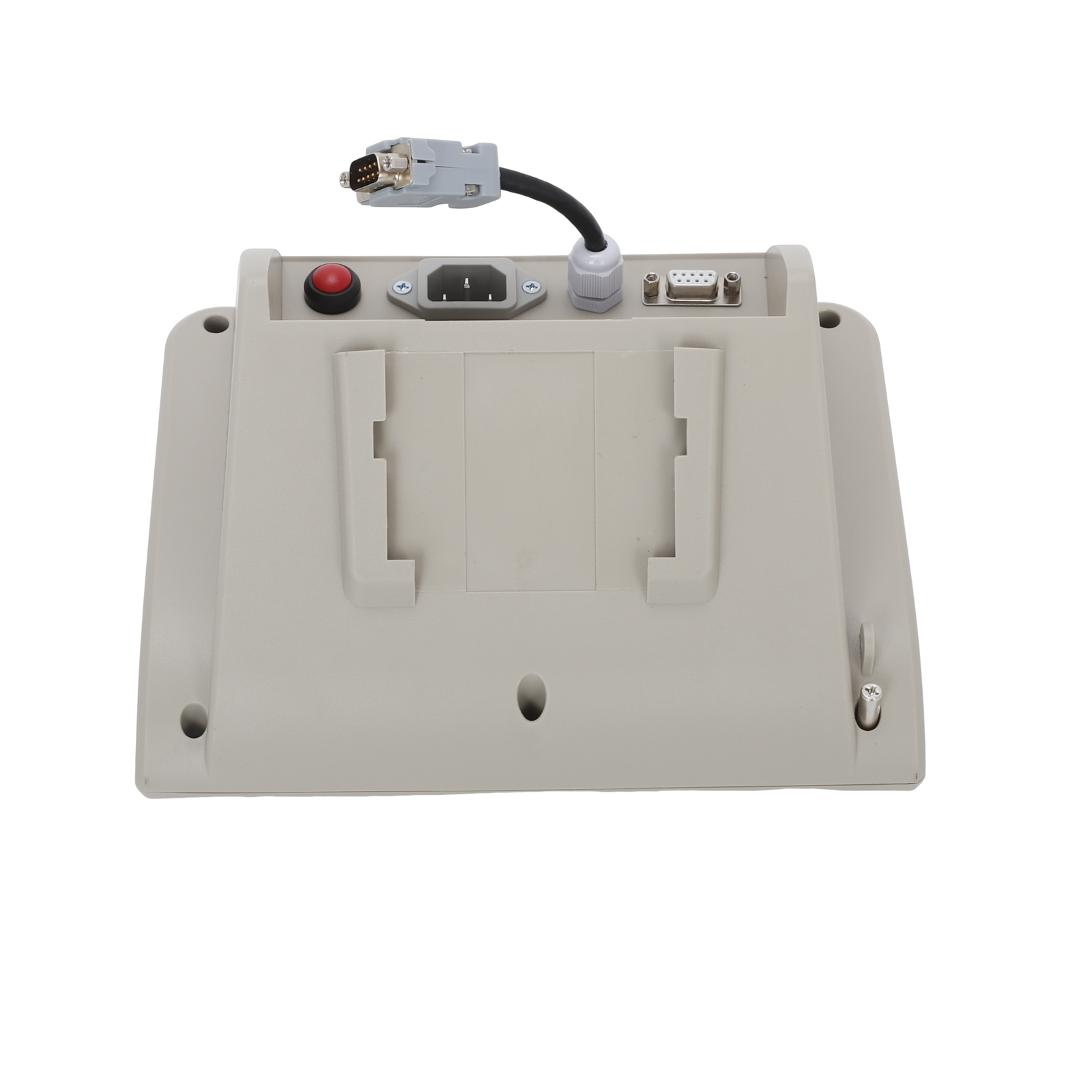

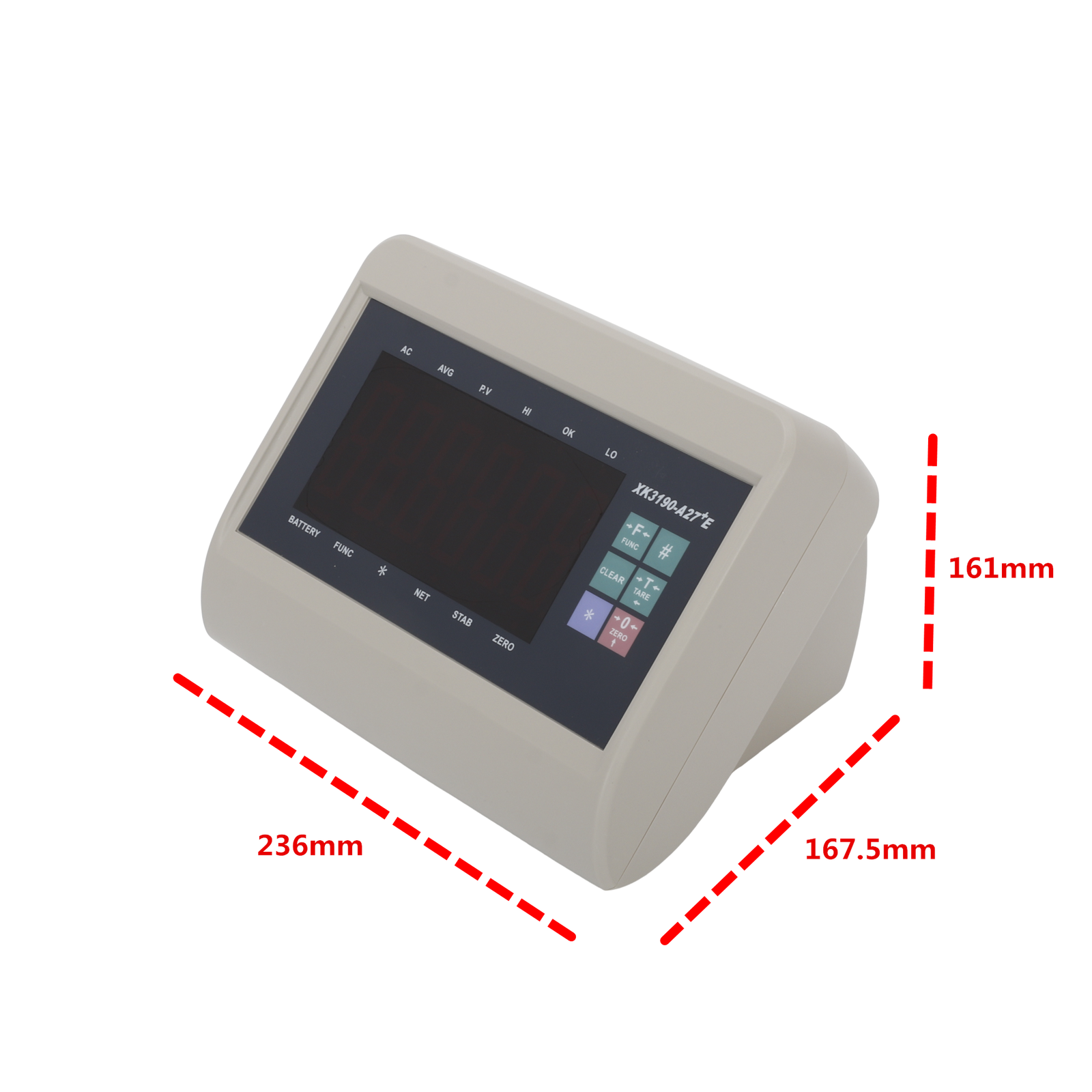

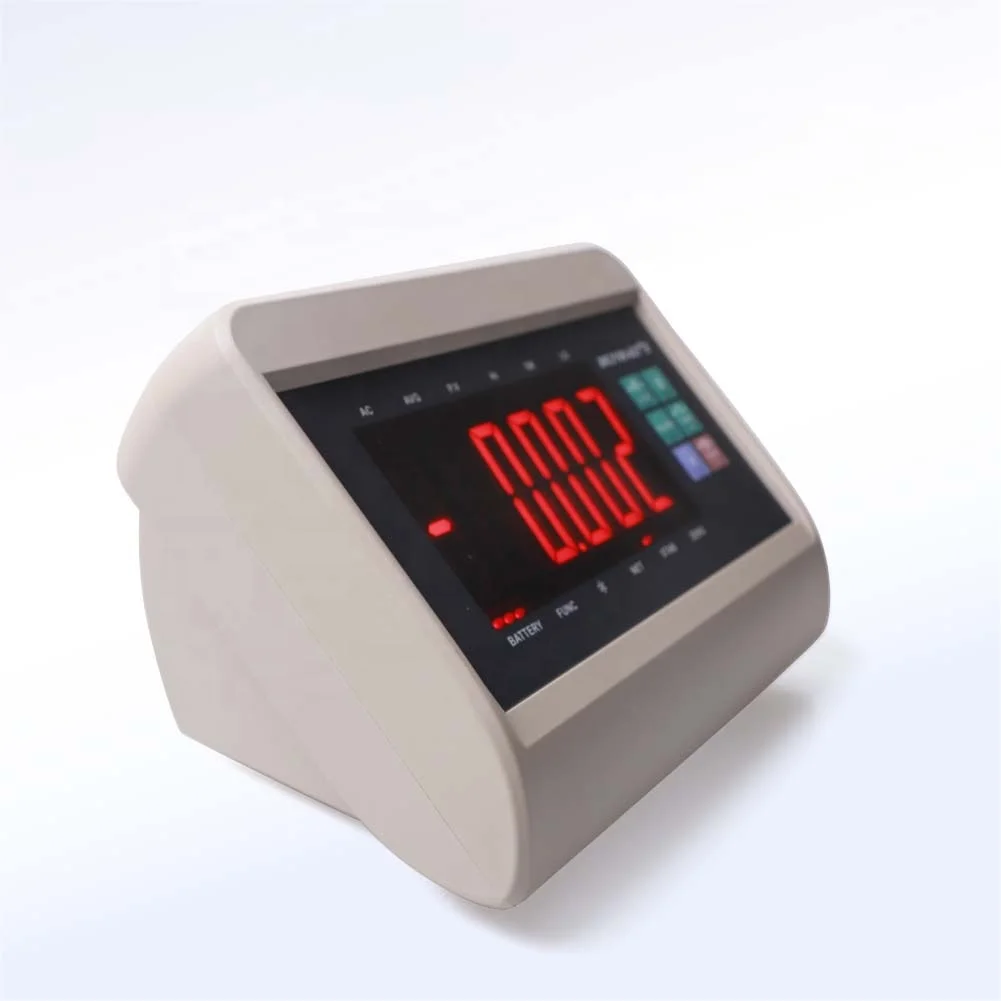

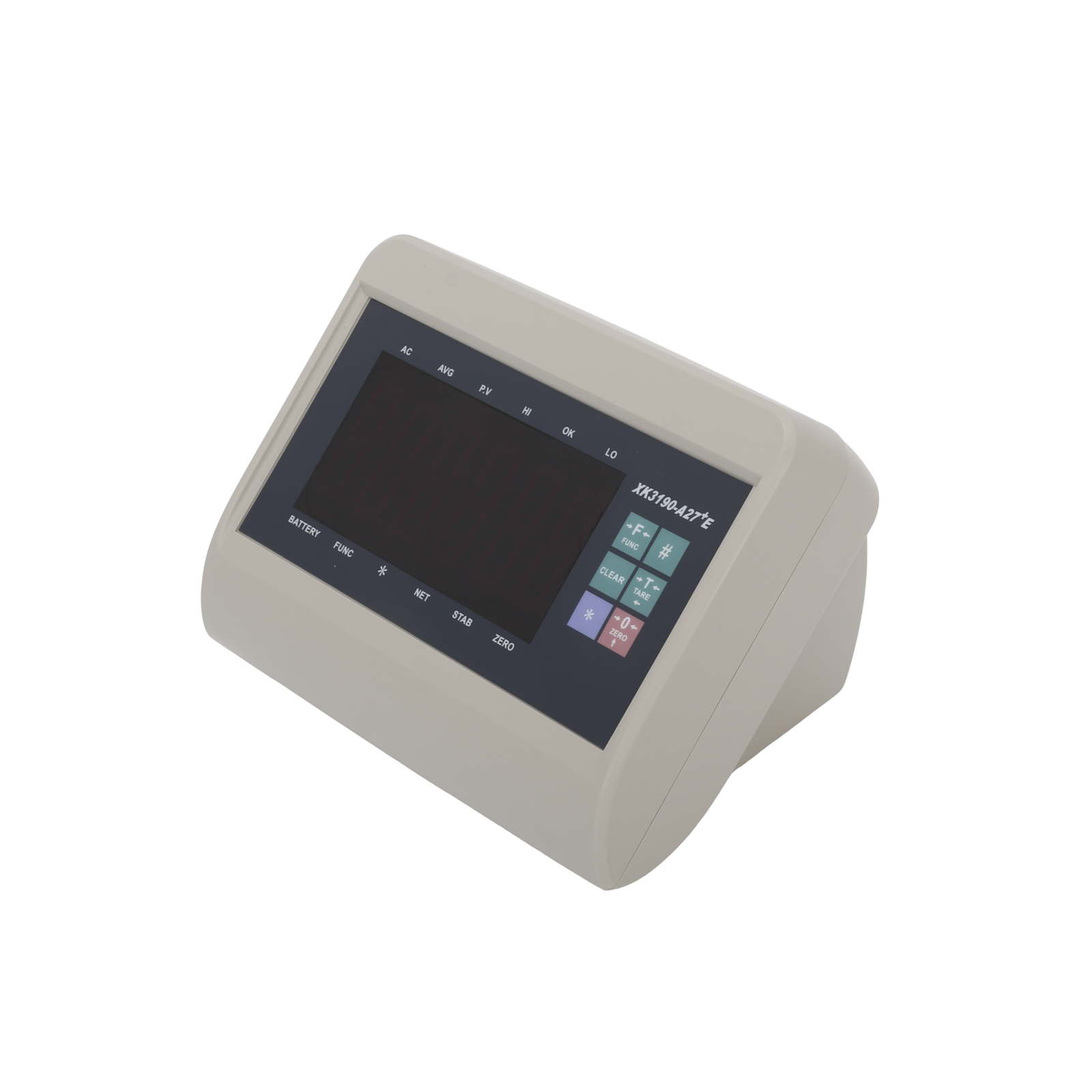

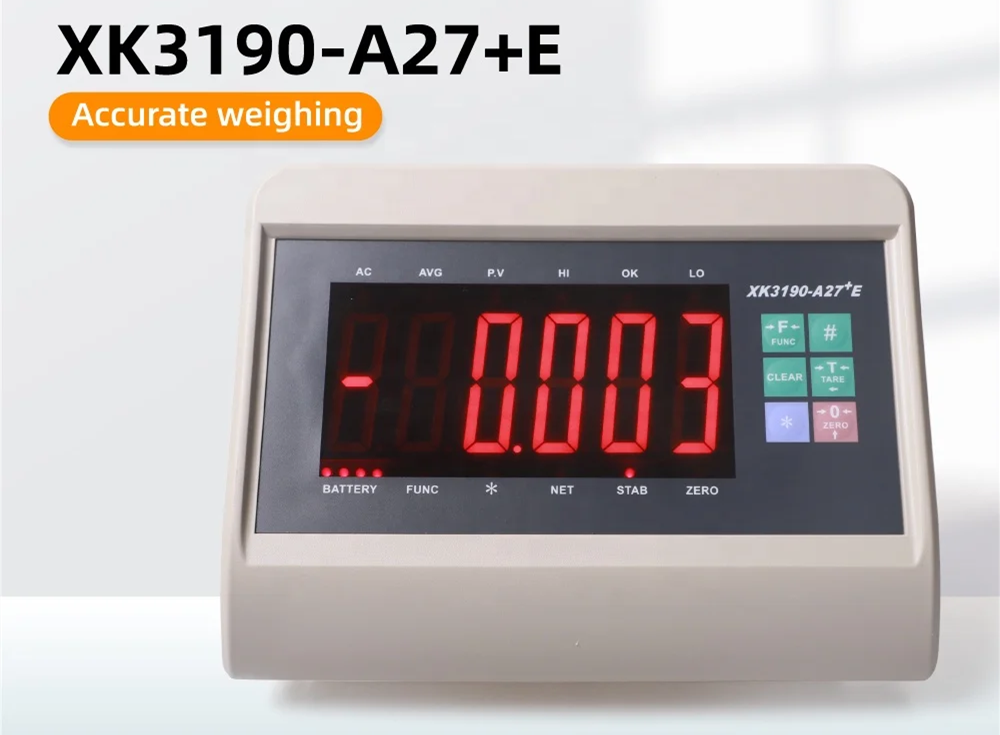

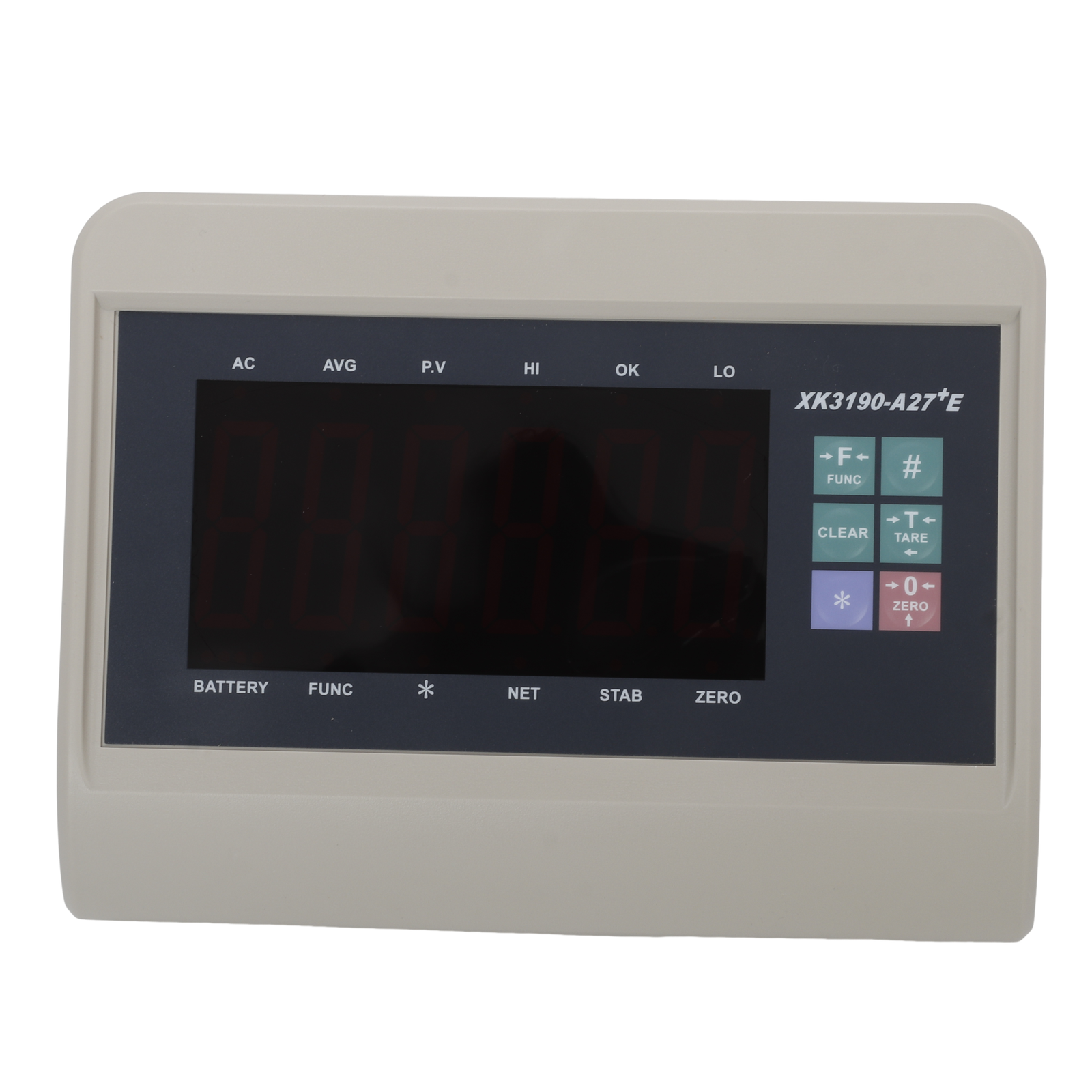

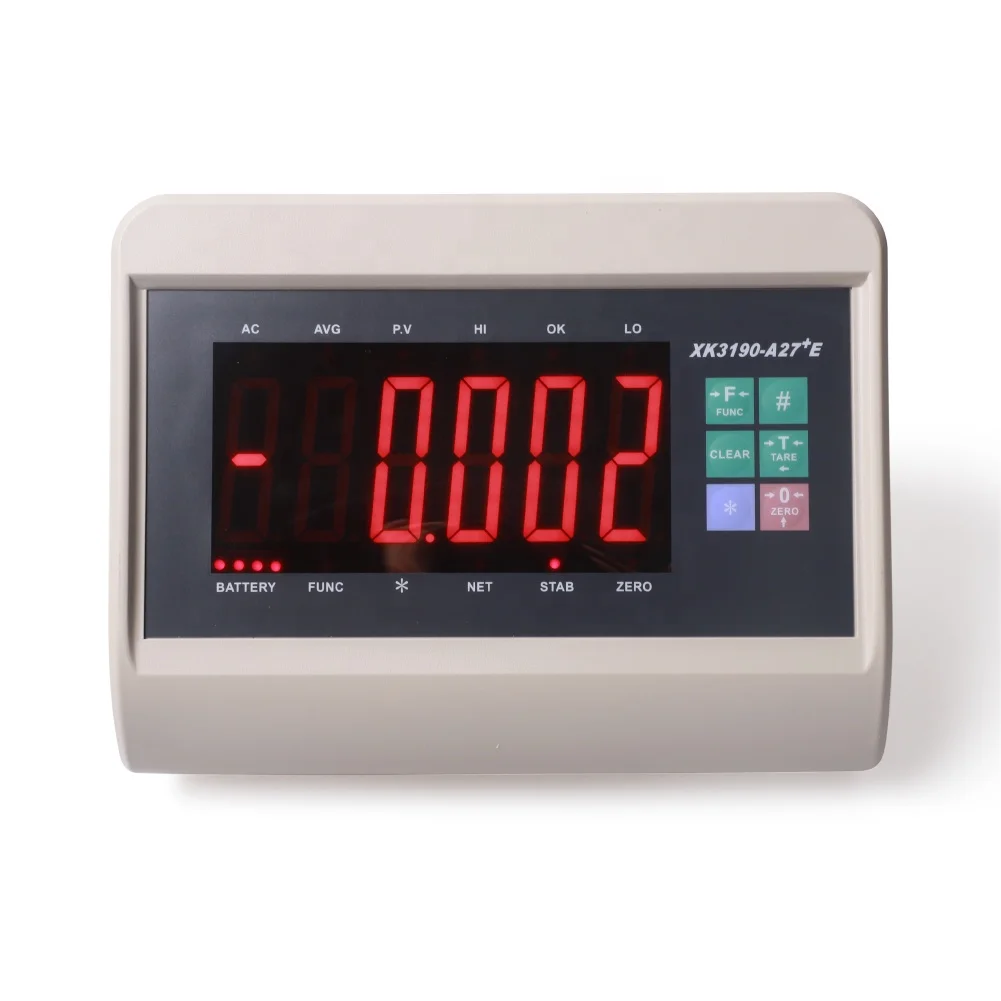

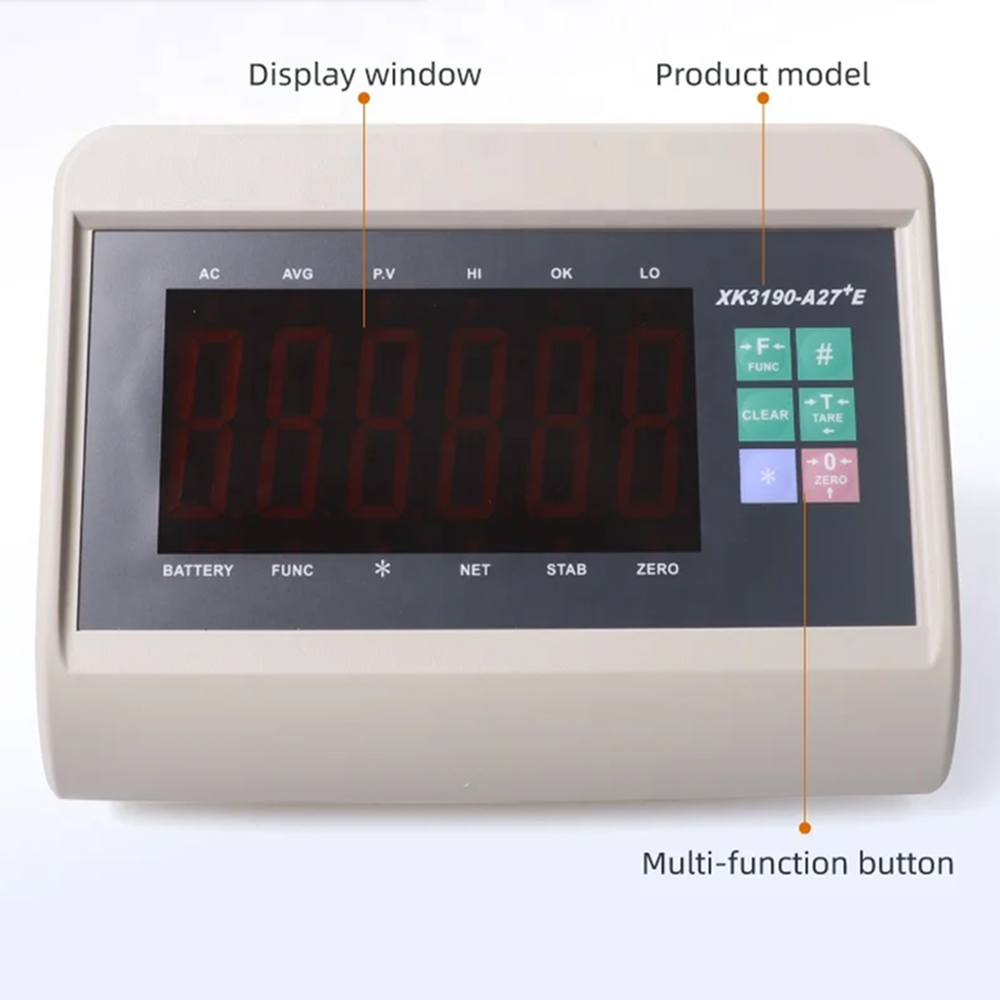

(1) Instrument (including power line): high precision ,good quality, durable! It is widely used for Livestock weighing with stabilized readings when weighing livestock.

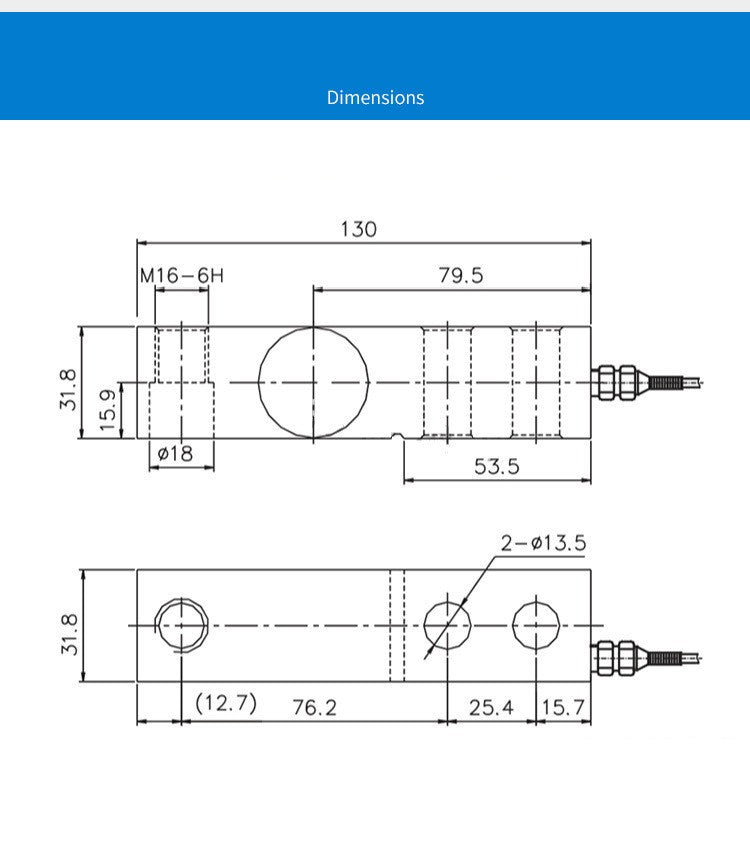

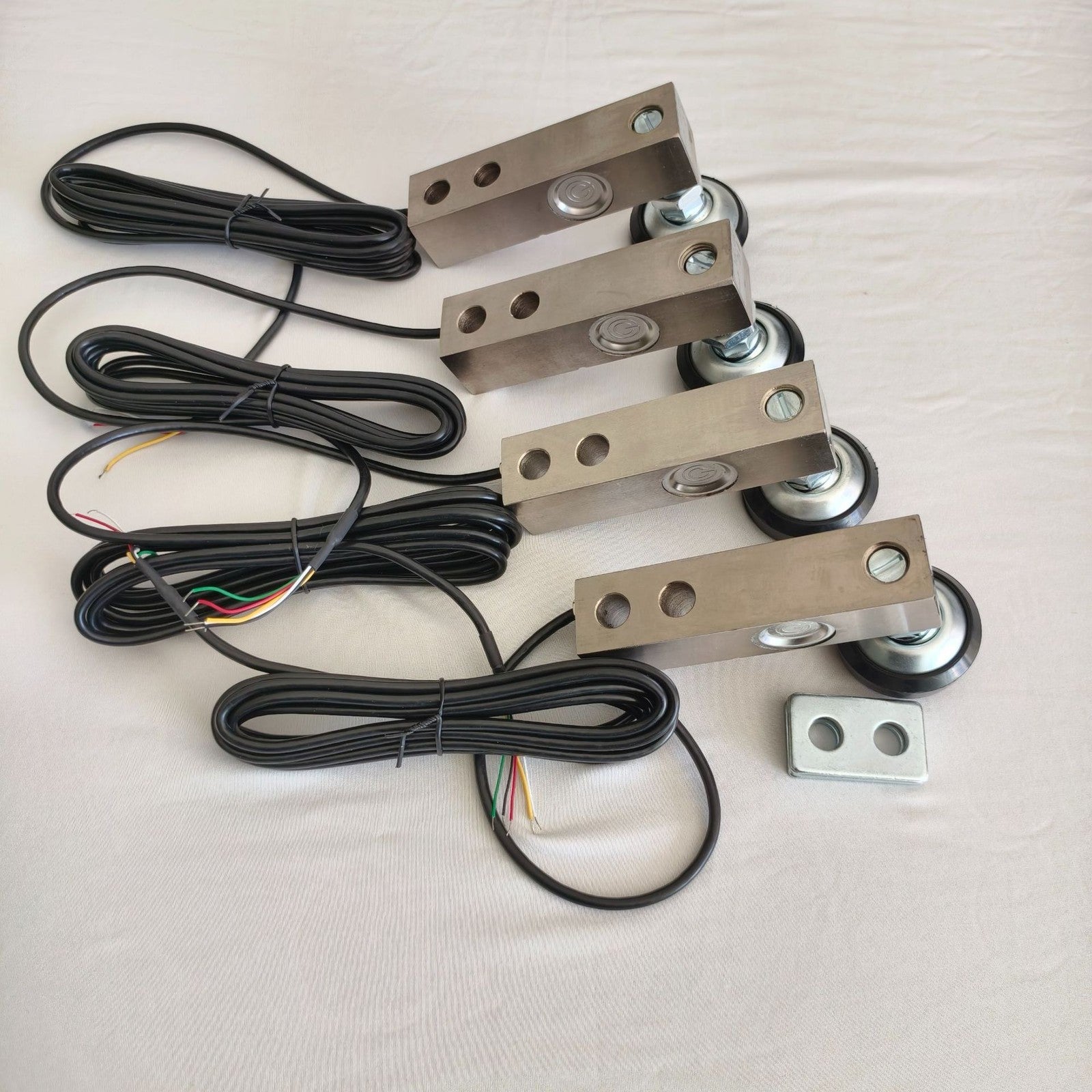

(2) Sensor: 4PCS of sensors used for a scale surface.

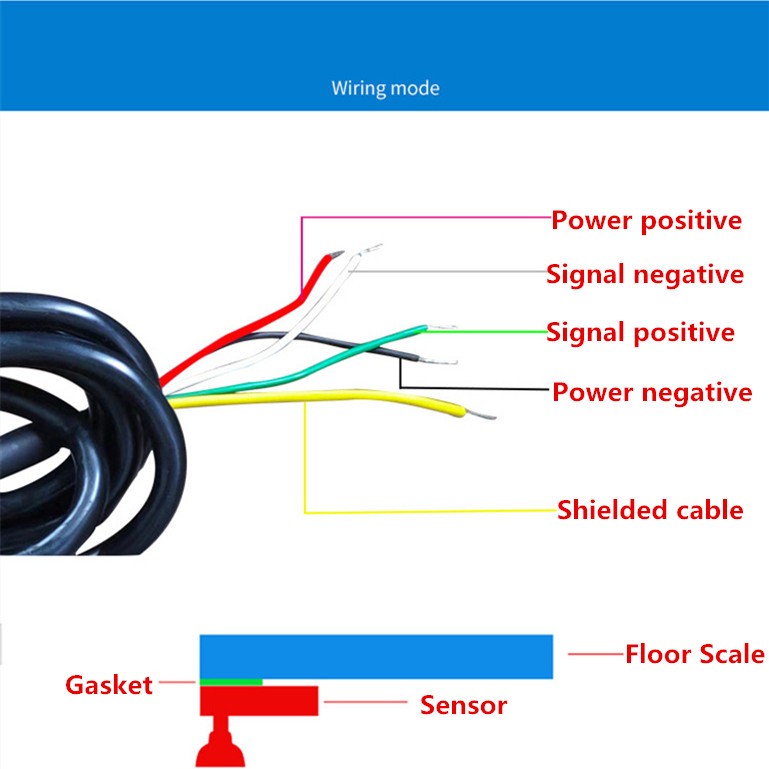

(3) The connecting line length (3 meters): one end is connected to the terminal box, the other end is connected to the instrument. The sensor wires will be connected according to the color of the main line'order and position
(4) Junction box: configure four-in and one-out. All you need is these weighing accessories and your own weighing surface to make a complete, accurate and durable small weighing scale.
Material: Alloy steel, Plastic
load cell capacity: 2000kg
Load capacity of whole load cells: 5000kg
Accuracy: 1/3000
Power supply：AC220V and built-in Rechargeable Battery DC 6V/2.8Ah
Power supply: AU Plug
Unit type: kg, lb

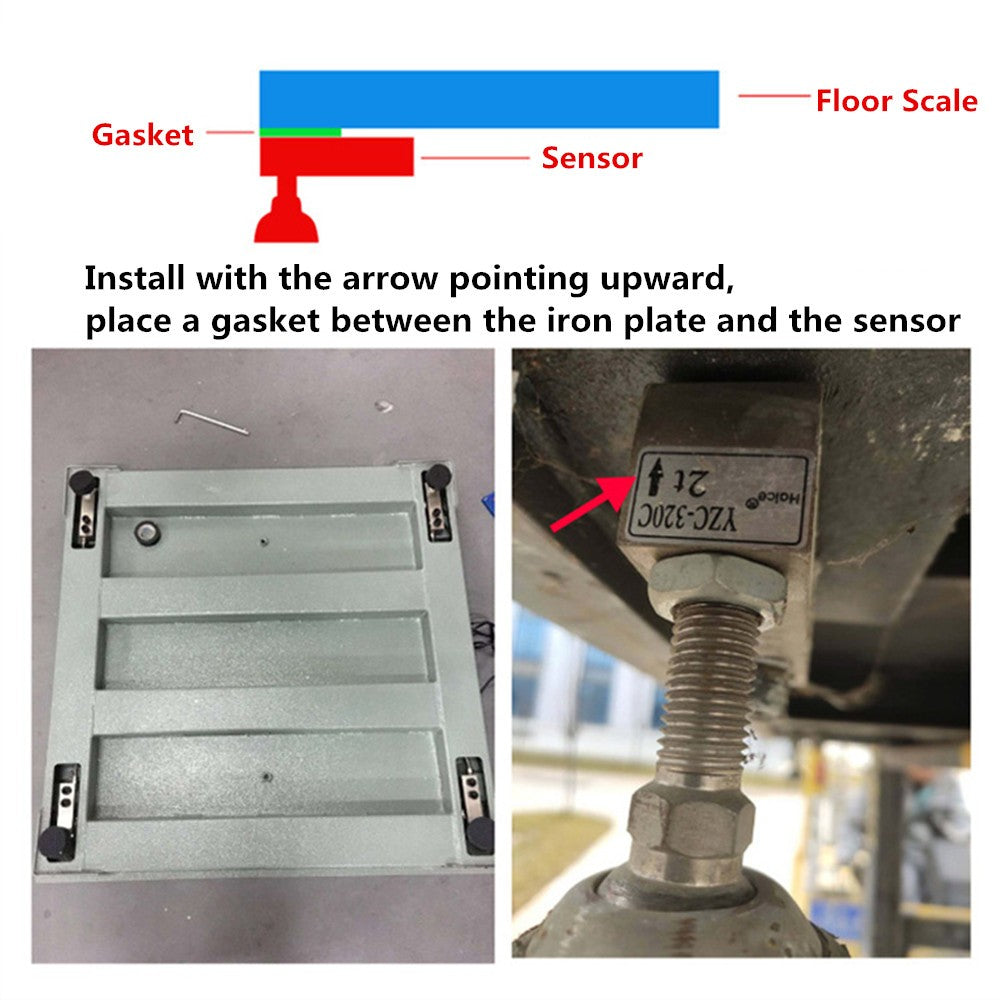

Detail 1: There are arrows on the sensors. after you install all of the sensors, put the scale weight horzontally,make sure the arrows on the sensor are upward. Don't install them wrong.
Detail 2: Pay attention to the position of the gasket in the picture above. The purpose of putting the gasket is to keep a gap between the sensor side and the weighing surface.
