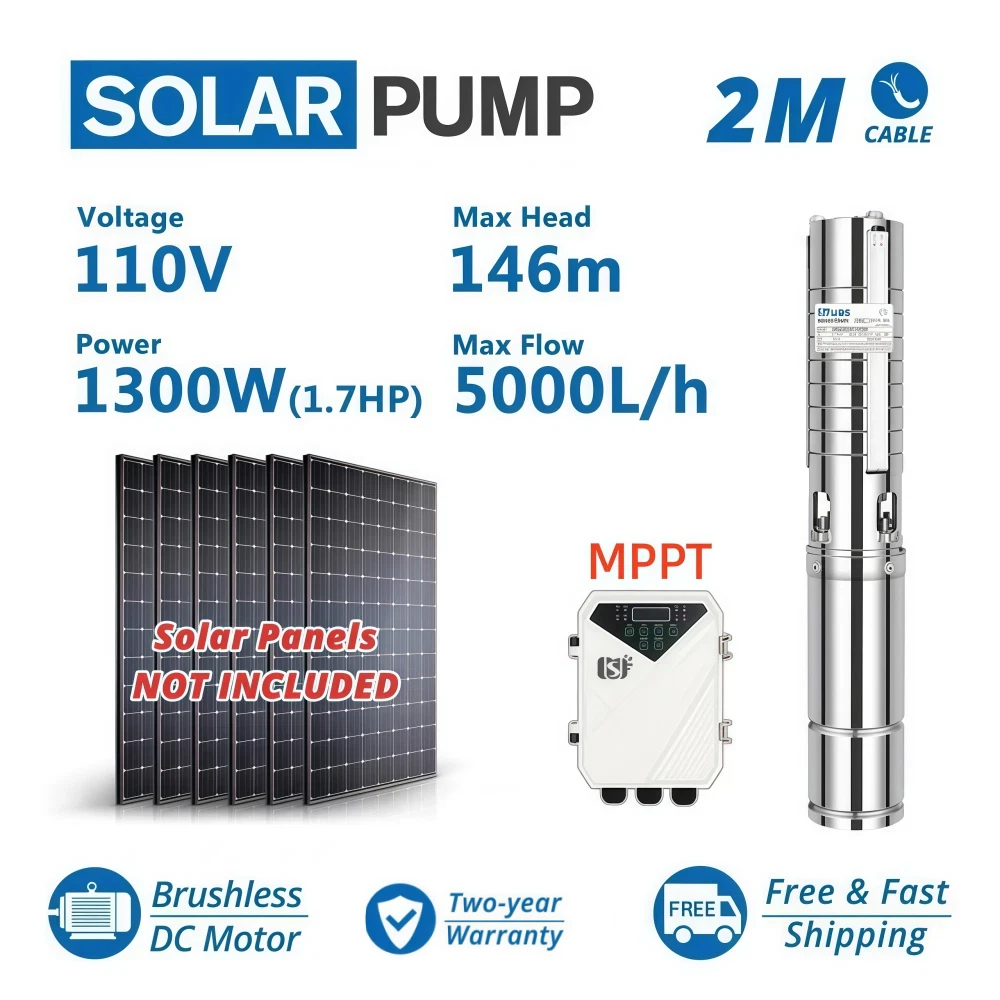

4" Solar Bore Well Pump Submersible Water 5.2m³/H 146m Farm Ranch

About this item

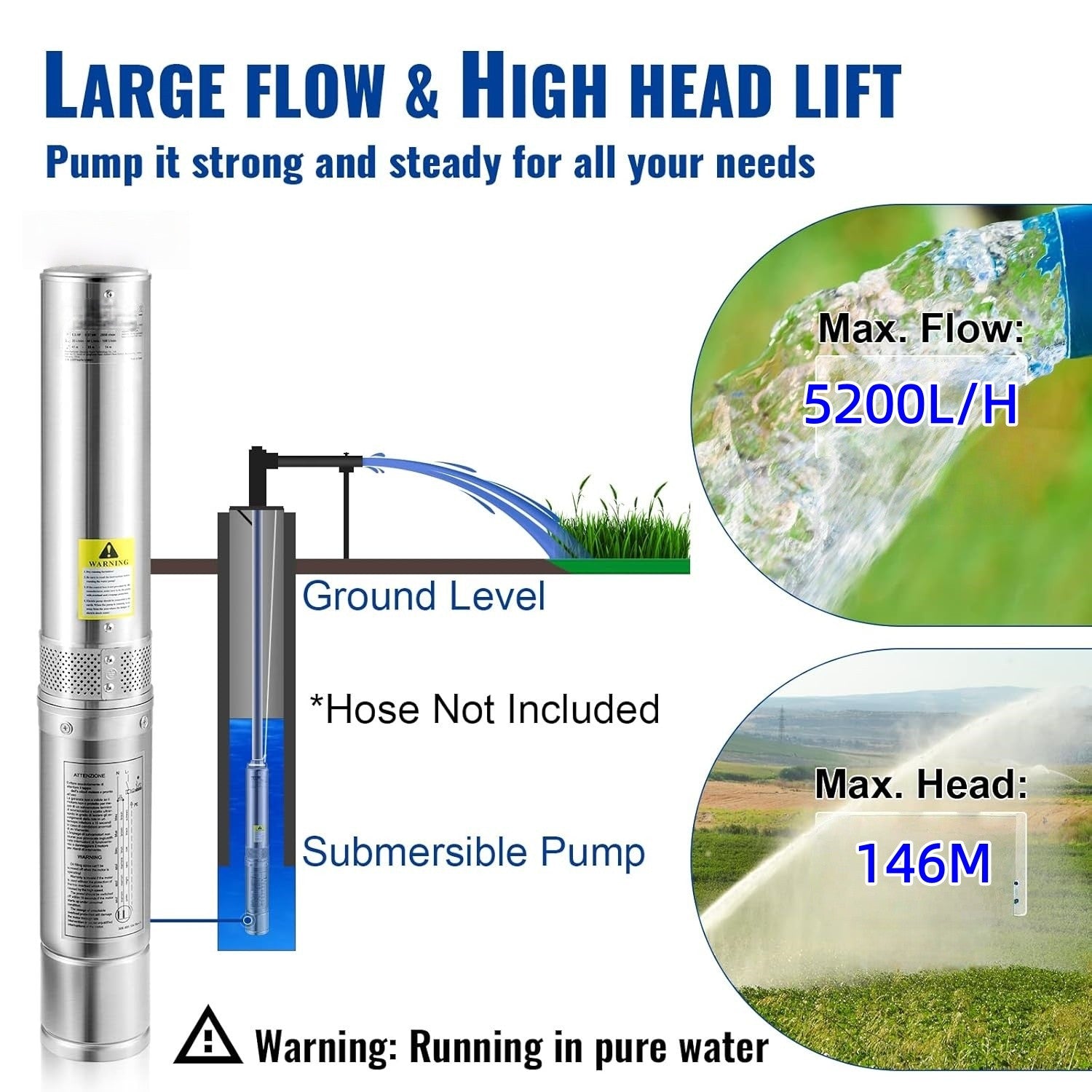

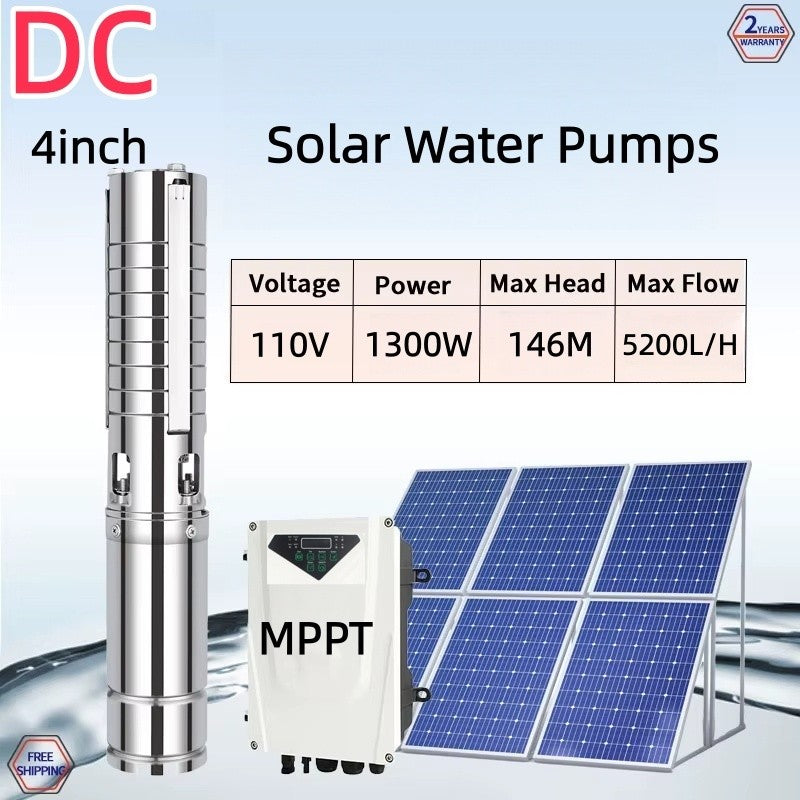

[Specification]: Solar Water Pump 110V DC，4 Inch Dia,2M extension cable, Max head 146m（,5.2m³/h ）Flow, PV open circuit voltage 110V with MPPT controller for farm, Garden, home, pool, Industrial

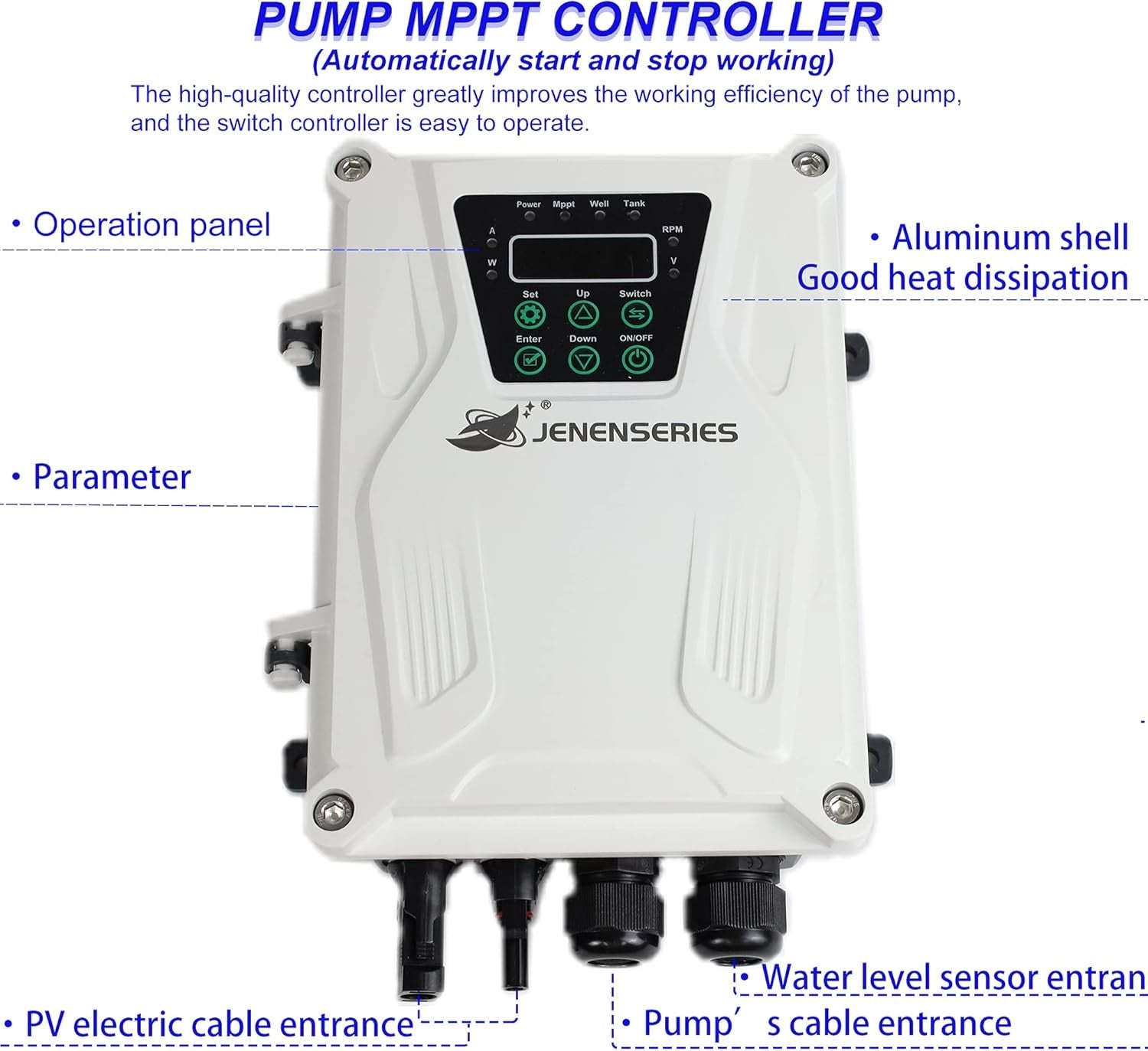

[High-quality controller]: The solar water pump controller utilizing MPPT technology to ensure maximum flow is delivered under all light conditions. At the same time, it can also charge the battery and store excess solar energy in the battery.

[Intelligent Water Shortage Sensers]: This solar water pump has an intelligent water shortage sensor, so it has an intelligent water shortage protection function. When there is no water in the well, the pump will automatically stop working.

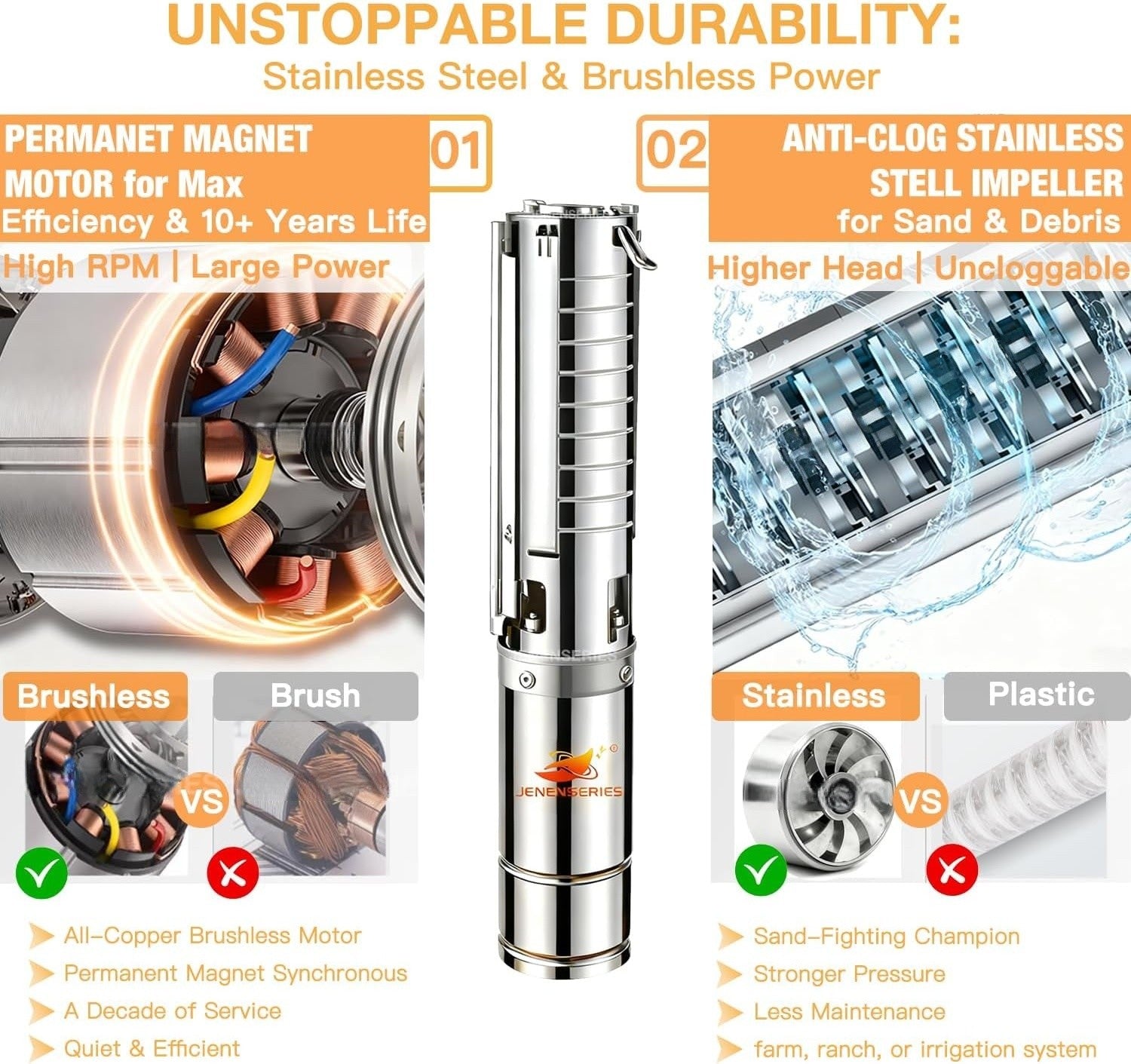

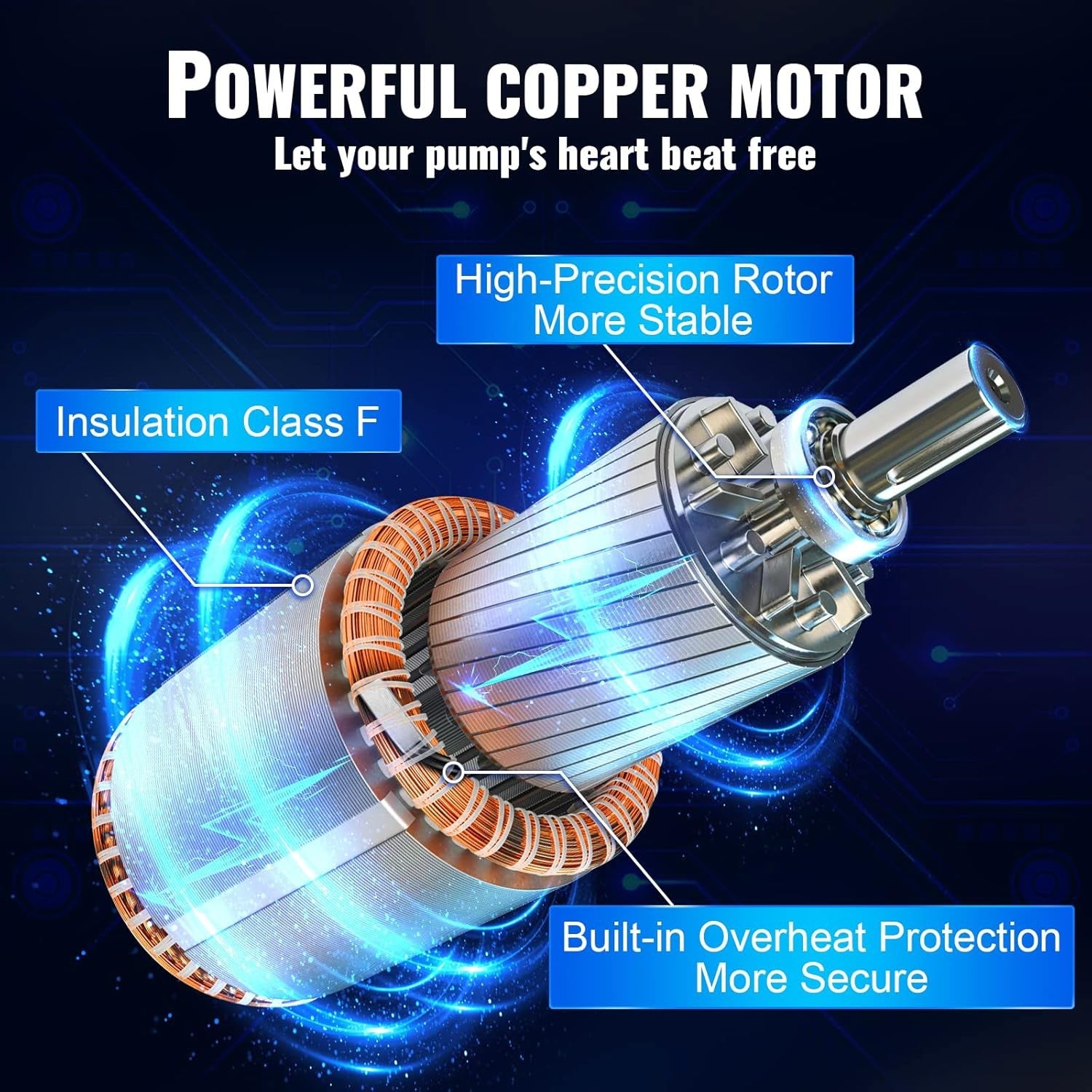

[Pump Motor]:The solar pump use NSK bearing with permanent magnet brushless synchronous motor. So the pump has sufficient power and high efficiency.

1.Specifications:

DC Voltage: 110V

Solar panel voltage range: <210V DC

Rated power: 1300W

Min.input solar power :>1800W

Working Temperature : -15-60℃

Outlet diameter: 2 inch

Pump diameter: 4 inch

Length of cable: 2m

Solar panels：9 pcs of 200w voc44V in series（not included）

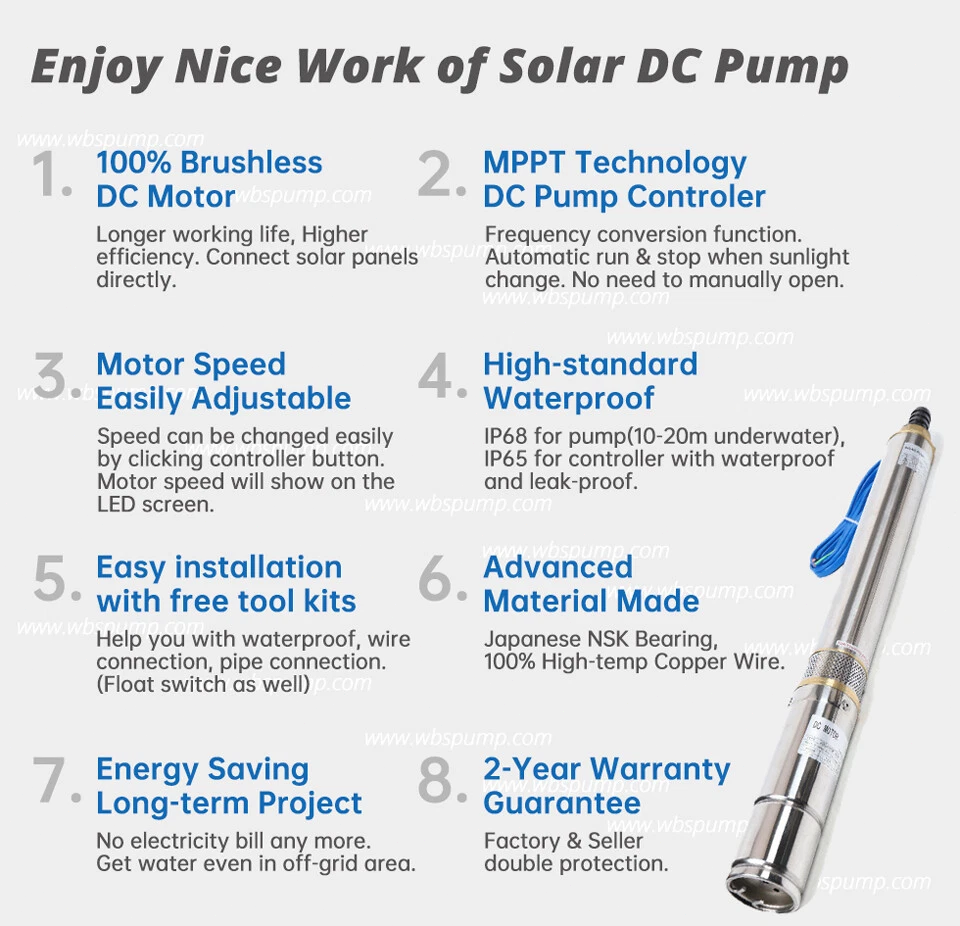

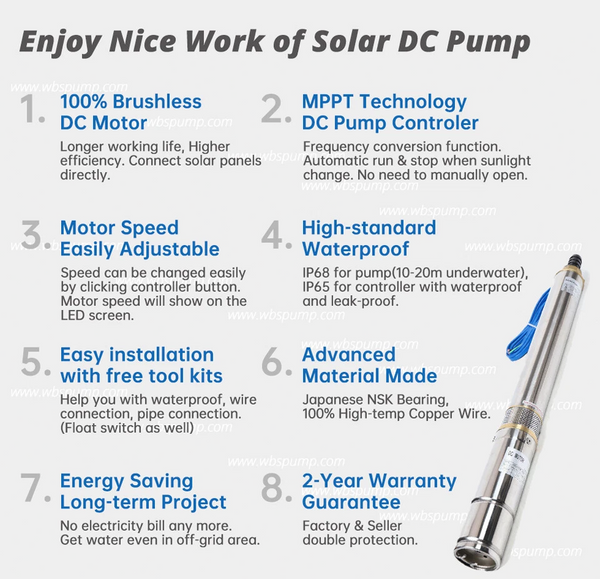

2.Features:

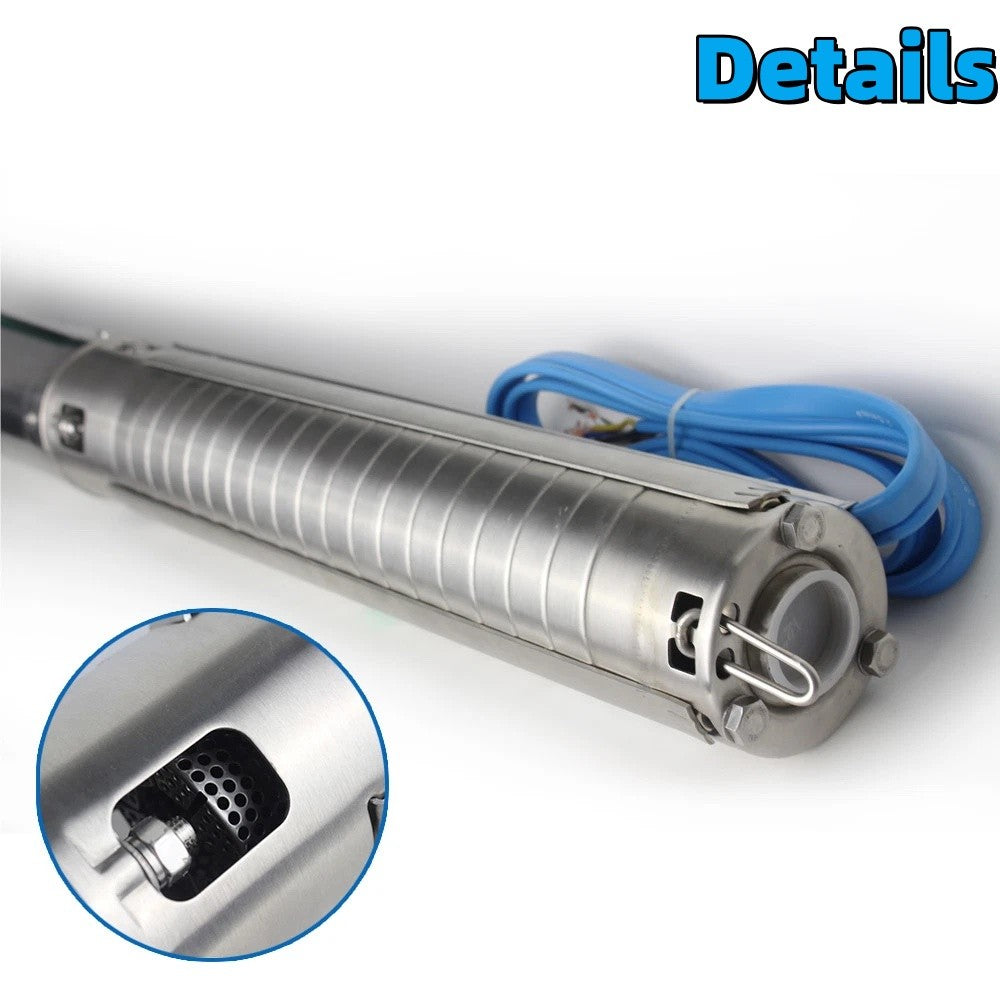

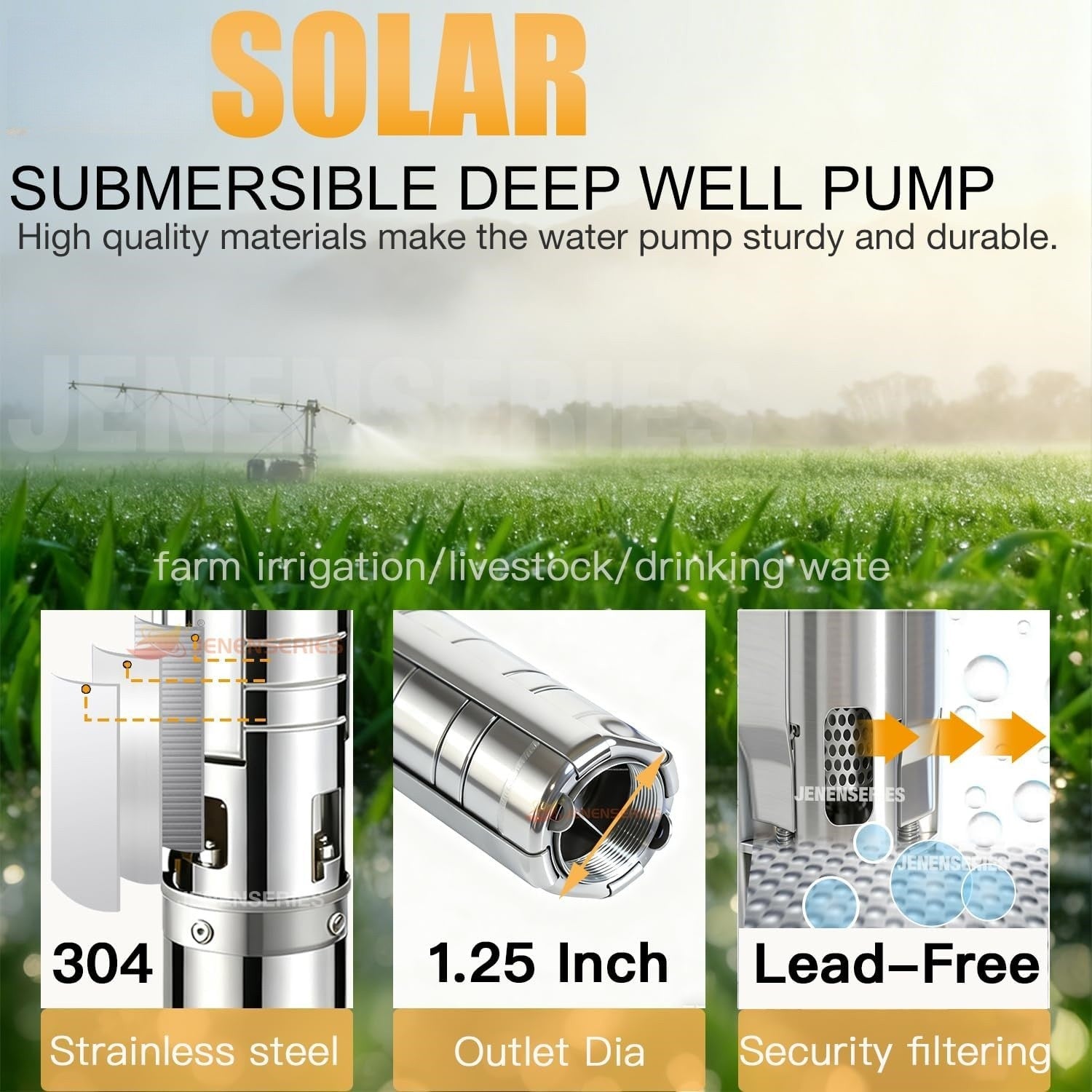

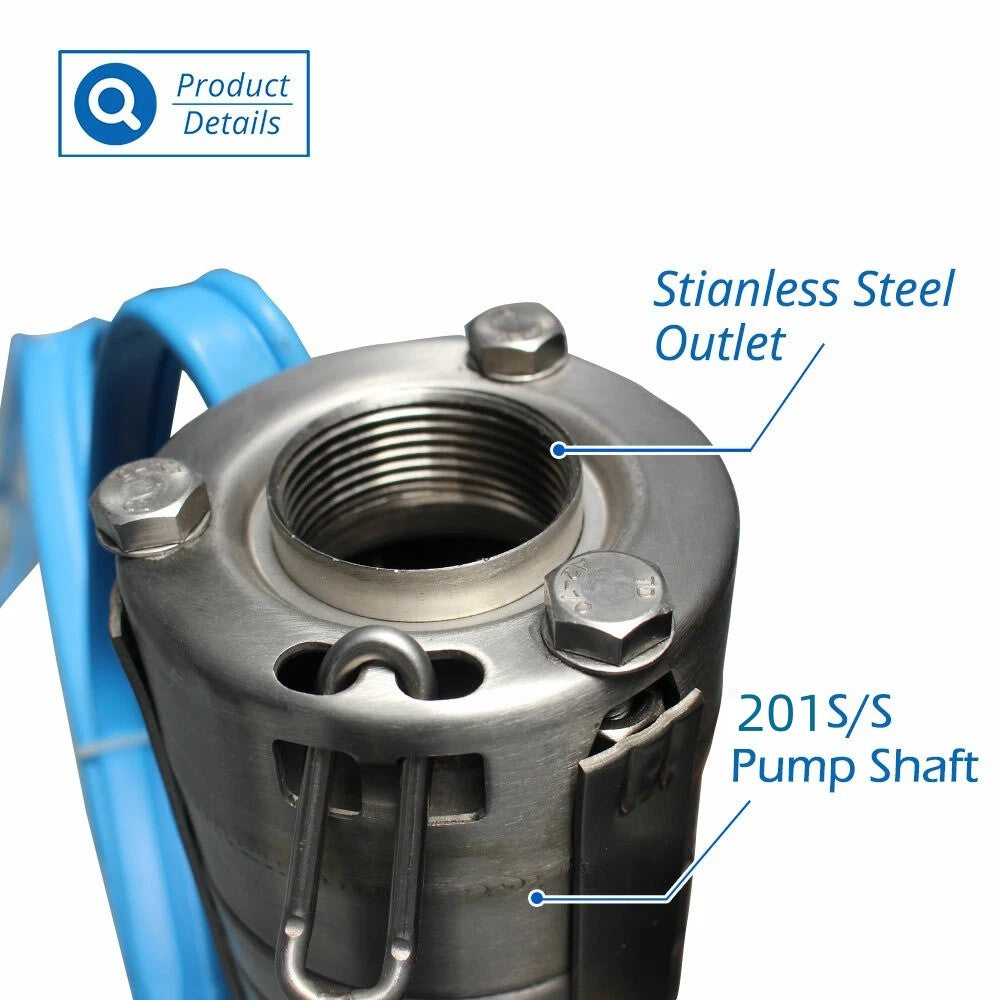

*Solar water pump：304 stainless steel deep well submersible pump, durable for home and industrial use.

*MPPT controller: The solar water pump controller drives the high efficient brush-less DC pump motor, utilizing the latest MPPT technology to ensure maximum flow is delivered under all light conditions. It also protects the submersible pump from frequent start up in low light conditions, overheating & running dry.

*Alloy mechanical seal:

*Longer working life and high reliability.

*Intelligent water shortage protection: The pump stops working automatically when there is no water in the well, and automatically start working 15-30 minutes later.

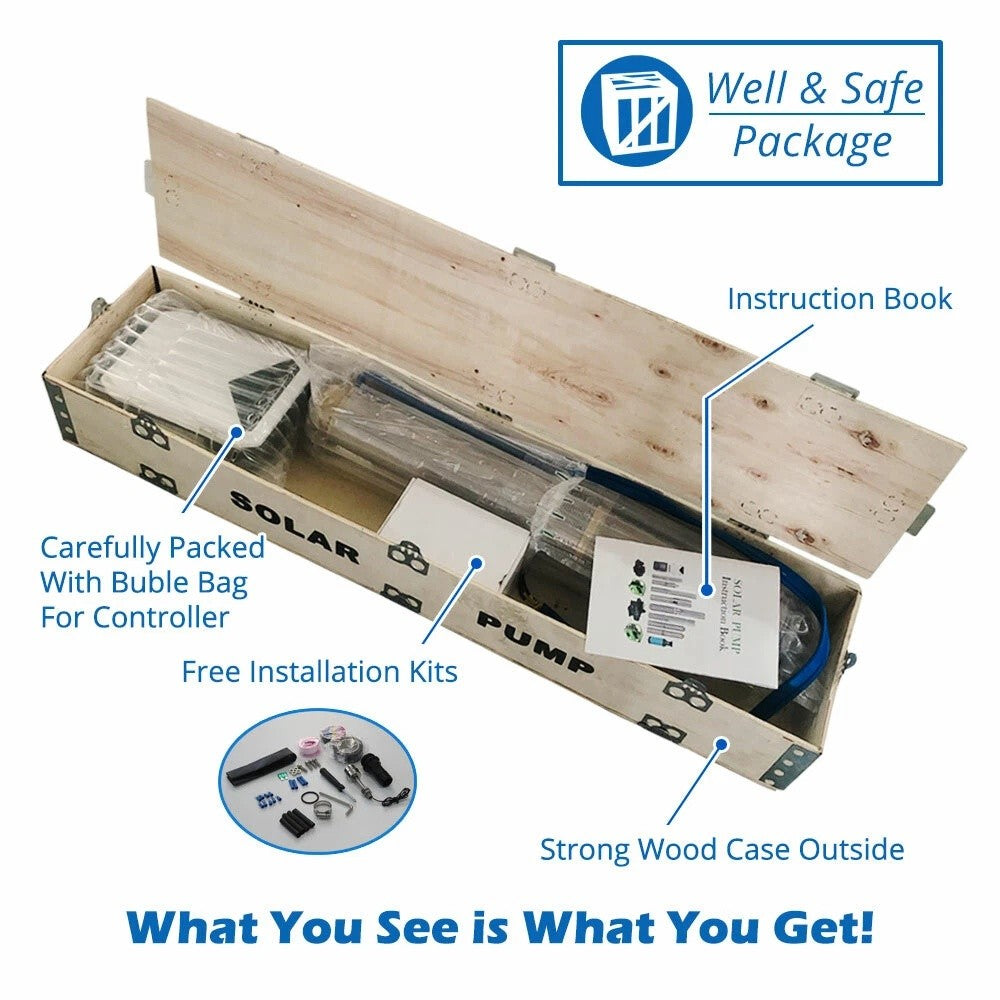

3.Package：

1*Solar pump

1*DC controller

1* Accessories

1* User's manual
