Description:

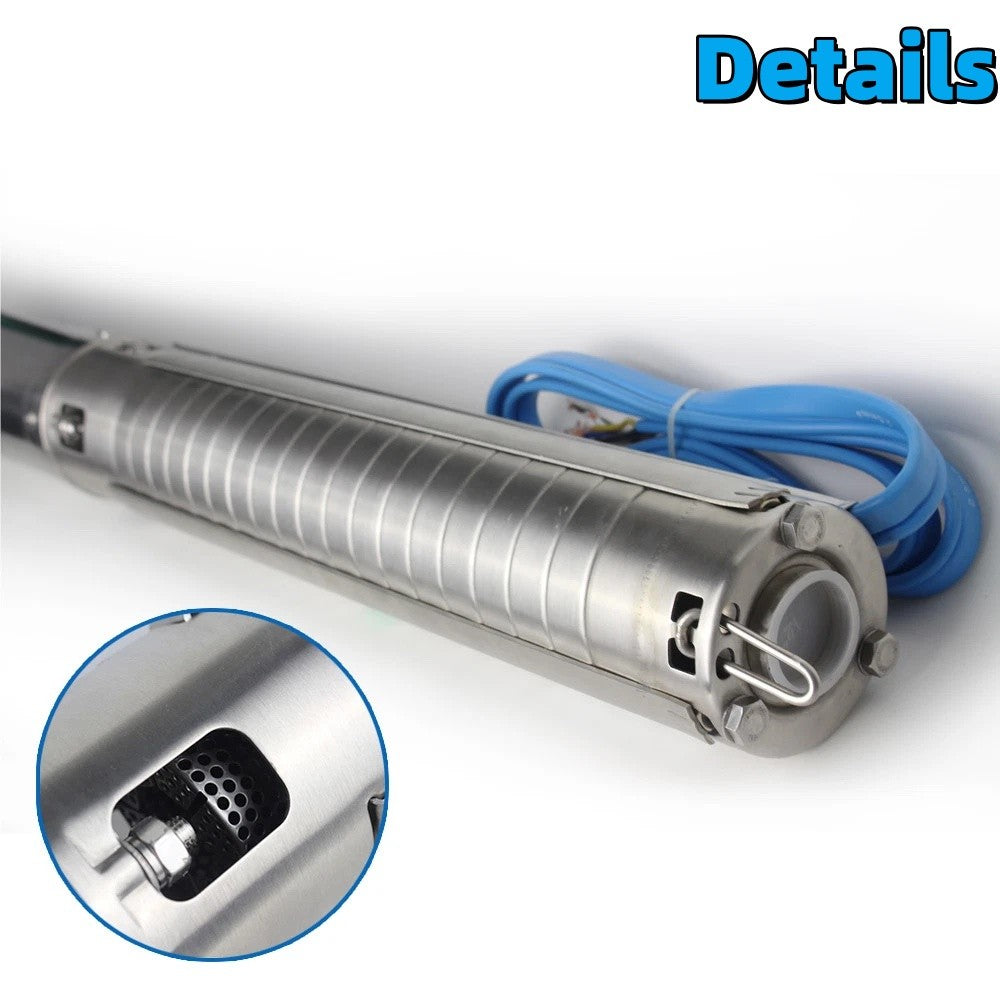

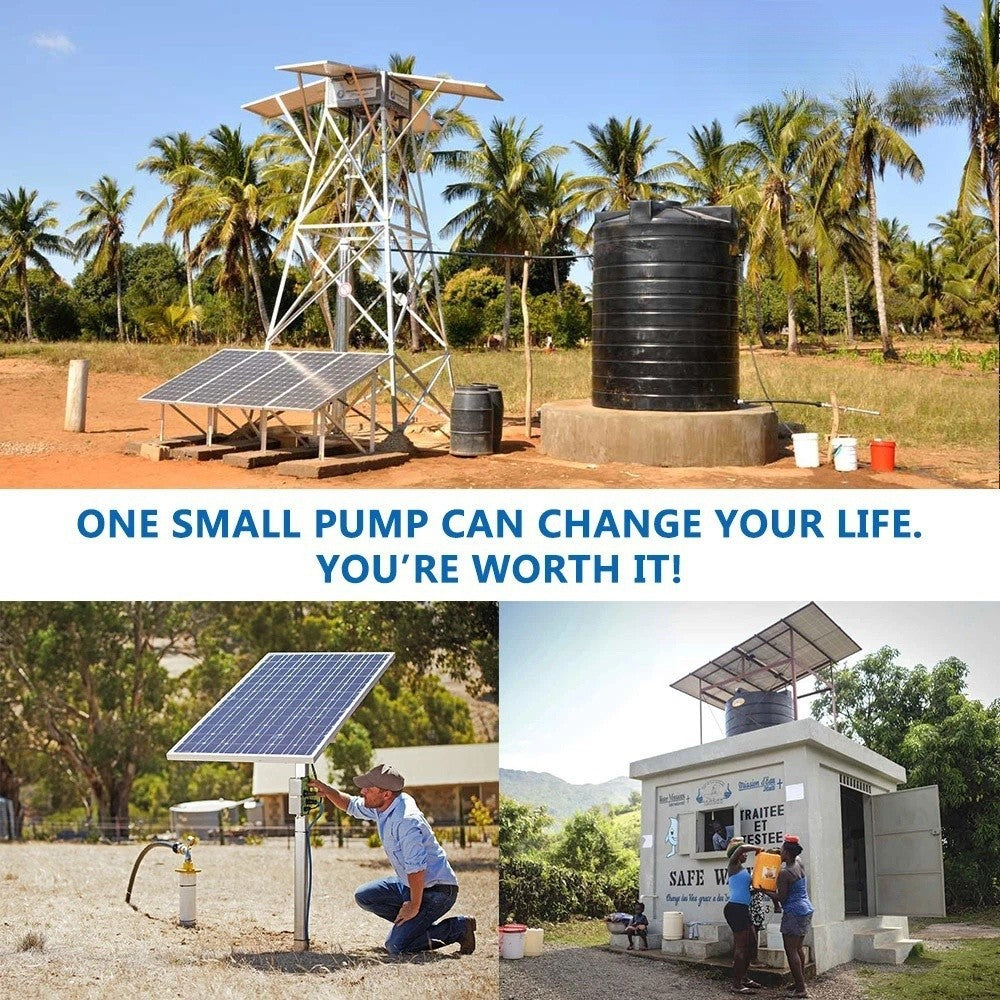

Our Deep Well Pump is ideal for the supply of fresh water to rural homes, farms, and cabins that have 4 inch and greater diameter drilled wells. Perfect for irrigation, livestock watering, etc. It is a durable workhorse that will keep you in flow for years to come. Brand new pump in the box!
Features:
1. Permanent magnet DC brushless synchronous motor, designed for solar, with 15-20% efficiency improved.
2. Brass outlet/connector/oil cylinder.
3. The double bearing motor base can work under more axial pressure.
4. Alloy mechanical seal: Longer working life and high reliability.
5. Intelligent water shortage protection: The pump stops working automatically when there is no water in the well, and automatically start working 15-30 minutes later.
6. Pump can start working when power is enough every morning.
7. High waterproof grade: IP65, double seal effect in waterproof and leak-proof
8. Soft start technology: No impulse current, longer life for the pump motor.
9. High voltage/Low voltage/Over-current/High temperature protection
Specification:

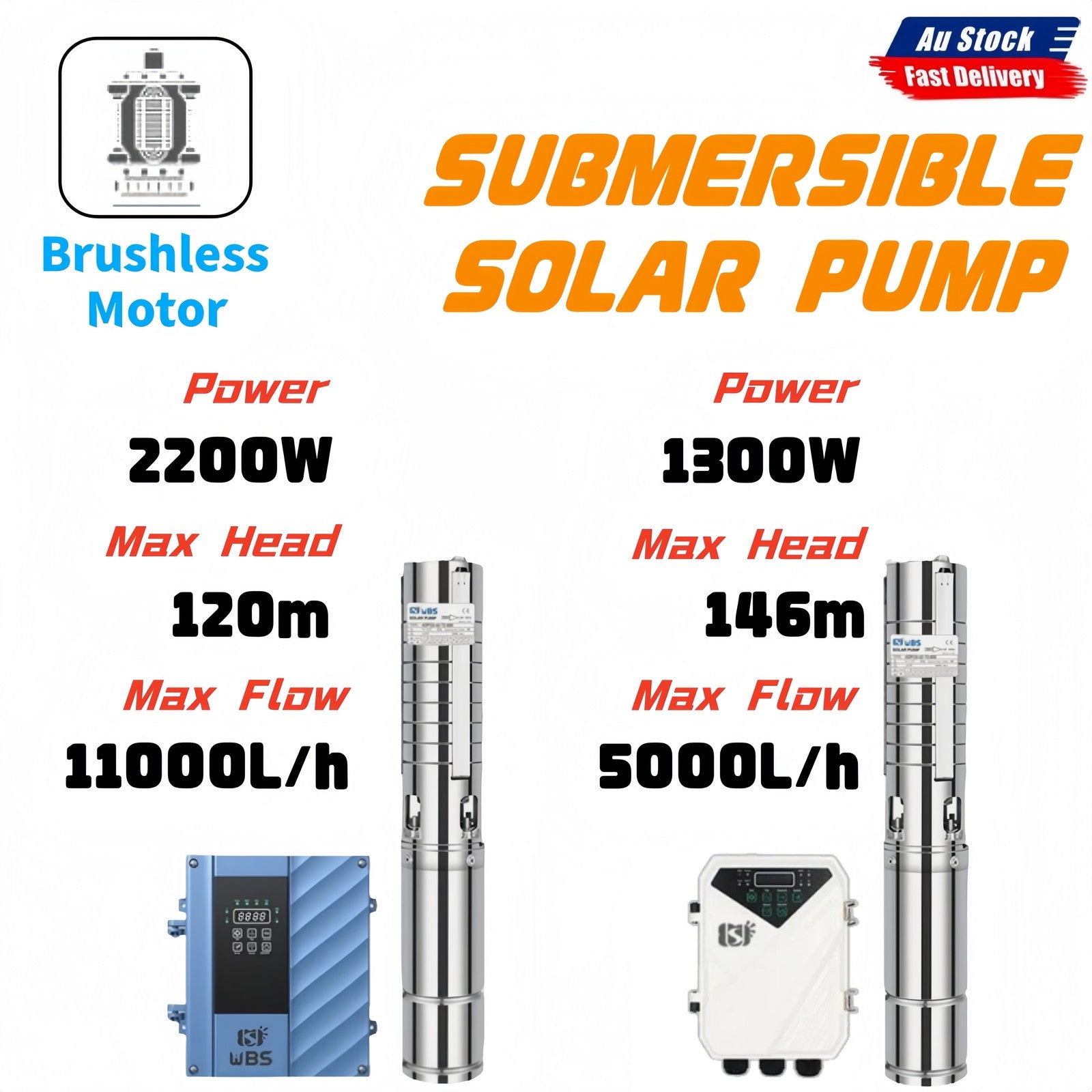

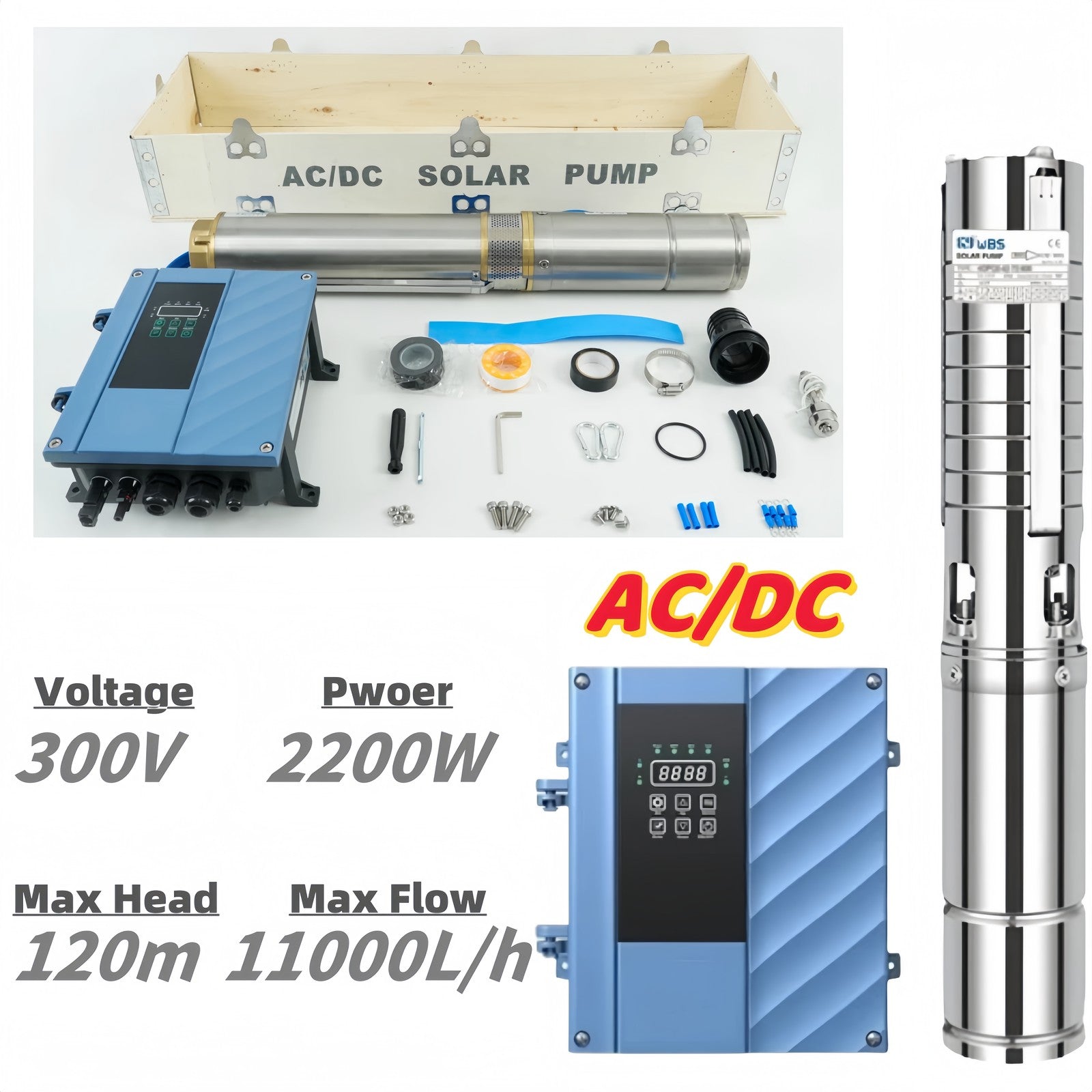

Model Name: 4DSC11-120-300-2200-A/D
Rated power: 2200W / 3HP
Max. Pump rate: 11,000L/H or 186L/min

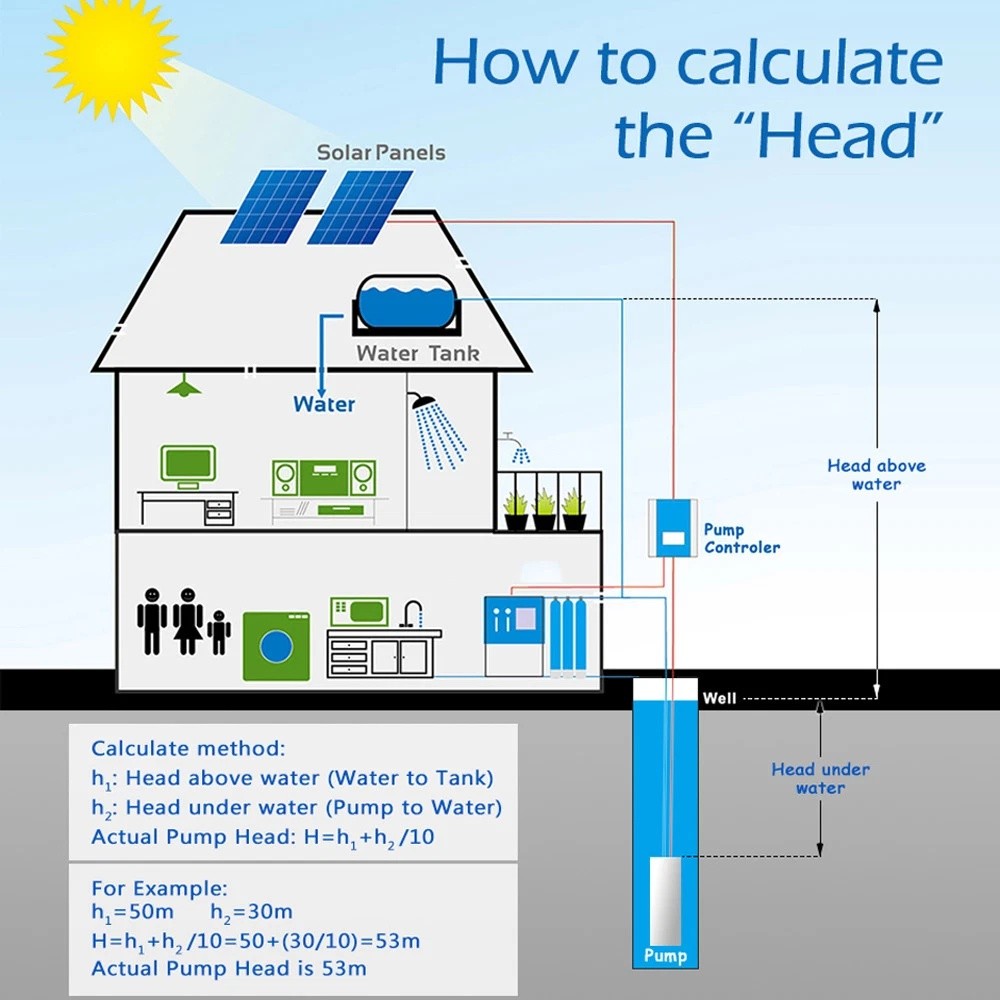

Max. Head: 120 m
Max. Temperature of water handled: 35 degree Celsius
Outlet diameter: 2 inch / 51 mm
Pump Size: 4 inch / 98 mm
Length of cable: 2m
Max. DC Open circuit voltage: 420V

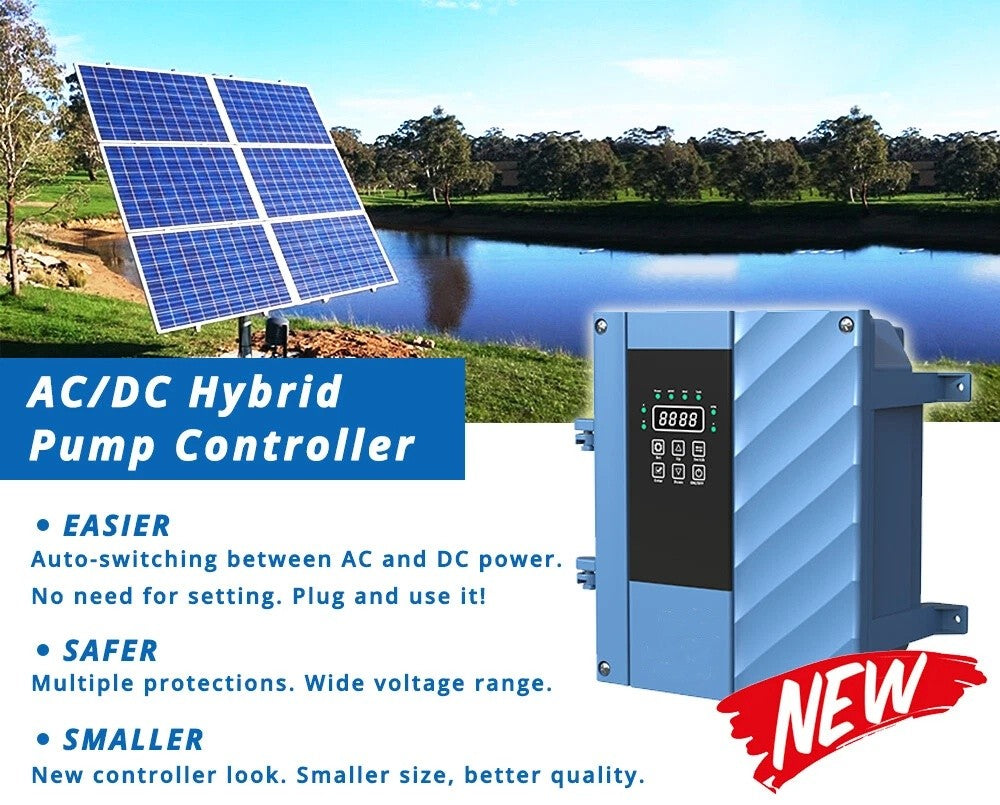

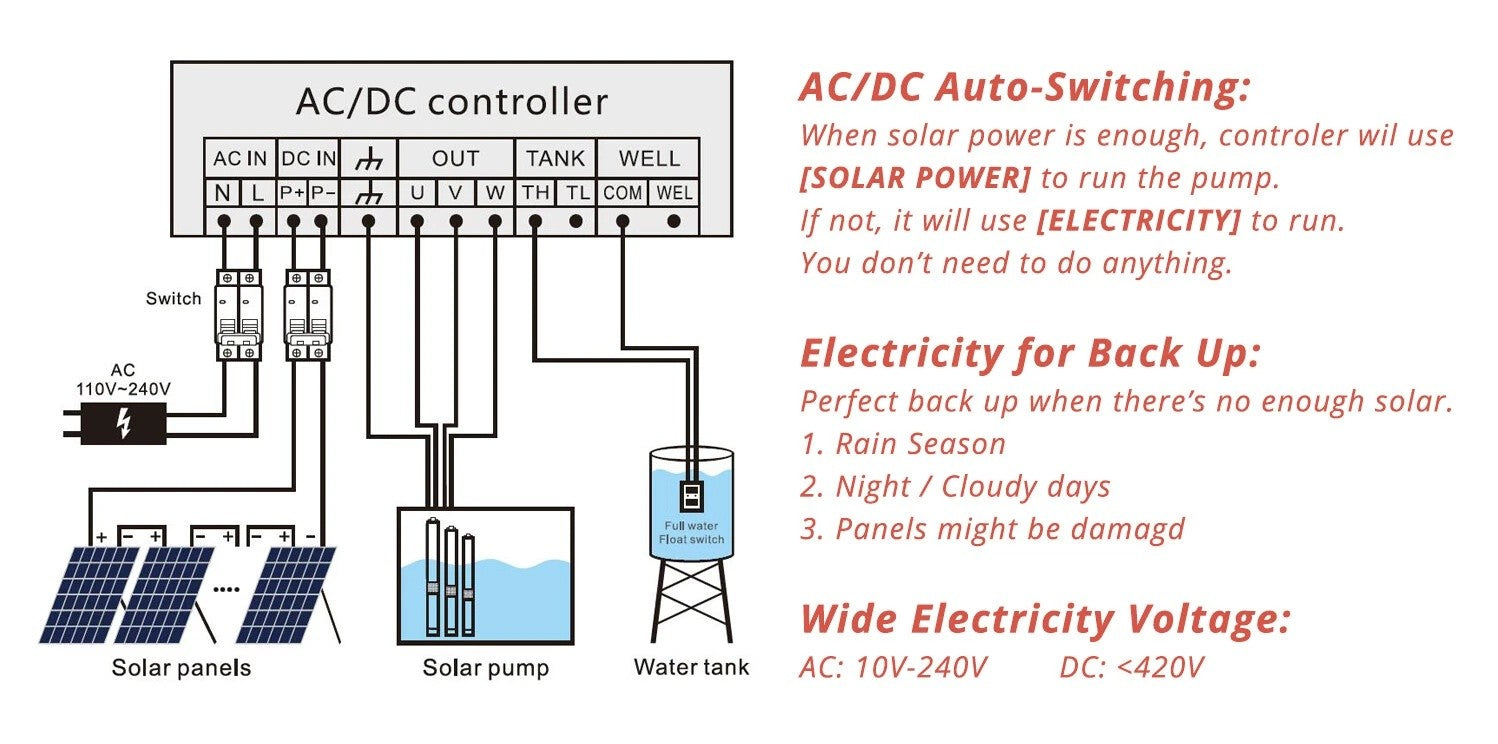

AC input voltage range: 110V-240V

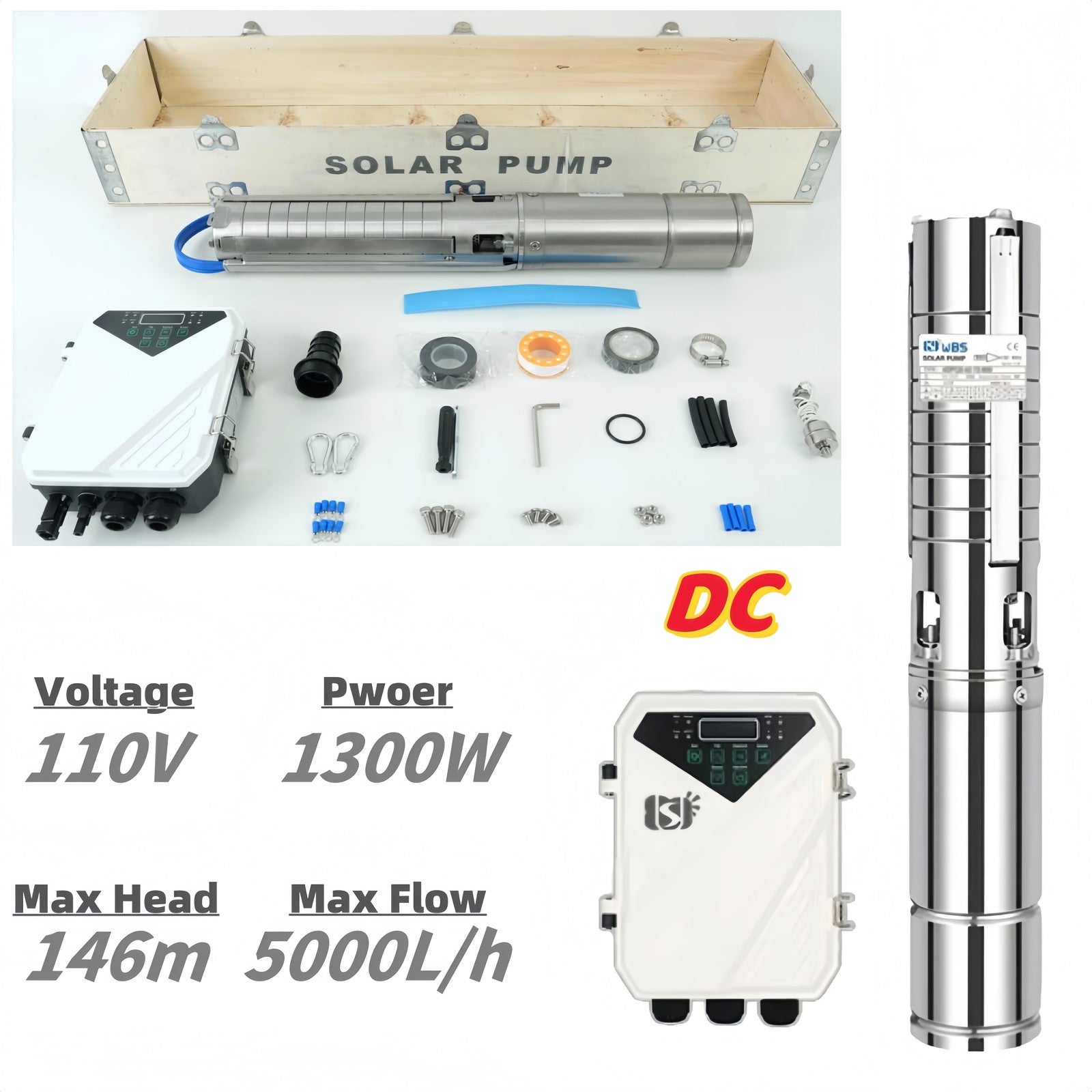

Model Name: 4DSC5.2-146-110-1300
Rated power: 1300W / 1.7HP
Max. Pump rate: 5000L/H or 114L/min
Max. Head: 146 m
Max. Temperature of water handled: 35 degree Celsius
Outlet diameter: 1.25 inch / 32 mm
Pump Size: 4 inch / 98 mm
Length of cable: 2m
Maximum Input Voltage: 185V
Voltage: 110 V

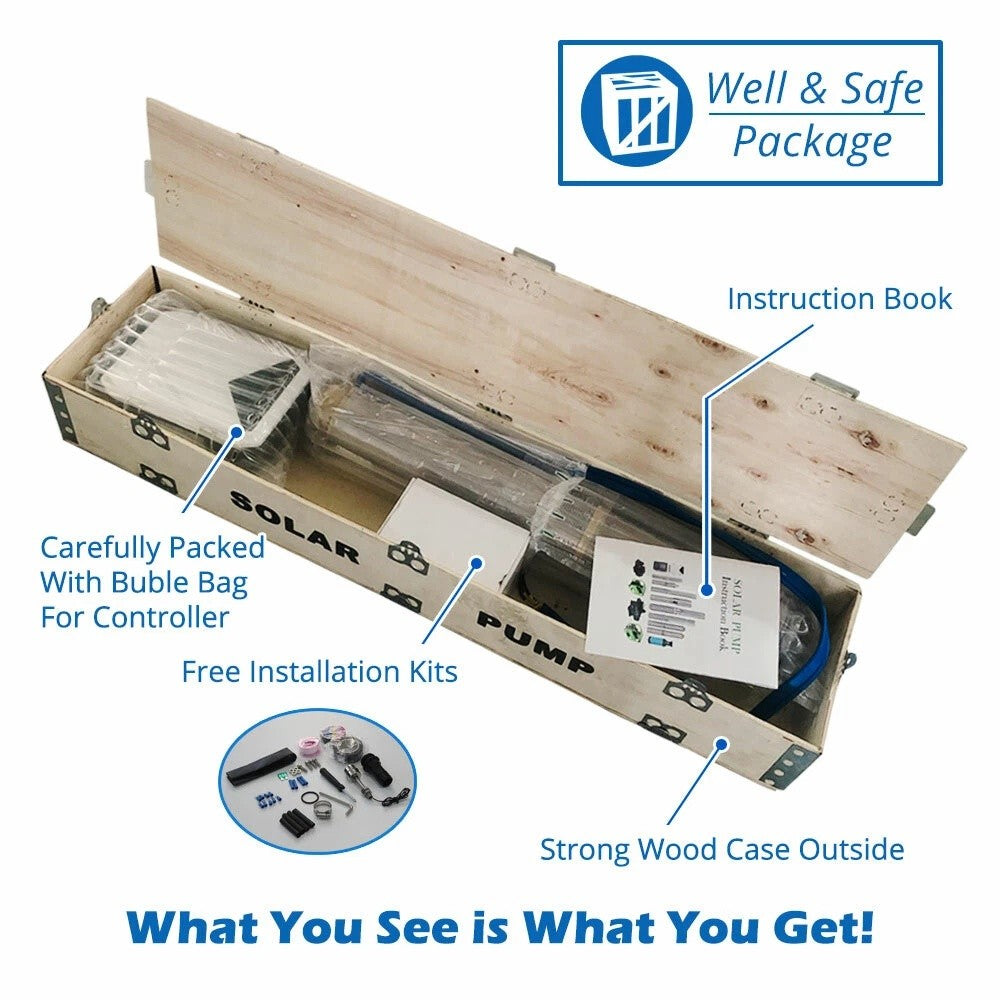

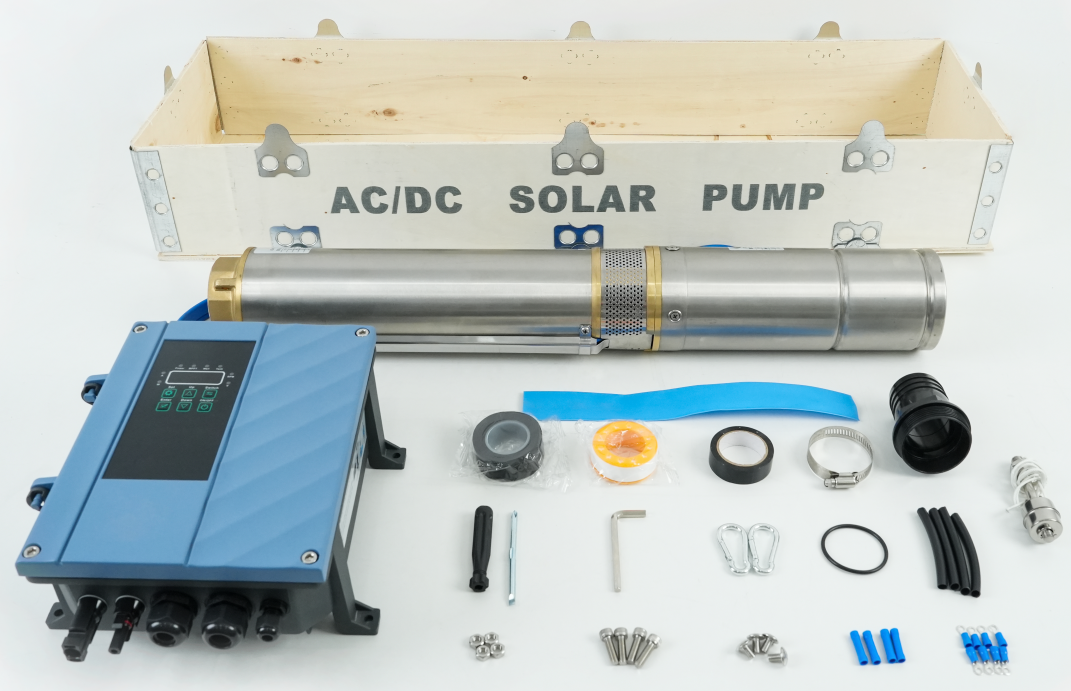

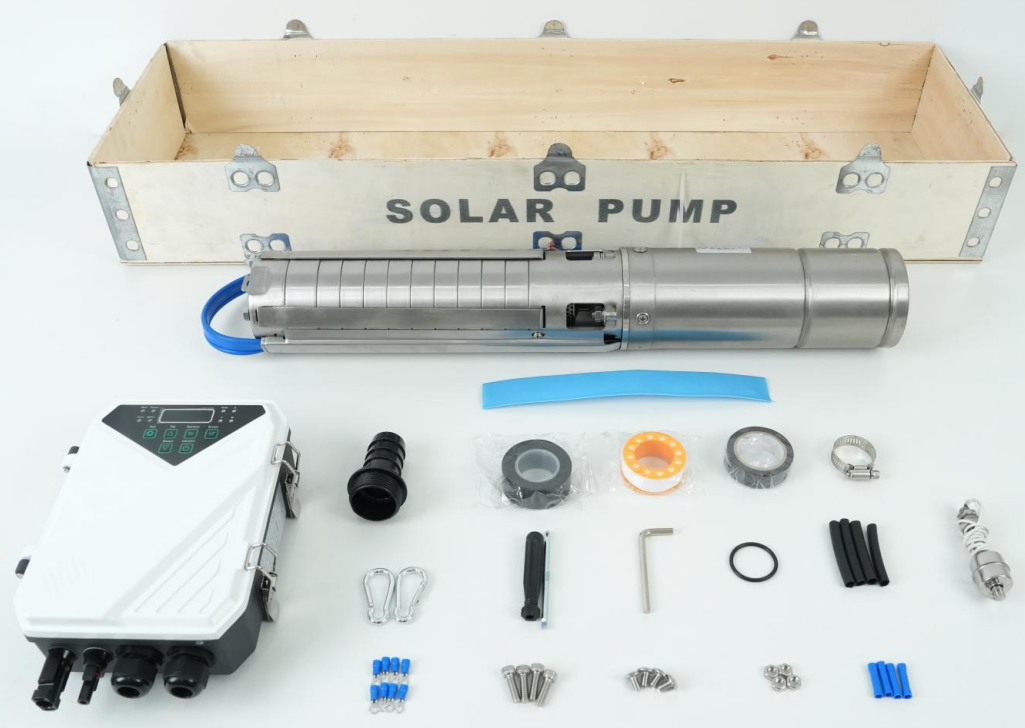

Package Includes:
- 1 x Stainless Steel solar Pump with 2m cable

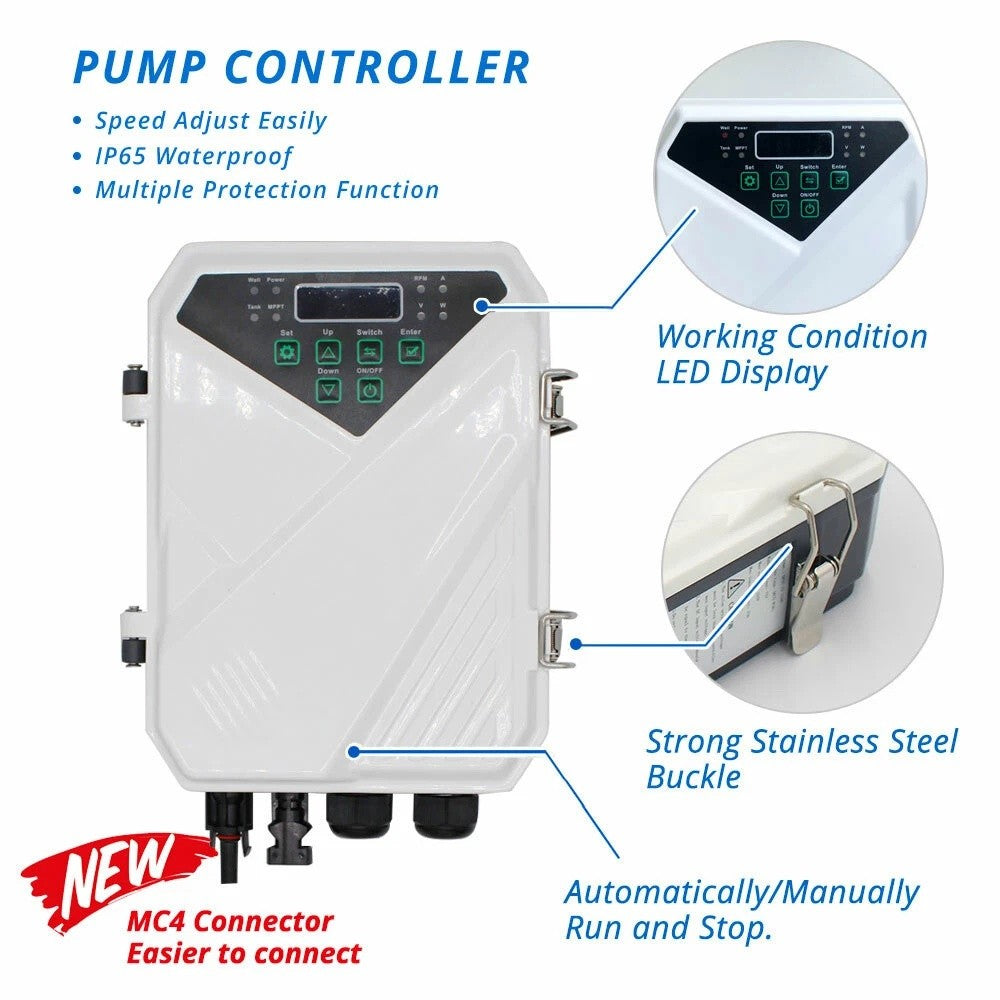

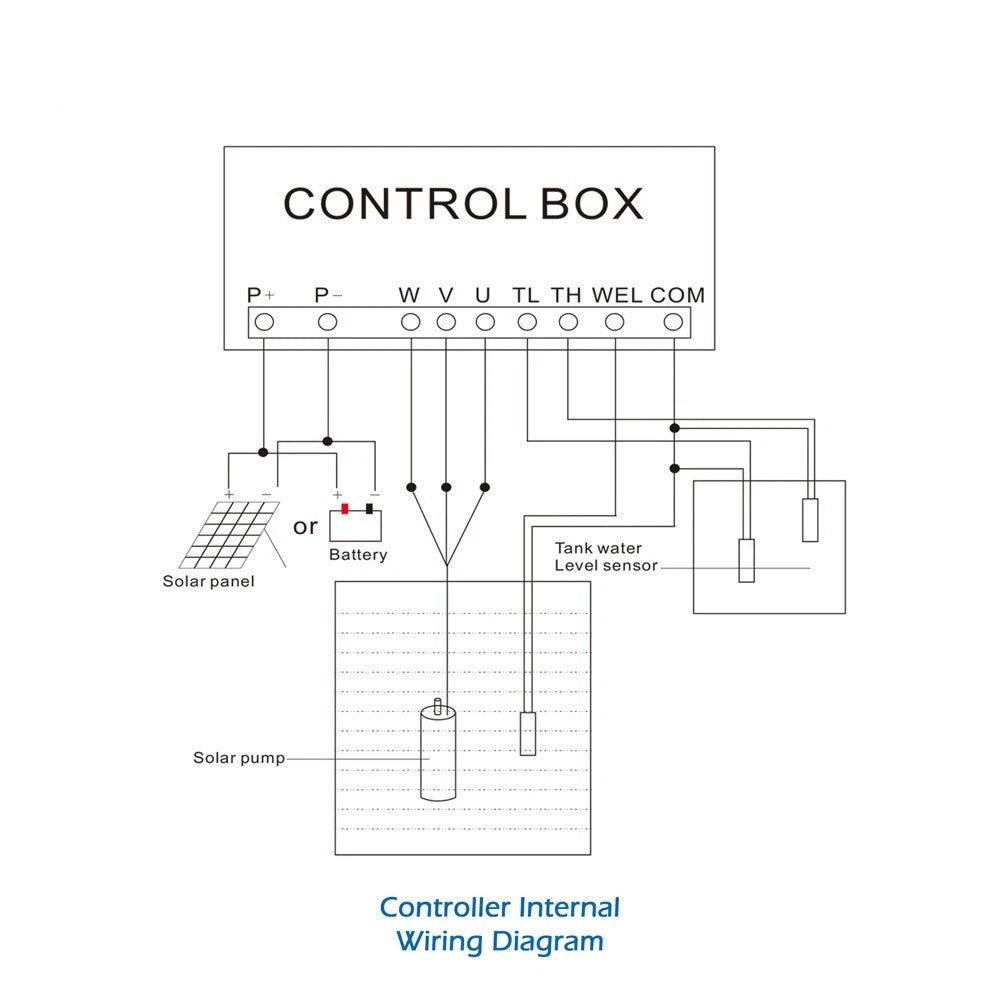

- 1 x Pump controller with MPPT function
- 1 x Float switch (sensor for the tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof
（As Pictures Shown）
Notes:
1.Please refer to the size to allow for small measurement errors within the normal range. Make sure you don't mind before buying.
2.Due to display, camera or other factors, may cause some color differences, please refer to the actual project.
3.The items sold in this store do not include the shooting props in the picture, Thank you!
