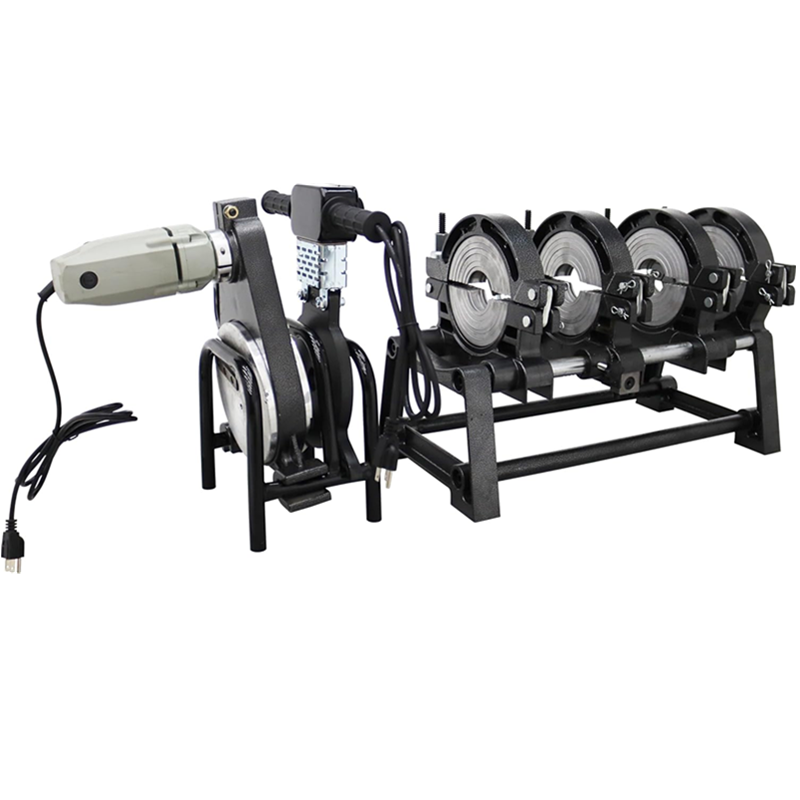

4 Clamp Pipe Fusion Welder HDPE PPR Plastic Welding Butt Fusion Machine 63-200mm
PRODUCT DETAILS
Specification
Product name: Butt Welding Machine
Model number: 63-200
Voltage: 220V
Power: Milling cutter: 1KW; Heating plate: 1.2KW
Maximum abutment deviation: 0.3mm
Ambient temperature: - 5 °C-+40 °C
Temperature error: +3 °C

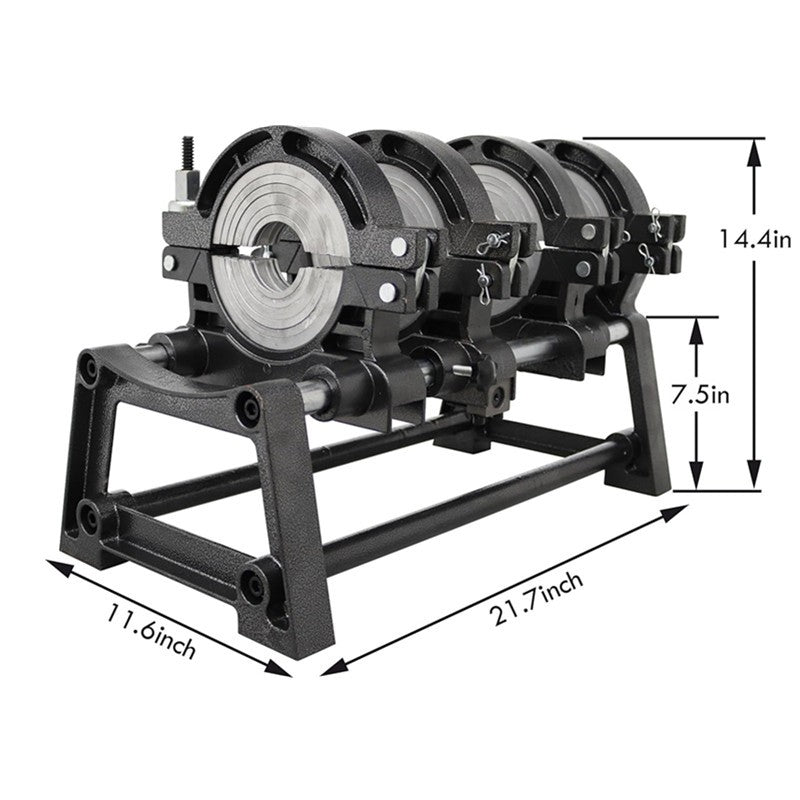

Packaging size: 65*42*45cm
Features:
【Application】The welder is suitable for PE PP PB PVDF PPR plastic pipe hot-melt butt welding. High quality design and construction provides an excellent machine for welding both on the construction site and in the factory.

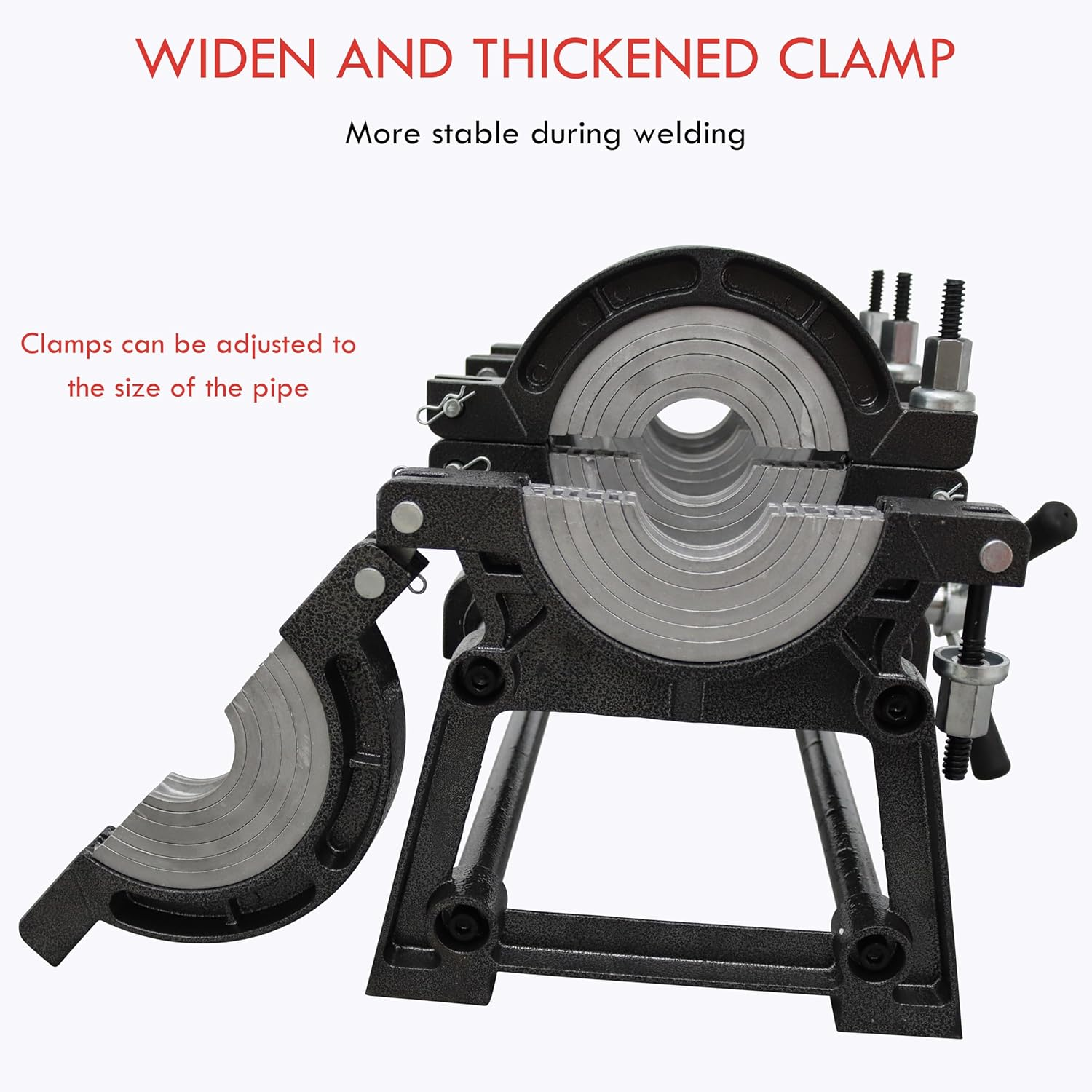

【Welding Size】Widened and thickened clamp, more stable during the welding process. The fixture can be increased or decreased according to the thickness of the pipe. Welding level (outer dia mm) is : 63, 75, 90, 110, 120, 140, 160, 180, 200
【Heat fast and Evenly】The heating plate adopts independent temperature control system and non-stick PTFE coating, heat fast and evenly, the temperature can be adjusted manually.

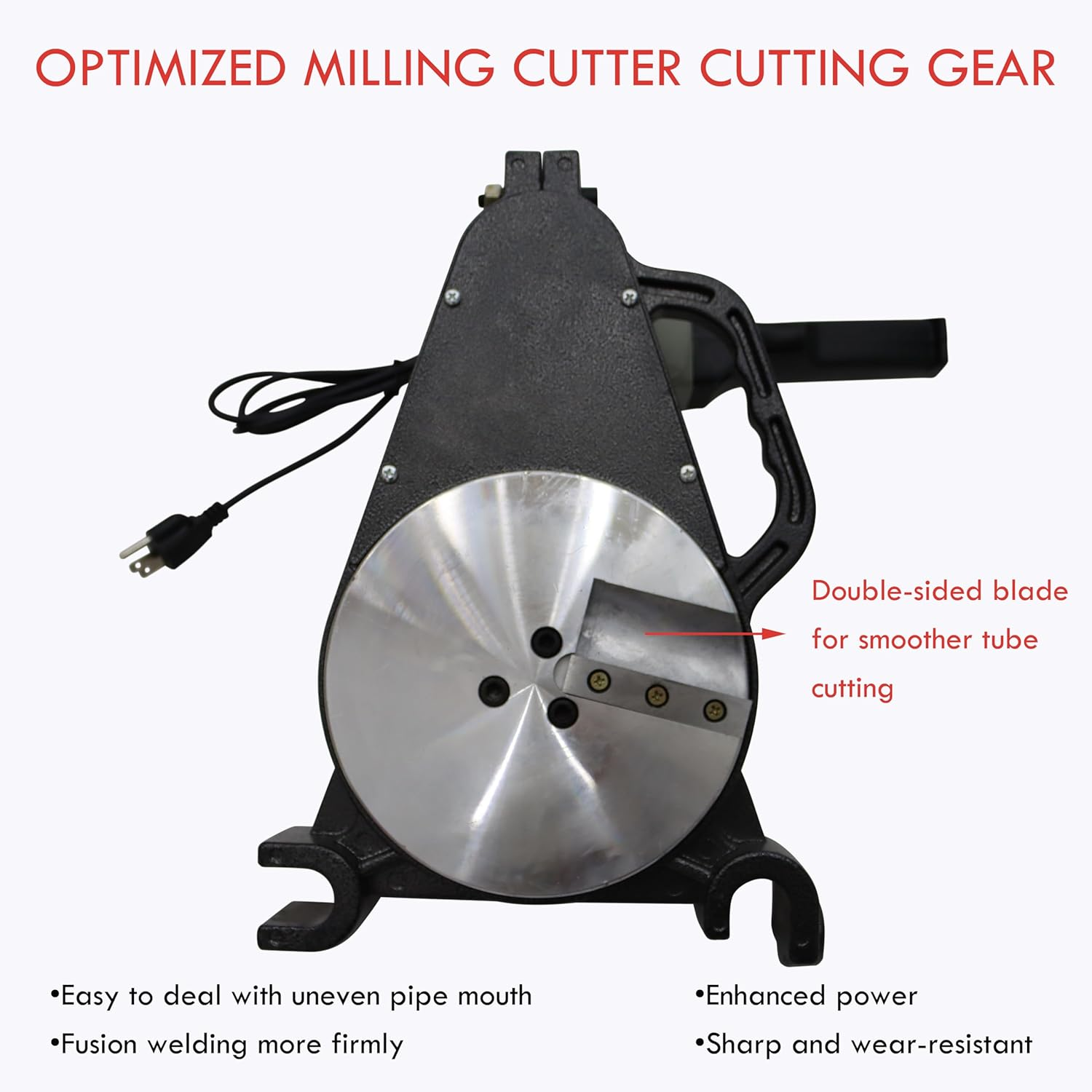

【Sharp and High-harness Cutter】The milling cutter blade is made of high-quality steel. It is sharp, hard, and cuts neatly. The cutter utilizes a powerful and durable copper core motor.

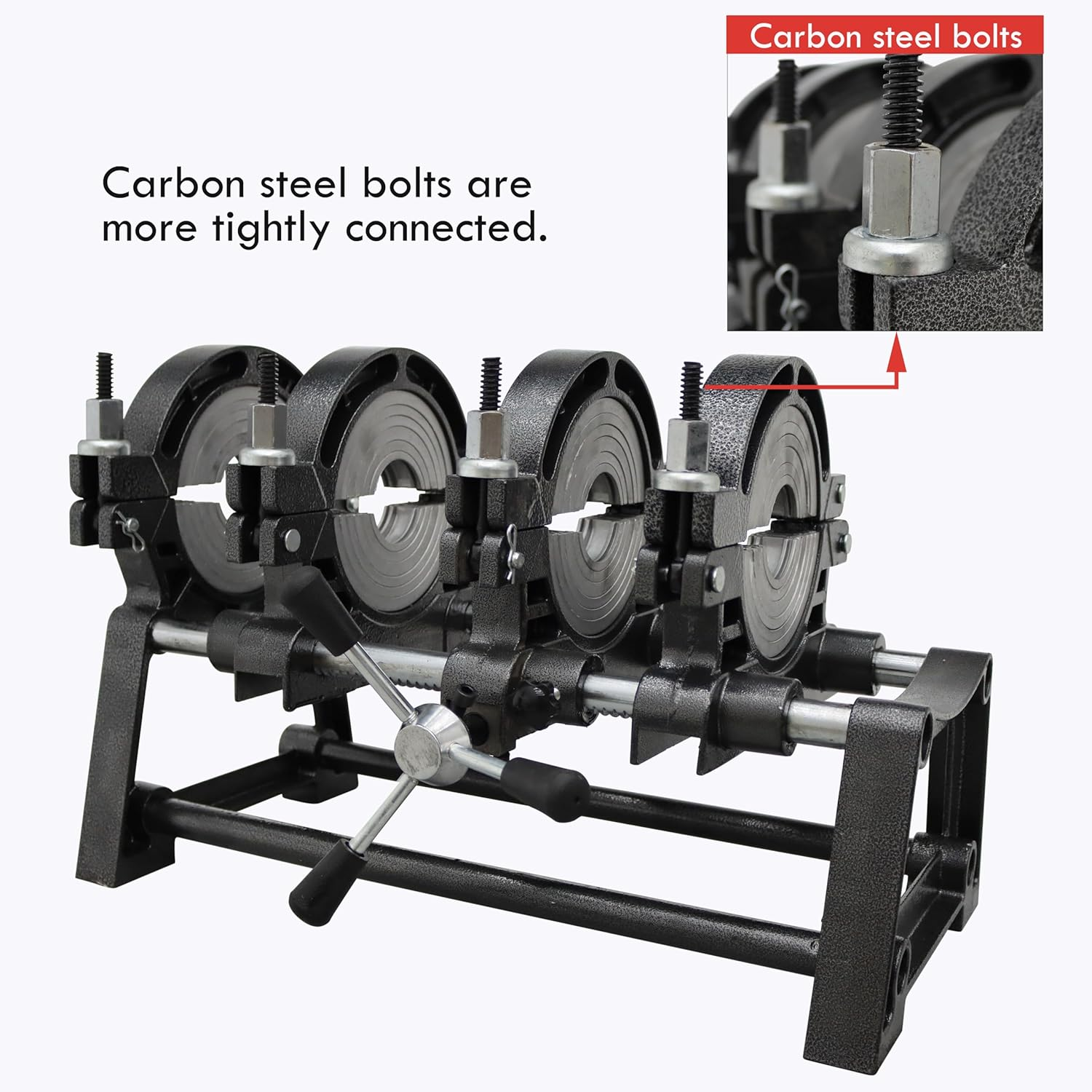

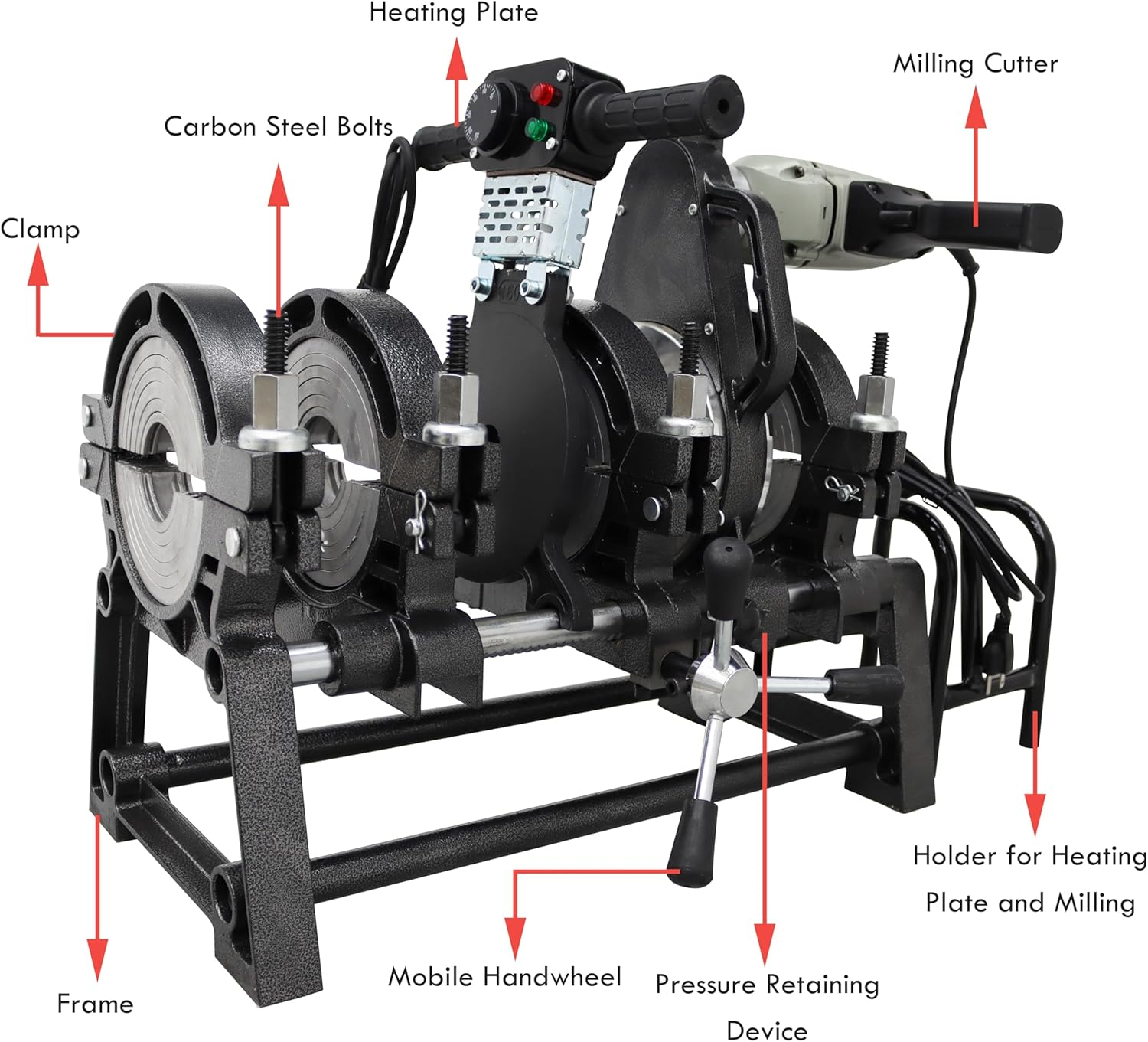

【Excellent Design】Equipped with automatic pressure holding device for easier welding. The welder applys carbon steel nuts which is strong firm and durable. A basket is equipped for holding heater and milling cutter, it can be placed after use to prevent scalding. Providing you a clean and neat environment.
Package:
1*Butt Welding Machine
