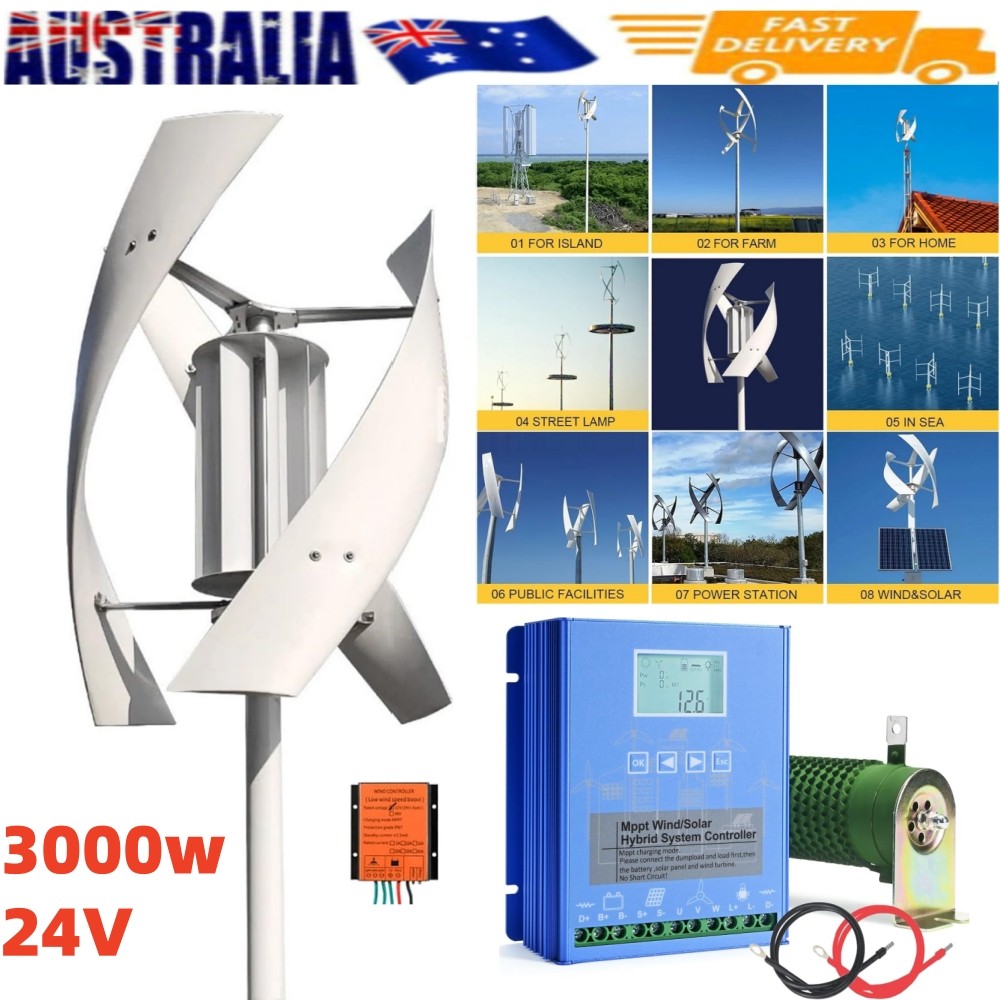

3KW Vertical Axis Wind Turbine Generator with MPPT Controller Power Inverter AU
Expected Delivery on - .
- Wind Turbine - $402.54
- Hybrid Charge Controller - $216.31
3KW Vertical Axis Wind Turbine Generator with MPPT Controller Power Inverter AU
PRODUCT DETAILS
NOTE: This link has two options, Please double check the products you need before placing an order.
Wind Turbine
Description:

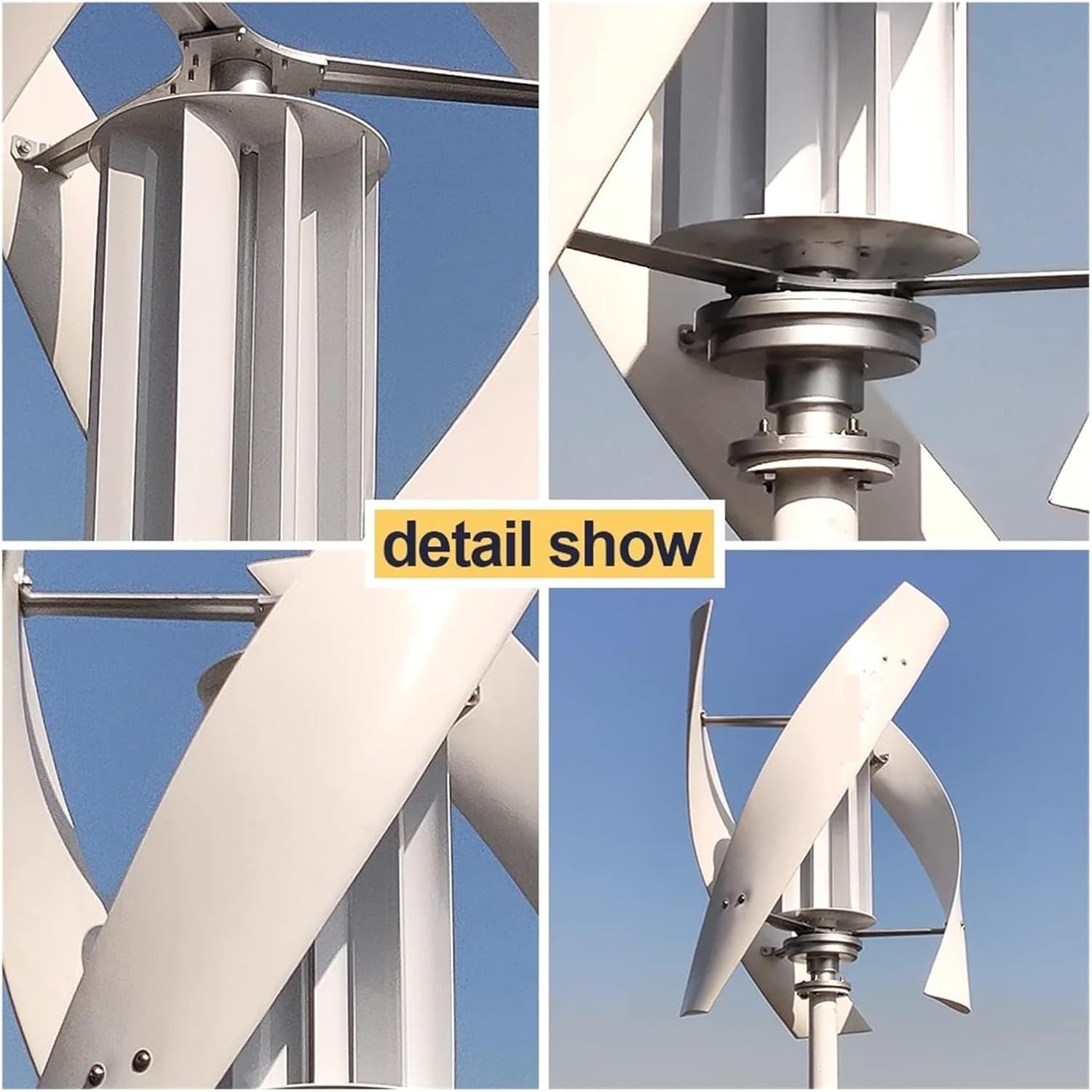

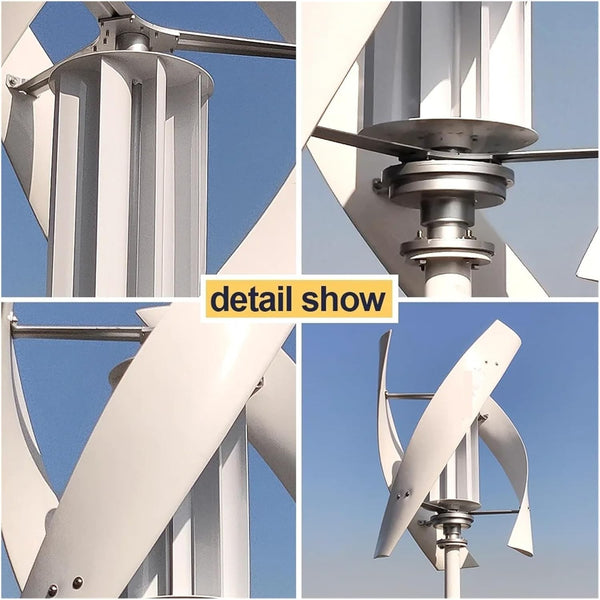

- ▶【Vertical Wind Turbine】- Wind turbine blades adopt reinforced nylon fibers which are stronger and have strong anti-wind ability. Particularly, the optimized aerodynamic shape and structural design enable high utilization of wind energy. The wind turbine can start from the breeze and adapt to the wind 360°, no yaw system is needed.
- ▶【Nylon Fiber Blades】- The vertical turbine generator blades adopt aerodynamic design, are small in size and light in weight. The three blades are arc-shaped, which effectively utilizes wind resources and generates higher power output. The working temperature range is -40℃~80℃, suitable for year-round use. The vertical blade starts at a speed of 2m/s and automatically captures the wind direction.
- ▶【Vertically quieter】- Compared to horizontal wind turbines, vertical wind turbines work with significantly lower noise. This quiet rotation makes them optimal for residential use, as well as decorative uses on roads or roofs.

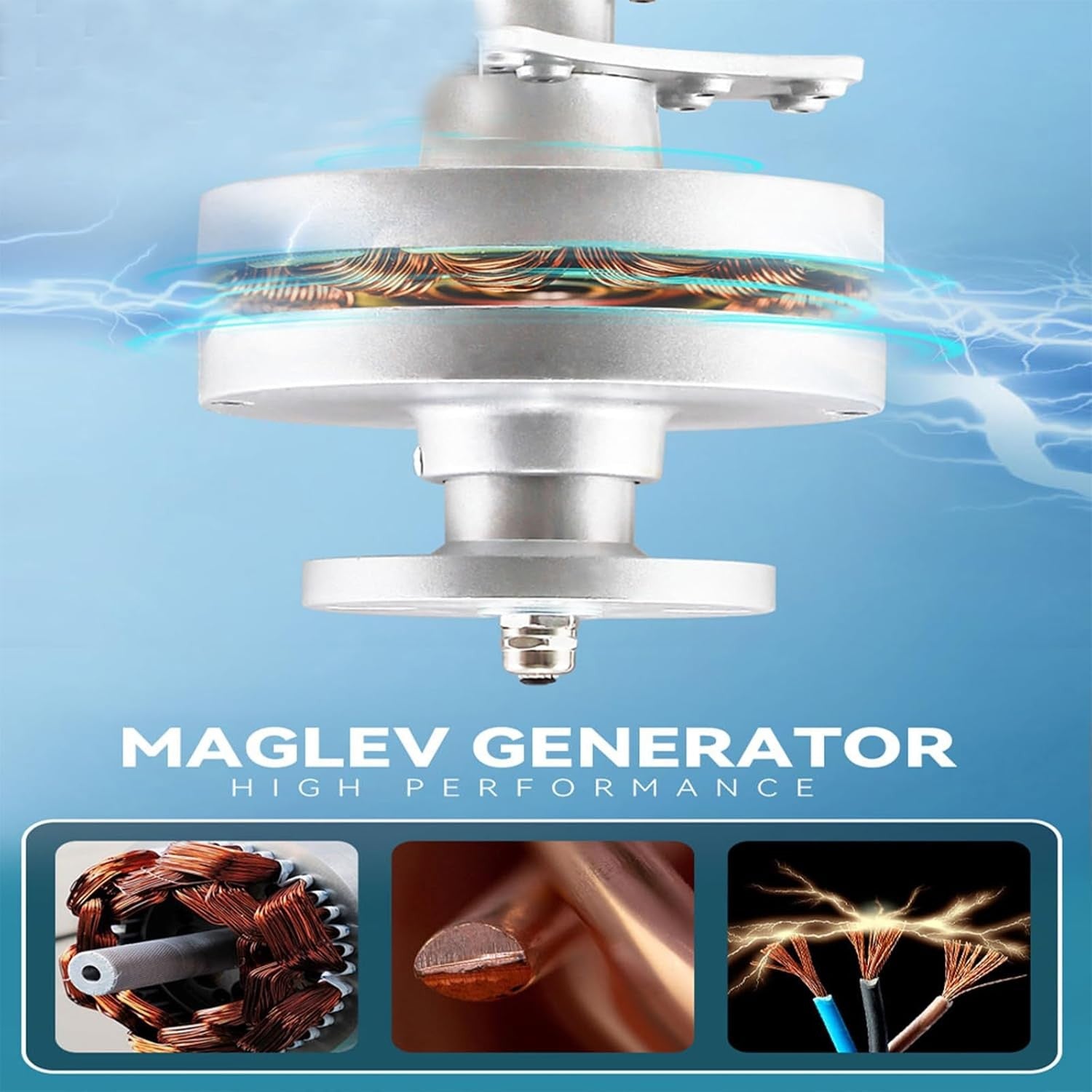

- ▶【Excellent Performance】- The generator adopts the most efficient permanent magnet generator, with excellent internal space design and special rotor design, which can effectively reduce the resistance torque of the generator. At the same time, the wind turbine and generator have better matched working characteristics and reliability.
- ▶【Wide Application】- Humanized and practical design, easy to install and maintain. Can easily adapt to various environments. Efficiently use wind resources to maintain large amounts of energy. Suitable for domestic, surveillance, marine or wind road lighting.
Installation:

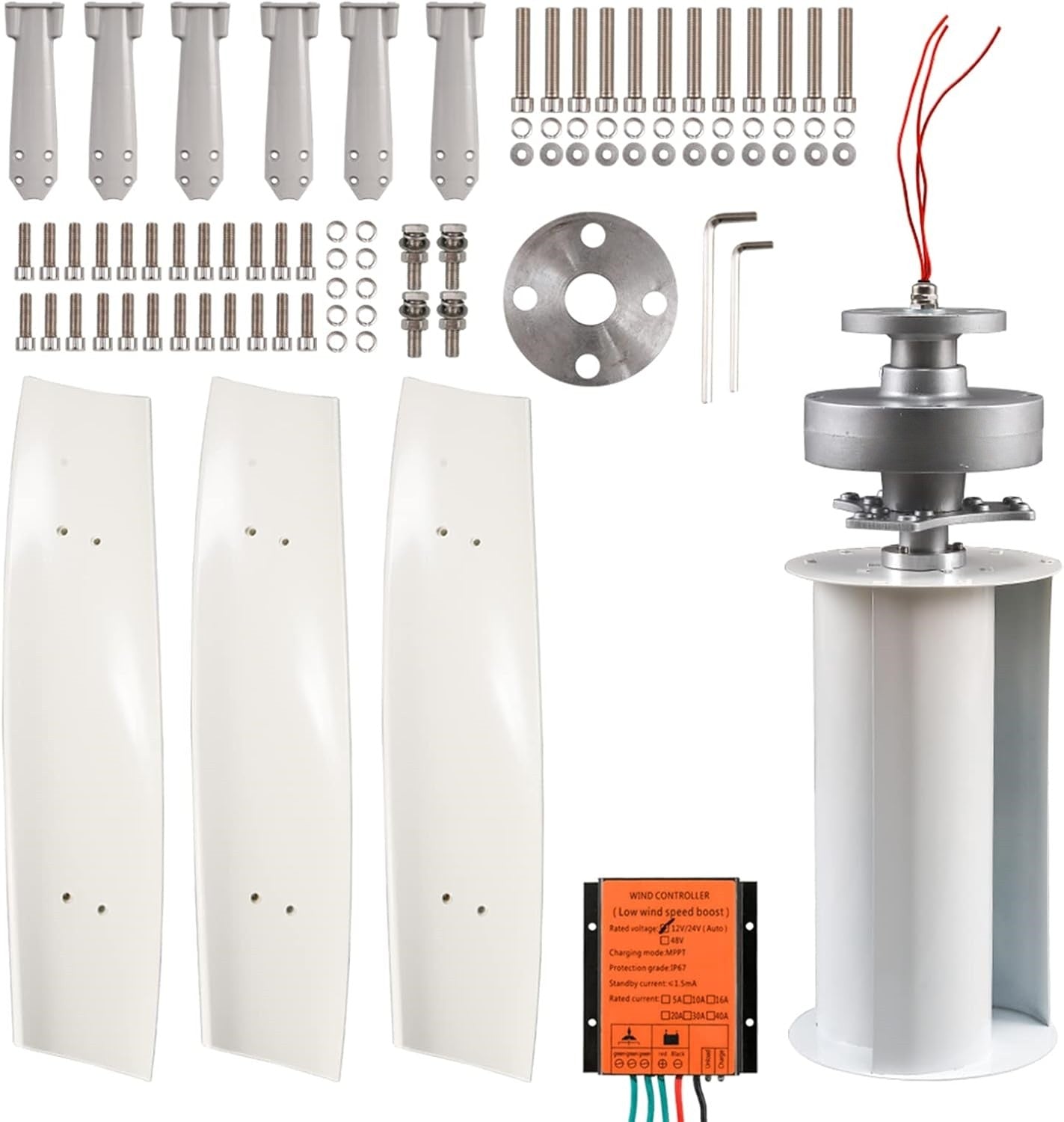

1. Check all the parts of the wind turbine, which includes 6 brackets and 3 blades in total.2. Place the wind turbine vertically.
3. Connect brackets with blades by the bolt. Load the upper cover plate and lower cover plate.
4. Fix the bolt in the mounting hole (at the end of the bracket) from the outside of the wind blade.
5. Tighten all the bolts of blades and brackets, and toggle the blades. It should not have abnormal noise or jamming. Tighten the nut (under the upper cover plate of the wind turbine) to make the upper cover plate tightly fixed.
6. Align the flange hole of the wind turbine with the flange hole on the tower pole, put on flat washers and spring washers, and tighten the nut.
7. Professional installation is highly recommended if you have no previous installation experience.
8. You can watch the attached installation video as a reference.
9. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
Specifications:
Color: White

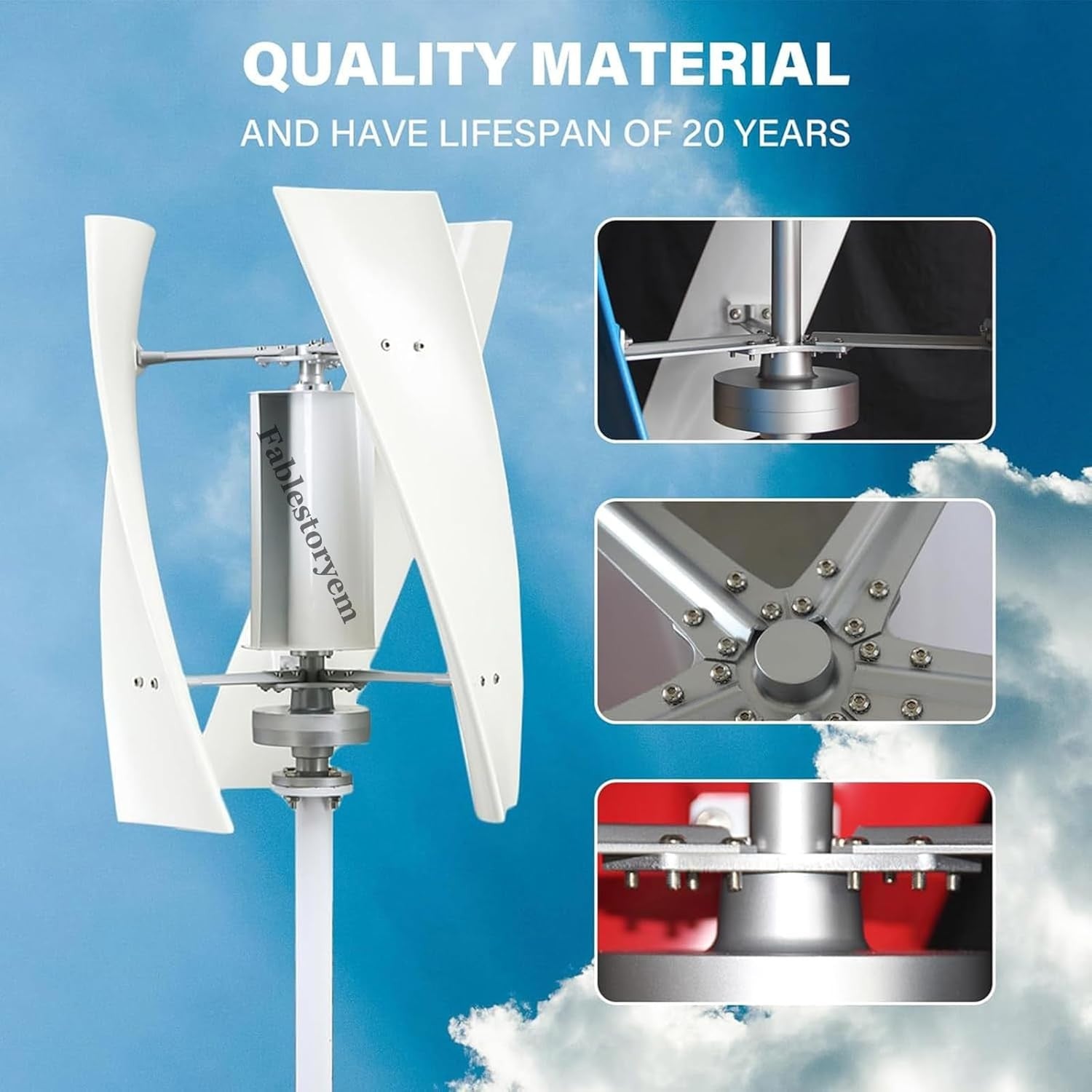

Material: Nylon Fiber, Aluminum, Copper, Stainless Steel
Process: Plastic Spraying

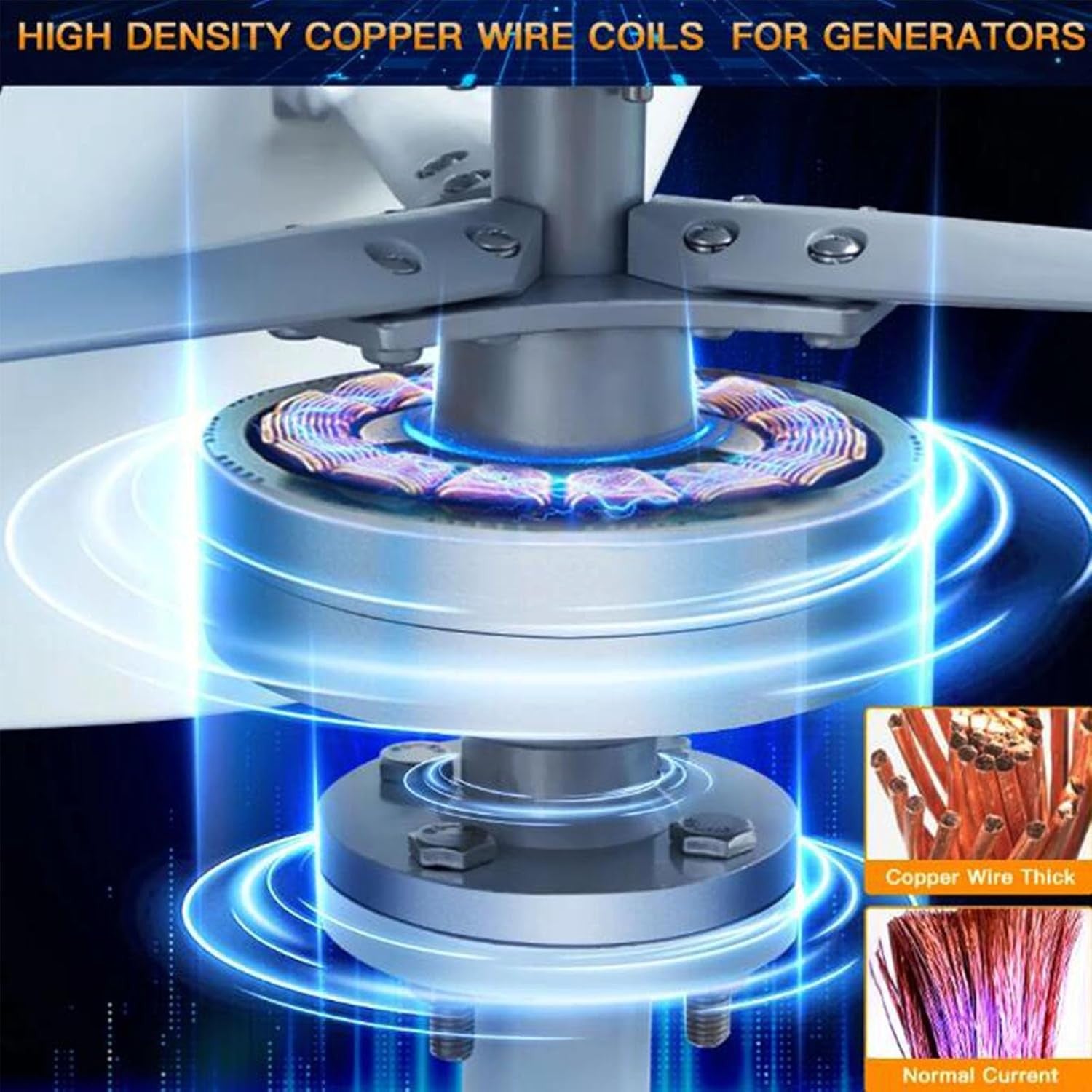

Generator Type: Copper Wire Permanent Magnet Levitation Generator
Braking Type: Electro-mechanical Brake
Controller IP Protection Level: IP67
Power Source: Wind Powered
Rated Battery Voltage: 24V
Fan Blades: 3
Maximum Power: 3000W
Rated Voltage: 24V
Wheel Diameter: 53cm/20.87in
Rated Wind Speed: 12m/s
Cut-in Wind Speed: 3m/S
Safe Wind Speed: 35m/s/78.29mph
Max Instantaneous Wind Speed: ≤40m(1575inch)/S
The Instantaneous Maximum Wind Speed: ≤45m(1772inch)/S
Start-up Wind Speed: 3m/s
Working Temperature: -40-80℃/-40-176℉
Noise: 30dB
Assembly Required: Yes
Product Size(D*H): 53*75cm/20.87*29.53in
Package Size: 86*38*20cm/33.86*14.96*7.87in
Gross Weight: 12kg/26.46lbs
Package Included:
1* Vertical Wind Turbine Generator
1* Controller
Notes:
5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

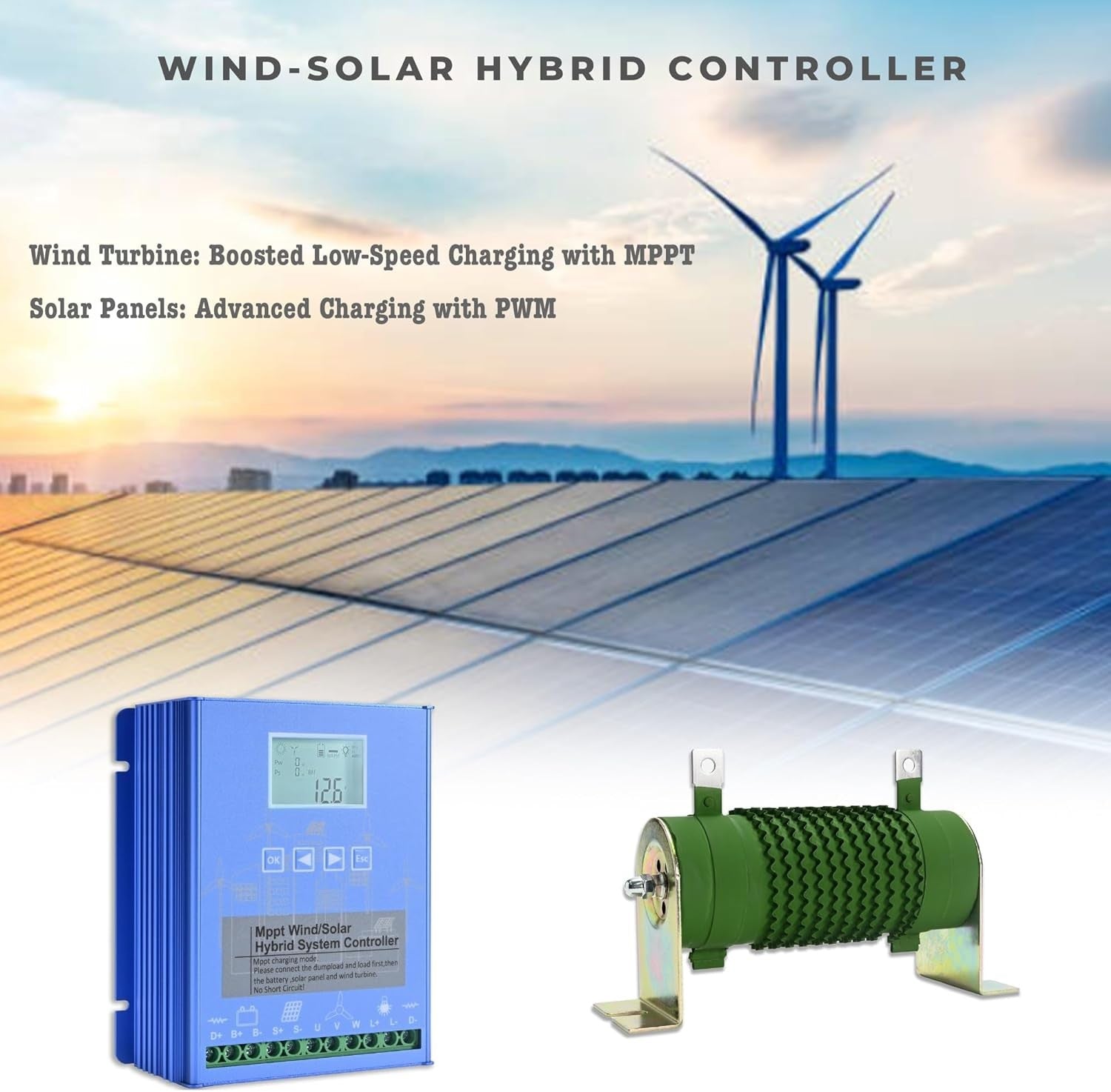

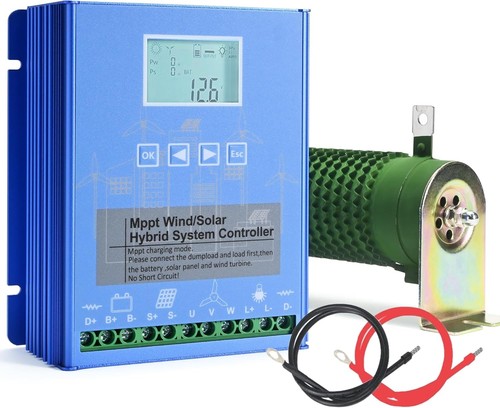

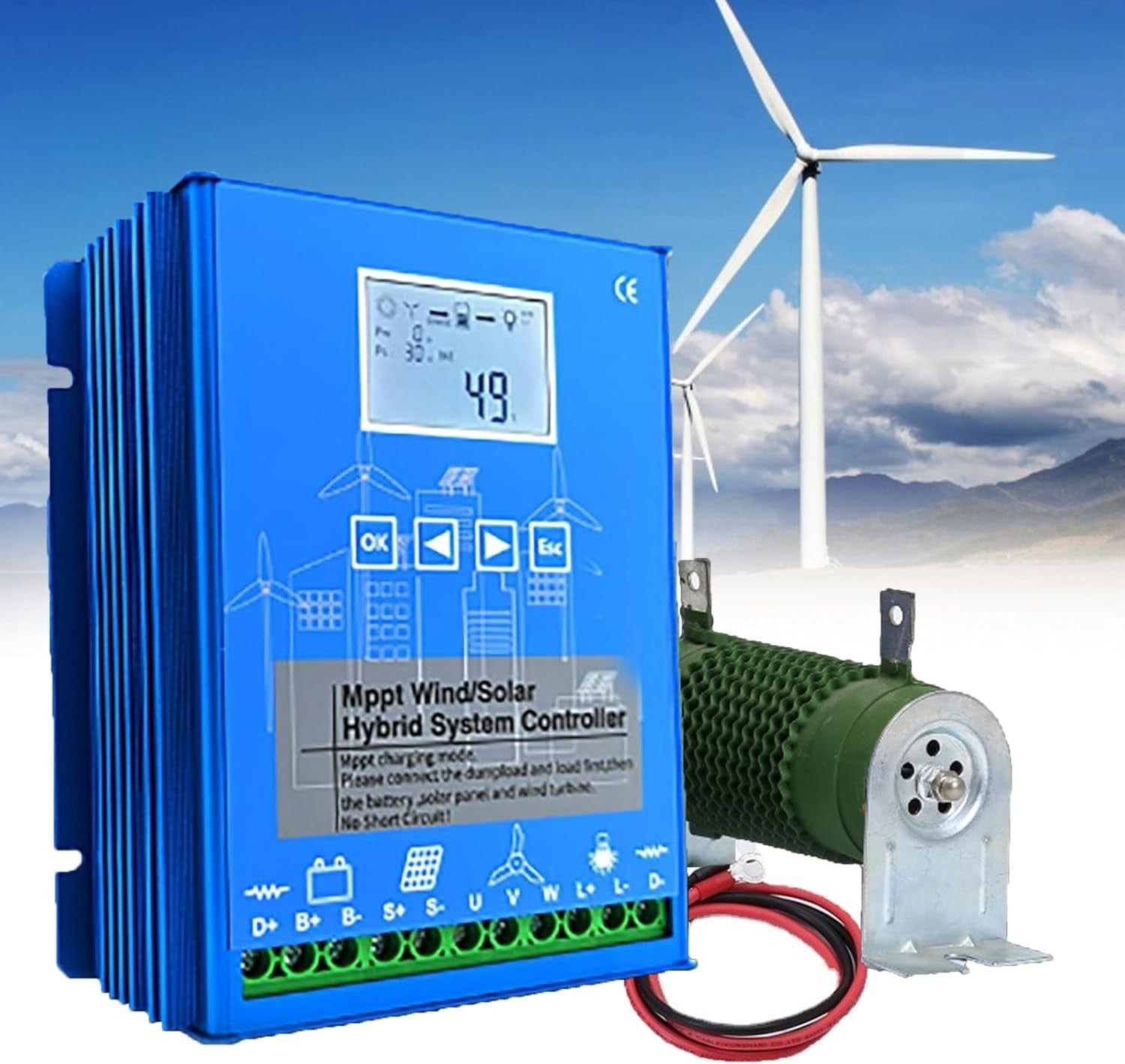

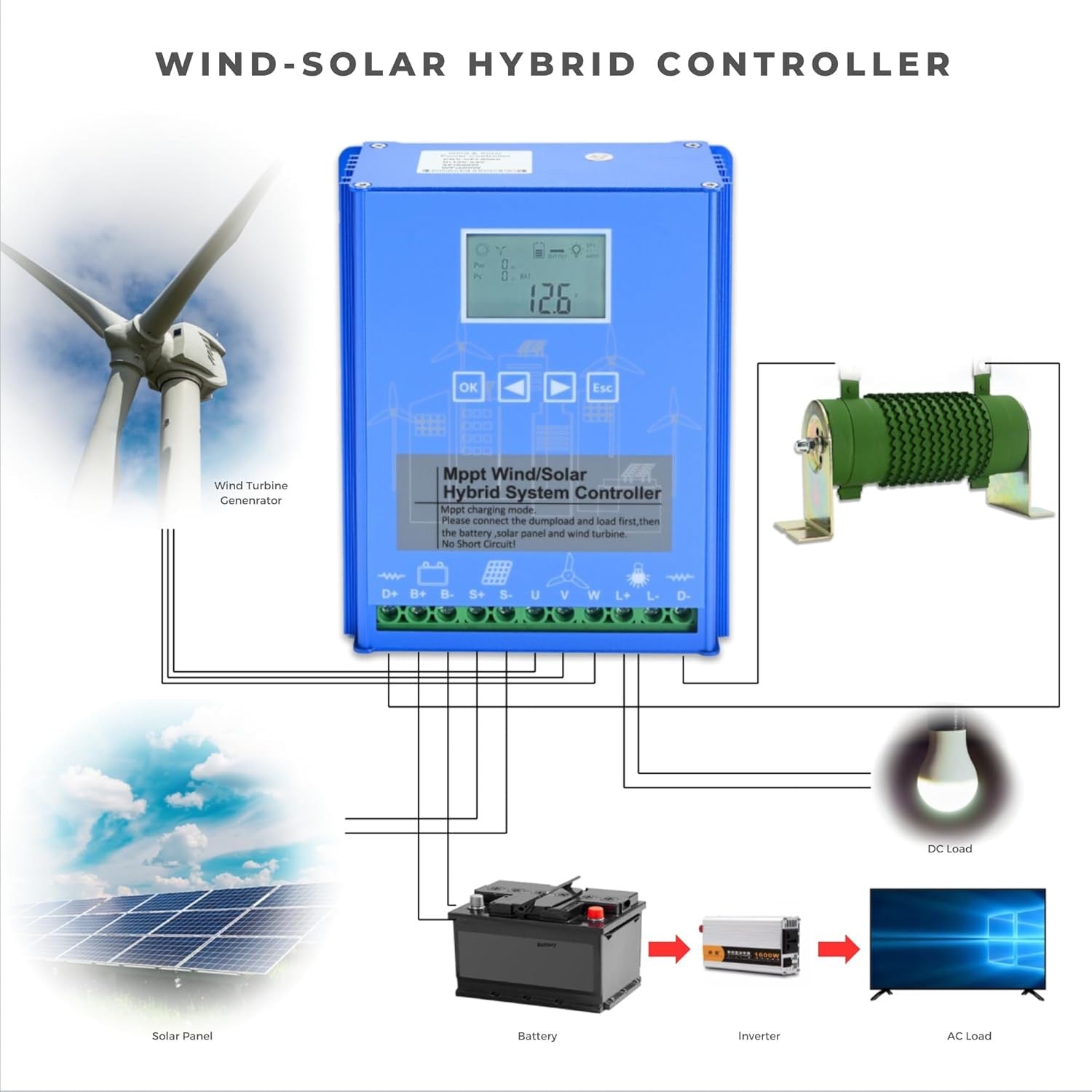

Hybrid Charge Controller
Specification:
Max input voltage:
1600W: Wind turbine≤80V solar panel≤95V
No-load Current (DC): ≤0.05A
Controller power mode: Battery or solar
Control mode : Wind generator MPPT boost charge、PWM dump load、PWM Over currentLimiting function
Output working mode(Mode): Mode 1: Light-control on. Light-control off (3modes adjustable)
Display content: LCD display,Voltage,Percentage of battery power, Current, working mode of load,etc
Protection type: Solar Reversed Charging protection，Battery open circuit protection、battery anti-reverse connection protection protection、Over current and over voltage auto brake protection、Over load protection,etc.
Cooling mode: aluminium profiles Heat dissipation and self-cooling
Working temperature / Relative humidity: -25℃~+80℃ /0~90%，non-condensing
Net weight / Gross weight: 2.35/2.85kg

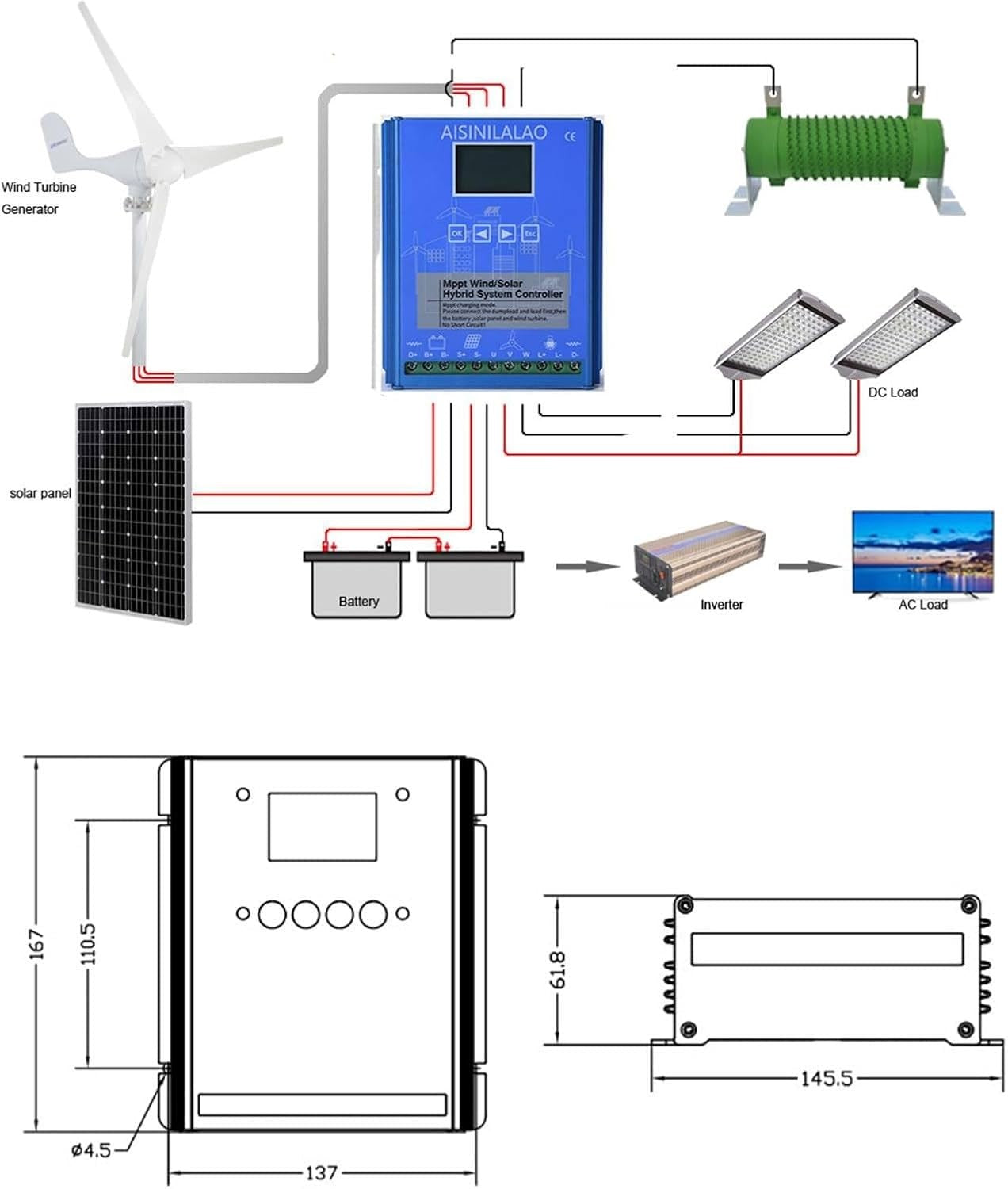

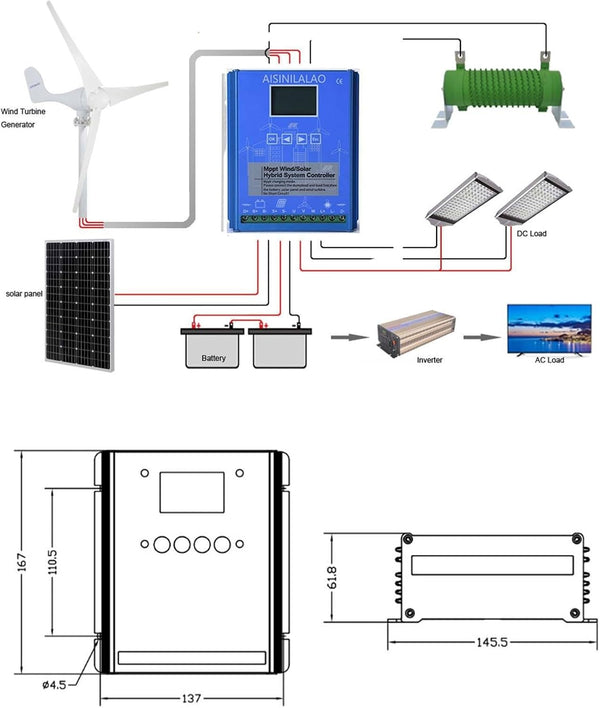

Controller size/Pack size: 167mm*145.5mm*61.8mm/360mm*250mm*120mm
Description:

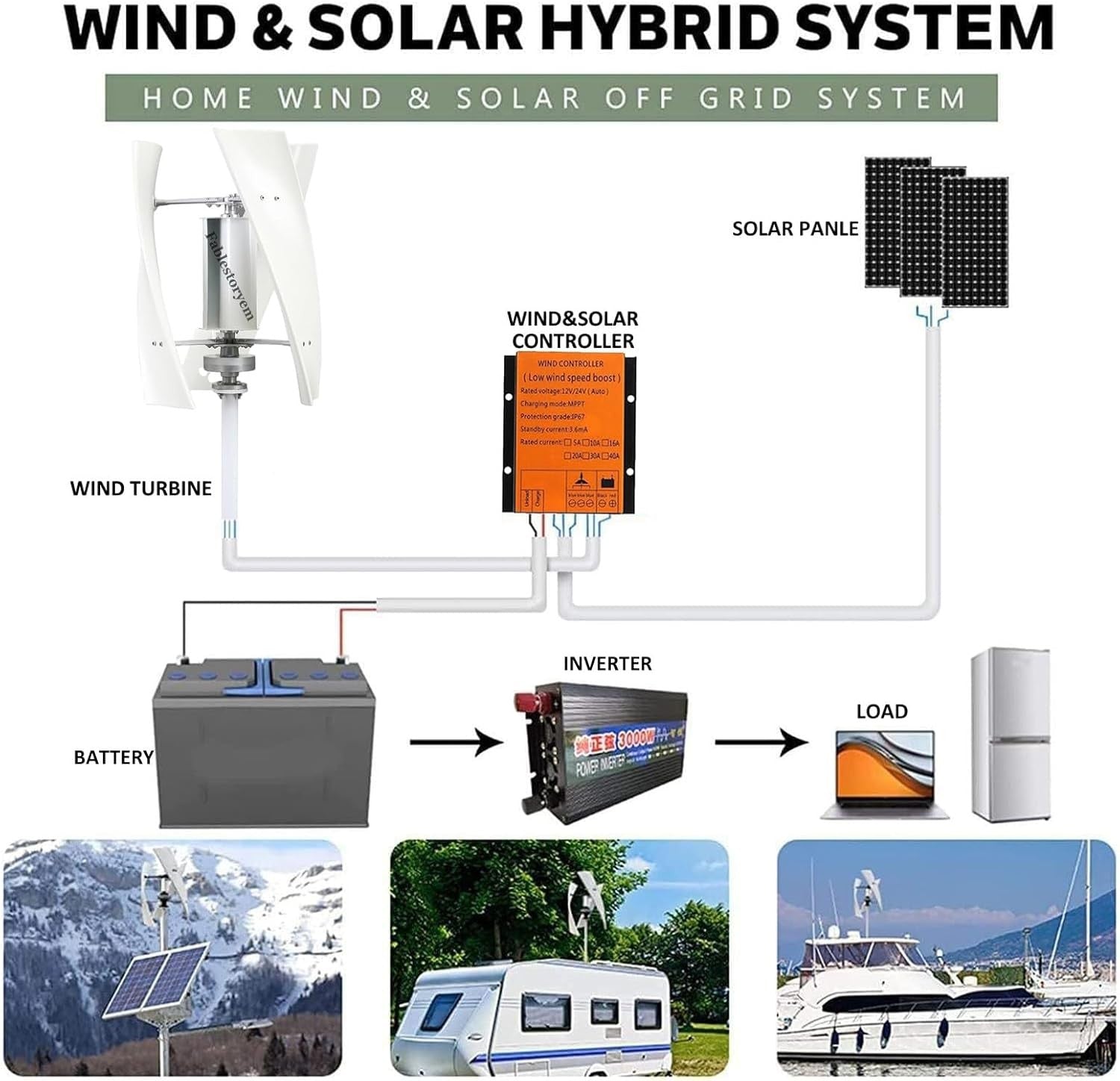

- 1. Scope of application: this hybrid charge controller fits all 24/48V batteries, including lithium battery. Solar Panels for Wind Solar Supplement System for Home Boat Street Lamp
- 2. Operating system: The charging area of the wind turbine uses booster MPPT technology, which makes it continuously and efficiently charged, even at low wind speed. Continuous loose function including external dump charging resistor. Charging solar modules uses PWM technology through MOS tube in series.
- 3. Intelligent and stable system: the parameters are set automatically after selecting the battery type. The user can also customise by their own requirements. This system has been intelligently updated to keep the charging voltage completely stable.
- 4. Display & DC load mode: larger LCD display, which is easy to search and handle. Two DC loads (output) with 4 output modes and each can be set a different model.

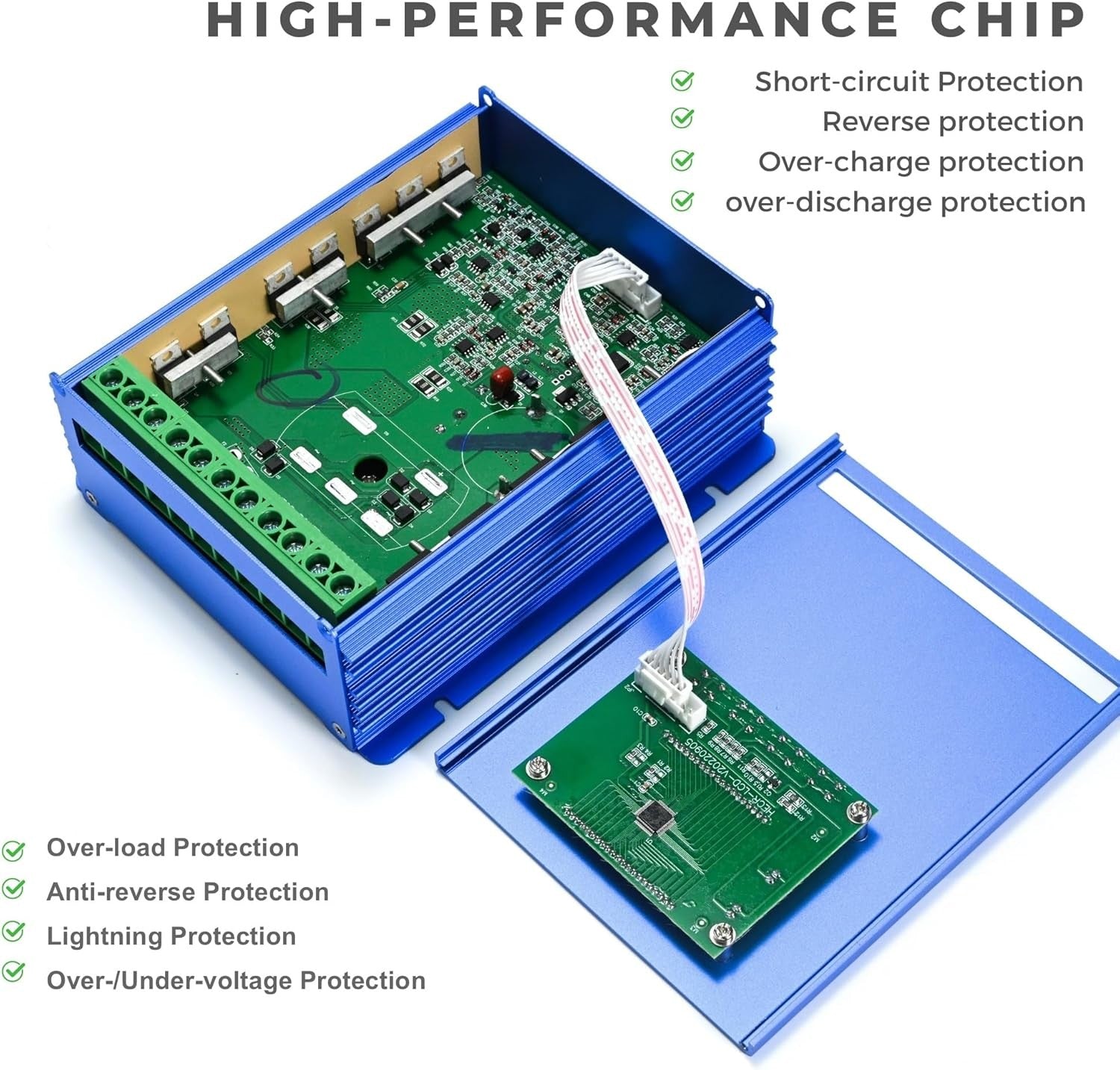

- 5. Protection function: reverse charging protection of solar, overcharge voltage/under voltage and overload voltage protection, battery reverse connections and open circuit protection, lightning protection, etc.
Features:
** Wind MPPT charging method, ensure the power get max input into the battery and high charging efficiency.
** Can be used for 1600W wind turbines with high compatibility.
** Independent Boost Circuit: The charging efficiency of the low-power vertical wind generator has been solved.** 24V/48V system auto-detect function.
** Mini size, easy to install.** LCD display with visible and intuitive parameters.
** Rated wind power: 100-1600W
** PV Rated Power: 100-1200W
Package Included:
1 set*24V48V MPPT Controller
Note:
We do our best to ensure all descriptions and product images are as accurate as possible.
Some colour variations may occur between computer monitor.
<
