Heavy-Duty Durability: Our metal concealed hinge jig is built tough for years of use—no more misaligned cabinets. Cabinet hinge jig built-in double bearings ensure smooth, non-stop 35mm drilling, while the sharp carbide-tipped bit cuts clean holes in seconds. You get drill-press accuracy, even if you’re a beginner. The quick measurement depth range is from 0 to 25 millimeters. Note: The drill bit does not indicate the precise measurement. During drilling, you need to measure the depth of the hole yourself

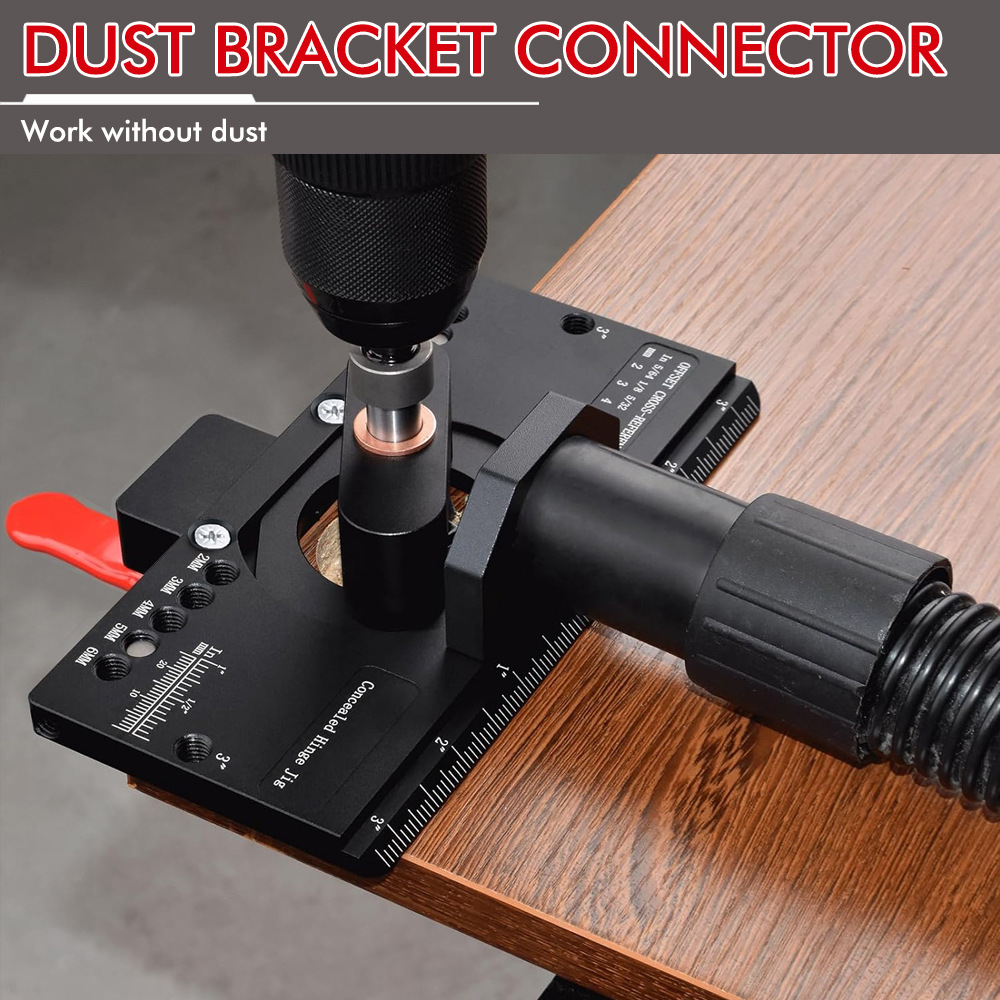

Cabinet Hinge Jig: Keep your workspace tidy with the integrated metal dust port—cabinet door hinge jig designed to fit most shop vacuums (fit with 1-3/8 inch hoses) and trap wood chips as you drill. Cabinet door hinge jig upgraded dust-collection system eliminates post-project cleanup and prevents dust from interfering with drilling accuracy

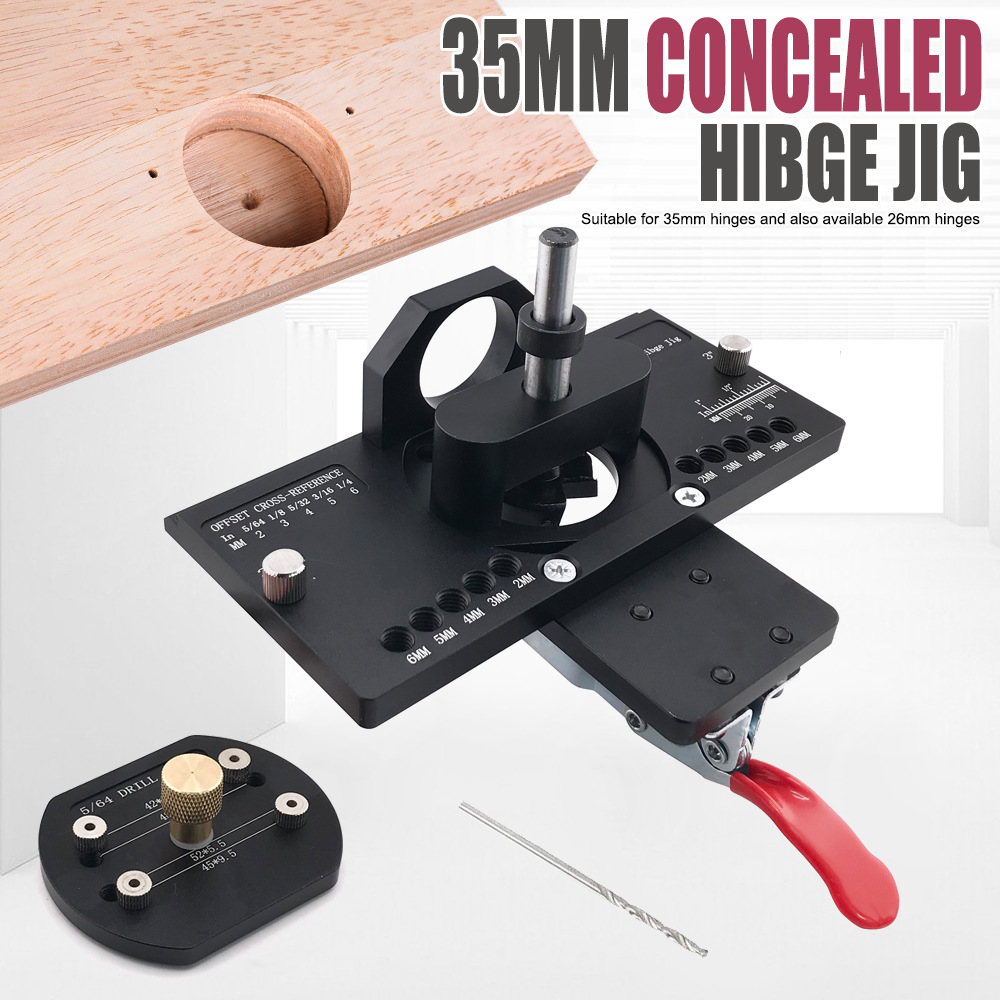

One-Step Ease for Fast: Door hinge jig features quick depth adjustment for 35mm style hinges, plus a fast-release clamp that secures to cabinet doors in under 3 seconds. Cabinet hardware jig streamlines repetitive drilling tasks, making it simple to install 1/2 inch overlay hinges (and more) without fumbling with tools or rulers.The quick measurement depth range is from 0 to 25 millimeters

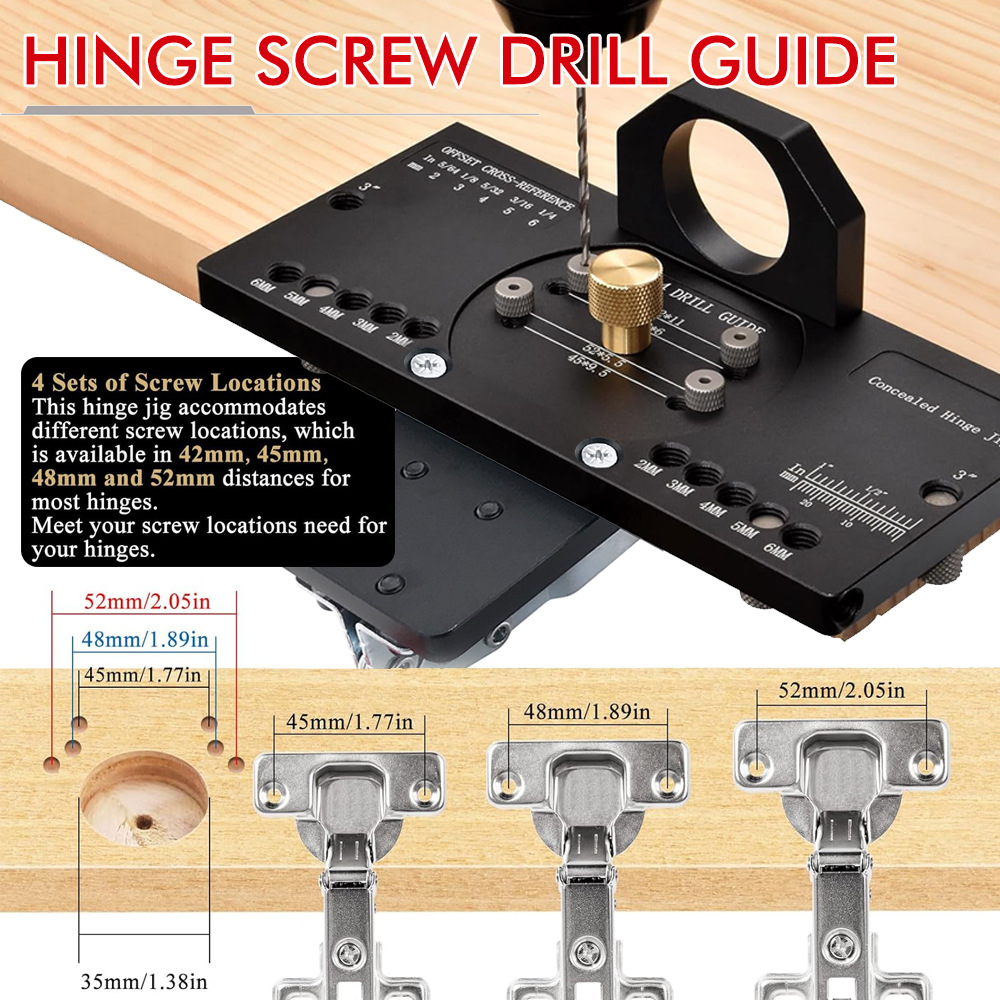

All-in-One Versatility for Most Hinge & Panel Types: Concealed hinge jig adapt to nearly any concealed hinge project. Cabinet hinge jig works with 2–6mm hinge offsets and includes drill guides for 4 common screw hole patterns (42x11mm, 48x6mm, 52x5.5mm, 45x9.5mm). Door hinge jig ideal for kitchen cabinets, closet doors, new installs, or hinge replacements
Wide Application: Offering wide application for hinge installations, the Door Hinge Jig is the ultimate solution for DIY enthusiasts and professionals alike. Door hinge jig ideal for kitchen cabinets, closet doors, new installs, or hinge replacements. Concealed hinge jig letting you focus fully on your cabinet hinge installation
Key Features
Color: Black

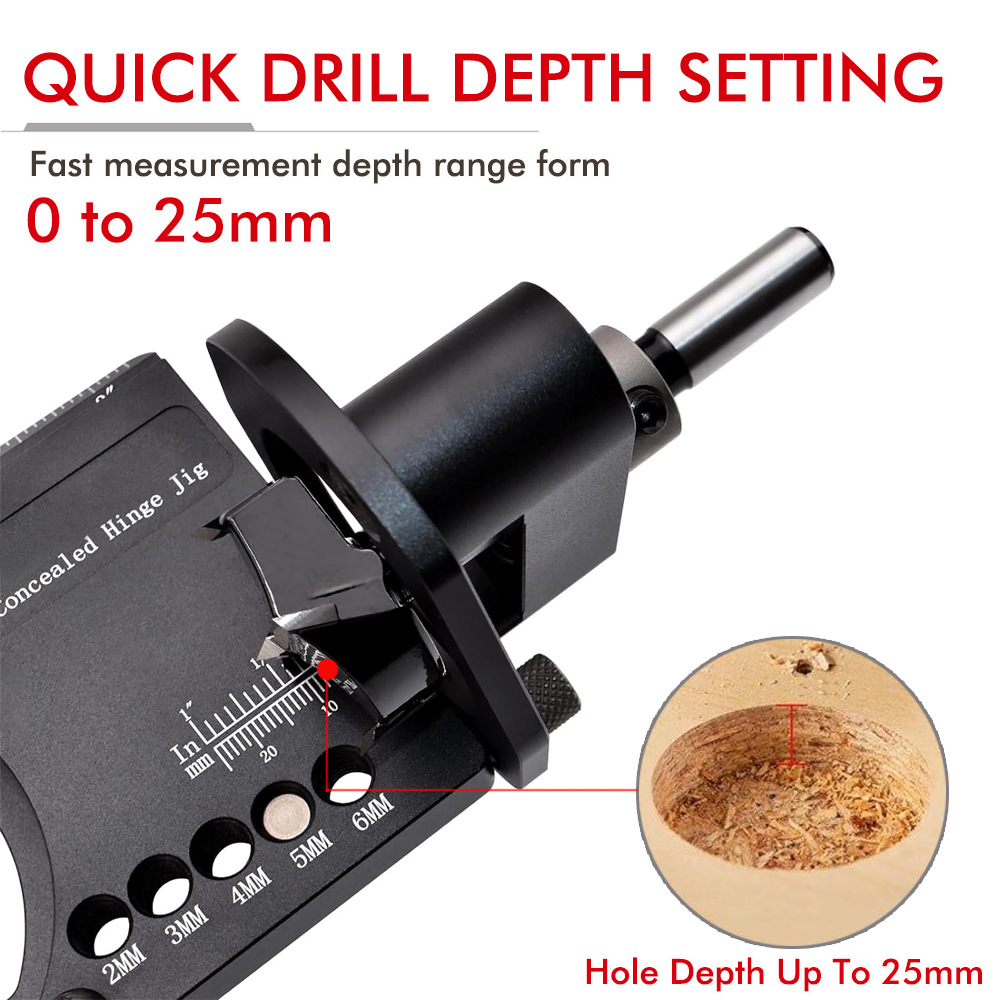

Drill Depth: 0-0.984 inch
Vacuum Tube Adapter: 1-3/8 inch
Hinge Hole Drilling Jig: 1.38inch (35mm)
Drill Bits: 5/64 inch (2mm)

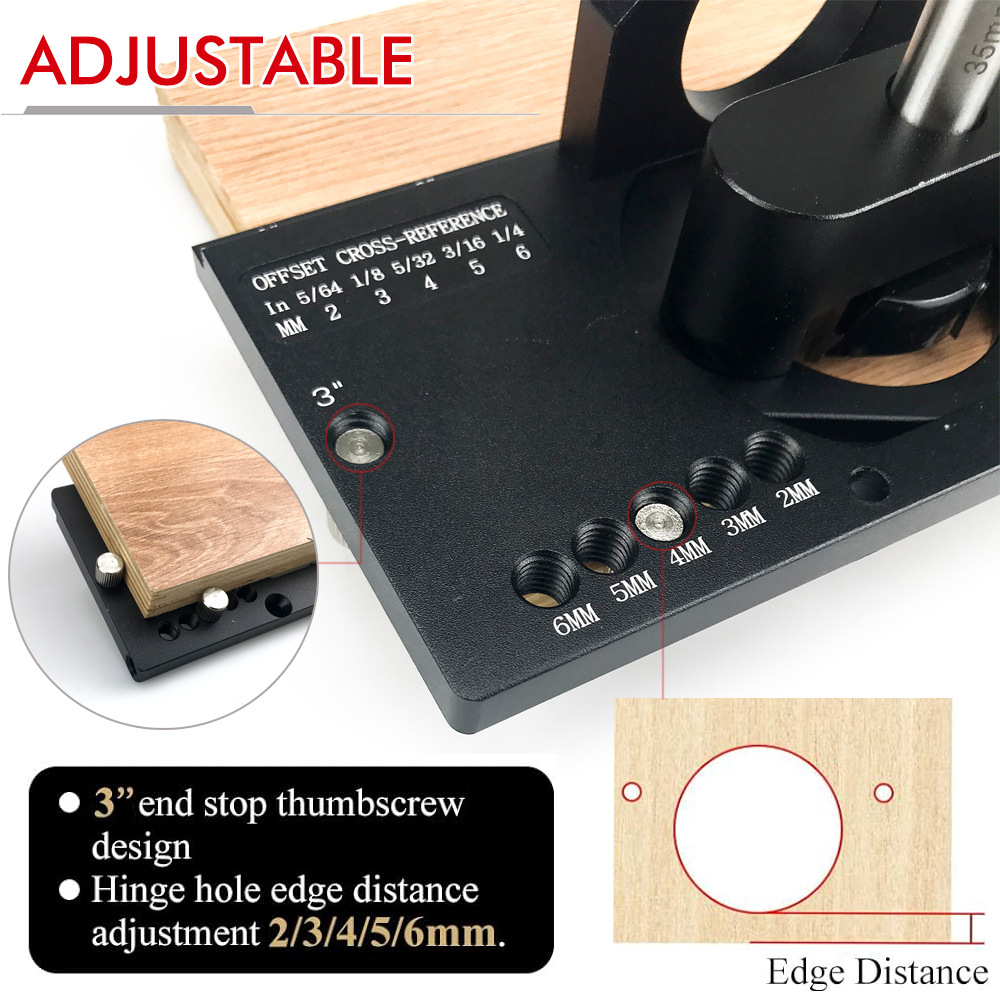

Hinge Offsets: 2mm, 3mm, 4mm, 5mm and 6mm
Hinge Screw Holes Spacing：42x11mm, 48x6mm, 52x5.5mm, 45x9.5mm

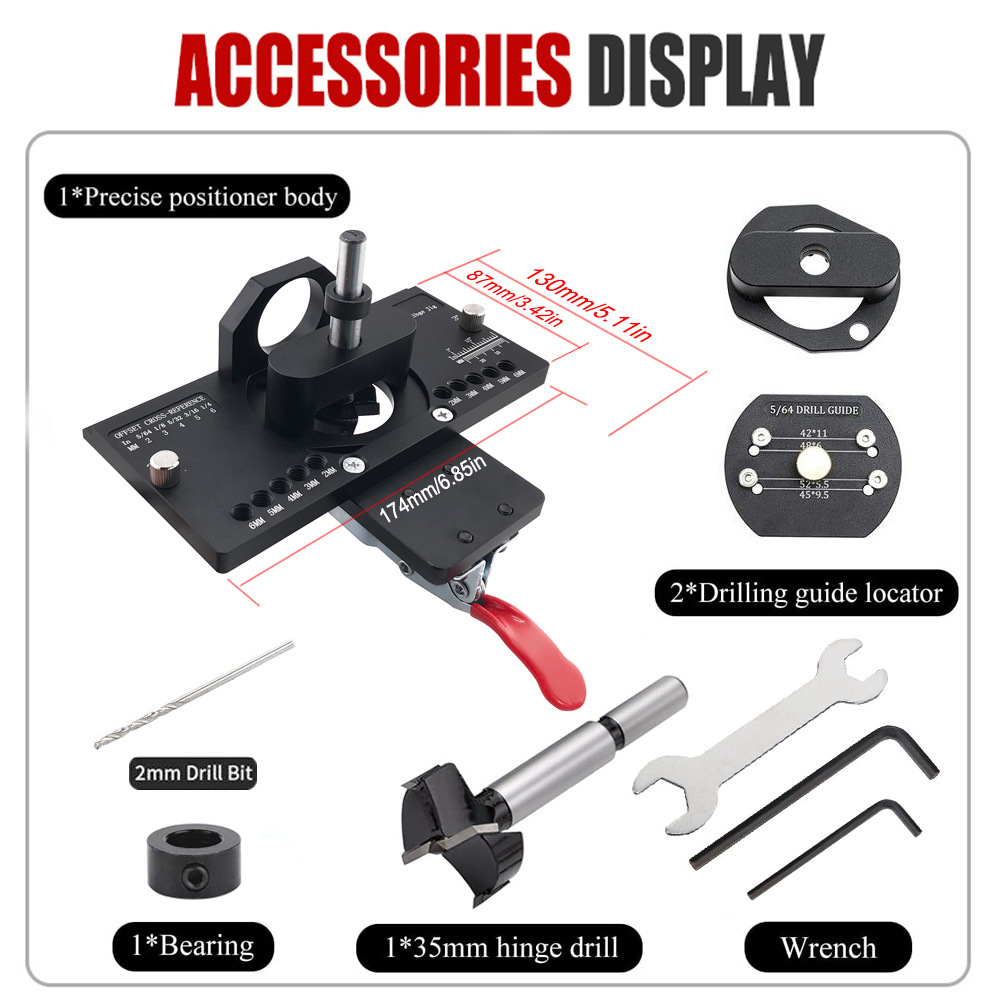

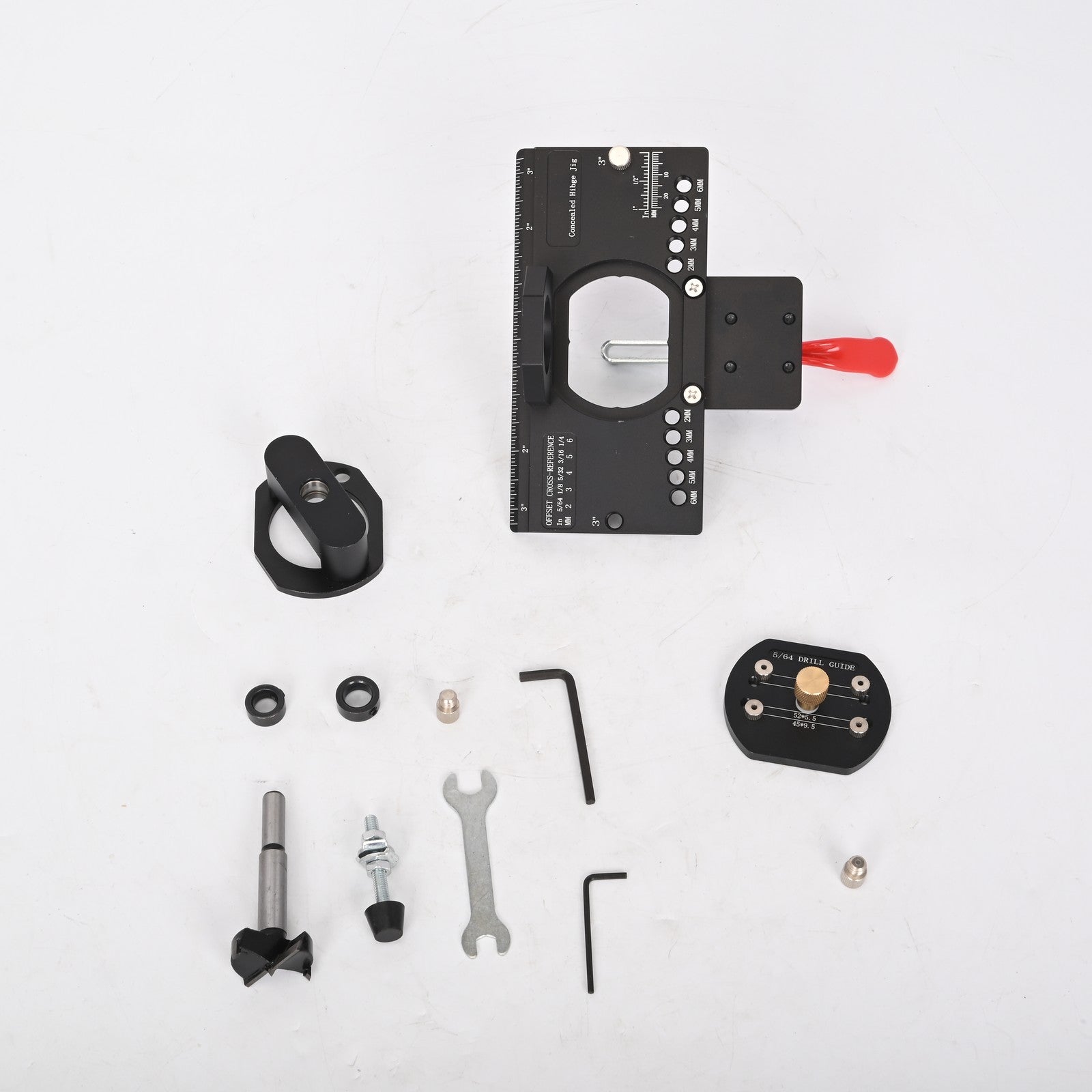

Package Content
1X Hinge Boring Hole Drill Cuide Body
1X 5/64 inch Drill Bit
1X 35mm(1.38 inch) Super Hole Cutter
1X 5/64 inch Drill Guide Locator
1X Drilling Guide Locator
1X Dust Callection Adapter
1X Bearing
1X Hex Wrench
1X Wrenchs
2 x Nuts
