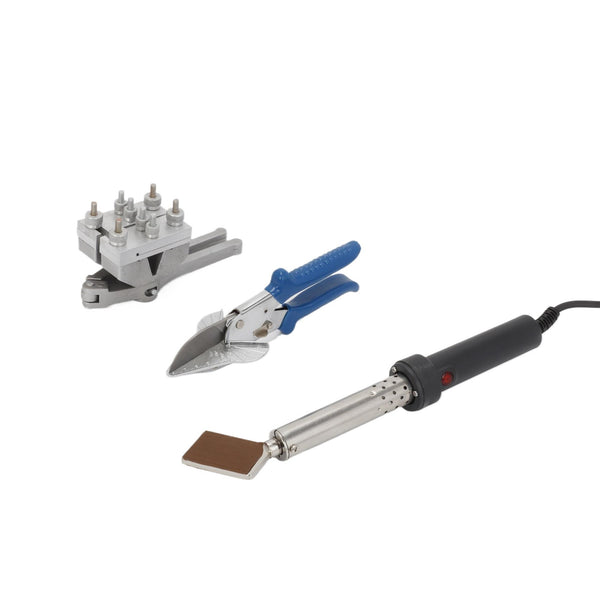

250℃ PU Round Belt Welding Machine Drive Belt Connector Hot Melt Machine 150W
PRODUCT DETAILS
Description:

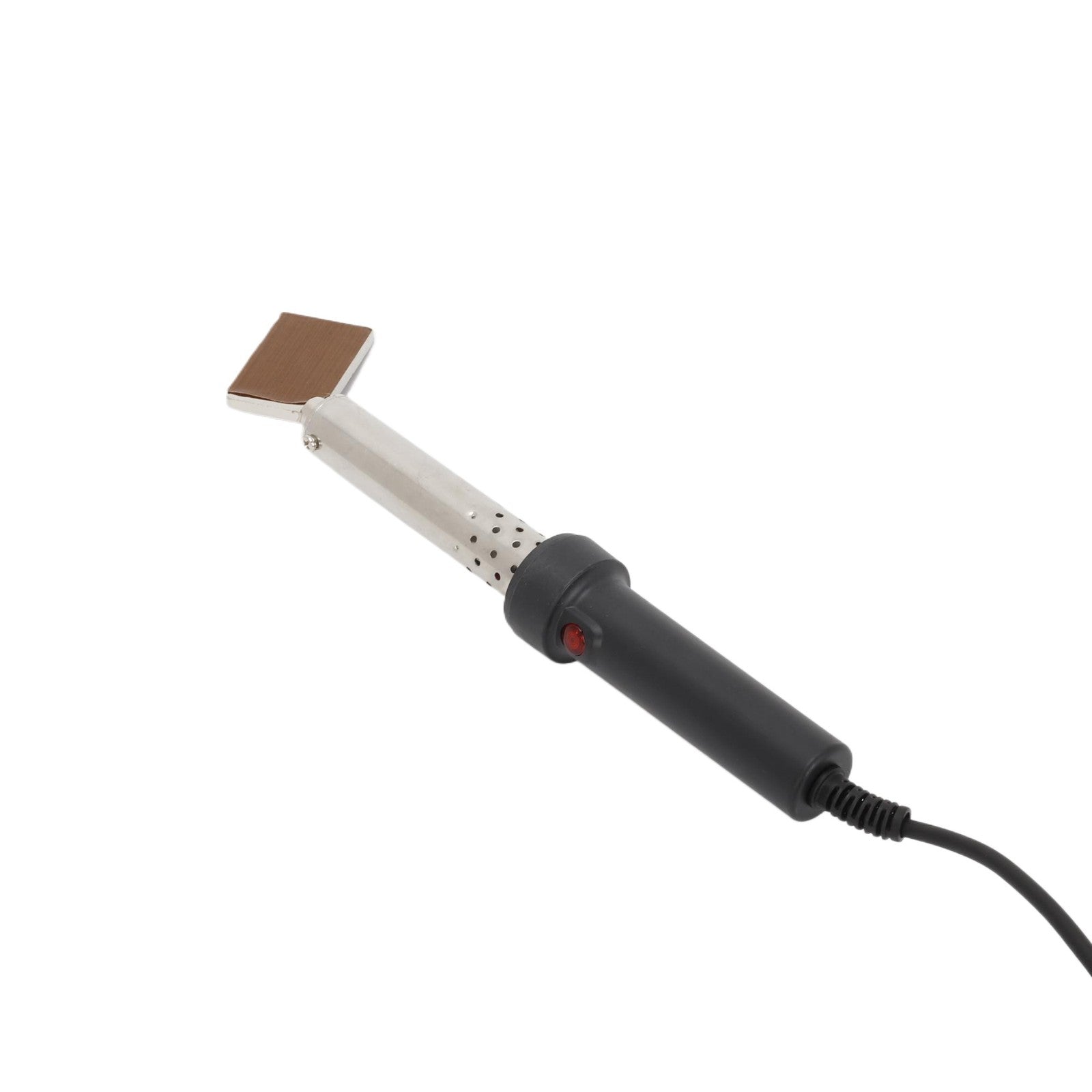

- PU round belt welding machine is a device that maintains a constant temperature by heating to a certain temperature.
- This device is easy to use and easy to operate, very stable effect is good, bonding belt forming effect fast, the belt will not break. not hot, easy to use.

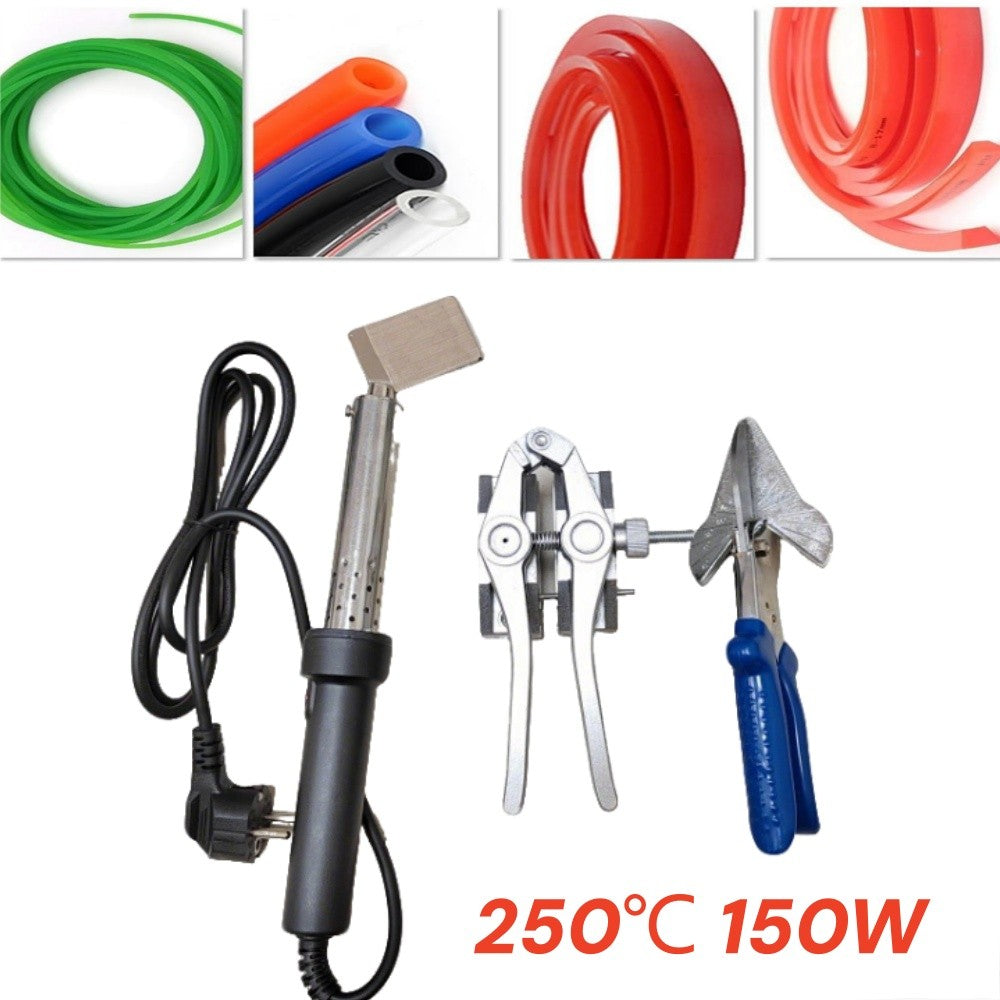

- Fit for PU V-belt, PU Pentagonal belt, PU round belt, PU tube, Plastic strips and other products can be easily melted.
- The temperature of the equipment is usually between 150℃ and 300℃
Specification:
- Voltage: 220V
- Power: 150W
- Temperature: 250°C
Package:

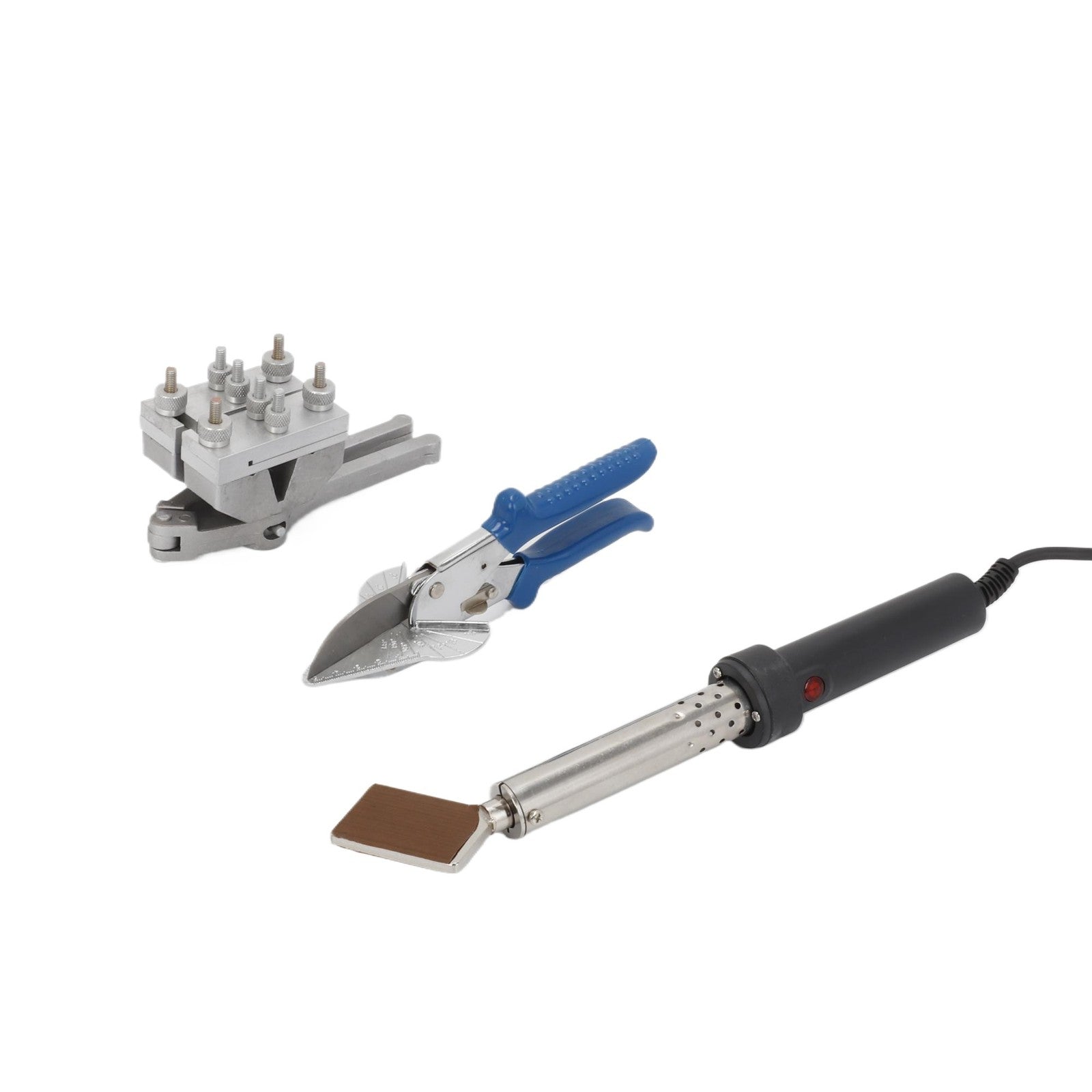

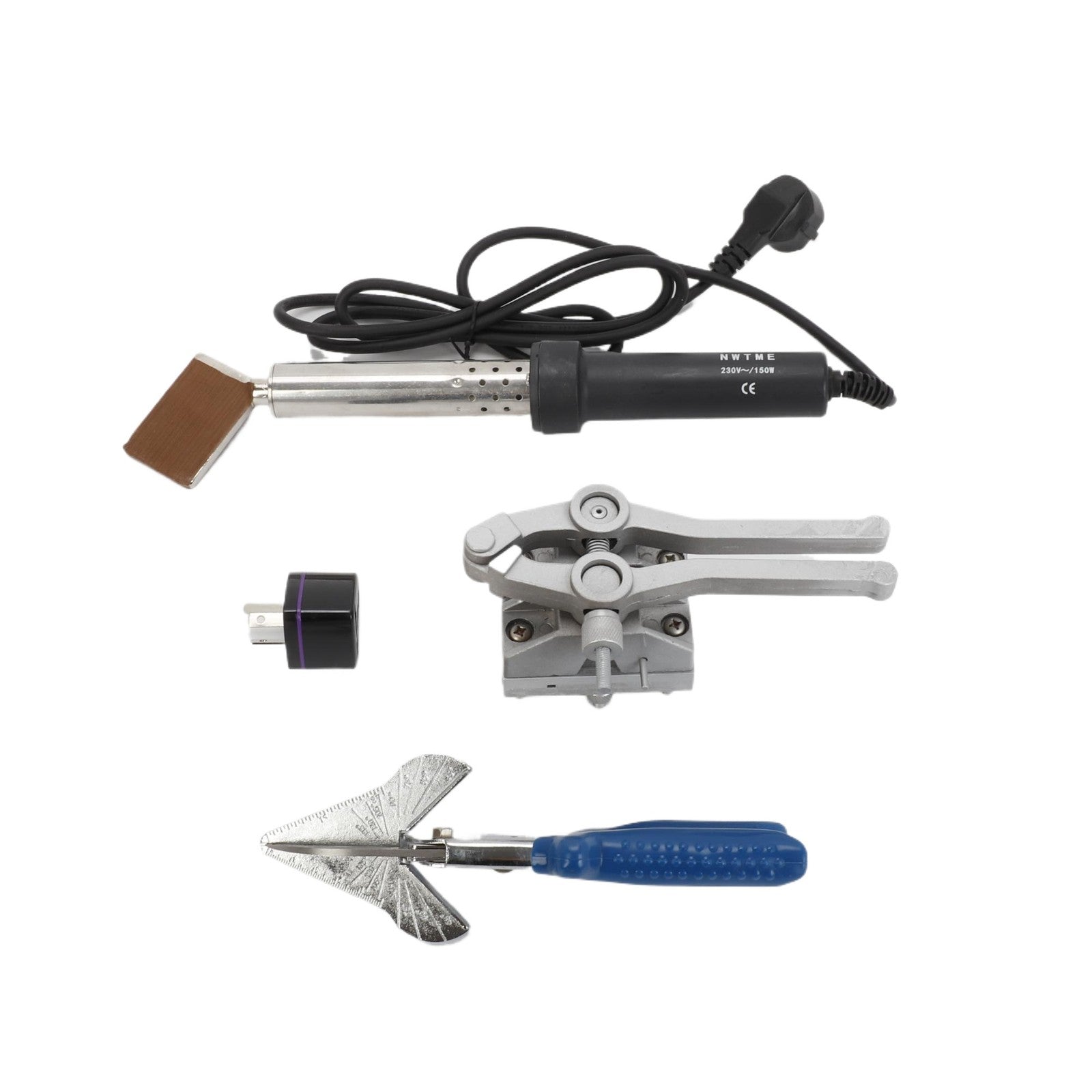

1 welding tool kit

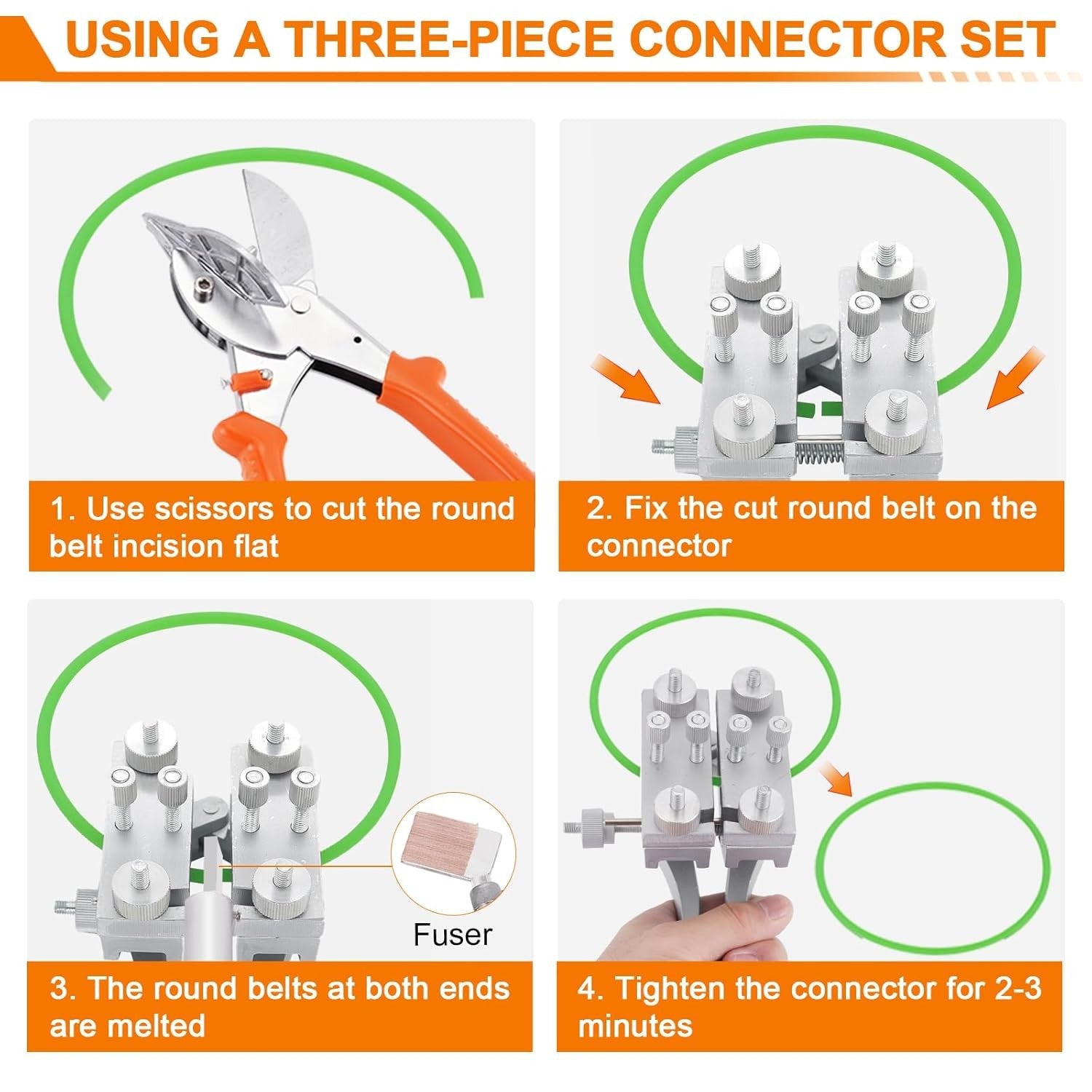

How to Use:

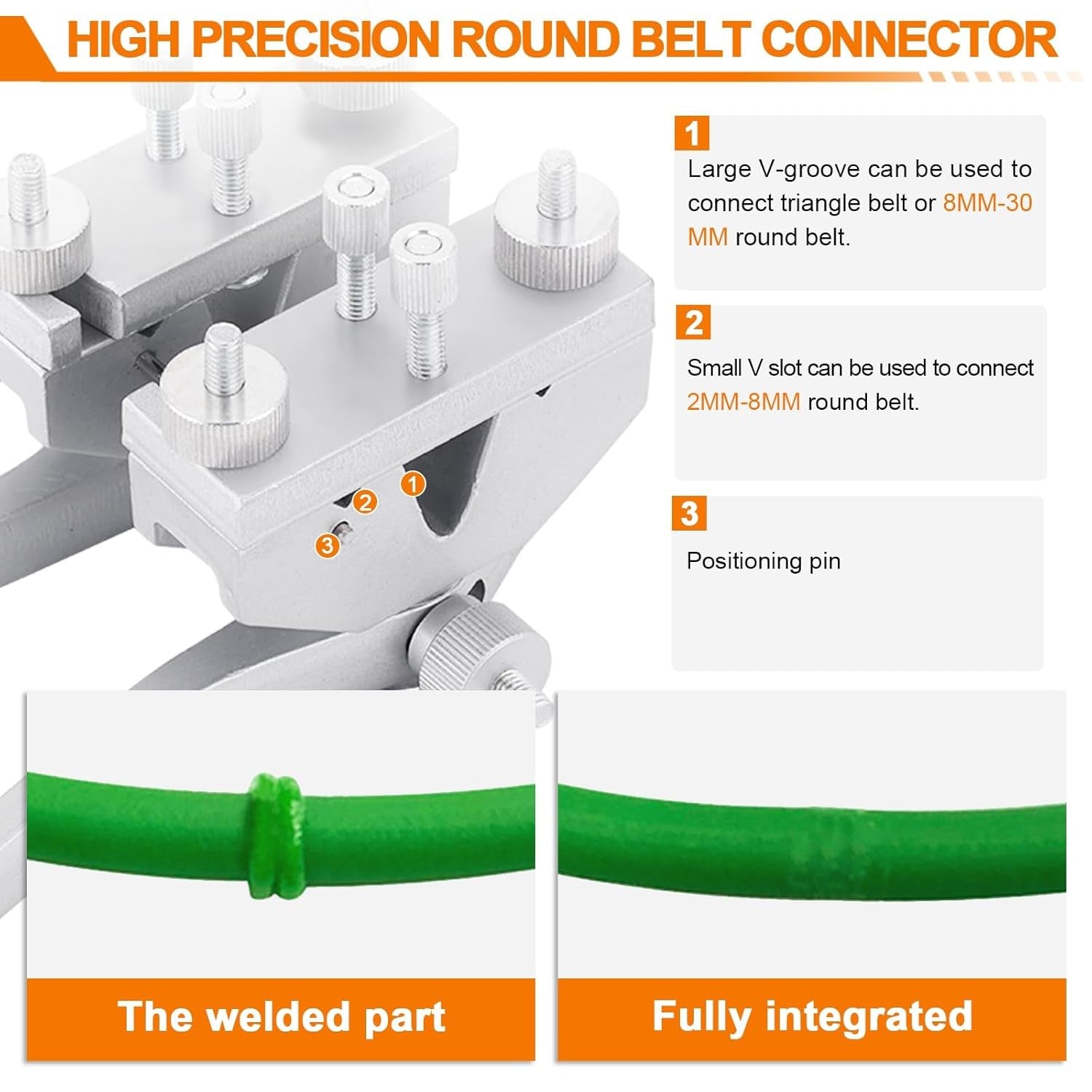

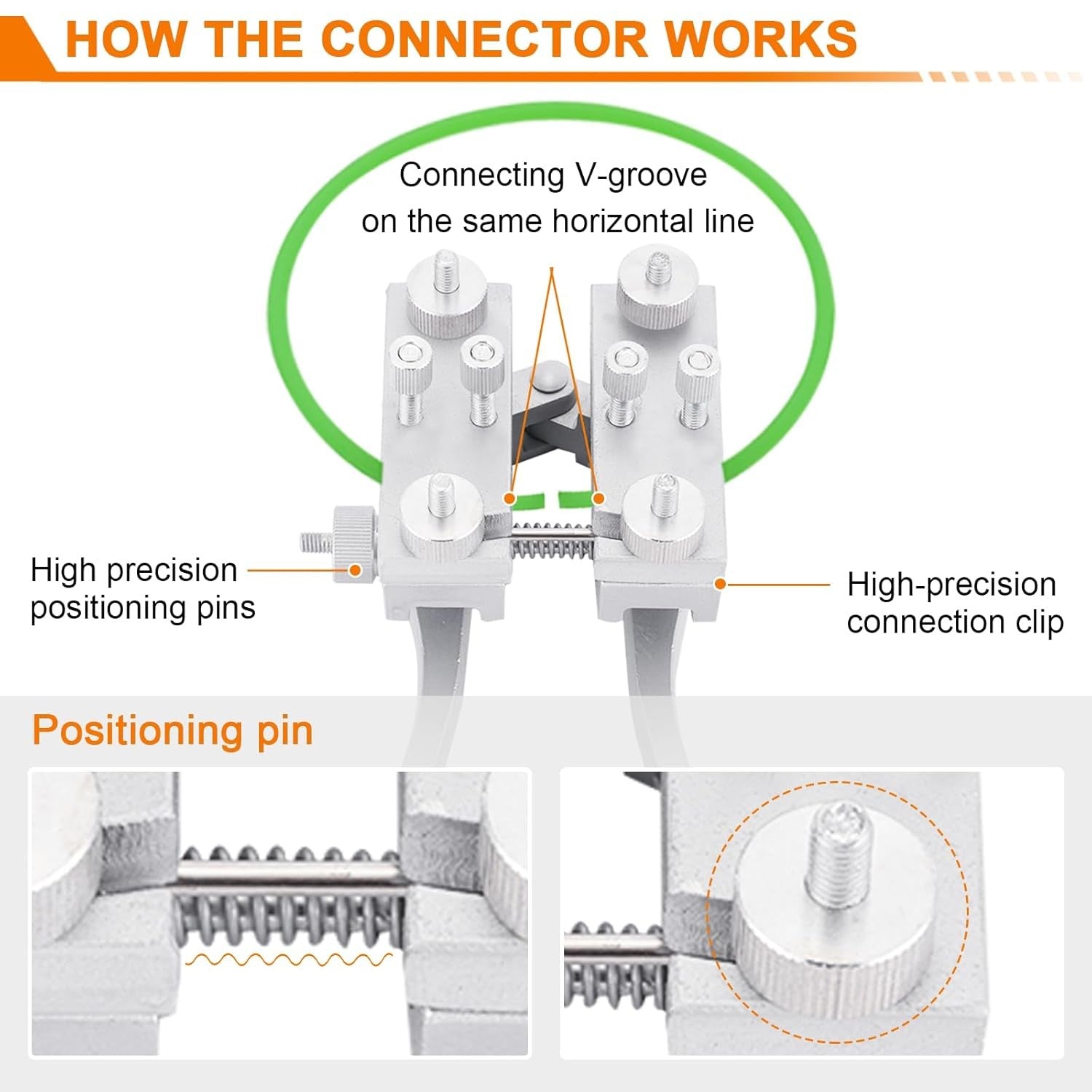

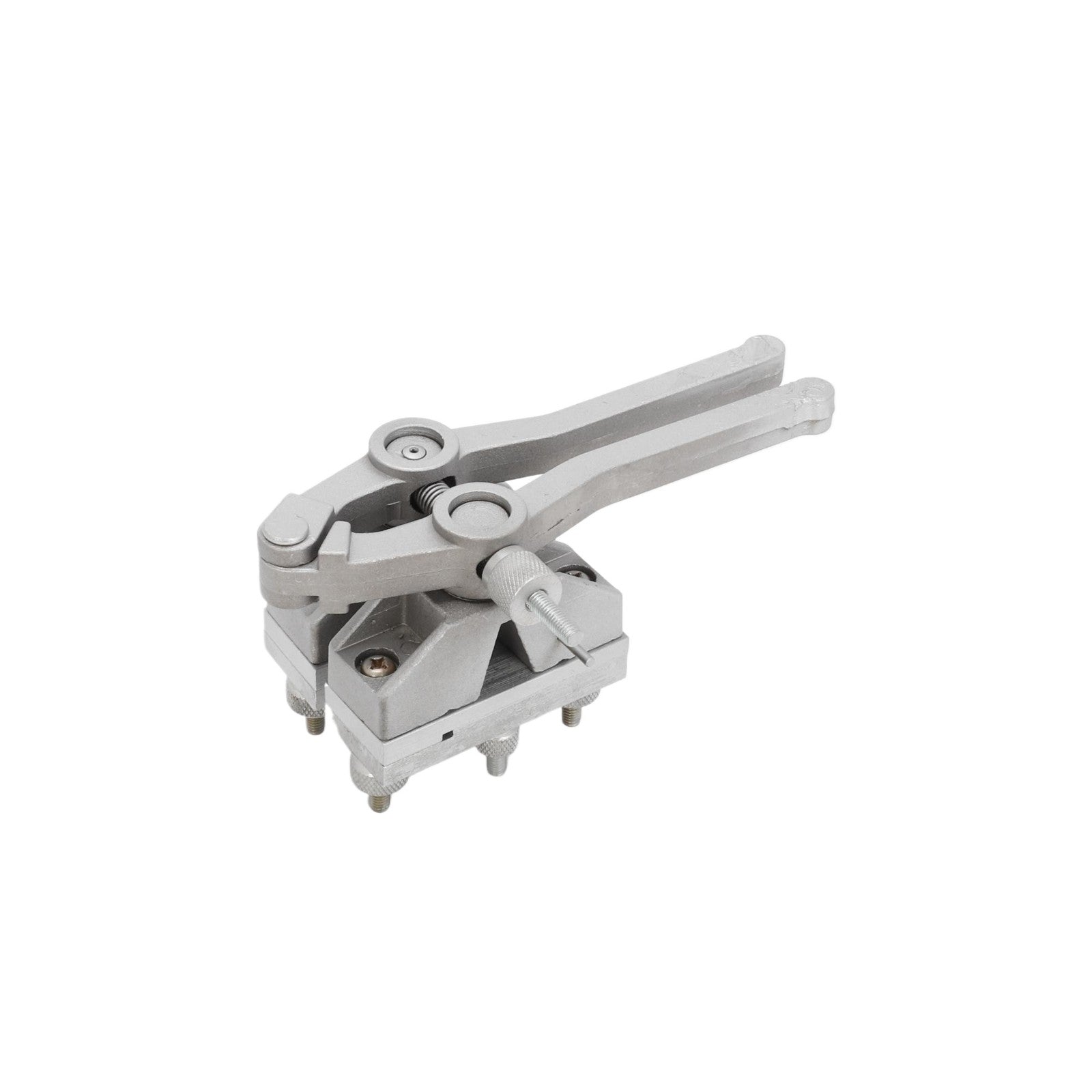

- Unscrew the two large screws at the bottom to open the clamp jaws. Place the two ends of the belt to be joined into the clamp, then tighten the four middle screws to secure the belt ends firmly. (Note: Ensure the two ends of the belt are aligned properly).
- Place the clamp with the secured belt ends into the gap between the pre-heated heating plates. Grip the clamp handles firmly and heat for approximately 30 seconds, until the belt ends melt into a plasticized/pasty state. Remove the clamp from the heating plates (Note: Keep the handles gripped tightly at this stage). Then, tighten the screw on the left side of the clamp to lock it in the closed position.
- Allow the spliced joint to cool for about 5 minutes. Then, loosen the screws mentioned earlier, open the clamp jaws, and remove the now spliced belt. Let the belt rest for another 5 minutes.

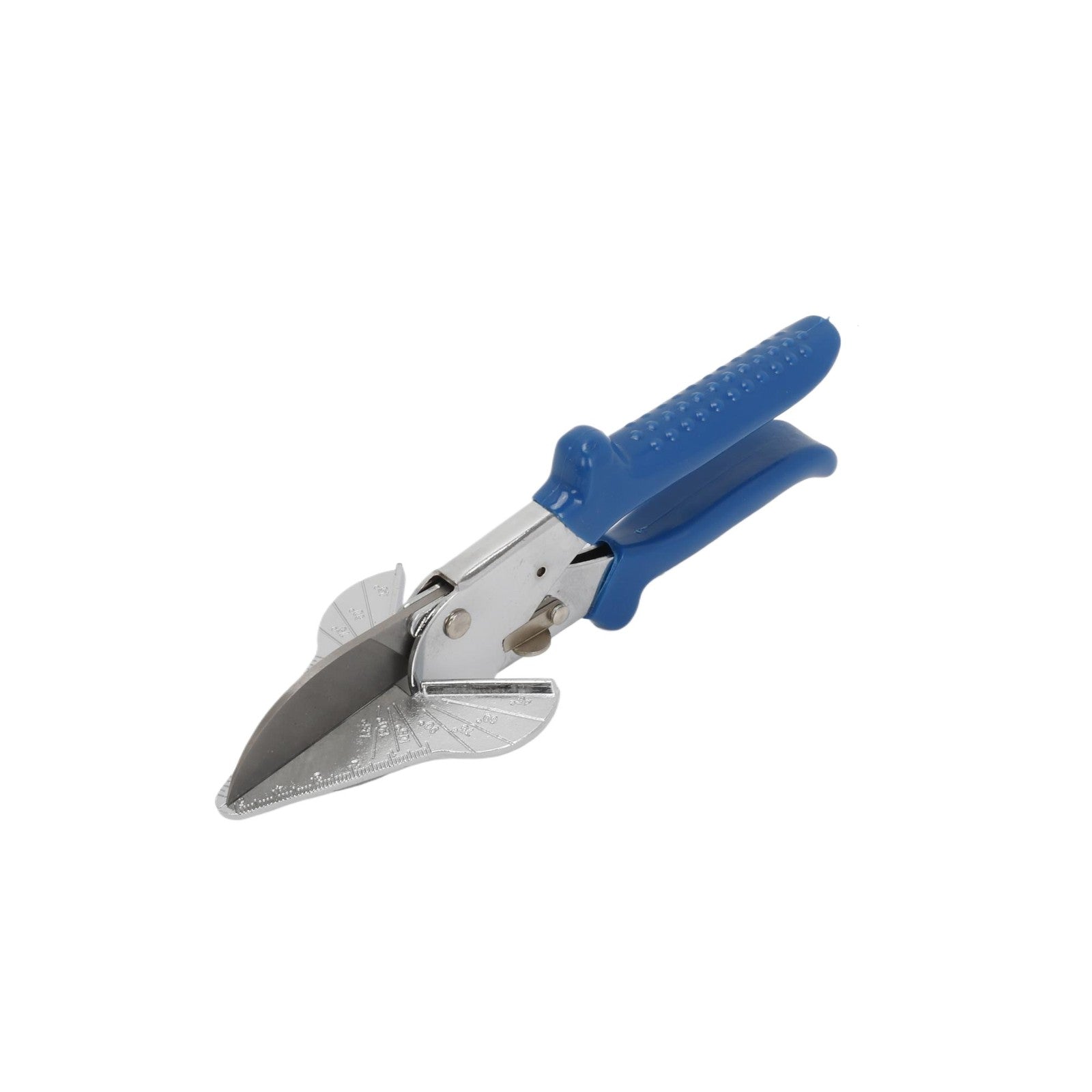

- Trim the cooled belt joint neatly with scissors to finish the process.
- Suitable for splicing polyester belt diameters: 8mm - 22mm. To splice larger belts, replace the screws with longer ones accordingly.
