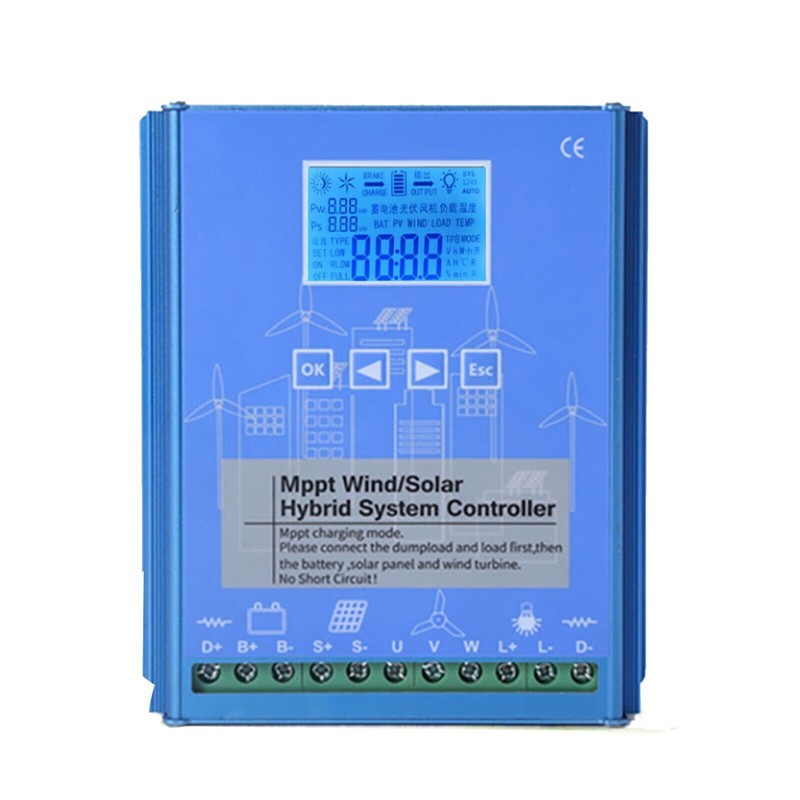

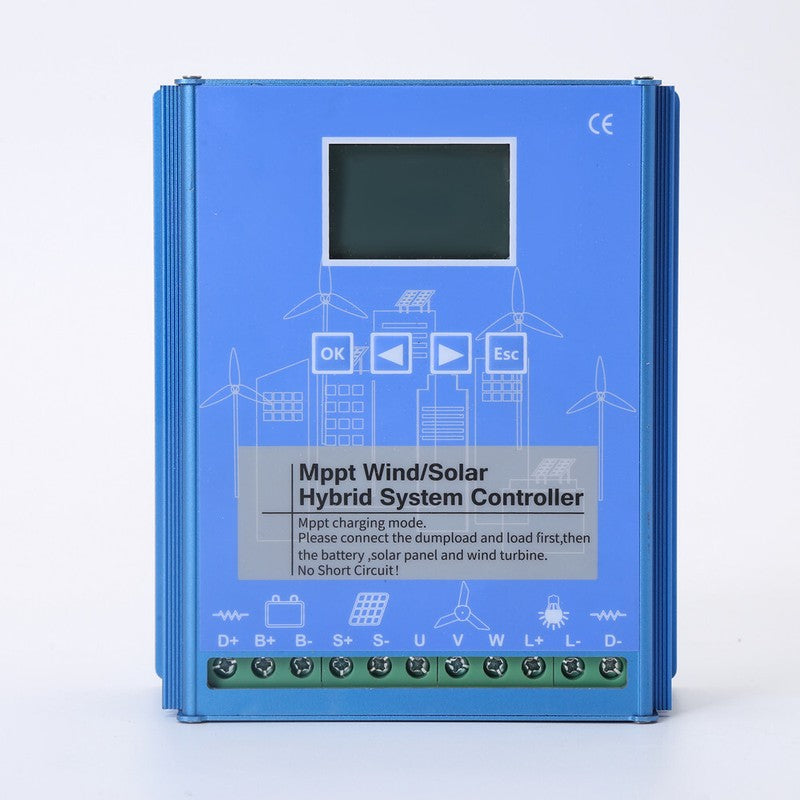

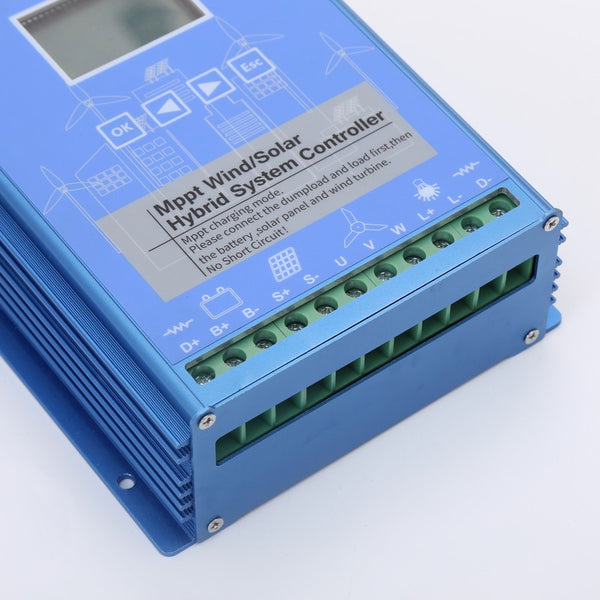

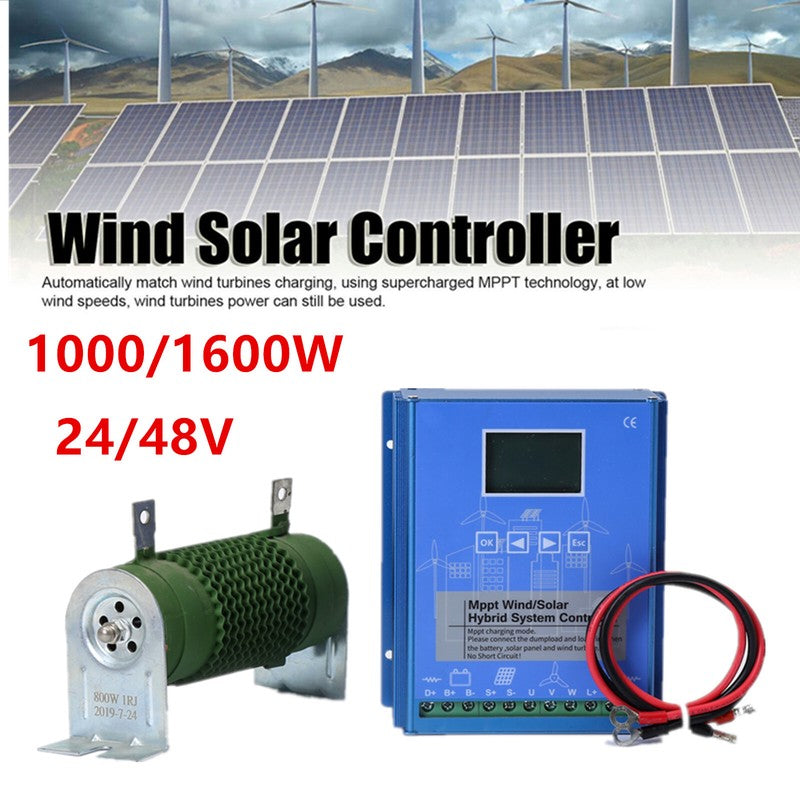

1600W 12/24/48V MPPT Solar Wind Hybrid Wind Turbine Generator Charge Controller

Description:

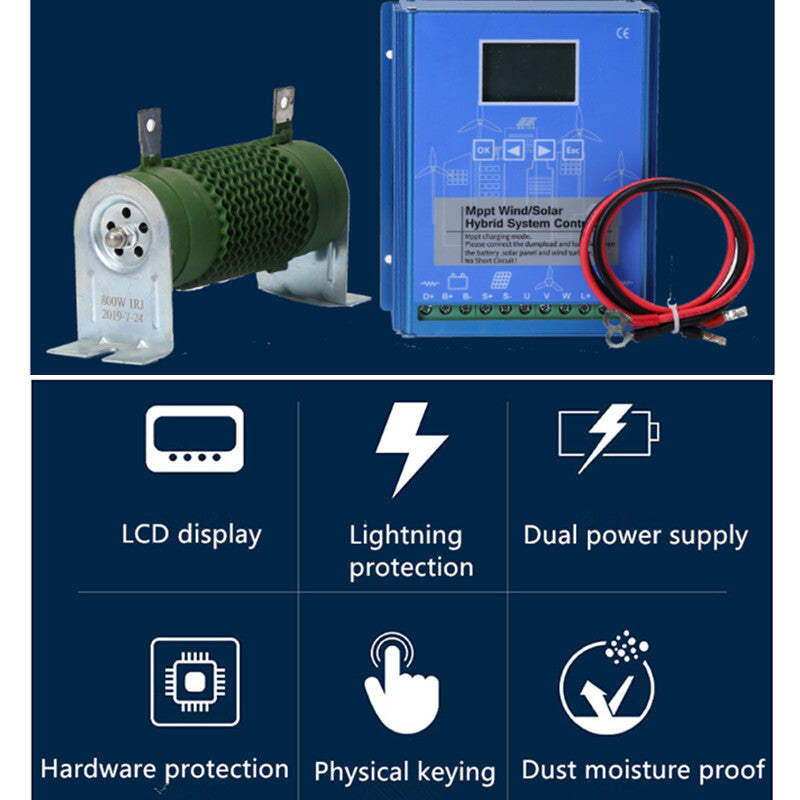

Hybrid Controller Features:

1.Wind turbine generator breeze charging, MPPT boost intelligent regulation.

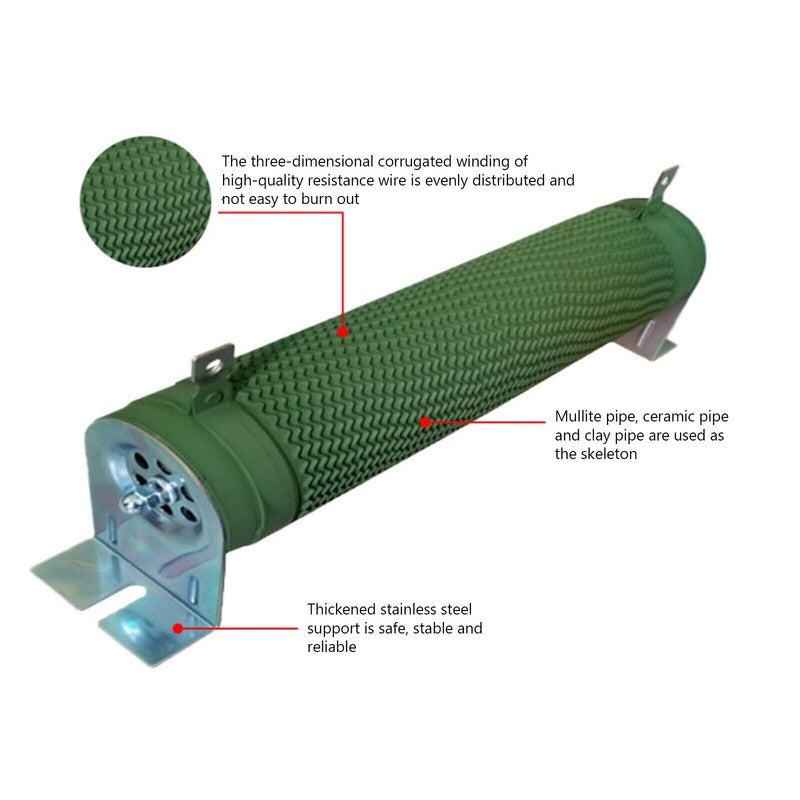

2.Wind turbine generator PWM stepless unloading, external unloader, solar intelligent disconnection charging.

3.Dual power supply function of the controller: Battery + solar power supply.

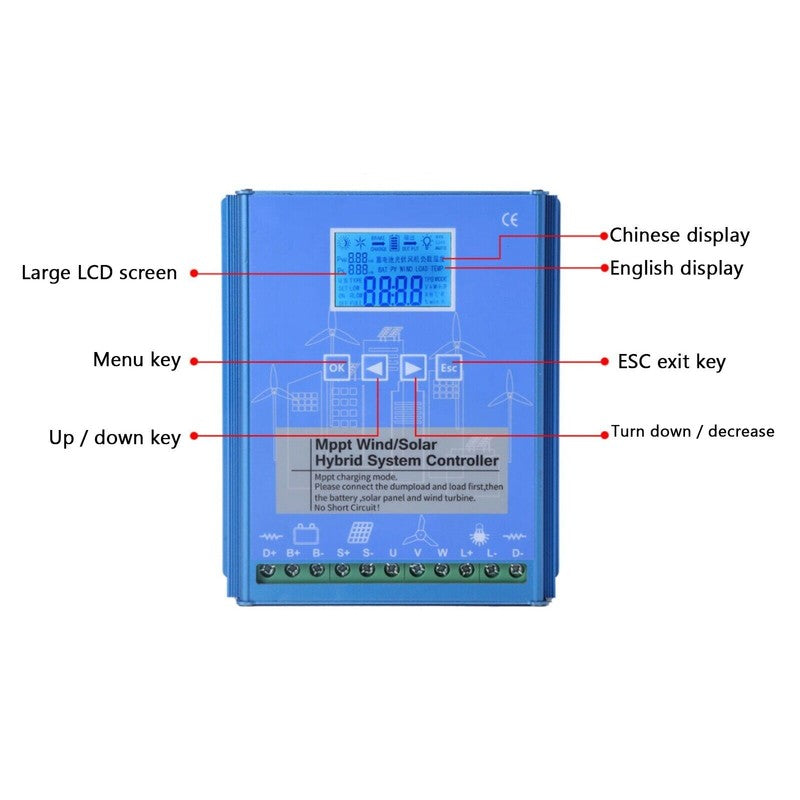

4.LCD displays the voltage and current of battery, fan, solar energy and load, and some parameters can be set.

5.The load output is adjustable in a variety of working modes.

6.High performance and stable chip control.

7.The internal circuit board of the controller is sprayed with three anti paint, which can prevent dust, moisture and static electricity.

A variety of protection, let you rest assured to use:

Function description

Solar anti reverse charging : In the case of poor light at night, the voltage of the battery may be higher than the terminal voltage of the solar cell array. The controller is equipped with an anti reverse charging circuit to prevent the battery from reverse charging the solar cell.

Battery reverse connection protection : When the battery is connected reversely, the controller does not work and there is no display. The internal fuse protects the controller circuit.If it cannot work normally after the positive and negative poles of the battery are correctly connected, replace the fuse.

Battery open circuit protection : After long-term use, the battery may have an open circuit or poor contact. The controller will protect the equipment from damage after the battery is open. Please check the line connection regularly.

Over-voltage and over-current Load overload protection : Under the over-voltage state of the wind turbine generator, the controller will automatically start the braking function to protect the wind turbine and battery. In case of overload, the controller will automatically cut off the circuit。

Lightning protection : Lightning protection refers to the last level of protection necessary for equipment. For lightning prone areas, a multi-level lightning protection system composed of special lightning arresters is required. If the user has such requirements, it is necessary to increase the corresponding distribution system and cost, which shall be explained when ordering.

Max input voltage :

1000W :Wind turbine≤80Vsolar panel≤55V

1600W:Wind turbine≤80Vsolar panel≤95V

No-load Current (DC) : ≤0.05A

Controller power mode : Battery or solar

Control mode : Wind generator MPPT boost charge、PWM dump load、PWM Over currentLimiting function

Outputworking mode(Mode) : Mode 1: Light-control on. Light-control off (3modes adjustable)

Display content : LCD display,Voltage,Percentage of battery power, Current, working mode of load,etc

Protection type : Solar Reversed Charging protection，Battery open circuit protection、battery anti-reverse connection protection protection、Over current and over voltage auto brake protection、Over load protection,etc.

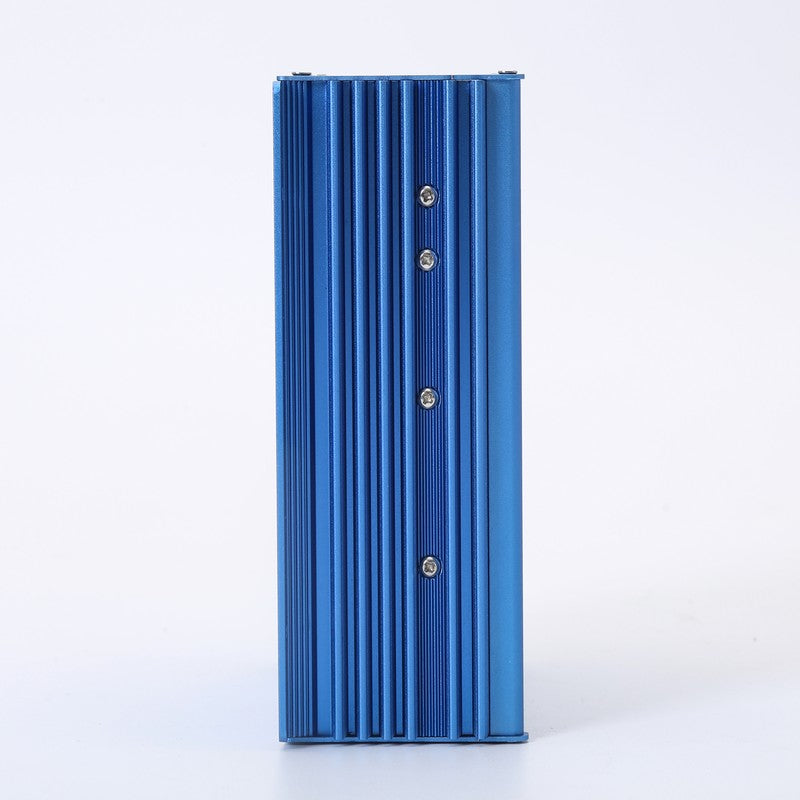

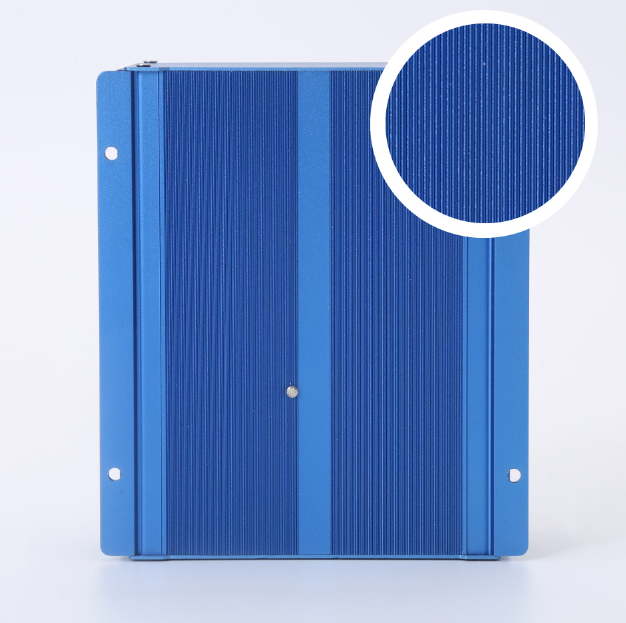

Cooling mode : aluminium profiles Heat dissipation and self-cooling

Working temperature / Relative humidity : -25℃~+80℃ /0~90%，non-condensing

Net weight / Gross weight : 2.35/2.85kg

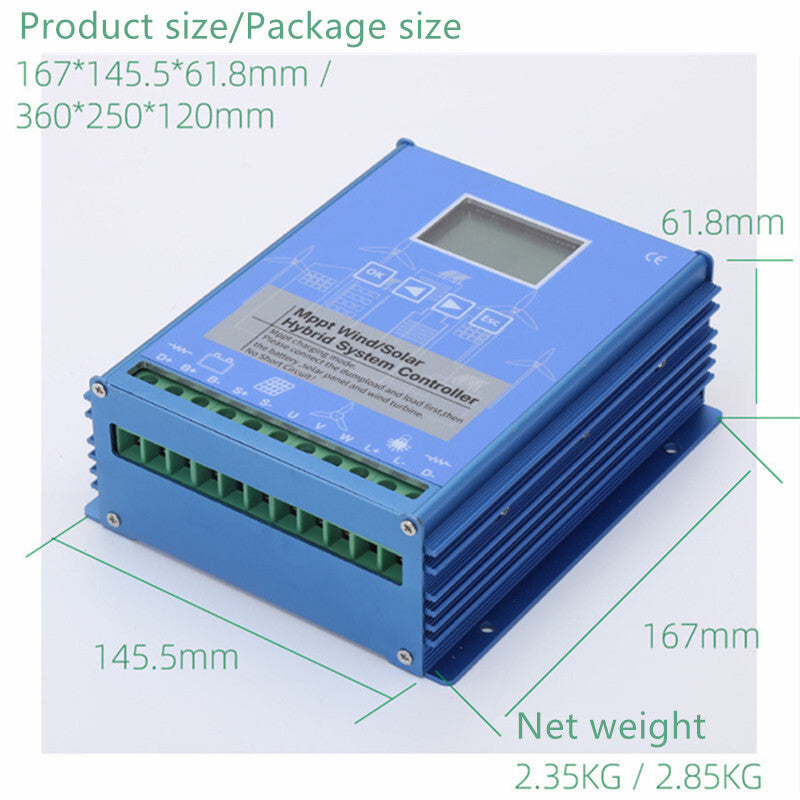

Controller size/Pack size : 167mm*145.5mm*61.8mm/360mm*250mm*120mm

Features:
** Wind MPPT charging method, ensure the power get max input into the battery and high charging efficiency.
** Can be used for 1000W/1600W wind turbines with high compatibility.
** Independent Boost Circuit: The charging efficiency of the low-power vertical wind generator has been solved.
** 12V/24V/48V system auto-detect function.
** Mini size, easy to install.
** LCD display with visible and intuitive parameters.
** Rated wind power: 100-1000W
** PV Rated Power: 100-600W

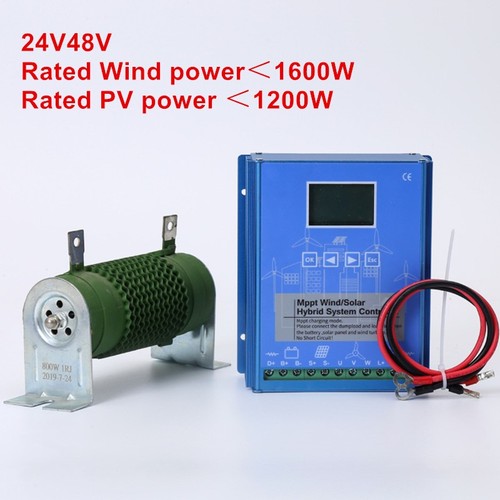

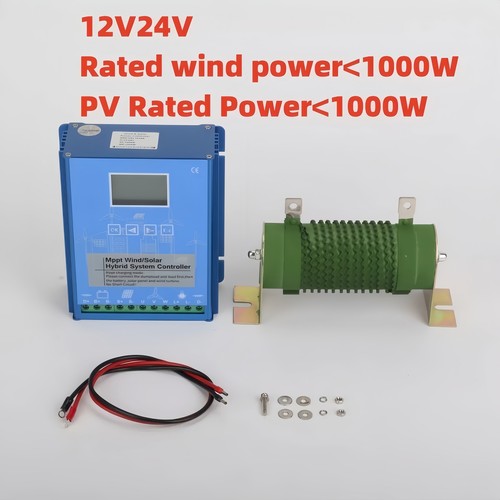

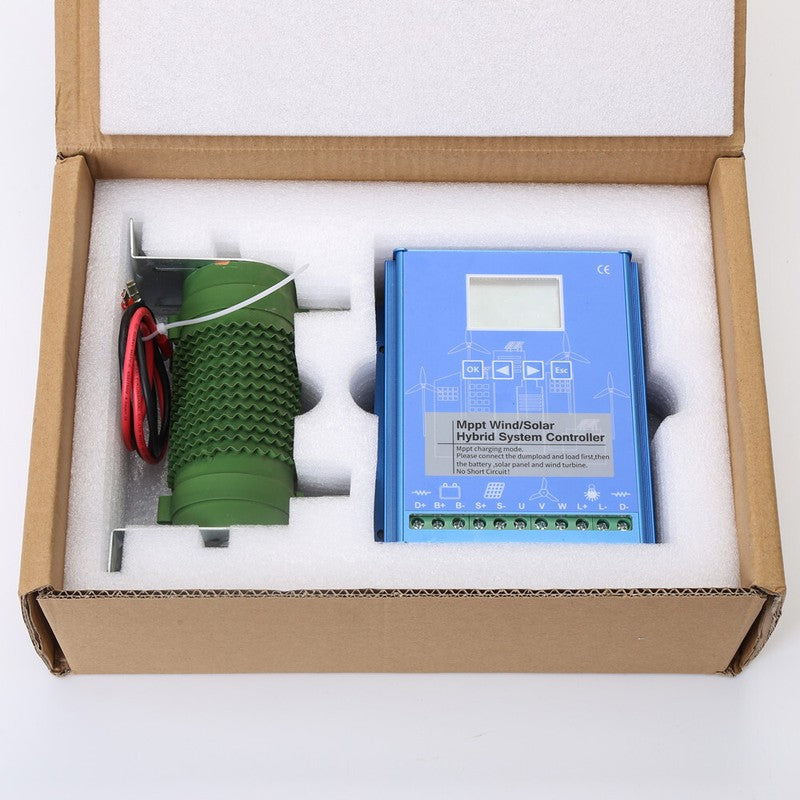

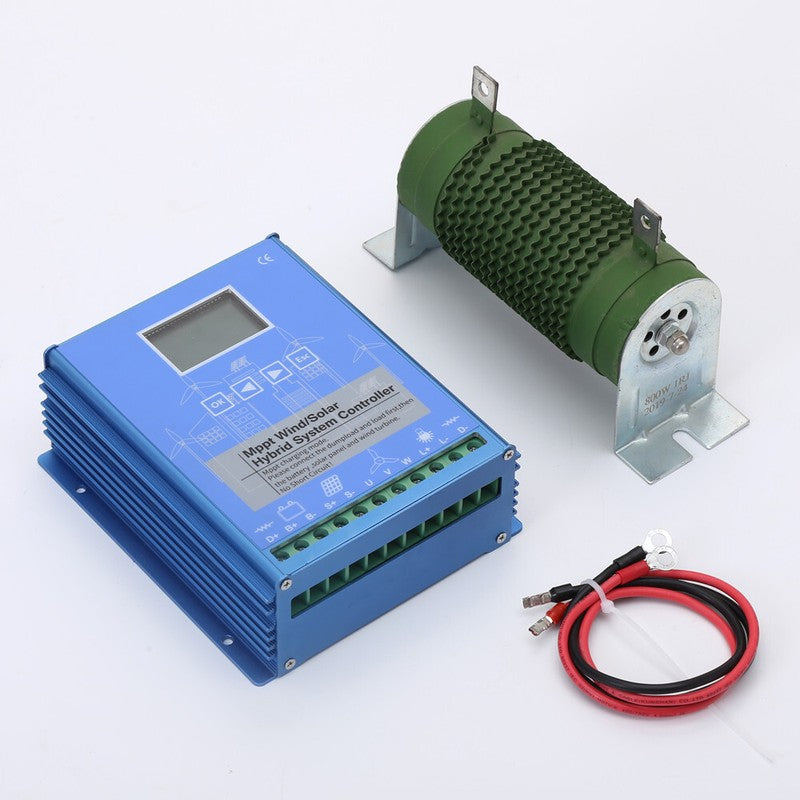

Package Included:

^_1pc
