15L Industrial Water Chiller 2HP Water Cooling System for CO2 Laser Engraving AU

About this item

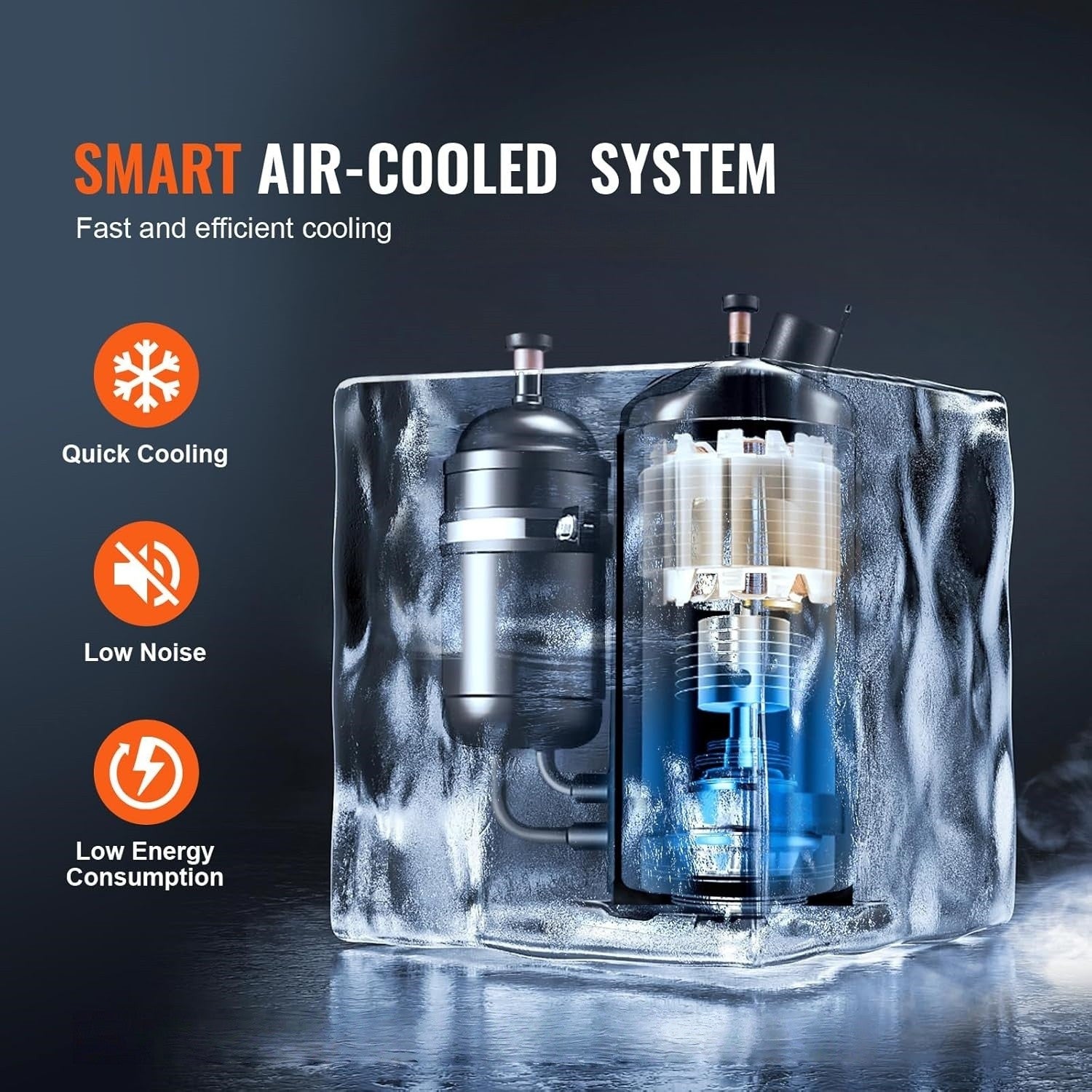

 Cooling Capacity The CW-6000/CW6200 industrial water chiller utilizes a powerful compressor with R410a refrigerant, delivering rapid cooling to your preset temperatures. This ensures that your CO₂ laser cutting and engraving machines stay consistently cool for optimal performance throughout their operation.

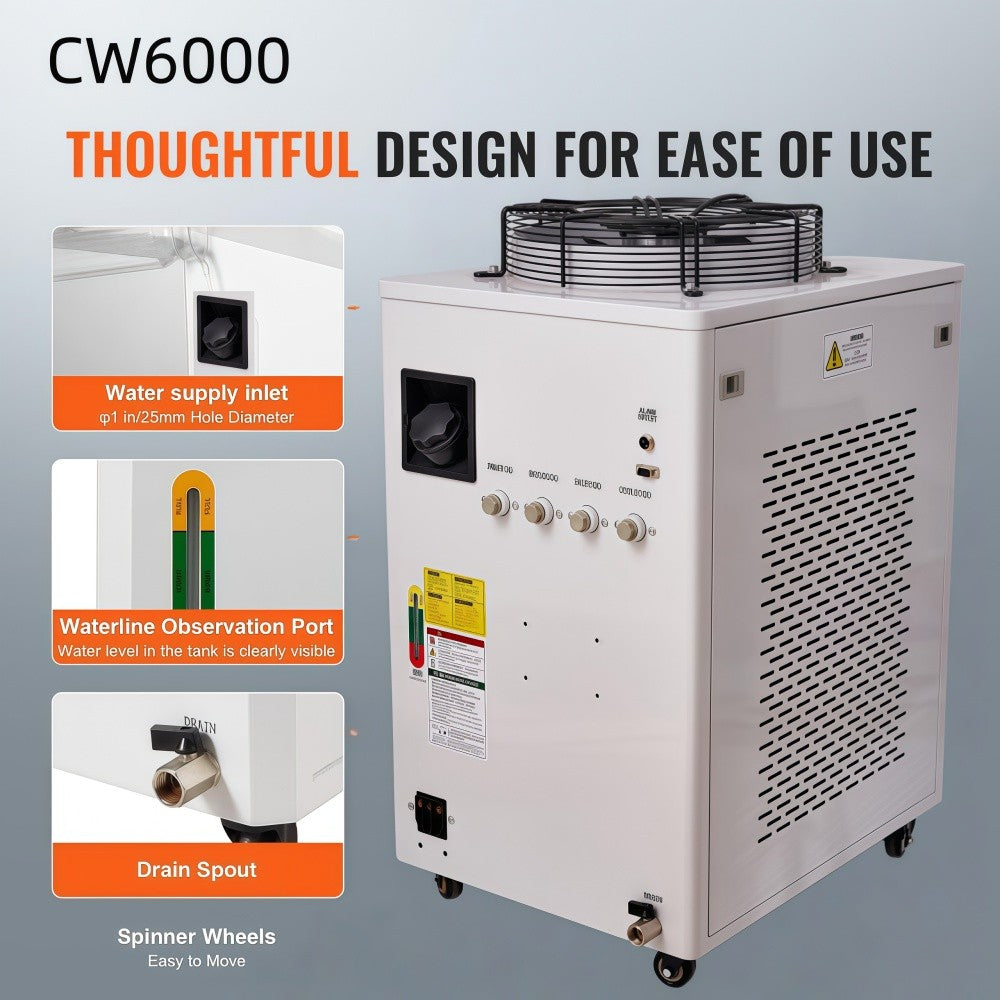

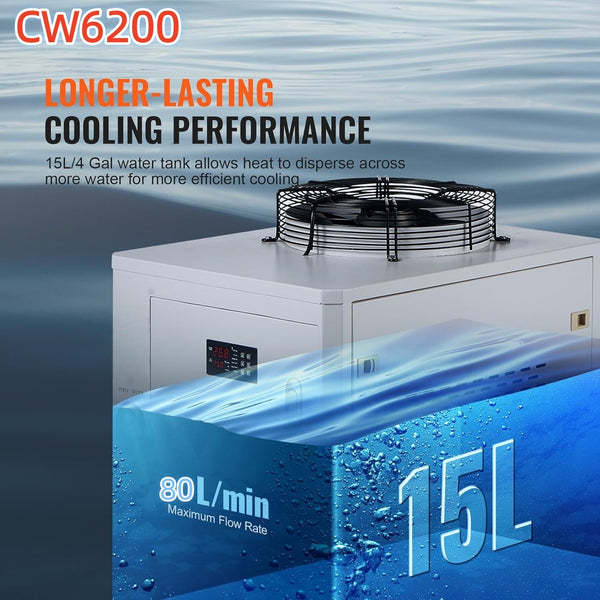

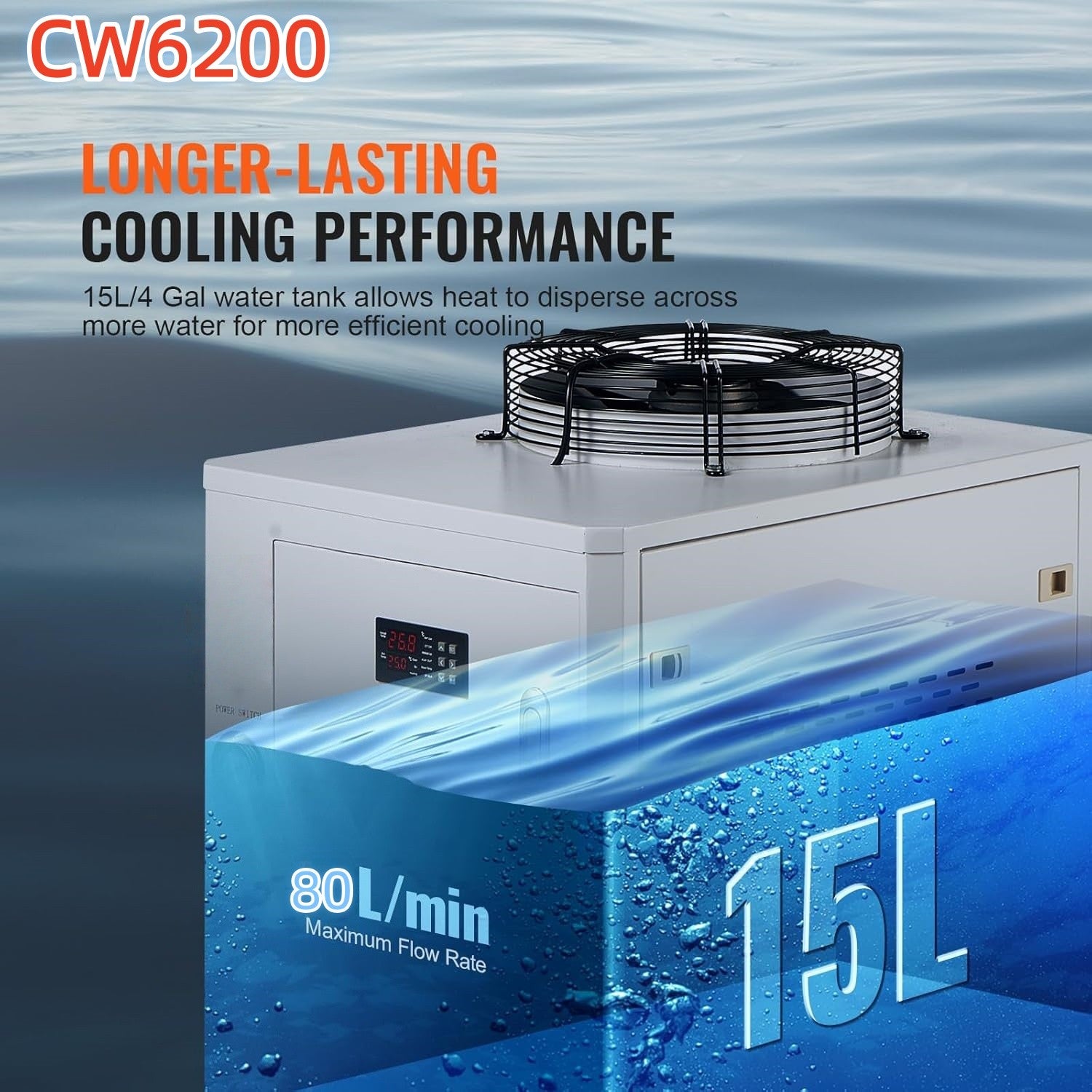

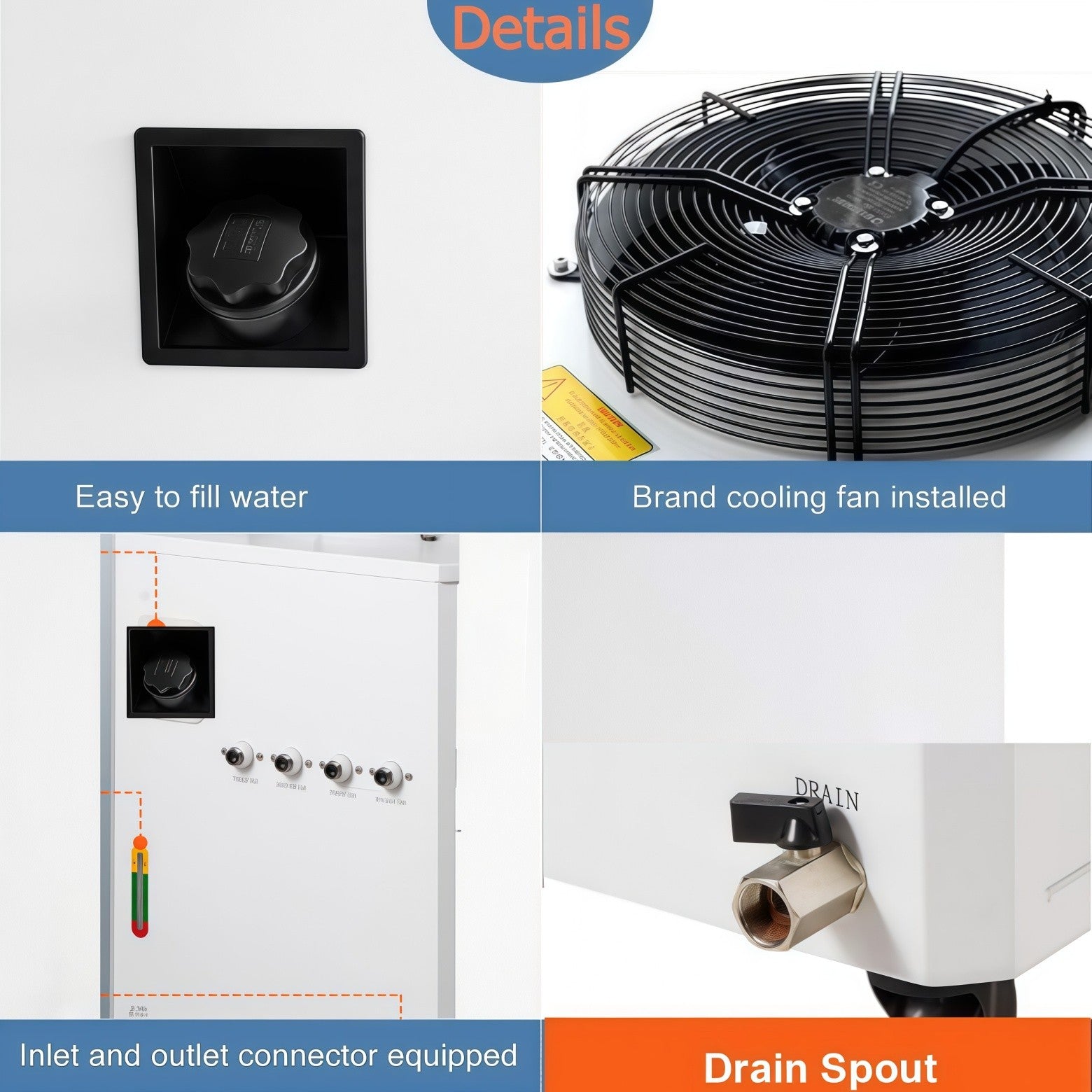

Large 15L Water Tank The chiller features a spacious 15L water tank that distributes heat across a larger volume, resulting in a more prolonged cooling effect. The integrated observation window allows easy monitoring of water levels, minimizing the need for frequent refills and ensuring uninterrupted cooling.

High-Performance Water Pump Equipped with a robust 88W/300W water pump, this chiller achieves an impressive 25L/min/80L/MIN flow rate, designed to efficiently cool two sets of 300W CO₂ laser tubes. It not only maximizes the efficiency of your laser system but also prolongs the lifespan of the laser tubes.

Real-Time Temperature Monitoring Stay in control with the instant water temperature display on the chiller’s screen. The system also includes nine status indicator lights, allowing for precise monitoring of current operating conditions and ensuring you can maintain peak cooling performance at all times.

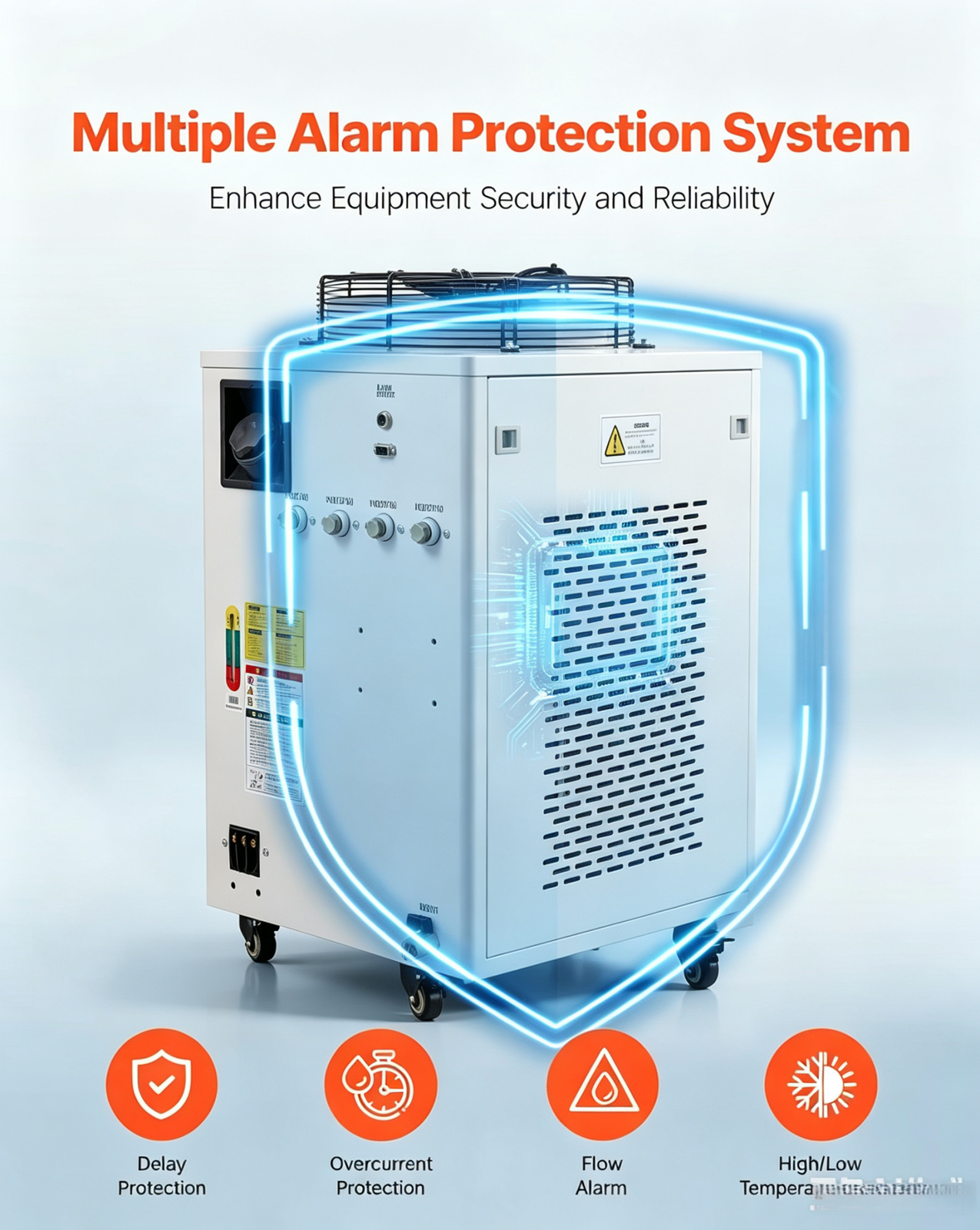

Comprehensive Alarm System Equipped with built-in sensors and multiple alarms, this chiller offers full protection with alerts for flow issues, temperature spikes, and water pump malfunctions. You can focus on your work knowing that your cooling system is safeguarded from potential problems.

This industrial water chillers are popular for constant or intelligent temperature control mode.The defaulted setting is intelligent temperature control mode.

Under intelligent control mode, the water temperature will adjust itself according to the ambient temperature.

Under another mode, users can adjust the water temperature manually.

Features

1. 3750W/5500W cooling capacity; optional environmental refrigerant;

2. ±0.5℃ precisely temperature control;

3. The temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;

4. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;

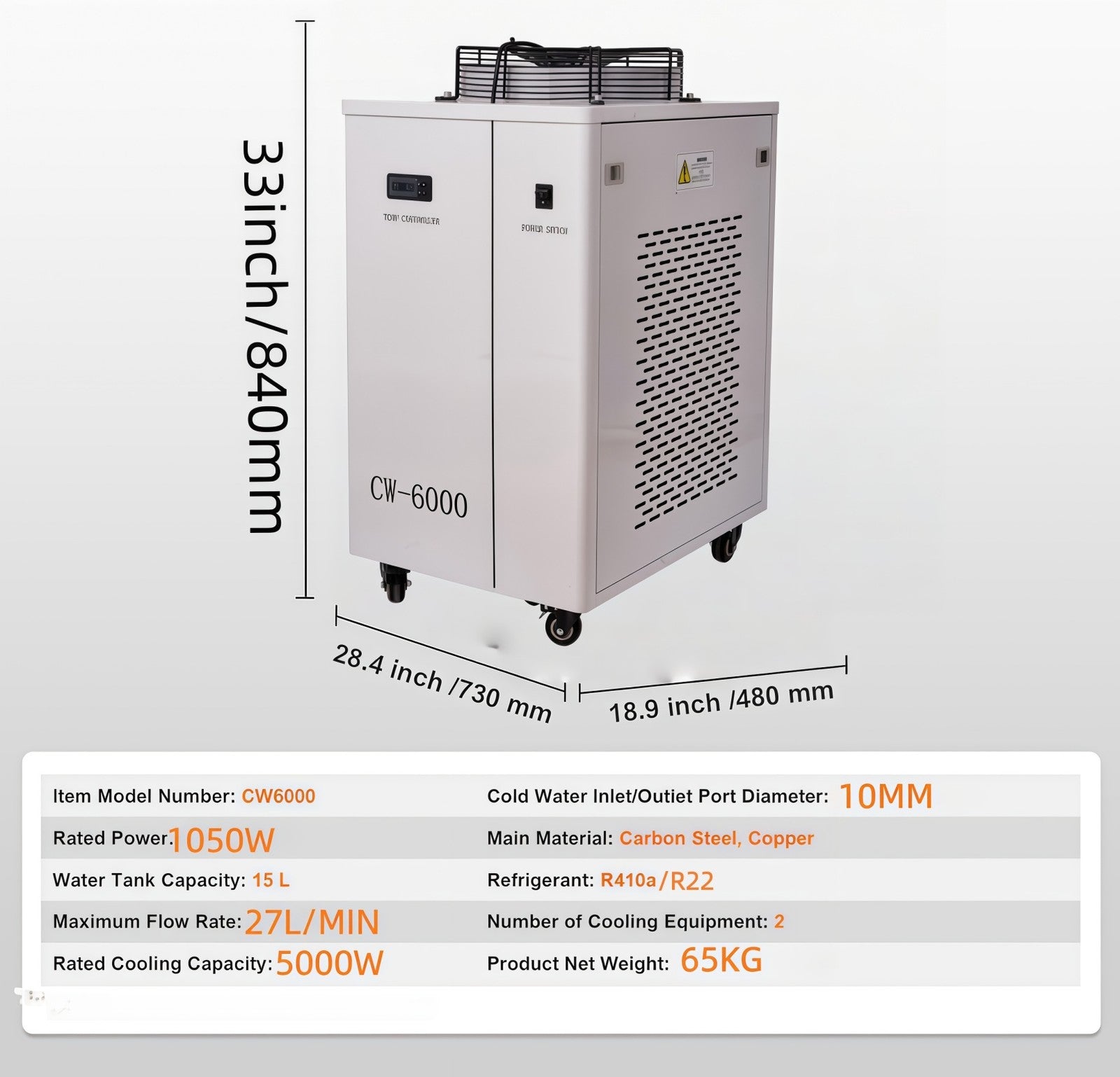

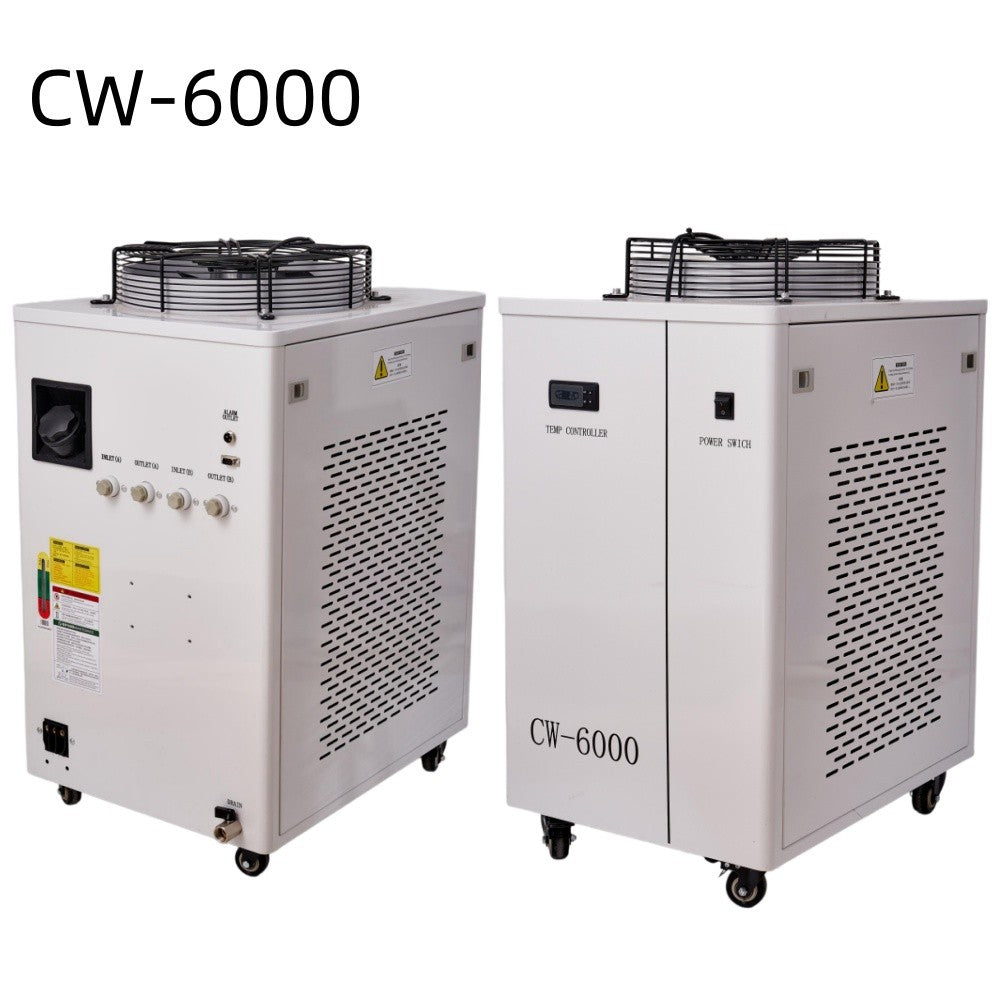

CW6000

Parameter

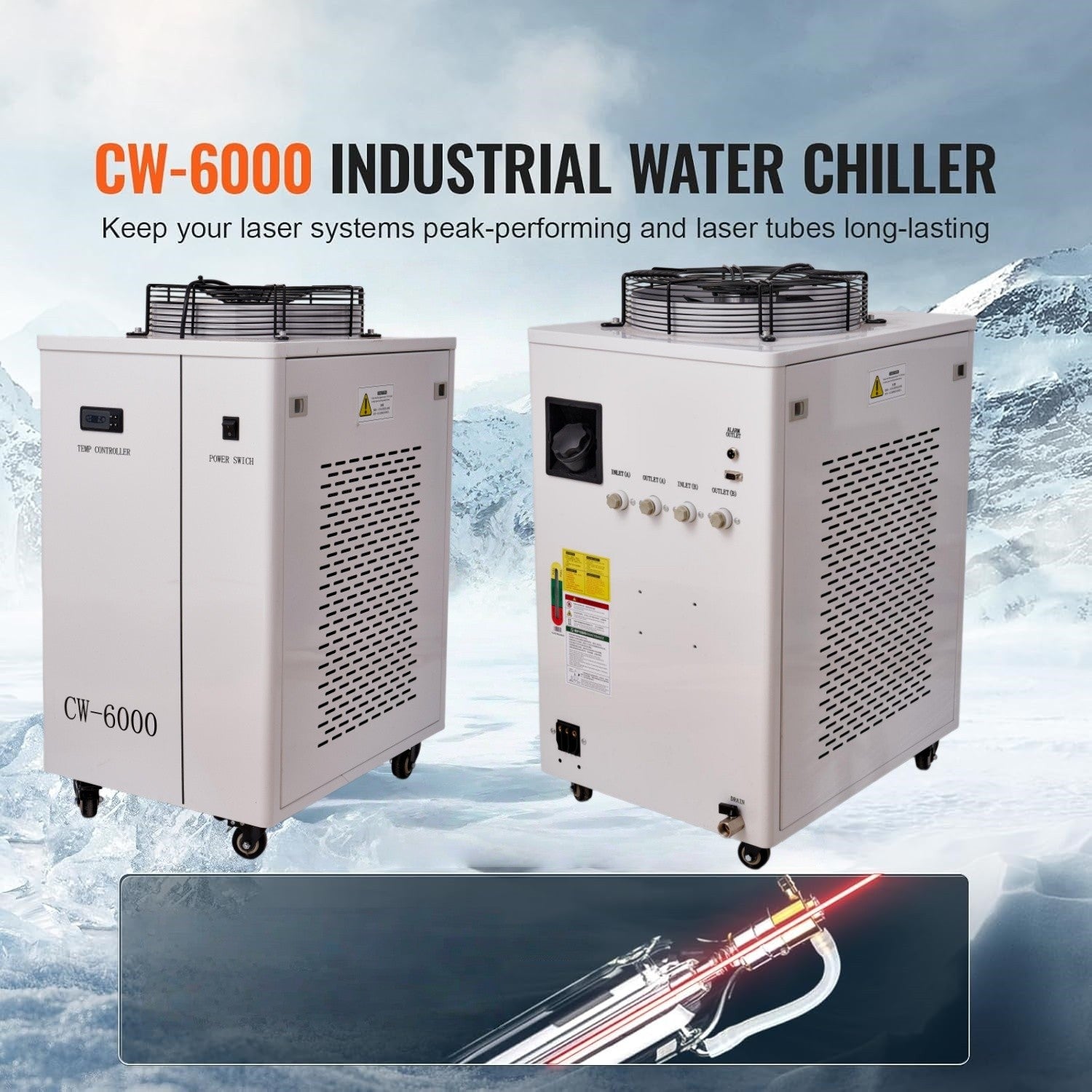

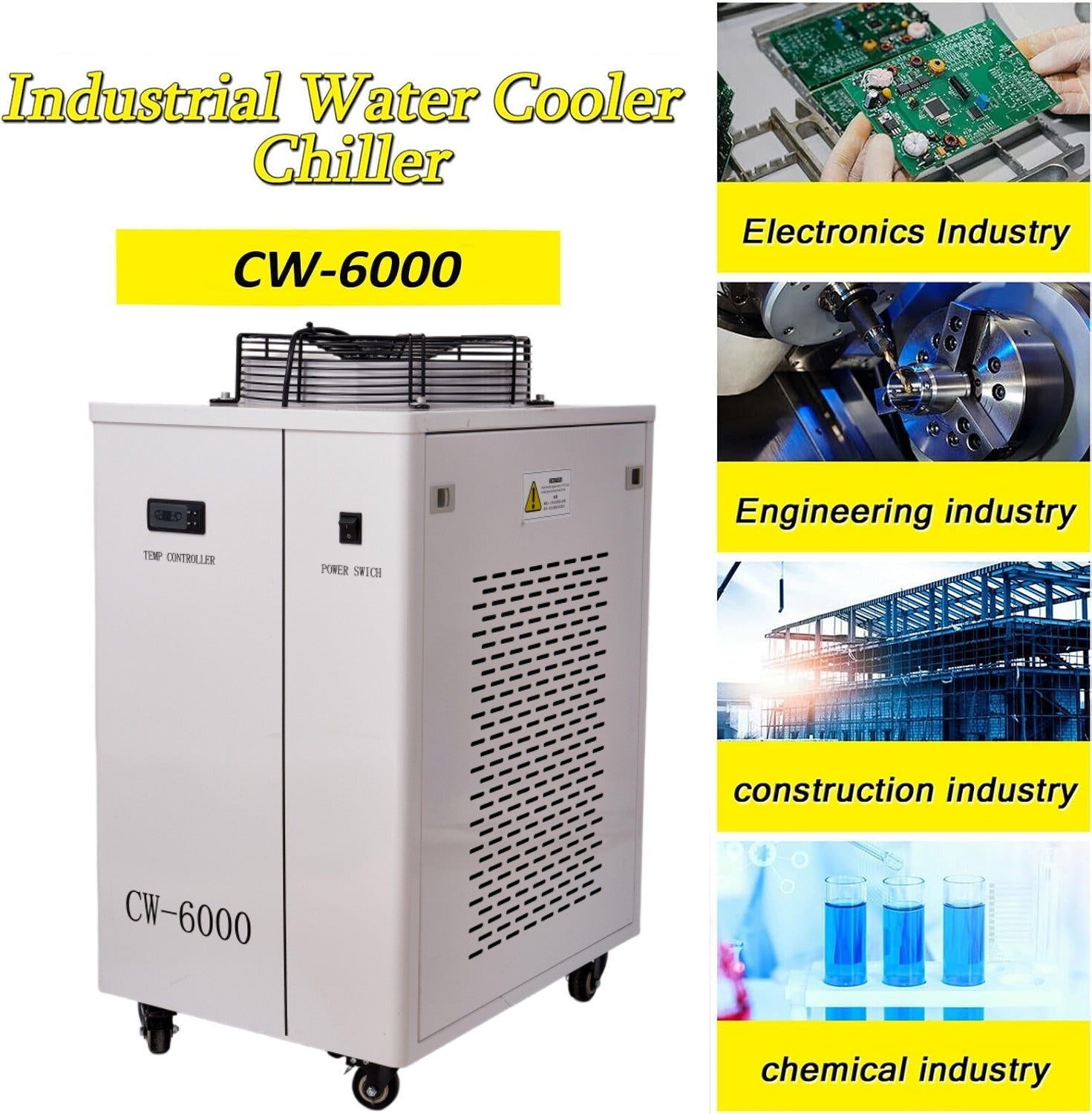

Model: CW-6000

Voltage: 220V

Frequency: 50Hz

Current: 3.2A-12.6A

Compressor power: 1050W; 1.2HP

Refrigeration capacity: 10236btuh; 3KW; 2579kcal/h

Refrigerant: R-22/R-410a

Precision: ±0.5℃

Reducer: Capillary

Protection: Overcurrent protection for compressor, flow alarm, over temperature alarm

Pump power: 88W

Tank capacity: 15L

Inlet and outlet: Rp1/2"

Max. lift: 25M

Max. flow: 27L/min

N.W: 65Kgs

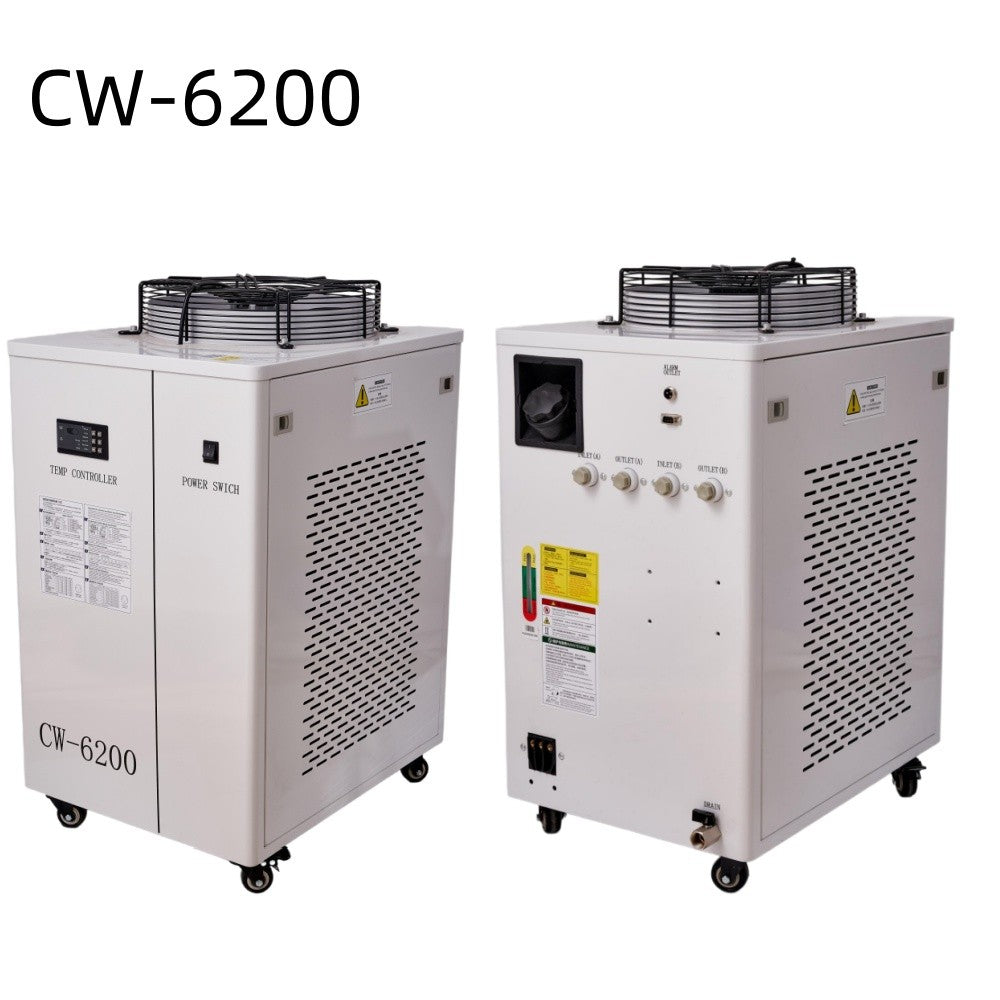

CW6200

Parameter

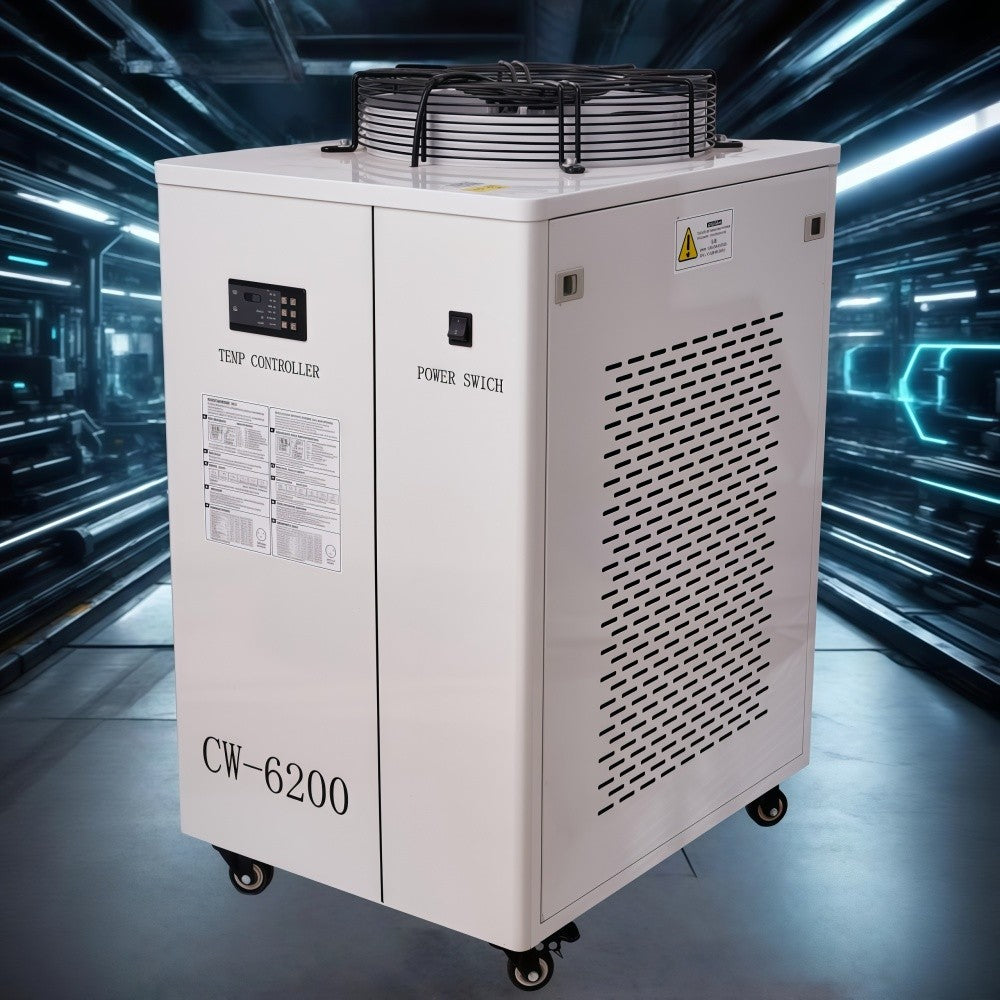

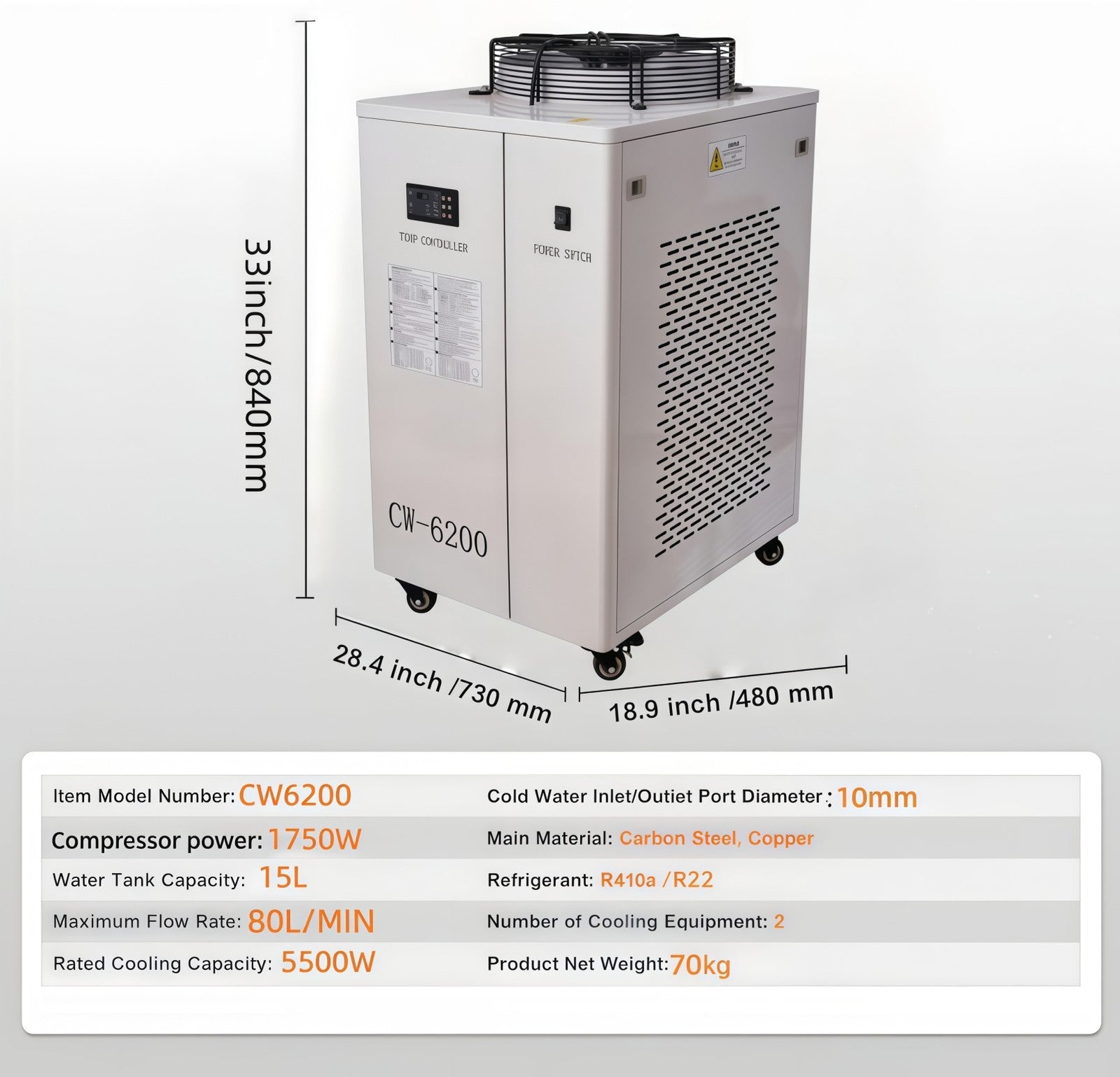

Model: CW-6200

Voltage: 220V

Frequency: 50Hz

Current: 3.2A-12.6A

Compressor power: 1750W; 2HP

Refrigeration capacity: 18,083.6btu/h; 5.3KW; 4563kcal/h

Refrigerant: R-22/R-410a

Precision: ±0.5℃

Reducer: Capillary

Protection: Overcurrent protection for compressor, flow alarm, over temperature alarm

Pump power: 300W

Tank capacity: 15L

Inlet and outlet: Rp1/2"

Max. lift: 30M

Max. flow: 80L/min

N.W: 65Kgs

Package includes:

1* Water Chiller

1* AU Plug
