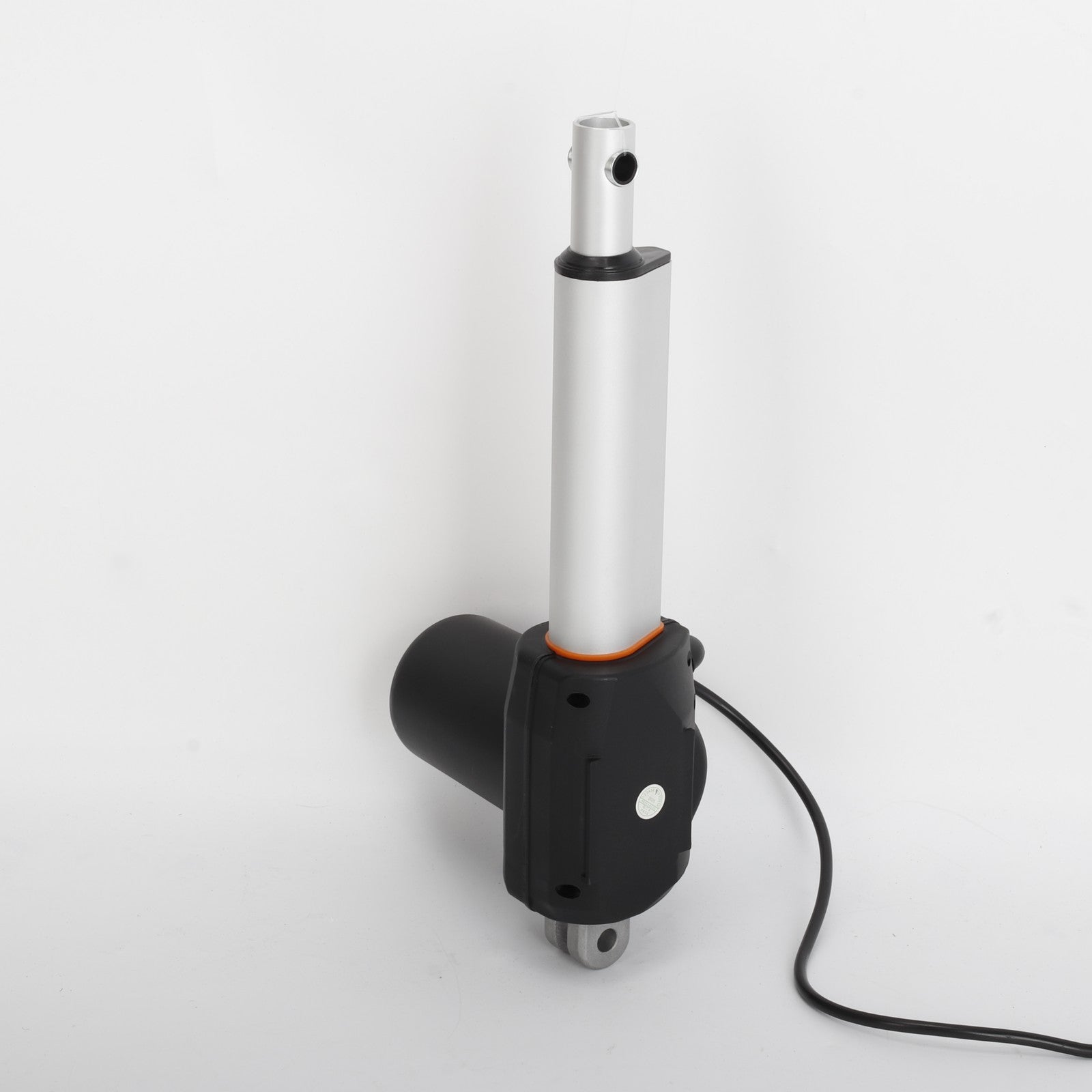

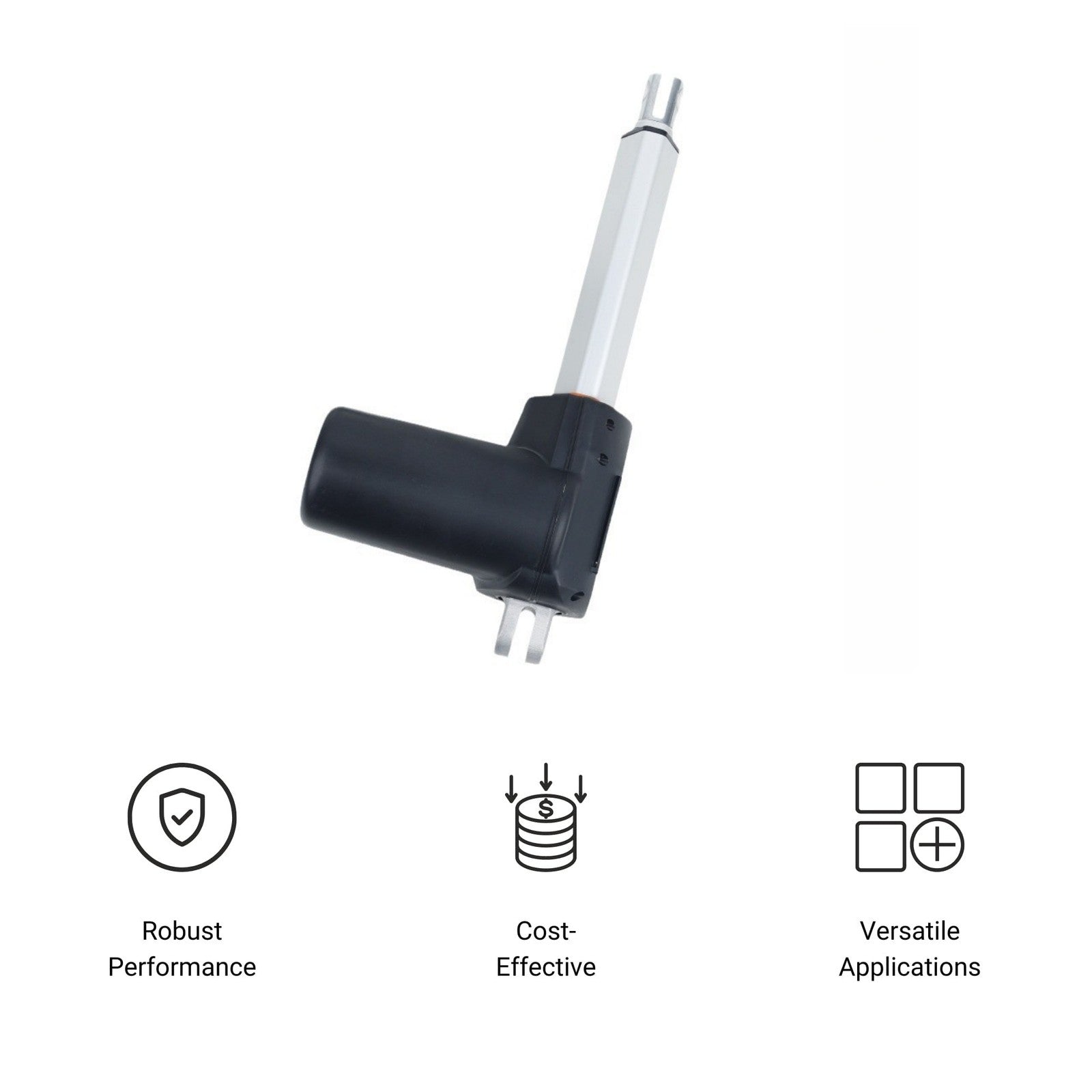

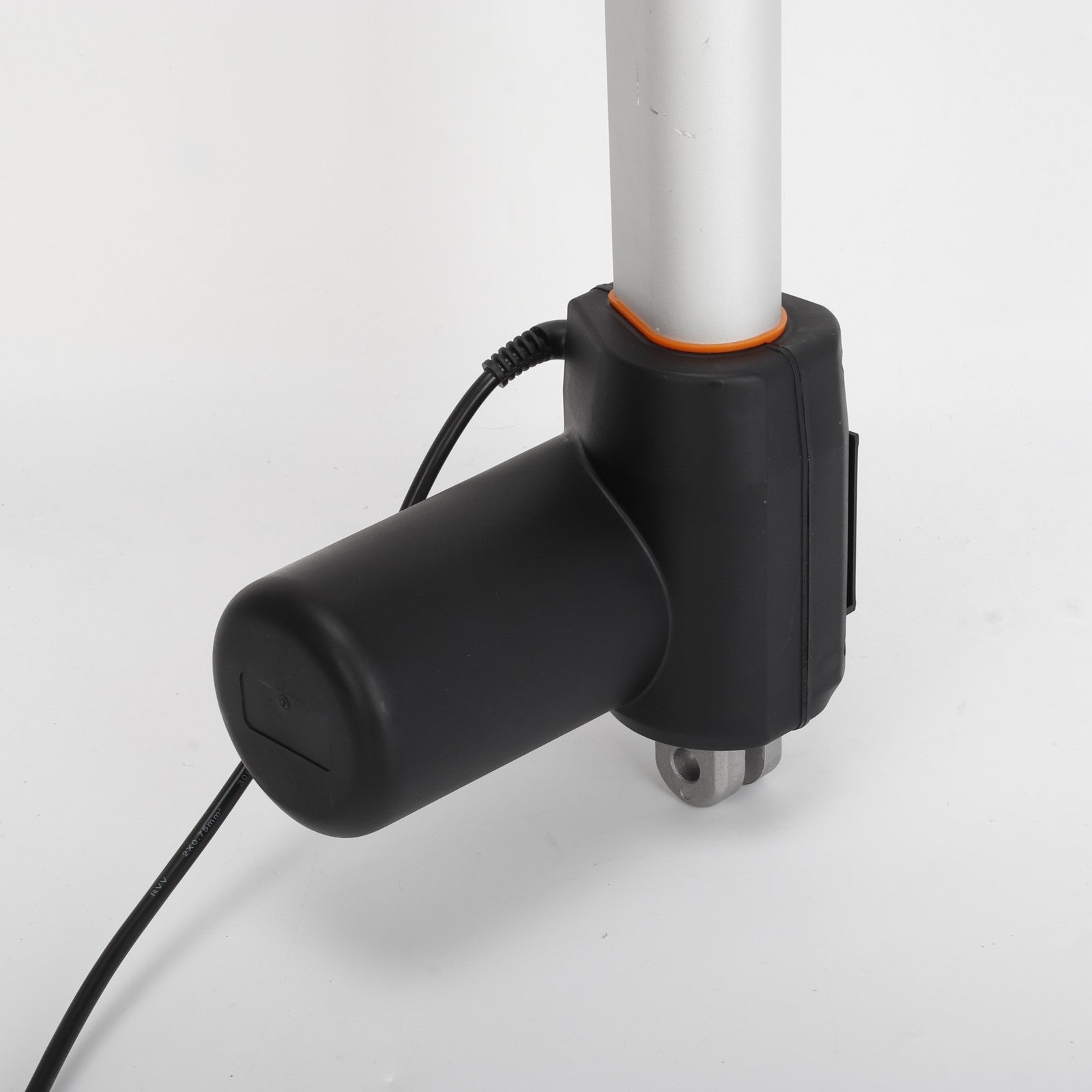

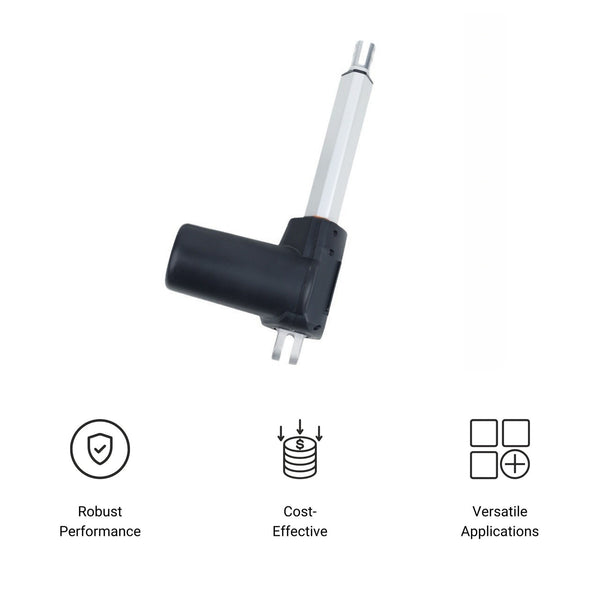

12V Linear Actuator 8000N Linear Actuator for Medical Auto Car (Stroke 150mm)
PRODUCT DETAILS
Feature:
- HIGH QUALITY-- The linear actuator is made of high quality metal material, which is equipped with high performance motor and built-in stroke switch. It is ideal for driving electric gates, automatic windows and other home automation assemblies.
- POWERFUL-- This liner actuator is a good tool to extend stroke relatively. It can provide a pushing or pulling force of 8000N and a travel speed of up to 4mm/s when under no-load.
- WIDE APPLICATION-- Linear actuator can be widely used in automotive, medical devices and engineering industry, agricultural machinery, wedding system, industrial electric lifting system, medical electric bed, surgical bed, traction bed, electric sofa, electric lifting lever, electric booth, electric sunroof, electric wheelchair and more.
- UNIVERSAL STROKE-- A 150 mm stroke meets the requirements of most application scenarios.
- FEATURE-- Standard protection level: IP65, safe to use. It can normally work under the temperature from -15°C to +45°C. It features reliable performance and sensitive action stable running

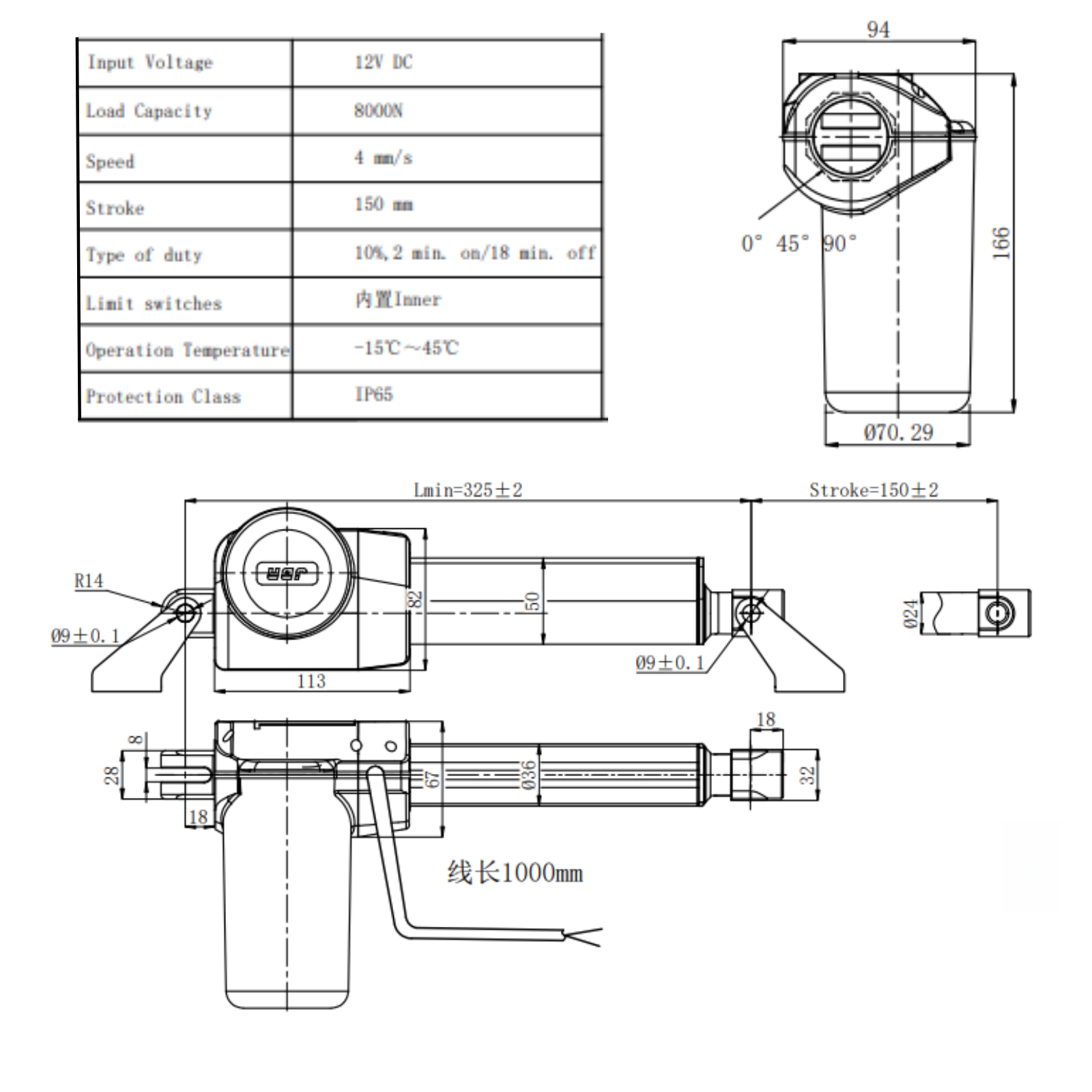

Specifications:
- Input Voltage: DC 12V ;

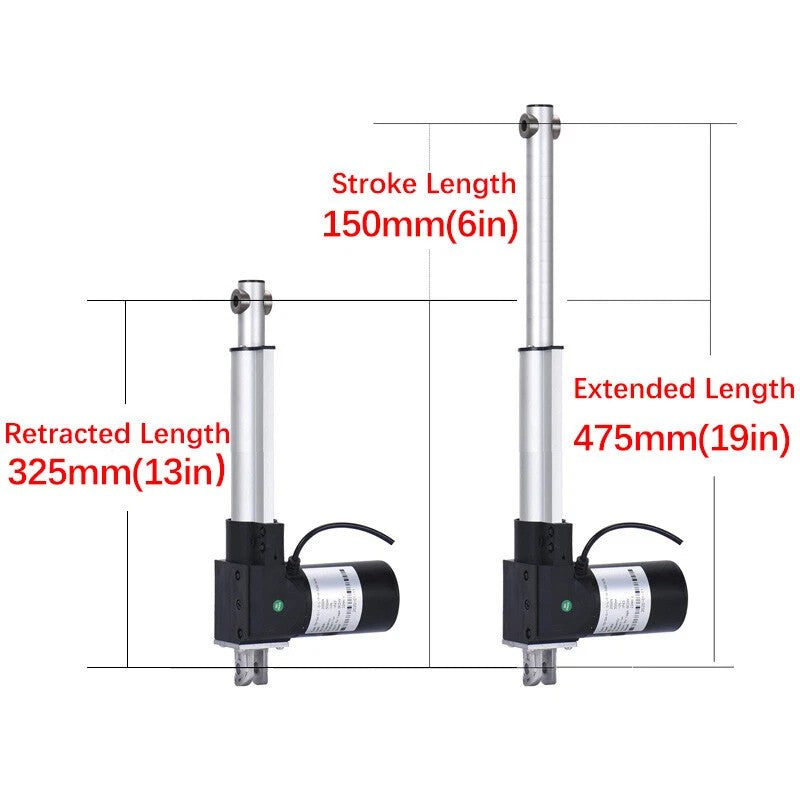

- Stroke Length: 150mm;
- Max Push Load: 8000N/800kg(4mm/s);
- Low noise: The low noise design, noise level below 50 dB;
- Usage frequency :10%；
- Material: Aluminum alloy housing；
- Degree of protection: IP65. Internal limit switch, switch off automatically when it reaches in the case of motoridling.

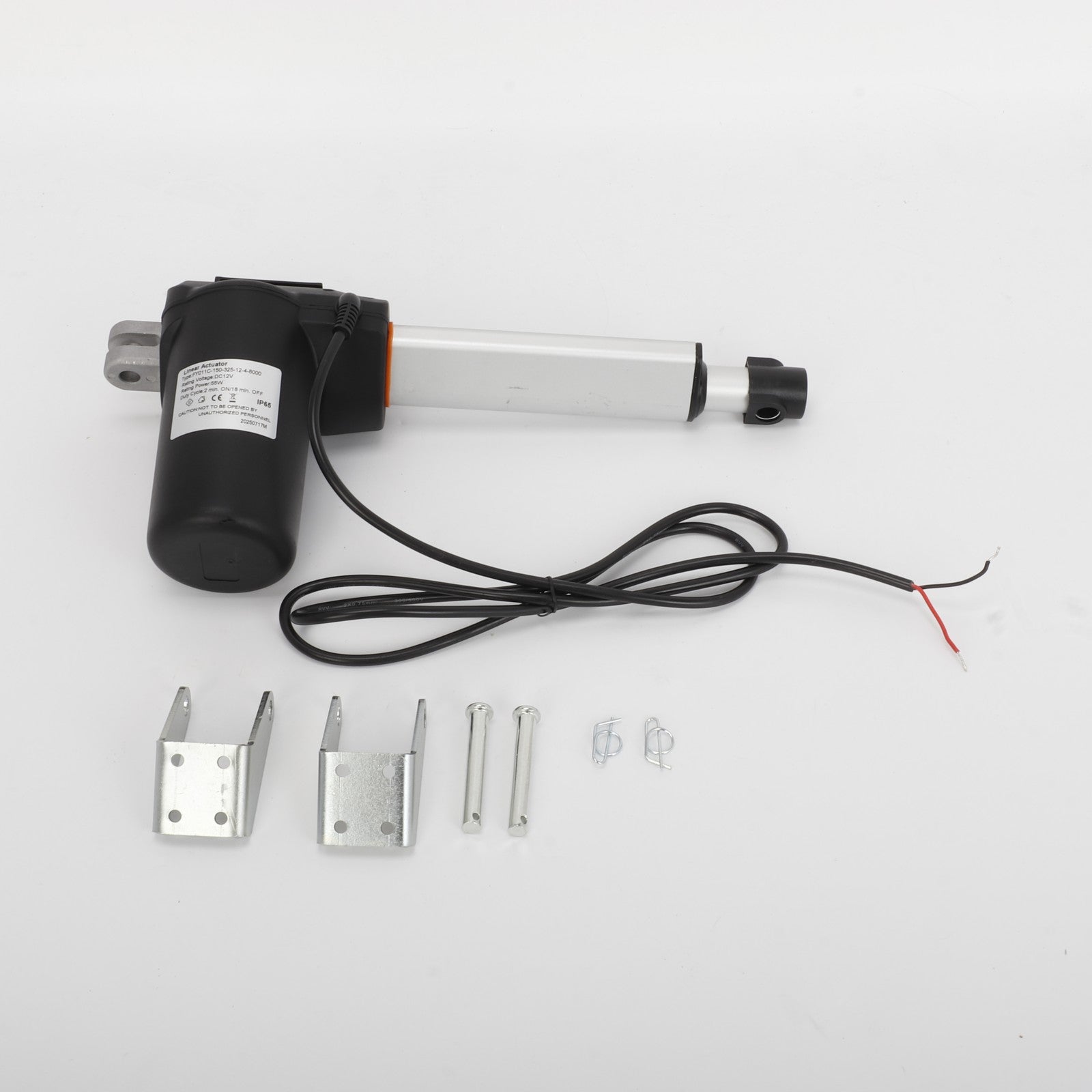

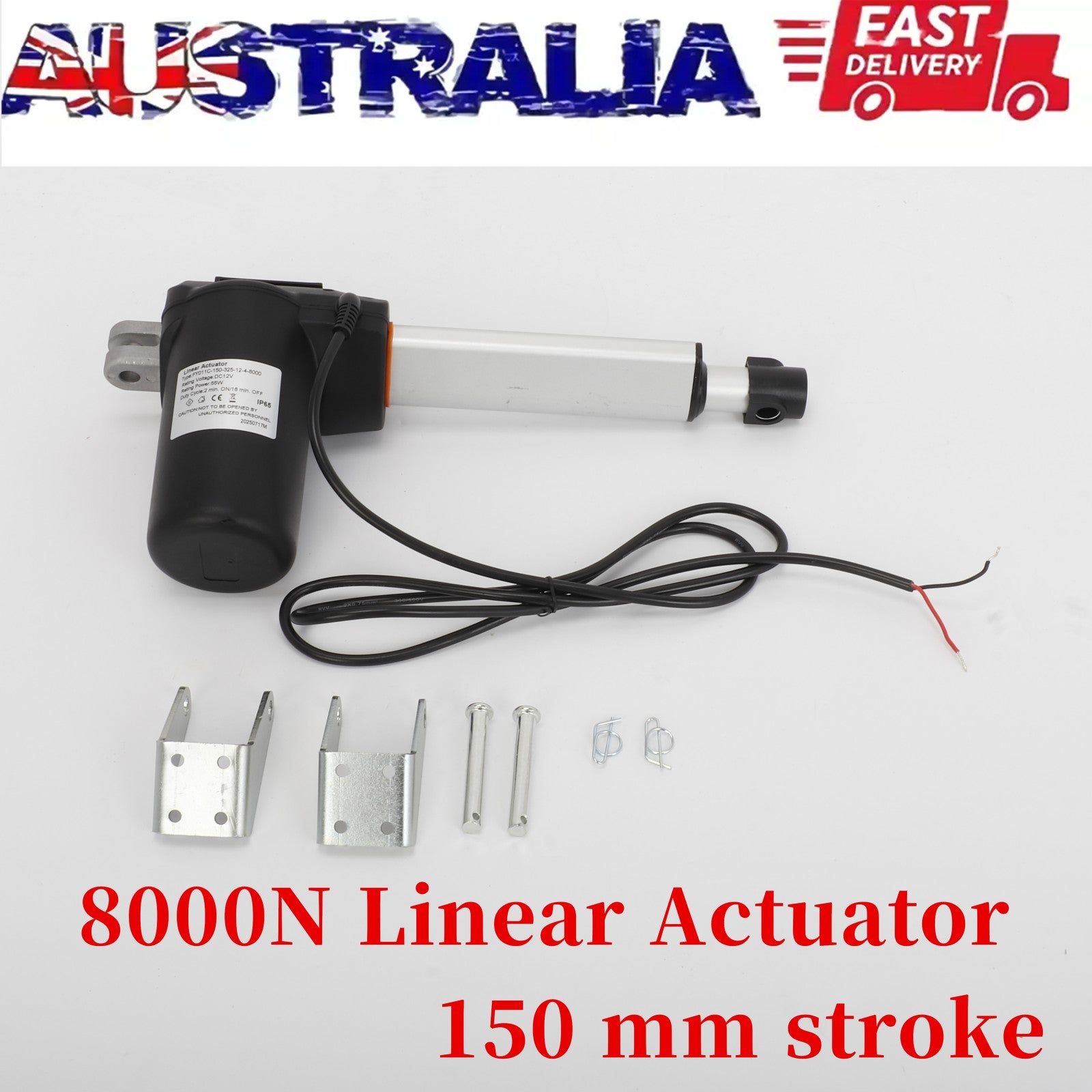

Package include:
1×Linear Actuator
