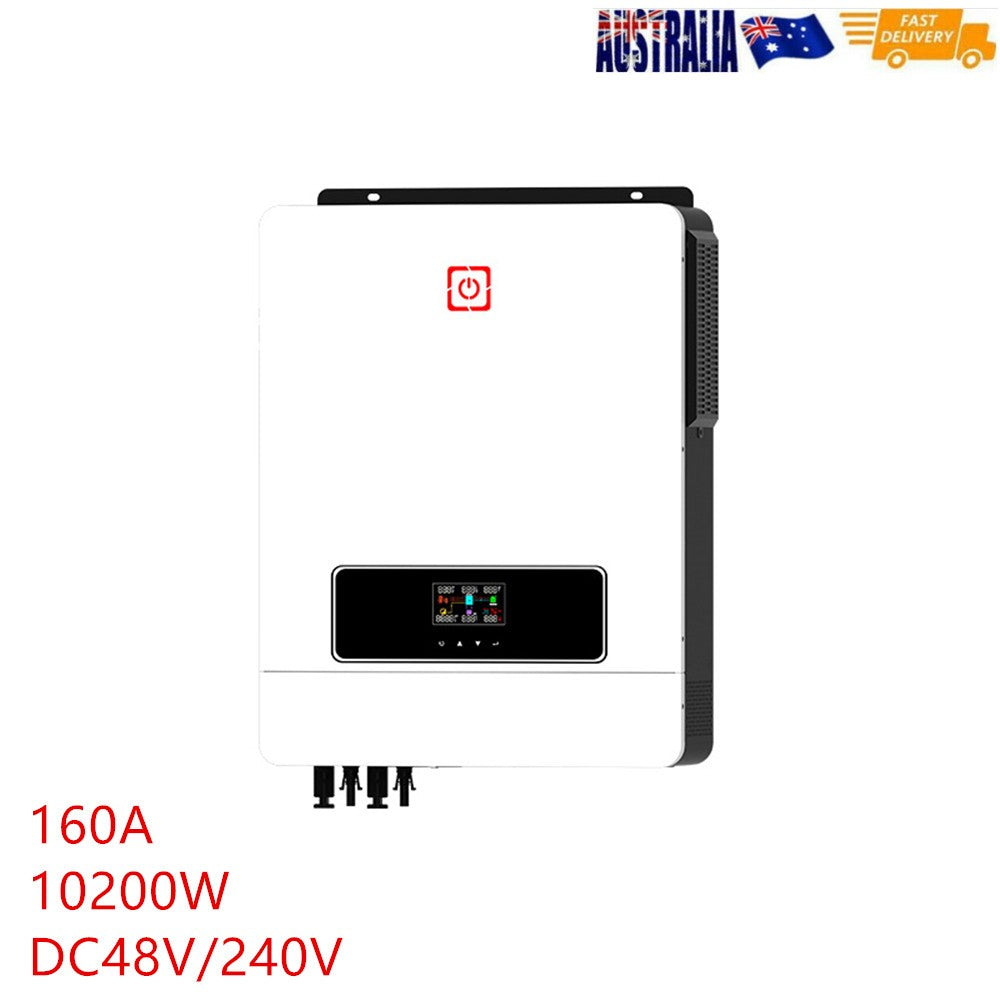

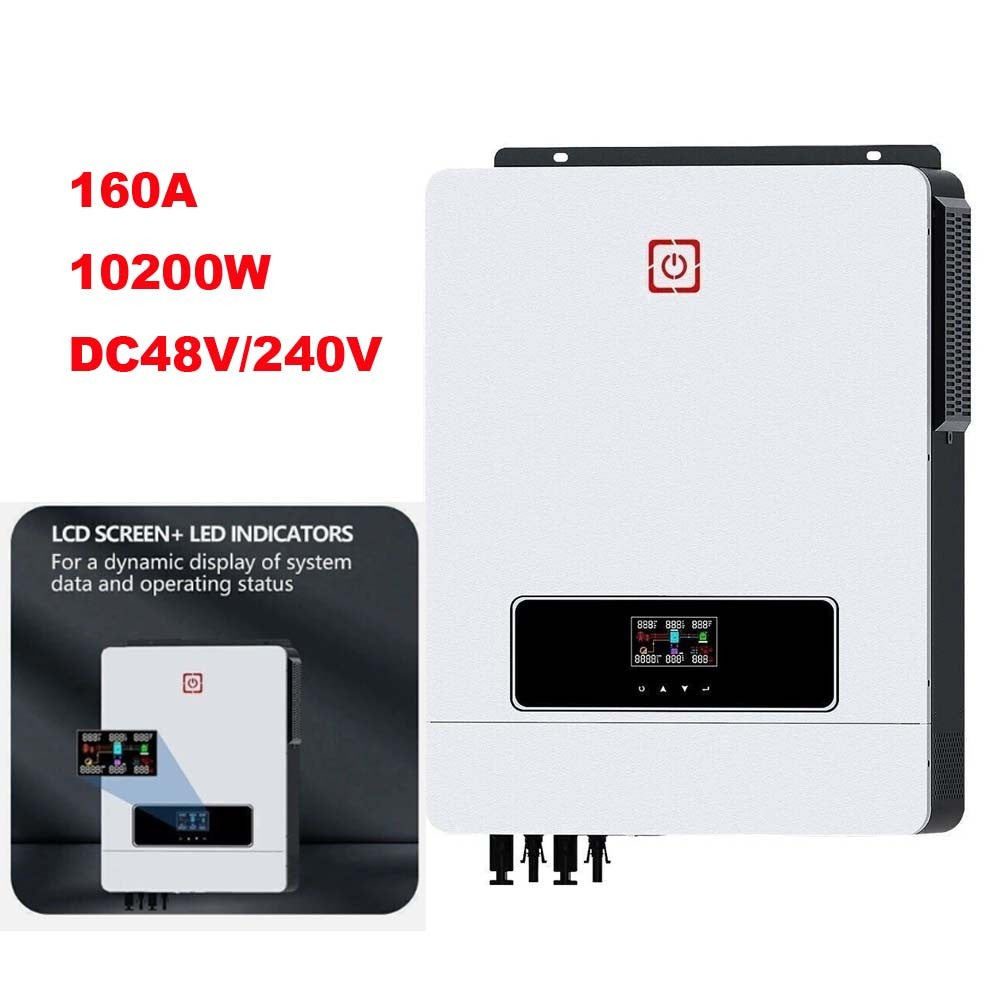

10.2KW On/Off Grid Solar Hybrid Inverter 160A Charge Controller PV Max 500V
PRODUCT DETAILS
Introduction

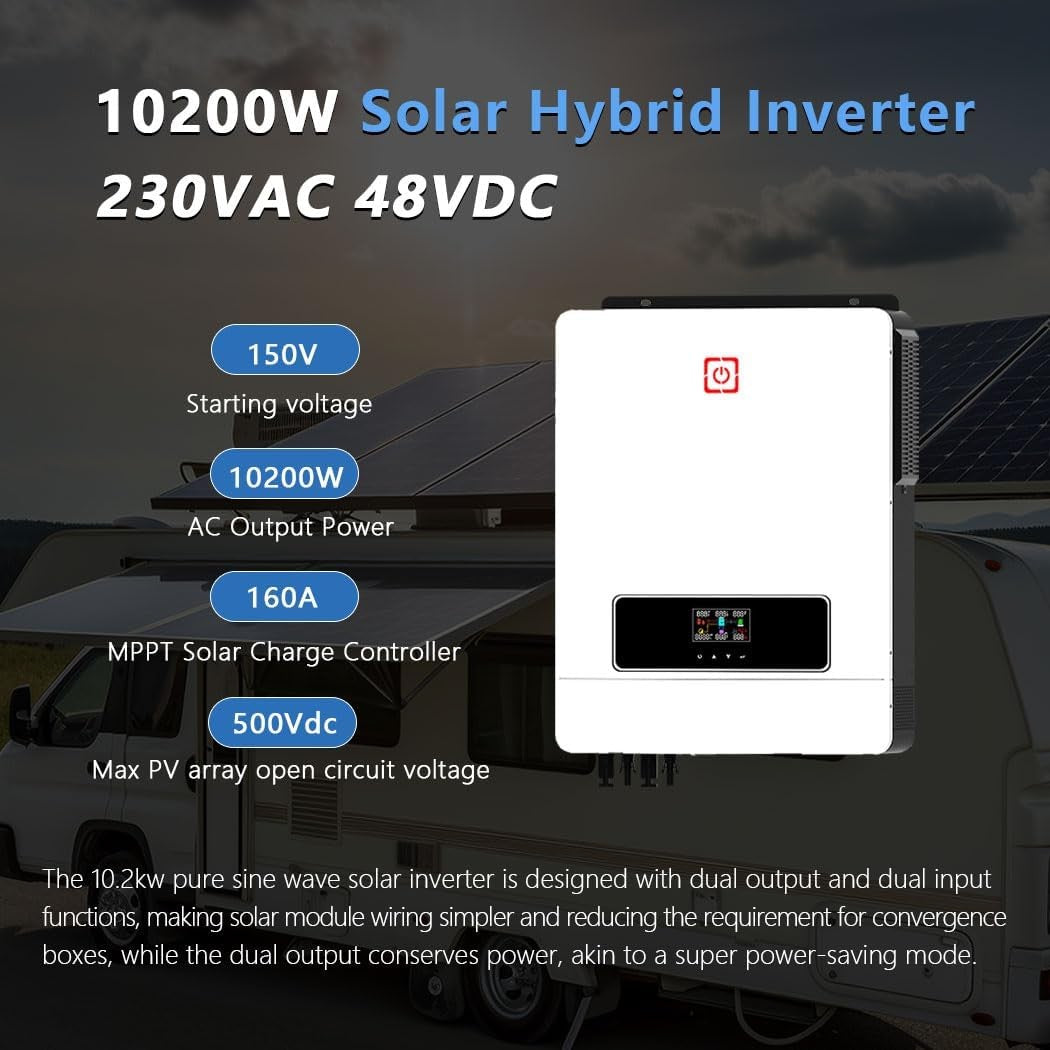

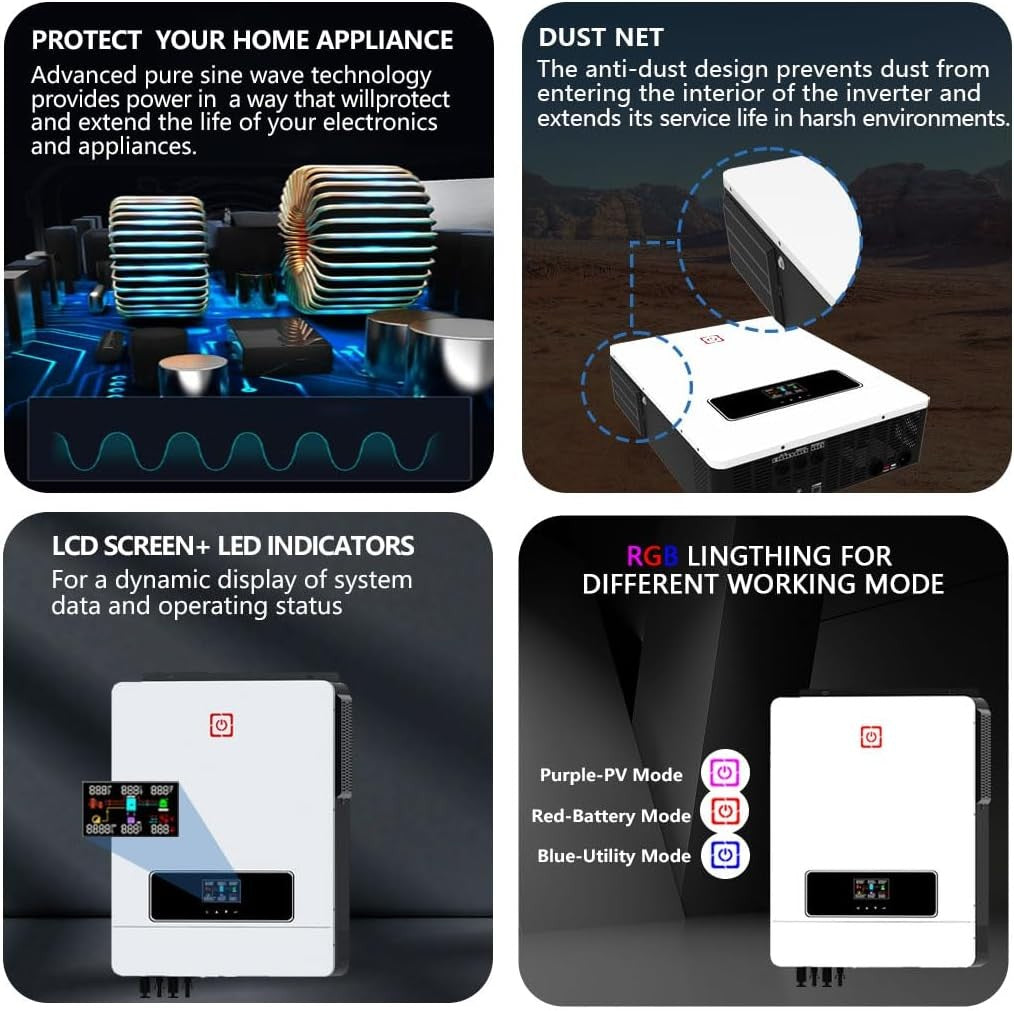

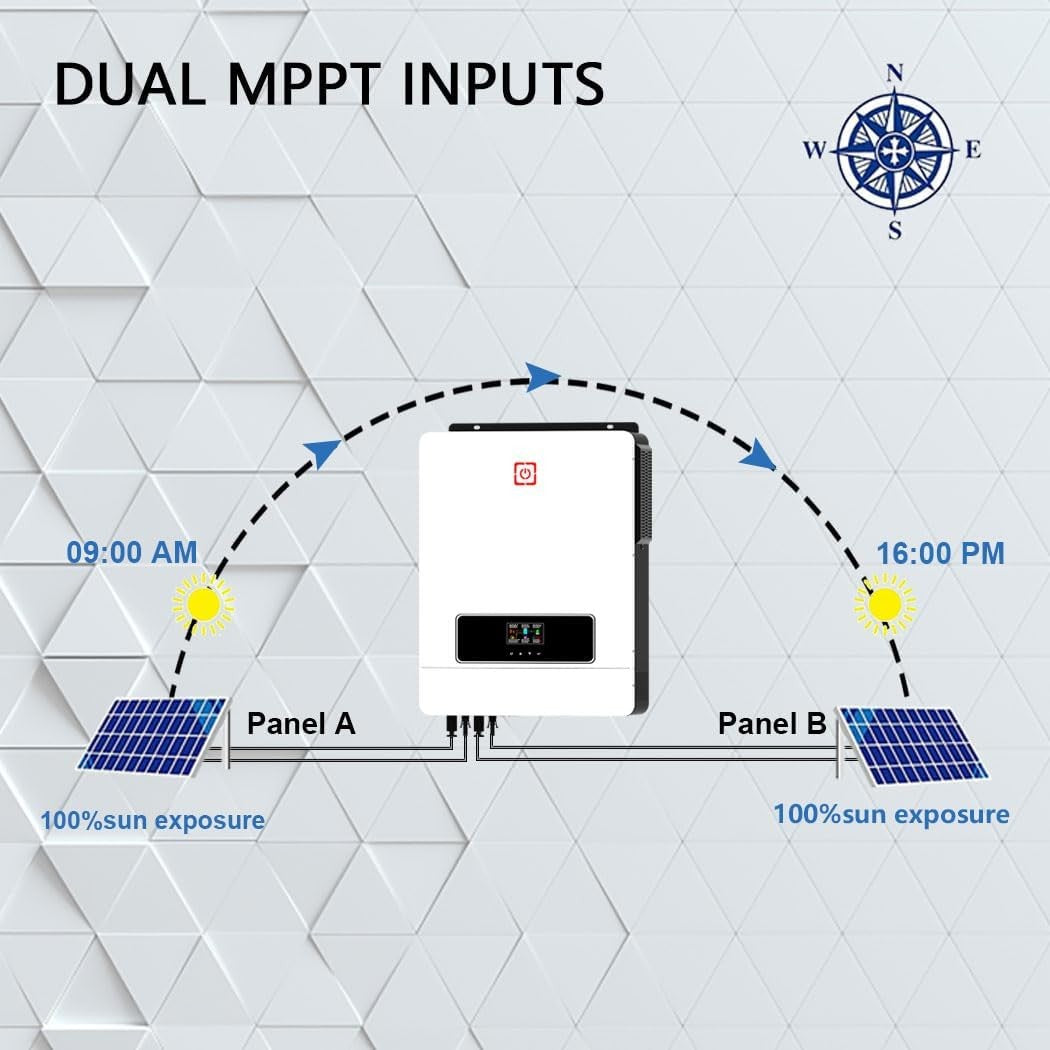

【Pure sine Wave Inverter】10200W Pure sine Wave Inverter is a new all-in-one hybrid solar inverter charger, Support dual PV input, dual MPPT voltage tracking.RGB lingthing for different working mode(Purple-PV Mode;Red-Battery Mode;Blue-Utility Mode)

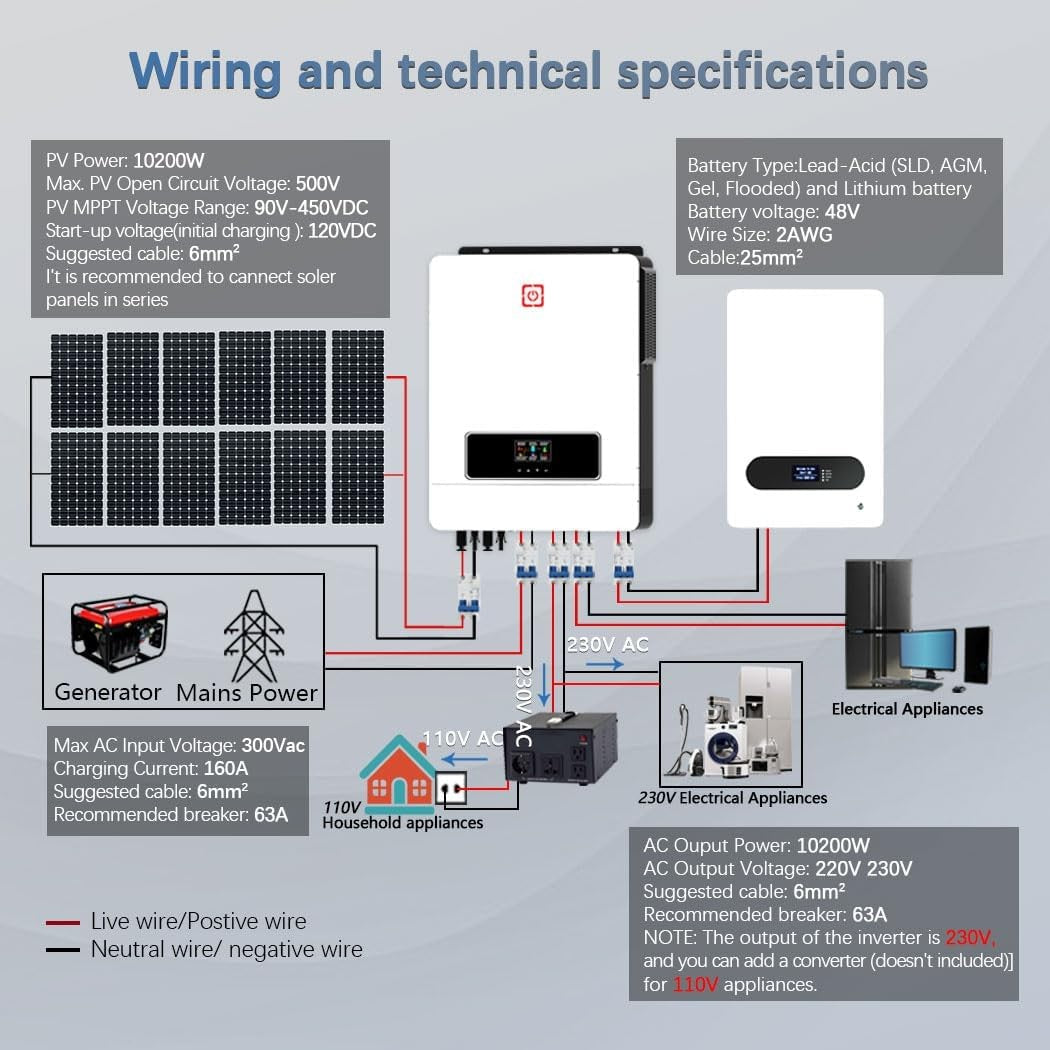

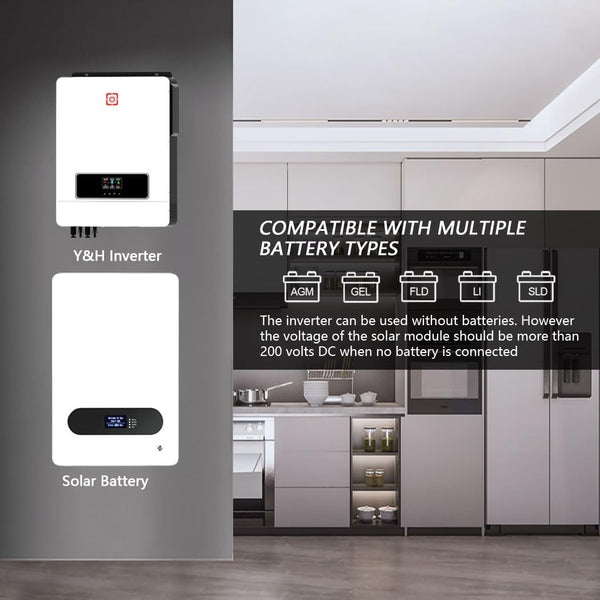

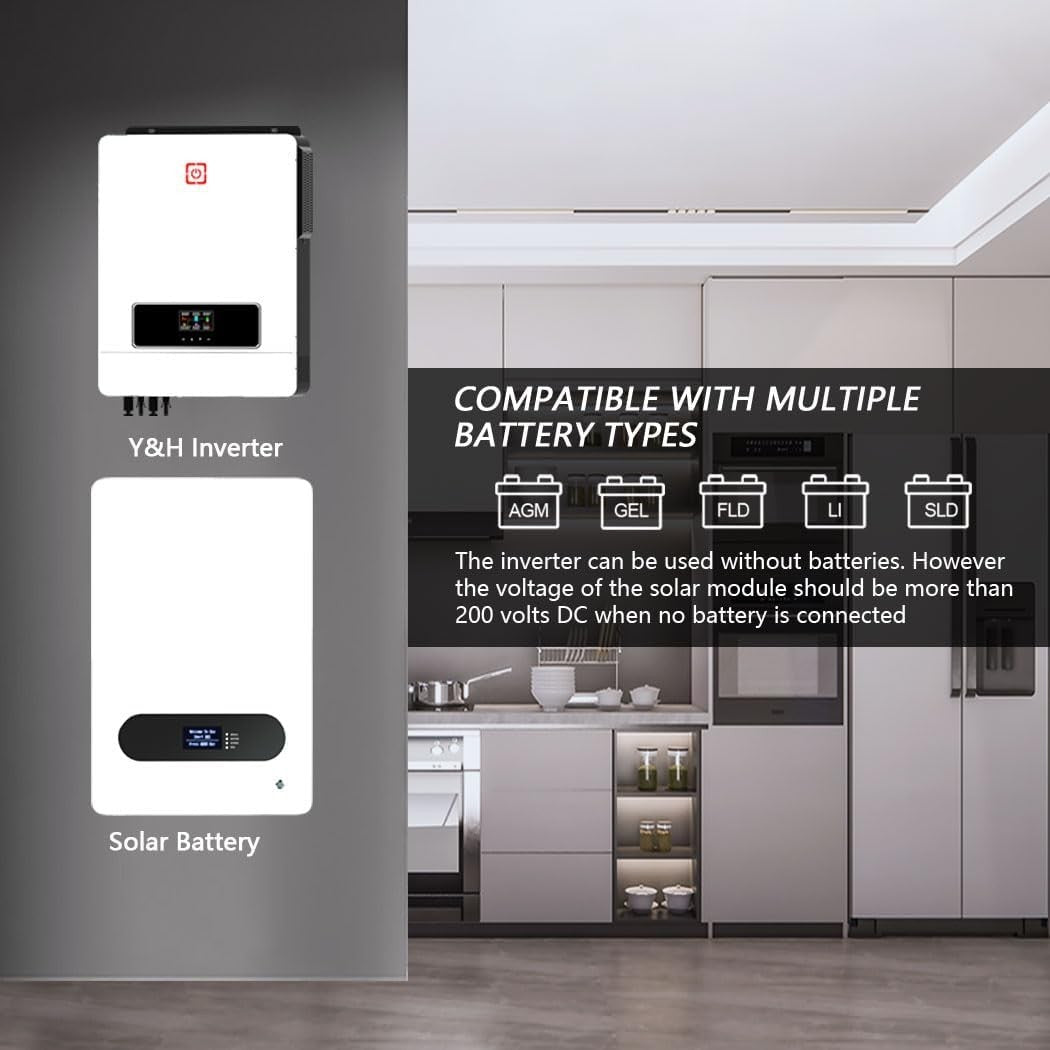

【TECHNICAL SPECIFICATIONS】10.2KW Hybrid Solar Inverter Max.PV Input Power: 10200W, Voltage range: 90-450Vdc, Max.PV Input VOC: 500V DC, Starting voltage >150V; The best working voltage is 300-360V;Recommended PV cable size: 10AWG, Max. charge current: 180A. Nominal Input Frequency: 50/60Hz; Output Power: 10200W, surge Capacity: 20400W.fit for 48V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery

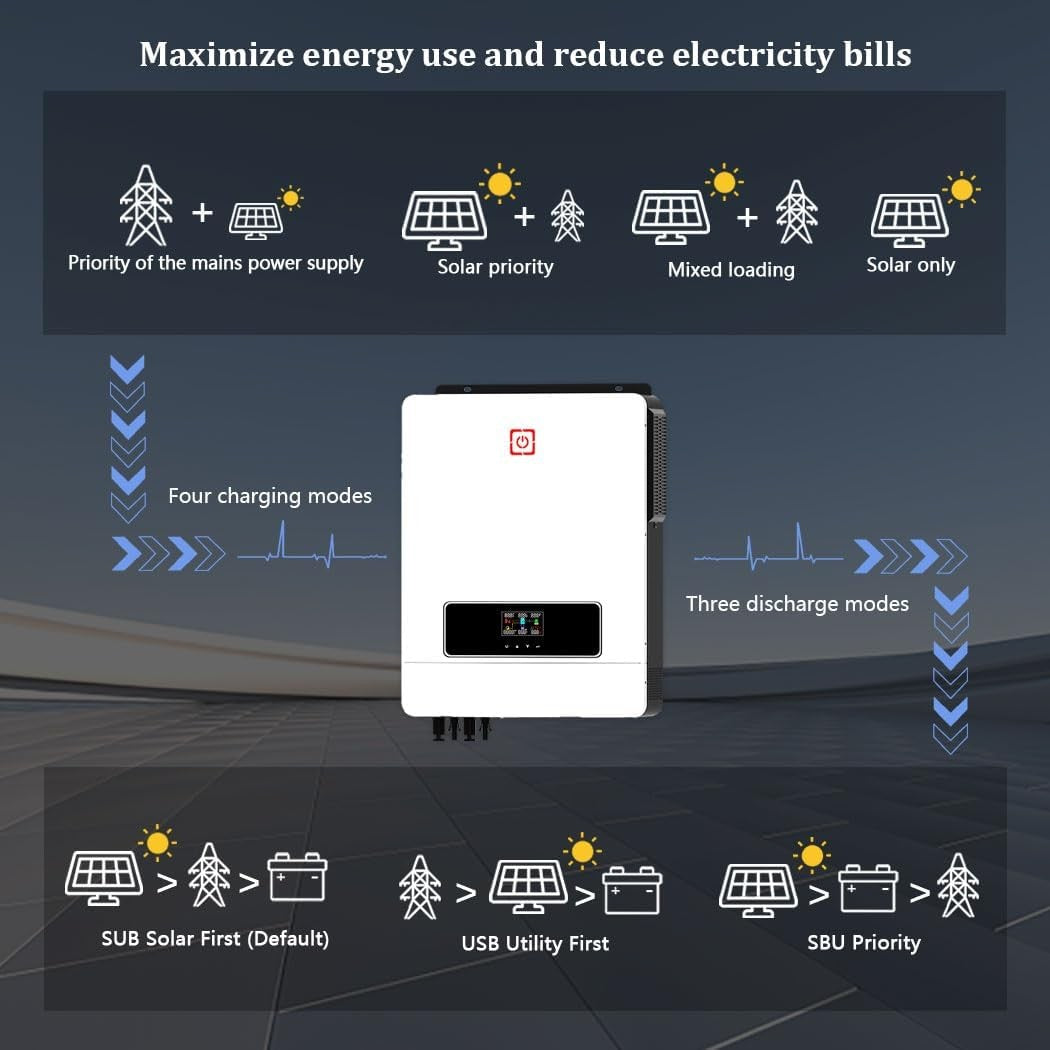

【MULTIPLE CHARGING MODES】Off Grid Solar Inverter have 4 charging modes are optional, i.e. Only Solar, Mains Frist , Solar Frist and Mains & Solar hybrid charging; and 3 output modes are available, i.e. Solar Frist, Mains Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.
【New features】Built-in BMS function. Lithium Battery Activation， has a reactivation feature to awaken a sleeping lithium battery. The small charge current to activate the protection circuit and if a correct cell voltage can be reached, it starts a normal charge.Dual AC output, one for the main load (UPS function), one for the conventional load.
【WIDE RANGE OF USES】MPPT Inverter Charger Pure sine Wave 10200W for RV Camping Boat Home Emergency ect.. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.（Be careful not to install it near the bedroom, the fan will make a sound when the inverter is running. Avoid affecting your rest)
Note: After item 37 is set to "hyd", item 01 will jump back to SUB mode instead of SBU mode.
【TECHNICAL SPECIFICATIONS】10.2KW Hybrid Solar Inverter Max.PV Input Power: 10200W, Voltage range: 90-450Vdc, Max.PV Input VOC: 500V DC, Starting voltage >150V; The best working voltage is 300-360V;Recommended PV cable size: 10AWG, Max. charge current: 180A. Nominal Input Frequency: 50/60Hz; Output Power: 10200W, surge Capacity: 20400W.fit for 48V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery
【MULTIPLE CHARGING MODES】Off Grid Solar Inverter have 4 charging modes are optional, i.e. Only Solar, Mains Frist , Solar Frist and Mains & Solar hybrid charging; and 3 output modes are available, i.e. Solar Frist, Mains Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.
【New features】Built-in BMS function. Lithium Battery Activation， has a reactivation feature to awaken a sleeping lithium battery. The small charge current to activate the protection circuit and if a correct cell voltage can be reached, it starts a normal charge.Dual AC output, one for the main load (UPS function), one for the conventional load.
【WIDE RANGE OF USES】MPPT Inverter Charger Pure sine Wave 10200W for RV Camping Boat Home Emergency ect.. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.（Be careful not to install it near the bedroom, the fan will make a sound when the inverter is running. Avoid affecting your rest)
Note: After item 37 is set to "hyd", item 01 will jump back to SUB mode instead of SBU mode.
Feature
1.Pure sine wave solar inverter
2.Built-in 160A(for 7.2KW/8.2KW)/180A(for 10.2KW)MPPT solar charge
3.Inverter running without batter
4.Smart battery charge design to optimize battery life
5.Output power factor 1.0
6.One-click restoration to factory Settings
7.High PV input voltage range(90~500VDC）

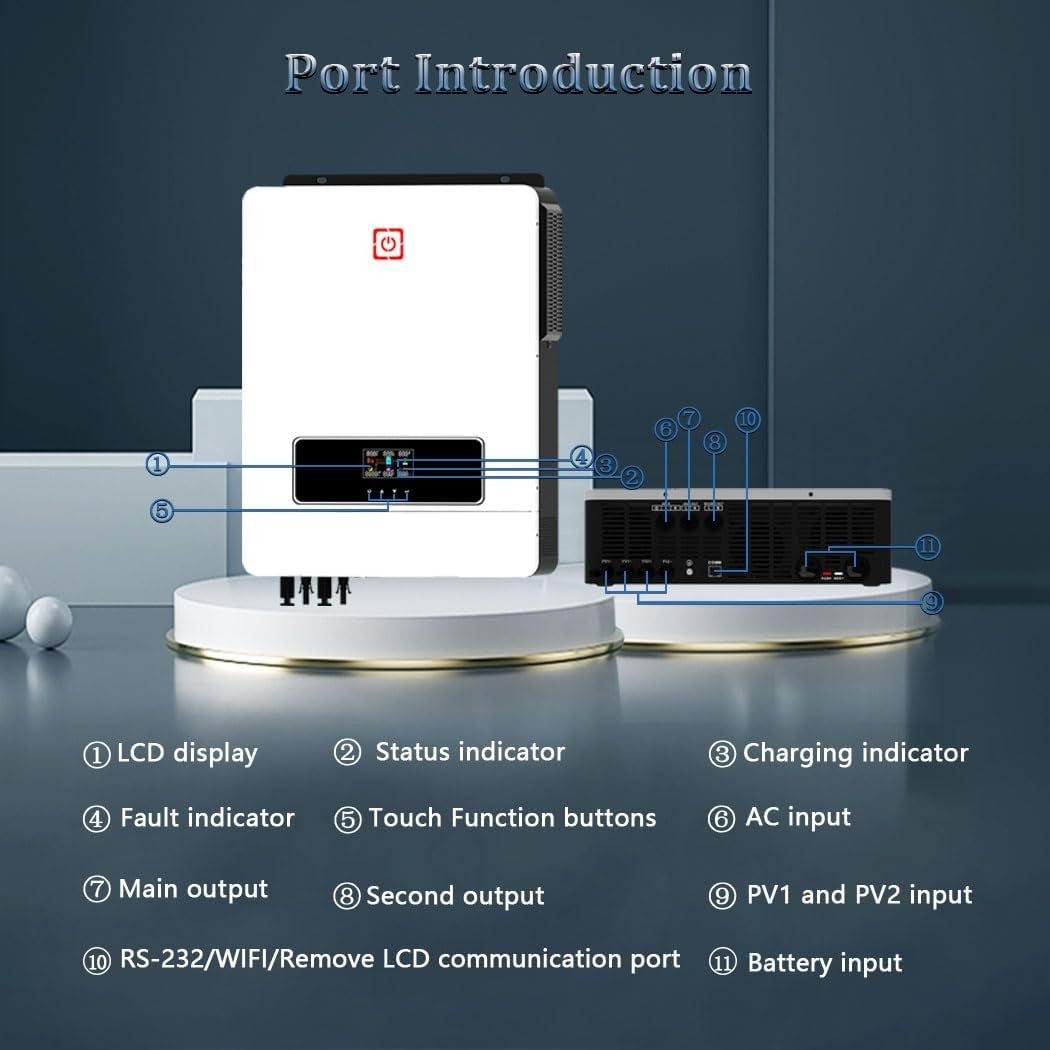

8.Dual output
9.WIFI&GPRS available for IOS and Android
10.Built-in Lithium battery automatic activation
11.Built-in anti-dusk kit for harsh environment
12.Touch buttom
| Product Data Sheet | |
| MODEL | VICTOR MAX-10.2KW |
| Phase | 1-phase |
| Maximum PV Input Power | 5400W+5400W |
| Rated Output Power | 10200W/10200VA |
| Maximum Solar Charging Current | 160A |
| GRID-TIE OPERATION | |
| PV INPUT(DC) | |
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC |
| MPPT Voltage Range | 90-450VDC |
| Maximum Input Current | 2/18A |
| GRID OUTPUT(AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Voltage Range | 195-253VAC |
| Nominal Output Current | 44.3A |
| Power Factor | >0.99 |
| EFFICIENCY | |
| Maximum Conversion Efficiency(DC/AC) | 98% |
| TWO LOAD OUTPUT POWER | |
| Full Load | 10200W |
| Maximum Main Load | 10200W |
| Second Load Range | 2040W-7140W |
| Maximum Load Cut Off Voltage | 52VDC |
| Maximum Load Return Voltage | 54VDC |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC |
