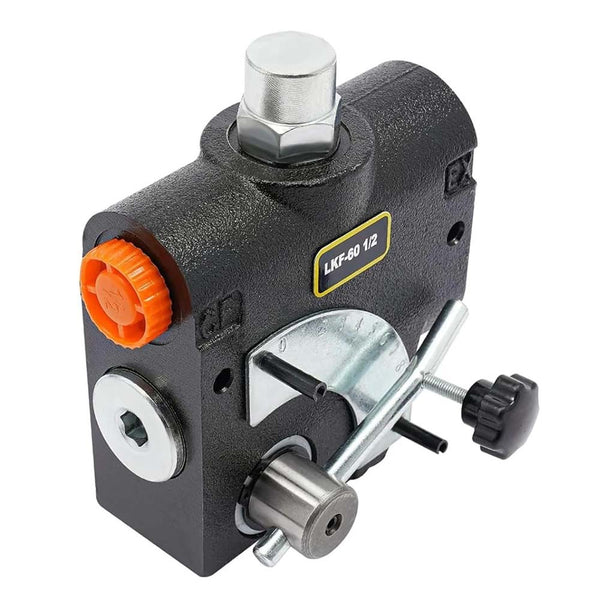

1/2'G Hydraulic Adjustable Variable Flow Control Valve with Relief 0-16 GPM
Pre-Order
Regular price
$180.42
Tax included.
Shipping calculated at checkout.
You have got FREE SHIPPING
Expected Delivery on - .
GUARANTEED SAFE CHECKOUT
0

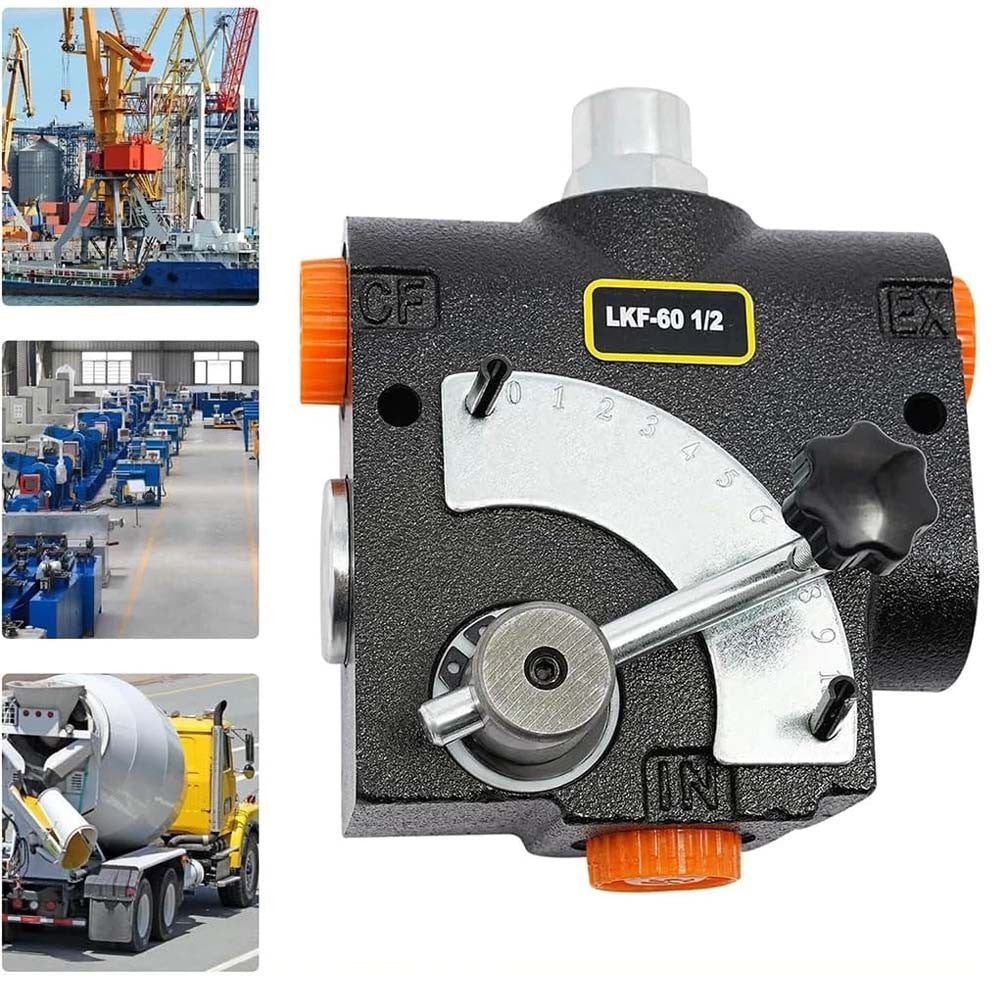

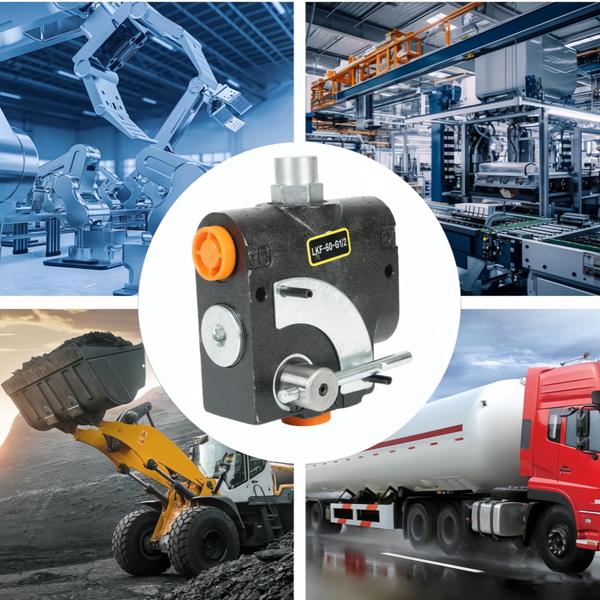

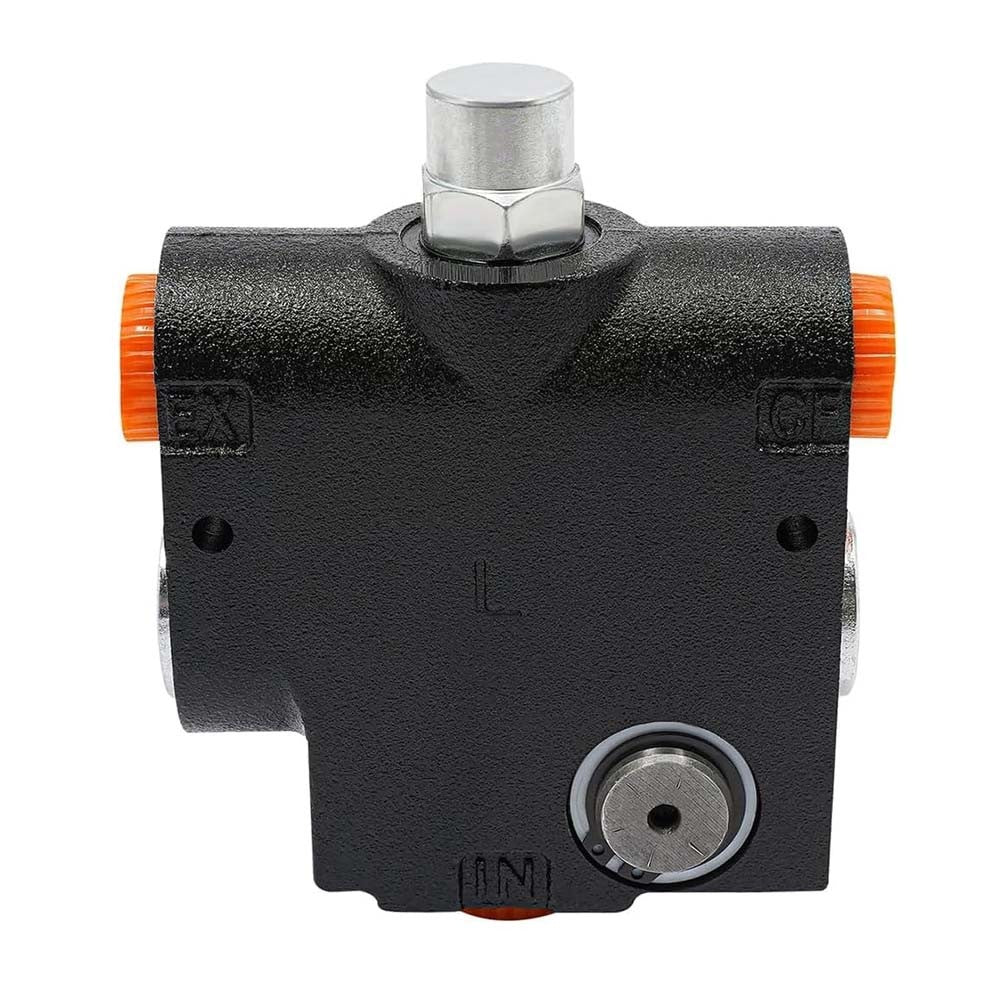

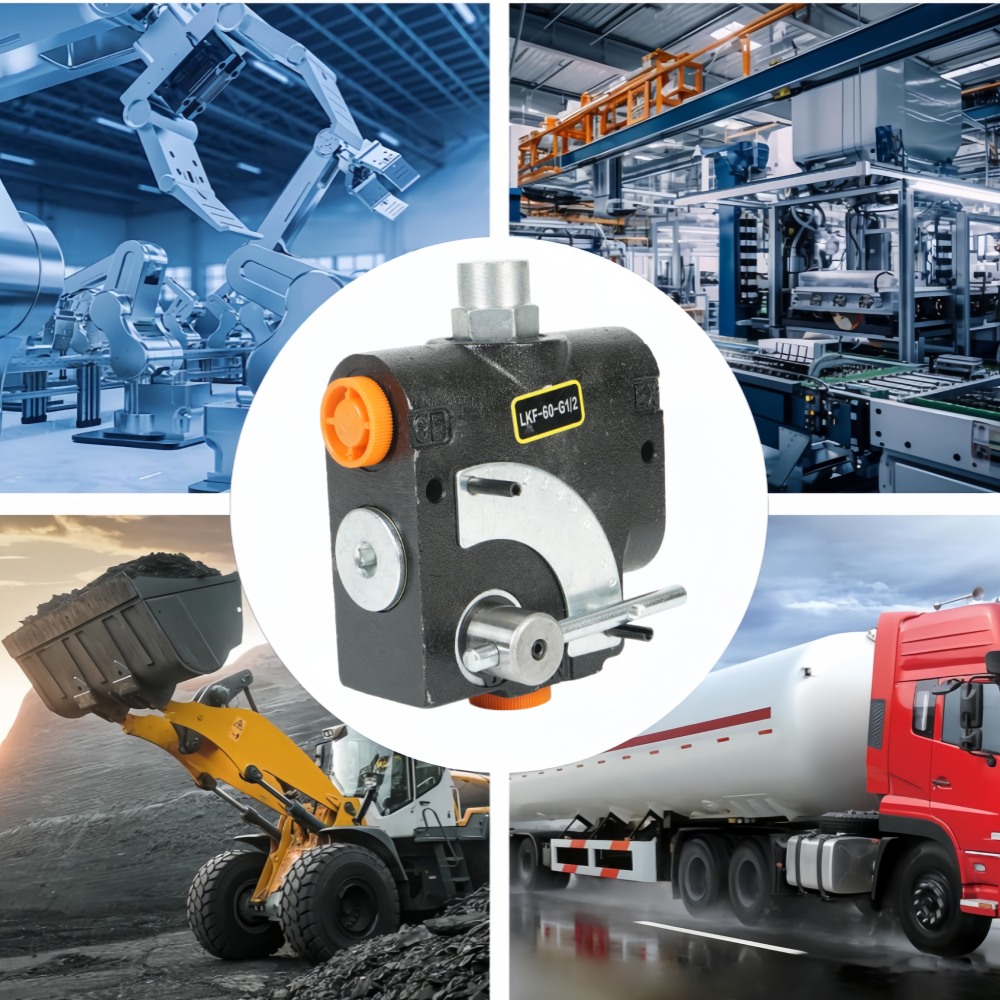

1/2'G Hydraulic Adjustable Variable Flow Control Valve with Relief 0-16 GPM
PRODUCT DETAILS
IN: Inlet Port
CF (Controlled Flow): Flow coming from this port is pressure compensated and proportional. Flow can vary from closed to fully open depending on the position of the lever.
EX (Excess Flow): Flow coming from this port is pressure compensated. If the lever is set to 0 all flow will exit the valve from this port.
Specification
Material: Vermicular Graphite Cast Iron
Surface Treatment: Phosphating
Color: Black
Model: LKF-60
Assembly Required: No
Nominal Diameter: 15mm/0.59in
Nominal Pressure: 21MPa

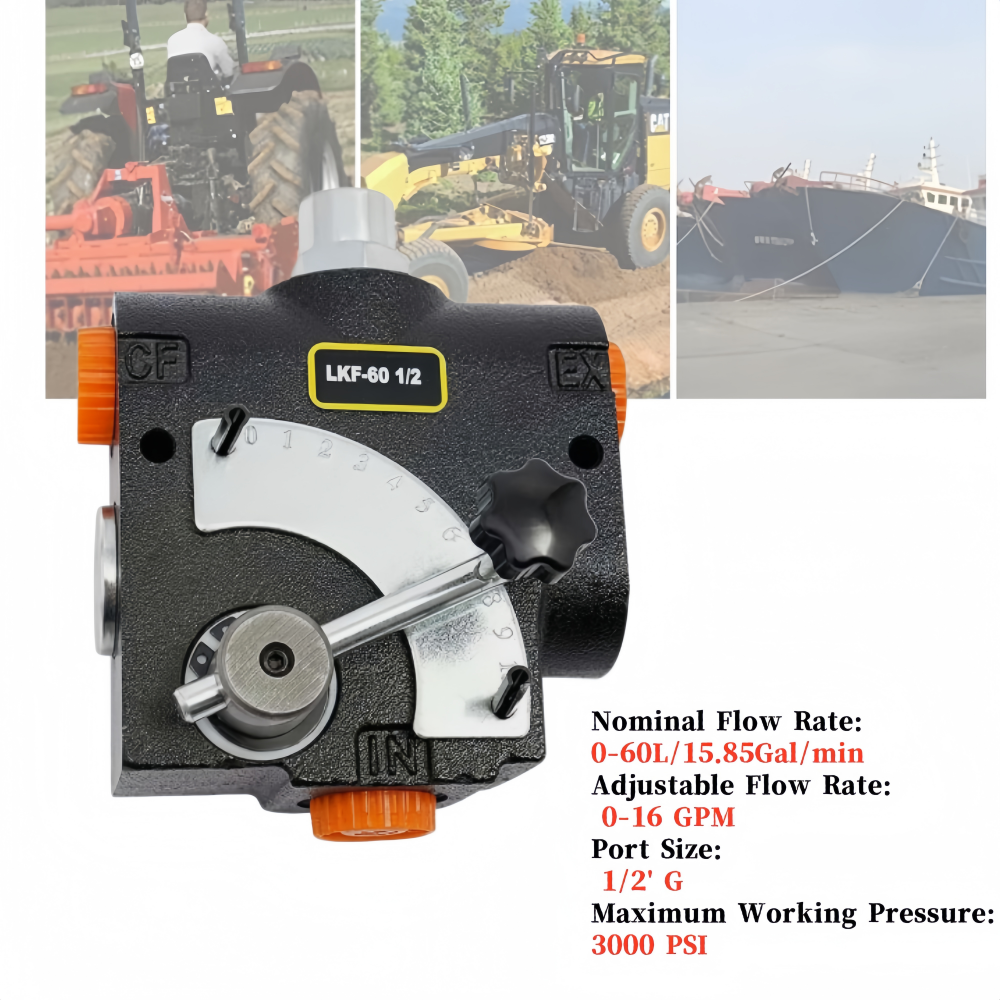

Nominal Flow Rate: 0-60L/15.85Gal/min
Adjustable Flow Rate: 0-16 GPM
Port Size: 1/2'G
Maximum Working Pressure: 3000 PSI

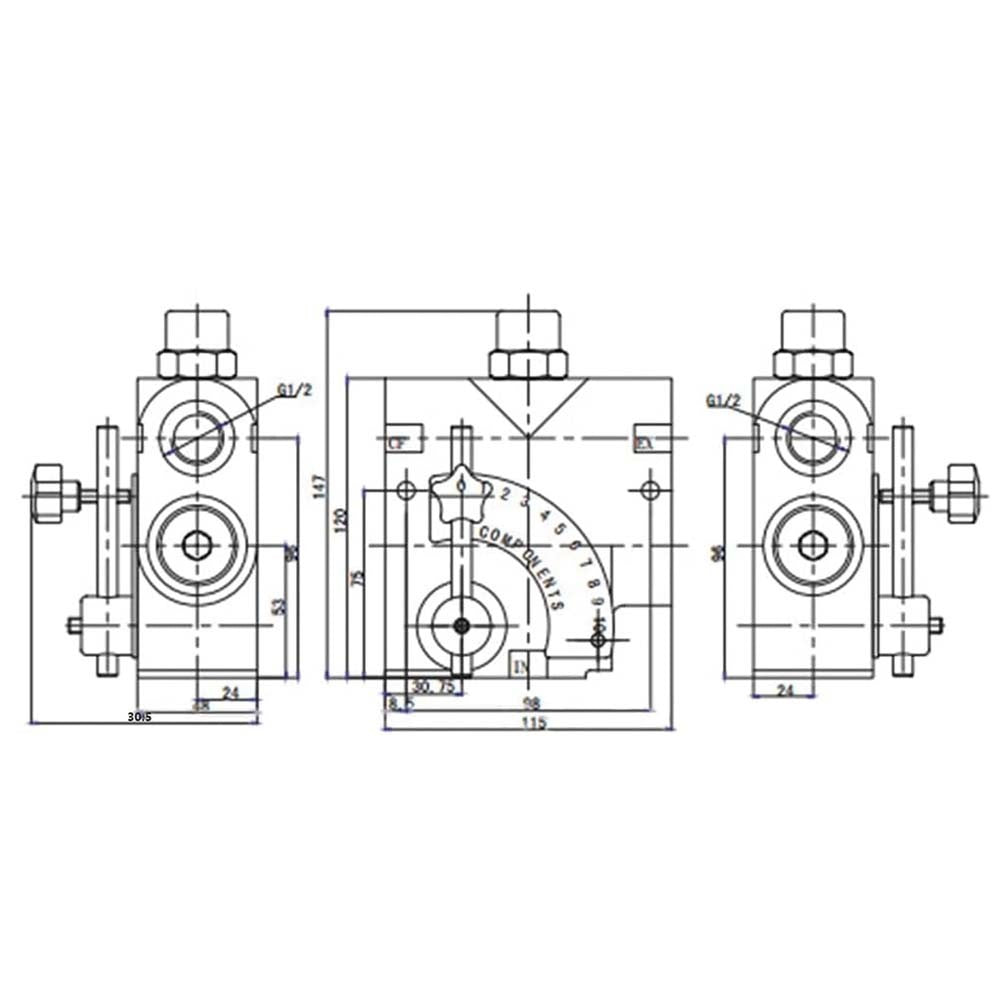

Product Size: 11.5*4.8*14.7cm/4.53*1.89*5.79 in
Gross Weight: 3.9kg/8.6lbs
Package Included
1* Hydraulic Adjustable Variable Flow Control Valve
