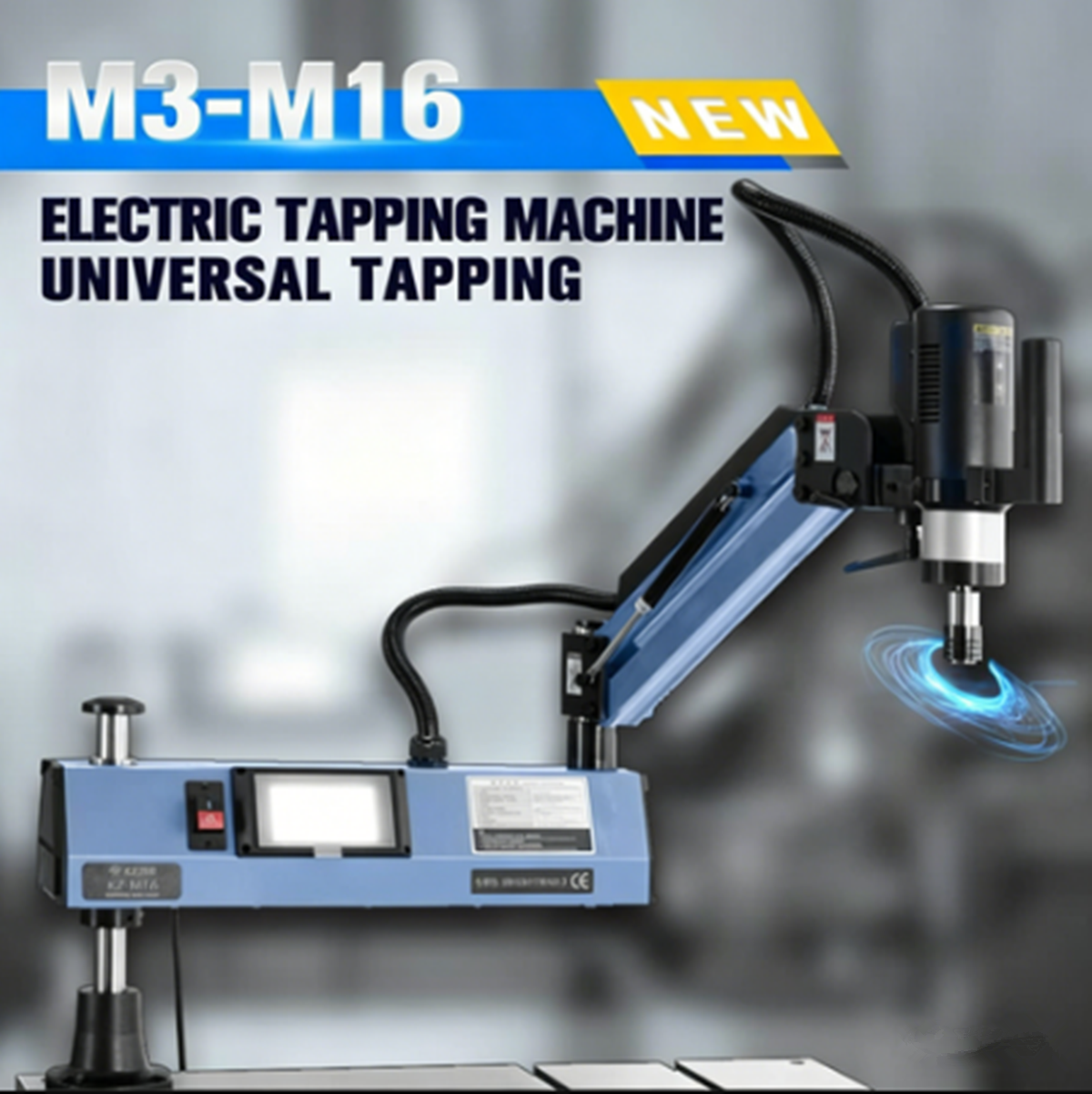

Electric Threading Machine Drilling Threading M3-M16 Universal 360° Flexible Arm

Electric Threading Machine Drilling Threading M3-M16 Universal 360° Flexible Arm

PRODUCT DETAILS

Selling Point

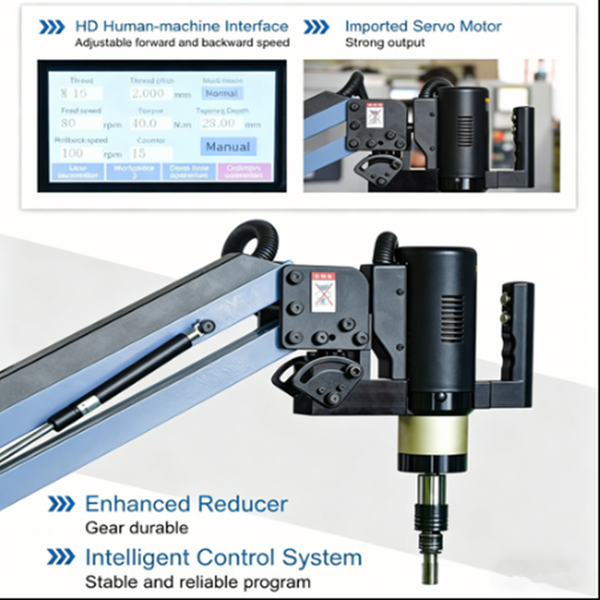

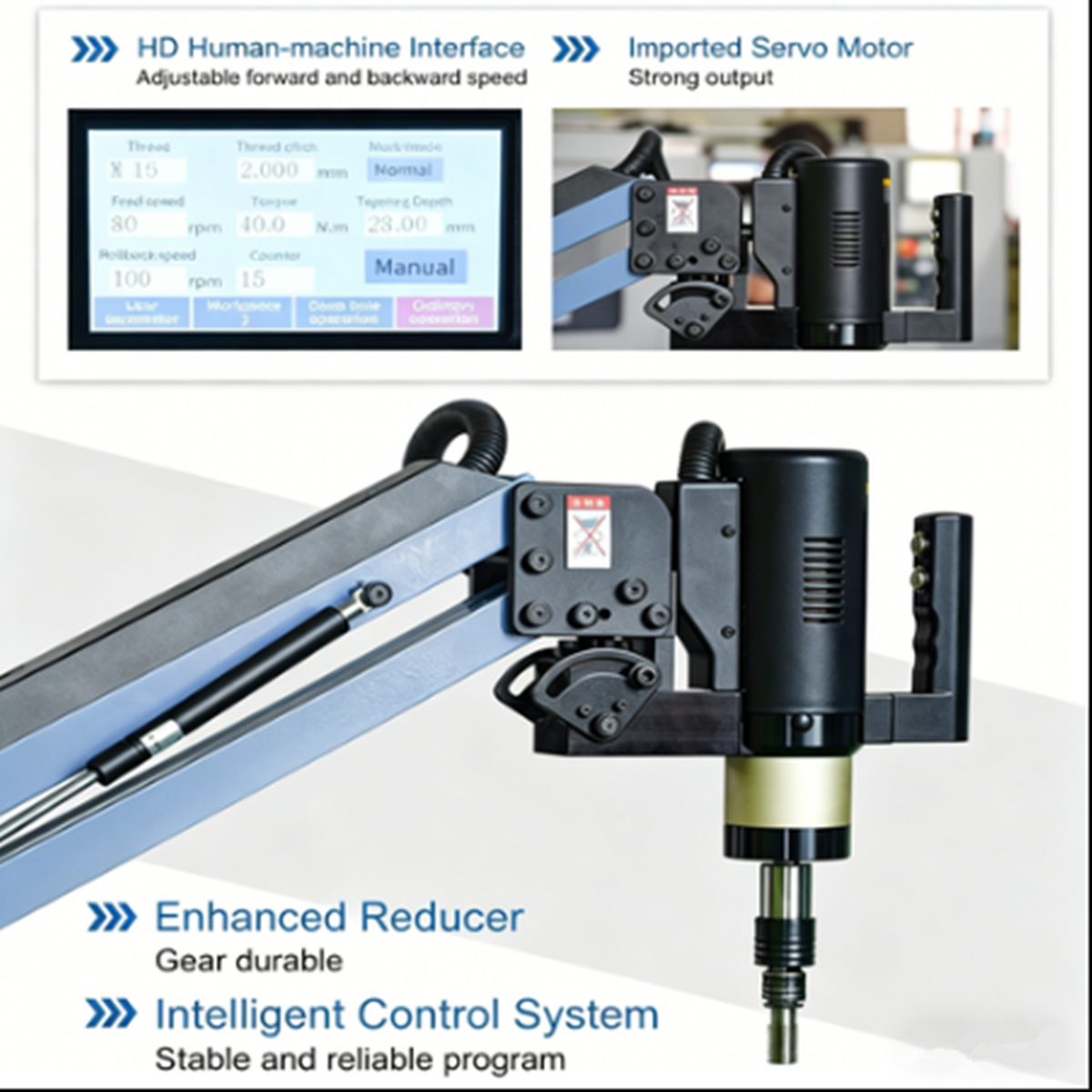

  • 【Smart Touch Control & Precise Adjustment‌】Featuring an intuitive ‌LCD touchscreen tapping machine‌, effortlessly adjust speed, depth, and torque. Supports ‌manual tapping, automatic tapping, and deep-hole tapping modes‌ for versatile threading tasks.
  • 【Improved Tapping Experience】Delivering both electric and manual modes, our Tapping Machine provides adjustable tapping options with three major tapping modes. Enter the tapping speed to match your processing needs and pitch with ease.

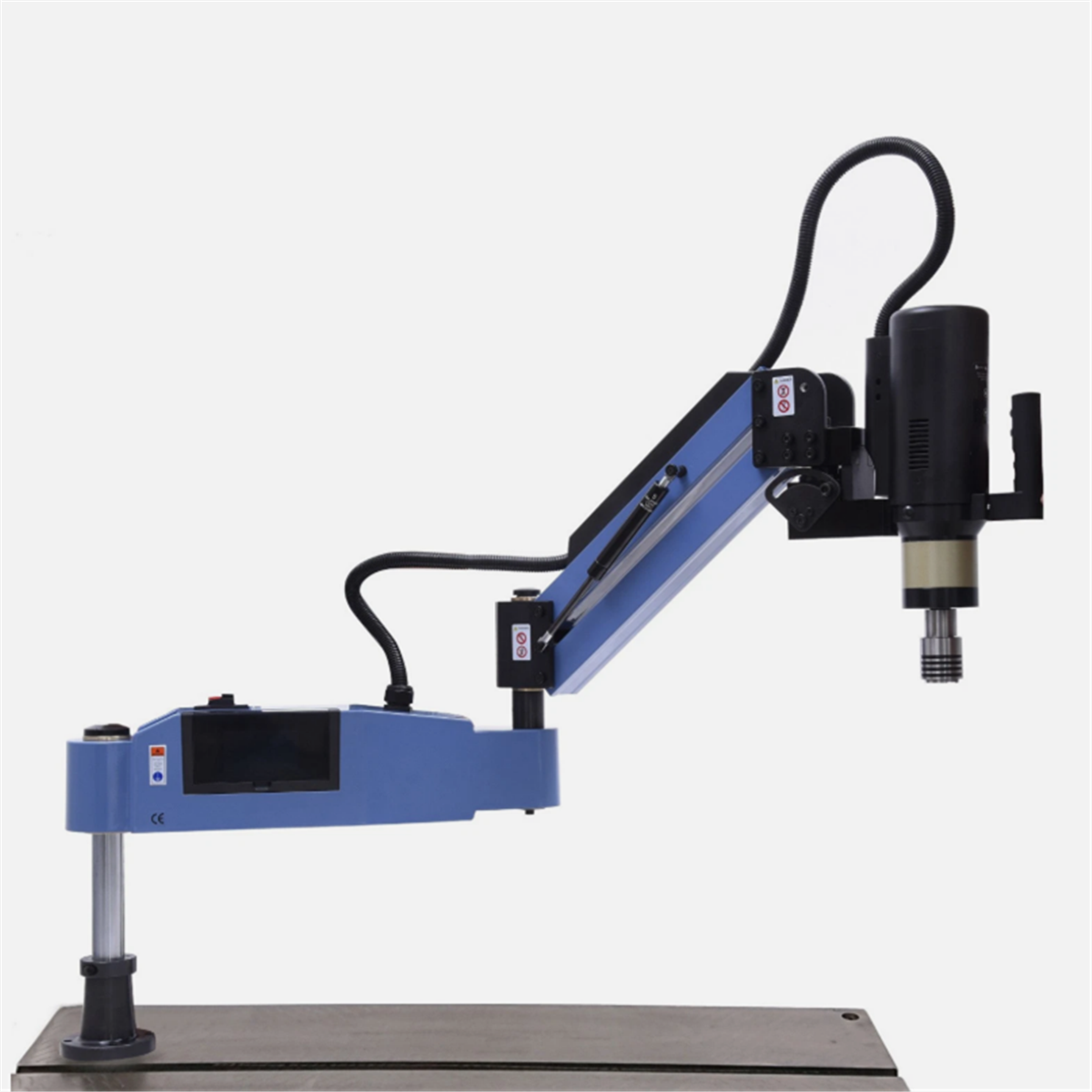

  • 【360° Omnidirectional Arm for Full Coverage‌】The ‌flexible tapping arm‌ offers 360° rotation with precise positioning. Adjustable reach: ‌1100mm horizontal‌ and ‌350mm vertical extension‌, tapping machine for hard-to-access angles.
  • 【Multi-Material Compatibility & Versatility‌】Handles ‌steel, stainless steel, aluminum, plastic, and wood‌ effortlessly. Performs ‌horizontal/vertical tapping‌ on complex workpieces with one machine.

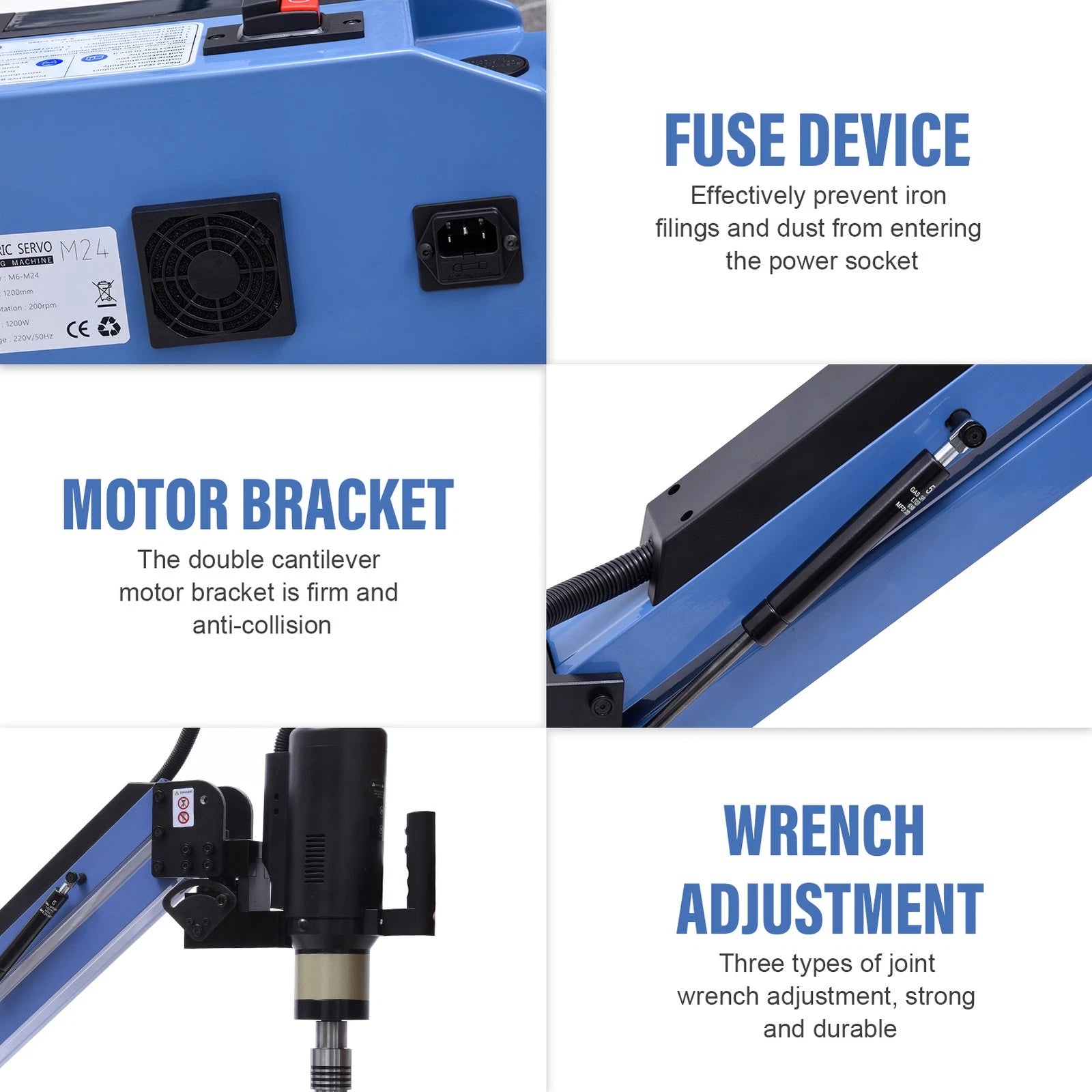

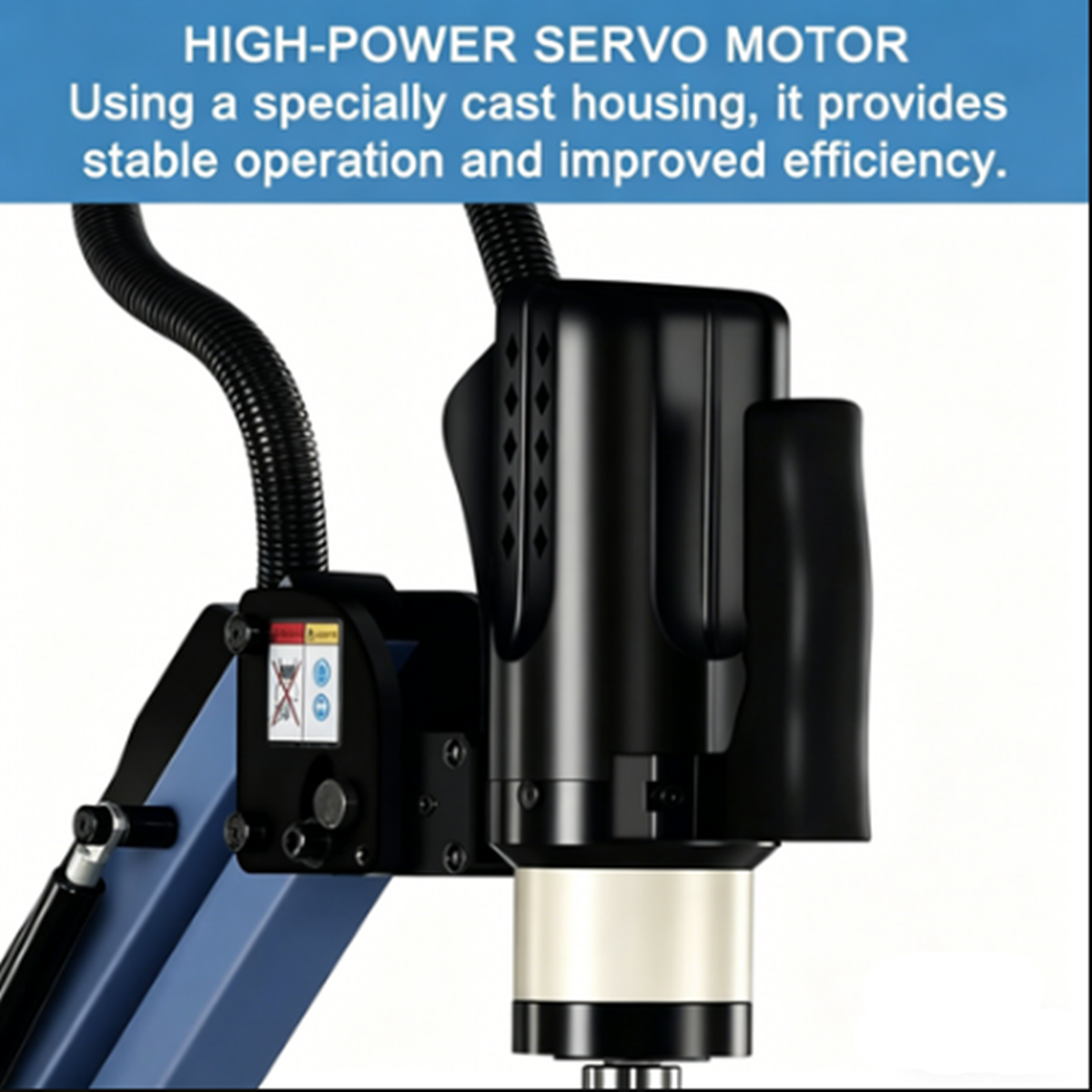

  • 【Dual Protection & Stable Performance‌】Powered by a ‌1200W servo motor‌ and reinforced gearbox. ‌Overload auto-shutoff + clutch protection‌ prevents tap breakage/workpiece damage. Delivers ‌high-torque precision‌ for blind/deep holes.

  • 【Pro-Grade Yet Easy to Use‌】Perfect for ‌industrial machining, mold repair, packaging equipment, and auto workshops‌. Beginner-friendly with ‌quick-change collets (10-second swap)‌ for varied thread sizes.

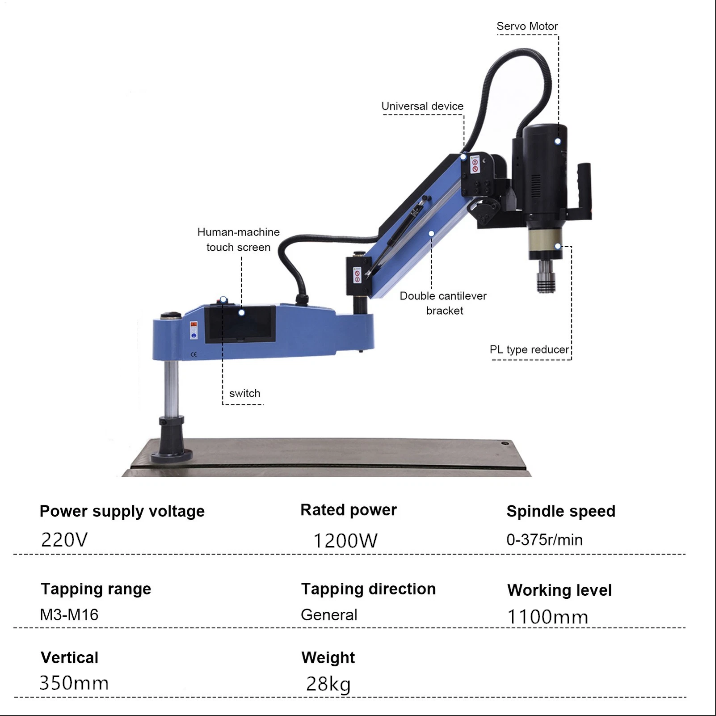

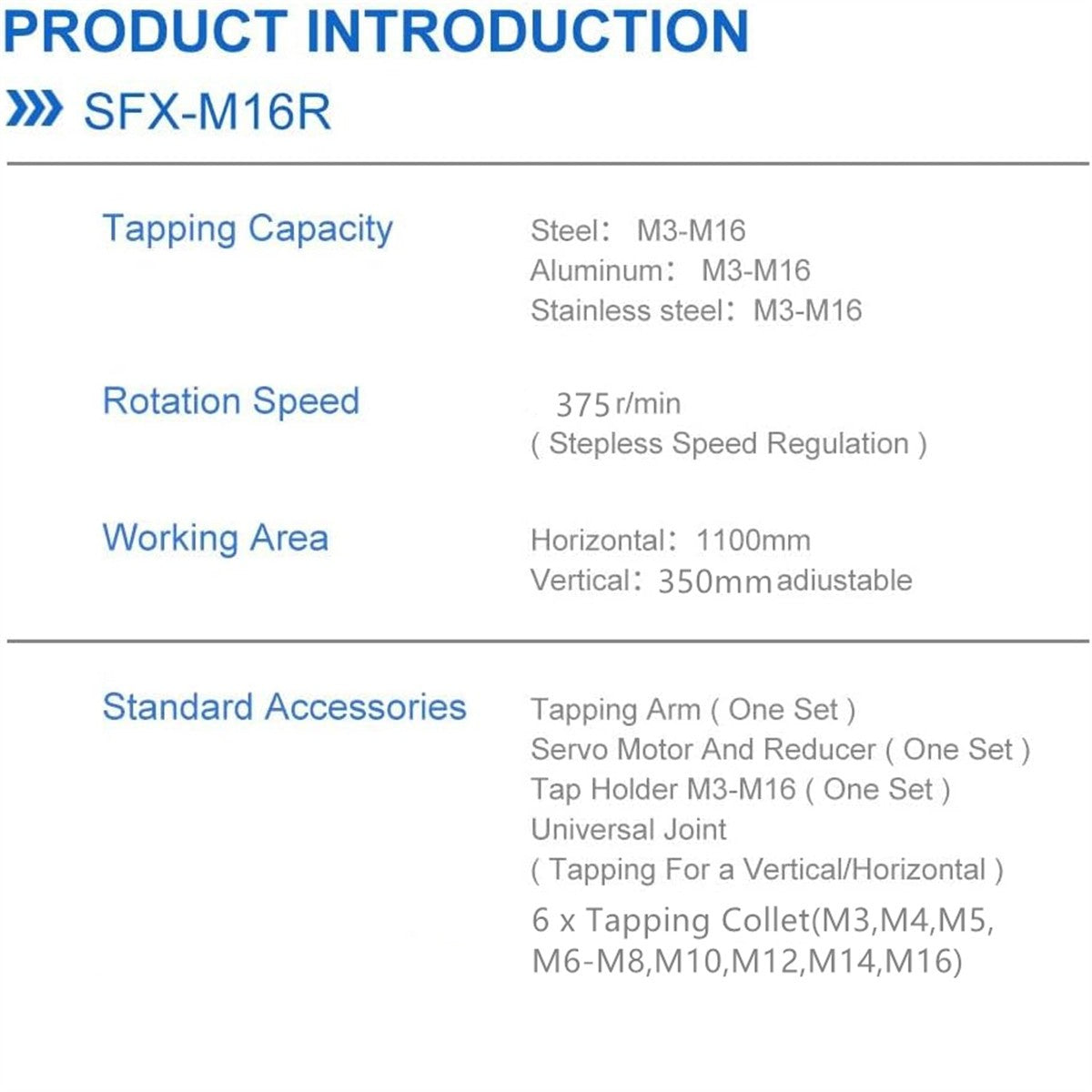

Specification:
Name: Tapping Machine
Color: Blue
Attribute: Electric

Working Mode: 3

Rated Power: 1200W

Supply Voltage: 220V

The Spindle Rated Speed: 0-375r/min

Bearing Scope of Thread: M3-M16

Weight: 28Kg

Working Area: Horizontal: 1100mm    Vertical: 350mm adjustable

Applicable materials: aluminum, copper, A3 steel, 45 steel, cast iron, pig iron, Q235, S136, mold steel, 718H, 40Cr, stainless steel and other metal materials.


Tapping Model:

1. Manual Tapping: Set the tapping speed and thread pitch by yourself, you can observe the depth value of the digital display on the screen. After reaching the required depth, you can manually press the rewind button(suitable for different single piece processing).
2. Automatic Tapping: Just input the tapping depth, speed, back speed and torque values to achieve automatic tapping
operating(suitable for batch processing).
3. Deep Hole Intermittent Mode:This mode is mainly used for deep hole tapping, the CNC computer simulates the manual manual method. While performing deep processing, the processing chips are discharged to ensure the tapping effect(suitable for deep hole tapping)

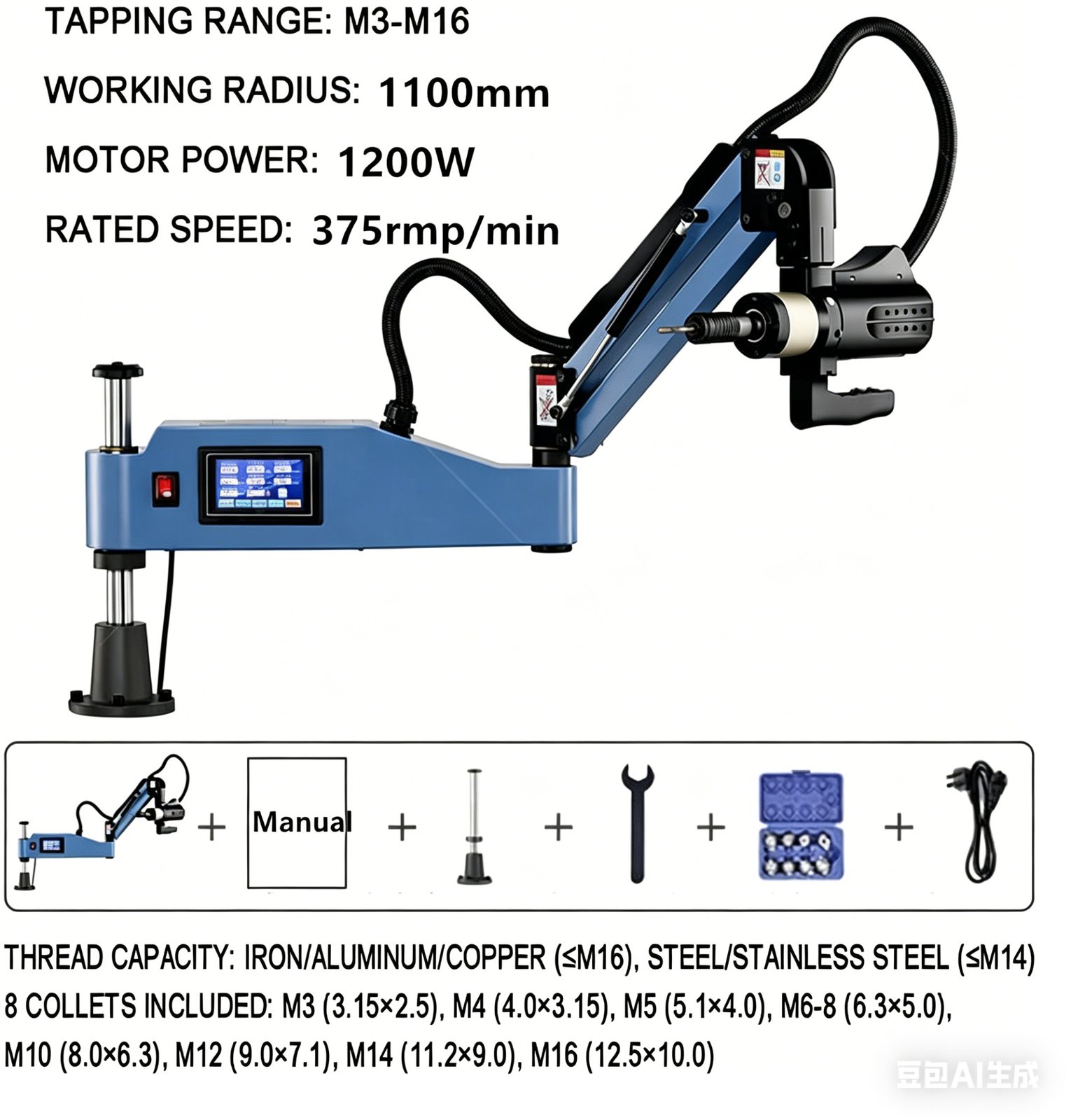

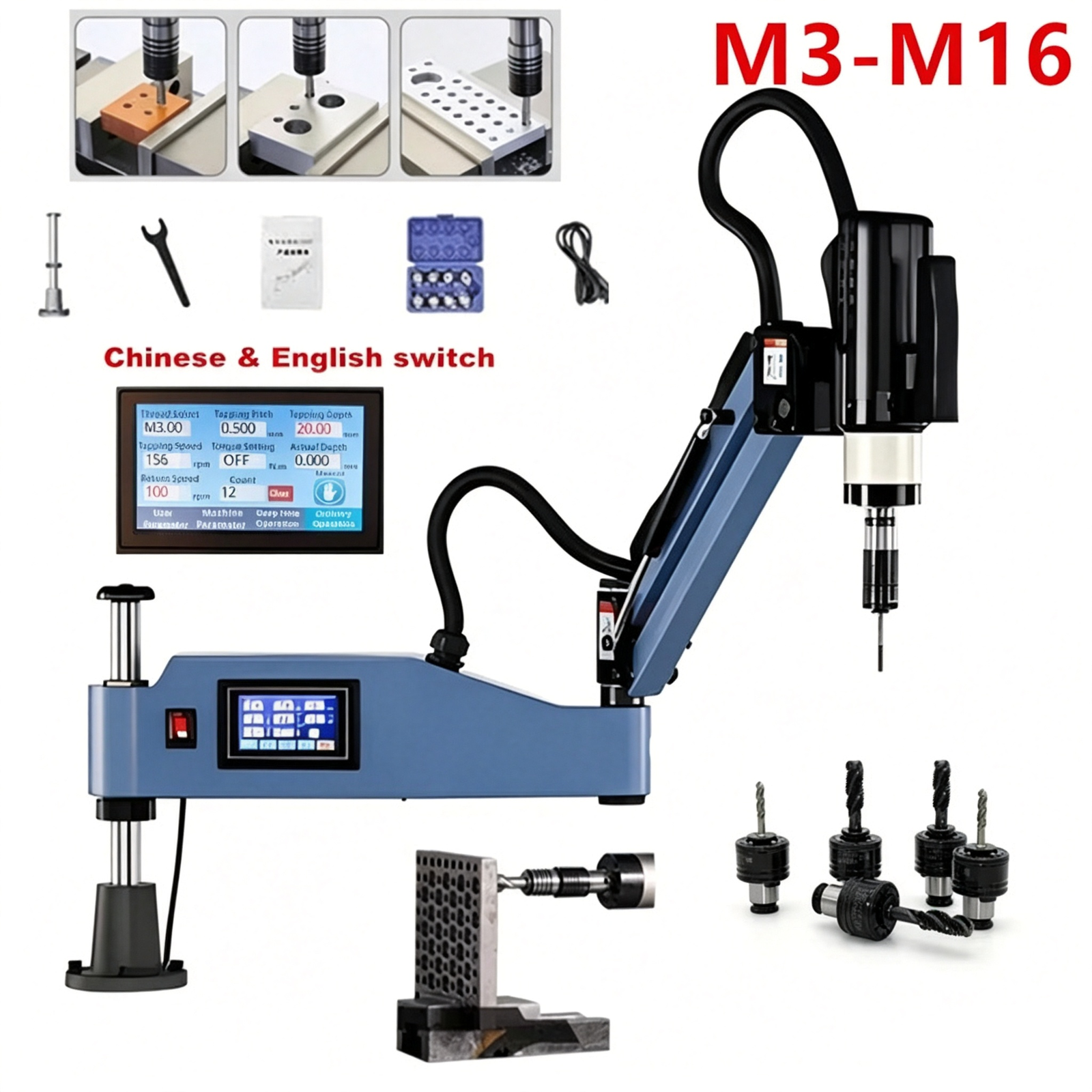

Packing List:
1 Set of Tapping Machine (M3-M16 )
Including:
1 * Tapping Machine
1 Set of Collets（ ISO standard M3,M4,M5,M6-M8,M10,M12,M14,M16）
1 * AU Power Cord
1 * Post
1 * Instruction Manual

Notes:
1. Due to the different monitor and light effects, the actual color of the item might be slightly different from the color which is showed in the pictures.
2. Please forgive a slight measuring deviation due to manual measurement.
