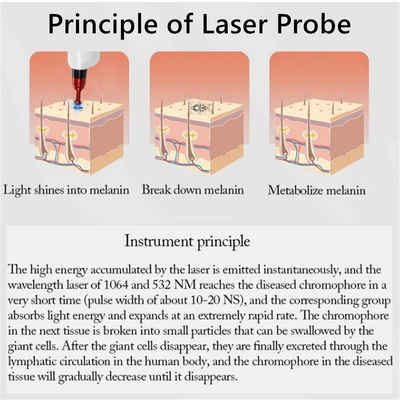

The principle of operation of the instrument

The laser pigment therapy system adopts gemstone Q-switching mode, and the laser emits high energy instantaneously to effectively destroy the chromophore in the diseased tissue, that is, the principle of photoblasting: the high energy accumulated by the laser is instantaneously emitted, and the laser with wavelengths of 1064 and 532NM is emitted in a very short time. (pulse width of about 10-20NS) reaches the diseased chromophore in an instant, and the corresponding chromophore absorbs light energy and rapidly expands and explodes and ruptures. The chromophore is fragmented into small particles that can be phagocytosed by macrophages. After being digested by macrophages, it is finally excreted through the lymphatic circulation in the human body. The chromophore in the diseased tissue will gradually decrease until it disappears, while the surrounding normal skin tissue Does not absorb 1064, 532NM wavelengths of laser light.

1、Product introduction

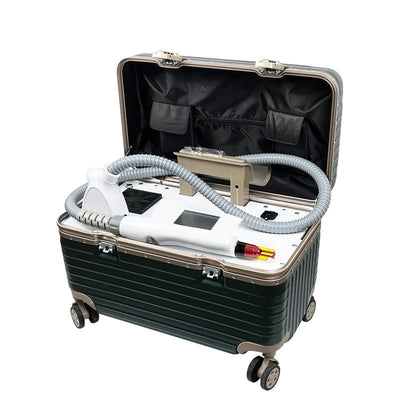

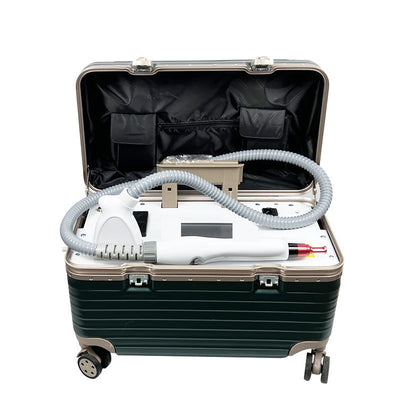

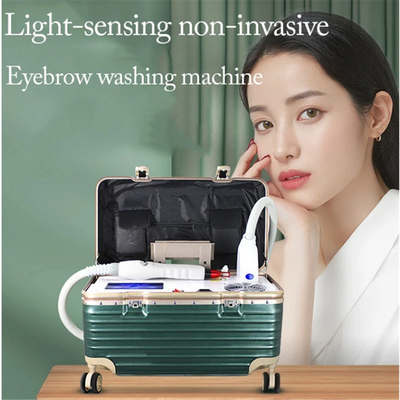

Nd yag laser tattoo removal machine is a multi-functional beauty instrument that uses the

most advanced optical technology in the field of beauty technology. It combines the

multi-wavelength optical energy to fully exert the light energy effect and has significant clinical effects. It has been proven to be safe and effective for different applications.

2、Technical principle

Nd yag laser tattoo removal machine uses the jewel Q-switching mode, the high-energy energy is used to effectively break down the pigment in the diseased tissue. That is, the principle of photo-blasting: the accumulated high-energy instant emission causes the irradiated pigment particles to absorb energy and then expand and rupture, and a part of the cracks become more tiny particles excreted, and some are excreted by the human body through the lymphatic system, thereby removing the pigment. The surrounding normal tissue does not absorb the 1064nm, 532nm laser, thus maintaining the integrity of the cell frame, and there is no condition for scar formation. The maximum degree of safety is guaranteed to be free from complications after use.

3、Scope of application

Exogenous pigmented skin problems: the operation of pigmented skin lesions such as

tattoos, eyebrows, eye lines, lip lines and traumatic tattoos has good clinical results. With the toner operation head, black face dolls and white porcelain dolls can be developed to achieve skin rejuvenation, fine pores, lightening spots, whitening, blackhead and oil control.

4、technical parameter

Wavelength：532nm、1064nm

Pulse width：10ns

Energy：50--2000mj

Working frequency：1-10Hz

Spot diameter：1-8mm

Cooling method: water cooling + air cooling

Total power：300W/500w

5、Instrument list

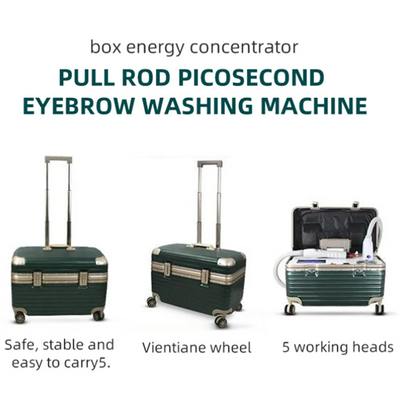

Host: 1 set

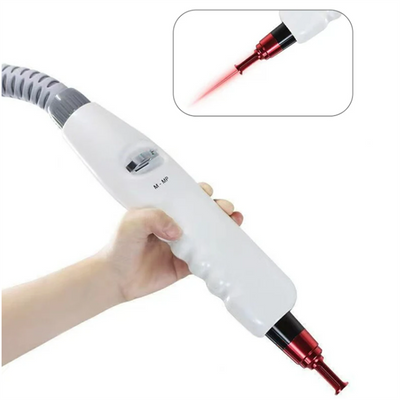

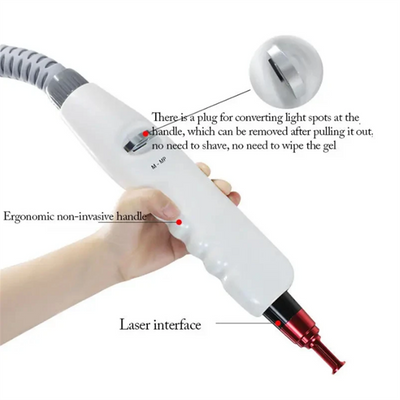

Handle: 1 piece

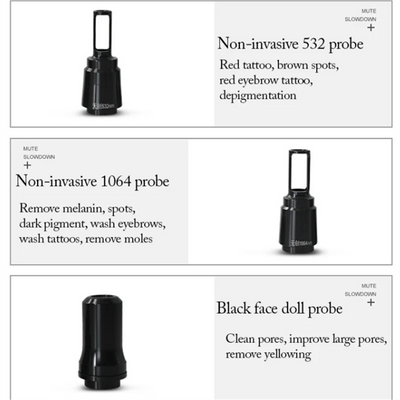

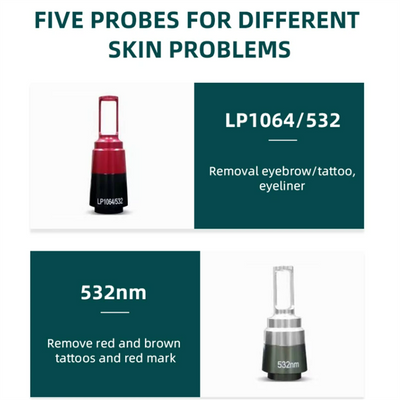

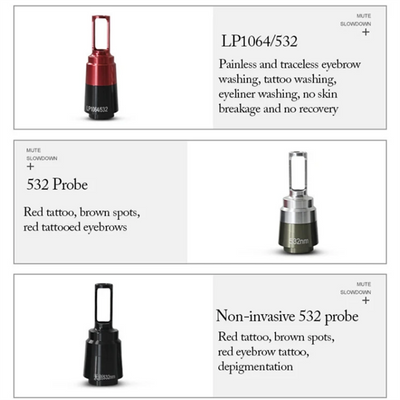

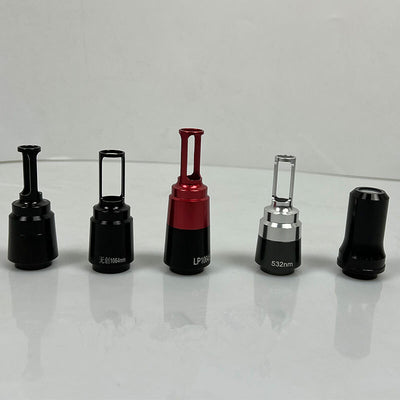

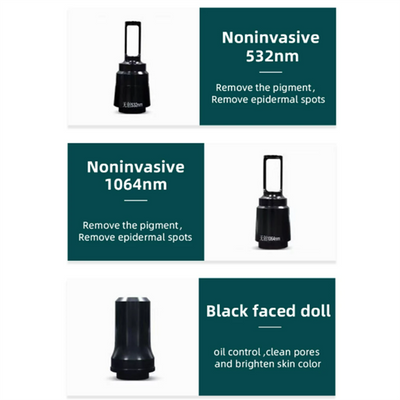

Handle probe：Noninvasive 532nm、Noninvasive 1064nm、Black Faced Doll、LP1064/532、532nm

Handle hanger: 1 piece

Hanging screw: 2 pieces(some machine do not need this)

The opening key: 1pieces

Safety glasses: 1 pair

Goggle: 1pair

Water injection funnel: 1 piece

Foot switch: 1 piece

Carbon: 1 piece

Seal ring：3 piece

Power Line: 1 piece

Manual: There is no paper manual , please contact customer service to send PDF version of the manual

Please check the equipment list according to the instrument list immediately afterunpacking. If you find any missing or damaged items, please contact us within 24 hours.

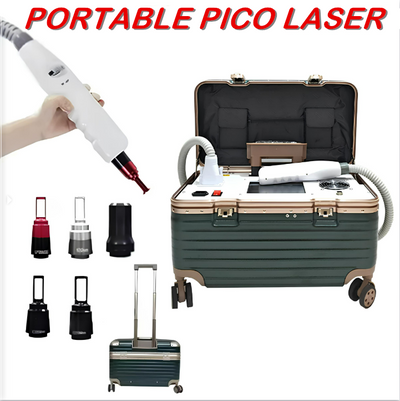

Portable Non-Invasive Q Switch Pico Laser Tattoo Removal Machine Nd YAG 1064nm
