Specifics:

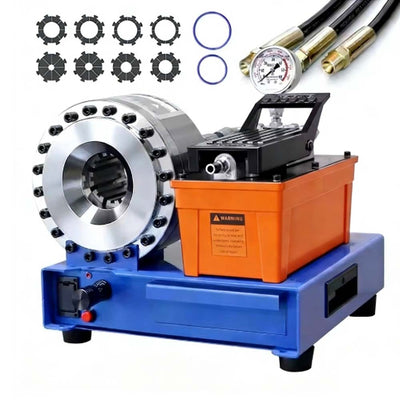

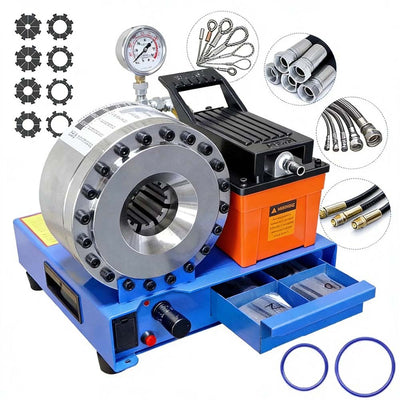

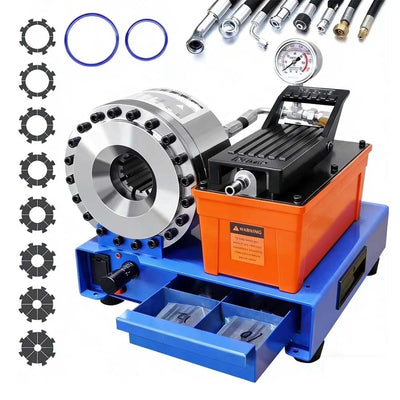

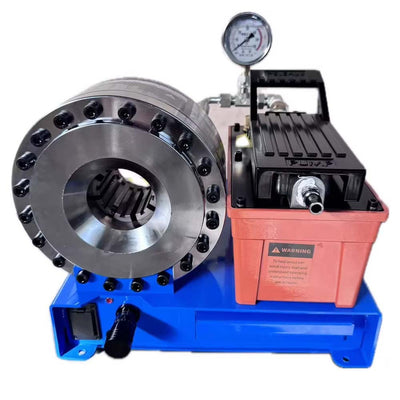

This pneumatic hydraulic hose crimping machine is equipped with 8 sets of dies suitable for hose sizes: 10/12/14/16/19/23/27/31 mm.It supports crimping for hoses with an outer diameter up to 32 mm and inner diameter up to 25 mm.

Compatible with 1/4 inch to 1 inch hydraulic hoses with two layers of steel wire (R2), and 3/4 inch hoses with two steel wire layers (2AP/SH).

The machine features a robust aluminum-alloy pump casing and a high-capacity oil tank (1.6L), delivering consistent performance for high-pressure operations.

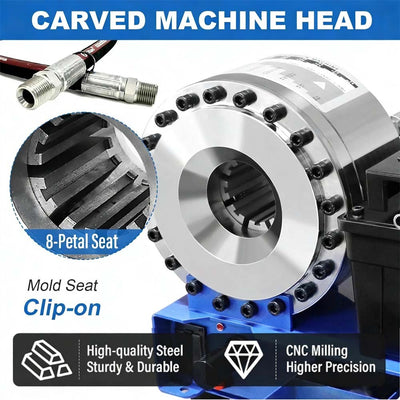

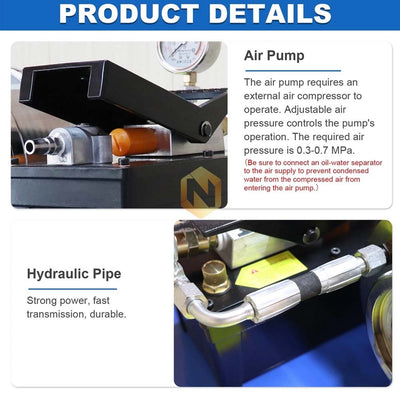

It operates at a system pressure of 40MPa and has an air inlet size of 1/4 inch, with a 3/8 inch oil outlet.The crimping head allows for a maximum opening of 48 mm without dies and 42 mm with dies.

Durable and precise, this machine is ideal for mechanical oil pipes, air conditioning hoses, water and gas lines, fuel pipes, cable joints, and more.

Specifications:

0.24-1 Inch Pneumatic High-Pressure Hydraulic Hose Crimping Machine with 8-Set Dies for Industrial Use

Power Source: Pneumatic

Crimping Range: 0.24 inches - 1 inch (6 mm - 25 mm)

Max Opening (No Mold): 1.89 inches (48 mm)

Crimping Force: 1000 kN

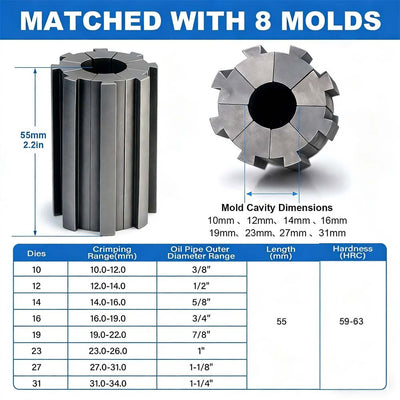

Number of Molds: 8 sets (10/12/14/16/19/23/27/31 mm)

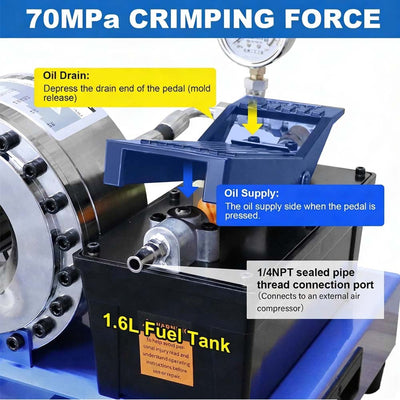

Oil Tank Capacity: 1.6L

Pressure: 70MPa

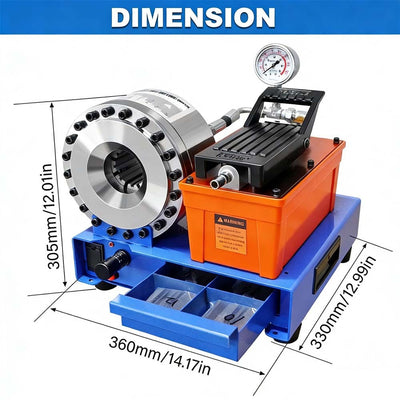

Package Dimensions: 38*38*40CM

Net Weight / Gross Weight: 40KG

Package: 1 set Hose Crimping Machine
