Product Description:

8" color TFT LCD screen, resolution 800*600

Waterproof design, resistance to dropping (1 meter)

Low power consumption, fanless structure which

creates no noise

Support external 13-20V DC power, continuously working

for 5.5 hours above on battery backup, full charge with 2.5

hours, suitable for Ambulance, Emergency Transport

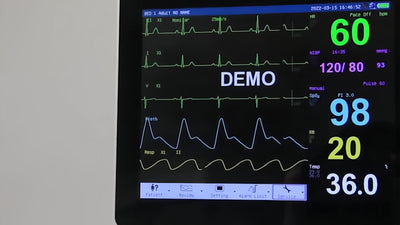

Display mode: Big font, trends review, 7 leads ECG waveform

on same screen, and etc

15 kinds of arrhythmia analysis, 15 kinds of drug concentration

analysis

Anti-electrosurgical unit (300W), anti-defibrillation (360J),

suitable for Operating Room, General Ward

Digital SpO2 technology, excellent anti- interference

performance, low perfusion (0.1%)

Support languages: Chinese，English，Spanish，Portuguese，Russian，French，German，Czech，Denish，Dutch，Finland，Italian，Polish，Turkish，Taiwan Trad，Romania

，Ukrainian

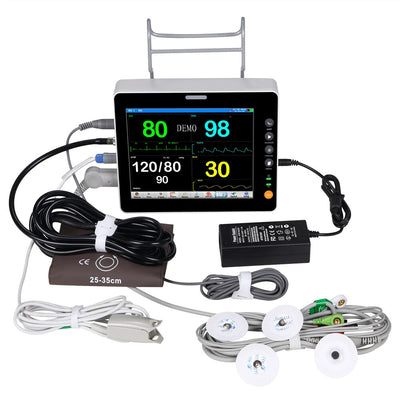

Standard parameter with full accessories:

ECG

Lead: Standard 3/5 lead

Lead Mode: 5 Leads (RA, LA, LL, RL,V)

Lead Selection: I, II, III, avR, avL, avF, V

Lead Mode: 3 Leads (RA, LA, LL)

Lead Selection: I, II, III,

Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV

HR and Alarm Range:

Adult: 15 ~ 300 bpm

Ped/Neo: 15 ~ 350 bpm

Accuracy: ¡À1% or¡À1bpm, which is greater

Resolution: 1 bpm

Sensitivity: > 200 (uVp-p)

Differential Input Impedance: > 5 M¦¸

Bandwidth:

Surgery 1 ~ 20 Hz

Monitor 0.5 ~ 40 Hz

Diagnostic 0.05 ~ 130 Hz

CMRR:

Monitor > 100 dB

Operation > 100 dB

Diagnosis > 90 dB

Electrode Offset Potential: ¡À300mV

Range: ¡À2 mV ~ ¡À700 mV

Width: 0.1 ms ~ 2 ms

Rise time: 10 us ~ 100 us

ST Segment Monitoring Range:

Measurement Range: -2.0 ~ +2.0 mV

Measurement Accuracy: -0.8 ~ +0.8 mV

Measurement Error: ¡À0.02 mV or ¡À10%

RESP

Method: Impedance Between RA-LL or RA-LA

Measuring Impedance Range: 0.3~3 ¦¸

Base line Impedance Range: 200~4 K¦¸

Bandwidth: 0.1~2.5Hz

NIBP

Method: Oscillometric

Mode: Manual, Auto, STAT

Measuring Interval in Auto Mode:

1, 2, 3, 4, 5, 10, 15, 30, 60, 90,120, 180, 240,480 (Min)

Measuring Period in STAT Mode: 5 Min

Pulse Rate Range: 40 ~ 240 bpm

SpO2

Measuring Range: 0 ~ 100 %

Resolution: 1 %

Accuracy: 70% ~ 100% ¡À2 %

0% ~ 69% unspecified

Pulse Rate:

Measuring Range: 20~300 bpm

Resolution: 1bpm

Accuracy: ¡À3bpm

TEMP

Applicable Temperature Sensor: YSI, CYF

Channel: 1

Measuring Range: 0 ~ 50 ¡æ

Resolution: ¡À0.1 ¡æ

Accuracy: ¡À0.1 ¡æ (Do not including sensor error)

Dimension: 210*80*175mm (L*W*H)

Weight: 1.35kg

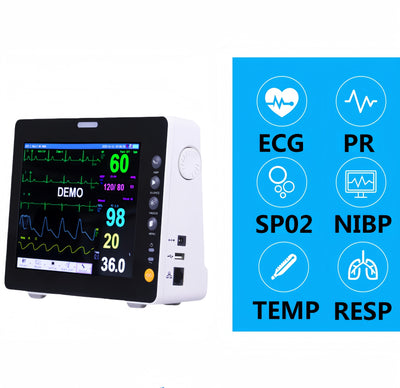

Standard: 3/5-Lead ECG, RESP, SpO2, NIBP, PR, 1-TEMP

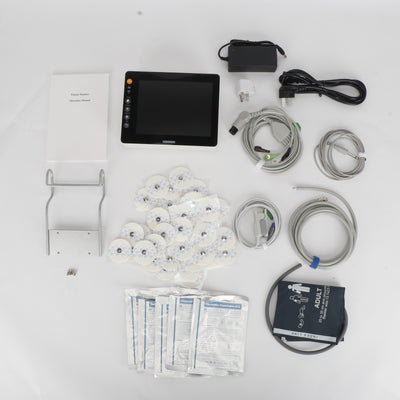

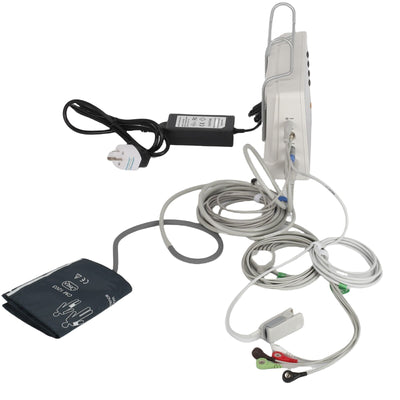

Package List:

1x Patient Mointor

Accessories( for Adults)

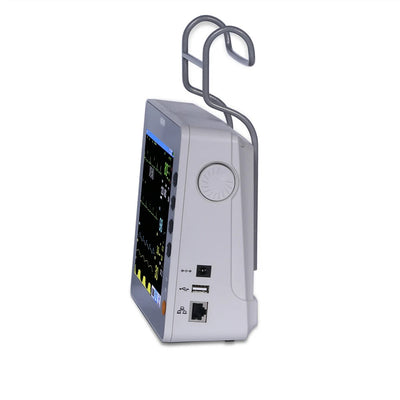

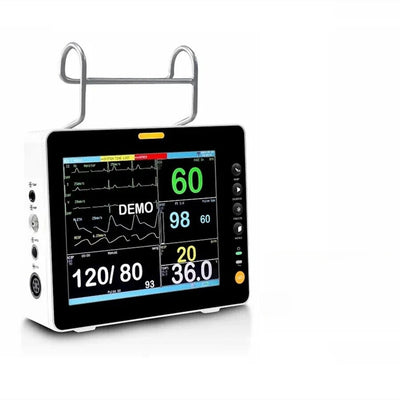

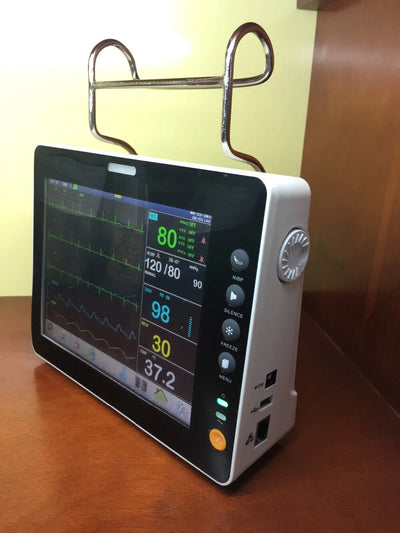

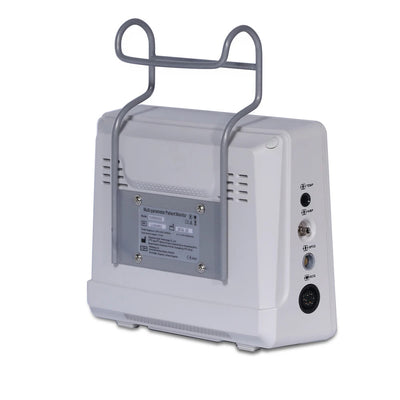

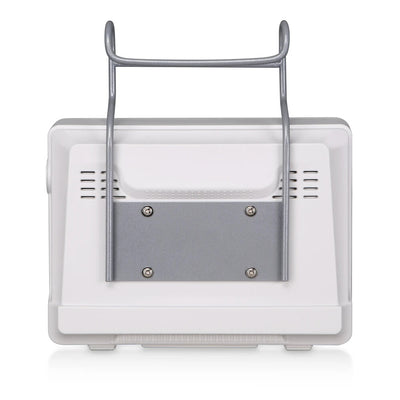

Patient Monitor 8" Vital Sign Human 6-parameter Monitor for ICU/CCU AU PM-9000
