The MD magnetic circulation pump is a high-reliability, high-performance micro magnetic pump—an advanced product in magnetic pump technology, refined by our R&D team. Its aesthetic design, paired with custom ceramic bearings (excellent wear/corrosion resistance), ensures safety and durability.

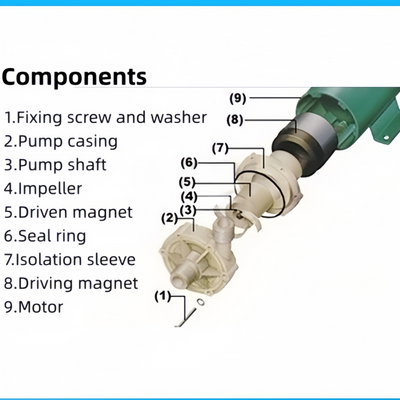

Operated via magnetic coupling (shaft & impeller), it requires no mechanical shaft seals—achieving full sealing. Motor torque is transmitted via magnetic attraction; the custom ceramic bearing further guarantees performance and safety. Its shaft-seal-free design eliminates leakage/corrosion risks, making it an ideal industrial liquid transfer pump.

Applications

Chemical: Sodium carbonate/hydrochloric acid production; fluoride/fertilizer manufacturing; gas tower circulation; oil extraction (sulfuric acid); waste acid recovery; strong acid transfer.

Pharmaceutical: Semiconductor luminescent chemicals (EL); pesticides, pharmaceuticals, water treatment chemicals.

Electroplating: Electroplating solution circulation filtration.

Photography: X-ray/photo development.

Electronics: Capacitor (aluminum film etching); battery electrolyte transfer; circuit board etching; high-purity chemical transfer.

Metal: Aluminum oxide treatment; wire/steel degreasing/pickling; vehicle pre-painting treatment; titanium oxide/rare earth production.

Mining: Metal smelting (electrolyte circulation); waste washing.

Food: Gluconic acid/edible oil production; canned fruit processing.

Medical: Artificial organs; ultrasonic cleaners.

Water Treatment: Ion exchange resin cleaning; pure water/seawater desalination.

Feature:

Design without axle sleeve, liquid passing through is sealed well without leakage;

Extraordinary high lift and large flow;

Heavy duty, durable and reliable;

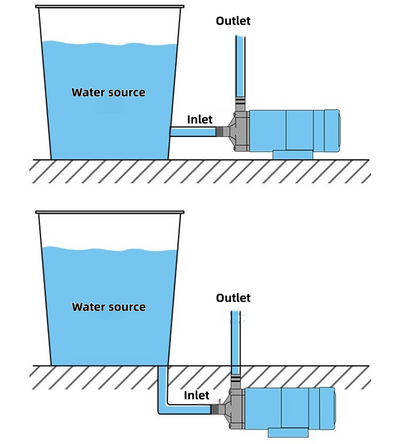

In-line use only;

Thermal Overload Protection for the motor;

True Magnetic-drive pumps are completely sealed and do not have shaft seals to wear out.

Only a single casing O-ring is used and prevents the liquid from leaking.

It is manufactured using the latest engineering plastics to prevent corrosion.

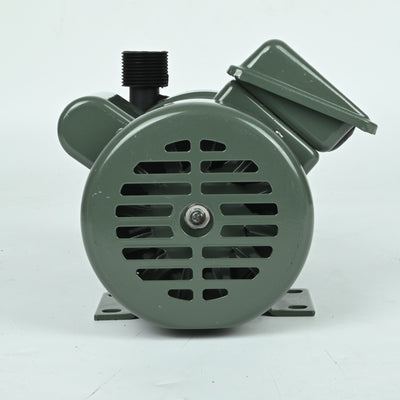

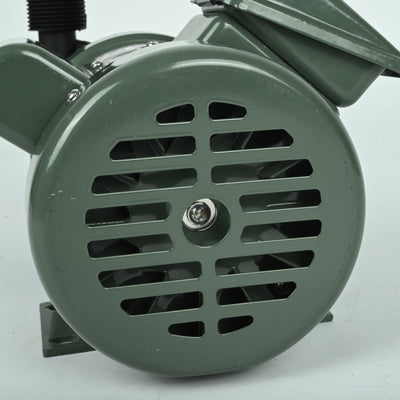

The permanently split capacitor start (PSC) motors are totally enclosed fan cooled ( TEFC).

Continuously rated and Class E insulation,

Thermal overload protect1ion and suitable for indoor use.

Technical Specifications:

Rated power: 150W

Voltage: 220-240V

Frequency: 50Hz

Speed:2900r/min

Max.Head: 6.7m

Max.Capacity: 5160 Litre/hr (86L/min)

Inlet and Outlet (mm): 26 X 26 BSP Male

Rating: Continuous

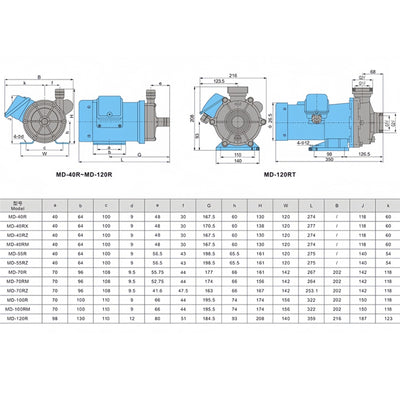

Overall Dimension (cm): 27X15X14

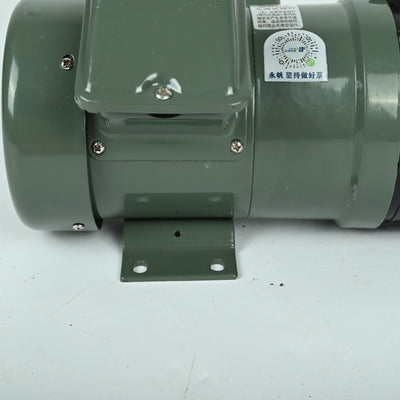

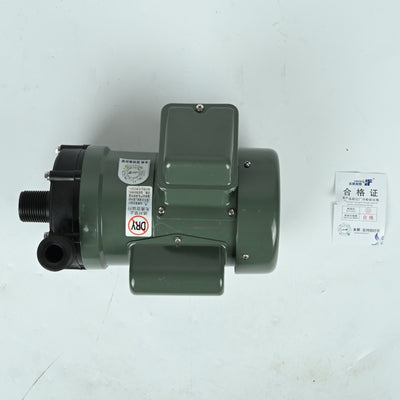

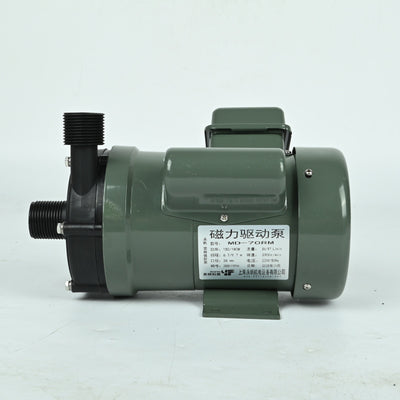

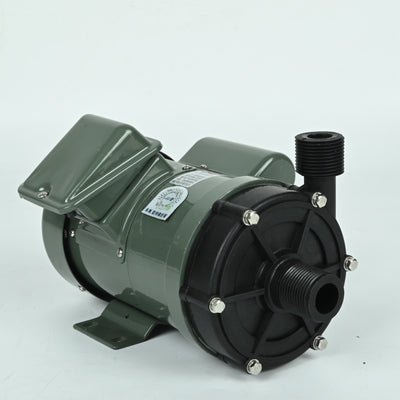

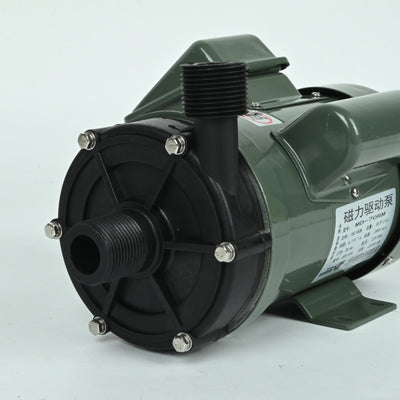

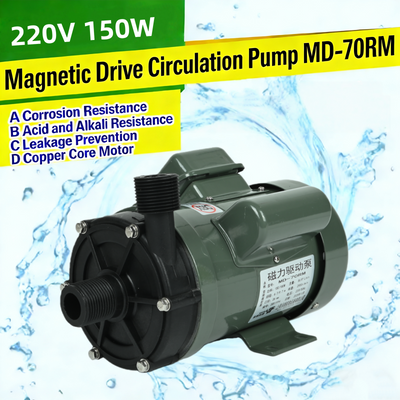

MD-70RM Magnetic Drive Pump 86L/min Industrial Chemical Food Grade Water Pump AU
