About this item

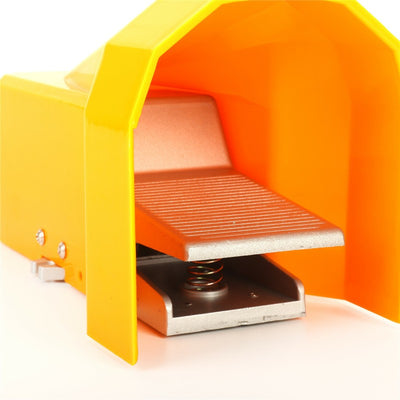

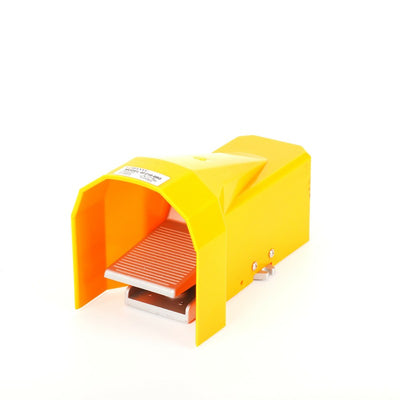

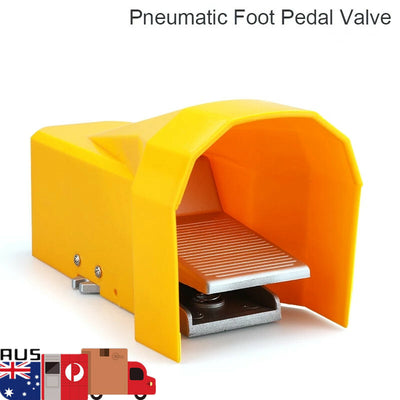

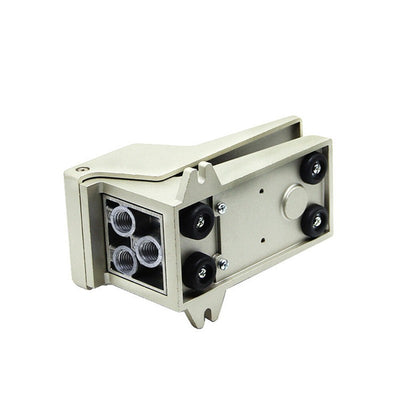

This spring‑return foot valve reverses air flow when pressed, and automatically resets once the foot is released. No locking function.

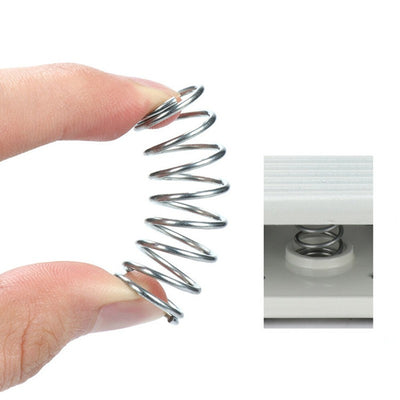

Stainless Steel Reset Spring: High plasticity and excellent fatigue resistance for long‑term repeated operation.

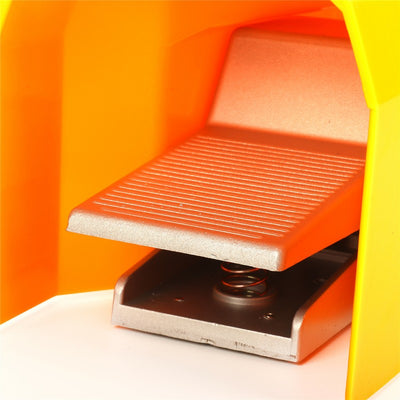

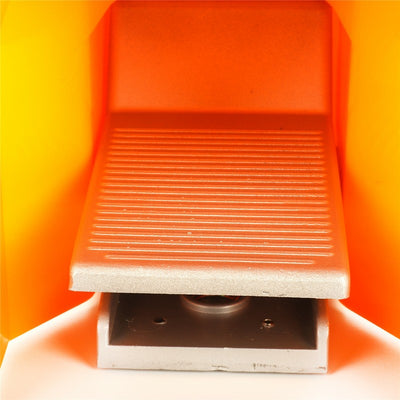

Non‑Slip Pedal Surface: Optimised pedal texture for labour‑saving, stable foot operation.

Die‑Cast Valve Core: Reliable sealing performance, effectively prevents air leakage.

Aluminium Alloy Valve Body: Light‑weight, high strength and good corrosion resistance.

Built‑in Silencer, No Power Required: Operates purely by air pressure, energy‑saving.

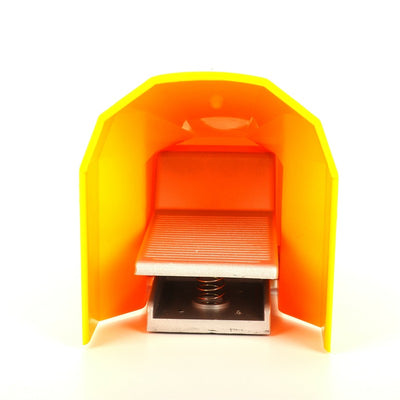

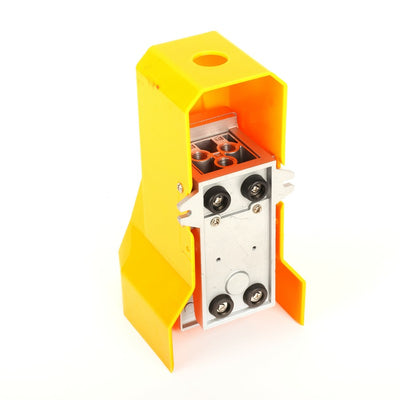

Protective Dust Cover: Improves safety and service life, prevents accidental triggering.

Simple and quick installation.

Specifications

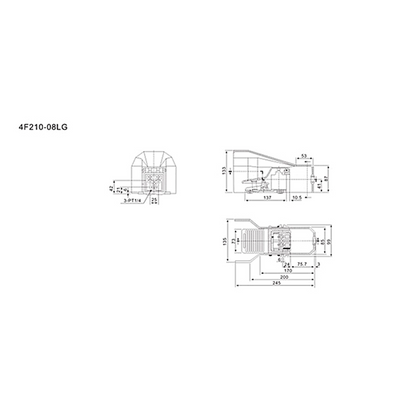

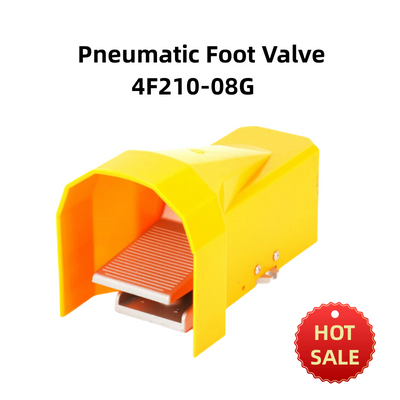

Model: 4F210‑08G

Function: 5/2‑Way (2 position 5 port)

Port Size: 1/4" Inlet / 1/4" Outlet

Operation Mode: Spring return direct acting

Working Medium: Compressed Air

Working Pressure: 0‑0.8 MPa

Working Temperature: ‑5℃ ~ 60℃

Package Includes

1 × Pneumatic Foot Pedal Valve

Note

‑ Slight colour variance may exist due to different monitor displays.

‑ Manual measurement allows minor dimensional error.

‑ Please contact us if you have any questions, we will respond promptly.

Foot Switch Pedal 5 Way 2 Position 1/4 PT Air Pneumatic Switch Pressure Control
