Specification:

Power: 150W

Voltage: 220V

Maximum weight of ground valves: 2.5KG-5KG

Maximum diameter of the ground valve: 130MM

Working stroke: 0-10mm

Features:

Shock absorption, smooth positioning, rapid grinding efficiency

Advanced structure, fine workmanship, easy to use and few malfunctions

Applicable to:

Cars, motorcycles, trains and ships

Repair and grinding of large, medium and small internal combustion engine valves

The ideal tool essential for internal combustion engine mechanics

Usage method:

1. According to the size of the ground valve specifications, select the appropriate rubber adsorber and install it correctly

2. Align the grinding valve with the adsorber of the grinding machine, select the female seat position at the same time, loosen the fastening screws, adjust to the appropriate height, and then tighten the screws

3. Turn on the power switch and the grinding machine will start to work. Keep an eye on the grinding surface at all times to prevent excessive grinding. During the operation process, if it is found that the valve is not perpendicular to the adsorption surface of the magnetic seat, the support nut should be loosened and the grinding Angle adjusted to be perpendicular to the grinding valve. Then tighten the nut; otherwise, it will affect the grinding quality and reduce the service life of the grinding machine. The grinding time of the valve is related to the quality of the valve.

It usually only takes 2 or 3 minutes. When stopping the operation, turn off the power

4. A power socket with a ground wire must be used to ensure good grounding for the safe use of the grinder

Package includes:

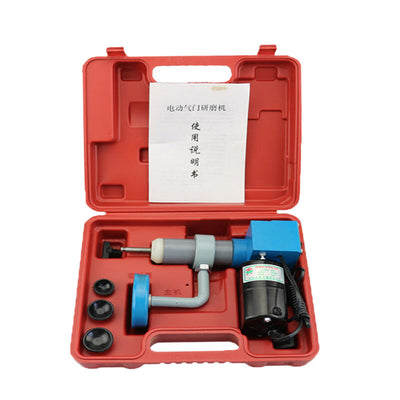

1 Set Valve Grinding Machine

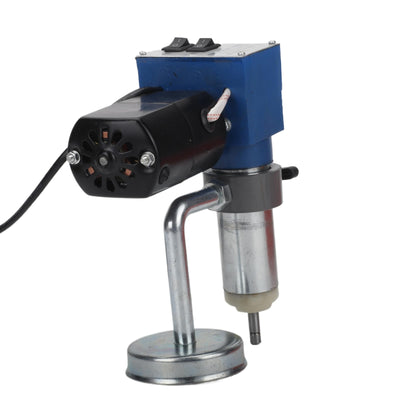

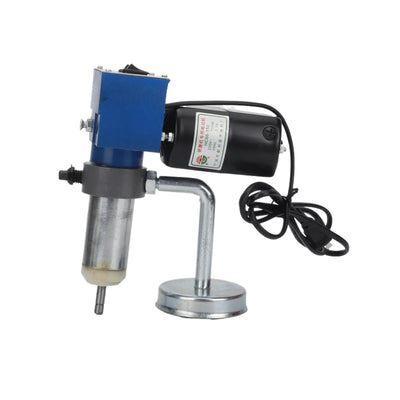

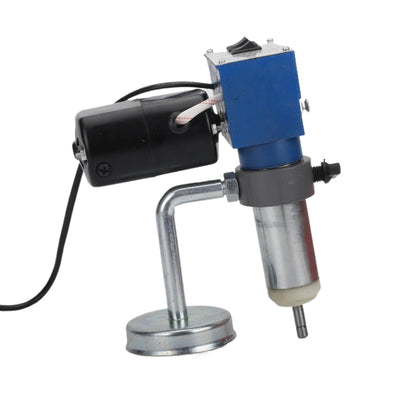

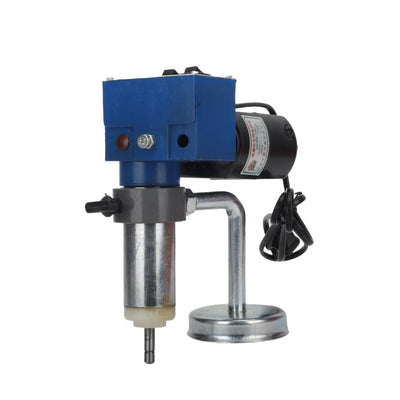

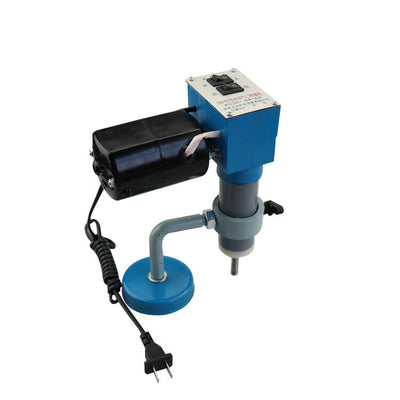

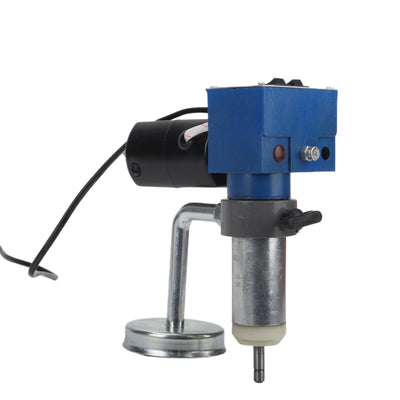

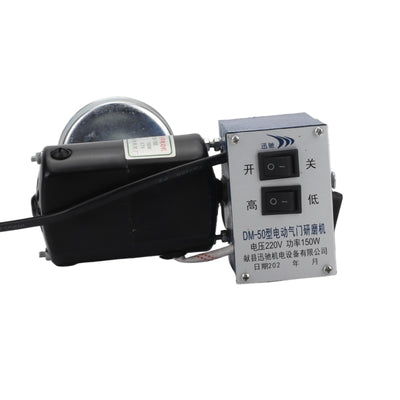

Electric Valve Grinding Machine Steel Tooth Auto Repair Maintenance Equipment
