Features:

1. Updated version electric power hydraulic hose crimper, suitable for crimping tubes of φ6-25mm inner diameter. (1 inch hydraulic tube R2).

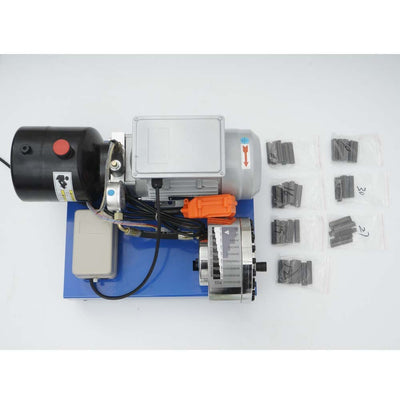

3. Euipped with 7 set of dies, convenient to remove and install dies.

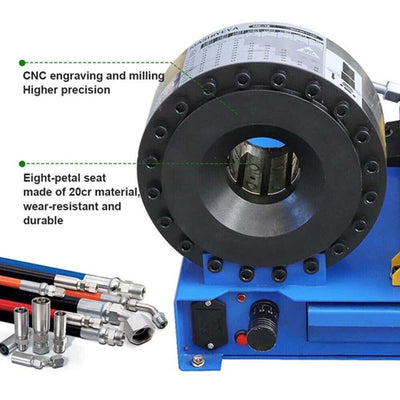

4. Adopt the dedicated die steel material and unique heat treatment process.

5. Limit valve,rotary positioning, scaleadjustment,high precision,used toadjust the shrinkage.

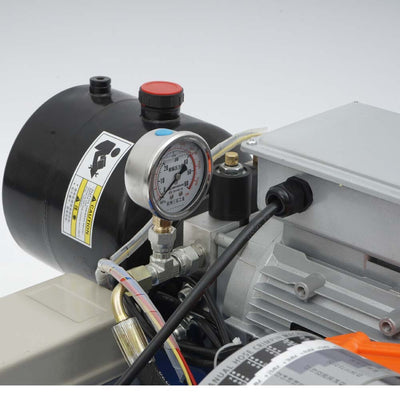

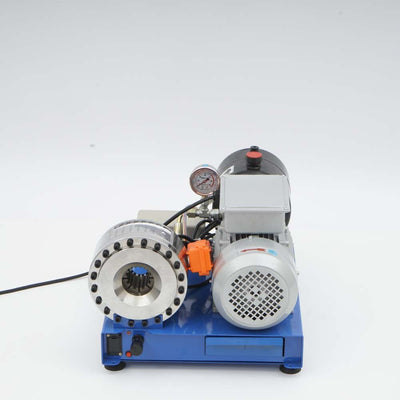

6. Hydraulic gauge real-time display the pressure to avoid pressure overload.

Type Electric：hydraulic hose crimpingmachine

Operation mode：Electric motor

Voltage：110V/60Hz Or 220V/50Hz

Power：2.2KW

Crimping range(inner diameter)：6-25mm(1/8-1inch)

Opening without molds：50mm

Molds max Opening：40mm

System pressure：35MPa

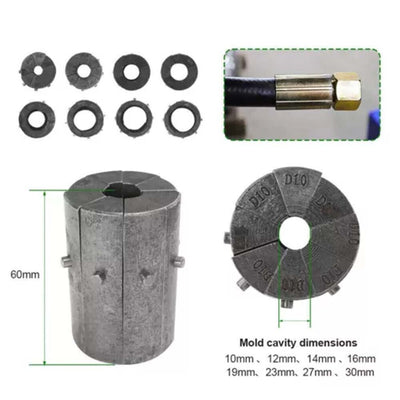

Number of molds :7sets (10mm, 12mm，16mm, 19mm, 23mm, 27mm, 31mm)

Dimension：60x44x35MM

Package weight：65kg

Note:

1. Before first use, please add hydraulic oil.

2. The oil level should be about 30mm from the tank port (do not start the machine before adding hydraulic oil).

3. Please connect the power supply correctly

4. During use, pay attention to the temperature of the oil tank and motor. If the temperature is too high, please stop using it and wait for the temperature to decrease before using it again.

5. Micrometer: By adjusting the micrometer, you can adjust the processing size of the machine. The machine will stop when the size set by the micrometer is reached.

6. Keep the oil filler nut loose during use (for better air circulation). Tighten again after use.

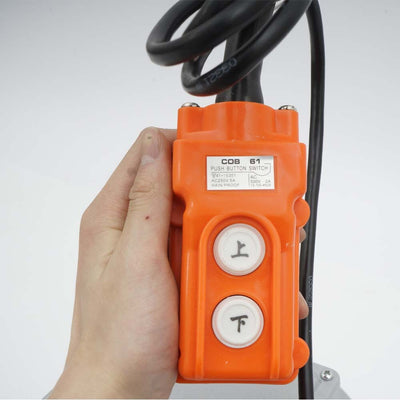

7. The UP key on the operating handle controls the closing of the mold, while the DN key controls the opening of the mold.

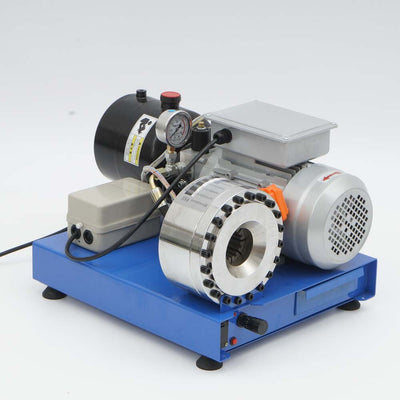

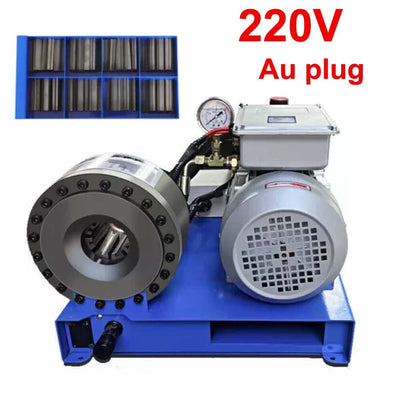

Electric Hydraulic Hose Crimping Machine Automatic Hose Crimper With 7 Set Dies
