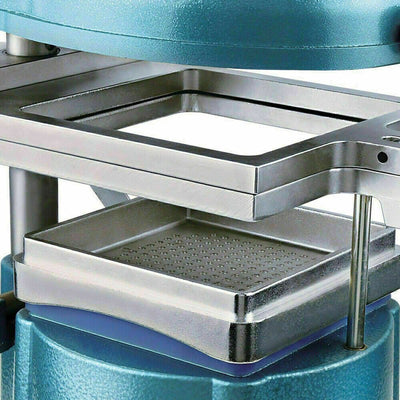

Firm Sheets Clamp Sheet clamp with an active limit lock could hold the thermoplastic sheets securely.	Safe Push Rod Special red push rod could safely push the top heating plate away to avoid high temperature burns.	Easy and Safe Operation Separate heating and forming switch easy to use, both with a red indicator attached to prevent misoperation.	Fast Heating Horseshoe-shaped heating tube is evenly distributed in the center, with the honeycomb heat-dissipating net, the thermoplastic sheet can be uniformly heated to accelerate the softening speed.

Description

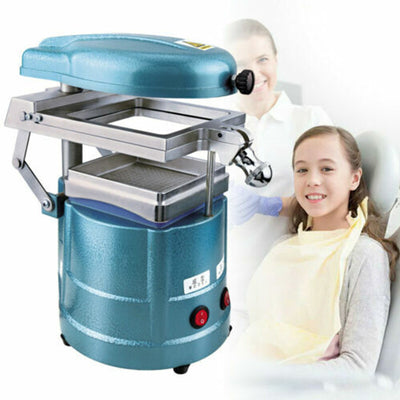

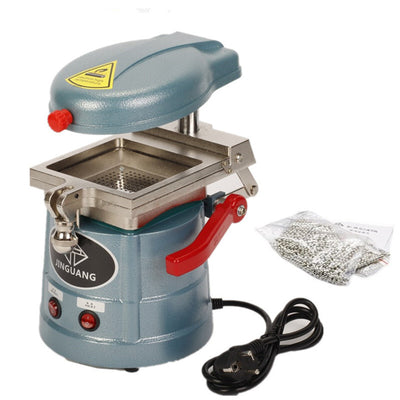

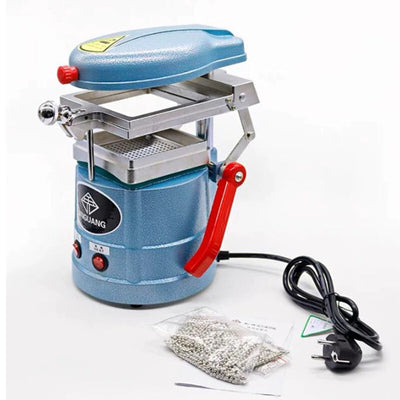

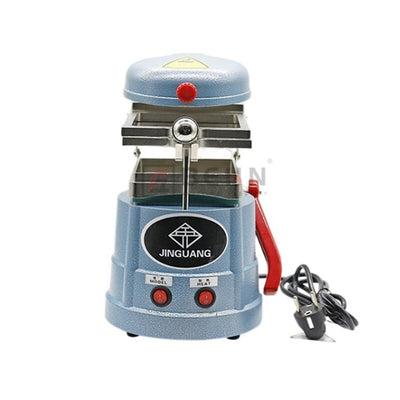

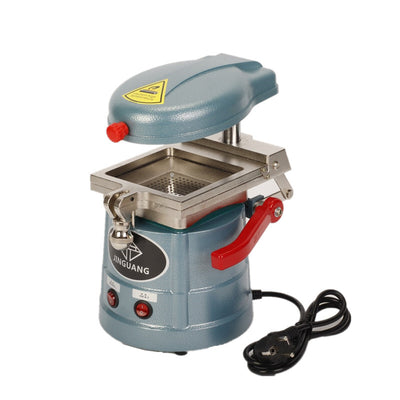

The Dental Vacuum Forming Machine JG - 18 is a specialized piece of equipment designed for dental laboratories. Operating at 1000W with a voltage of 220V/50Hz ± 10%, it is used to create various dental appliances through a vacuum - forming process. This machine is an essential tool for dentists and dental technicians, enabling them to produce high - quality orthodontic and restorative devices.

Features:

Powerful Vacuum Suction: A heavy - duty vacuum motor generates precise downward suction. The motor's placement below the perforated stage ensures a direct pull, which is crucial for accurately shaping dental thermoplastics and achieving a perfect fit for dental appliances.
Even Heating System: It features a symmetrical heating system with a horseshoe - shaped heating tube and a honeycomb heat - dissipating net. This setup distributes heat evenly across the thermoplastic sheet, accelerating the softening process and ensuring consistent results.
Durable and Adjustable: Made of full - aluminum construction, the machine is corrosion - resistant and has good thermal conductivity. Its adjustable components can accommodate different materials, and the non - rotating sliding frame makes operation easy and stress - free.

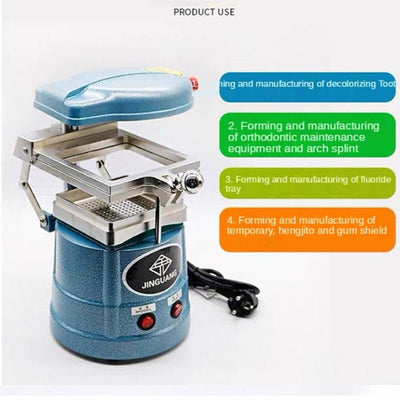

Versatile Application: Suitable for a wide range of clinical applications, including the production of decolorization braces, orthodontic appliances, fluoride treatment trays, and temporary or permanent dental bases. It is compatible with all dental thermoplastics.

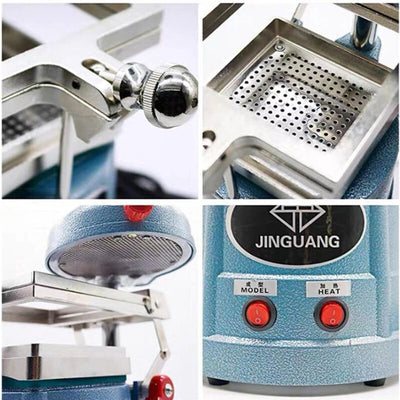

Safe and User - Friendly: The machine comes with a safe push rod to avoid burns from the heating plate. Separate heating and forming switches, each with a red indicator, prevent misoperation. The sheet clamp with an active limit lock securely holds the thermoplastic sheets.

Instrustions:

1, first pull rod , and then plaster model trimmed in a vacuum online.

2, the film on the mezzanine , tighten the screw button.

3, open the heating switch observed softness film until the film is heated evenly.

4 , the lever depressed after heating the soft film covering the plaster model

5, turn off the heating switch , turn on the vacuum switch ,vacuum for 10-15 seconds , braces can be formed.

6 , the first film outside the pen to draw marked by gingival margin .

7 After cooling the film with scissors or grinding to remove excess film by Mark completed braces;

Details:

Remain transparent orthodontic appliances or without clasp , beautiful, wear comfortable, remain stable, and simple production by the majority of dentists welcome,

Different from the first use of the tool : plastic sheet vacuum forming machines and special . Hard plastic sheet used in orthodontics , the choice of 0.8mm ~ 1.5mm.

1,get an press mould

2, filling gypsum, plaster casts upon dry dressing models ,remove the bottom part of the palate and tongue should be the best it into a "U".

3, Place the slices on a molding machine , clamping , jumping heated place.Then take the model into the vacuum forming machine vacuum suction machine .

4, slices of hard vacuum machine heater heating , let depression about 2 cm . The deeper the recess , the holder will be thinner .Put it down on the model until it is fully in place.

5, vacuum suction machine for 15-20 seconds to ensure molding.Remove the heater , which will be cool to remove it die.

6, Use scissors to trim off the excess , or burs directly along the gingival margin under 2 ~ 3mm under its grinding, trimming the edges, reserves the gingival margin 0.5 mm

7, braces after pruning is completed, the braces placed on the model again to check fit . Such an orthodontic retainer will be made , and if that edge is not close together,you can use alcohol lamp bake it, inward until close together.The same way, the choice of different thickness and hardness of the plastic sheet can be made whitening dentures , bruxism pad.

HOW TO USE Dental Vacuum Forming Machine

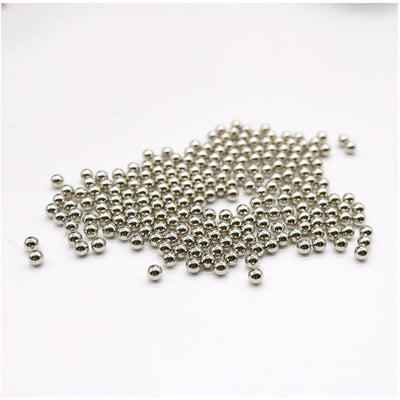

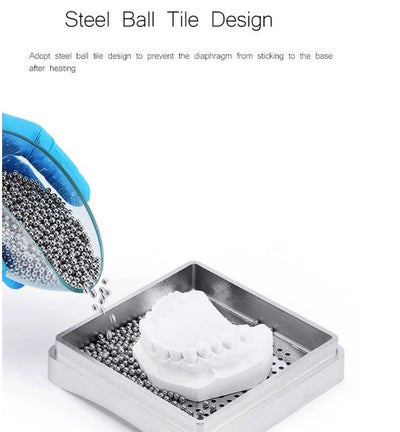

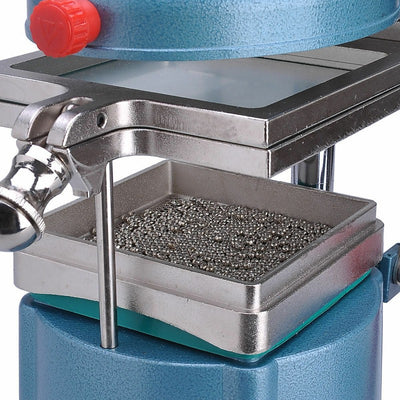

Put the plaster model on the tray.Use steel balls to bury the part that do not need to be formed.

Set up the PVC film.Raise the PVC film clamp to working height.Turn on the heater by using heating button.

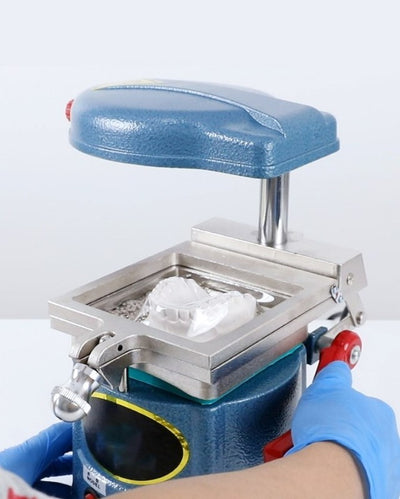

When the PVC film becomes soft enough (usually it will sag 1 to 2cm),press down the lifting rod to cover the heated PVC film over the plaster model.

Turn off the heater.Press down the molding button and wait for 10 to 15 seconds.Molding finish.

After the PVC film cooling down,use a scissor to remove the excess part.
