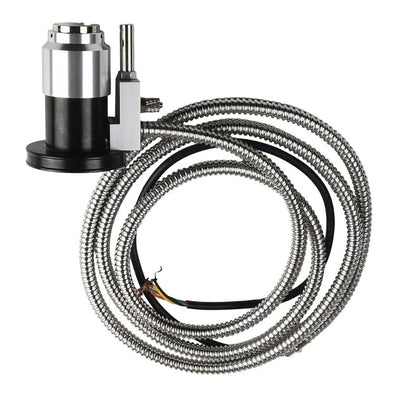

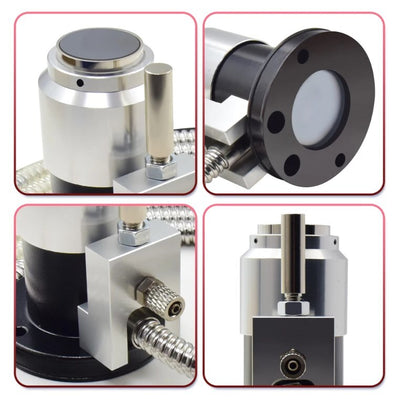

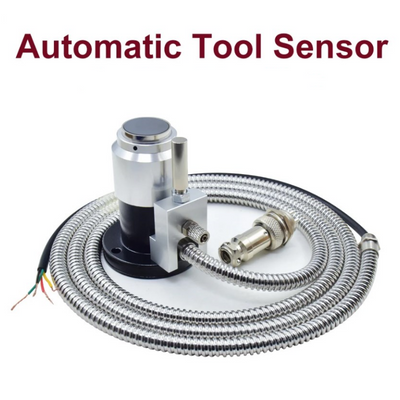

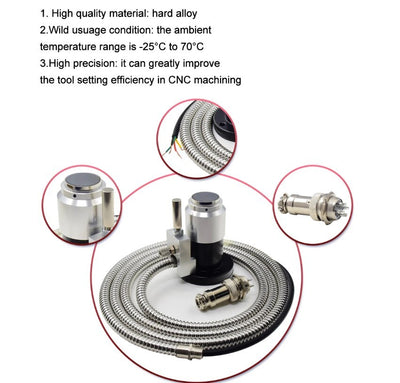

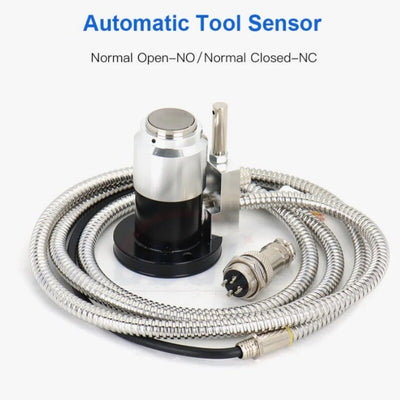

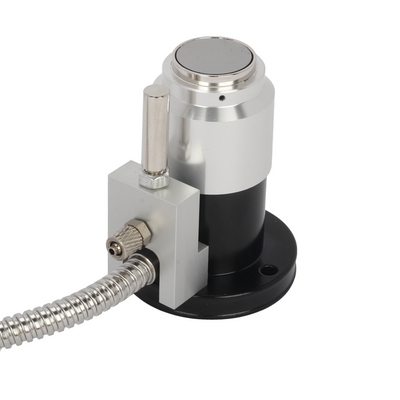

Features:

1. Waterproof and dustproof structure, with good durability in CNC machining operations.

2. It can greatly improve the tool setting efficiency in CNC machining.

3. When the stroke is exceeded, it will sound an alarm.

4. Automatic detection of tool damage: If the tool is damaged or broken, the machine will automatically stop running and issue a warning.

Automatic tool wear compensation: Once the tool head wear is detected, the relevant program can be corrected to ensure the accuracy of the workpiece.

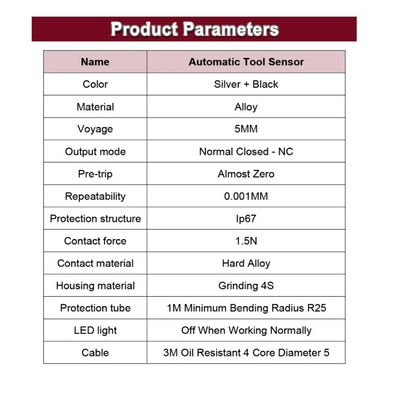

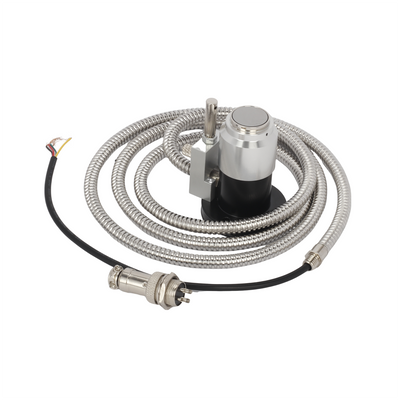

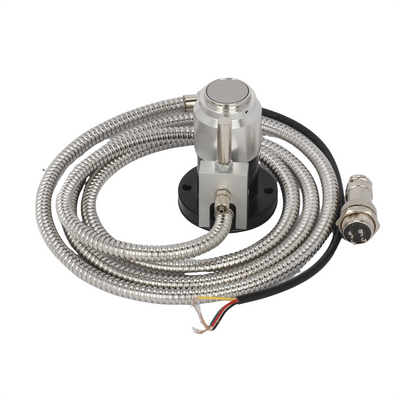

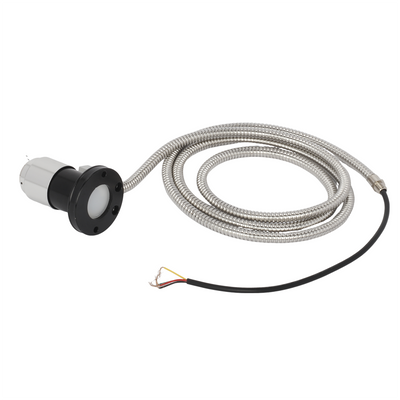

Specification:

Output mode: NC (normally closed)

Almost 0 before the trip

Stroke: 5mm

Repeat positioning accuracy: 0.001mm (working speed: 50-200mm/min)

Life: 3000000 times

Contact force: 1.5N

Shell grinding: 4S

Protection level: IP67

Cutter diameter: 20mm

Material: Hard alloy.

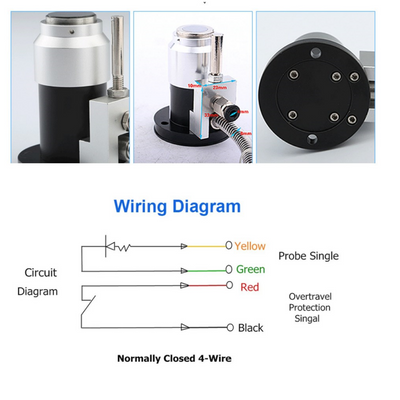

Out of specification: NC (normally closed), distance signal is about 5mm

Impact level: DC24V 20mA (MAX) 10mA (resistive load)

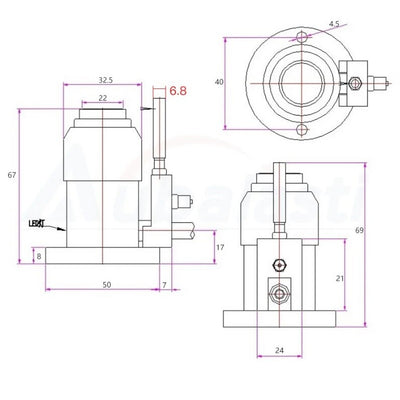

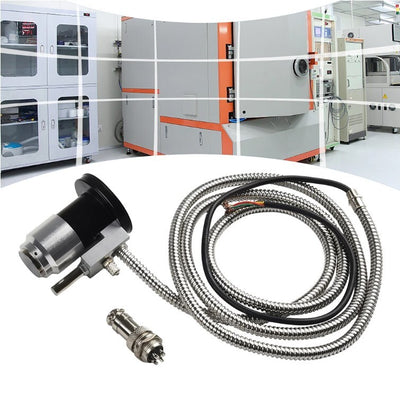

Installation Notes:

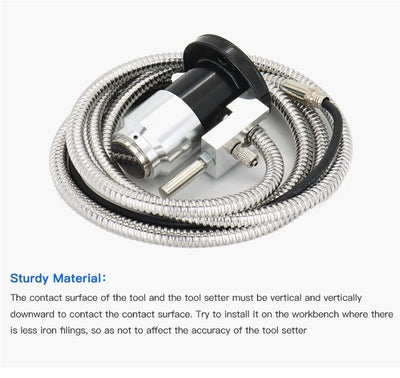

1. The pillar and the tool setting device must be perpendicular to the contact surface and perpendicular to the contact surface. Please install them on a workbench with small iron filings as much as possible.

2. Make sure to use the voltage within the rated power supply range, please control DC10-30V, the current is less than 20mA, and the ambient temperature range is -25°C-70°C.

3. Please control the tool diameter to be less than 20mm, and the cutting speed to be less than 50-200mm/min. The center of the tool should fall on the center of the tool face.
