Say goodbye to traditional wristband blood pressure monitors. This automatic blood pressure monitor can be operated and used alone, making it very suitable for elderly people/children living alone!

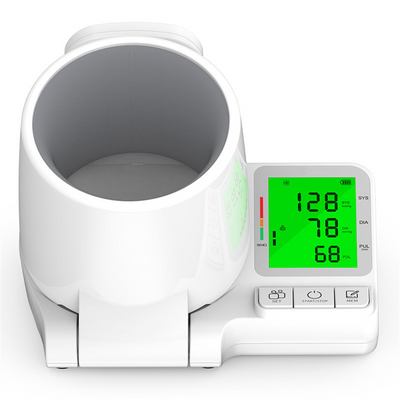

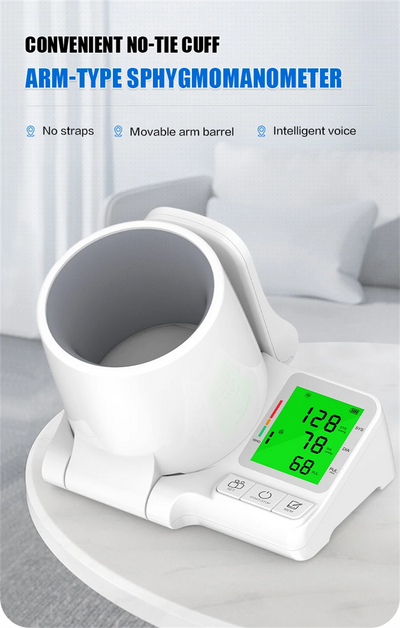

CH-S603 Tunnel electronic Upper arm Blood Pressure Monitor

Product model: CH-S603

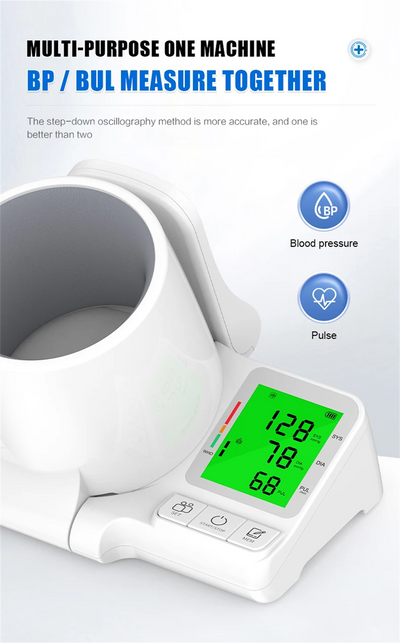

Measurement method: Oscillography

Applicable arm circumference: 22 cm-34cm

Product size: Length 245mm* width 184mm* height220mm

Net weight: About 1.2 kg

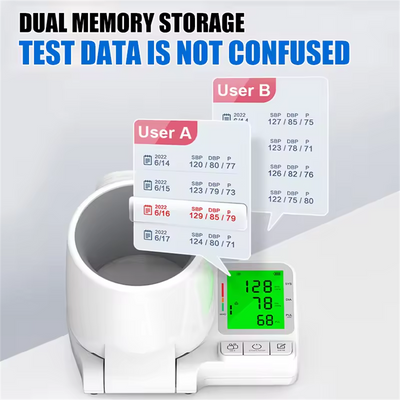

Memory Records: Support, 2 user IDs*99

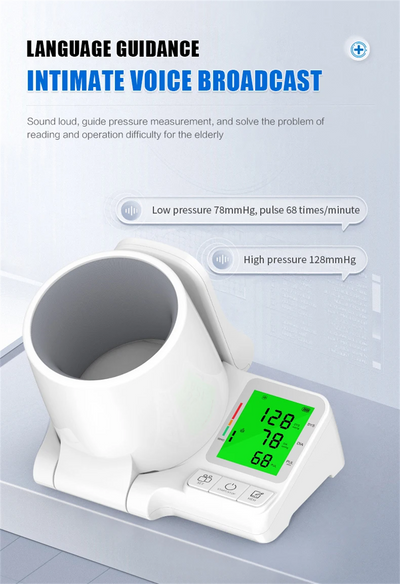

Voice Broadcast: Support English

Measuring range:

Pressure:0mmHg~295mmHg(0.0kPa~39.33kPa),Pulse rate:(40~199)beats/min

Maximum allowable error: Pressure:±3mmHg(±0.4kPa), Pulserate:±5%

Resolution：1mmHg/0.1kPa

Working voltage：DC 6V(4 AA batteries)（Not Included）

Normal working environment:

Temperature:5℃~40℃

Relative humidity: 15%~80%RH

Air pressure:80kPa~105kPa

Transportation and storage environment:

Temperature:-20℃~+55℃

Relative humidity:≤93%RH

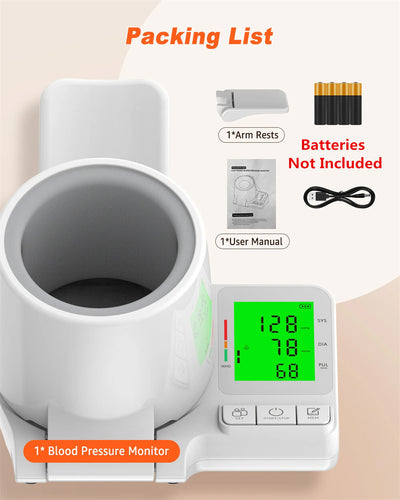

Packing List:

Electronic BP Monitor*1, Charging Cable*1, Manual*1（Batteries Not Included）

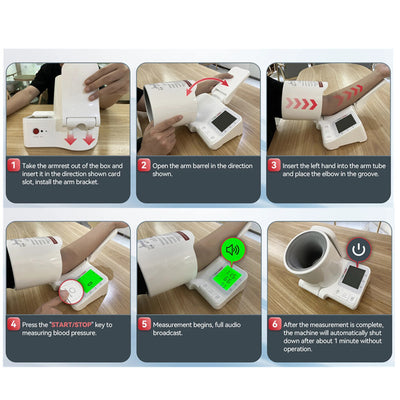

Measure Steps:

1. Take the arm rest out of the box and insert it in the direction shown card slot, install the arm bracket

2. Press the sleeve open key toopen the sleeve

3. After opening the barrel,place the left armin the groove ofthe barrel and prepare formeasurement

4. Press the"START/STOP"key to measuringblood pressure
