I. Product Introduction and Application Scope

(1) Product Introduction
The MB345/2.5 diaphragm pump is a new type of pump for plant protection and disinfection, developed based on advanced foreign technology. It features high working pressure, stable water output pressure, large flow rate, corrosion resistance, compact and reasonable structure, convenient operation and maintenance, ability to operate without water, and wide application range. It can be matched with various power equipment (such as electric motors, diesel engines, gasoline engines, tractors, automobiles, etc.) to form various types of sprayers and foggers. It is widely used in the prevention and control of pests and diseases in rice fields, orchards, forests and urban gardens, as well as the spraying of liquid chemical fertilizers and herbicides. In some mountainous and hilly areas, it can also be used for small-scale farmland drainage and irrigation, high-altitude water diversion and underground pipeline spraying. It can also be used in vehicle washing, disinfection, chemical liquid transportation, environmental protection and other industrial fields. It is currently a new and ideal agricultural pump in China.

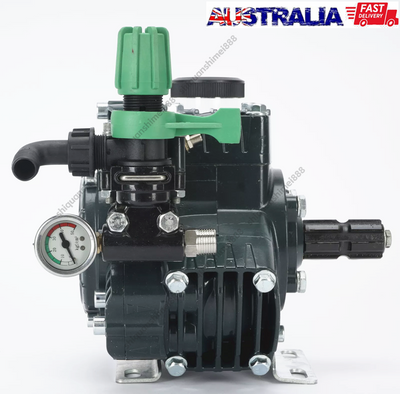

(II) This Interlink diaphragm pump is ideal for replacing worn-out units. It delivers 45 L/min and supports pressures up to 350 PSI, making it suitable for all agricultural chemicals.

Specifications:

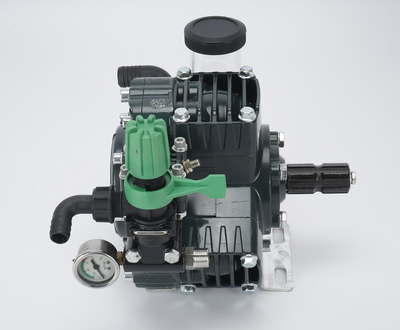

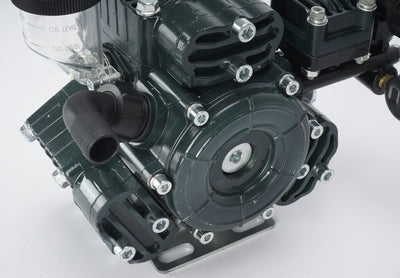

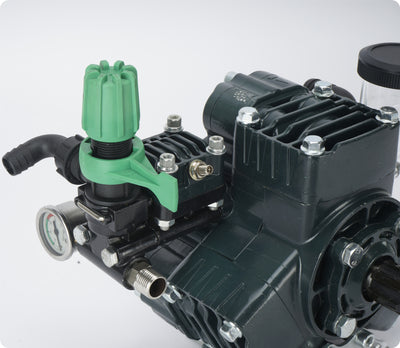

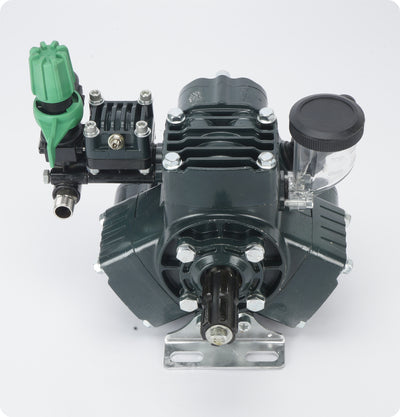

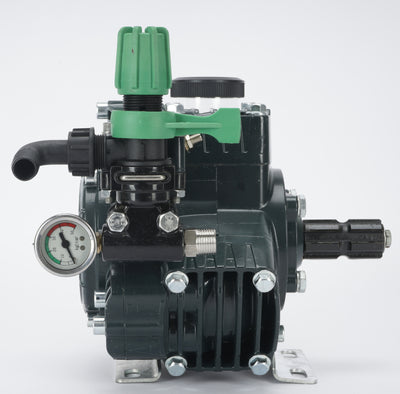

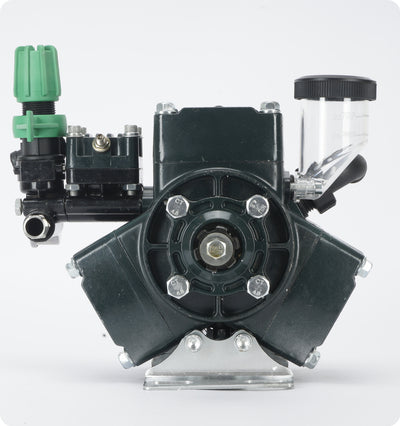

Model: MB 345
Output: 45 L/min
Max Pressure: 350 PSI

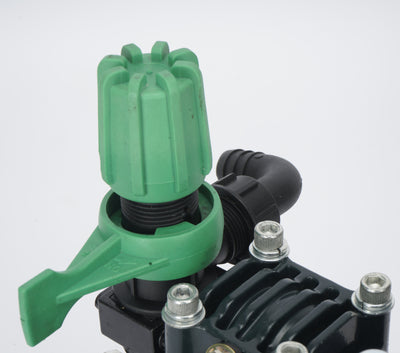

Fitted With: Control valve

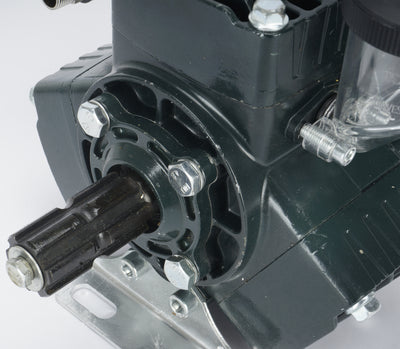

Standard: 6 spline, 1 3/8"
Weight: 12 kg

Application Scope

1. This pump is specifically designed for:
- Agriculture, crops and gardening
- Water pumping, washing, and dyeing
- Sanitation and disinfection for epidemic prevention

2. This pump should not be used for:
- Solutions with a density and viscosity greater than water
- Chemical solutions whose compatibility with the pump material is uncertain
- Solutions with a very high salt content
- Fuels and lubricants
- Flammable liquids or liquefied gases
- Liquids for human consumption
- Solvents and diluents
- Paints
- Liquids with a temperature above 40℃ or below 5℃
- Liquids containing particles, solids or suspended substances

3. The pump must not be used to wash people, animals, electrical appliances, delicate objects, or the pump itself or any machine parts.

4. Accessories for the pump, such as safety valves, high-pressure water outlet pipes, spray guns, water intake filters, and various pipe connection joints, must be factory-configured or factory-approved.

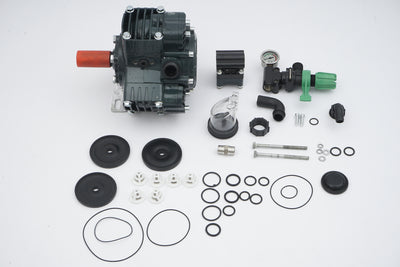

Agricultural Sprayer Pump Booster Pump 45 L/min 350 PSI Diaphragm Pump Kits AU
