Product Description

1. Core Cooling Parameters: Keep Your Laser Running Nonstop

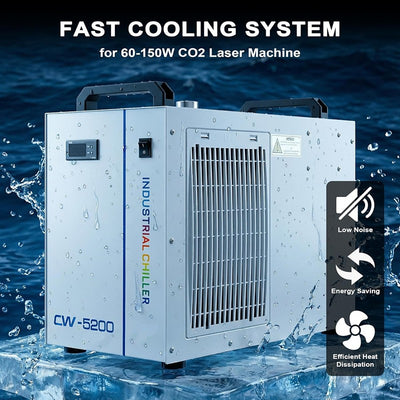

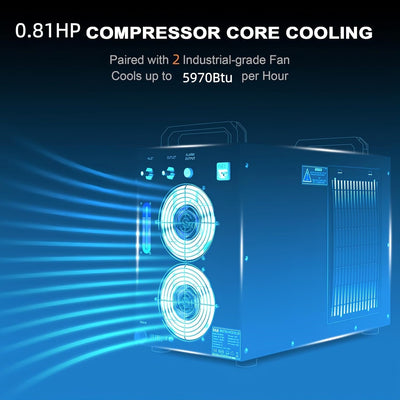

This chiller delivers a cooling capacity of 5970Btu/h, specifically calibrated to support 7-15kW CO₂ laser systems—eliminating mid-production shutdowns caused by overheated laser tubes. It is equipped with a high-efficiency water pump that achieves a maximum head of 13M and a flow rate of 13L/min, ensuring steady coolant circulation even during 24/7 continuous operation. Additionally, the 6L large-capacity water tank reduces the frequency of refills, saving you valuable time when handling high-volume orders.

2. Temperature Control Parameters: Guarantee Consistent Processing Results

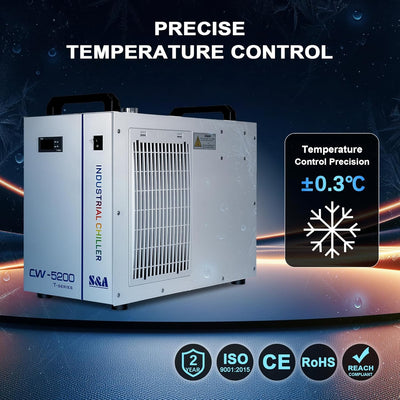

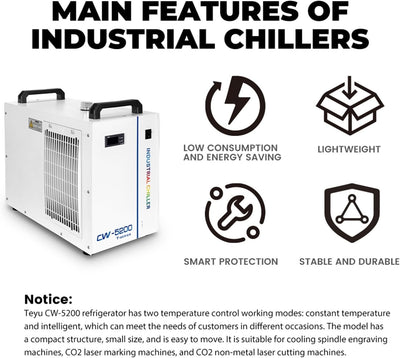

Precision is key for avoiding material waste and rework. The CW-5200 Series maintains an ultra-accurate temperature control range of ±0.3℃, preventing laser power fluctuations that lead to uneven cuts or blurry engravings on materials like wood, leather, acrylic, or metal. It also offers two practical control modes: constant temperature mode (ideal for fixed-process jobs) and intelligent mode (adjusts automatically for dynamic material changes), ensuring consistent quality across all your projects.

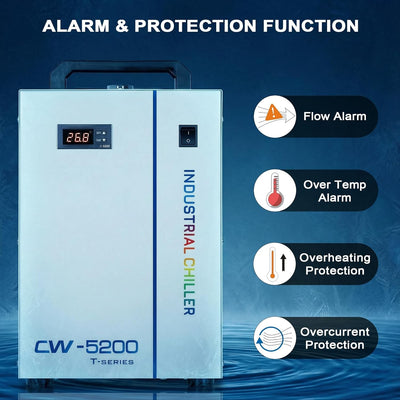

3. Safety Protection Parameters: Safeguard Your Expensive Equipment

To protect your laser machine (and your investment), this chiller includes multiple built-in safety features: compressor delay protection (prevents damage from frequent startups), overcurrent protection (shields electrical components), water flow anomaly alarm (triggers if circulation is interrupted), and over-temperature alarm (halts operation if temperatures exceed safe levels). These protections not only extend the chiller’s lifespan but also reduce the risk of costly laser tube replacements.

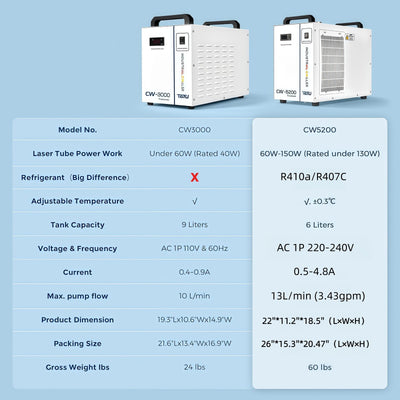

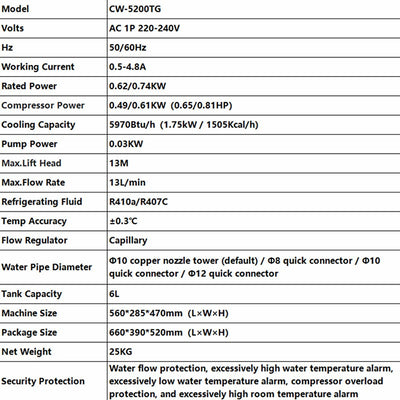

Specifications:

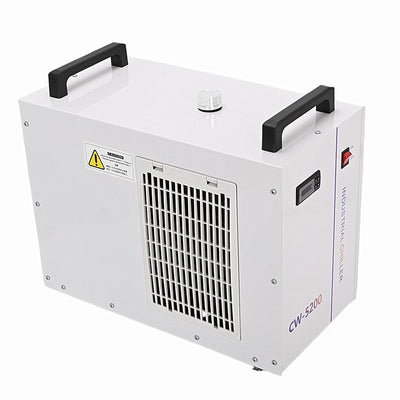

Model: CW-5200TG

Volts: AC 1P 220-240V

Hz: 50/60Hz

Working Current: 0.5-4.8A

Rated Power: 0.62/0.74KW

Compressor Power: 0.49/0.61KW（0.65/0.81HP）

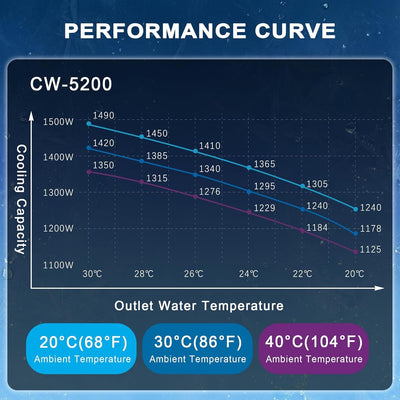

Cooling Capacity: 5970Btu/h（1.75kW / 1505Kcal/h）

Pump Power: 0.03KW

Max.Lift Head: 13M

Max.Flow Rate: 13L/min (3.43gpm)

Refrigerating Fluid: R410a/R407C

Temp Accuracy: ±0.3℃

Flow Regulator: capillary

Water Pipe Diameter: Φ10 copper nozzle tower (default) / Φ8 quick connector / Φ10 quick connector / Φ12 quick connector

Tank Capacity: 6L

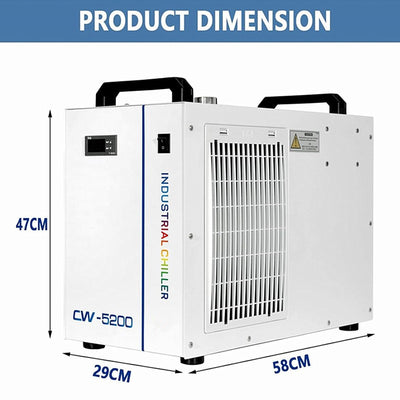

Machine Size: 560*285*470mm（L×W×H）

Package Size: 660*390*520mm（L×W×H）26''*15.3''*20.47''

Net Weight: 25KG

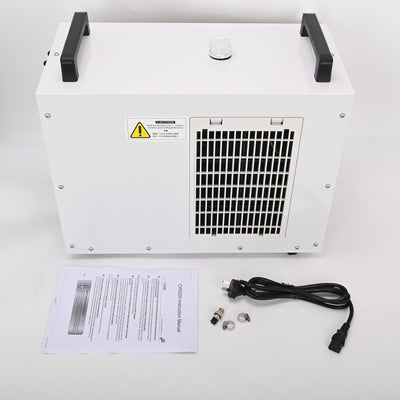

Package includes:

1* Water Chiller

1* AU Plug
