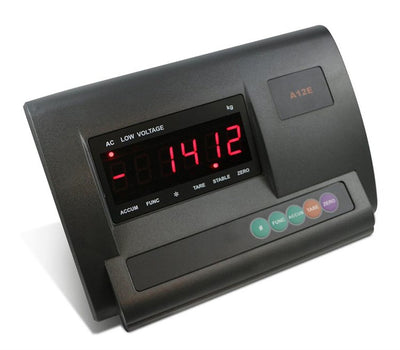

#1: Can not connect to the computer, Manual weight locking

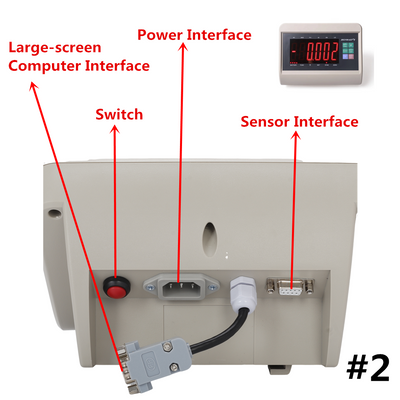

#2: Can connect to the computer, Automatic weight locking

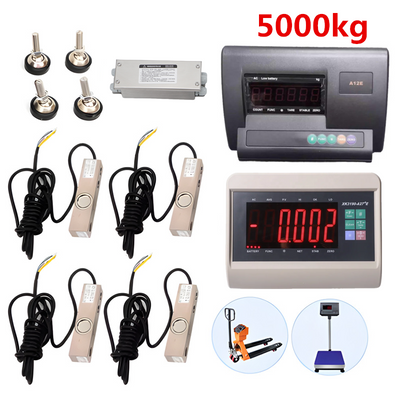

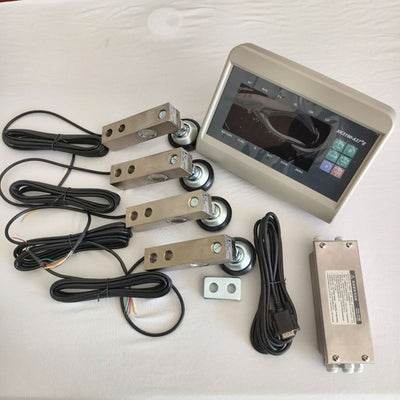

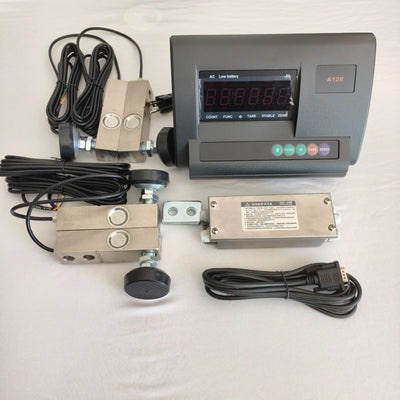

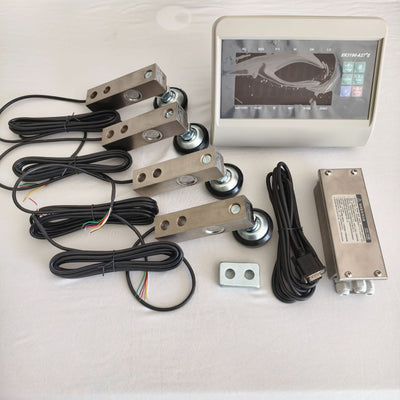

Packing List :

1 pcs indicator

4pcs sensors (with foot and pad )

1pcs junction box

1pcs cable

After receiving the goods, you can manually assemble a small, accurate and durable weighing scale for yourself by using these five accessories and your own weighing table.

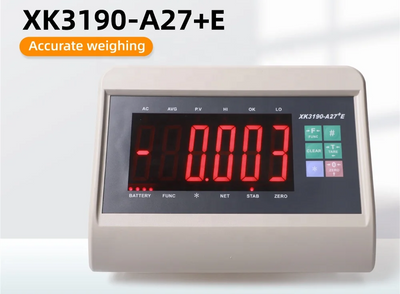

(1) Instrument (including power line): high precision ,good quality, durable! It is widely used for Livestock weighing with stabilized readings when weighing livestock.

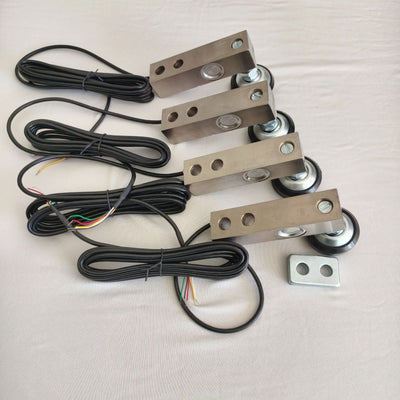

(2) Sensor: 4PCS of sensors used for a scale surface.

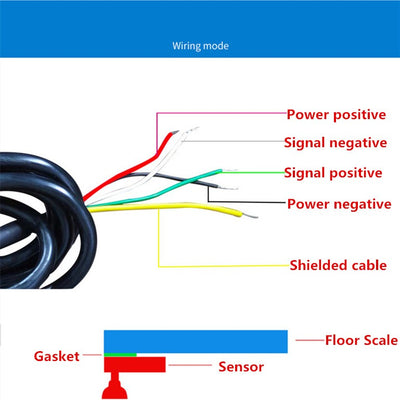

(3) The connecting line length (3 meters): one end is connected to the terminal box, the other end is connected to the instrument. The sensor wires will be connected according to the color of the main line'order and position

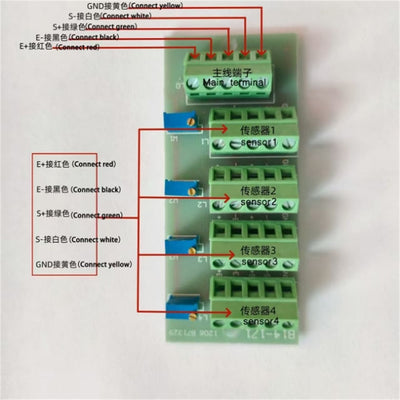

(4) Junction box: configure four-in and one-out. All you need is these weighing accessories and your own weighing surface to make a complete, accurate and durable small weighing scale.

Material: Alloy steel, Plastic

load cell capacity: 2000kg

Load capacity of whole load cells: 5000kg

Accuracy: 1/3000

Power supply：AC220V and built-in Rechargeable Battery DC 6V/2.8Ah

Power supply: AU Plug

Unit type: kg, lb

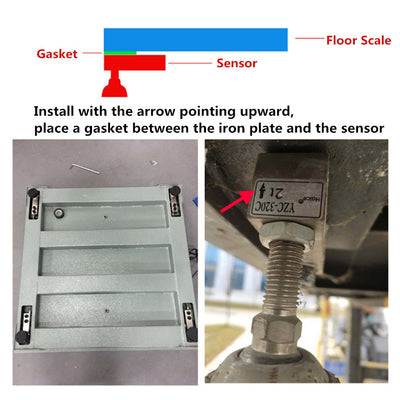

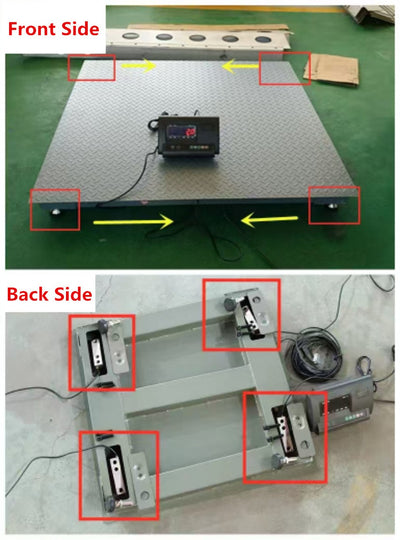

Detail 1: There are arrows on the sensors. after you install all of the sensors, put the scale weight horzontally,make sure the arrows on the sensor are upward. Don't install them wrong.

Detail 2: Pay attention to the position of the gasket in the picture above. The purpose of putting the gasket is to keep a gap between the sensor side and the weighing surface.

5T DIY Livestock Scale Kit Electronics Floor Scale Weighing Sensor for Animal AU
