Note: The oil inlet and return ports of the multi-way valve must be connected correctly. The return oil port of the multi-way valve must be connected to the oil tank; otherwise, the back pressure will be too high and oil leakage will occur.

FEATURES:

【4 Spool Hydraulic Flow Valve】Equipped with 4 spool and G1/2" type inlet/outlet. The hydraulic system has a maximum pressure of 3600psi and a maximum flow rate of 11GPM.

【Double action】Our hydraulic control valve is used to operate the double action cylinder, which is more convenient and practical to use.

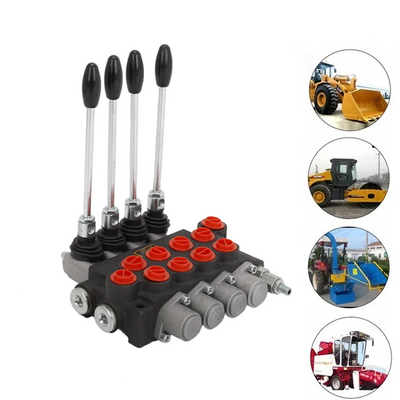

【Wide Application】This hydraulic direction control valve can be used in small tractors, tractor loaders, logging diverters and other machinery. To meet your use needs on different machines.

【Parallel Oil Circuit】Using parallel oil circuit, manual control, valve closed, through the pressure outlet connected to other hydraulic components to provide power.

【Spring Reset】All hydraulic flow control valves are equipped with spring reset, gently shake can be reset to the middle neutral position, simple and convenient operation.

【Easy Installation】Hydraulic flow control valve installation is very simple. Identify the interface, connect the oil circuit, tighten a pipe interface, and the installation is complete. After a long period of use, remember to stop and release pressure for safety reasons.

SPECIFICATION:

Body - Cast Iron

Relief Valve Setting：250Bar Max

Temperature Range ：-40℃- 80℃

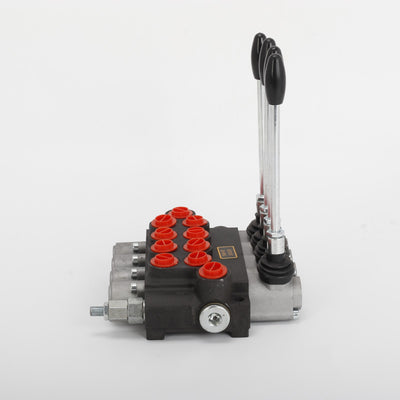

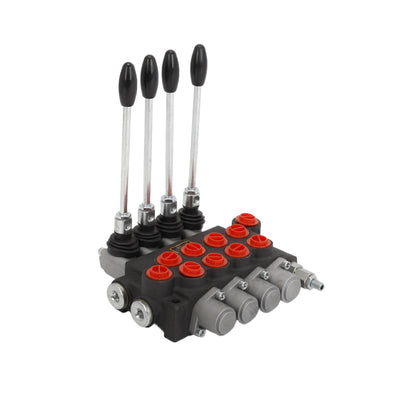

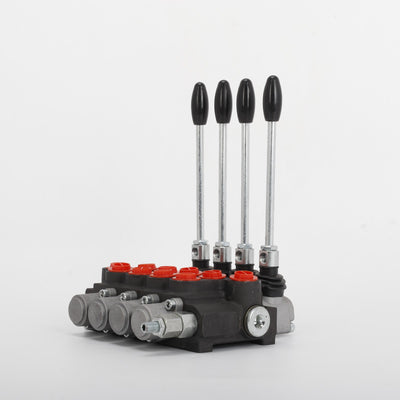

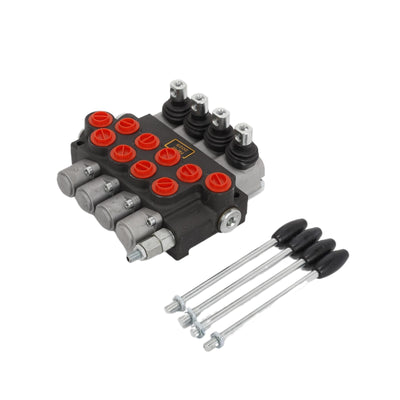

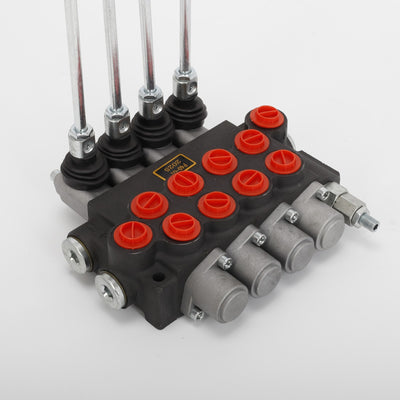

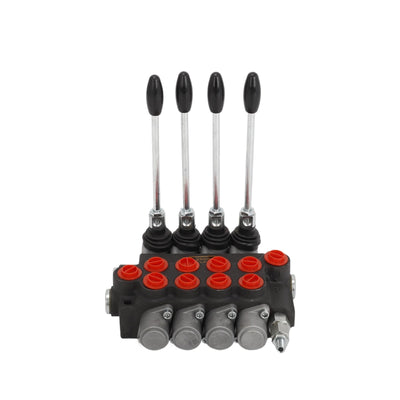

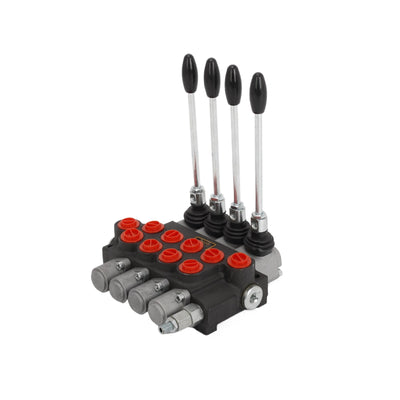

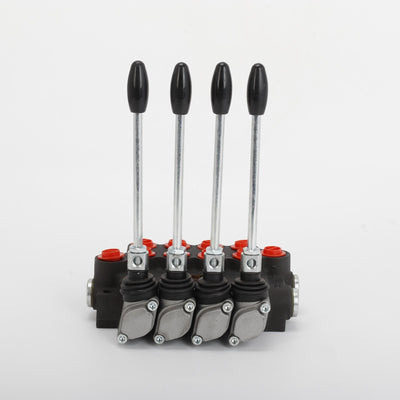

4 Spool P40 Tractor Loader Hydraulic Directional Control Valve With Joystick
