Specification:

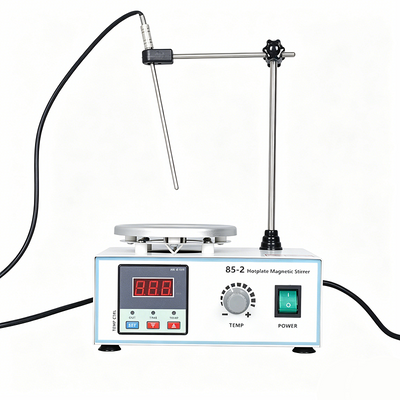

Model: 85-2

Voltage and frequency: 110V 60Hz / 220V 50Hz

Temperature control range: RT5 ~ 100℃

Rotation speed range: 300 - 2500 rpm

Timing range: 99.9 minutes

Motor type: Brushless motor

Motor power: 15W

Display method: LED display

Worktable size: φ120

Work capacity: 2000ml

Heating power: 250W

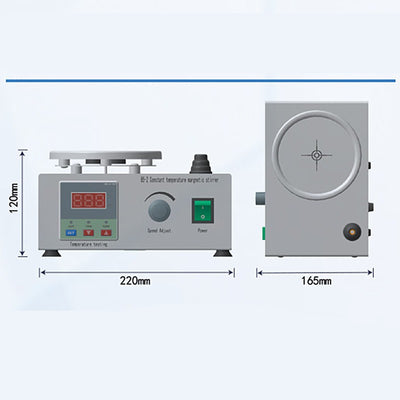

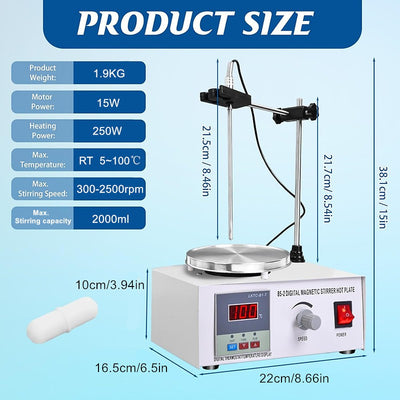

Machine size: 220*165*120mm

Packaging size: 250*190*155mm

Net weight / Gross weight: 1.6 / 1.9KG

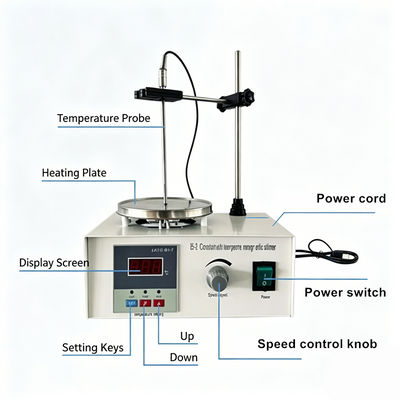

Usage steps:

1. Place the machine on a flat workbench and insert the power cord into the power socket that matches the voltage indicated on the machine.

2. Place the experimental beaker solution that matches the model of the machine steadily at the center coordinate position of the heating plate. Confirm that it is placed stably and proceed to the next step.

3. Turn on the POWER power switch. The display screen will light up.

4. Press the SET button to enter the temperature setting mode. In this mode, you will see the display screen flashing. Press the downward button to increase the time, and press the downward button again to decrease the time.

5. After setting the time, press the SET button again to start heating.

6. Insert the temperature probe into the solution. The display screen will show the temperature of the solution.

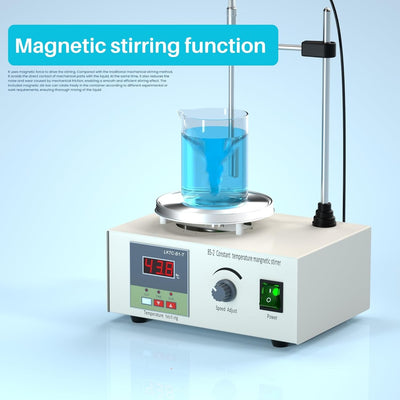

7. Put the stirrer into the solution and rotate the SPEED speed button clockwise to start stirring the solution.

8. When the experiment meets the requirements, turn off the SPEED speed button, turn off the POWER power switch, pull out the power cord plug, and the entire machine will cut off the power supply.

About this item:

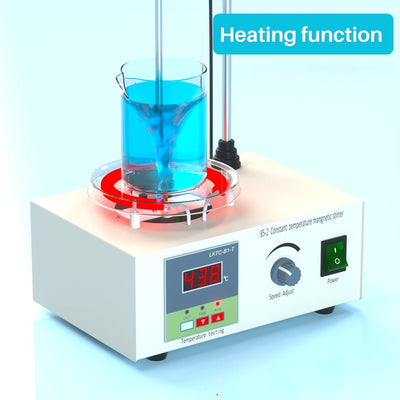

Magnetic Stirrer with a stainless steel hot plate of great thermal conductivity to evenly and rapidly heat up to 100℃/210℉, while resistant to corrosion, rust, and wear

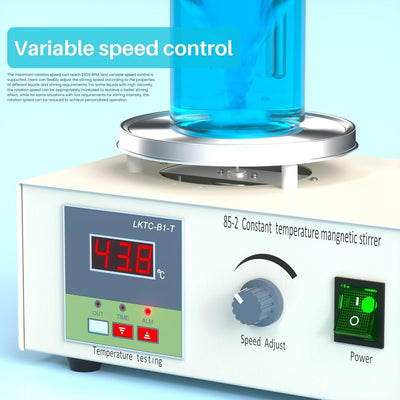

Magnetic Stirrer equipped with a pure copper DC motor that offers a stepless variable speed up to 2500rpm simply controlled by one rotary knob

Magnetic Stirrer Hot Plate comes with a stirr bar to steadily mix up to 2000ml liquid

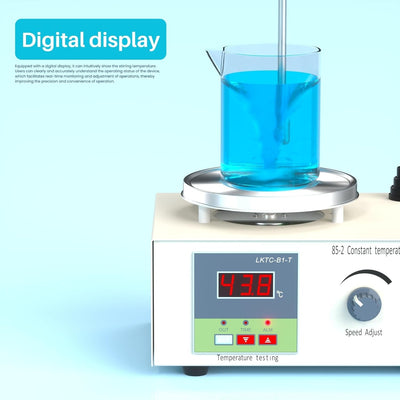

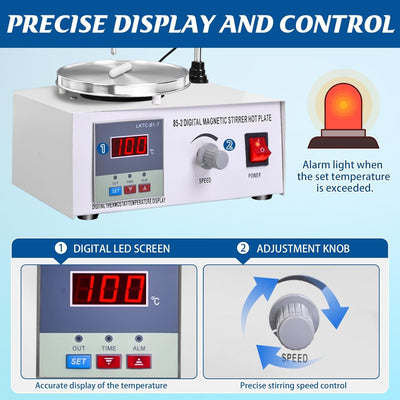

Magnetic Stirrer features a digital display to clearly and accurately show the temperature, and a concise operating panel, with an indicator light for safety alarm

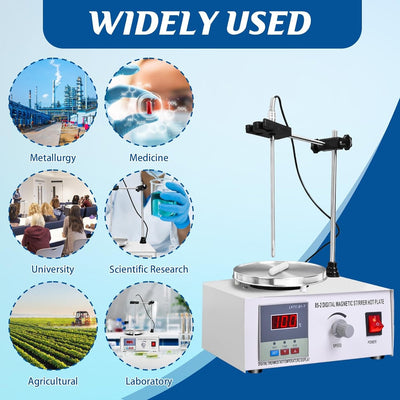

Magnetic Stirrer Hot Plate widely used in labs, agricultural and industrial scenarios, research institutions, skincare industry, etc

Package includes:

1*Machine

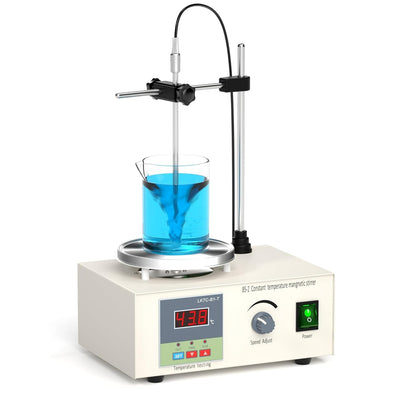

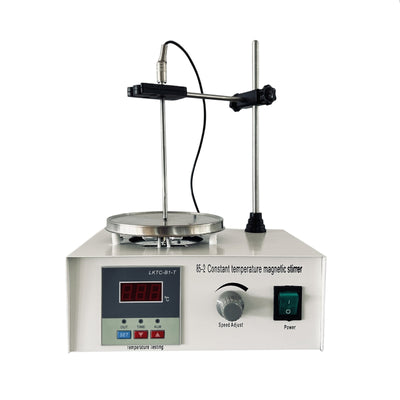

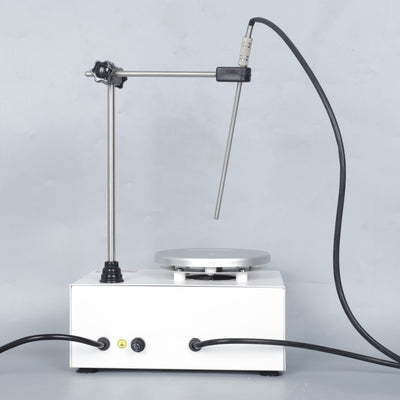

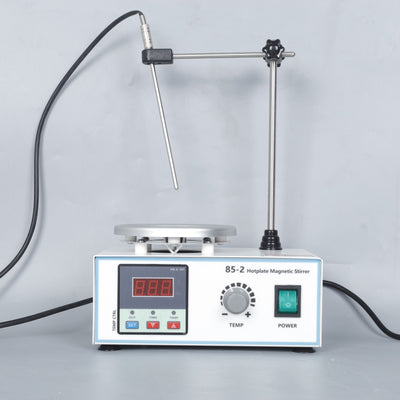

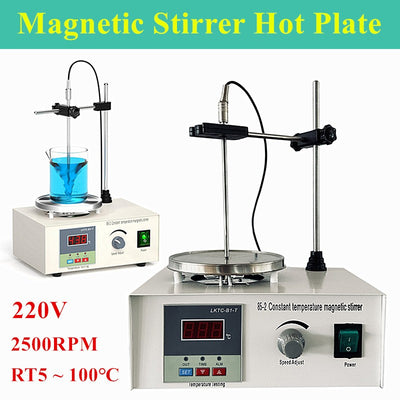

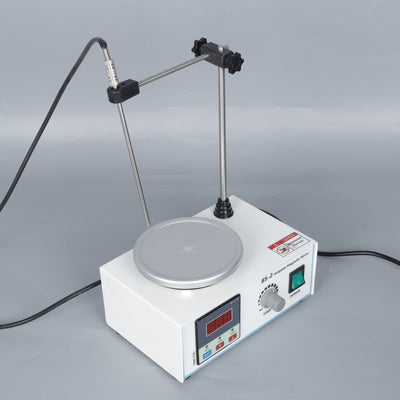

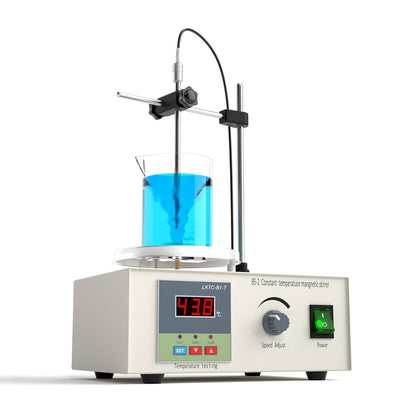

2L Magnetic Stirrer Hot Plate with Digital Temperature Display & Speed Adjusting
