Specifications

Model: Hydraulic Control Valve

Max operating pressure: 3600psi

Nominal flow: 11gpm (40l/min)

Relief valve: Adjustable

Center system: Open

A, B ports: 3/8" BSPP

P, T, N port: 1/2" BSPP

Details：
DOUBLE ACTING：- Our hydraulic control valve is made for operating double-acting cylinders.

DURABLE QUALITY：- This hydraulic directional control valve comes with2 spool with cast iron construction for long-time use.

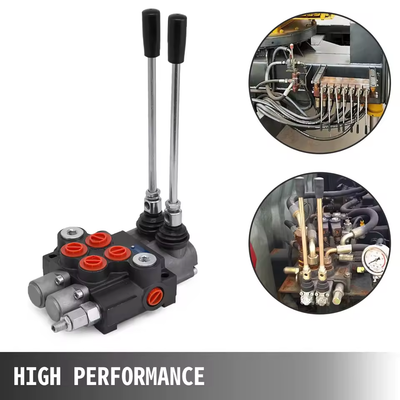

HIGH PERFORMANCE：- This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.

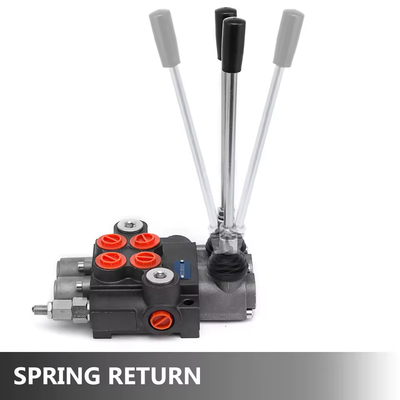

SPRING RETURN：- All spool valves come with spring return, which can return to the neutral position.

WIDELY USED：- This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc.

The compact design of the 2-spool valve can manage and direct hydraulic oil flow in between hydraulic pumps and hydraulic cylinders, motors, tanks, etc. The adjustable release valve and durable cast iron body are easy to use. All spools are standard double acting with spring return in the neutral position.

Package:

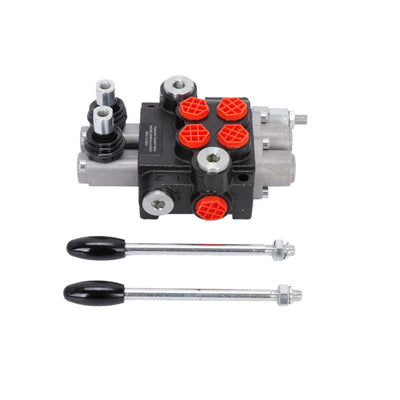

1 x 2 Spool Hydraulic Directional Control Valve 11 GPM Double Acting Cylinder Spool

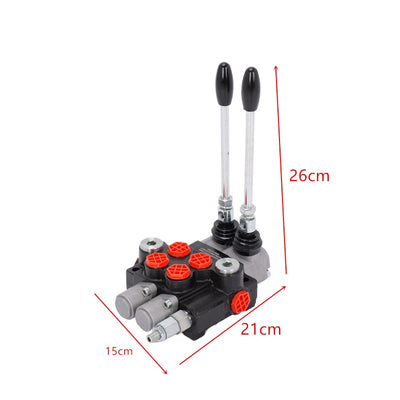

2-Spool Hydraulic Directional Control Valve Ports Double Acting 40l/min
