DESCRIPTION:

1-inch Stainless Steel Water Hammer Pump, Pumping Water from Creeks or River Dams with Water Levels, without Using Electricity

Descriptions:

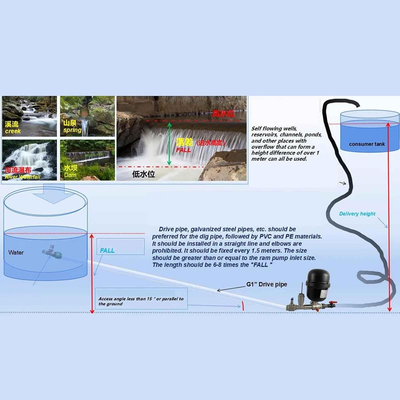

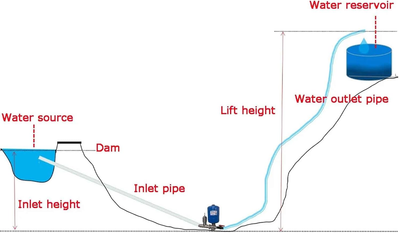

The ram pump is an ancient technology that allows you to pump water from a stream or river dam with a water level difference; the ram pump needs 18-30 litres of water per minute to operate

To ensure the normal operation of the pump, the water inlet height must be at least 1.5 meters, and the optimal water inlet height range is between 3 and 7 meters

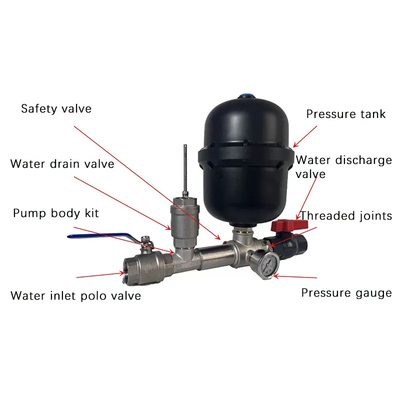

Features:

Updated structural design, higher operating efficiency

Made of stainless steel, ensuring durability and safety

All accessories can be quickly replaced for easy maintenance, and the number of drain valves can be flexibly increased

The pressure gauge with silicone oil resistance protection reduces vibration damage and pressure gauge performance during water pump operation

The pressure range material is made of food-grade polymer plastic integrated injection moulding, which is corrosion-resistant and never rusts

Specifications:

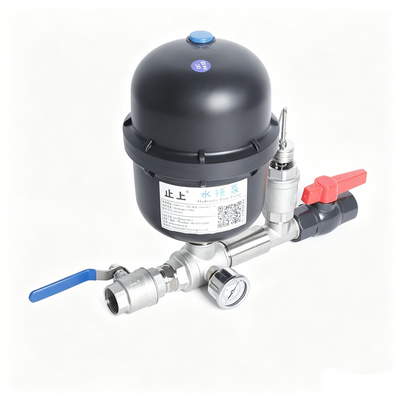

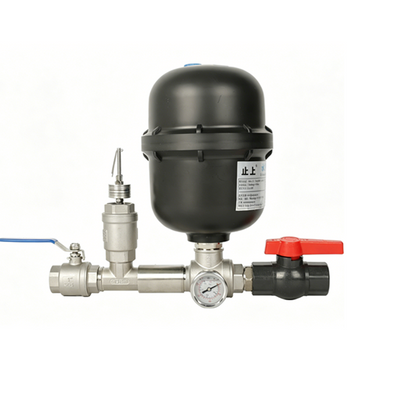

Name: 1-inch stainless steel gun-type water hammer pump

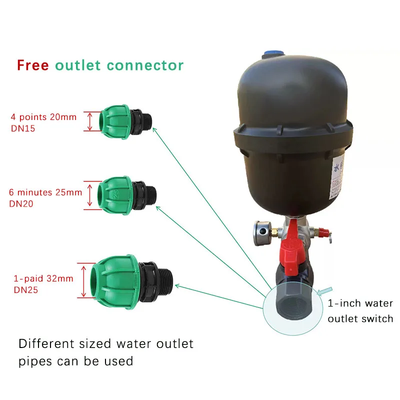

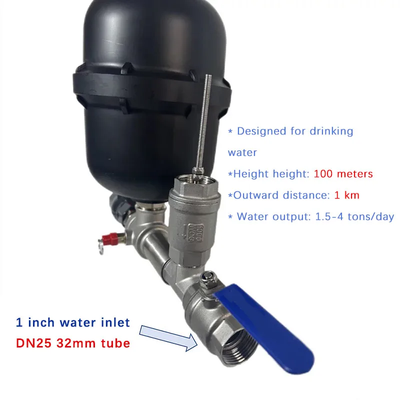

Water inlet size: DN25; 32mm pipe

Water outlet size: DN15; 20mm pipe

Water inlet height (drop): minimum 1.5 meters, maximum 10 meters

Optimum height (drop): 3 to 7 meters

Lift: 1-15 times the drop, less than 100 meters

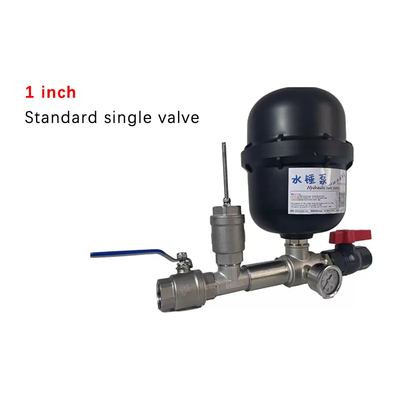

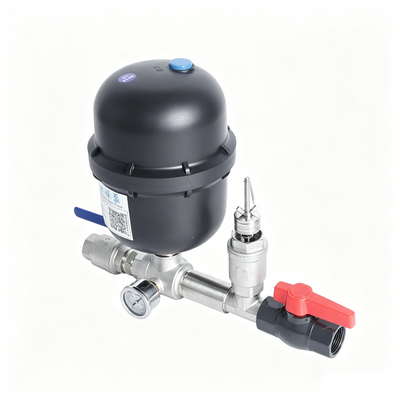

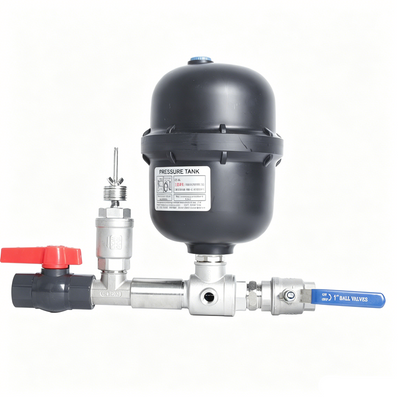

1-inch Single Valve Hydraulic Ram Pump Stainless Steel Water Hammer Pump
